USER MANUAL WM 1042 CB1 TECHWOOD

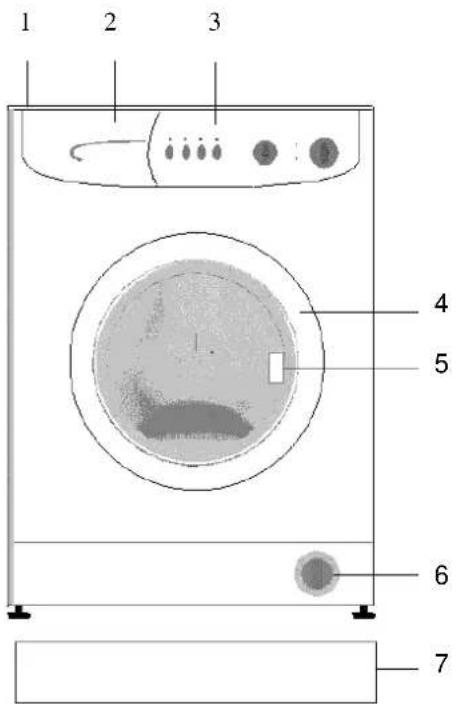

1-Upper tray 5-Handle 2-Detergent drawer 6-Filter cover 3-Control panel 7-Kickplate 4-Door

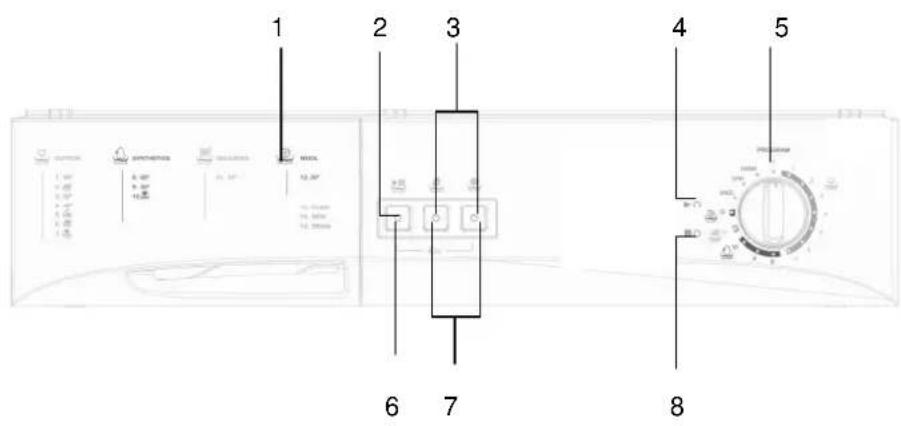

Used to start a selected program or pause during running. WARNING! It is required for the program knob to be brought to O(off) position before selecting the program or changing a continuing program.

FUNCTION INDICATOR LIGHTS

When the start/pause button or any function button is pressed,the corresponding light turns on.The light turns off when the function button or start/pause button is re-pressed, or when the process the selected function is completed. The function indicator lights are also used in failure detection system mentioned in section 9. FUNCTION BUTTONS No spin This program is recommended to be used for your sensitive clothes on which no spinning should be done. By pressing this function button, you can cancel the spinning process which is included in the program. Cold wash When this button is pressed, your clothes are washed with cold water. With this function, you can wash your slightly dirty clothes using less energy and water. 35WARNING! Functions vary depending on the model you have chosen.If you forgot to use additional function and your machine starts to wash push the additional function button if the indicator light is on. Additional function will be activated.If the indicator light is not on,additional function will not be activated. PROGRAM KNOB With the program knob, you can select the program with which you desire to wash your clothes. You can adjust the program selection process by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. When you bring the program knob to O(off) position, while your machine is running, your program will remain incomplete. 36PROGRAM DETERGENT COMPART.

442/542/642/842/1042 13-RINSING When you need an additional rinsing to be done to your clothes after the washing process, you can use this program for all kinds of clothes. 14-SPINNING When you need an additional spinning to be done to your clothes after the washing process, you can use this program for all kinds of clothes. 15-DRAINING This program is used to drain the dirty water inside after the washing process of your machine. If you want the water inside your machine to be drained before the program ends, you can use this program. TABLE-1 CONTINUE (*) You can use softeners in all programs (except spinning and draining programs) optionally. When you arrange the quantity of the softener, comply with the warning of the softener producer. Fill your softener in its (softener) compartment of the detergent drawer. ** Energy label data based on programme tested in accordance with EN60456.

42SECTION 7:PRACTICAL INFORMATION

Alcoholic beverages: The stain point, should first be washed with cold water, than should be wiped with glycerine and water and be rinsed with water mixed with vinegar. Shoe Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed. In case it is not eliminated, it should be rubbed with 1 unit of pure alcohol (96 degrees) mixed in 2 units of water and then washed with lukewarm water. Tea and coffee: Stretch the stained area of your cloth on the top of a container and pour water as hot as the type of your cloth can endure on it. If the type of your cloth is suitable,wash it with lye. Chocolate and cocoa: By leaving your clothes in cold water and rubbing with soap or detergent, wash it in the highest temperature that the type of your cloth can endure. If there is still a stain of oil left, wipe with oxygenated water (in proportion of 3%). Tomato paste:After scraping the dried pieces without ruining the cloth, leave in cold water for about 30 minutes and wash by rubbing with detergent. Meat broth-egg: Eliminate the dried stain residues and wipe with a sponge or soft cloth wetted in cold water. Rub with detergent and wash with diluted lye. Grease and oil stains: First wipe the residues. Rub the stain with detergent and then wash with lukewarm soapy water. Mustard: First apply glycerine to the stained area. Rub with detergent and then wash. If the stain still does not disappear, wipe with alcohol (On synthetic and coloured cloth, a mixture of 1 unit alcohol, 2 units water should be used) Blood stain: Lay your clothes in cold water for 30 minutes. If the stain still does not disappear, lay in mixture of water and ammonia (3 table-spoons of ammonia in 4 liters of water)for 30 minutes. Cream, ice-cream and milk: Lay your clothes in cold water and rub the stained area with detergent. If the stain has still not disappeared, apply lye on the fabric of your clothes in proper proportion.(Do not use lye on coloured clothes.)

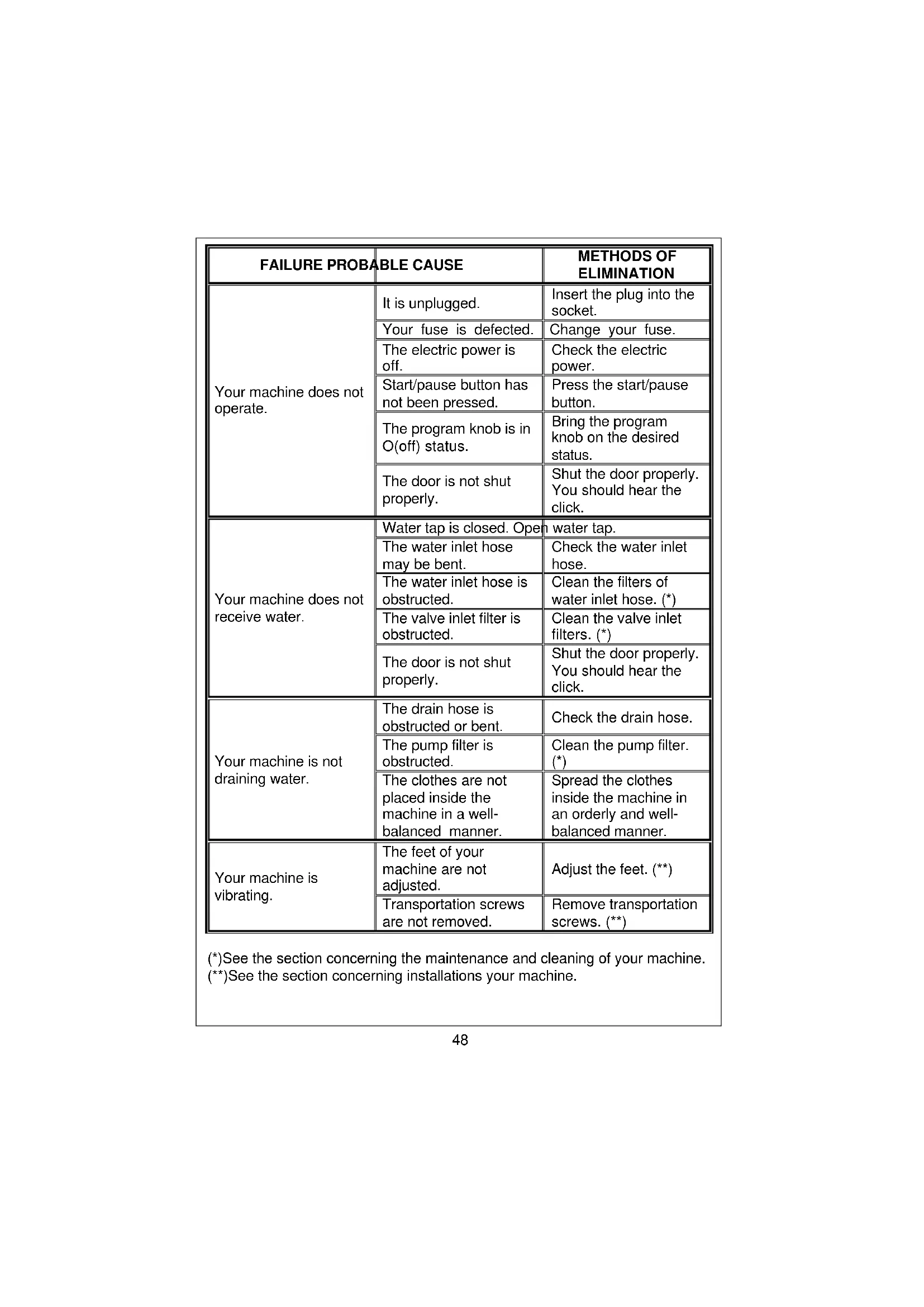

46FAILURE PROBABLE CAUSE

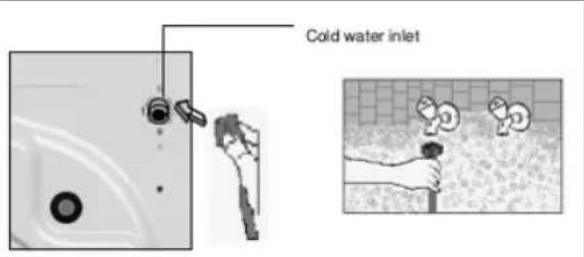

METHODS OF ELIMINATION Your machine does not operate. It is unplugged. Insert the plug into the socket. Your fuse is defected. Change your fuse. The electric power is off. Check the electric power. Start/pause button has not been pressed. Press the start/pause button. The program knob is in O(off) status. Bring the program knob on the desired status. The door is not shut properly. Shut the door properly. You should hear the click. Your machine does not receive water. Water tap is closed. Open water tap. The water inlet hose may be bent. Check the water inlet hose. The water inlet hose is obstructed. Clean the filters of water inlet hose. (*) The valve inlet filter is obstructed. Clean the valve inlet filters. (*) The door is not shut properly. Shut the door properly. You should hear the click. Your machine is not draining water. The drain hose is obstructed or bent. Check the drain hose. The pump filter is obstructed. Clean the pump filter.

The clothes are not placed inside the machine in a well- balanced manner. Spread the clothes inside the machine in an orderly and well- balanced manner. Your machine is vibrating. The feet of your machine are not adjusted. Adjust the feet. (**) Transportation screws are not removed. Remove transportation screws. (**) (*)See the section concerning the maintenance and cleaning of your machine. (**)See the section concerning installations your machine.

48FAILURE PROBABLE CAUSE

METHODS OF ELIMINATION Your machine is vibrating. There is a small amount of clothes in the device. It does not prevent operation of the machine. Excessive amount of clothes are filled in the machine or the clothes are not placed in a well-balanced manner. Do not exceed the recommended quantity of clothes and spread your clothes in the machine in a well- balanced manner. Your machine touches a ripid object. Prevent your machine’s leaning on a tough place . Excessive foam in the detergent drawer. Too much detergent has been used. Press the start/pause button.In order to stop the foam,dilute one table-spoon of softener in half liter of water and pour it in the detergent drawer.Press the start/pause button after 5-10 minutes.Arrange the amount of the detergent properly in the next washing process. Wrong detergent has been used. Use only the detergents produced for full automatic machines. The washing result is bad. Your laundry too dirty for the program you have selected. Select a suitable program. (see Table-1) The amount of detergent used is not sufficient. Use more detergent according to the detergent.

49FAILURE PROBABLE CAUSE

METHODS OF ELIMINATION The washing result is not good. Clothes exceeding the maximum capacity has been filled in your machine. Put the clothes in your machine in a manner not to exceed its maximum capacity. Your water may be hard. Use the amount of detergent according to the declaration of the detergent producer. Distribution of the clothes in your machine is not well- balanced. Spread the clothes inside the machine in an orderly and well- balanced manner . The water is drained from the machine as soon as it is filled. The end of the water drain hose is in a position too low according to the machine. Place the water drain hose in an appropriate height.(**) No water is seen in the drum during washing. No failure. The water is at the lower part of the drum.

There are residues of detergent on the clothes. The pieces of some detergents which do not dissolve in water may stick to your clothes as white stains. By calibrating your machine for “Rinsing” program,make an additional rinsing or eliminate the stains After drying with the help of a brush. There are gray stains on the clothes. These stains may be caused by oil,cream or ointment . In the next washing operation, use the maximum detergent amount declared by the detergent producer. (**) See the section concerning instalations your machine.

50FAILURE PROBABLE CAUSE

METHODS OF ELIMINATION The spining process is not done or starts with delay . No failure. The unbalanced load control may works in that way. The unbalanced load control system will try to distribute your clothes in a homogenous manner. After your clothes are distributed, passage to spining process will be realized.In the next washing process,place your clothes into the machine in a well- balanced manner.

SECTION 9: AUTOMATIC FAILURE DETECTION SYSTEM

Your machine is equipped with systems which will both take the necessary precautions and warn you in case of any failure by controlling it self constantly during the washing processes. FAILURE CODE FAILURE INDICATOR PROBABLE FAILURE THE PROCESS

Err 01 The start/pause light blinks. The door is not shut properly. Shut the door properly so that you hear the click. If the problem persists, turn off the machine unplug and apply to the nearest authorized service immediately. 51FAILURE CODE FAILURE INDICATOR PROBABLE FAILURE THE PROCESS

Err 02 The program ready light blinks. The water level in your machine is below heater. The pressure of your water supply may be low or locking. Turn on the tap to the end.Water may be cut, check it.If the problem is still continuing,your machine will automatically stop after a while.Unplug your machine, turn off the tap and apply to the nearest authorized service. Err 03 The start/pause light and program ready light blinks . The pump has failed or the pump filter is obstructed. Clean the pump filter.If the problem persists,apply to the nearest authorized service.(*) Err 04 The program end light blinks . Communication error Shut down your machine and unplug. Turn off your tap and apply to the nearest authorized service. (*) See the section regarding the maintenance and cleaning of your machine. 52FAILURE CODE FAILURE INDICATOR PROBABLE FAILURE THE PROCESS

Err 05 The start/pause light and program end light blink. The heater of your machine or the heat sensor has failed. Shut down your machine and unplug. Turn off your tap and apply to the nearest authorized service. Err 06 The program ready light and program end light blink. The motor has failed. Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service. Err 07 The program start/pause light, ready light and program end light stays on permanently. Configuration error. Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service. Err 08 The start/pause light,program ready light and program end light blink. Fault error Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service. Err 09 The program ready light and program end light stays on permanently. The network voltage is too high or too low. If the network voltage is lower than 150V or higher than 260V, your machine will automatically stop. When the network voltage is recovered, your machine will continue its operation.

53SECTION 10: INTERNATIONAL WASHING SIGNS

Washing temparature. Do not wash (hand wash) Lukewarm iron. Med ium hot iron. Hot iron. Do not iron. Do not tumble dry. Hang to dry. Drip dry. Dry flat. Do not bleach. Handy to bleach. All of these are dry cleaning symbols. The letters are to instruct the cleaner what type of solvent to be used. Garments bearing these symbols should not be washed in your machine unless the label says otherwise.
