Product type CRT Monitor
Brand LaCie
Model 312
Category Monitor
Display technology CRT
Screen size (diagonal) 19 inches
Maximum resolution 1600 x 1200 pixels
Connectivity VGA (D-Sub 15-pin)
Power supply 100-240 V AC, 50/60 Hz
Power consumption 100 W (max)
Weight 20 kg
Dimensions (W x H x D) 450 x 450 x 450 mm
Main features Geometric adjustments, degaussing, vacation switch, anti-glare visor
Maintenance and cleaning Clean with a soft, dry cloth. Do not use abrasive products.
Safety Unplug before cleaning. Do not open the case. Risk of electric shock.
Spare parts and repairability Contact LaCie technical support for any repairs.
Included accessories VGA cable, power cable, anti-glare visor, utilities CD-ROM
General information User guide and instruction manual available in PDF format. Product registration recommended at www.lacie.com/register

Frequently Asked Questions - 312 LACIE

How to install the LaCie 312 monitor?
Turn off the computer. Connect the video cable to the monitor and then to the computer. Connect the power cable to the monitor and to a wall outlet. Turn on the computer, the monitor, and the vacation switch located on the left side of the monitor. For detailed instructions, refer to the user manual on the CD-ROM.
How to install the visor provided with the monitor?
Lift the visor behind the monitor and insert the clasp onto the handle. Once securely attached, lower the center panel forward. Lift the side panels and attach the Velcro pads to the monitor and the visor. For calibration, unfold the visor to place the calibrator.
What to do if the image is blurry or distorted?
Check cable connections. Use the monitor's geometric adjustments (via control buttons) to adjust size, position, and sharpness. If the problem persists, perform a manual degaussing (dedicated button) or consult the manual.
How to clean the monitor screen?
Unplug the monitor. Use a soft, dry cloth to wipe the screen. Never use chemicals, alcohol, or abrasive cleaners. For stubborn stains, slightly dampen the cloth with water.
The monitor does not turn on, what to check?
Make sure the power cable is properly connected and that the wall outlet works. Check that the vacation switch on the left side is on. If nothing happens, contact LaCie technical support.
How to calibrate the LaCie 312 monitor?
Unfold the visor to place your calibrator. Use compatible calibration software. Follow the software instructions. The visor reduces reflections during calibration. Refer to the utilities CD-ROM for more details.
Where to find the complete user manual?
The complete manual is on the LaCie display utilities CD-ROM provided with the monitor. You can also download the PDF guide from notice-facile.com.
How to adjust the resolution and refresh rate?
On Windows, go to display settings. On Mac, go to system preferences. Select the recommended resolution and refresh rate (e.g., 1600x1200 at 85 Hz). Avoid exceeding the monitor's limits to prevent damage.
The monitor emits a humming noise, is this normal?
A slight hum may be normal for a CRT monitor due to the transformer. If it becomes loud or irregular, it may indicate a problem. Ensure the monitor is well-ventilated and away from other electronic devices. If the noise persists, contact support.
How to register my LaCie 312 product?
Go to www.lacie.com/register and follow the instructions. Registration gives you access to free technical support and extends the warranty. Have the serial number ready.

User questions about 312 LACIE

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Monitor in PDF format for free! Find your manual 312 - LACIE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 312 by LACIE.

USER MANUAL 312 LACIE

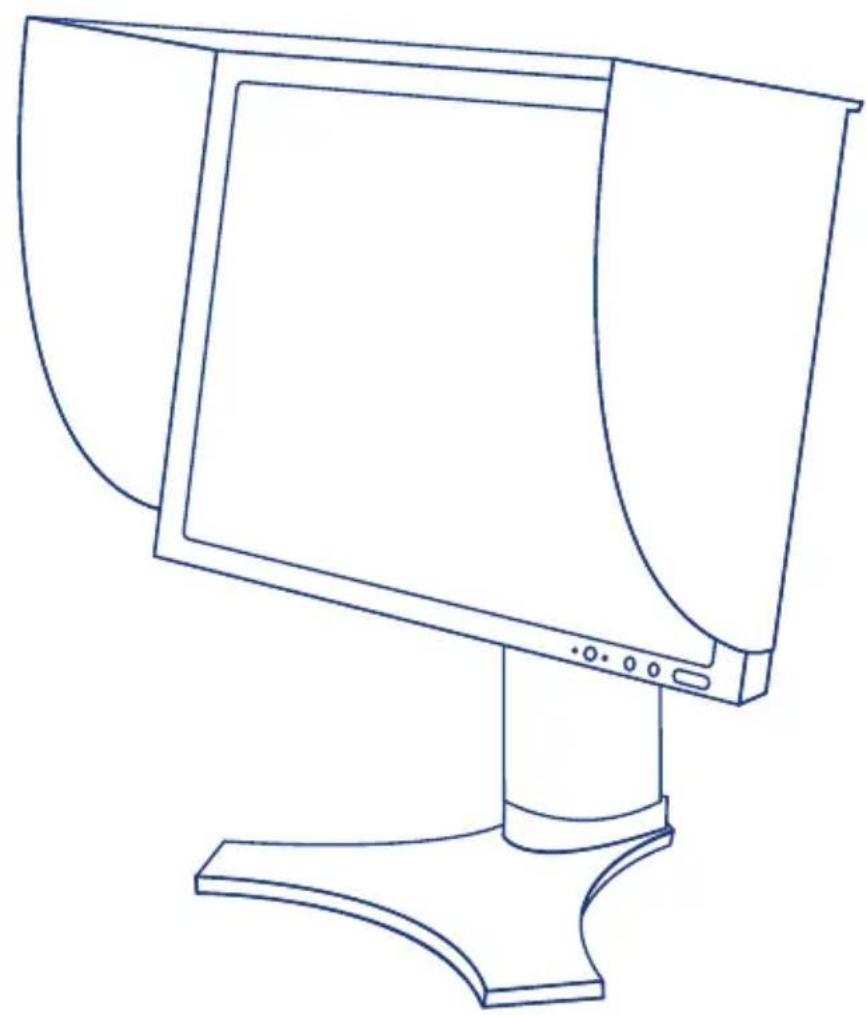

LaCie 300 Series LCD Monitor

LACIE 312 - LaCie 300 Series LCD Monitor - 1

natural_image Line drawing of a computer monitor with a curved screen and base mount (no text or symbols)

LACIE

Quick Install Guide

PACKAGE CONTENTS

• LaCie 300 Series LCD Monitor
- Power cord
- Screws
• DVI Video cable
• DVI-VGA cable
- Cable cover
• LaCie Monitor easyHood
- LaCie Display Utilities CD-ROM (including LaCie blue eye pro Calibration Software and User Manual)
- Quick Install Guide
- Pivot Pro Software

LACIE 312 - PACKAGE CONTENTS - 1

natural_image Line drawing of a flat-screen computer monitor with a stand (no text or symbols)

Protect your investment - register for free technical support: www.lacie.com/register

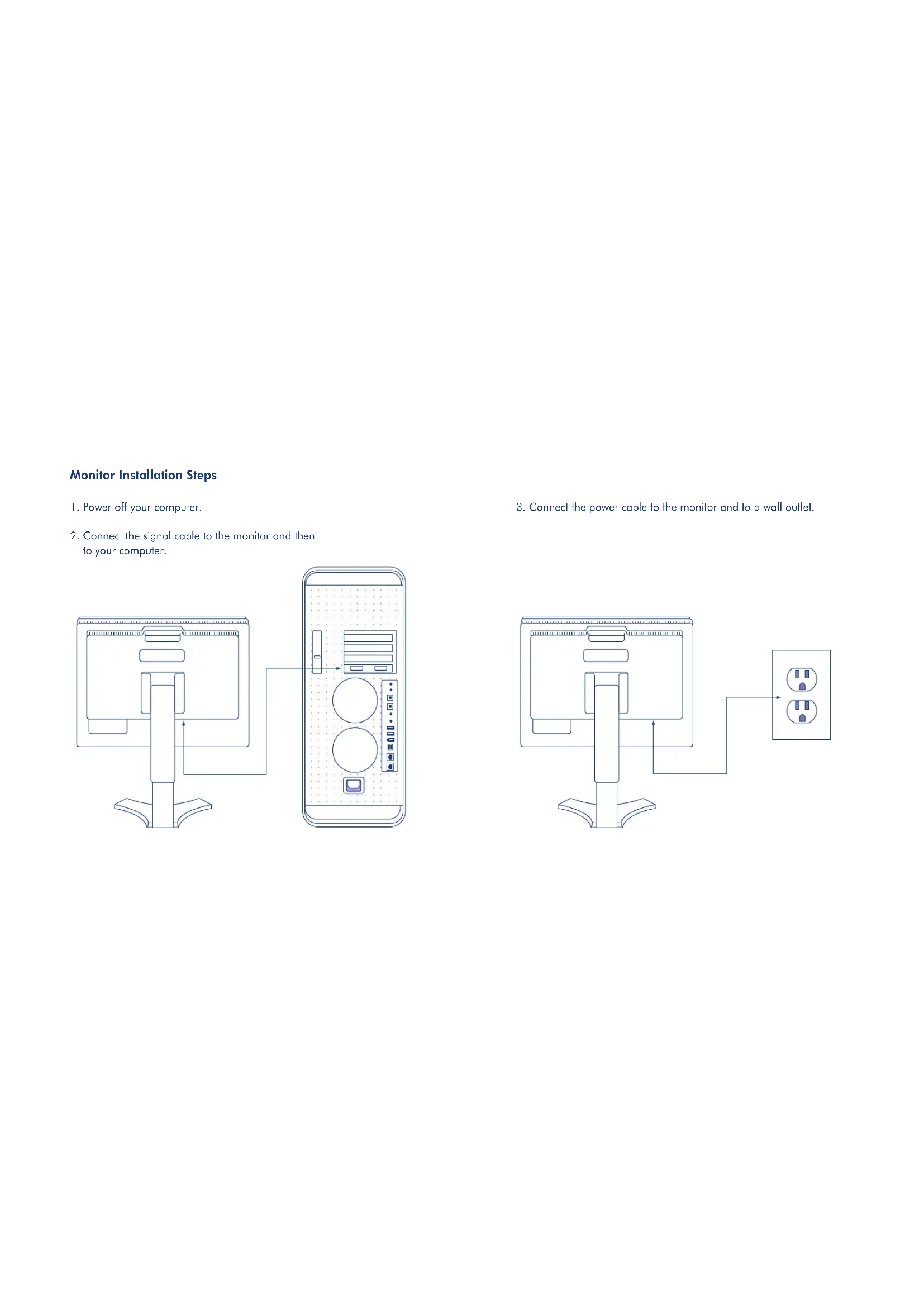

Monitor Installation Steps

  1. Power off your computer.
  2. Connect the signal cable to the monitor and then to your computer.

LACIE 312 - Monitor Installation Steps - 1

natural_image Diagram showing a computer monitor connected to a desktop computer via a cable, with no visible text or symbols.

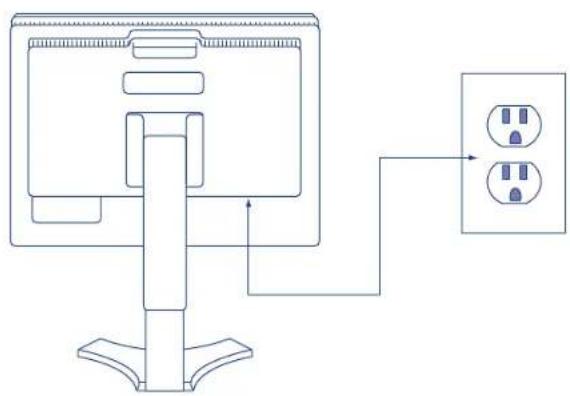

  1. Connect the power cable to the monitor and to a wall outlet.

LACIE 312 - Monitor Installation Steps - 2

natural_image Diagram of a computer monitor with an outlet and cable, showing internal components and wiring (no text or labels)

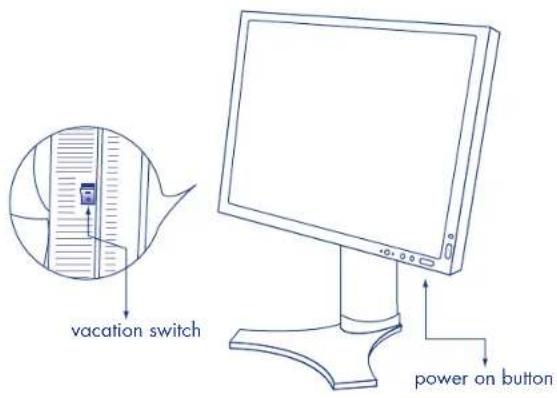

  1. Power on your computer, your monitor, and the "vacation switch" on the left side of the monitor.

LACIE 312 - Monitor Installation Steps - 3

text_image vacation switch power on button

Refer to the User Manual located on the LaCie Display Utilities CD-ROM for complete instructions.

Hood Installation Steps

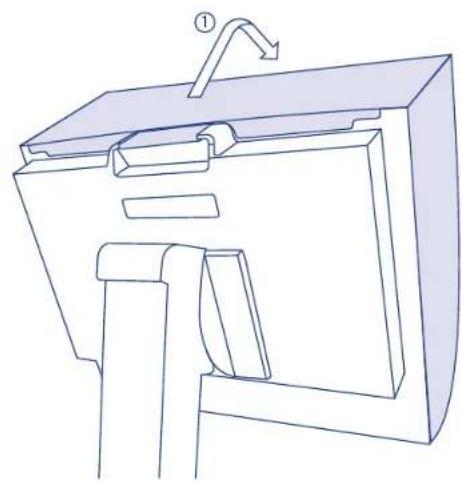

  1. Lift the hood behind the monitor and insert the clasp over the monitor handle. Once the clasp is secured, lower the middle panel forward and into place.

LACIE 312 - Hood Installation Steps - 1

natural_image Technical line drawing of a mechanical device with a handle and base component (no text or symbols)

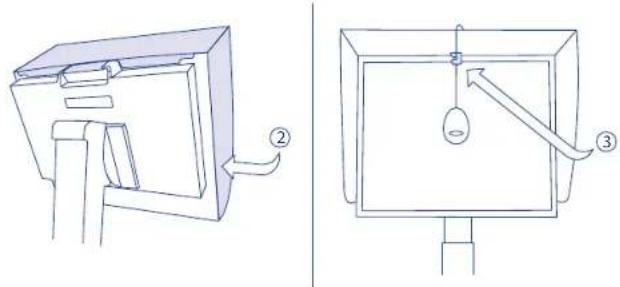

  1. Lift side panels and attach Velcro stickers to the 300 Series monitor so they line up with the Velcro on the hood.

LACIE 312 - Hood Installation Steps - 2

natural_image Technical line drawings of a mechanical device with labeled parts (no text or symbols present)
  1. When calibrating the monitor, simply unfold the hook to attach your calibrator.
