SDME76A - Monitor SONY - Free user manual and instructions

Product type	17-inch LCD monitor
Screen size	17 inches (43,2 cm)
Maximum resolution	1280 x 1024
Dimensions (W x H x D)	382 x 403,2 x 193,2 mm (tilt 5°)
Weight	4,5 kg
Power consumption	38 W max (normal operation)
Power supply	100-240 V AC, 50/60 Hz
Operating temperature	5 to 35 °C
Tilt	5° to 25°
Main functions	OSD settings (backlight, contrast, brightness, gamma, color, sharpness), automatic image adjustment, power saving, input selection (analog/digital depending on model)
Care and cleaning	Clean the LCD screen with a soft cloth, the chassis with a soft cloth lightly dampened with mild detergent. Do not use alcohol, benzene, or abrasive products.
Safety	Do not expose to extreme temperatures, vibrations, dust, or strong magnetic fields. Install on a flat and stable surface.
Spare parts and repairability	Sealed product, no spare parts available. For repair, contact an authorized Sony dealer.
General information	Brand Sony, model SDME76A, VESA 75x75 mm compatible, Plug & Play DDC2B, supplied with power cord, HD15-HD15 video cable, CD-ROM and quick setup guide.

Frequently Asked Questions - SDME76A SONY

How to adjust the screen brightness?

Press the MENU key, select the BRIGHTNESS menu using the ↑/↓ keys, then press OK. Use the ↑/↓ keys to adjust the black level and press OK to confirm.

What to do if the screen shows no image?

First check that the power cord and video cable are properly connected. If the message NO VIDEO INPUT appears, the computer is in power saving mode: press a key on the keyboard or move the mouse. If CABLE NOT CONNECTED appears, reconnect the video cable. If OUT OF FREQUENCY RANGE appears, set the computer resolution to 1280x1024 or lower.

How to clean the LCD screen?

First disconnect the power cord. Clean the LCD screen with a soft, dry cloth. For stains, use a slightly damp cloth with mild detergent. Never use alcohol, benzene, anti-static glass cleaner, or any abrasive products.

How to adjust the monitor tilt?

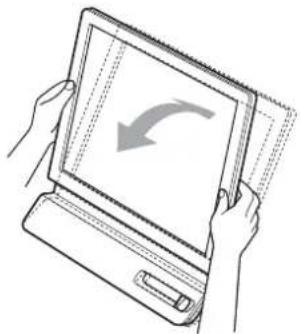

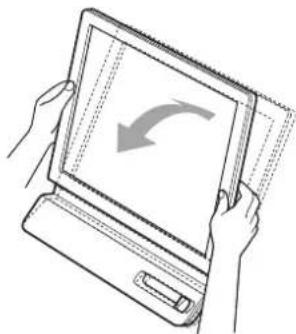

Grasp the lower edges of the screen and gently tilt it forward or backward within a range of 5° to 25°. Be careful not to drop the monitor during this operation.

What does the message 'OUT OF FREQUENCY RANGE' mean?

This message indicates that the input signal exceeds the supported frequencies (horizontal: 28-80 kHz, vertical: 56-75 Hz). Set the computer's graphics card to use a resolution of 1280x1024 or lower, and a refresh rate within the indicated ranges.

How to reset to factory settings?

Press the MENU key, use the ↑/↓ keys to select the additional settings icon (usually after LANGUAGE), then choose RESET. Select OK to reset all settings except the menu language.

Does the monitor support DVI?

The SDME76A model has only an HD15 input (analog RGB). The SDM-E76D and SDM-E96D models are equipped with a DVI-D input (digital RGB) in addition to the analog input. Check your exact model.

How to change the menu language?

Press the MENU key, use the ↑/↓ keys to select the LANGUAGE icon (usually with a globe symbol), press OK, then choose your language from the list (English, French, German, etc.) and confirm with OK.

What to do if the monitor keys do not respond?

If the MENU LOCK icon appears, the menu is locked. To unlock, go to the additional settings menu, select MENU LOCK and set it to OFF. If the problem persists, turn the monitor off and on again.

How to save energy with this monitor?

The monitor complies with ENERGY STAR and VESA DPMS standards. It automatically enters power saving mode (orange standby) after 5 seconds without a signal. To save more, set the brightness and backlight to a comfortable level and use the automatic input detection function (INPUT DETECT) if available.

USER MANUAL SDME76A SONY

This monitor complies with the TCO'03 guidelines.

目次

TCO'03 Eco-document .....i

使用上のご注意

電源について

Simple line drawing of a hand pressing a button with an 'Power' symbol (no text or labels)

Line drawing of a flat tool with a handle and blade, no text or symbols present

ご注意

Hand pressing a button with a power symbol (no text or labels)

コンピュータの電源を入れる。

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

3 調整する。

4 メニュー画面を消す。

9 OKボタンを押す。

メニュー画面に戻ります。

13 OKボタンを押す。

メニュー画面に戻ります。

14 [Next] をクリックする。

画像位置のテストパターンが出ます。

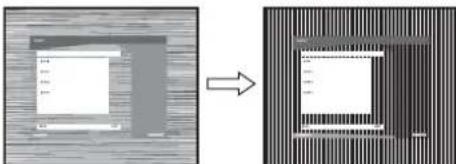

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

8 OKボタンを押す。

メニュー画面に戻ります。

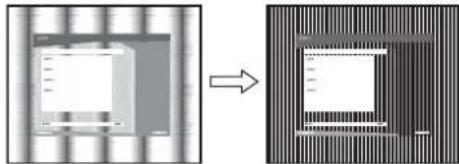

Two-panel image showing a grid of vertical bars on the left and a striped pattern on the right, both without any text or symbols.

11 OKボタンを押す。

メニュー画面に戻ります。

This display is designed for use in Japan only and cannot be used in any other country.

主な仕様

SDM-E76A

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiae.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Operating Instructions_

(GB)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Table of Contents

Precautions....4

Identifying parts and controls 5

Setup 6

Step 1: Use the stand....6

Step 2: Connect the display to your computer ..... 6

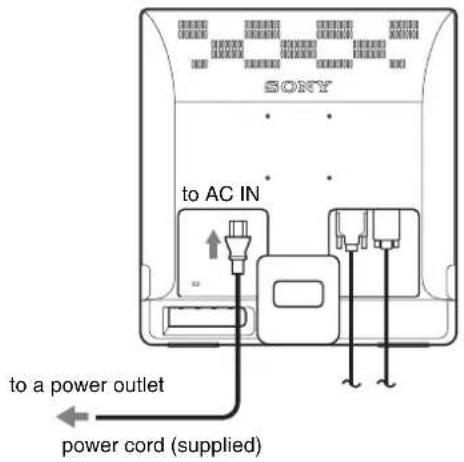

Step 3: Connect the power cord....7

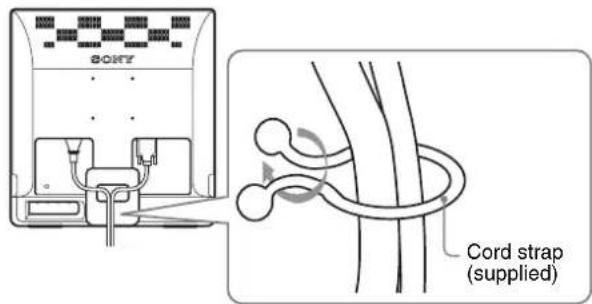

Step 4: Secure the cords ..... 7

Step 5: Turn on the monitor and computer .....7

Adjusting the tilt 8

Selecting the input signal (INPUT button) (SDM-E76D/SDM-E96D only) 8

Customizing Your Monitor....9

Navigating the menu....9

Adjusting the backlight (BACKLIGHT) 10

Adjusting the contrast (CONTRAST) 10

Adjusting the black level of an image (BRIGHTNESS)....11

Adjusting the picture's sharpness and centering (SCREEN) (analog RGB signal only). 11

Adjusting the color temperature (COLOR) 13

Changing the gamma setting (GAMMA)....13

Adjusting the sharpness (SHARPNESS) 13

Changing the menu's position (MENU POSITION) ..... 13

Changing the input automatically (INPUT SENSING) (SDM-E76D/SDM-E96D only) 14

Selecting the on-screen menu language (LANGUAGE).....14

Additional settings....14

Technical Features ....16

Power saving function....16

Automatic picture quality adjustment function (analog RGB signal only) 16

Troubleshooting....17

On-screen messages 17

Trouble symptoms and remedies 18

Specifications.....20

TCO'03 Eco-document .....i

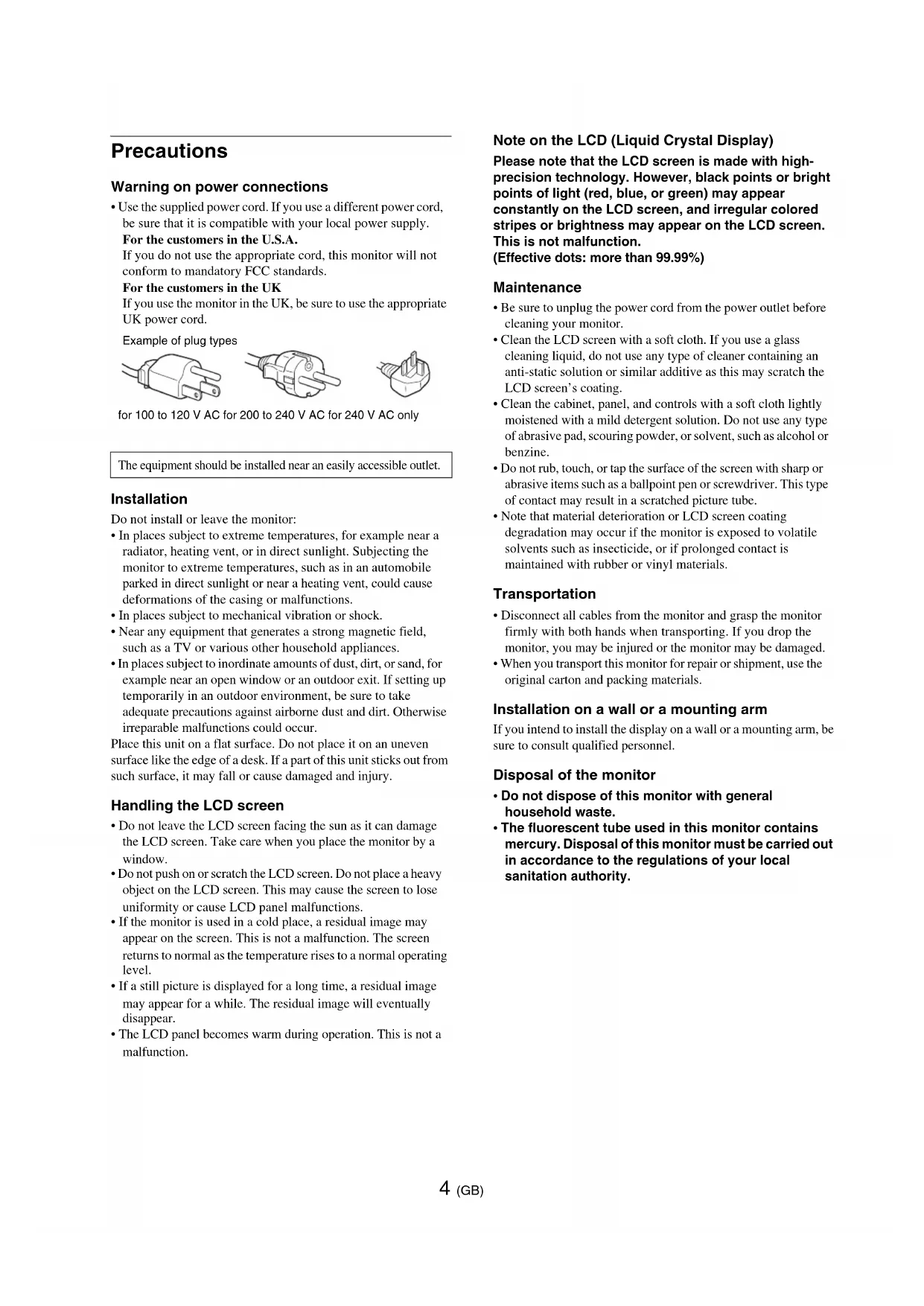

Precautions

Warning on power connections

- Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

For the customers in the UK

If you use the monitor in the UK, be sure to use the appropriate UK power cord.

Example of plug types

for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only

The equipment should be installed near an easily accessible outlet.

Installation

Do not install or leave the monitor:

• In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the monitor to extreme temperatures, such as in an automobile parked in direct sunlight or near a heating vent, could cause deformations of the casing or malfunctions.
• In places subject to mechanical vibration or shock.
• Near any equipment that generates a strong magnetic field, such as a TV or various other household appliances.
• In places subject to inordinate amounts of dust, dirt, or sand, for example near an open window or an outdoor exit. If setting up temporarily in an outdoor environment, be sure to take adequate precautions against airborne dust and dirt. Otherwise irreparable malfunctions could occur.

Place this unit on a flat surface. Do not place it on an uneven surface like the edge of a desk. If a part of this unit sticks out from such surface, it may fall or cause damaged and injury.

Handling the LCD screen

• Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you place the monitor by a window.
• Do not push on or scratch the LCD screen. Do not place a heavy object on the LCD screen. This may cause the screen to lose uniformity or cause LCD panel malfunctions.
• If the monitor is used in a cold place, a residual image may appear on the screen. This is not a malfunction. The screen returns to normal as the temperature rises to a normal operating level.
• If a still picture is displayed for a long time, a residual image may appear for a while. The residual image will eventually disappear.
• The LCD panel becomes warm during operation. This is not a malfunction.

Note on the LCD (Liquid Crystal Display)

Please note that the LCD screen is made with high-precision technology. However, black points or bright points of light (red, blue, or green) may appear constantly on the LCD screen, and irregular colored stripes or brightness may appear on the LCD screen. This is not malfunction.

(Effective dots: more than 99.99%)

Maintenance

• Be sure to unplug the power cord from the power outlet before cleaning your monitor.
• Clean the LCD screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the LCD screen's coating.
• Clean the cabinet, panel, and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Note that material deterioration or LCD screen coating degradation may occur if the monitor is exposed to volatile solvents such as insecticide, or if prolonged contact is maintained with rubber or vinyl materials.

Transportation

• Disconnect all cables from the monitor and grasp the monitor firmly with both hands when transporting. If you drop the monitor, you may be injured or the monitor may be damaged.
• When you transport this monitor for repair or shipment, use the original carton and packing materials.

Installation on a wall or a mounting arm

If you intend to install the display on a wall or a mounting arm, be sure to consult qualified personnel.

Disposal of the monitor

• Do not dispose of this monitor with general household waste.
• The fluorescent tube used in this monitor contains mercury. Disposal of this monitor must be carried out in accordance to the regulations of your local sanitation authority.

Identifying parts and controls

See the pages in parentheses for further details.

The ⏻ (power) switch and the control buttons are on the lower right part of the front of the monitor.

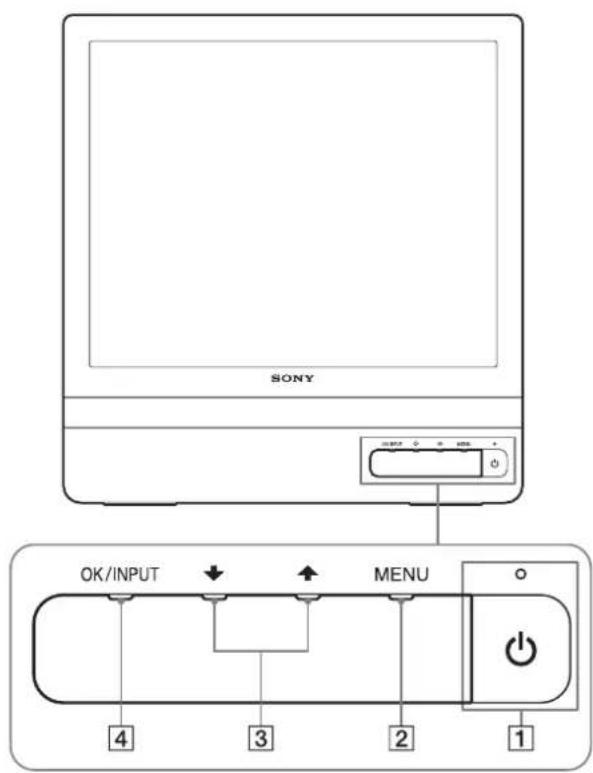

Front of the display

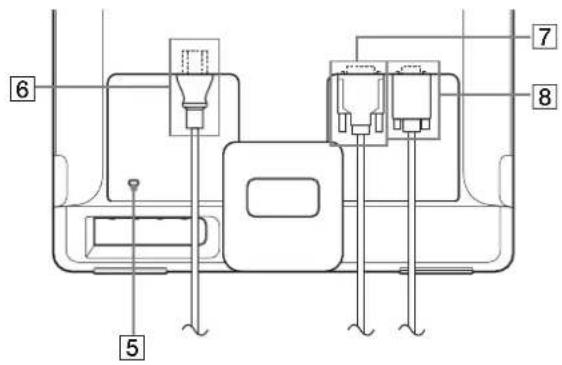

Rear of the display

1 ⏻ (Power) switch and indicator (pages 7, 16)

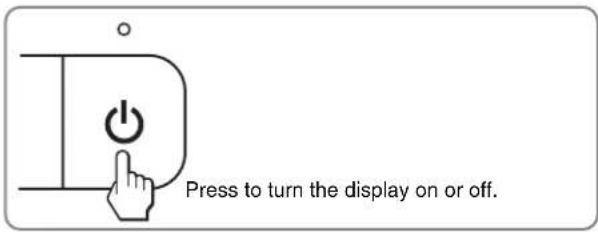

To turn the display on or off, press the ⏻ (power) switch. The power indicator lights up in green when the display is turned on, and lights up in orange when the monitor is in power saving mode.

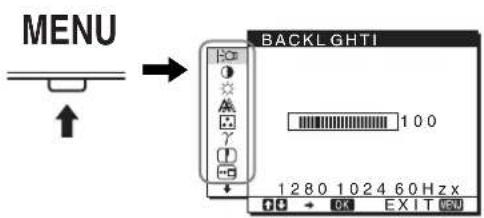

②MENU button (pages 9, 10)

This button displays or closes the main menu. You can also switch on the DDC/CI function by keeping this button pressed for more than 8 seconds.

3↓/↑ buttons (page 10)

These buttons function as the ↓/↑ buttons when selecting the menu items and making adjustments.

4 OK button (page 10)

This button selects the item or executes the settings in the menu.

INPUT button (page 8) (SDM-E76D/SDM-E96D only)

This button switches the video input signal between INPUT1 and INPUT2 when two computers are connected to the monitor.

5 Security Lock Hole

The security lock hole should be applied with the Kensington Micro Saver Security System.

Micro Saver Security System is a trademark of Kensington.

6 AC IN connector (page 7)

Connect the power cord (supplied).

7 DVI-D input connector (digital RGB) for INPUT1 (page 6) (SDM-E76D/SDM-E96D only)

This connector inputs digital RGB video signals that comply with DVI Rev.1.0.

8 HD15 input connector (analog RGB) (page 6)

This connector inputs analog RGB video signals (0.7 Vp-p, positive) and SYNC signals.

Setup

Before using your monitor, check that the following items are included in your carton:

• LCD display
- Power cord
• HD15-HD15 video signal cable (analog RGB)

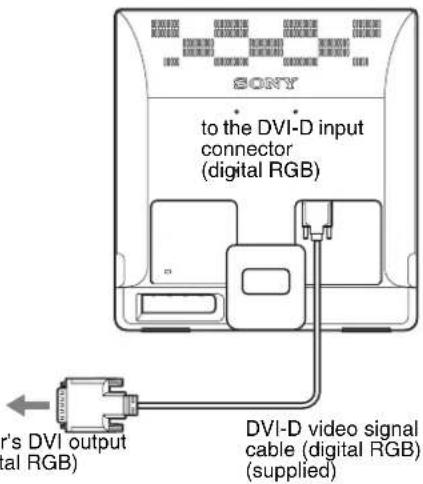

• DVI-D video signal cable (digital RGB) (SDM-E76D/SDM-E96D only)
- Cord strap
- CD-ROM (utility software for Windows/Macintosh, Operating Instructions, etc.)
- Warranty card
- Quick Setup Guide

Step 1: Use the stand

■ Use the supplied stand

Open the stand.

Line drawing of a tool handle with a curved blade and handle, no text or symbols present

Note

The stand is folded at the factory. Be sure not to place the display vertically with the stand as it is. Otherwise, the display may topple over.

■ Use the VESA compatible stand

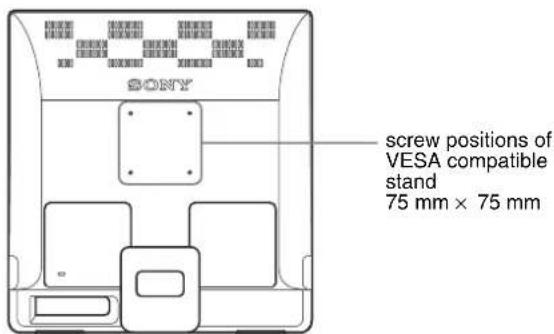

When using a non-supplied VESA compatible mounting arm or stand, use the VESA compatible screws to attach.

You can use the display with or without the supplied stand.

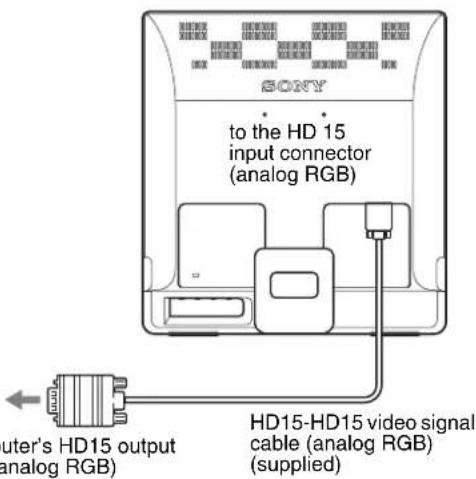

Step 2: Connect the display to your computer

Turn off the monitor and computer before connecting.

Notes

• Do not touch the pins of the video signal cable connector as this might bend the pins.
• Check the alignment of the HD15 connector to prevent bending the pins of the video signal cable connector.

■ Connect a computer equipped with a DVI output connector (digital RGB) (SDM-E76D/SDM-E96D only)

Using the supplied DVI-D video signal cable (digital RGB), connect the computer to the monitor's DVI-D input connector (digital RGB)

■ Connect a computer equipped with an HD15 output connector (analog RGB)

Using the supplied HD15-HD15 video signal cable (analog RGB), connect the computer to the monitor's HD15 input connector (analog RGB).

Step 3: Connect the power cord

With the monitor and computer switched off, first connect the power cord to the monitor, then connect it to a power outlet.

Step 4: Secure the cords

Bundle the cables and cords.

Using the supplied cord strap, bundle the cables and cords.

The illustration of the back of the monitor shown here is that of the SDM-E76D.

The same applies for the other models.

Step 5: Turn on the monitor and computer

Press the ⏻ (power) switch.

The ⏻ (power) indicator of the monitor lights up in green.

Turn on the computer.

The installation of your monitor is complete. If necessary, use the monitor's controls to adjust the picture.

If no picture appears on your screen

• Check that the power cord and the video signal cable are properly connected.
• If NO INPUT SIGNAL appears on the screen:

The computer is in the power saving mode. Try pressing any key on the keyboard or moving the mouse.

- If CABLE DISCONNECTED appears on the screen:

Check that the video signal cable is properly connected.

- If OUT OF RANGE appears on the screen:

Reconnect the old monitor. Then adjust the computer's graphics board within the following ranges.

	Analog RGB Digital RGB (SDM-E76D/ SDM-E96D only)
Horizontal frequency	28–80 kHz 28–64 kHz
Vertical frequency	56–75 Hz 60 Hz
Resolution	1280 × 1024 or less 1280 × 1024 or less

For more information about the on-screen messages, see "Trouble symptoms and remedies" on page 18.

No need for specific drivers

The monitor complies with the "DDC" Plug & Play standard and automatically detects all the monitor's information. No specific driver needs to be installed to the computer.

The first time you turn on your computer after connecting the monitor, the setup Wizard may appear on the screen. In this case, follow the on-screen instructions. The Plug & Play monitor is automatically selected so that you can use this monitor.

The vertical frequency turns to 60 Hz.

Since flickers are unobtrusive on the monitor, you can use it as it is. You do not need to set the vertical frequency to any particular high value.

Adjusting the tilt

This display can be adjusted within the angles shown below.

Approx. 5°–25°

Line drawing of a blade with a curved blade and a base, showing motion direction (no text or symbols)

Grasp the lower sides of the LCD panel, then adjust screen tilt.

Line drawing of hands holding a laptop with a curved arrow on screen (no text or symbols)

To use the display comfortably

This display is designed so that you can set it up at a comfortable viewing angle. Adjust the viewing angle of your display according to the height of the desk and chair, and so that light is not reflected from the screen to your eyes.

Note

When adjusting the screen tilt, make sure not to knock or drop the display off the desk.

Selecting the input signal (INPUT button) (SDM-E76D/SDM-E96D only)

Press the INPUT button.

The input signal change each time you press this button.

On-screen message Input signal configuration (Appears about 5 seconds on the upper left corner.)

INPUT1 : DVI-D DVI-D input connector (digital RGB) for INPUT1

INPUT2 : HD15 HD15 input connector (analog RGB) for INPUT2

Customizing Your Monitor

Before making adjustments

Connect the monitor and the computer, and turn them on. Wait for at least 30 minutes before making adjustments for the best result.

You can make numerous adjustments to your monitor using the on-screen menu.

Navigating the menu

Press the MENU button to display the main menu on your screen. See page 10 for more information on using the MENU button.

Use the ↓/↑ and OK buttons to select the icons in the above main menu illustration. The following 1 to 10 menu appears. Keep pressing ↓ to scroll down until the icons in menu 9 and 10 appear. See page 10 for more information on using the ↓/↑ and OK buttons.

1 BACKLIGHT (page 10)

Select the BACKLIGHT menu to adjust the brightness of the backlight.

② CONTRAST Ⓞ (page 10)

Select the CONTRAST menu to adjust the picture contrast.

3 BRIGHTNESS (page 11)

Select the BRIGHTNESS menu to adjust the picture brightness (black level).

4 SCREEN (page

Select the SCREEN menu to adjust the picture's sharpness (phase/pitch) or its centering (horizontal/vertical position).

5 COLOR (page 13)

Select the COLOR menu to adjust the color temperature of the picture. This adjusts the tone of the screen. While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

6GAMMA γ (page 13)

Select the GAMMA menu to change the picture's color shade setting.

7 SHARPNESS (page 13)

Select the SHARPNESS menu to adjust to sharpen the edge of images.

8 MENU POSITION (page 13)

Select the MENU POSITION to change the on-screen menu position.

9 INPUT SENSING → (page 14) (SDM-E76D/SDM-E96D only)

The monitor automatically detects an input signal to an input terminal, and changes the input automatically before the monitor goes into the power saving mode.

10LANGUAGE (page

Select LANGUAGE to change the language used on menus or messages.

11 Other menus (page 14)

Set the following menu items.

- RESET →←

- MENU LOCK

■ Using the MENU, ↓/↑, and OK buttons

1 Display the main menu.

Press the MENU button to display the main menu on your screen.

2 Select the menu you want to adjust.

Press the ↓/↑ buttons to display the desired menu. Press the OK button to select the menu item.

3 Adjust the menu.

Press the ↓/↑ buttons to make the adjustment, then press the OK button.

When you press the OK button, the setting is stored, then the display returns to the previous menu.

4 Close the menu.

Press the MENU button once to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 45 seconds.

■ Resetting the adjustments

You can reset the adjustments using the RESET menu. See page 14 for more information on resetting the adjustments.

■ Controlling the monitor by computer

Press the MENU button down for at least 5 seconds. You will see an on-screen message indicating the current setting. After 3 seconds the DDC/CI setting is switched on or off, as shown below.

On-screen messages (Appear for a while)

DDC-CI : ON (default setting)	Allows the computer to control menu settings.
DDC-CI : OFF Does not allow the computer to control menu settings.

Note

This function applies only to computers that support the DDC/CI (Display Data Channel Command Interface) function.

Adjusting the backlight (BACKLIGHT)

If the screen is too bright, adjust the backlight and make the screen easier to see.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select |○ (BACKLIGHT) and press the OK button.

The BACKLIGHT menu appears on the screen.

3 Press the ↓/↑ buttons to adjust the light level and press the OK button.

Adjusting the contrast (CONTRAST)

Adjust the picture contrast.

Note

While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select Ⓐ (CONTRAST) and press the OK button.

The CONTRAST menu appears on the screen.

3 Press the ↓/↑ buttons to adjust the contrast and press the OK button.

Adjusting the black level of an image (BRIGHTNESS)

Adjust the picture brightness (black level).

Note

While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select ⚙ (BRIGHTNESS) and press the OK button.

The BRIGHTNESS menu appears on the screen.

3 Press the ↓/↑ buttons to adjust the brightness and press the OK button.

Adjusting the picture's sharpness and centering (SCREEN) (analog RGB signal only)

■ Automatic picture quality adjustment function

When the monitor receives an input signal, it automatically adjusts the picture's position and sharpness (phase/pitch), and ensures that a clear picture appears on the screen (page 16).

Notes

• While the automatic picture quality adjustment function is activated, only the ⏻ (power) switch will operate.
• The picture may flicker during this time, but this is not a malfunction. Simply wait a few moments until the adjustment completes.

If the automatic picture quality adjustment function of this monitor seems to not completely adjust the picture

You can make further automatic adjustment of the picture quality for the current input signal. (See AUTO ADJUST below.)

If you still need to make further adjustments to the picture quality

You can manually adjust the picture's sharpness (phase/pitch) and position (horizontal/vertical position).

These adjustments are stored in memory and automatically recalled when the display receives the same input signal.

These settings may have to be repeated if you change the input signal after reconnecting your computer.

■ Make further automatic adjustments to the picture quality for the current input signal (AUTO ADJUST)

Set the optimum phase, pitch and horizontal/vertical position for the current input signal.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select ⚪ (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

3 Press the ↓/↑ buttons to select AUTO ADJUST and press the OK button.

The AUTO ADJUST menu appears on the screen.

4 Press the ↓/↑ buttons to select ON or OFF and press the OK button.

- ON: Make the appropriate adjustments of the screen's phase, pitch and horizontal/vertical position for the current input signal and store them.

Note

When the monitor is turned on or the input signal is changed, AUTO ADJUST makes the automatic adjustments.

- OFF: AUTO ADJUST is not available.

Note

AUTO ADJUST works automatically when the input signal is changed.

5 Press the ↓/↑ buttons to select and press the OK button.

Return to the menu screen.

■ Adjust the picture's sharpness and position manually (PITCH/PHASE/H CENTER/V CENTER)

You can adjust the picture's sharpness as follows. This adjustment is effective when the computer is connected to the monitor's HD15 input connector (analog RGB).

1 Set the resolution to 1280 × 1024 on the computer.

2 Load the CD-ROM.

3 Start the CD-ROM

For Windows User

When Auto run operates:

Select the area, language and model, and click DISPLAY ADJUSTMENT TOOL (UTILITY).

4 Click "Adjust" and confirm the current resolution (top value) and recommended resolution (bottom value), and then click "Next".

Test pattern for PITCH appears.

5 Press the MENU button.

The main menu appears on the screen.

6 Press the ↓/↑ buttons to select Ⓐ (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

7 Press the ↓/↑ buttons to select PITCH and press the OK button.

The PITCH adjustment menu appears on the screen.

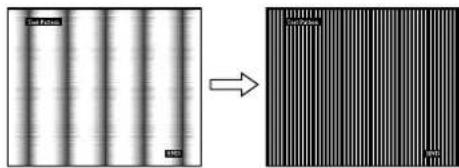

8 Press the ↓/↑ buttons until the vertical stripes disappear.

Adjust so that the vertical stripes disappear.

Two-panel image showing a grid of rectangular cells before and after transformation, with no visible text or symbols.

9 Press the OK button.

The main menu appears on the screen.

If horizontal stripes are observed over the entire screen, adjust the PHASE using the following procedures.

10 Click "Next".

Test pattern for PHASE appears.

11 Press the ↓/↑ buttons to select PHASE and press the OK button.

The PHASE adjustment menu appears on the screen.

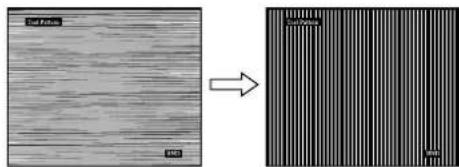

12 Press the ↓/↑ buttons until the horizontal stripes are at a minimum.

Adjust so that the horizontal stripes are at a minimum.

13 Press the OK button.

The main menu appears on the screen.

14 Click "Next".

Test pattern for CENTER appears.

15 Press the ↓/↑ buttons to select H CENTER or V CENTER and press the OK button.

The H CENTER adjustment menu or V CENTER adjustment menu appears on the screen.

16 Press the ↓/↑ buttons to center the test pattern on the screen.

17 Click "Next".

Click "End" or "EXIT" to turn off the test pattern.

When Auto run fails to operate:

1 Open "My Computer" and right click the CD-ROM icon.

Go to "Explorer" and open the CD-ROM icon.

2 Open [Utility] and then select [WINDOWS].

3 Start [WIN_UTILITY.EXE].

Test pattern appears. Go to step 4.

For Macintosh User

1 Open the CD-ROM.

2 Open [Utility] and then select [MAC].

3 Open [MAC UTILITY] and then start [MAC_CLASSIC_UTILITY] or [MAC_OSX_UTILITY].

Test pattern appears. Go to step 4.

4 Press the MENU button.

The main menu appears on the screen.

5 Press the ↓/↑ buttons to select ⚪ (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

6 Press the ↓/↑ buttons to select PHASE and press the OK button.

The PHASE adjustment menu appears on the screen.

7 Press the ↓/↑ buttons until the horizontal stripes are at a minimum.

Adjust so that the horizontal stripes are at a minimum.

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

8 Press the OK button.

The main menu appears on the screen.

If vertical stripes are observed over the entire screen, adjust the PITCH using the following procedures.

9 Press the ↓/↑ buttons to select PITCH and press the OK button.

The PITCH adjustment menu appears on the screen.

10 Press the ↓/↑ buttons until the vertical stripes disappear.

Adjust so that the vertical stripes disappear.

Two-panel image showing a striped pattern on the left and a striped pattern on the right, both without any text or symbols.

11 Press the OK button.

The main menu appears on the screen.

12 Press the ↓/↑ buttons to select H CENTER or V CENTER and press the OK button.

The H CENTER adjustment menu or V CENTER adjustment menu appears on the screen.

13 Press the ↓/↑ buttons to center the test pattern on the screen.

14 Click "END" on the screen to turn off the test pattern.

Adjusting the color temperature (COLOR)

You can select the color level of the picture's white color field from the default color temperature settings.

Also, if necessary, you can fine tune the color temperature.

You can set the desired color temperature for each mode of the brightness of screen.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select ☐ (COLOR) and press the OK button.

The COLOR menu appears on the screen.

3 Press the ↓/↑ buttons to select the desired color temperature and press the OK button.

Whites will change from a bluish hue to reddish hue as the temperature is lowered from 9300K to 6500K (default setting).

When you select “sRGB,” the colors adjust to the sRGB profile. (The sRGB color setting is an industry-standard color space protocol designed for computer products.) If you select “sRGB,” the color settings of your computer must be set to the sRGB profile.

Notes

• If a connected computer or other equipment is not sRGB-compliant, color cannot be adjusted to the sRGB profile.
• While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

Fine tuning the color temperature (USER ADJUSTMENT)

1 Press the ↓/↑ buttons to select ADJUST and press the OK button.

The USER ADJUSTMENT menu appears on the screen.

2 Press the ↓/↑ buttons to select R (Red) or B (Blue) and press the OK button. Then press the ↓/↑ buttons to adjust the color temperature and press the OK button.

Since this adjustment changes the color temperature by increasing or decreasing the R and B components with respect to G (green), the G component is fixed.

3 Press the ↓/↑ buttons to select ↻, then press the OK button.

The new color setting is stored in memory for USER and automatically recalled whenever USER is selected.

The main menu appears on the screen.

Changing the gamma setting (GAMMA)

You can associate the picture's color shade on the screen with the picture's original color shade.

Note

While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select γ (GAMMA) and press the OK button.

The GAMMA menu appears on the screen.

3 Press the ↓/↑ buttons to select the desired mode and press the OK button.

Adjusting the sharpness (SHARPNESS)

Adjust to sharpen the edge of images, etc.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select ☐ (SHARPNESS) and press the OK button.

The SHARPNESS menu appears on the screen.

3 Press the ↓/↑ buttons to adjust the sharpness and press the OK button.

Changing the menu's position (MENU POSITION)

You can change the menu position if it is blocking an image on the screen.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select ☐ (MENU POSITION) and press the OK button.

The MENU POSITION menu appears on the screen.

3 Press the ↓/↑ buttons to select the desired position and press the OK button.

There are three positions each for the top, center and bottom of the screen.

Changing the input automatically (INPUT SENSING) (SDM-E76D/SDM-E96D only)

When you select AUTO ON in the INPUT SENSING menu, the monitor automatically detects an input signal to an input terminal, and changes the input automatically before the monitor goes into the power saving mode.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the ↓/↑ buttons to select → (INPUT SENSING) and press the OK button.

The INPUT SENSING menu appears on the screen.

3 Press the ↓/↑ buttons to select the desired mode and press the OK button.

- AUTO ON: When the selected input terminal has no input signal, or when you select an input terminal by the INPUT button on the monitor and the terminal has no input signal, the on-screen message appears (page 17) and the monitor checks the input signal to another input terminal automatically to change the input. When the input is changed, the selected input terminal is displayed on the left upper of the screen. When there is no input signal, the monitor goes into the power saving mode automatically.

- AUTO OFF: The input is not changed automatically. Press the INPUT button to change the input.

Selecting the on-screen menu language (LANGUAGE)

You can change the language used on menus or messages displayed on this monitor.

1 Press the MENU button.

The main menu appears on the screen.

2 Keep pressing the ↓ button until the icon of the desired option item appears.

3 Press the ↓/↑ buttons to select △ (LANGUAGE) and press the OK button.

The LANGUAGE menu appears on the screen.

4 Press the ↓/↑ buttons to select a language and press the OK button.

• ENGLISH

• FRANÇAIS: French

• DEUTSCH: German

- ESPAÑOL: Spanish

• ITALIANO: Italian

• NEDERLANDS: Dutch

• SVENSKA: Swedish

• РУССКИЙ: R u s

• : 日本語ese

- 中文: C h i n e s e

Additional settings

You can adjust the following options:

- RESET →←

- MENU LOCK

1 Press the MENU button.

The main menu appears on the screen.

2 Keep pressing the ↓ button until the icon of the desired option item appears.

3 Press the ↓/↑ buttons to select the desired option item and press the OK button.

Adjust the selected option item according to the following instructions.

■ Resetting the adjustment data to the defaults

You can reset the adjustments to the default settings.

1 Press the ↓/↑ buttons to select →← (RESET) and press the OK button.

The RESET menu appears on the screen.

2 Press the ↓/↑ buttons to select the desired mode and press the OK button.

- OK: To reset all of the adjustment data to the default settings. Note that the ☑LANGUAGE) setting is not reset by this method.

- CANCEL: To cancel resetting and return to the menu screen.

■ Locking the menus and controls

You can lock the control of buttons to prevent accidental adjustments or resetting.

1 Press the ↓/↑ buttons to select O _n (MENU LOCK) and press the OK button.

The MENU LOCK menu appears on the screen.

2 Press the ↓/↑ buttons to select ON or OFF and press the OK button.

• ON: Only the ⏻ (power) switch will operate. If you attempt any other operation, the ⓄMENU LOCK) icon appears on the screen.
• OFF:Set ⬆MENU LOCK) to OFF. If you set the (MENU LOCK) item to ON, only this menu item can be selected.

Technical Features

Power saving function

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If the monitor is connected to a computer or video graphics board that is DPMS (Display Power Management Standard) for Analog input/DMPM (DVI Digital Monitor Power Management) for Digital input compliant, the monitor will automatically reduce power consumption as shown below.

Power mode	Power consumption ⏻ (power) indicator
normal operation	38W(max.) (SDM-E76A/SDM-E76D) 44W(max.) (SDM-E96A/SDM-E96D)	green
active off* (deep sleep)**	1.0W(max.) orange
power off	1.0W(max.) off

* When your computer enters the “active off” mode, the input signal is cut and NO INPUT SIGNAL appears on the screen. After 5 seconds, the monitor enters the power saving mode.
** "deep sleep" is the power saving mode defined by the Environmental Protection Agency.

Automatic picture quality adjustment function (analog RGB signal only)

When the monitor receives an input signal, it automatically adjusts the picture's position and sharpness (phase/pitch), and ensures that a clear picture appears on the screen.

The factory preset mode

When the monitor receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the monitor's memory to provide a high quality picture at the center of the screen. If the input signal matches the factory preset mode, the picture appears on the screen automatically with the appropriate default adjustments.

If input signals do not match one of the factory preset modes

When the monitor receives an input signal that does not match one of the factory preset modes, the automatic picture quality adjustment function of this monitor is activated to ensure that a clear picture always appears on the screen (within the following monitor frequency ranges):

Horizontal frequency: 28–80 kHz

Vertical frequency: 56–75 Hz

Consequently, the first time the monitor receives input signals that do not match one of the factory preset modes, the monitor

may take a longer time than normal to display the picture on the screen. This adjustment data is automatically stored in memory so that next time, the monitor will function in the same way as when the monitor receives the signals that match one of the factory preset modes.

Note (SDM-E76D/SDM-E96D only)

There is no need to adjust the digital RGB signals of the DVI-D input connector for INPUT1.

If you adjust the phase, pitch and picture position manually while OFF of AUTO ADJUST is selected

For some input signals, the automatic picture quality adjustment function of this monitor may not completely adjust the picture position, phase, and pitch. In this case, you can set these adjustments manually (page 11). If you set these adjustments manually, they are stored in memory as user modes and automatically recalled whenever the monitor receives the same input signals.

Notes

• While the automatic picture quality adjustment function is activated, only the ⏻ (power) switch will operate.
• The picture may flicker during this time, but this is not a malfunction. Simply wait a few moments until the adjustment completes.

Troubleshooting

Before contacting technical support, refer to this section.

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen. To solve the problem, see “Trouble symptoms and remedies” on page 18.

If OUT OF RANGE appears on the screen

This indicates that the input signal is not supported by the monitor's specifications. Check the following items.

Example

If "xxx.x kHz/xxx Hz" is displayed

This indicates that either the horizontal or vertical frequency is not supported by the monitor's specifications.

The figures indicate the horizontal and vertical frequencies of the current input signal.

If "RESOLUTION > 1280 × 1024" is displayed

This indicates that the resolution is not supported by the monitor's specifications (1280 × 1024 or less).

If NO INPUT SIGNAL appears on the screen

This indicates that no signal is being input.

Example

GO TO POWER SAVE

The monitor will enter the power saving mode after about 5 seconds from the time the message is displayed.

If CABLE DISCONNECTED appears on the screen

This indicates that the video signal cable has been disconnected.

Example

GO TO POWER SAVE

The monitor will enter the power saving mode after about 45 seconds from the time the message is displayed.

Trouble symptoms and remedies

If a problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual.

Symptom Check these items
No picture
If the ⏻ (power) indicator is not lit,or if the ⏻ (power) indicator will notlight up when the ⏻ (power) switchis pressed,	• Check that the power cord is properly connected.
If CABLE DISCONNECTEDappears on the screen,	• Check that the video signal cable is properly connected and all plugs are firmly seated intheir sockets (page 6).• Check that the video input connector's pins are not bent or pushed in.• Check that the input select setting is correct (page 8).• A non-supplied video signal cable is connected. If you connect a non-supplied videosignal cable, CABLE DISCONNECTED may appear on the screen before entering thepower saving mode. This is not a malfunction.
If NO INPUT SIGNAL appears onthe screen, or the ⏻ (power)indicator is orange,	• Check that the video signal cable is properly connected and all plugs are firmly seated intheir sockets (page 6).• Check that the video input connector's pins are not bent or pushed in.• Check that the input select setting is correct (page 8).■ Problems caused by a computer or other equipment connected, and notcaused by the monitor• The computer is in the power saving mode. Try pressing any key on the keyboard ormoving the mouse.• Check that your graphics board is installed properly.• Change your graphic board to the latest driver. Or match the version of your graphic boardto the current OS.• When using a laptop computer, set the output of your computer to video out (for details onvideo out setting, contact your computer manufacturer).• Check that the computer's power is on.• Restart the computer.
If OUT OF RANGE appears on thescreen,	■ Problems caused by a computer or other equipment connected, and notcaused by the monitor• Check that the video frequency range is within that specified for the monitor. If youreplaced an old monitor with this monitor, reconnect the old monitor and adjust thecomputer's graphics board within the following ranges:Horizontal: 28–80 kHz (analog RGB), 28–64 kHz (digital RGB for SDM-E76D/SDME96D only)Vertical: 56–75 Hz (analog RGB), 60 Hz (digital RGB for SDM-E76D/SDM-E96D only)Resolution: 1280 × 1024 or less• Start your OS in Safe mode and restart the computer after setting the resolution. Thesetting of safe mode varies depending on your OS. For more details, contact yourcomputer manufacturer.
If you are using Windows andreplaced an old monitor with thismonitor,	• If you replaced an old monitor with this monitor, reconnect the old monitor and do thefollowing. Select “SONY” from the “Manufacturers” list and select the desired modelname from the “Models” list in the Windows device selection screen. If the model nameof this monitor does not appear in the “Models” list, try “Plug & Play.”
If using a Macintosh system,	• If you use the Macintosh adapter (not supplied), check that the Macintosh adapter and thevideo signal cable are properly connected.
Picture flickers, bounces, oscillates, or is scrambled	Adjust the pitch and phase (page 11).Try plugging the monitor into a different AC outlet, preferably on a different circuit.
	Problems caused by a computer or other equipment connected, and not caused by the monitorCheck your graphics board manual for the proper monitor setting.Confirm that the graphics mode (VESA, Macintosh 19" Color, etc.) and the frequency of the input signal are supported by this monitor. Even if the frequency is within the proper range, some graphics boards may have a sync pulse that is too narrow for the monitor to sync correctly.Adjust the computer's refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy	Adjust the brightness and contrast (page 10, 11).Adjust the pitch and phase (page 11).
	Problems caused by a computer or other equipment connected, and not caused by the monitorSet the resolution to 1280 × 1024 on your computer.
Picture is ghosting	Eliminate the use of video cable extensions and/or video switch boxes.Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly	Adjust the pitch and phase (page 11).Adjust the picture position (page 11). Note that some video modes do not fill the screen to the edges.
Picture is too small	Problems caused by a computer or other equipment connected, and not caused by the monitorSet the resolution to 1280 × 1024 on your computer.
Picture is dark	Adjust the brightness using the BRIGHTNESS menu (page 11).Adjust the backlight (page 10).It takes a few minutes for the display to become bright after turning on the monitor.
Wavy or elliptical pattern (moire) is visible	Adjust the pitch and phase (page 11).
Color is not uniform • Adjust the pitch and phase (page 11).
White does not look white • Adjust the color temperature (page 13).
Monitor buttons do not operate (Appears on the screen)	If the menu lock is set to ON, set it to OFF (page 15).
The monitor turns off after a while	Problems caused by a computer or other equipment connected, and not caused by the monitorSet the computer's power saving setting to off.
Resolution displayed on the menu screen is incorrect	Depending on the graphics board setting, the resolution displayed on the menu screen may not coincide with the one set on the computer.

If any problem persists, call your authorized Sony dealer and give the following information:

• Model name: SDM-E76A, SDM-E96A, SDM-E76D or SDM-E96D
• Serial number
  • Detailed description of the problem
• Date of purchase
• Name and specifications of your computer and graphics board

Specifications

SDM-E76A

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 17.0 inch

Input signal format RGB operating frequency*

Horizontal: 28–80 kHz (analog RGB)

Vertical: 56–75 Hz (analog RGB)

Resolution Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Input signal levels Analog RGB video signal

0.7 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2.2 kΩ,

positive or negative

(Separate horizontal and vertical)

Power requirements 100–240 V, 50–60 Hz,

Max. 1.0 A

Operating temperature 5–35 °C

Dimensions (width/height/depth)

Display (5°):

Approx. 382×403.2×193.2 mm

(15 ^1 /8 × 15 ^7 /8 × 7 ^5 /8 inches)

Mass Approx. 4.5 kg (9 lb 14

3/4 oz)

Plug & Play DDC2B

Accessories See page 6.

SDM-E96A

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 19.0 inch

Input signal format RGB operating frequency*

Horizontal: 28–80 kHz (analog RGB)

Vertical: 56–75 Hz (analog RGB)

Resolution Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Input signal levels Analog RGB video signal

0.7 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2.2 kΩ,

positive or negative

(Separate horizontal and vertical)

Power requirements 100–240 V, 50–60 Hz,

Max. 1.0 A

Operating temperature 5–35 °C

Dimensions (width/height/depth)

Display (5°):

Approx. 420 × 433.1 × 193.2 mm

(16^5/8× 17^1/8× 7^5/8 inches)

Mass Approx. 5.5 kg (12 lb 2 oz)

Plug & Play DDC2B

Accessories See page 6.

* Recommended horizontal and vertical timing condition

• Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8~ s , whichever is larger.
  • Horizontal blanking width should be more than 2.5 μsec.
  • Vertical blanking width should be more than 450 μsec.

Design and specifications are subject to change without notice.

SDM-E76D

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 17.0 inch

Input signal format RGB operating frequency*

Horizontal: 28–80 kHz (analog RGB)

28–64 kHz (digital RGB)

Vertical: 56–75 Hz (analog RGB)

60 Hz (digital RGB)

Resolution Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Input signal levels Analog RGB video signal

0.7 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2.2 kΩ,

positive or negative

(Separate horizontal and vertical)

Digital RGB (DVI) signal: TMDS

(Single link)

Power requirements 100–240 V, 50–60 Hz,

Max. 1.0 A

Operating temperature 5–35 °C

Dimensions (width/height/depth)

Display (5°):

Approx. 382 × 403.2 × 193.2 mm

(15^1 / 8× 15^7 / 8× 7^5 / 8 inches)

^3/_4 oz)

Mass Approx. 4.5 kg (9 lb 14

Plug & Play DDC2B

Accessories See page 6.

SDM-E96D

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 19.0 inch

Input signal format RGB operating frequency*

Horizontal: 28–80 kHz (analog RGB)

28–64 kHz (digital RGB)

Vertical: 56–75 Hz (analog RGB)

60 Hz (digital RGB)

Resolution Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Input signal levels Analog RGB video signal

0.7 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2.2 kΩ,

positive or negative

(Separate horizontal and vertical)

Digital RGB (DVI) signal: TMDS

(Single link)

Power requirements 100–240 V, 50–60 Hz,

Max. 1.0 A

Operating temperature 5–35 °C

Dimensions (width/height/depth)

Display (5):

Approx. 420× 433.1 × 193.2 mm

(16^5 / 8× 17^1 / 8× 7^5 / 8 inches)

Mass Approx. 5.5 kg (12 lb 2 oz)

Plug & Play DDC2B

Accessories See page 6.

* Recommended horizontal and vertical timing condition

• Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8 μs, whichever is larger.
  • Horizontal blanking width should be more than 2.5 μsec.
  • Vertical blanking width should be more than 450 μsec.

Design and specifications are subject to change without notice.

TCO'03 Eco-document

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiae.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Mode d'emploi (FR)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Table des matières

Précautions....4

TCO'03 Eco-document .....i

Précautions

Line drawing of a mechanical tool or clamp with a handle and base, no text or symbols present

Remarque

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

7 NETTETE (page

3 Ajustez le menu.

4 Refermez le menu.

Diagram showing a microchip or memory unit transforming into a striped patterned surface (no text or symbols)

Two-panel image showing a textured surface before and after processing, with no visible text or symbols.

Two-panel image showing a striped pattern on the left and a striped pattern on the right, both without any text or symbols.

100–240 V, 50–60 Hz,

Max. 1,0 A

100–240 V, 50–60 Hz,

Max. 1,0 A

100–240 V, 50–60 Hz,

Max. 1,0 A

100–240 V, 50–60 Hz,

Max. 1,0 A

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Bedienungsanleitung

(DE)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Inhalt

TCO'03 Eco-document .....i

Line drawing of a tool with a handle and blade, no text or symbols present

Hinweis

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

5 FARBE (Seite 13)

7 SCHÄRFE (Seite

Diagram showing a document being processed into a striped surface, with no visible text or symbols.

Two-panel image showing a document with text and a grid of rectangular panels, one pointing to a grid layout (no visible text or symbols)

Two-panel image showing a vertical striped pattern on the left and a striped pattern on the right, with no visible text or symbols.

Horizontal: 28–80 kHz

(analoges RGB)

Vertical: 56–75 Hz (analoges RGB)

Horizontal: 28–80 kHz

(analoges RGB)

Vertikal: 56–75 Hz (analoges RGB)

Horizontal: 28–80 kHz

(analoges RGB)

28–64 kHz

(digitales RGB)

Vertical: 56–75 Hz (analoges RGB)

60 Hz (digitales RGB)

Horizontal: 28–80 kHz

(analoges RGB)

28–64 kHz

(digitales RGB)

Vertical: 56–75 Hz (analoges RGB)

60 Hz (digitales RGB)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-curope.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Pantalla del PC

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Índice

Precauciones 4

TCO'03 Eco-document .....i

Line drawing of a tool handle with a curved blade and handle, no text or symbols present

Nota

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

4 PANTALLA (página 11)

3 Ajuste el menú.

4 Cierre el menú.

Diagram showing a device with internal components before and after transformation, alongside a microchip or display (no text or symbols present)

Two-panel image showing a textured surface before and after transformation: left panel with 'For Future' label, right panel with 'For Future' label and scale bar (no text or symbols on the surfaces)

Two-panel image showing a vertical striped pattern on the left and a striped pattern on the right, both without any text or symbols.

Horizontal: 28–80 kHz

(RGB analógico)

Vertical: 56–75 Hz

(RGB analógico)

Horizontal: 28–80 kHz

(RGB analógico)

Vertical: 56–75 Hz

(RGB analógico)

Horizontal: 28–80 kHz

(RGB analógico)

28–64 kHz

(RGB digital)

Vertical: 56–75 Hz

(RGB analógico)

60 Hz (RGB digital)

Horizontal: 28–80 kHz

(RGB analógico)

28–64 kHz

(RGB digital)

Vertical: 56–75 Hz

(RGB analógico)

60 Hz (RGB digital)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Indice

Precauzioni 4

TCO'03 Eco-document ....i

Precauzioni

Three line drawings of different types of electrical plugs (no text or symbols)

da 100 a 120 V CA da 200 a 240 V CA solo 240 V CA

Line drawing of a tool with a handle and blade, showing a curved surface and a small protrusion (no text or symbols)

Nota

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

7 NITIDEZZA (pagina 14)

4 Chiusura del menu.

Diagram showing a device transforming into a microchip (no text or symbols present)

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

Two-panel image showing a striped pattern on the left and a striped pattern on the right, both without any text or symbols.

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Conteúdos

Precauções....4

Regular a nitidez (SHARPNESS) 13

TCO'03 Eco-document .....i

Precauções

Three line drawings of different types of electrical plugs (no text or symbols)

Line drawing of a flat tool with a handle and blade, no text or symbols present

Nota

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

7 SHARPNESS (página 13)

3 Regule o menu.

4 Feche o menu.

Two-panel image showing a document being processed into a striped patterned device (no text or symbols visible)

9 Prima o botão OK.

Surge no ecrã o menu principal.

Two-panel image showing a small rectangular object on the left and a dark rectangular object on the right, both with striped background (no text or symbols)

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

8 Prima o botão OK.

Surge no ecrã o menu principal.

Two-panel image showing a vertical striped pattern on the left and a grayscale striped pattern on the right, both without any text or symbols.

Regular a nitidez (SHARPNESS)

Horizontal: 28–80 kHz

(RGB analógico)

Vertical: 56–75 Hz (RGB analógico)

Horizontal: 28–80 kHz

(RGB analógico)

Vertical: 56–75 Hz (RGB analógico)

Horizontal: 28–80 kHz

(RGB analógico)

28–64 kHz (RGB digital)

Vertical: 56–75 Hz (RGB analógico) 60 Hz (RGB digital)

Horizontal: 28–80 kHz

(RGB analógico)

28–64 kHz (RGB digital)

Vertical: 56–75 Hz (RGB analógico) 60 Hz (RGB digital)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-curope.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

BZ02

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Содержание

TCO'03 Eco-document .....i

Line drawing of a tool with a handle and blade, showing a curved object and a small protrusion (no text or symbols)

Примечание

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

7РЕЗКОСТЬ (стр.

4 Закройте меню.

Diagram showing a device transforming into a microchip or display (no text or symbols present)

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

Two-panel image showing a vertical striped pattern on the left and a striped pattern on the right, with an arrow pointing from the right to the right (no text or symbols)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Bruksanvisning

(SE)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

TCO'03 Eco-document .....i

Line drawing of a flat tool with a handle and blade, showing a curved base and handle (no text or symbols)

Obs!

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

7 SKÄRPA (sidan

3 Justera menyn.

4 Stäng menyn.

Diagram showing a device transforming into a microchip (no text or symbols present)

Two-panel image showing a textured surface before and after transformation: left panel with 'Text Paper' label, right panel with 'Text Paper' label, both without any readable text or symbols.

Two-panel image showing a grid of vertical lines on the left and a striped pattern on the right, both without any text or symbols.

GÅ TILL ENERGISPAR

28–64 kHz (digital RGB)

Vertical: 56–75 Hz (analog RGB)

60 Hz (digital RGB)

Upplösning Horisontell: Max. 1280 punkter

Digital RGB-signal (DVI): TMDS

(enkel länk)

28–64 kHz (digital RGB)

Vertical: 56–75 Hz (analog RGB)

60 Hz (digital RGB)

Upplösning Horisontell: Max. 1280 punkter

Digital RGB-signal (DVI): TMDS

(enkel länk)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-curope.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Gebruiksaanwijzing

(NL)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Inhoud

TCO'03 Eco-document .....i

Line drawing of a tool with a handle and blade, no text or symbols present

Opmerking

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

3 Pas het menu aan.

4 Sluit het menu.

Diagram showing a computer monitor with an arrow pointing to a blank screen, both on striped backgrounds (no text or symbols)

Two-panel image showing a small rectangular object on a textured surface transforming into a striped patterned square (no text or symbols)

Two-panel image showing a textured surface before and after vertical striped patterns, with no visible text or symbols.

Two-panel image showing a vertical striped pattern on the left and a grayscale striped pattern on the right, both without any text or symbols.

GA NAAR STROOMSPAAR

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

彩色液晶显示器

使用说明书 ____ (CS)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

目录

Line drawing of a tool with a handle and blade, no text or symbols present

注

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

若要舒适地使用显示器

2 选择您想要调整的菜单。

7锐度 第12页）

8 菜单位置 第 12 页）

选择菜单位置改变屏幕显示菜单位置。

Diagram showing a device transforming into a microchip or display (no text or symbols present)

9 按 0K 按钮。

屏幕上出现主菜单。

Two-panel image showing a blank document and a grid of rectangular panels with a small screen (no text or symbols visible)

13 按 OK 按钮。

屏幕上出现主菜单。

14 单击 “Next”。

出现 CENTER 的测试图案。

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

8 按 OK 按钮。

屏幕上出现主菜单。

Two-panel image showing a striped pattern on the left and a striped pattern on the right, both without any text or symbols.

11 按 OK 按钮。

屏幕上出现主菜单。

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Návod k obsluze

(CZ)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Obsah

TCO'03 Eco-document .....i

Line drawing of a tool with a curved handle and a handle, showing a rotation arrow (no text or symbols)

Poznámka

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

7 SHARPNESS (strana 13)

8 MENU POSITION (strana 13)

3 Upravte nabídku.

4 Zavřete nabídku.

Diagram showing a device transforming into a microchip (no text or symbols present)

Two-panel image showing a document icon and a computer monitor with a grid overlay, both without any visible text or symbols.

Two-panel image showing a grid of vertical striped patterns on the left and a grayscale striped pattern on the right, both without any text or symbols.

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-curope.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Tartalomjegyzék

Óvintézkedések 4

TCO'03 Eco-document .....i

Óvintézkedések

Line drawing of a flat tool or blade with a handle and blade tip, no text or symbols present

Megjegyzés

Line drawing of a knife with a curved blade and handle, showing motion direction (no text or symbols)

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

4 Lépjen ki a menüböl.

Two-panel image showing a microchip and its corresponding schematic view (no text or symbols)

Two-panel image showing a computer monitor and a striped patterned square with a small grid interface (no text or symbols)

Two-panel image showing a textured surface before and after processing, with no visible text or symbols.

Two-panel image showing a vertical striped pattern on the left and a striped pattern on the right, with no visible text or symbols.

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Spis treści

TCO'03 Eco-document .....i

Środki ostrożności

1 Przycisk i kontrolka zasilania ⏻ (str. 8, 16)

Line drawing of a flat tool with a handle and blade, no text or symbols present

Uwaga

Line drawing of hands holding a tablet device with an arrow indicating rotation (no text or symbols)

7 SHARPNESS

(str. 15)

8 MENU POSITION

(str. 15)

4 Zamykanie menu.

Two-panel image showing a document and a microchip, both with grid background (no visible text or symbols)

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

Two-panel image showing a striped pattern before and after transformation, with no visible text or symbols.

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-curope.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Navodila za uporabo (SI)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Kazalo

Pozor 4

Deli monitorja in elementi za nastavljanje. 5

Nastavitev....6

Nastavitev 1: Uporabite priloženi podstavek. 6

Nastavitev 2: Priključite monitor na vaš računalnik. ..... 6

TCO'03 Eco-document .....i

Pozor

Opozorilo glede omrežnih priključkov

Three line drawings of different types of electrical plugs (no text or symbols)

1 ⏻ (Napajalno) stikalo in indikator (strani 7, 15)

Line drawing of a flat tool with a handle and blade, no text or symbols present

Opozorilo

Primate spodnji del LCD zaslona in nato nastavite naklon.

Line drawing of hands holding a tablet with an arrow indicating rotation (no text or symbols)

7 SHARPNESS (stran 13)

Izberite meni SHARPNESS, da nastavite ostrino robov slik.

8 MENU POSITION (stran 13)

3 Urejanje menijev.

Pritisnite gumba ↓/↑, da izvedete nastavitve. Nato pritisnite gumb OK.

Ko pritisnete gumb OK, se nastavitev shrani, nato se prikaže prejšnji meni.

4 Zaprite meni.

Z enkratnim pritiskom na gumb MENU se vrnite v normalni prikaz. Če gumba ne pritisnete, se meni po cca. 45 s zapre sam.

Diagram showing a device with internal components before and after processing, alongside a striped patterned background (no text or symbols)

9 Pritisnite tipko OK.

Na zaslonu se prikaže glavni meni.

Two-panel image showing a computer monitor and a blank document with a grid overlay, both without any visible text or symbols.

13 Pritisnite tipko OK.

Na zaslonu se prikaže glavni meni.

Two-panel image showing a striped pattern on the left and a grayscale striped pattern on the right, both without any text or symbols.

Velikost slike: 17,0 "

Velikost slike: 19,0 "

Velikost slike: 17,0 "

Velikost slike: 19,0 "

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-curope.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

İçindekiler

Uyarılar....4

TCO'03 Eco-document .....i

Three line drawings of different types of electrical plugs (no text or symbols)

Line drawing of a flat tool with a handle and blade, no text or symbols present

Not

Line drawing of hands holding a tablet device with a curved arrow on screen (no text or symbols)

7 SHARPNESS (sayfa 13)

3 Menü ayarlama.

4 Menüyü kapatma.

Diagram showing a device transforming into a computer monitor, both without any text or symbols.

Two-panel image showing a computer monitor and a microchip with a grid overlay (no visible text or symbols)

Two-panel image showing a textured surface before and after transformation, with no visible text or symbols.

Two-panel image showing a striped pattern on the left and a striped pattern on the right, both without any text or symbols.

GO TO POWER SAVE

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiae.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html
