USER MANUAL VSX523 K PIONEER

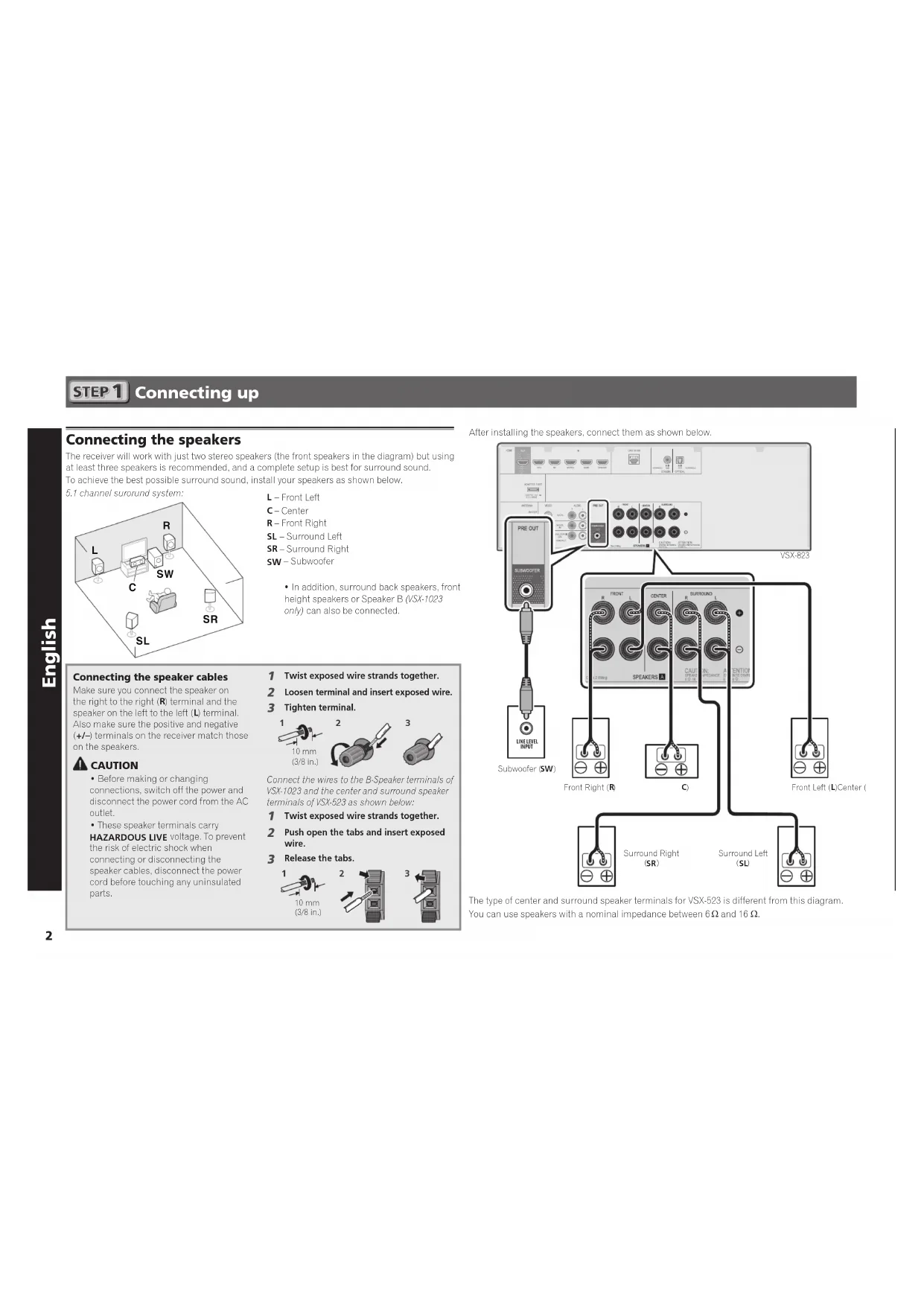

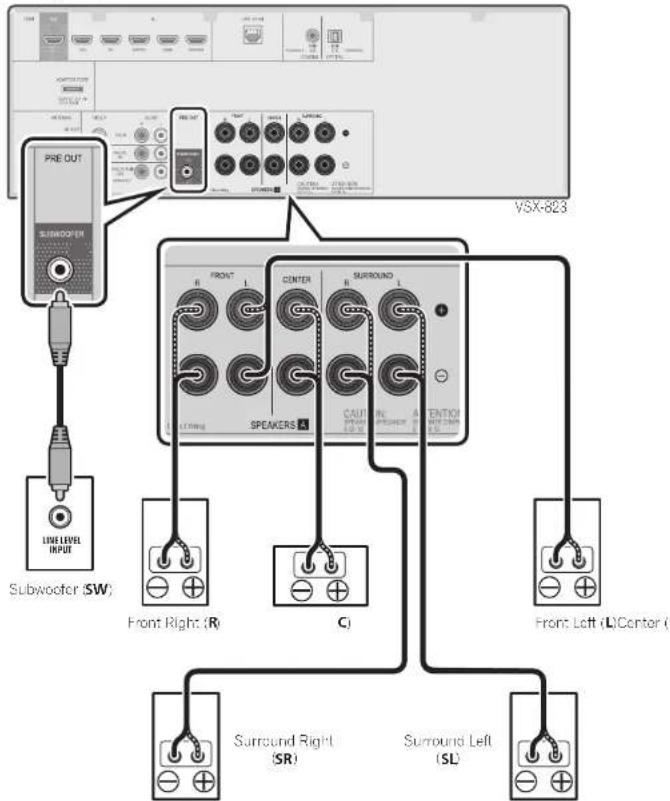

) terminals on the receiver match those on the speakers. CAUTION • Before making or changing connections, switch off the power and disconnect the power cord from the AC outlet. • These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts. Twist exposed wire strands together. Loosen terminal and insert exposed wire. Tighten terminal. 10 mm(3/8 in.)Connect the wires to the B-Speaker terminals of VSX-1023 and the center and surround speaker terminals of VSX-523 as shown below: Twist exposed wire strands together. Push open the tabs and insert exposed wire. Release the tabs. 10 mm(3/8 in.)

Front Left ( )Center (

VSX-823The type of center and surround speaker terminals for VSX-523 is different from this diagram.You can use speakers with a nominal impedance between 6 and 16

• Refer to the operating instructions in the included CD- ROM if you wish to connect a TV or playback component in a method other than an HDMI connection.

• Refer to the operating instructions in the included CD- ROM for other device connections. CAUTION

• Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement. VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 40 cm at top, 20 cm at rear, and 20 cm at each side). WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b*_A1_En Connecting up (continued) Connecting antennas

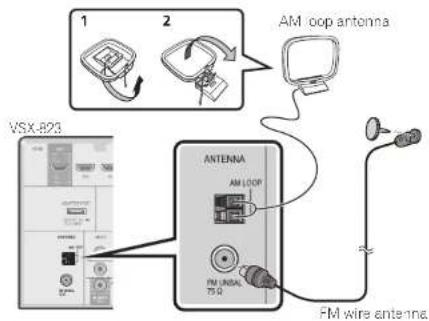

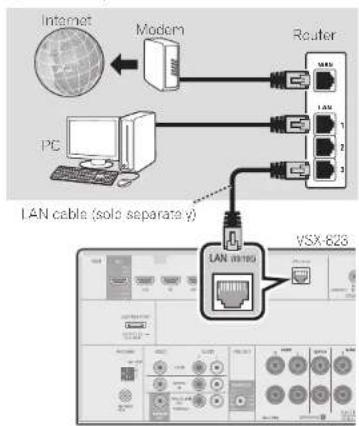

AM loop antennaFM wire antennaVSX-823 Connecting to the network through LAN interface VSX-1023/VSX-823 only WAN

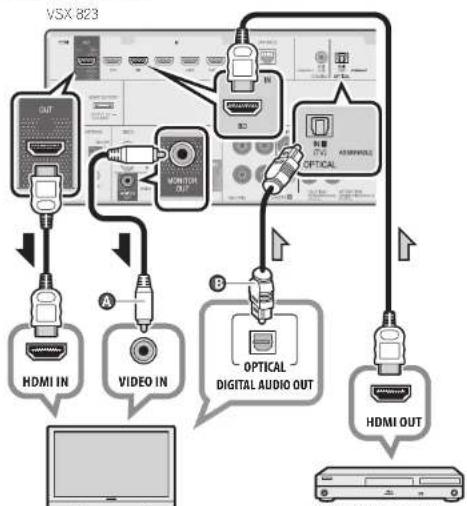

) connection is necessary in order to see the OSD of the unit on the TV.

• VSX-1023/VSX-823 only: The OSD will only be output from the HDMI OUT terminal.

• If the TV does not support the HDMI Audio Return Channel function, optical digital cable (

) connection is required to listen to the TV sound over the receiver.

• If the TV supports the HDMI Audio Return Channel function, the sound of the TV is input to the receiver via the HDMI terminal, so there is no need to connect an optical digital cable (

. In this case, set ARC

• Please refer to the TV’s operation manual for directions on connections and setup for the TV. VSX-823HDMI/DVI-compatible Blu-ray Disc player, etc. VSX-523CUXESMQSGEn.indd3VSX-523CUXESMQSGEn.indd3 2012/12/1214:55:572012/12/1214:55:574 Initial Setup Before you start

Put the batteries in the remote control. The batteries included with the unit are to check initial operations; they may not last over a long period. We recommend using alkaline batteries that have a longer life.

Switch on the receiver and your TV. INPUT SELECTSOURCESLEEP CONTROLINPUTRECEIVERRECEIVER

Switch the TV input so that it connects to the receiver.

Turn the subwoofer on and turn up the volume. CAUTION • Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries. • When inserting the batteries, make sure not to damage the springs on the battery’s (–) terminals. This can cause batteries to leak or overheat. • When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/area. Automatically setting up for surround sound (MCACC) The Auto Multi-Channel ACoustic Calibration (MCACC) setup uses the supplied setup microphone to measure and analyze the test tone that is outputted by the speakers. This setup enables automatic high precision measuring and settings; utilizing it will create an optimum user listening environment. Important • Measure in a quiet environment. • If you have a tripod, use it to place the microphone so that it’s about ear level at your normal listening position. Otherwise, place the microphone at ear level using a table or a chair. • Accurate measurements may not be possible if there are obstacles between the speakers and the listening position (microphone). • When measuring, step away from the listening position, and operate using the remote control from the external side of all the speakers.

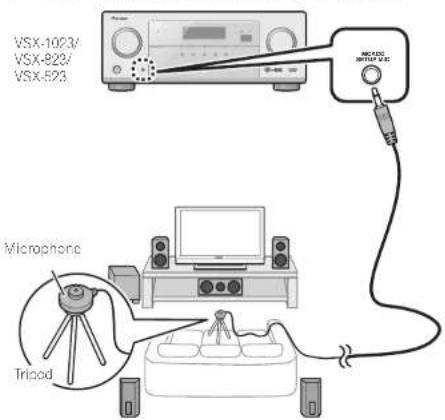

Connect the supplied setup microphone. MCACCSETUP MIC

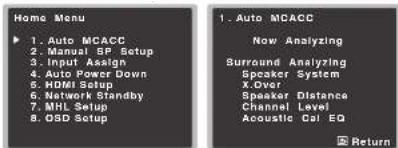

Press RECEIVER on the remote control, then press the HOME MENU button. The Home Menu appears on your TV.

• Measuring will take about 3 to 12 minutes.

Follow the instructions on-screen.

• Automatic setting is complete when the Home Menu screen appears.

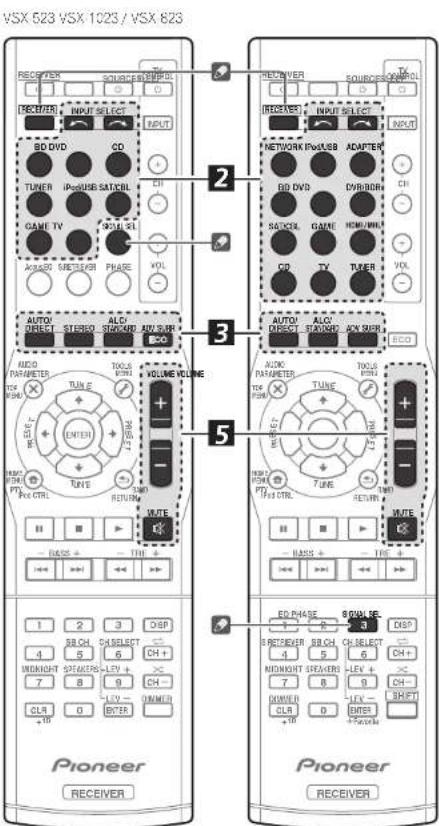

Switch on the playback component.E.g. Turn the Blu-ray Disc player connected to the HDMI BD IN terminal on. Switch the input of the receiver.E.g. Press to select the input. Press AUTO/DIRECT to select ’AUTO SURROUND’.Also press ALC/STANDARD ADV SURR for multichannel playback. Select your preferred listening mode. Start the playback component’s playback.E.g. Start playback of the Blu-ray Disc player. Use VOLUME +/– to adjust the volume level.Sound can be switched off by pressing MUTE button. Note • In order to listen to the audio from the source component that is connected to this receiver using a coaxial or an optical cable, choose the (coaxial) or (optical) input. (VSX-523: Press SIGNAL SEL. VSX-1023/VSX-823: Press RECEIVER then press SIGNAL SEL

• The input of the receiver will switch over, and you will be able to operate other components using the remote control. To operate the receiver, first press RECEIVER the remote control, then press the appropriate button to operate. Listening to the radio

Press TUNER to select the tuner.If necessary, press BAND to change the band (FM or AM). Press TUNE to tune to a station. • Press and hold TUNE

for about a second. The receiver will start searching for the next station. • If you’re listening to an FM station but the reception is weak, press BAND to select FM MONO and set the receiver to the mono reception mode. Saving station presets If you often listen to a particular radio station, it’s convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station. Press TOOLS while receiving a signal from the station you want to store.The preset number is blinking. Press PRESET to select the station preset you want, then press ENTER.The preset number stop blinking and the receiver stores the station. Listening to station presets You will need to have some presets stored to do this.

Press PRESET to select the station preset you want.VSX-523 VSX-1023 / VSX-823 VSX-523CUXESMQSGEn.indd5VSX-523CUXESMQSGEn.indd5 2013/01/2211:11:092013/01/2211:11:096 Basic playback (continued) To enjoy the many functions of the unit to the fullest extent Load the CD-ROM into your computer and download the PDF manual from the menu screen to read.Functions

Playback with NETWORK features page 39 (VSX-1023/VSX-823 only)

• About one minute is required between turning the power on and completion of startup.

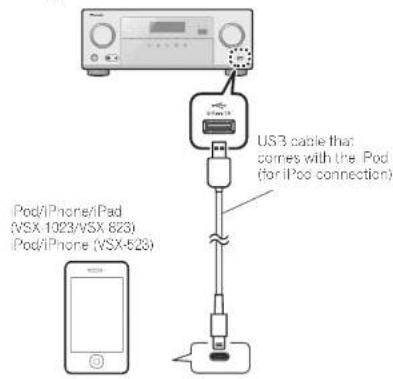

Press iPod/USB to select the iPod/USB input. When the display shows the names of folders and files, you’re ready to play music from the iPod.

to select a category, then press ENTER to browse that category.

• To return to the previous level any time, press RETURN

to browse the selected category (e.g., albums).

• Use to move to previous/next levels.

Continue browsing until you arrive at what you want to play, then press

to start playback. Listening to Internet radio stations VSX-1023/VSX-823 only • About one minute is required between turning the power on and completion of startup. Important • When using a broadband Internet connection, a contract with an Internet service provider is required. For more details, contact your nearest Internet service provider. • To listen to Internet radio stations, you must have high-speed broadband Internet access. With a 56 K or ISDN modem, you may not enjoy the full benefits of Internet radio. • Access to content provided by third parties requires a high speed internet connection and may also require account registration and a paid subscription. Third party content services may be changed, suspended, interrupted, or discontinued at any time without notice, and Pioneer disclaims any liability in connection with such occurrences. Pioneer does not represent or warrant that content services will continue to be provided or available for a particular period of time, and any such warranty, express or implied, is disclaimed.

Press NETWORK repeatedly to select the NETRADIO input. It may take several seconds for this receiver to access the network.
