| Product Type | 2-Channel Amplifier |
| Brand | Rockford Fosgate |
| Model | Punch P2002 |
| RMS Power (4 ohms) | 50 W x 2 |
| RMS Power (2 ohms) | 100 W x 2 |
| Bridged RMS Power (4 ohms) | 200 W x 1 |
| Frequency Response | 20 Hz - 20 kHz ±0.5 dB |
| Signal-to-Noise Ratio | >80 dB @ 2 V RMS |
| Filter Attenuation Slope | 12 dB/octave Butterworth |
| Filter Frequency | Variable from 40 to 400 Hz |
| Bass Equalization | 0 to +18 dB at 45 Hz |
| Input Impedance | 10 kΩ |
| Dimensions (H × W × D) | 6.09 × 27.94 × 29.72 cm |
| Power Supply | 12 V DC (vehicle battery) |
| Amplifier Fuses | 1 × 30 A ATC |
| Protection | NOMAD (overload, short-circuit, thermal) |
| Included Accessories | Bass remote, mounting kit |
| Warranty | 1 year (Punch amplifiers) |
| Maintenance | Clean with a dry cloth; avoid liquids |
| Safety | Disconnect battery before installation |
| General Information | Compliant with CEA-2006 standard |
Frequently Asked Questions - Punch P2002 Rockford Fosgate

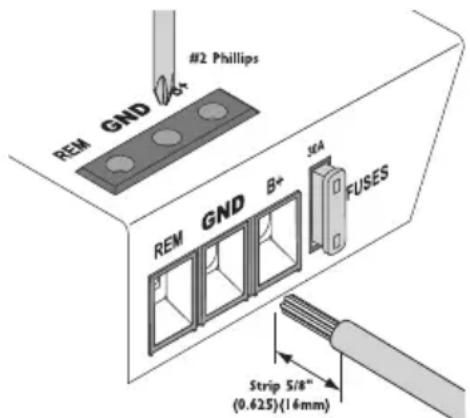

How to install the Punch P2002 amplifier?

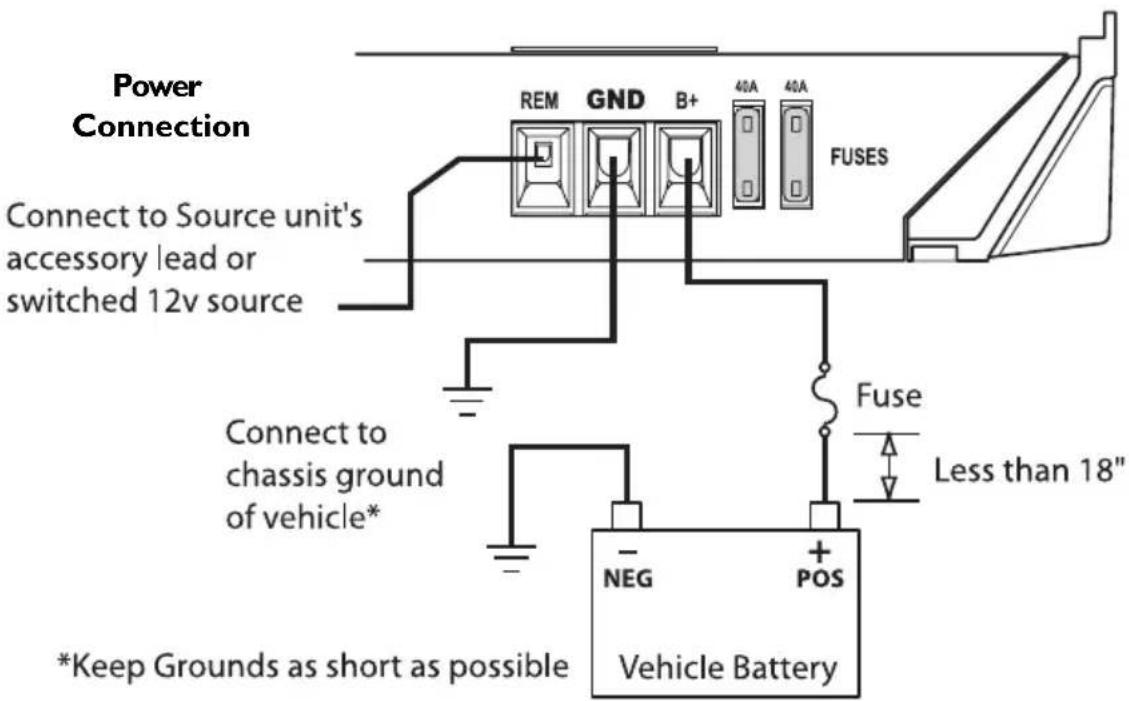

Before installation, disconnect the negative battery terminal. Mount the amp in a well-ventilated area, preferably vertically or on the trunk floor. Use appropriately sized power cables (up to 4 AWG) and install an inline fuse within 18 inches (45 cm) of the battery. Route the RCA cables away from power wires to avoid interference.
What is the output power of this amplifier?
The Punch P2002 delivers 50 W RMS per channel at 4 ohms, 100 W RMS per channel at 2 ohms, and 200 W RMS bridged (mono) at 4 ohms, measured at 14.4 V.

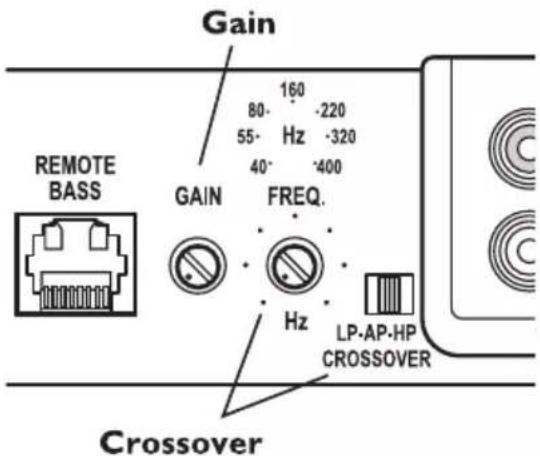

How to adjust the gain and filter?
For gain, start at minimum (counterclockwise), increase the source volume until distortion then reduce it, then increase the gain to the desired level. For the filter, select the mode HP (high-pass), AP (all-pass), or LP (low-pass) and adjust the cutoff frequency between 40 and 400 Hz.
What to do if the protection light comes on?
The protection light (yellow LED) indicates a short circuit or too low impedance. Check speaker connections and impedance. If the thermal light comes on, the amp is overheating: let it cool down, improve ventilation, and check battery voltage.

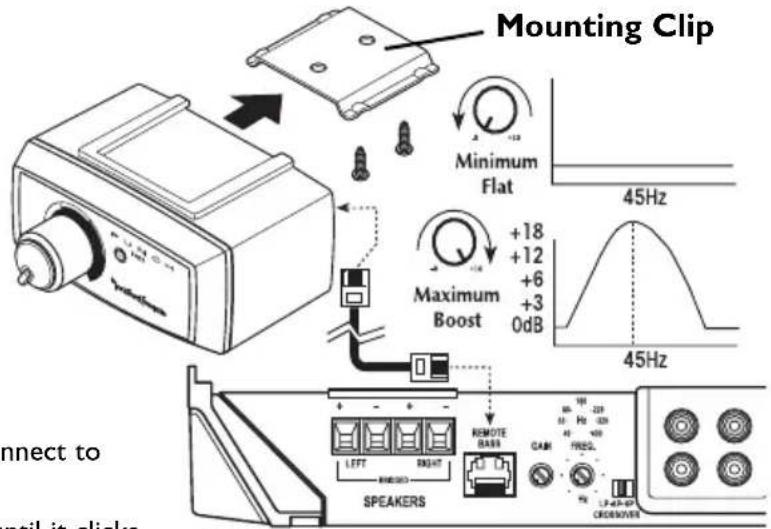

How to use the bass remote?
The bass remote allows boosting frequencies at 45 Hz from 0 to +18 dB. Connect it via the supplied RJ-45 cable. Turn the knob clockwise to increase boost. Caution: excessive boost may damage speakers.

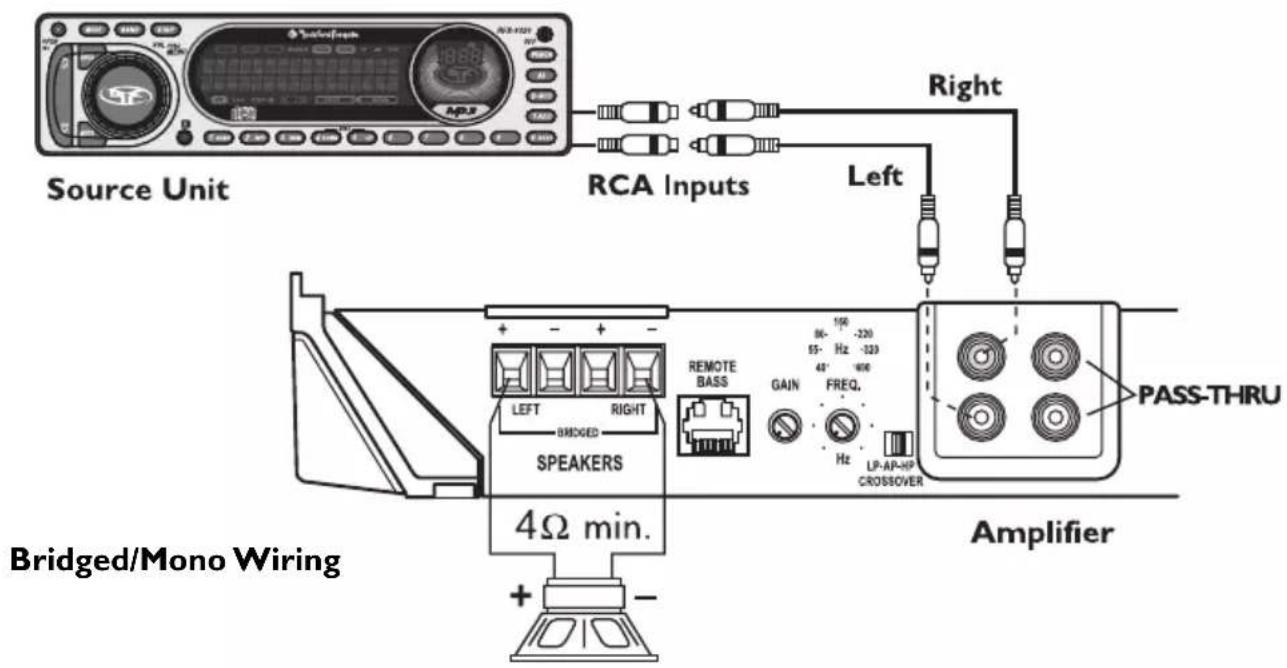

Can I bridge the channels for more power?
Yes, you can bridge the two channels in mono mode. Use the positive terminal of the left channel and the negative terminal of the right channel. The minimum recommended impedance when bridged is 4 ohms. The resulting power is 200 W RMS.
What type of fuse to use?
The amp uses a 30 A ATC fuse. For the power cable, install an external fuse (not included) of 30 A within 18 inches (45 cm) of the battery. Always replace with a fuse of the same type and rating.
How to avoid overheating?
Ensure adequate ventilation around the heat sink. Mount the amp vertically or on the floor, never upside down. Leave at least 1 inch (2.5 cm) of space around the amp. Check that the speaker impedance is not too low.
What accessories are recommended?
Rockford Fosgate offers Punch installation kits (cables, connectors), Punch capacitors to stabilize power, and an optional Para-Punch remote that allows adjusting the bass center frequency.
Where to find updates or support?
Visit www.rockfordfosgate.com for information, accessories, and support. In the US, call 1-800-669-9899 or contact your authorized dealer. Have the serial number and purchase date handy.
