USER MANUAL TTE24D1804K TOKAI

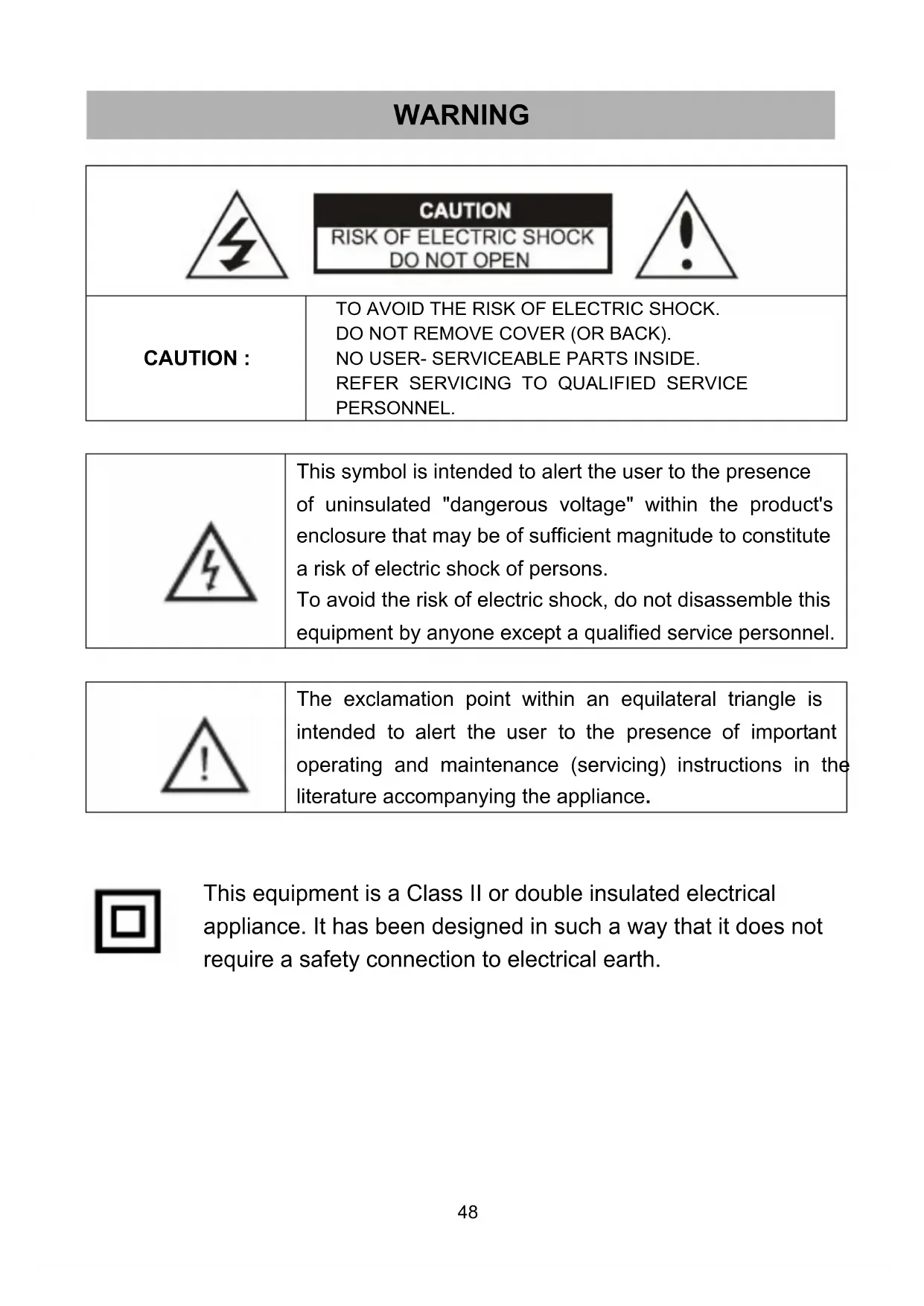

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock of persons. To avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel.

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING49

This product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Situate this product away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. ● Clean the product only as recommended by the manufacturer (see “Maintenance” section for details). Unplug the power plug from the wall outlet before cleaning, ● Unplug the power plug from the wall outlet when left unused for an extended period. ● Prevent objects/liquids from falling or spilled on the product. ● Operate the product only with the supplied power cord. Route power cords so they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to plugs, convenience receptacles, and the point where they exit from the product. ● Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. ● Do not operate this product under the following conditions. - When the power-supply cord or plug is damaged. - If liquid has been spilled into or objects have fallen into the product. - If the product has been exposed to rain or water. - If the product does not operate when used according to the operating instructions. - If the product has been dropped or damaged in any way. ● Do not attempt to service the product; take it to the electronics repair shop of your choice for any servicing or repair. ● Do not overload wall outlets, extension cords, or integral convenience receptacles. ● Connect this product to the power outlet which has protective earth connection.

● This product is intended solely for non-commercial, non-industrial, personal use as a television. Do not use this product for any other purpose. ● Do not subject the product to violent shocks, extreme temperatures, or lengthy periods of direct sunlight. ● Keep the product away from magnetic objects, motors, and transformers. ● Do not use outdoors in inclement weather. ● Do not use the TV while driving; this is dangerous and is illegal in some areas.

CAUTION ON HEADPHONE USE: At full volume, prolonged listening to the portable audio device may damage the user’s hearing.

BATTERY HANDLING AND USAGE: ● Keep batteries away from children and pets. Only adults should handle batteries. ● Never throw batteries into a fire or expose them to fire or other heat sources. ● Follow the battery safety and usage instructions.51

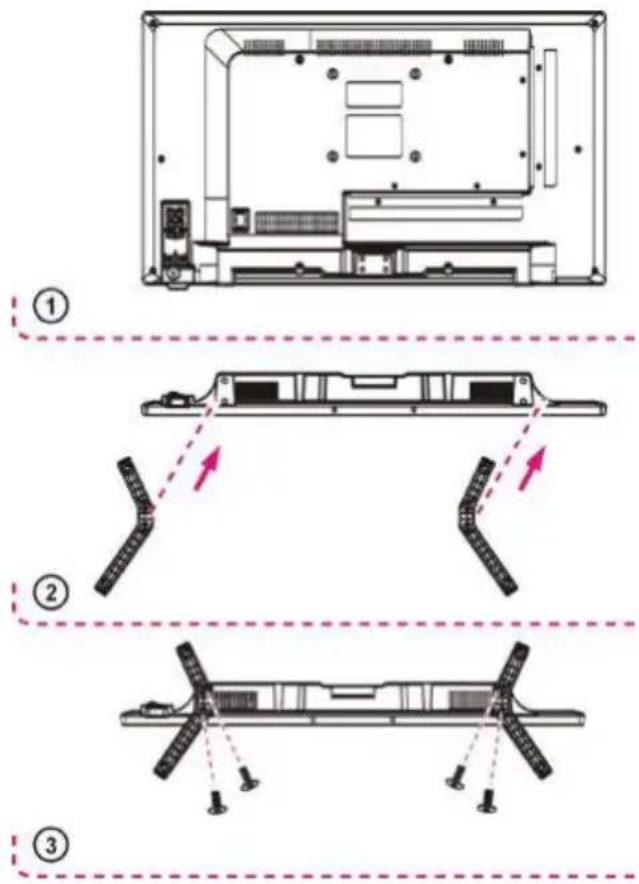

Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged. Step 2 Align the Stand with TV bottom and then force the end of stand until the TV is fully seated on the stand. Step 3 Tighten the included screws with a screw driver.

NOTES: - Unplug the power plug first when installing or removing the TV Stand. - To avoid any damage to this TV, contact one or more partner for assistance when installing or removing the TV stand.

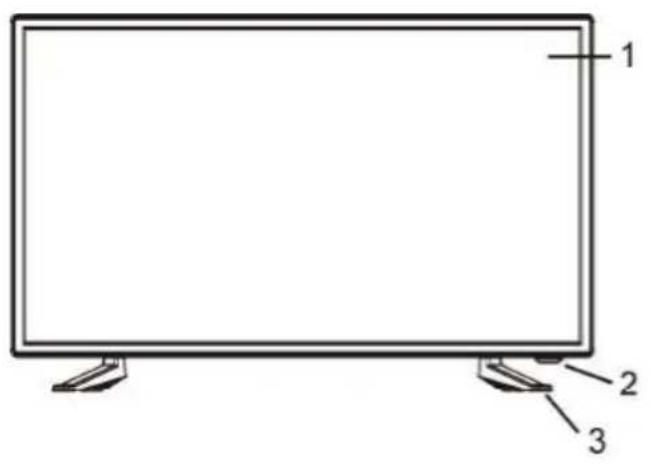

light is red; when switching on the unit the indicator light is blue color.

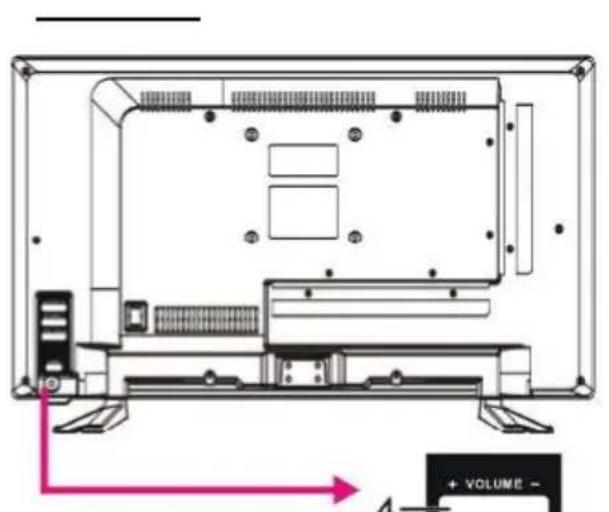

4. VOLUME +/- button- To increase/decrease the volume level or move

5. CHANNEL +/- button- To select next/previous channel or move

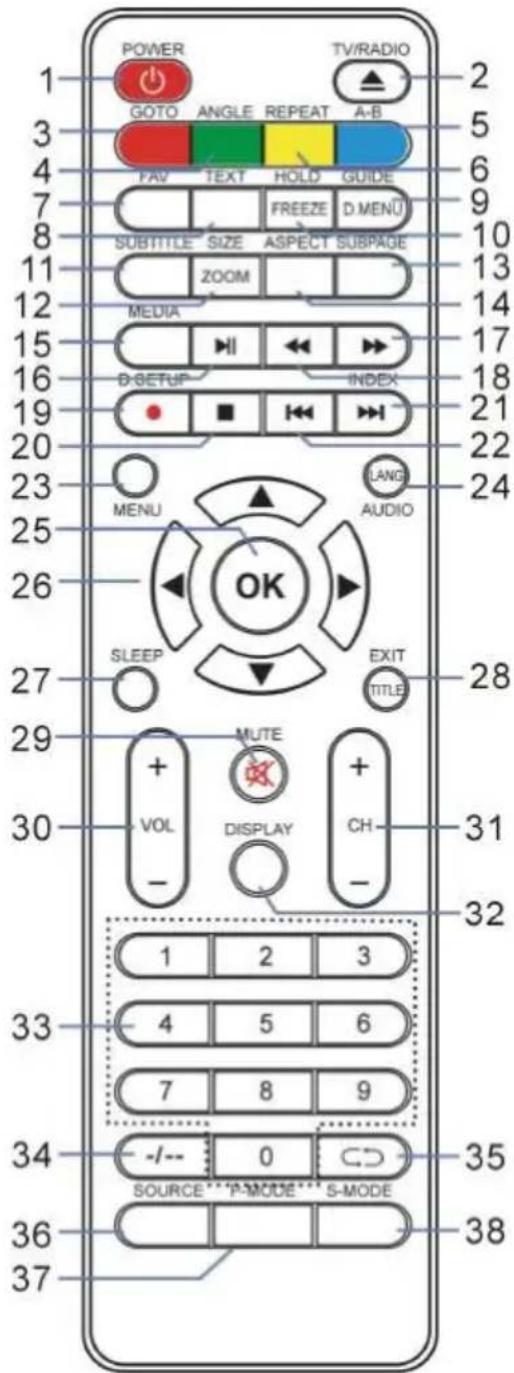

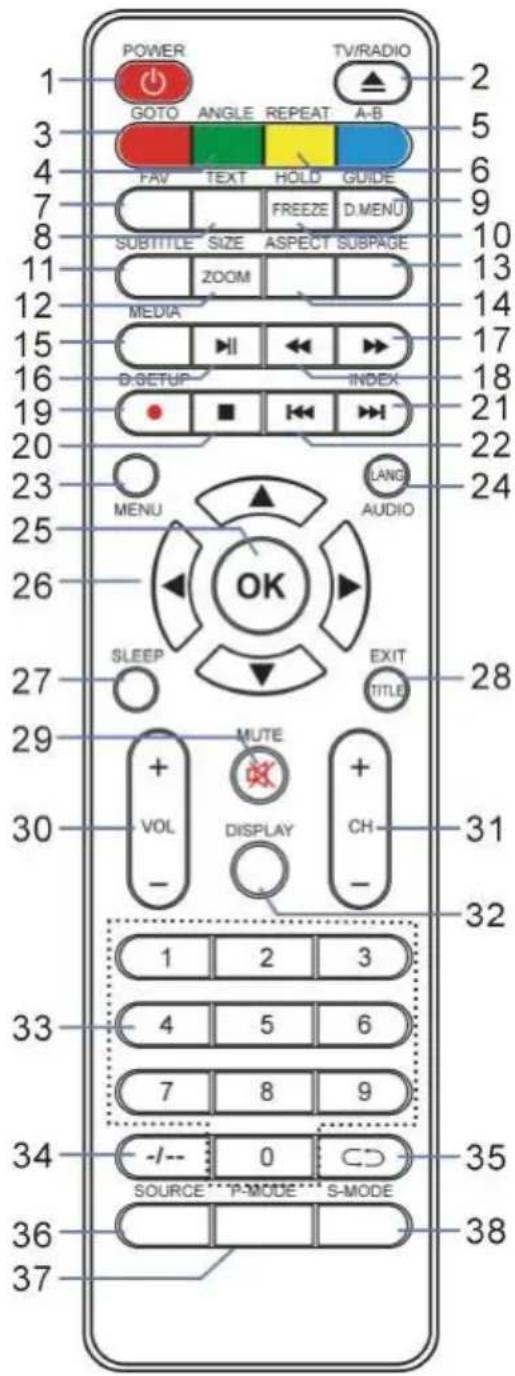

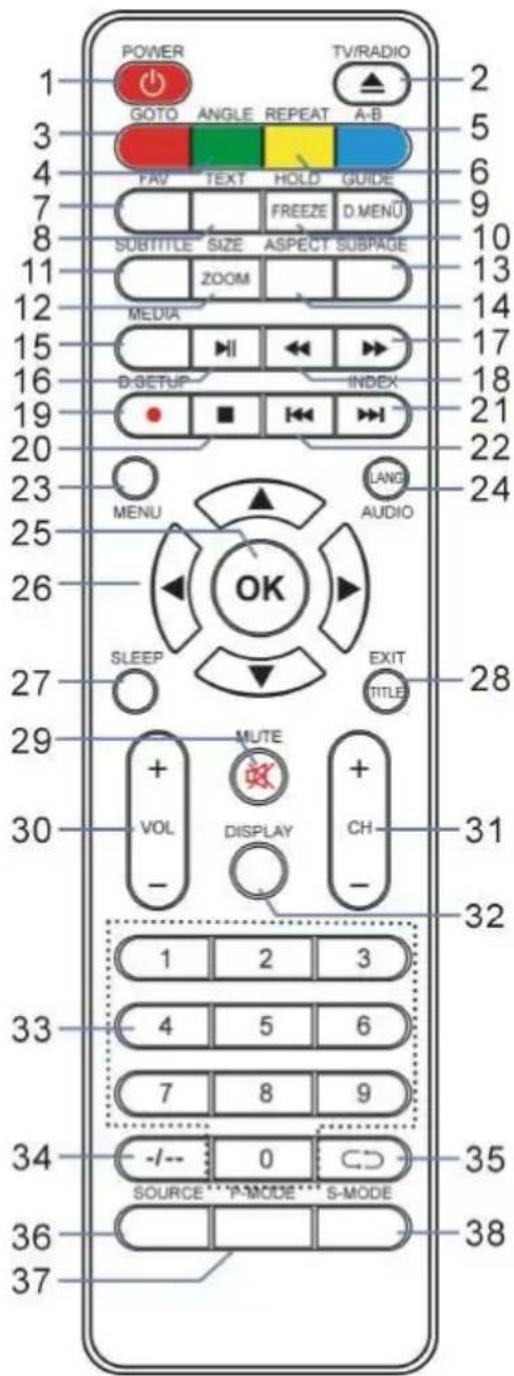

13 SUBPAGE* Enter Teletext sub-page. 14 ASPECT Press it repeatedly to select desired screen size. 15 MEDIA Enter Media (USB) mode directly.

Start/pause playing.

Play the next file. INDEX* (DTV) Display the record list or Teletext index.

Return to previous channel. 36 SOURCE Select desired input source. 37 P-MODE Switch the picture mode. 38 S-MODE Switch the sound mode. NOTE: The functions of those buttons, which marked with “DVD”, are available only when your TV has fitted a DVD player. (Not available for your model TTE-24D1804K). The * marked on some keys means that these buttons are used for teletext.

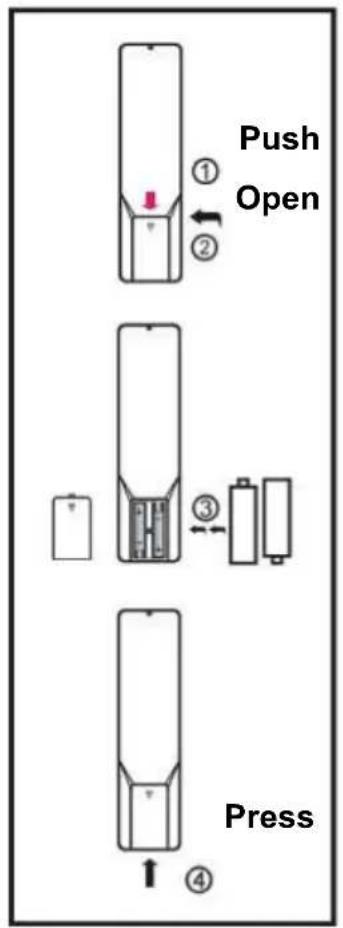

BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1).

SERVICE LIFE OF BATTERIES

- The batteries normally last for one year although this depends on how often the remote control is used. - If the remote control fails to work even when it is operated near the player, replace the batteries. - Use two size AAA dry batteries. NOTE: ● Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction. ● If the remote control is not going to be used for a long time, remove the batteries.

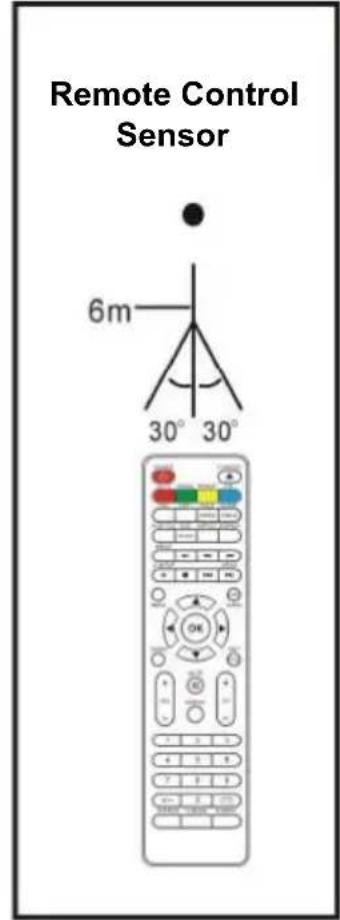

REMOTE CONTROL OPERATION Point the remote control from no more than about 6m from the remote control sensor and within about 60°of the front of the player (Fig2). NOTES: - The operating distance may vary according to the brightness of the room. - Do not point bright light at remote control sensor. - Do not place objects between the remote control and the remote control sensor. - Do not use this remote control while simultaneously operating the remote control of any other equipments.

Precaution on battery use Improper use of batteries can result in leakage of chemicals and/or explosion. Be sure to follow the instructions below : Place batteries with their terminals corresponding to the (+) and (-) indications. Different types of batteries have different characteristics. Do not mix batteries of different types. Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old batteries to leak chemicals. Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe with a cloth. The batteries (battery pack of batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. IMPORTANT NOTE ON BATTERIES : Please help to protect the environment. It is recommended to dispose of old batteries in collection centers specially designed for that.

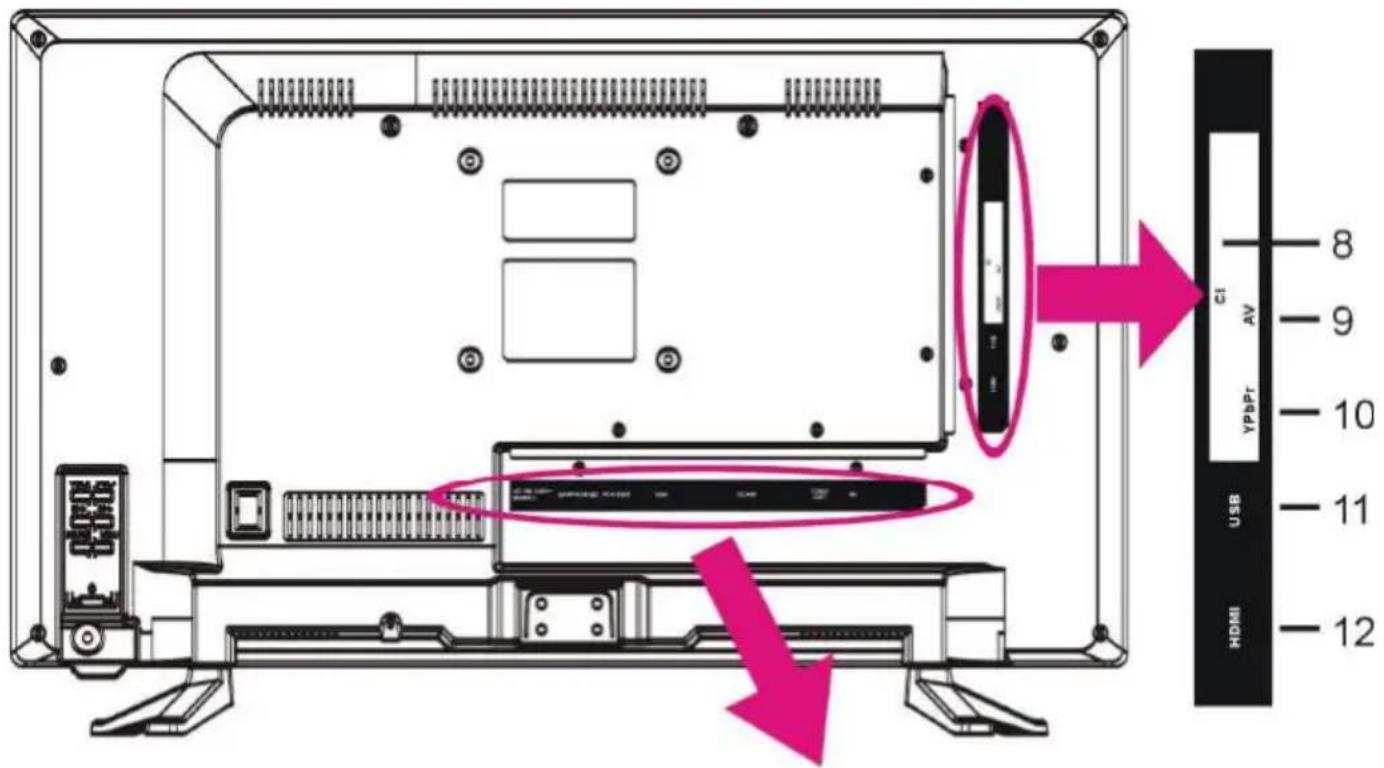

● Ensure all the cables are disconnected from the main unit before connecting to AC power source. ● Read through the instructions before connecting other equipments.

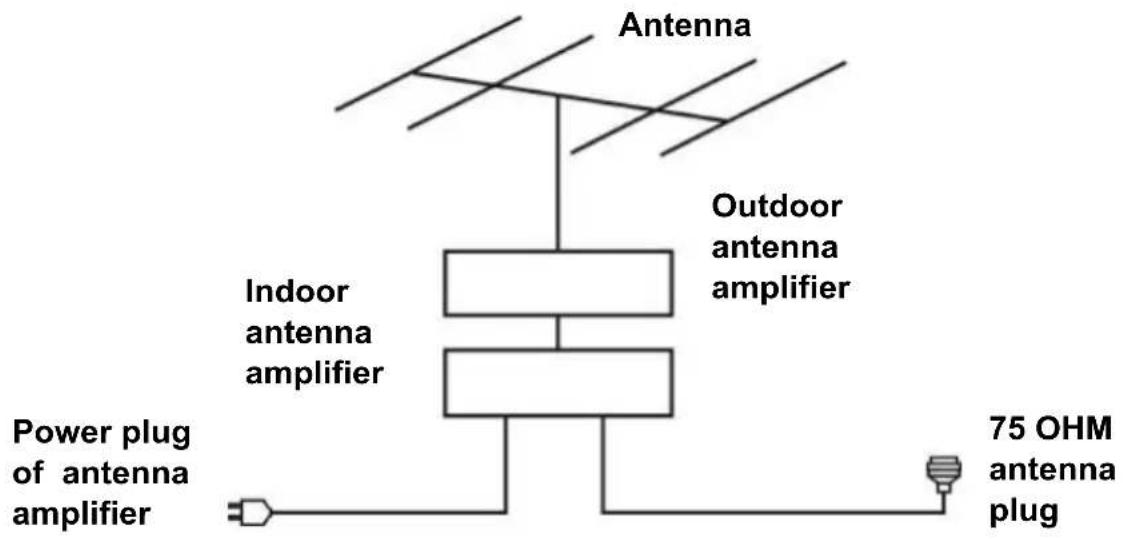

Install external antenna into antenna jack for best picture. Connect the TV signal cable (the antenna cable, for example) to the RF Input Jack (9) on the back of the unit.

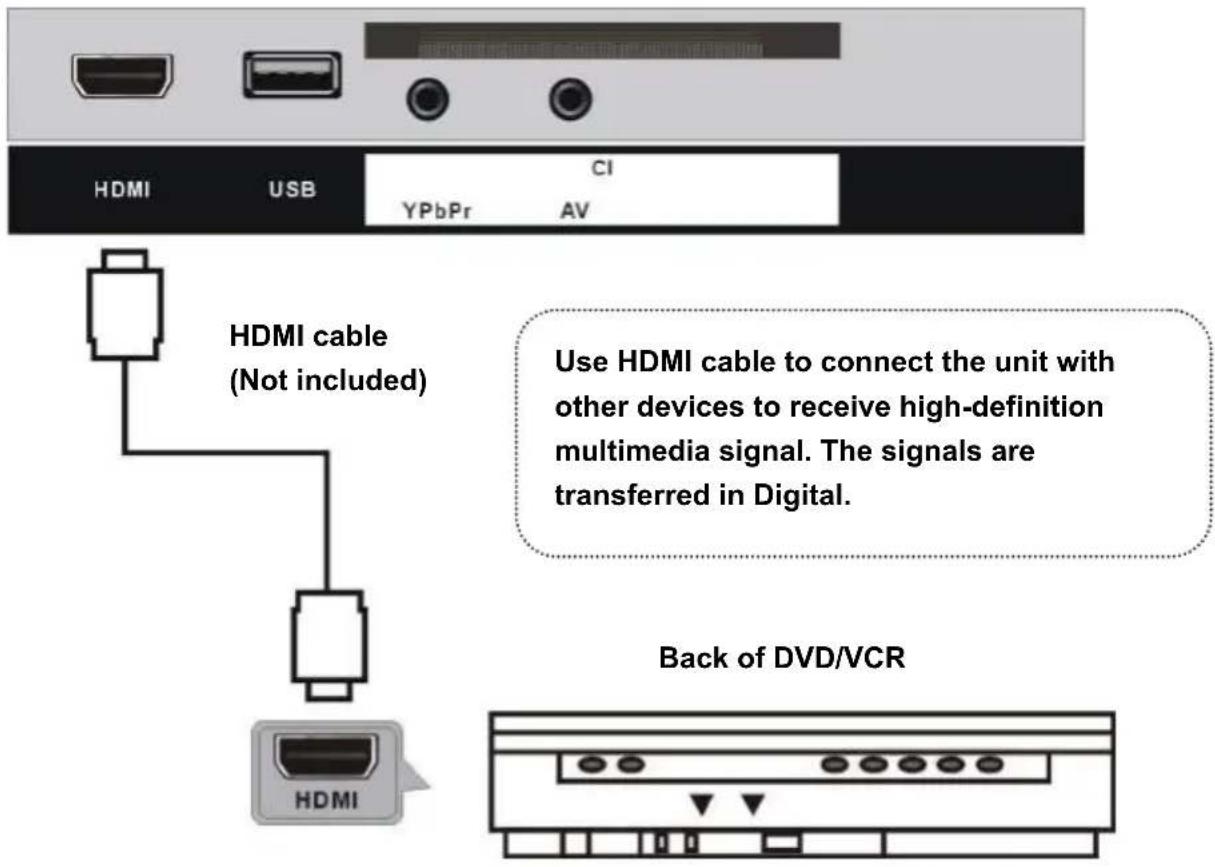

Power plug of antenna amplifier Antenna HDMI cable (Not included) Use HDMI cable to connect the unit with other devices to receive high-definition multimedia signal. The signals are transferred in Digital. Back of DVD/VCR62

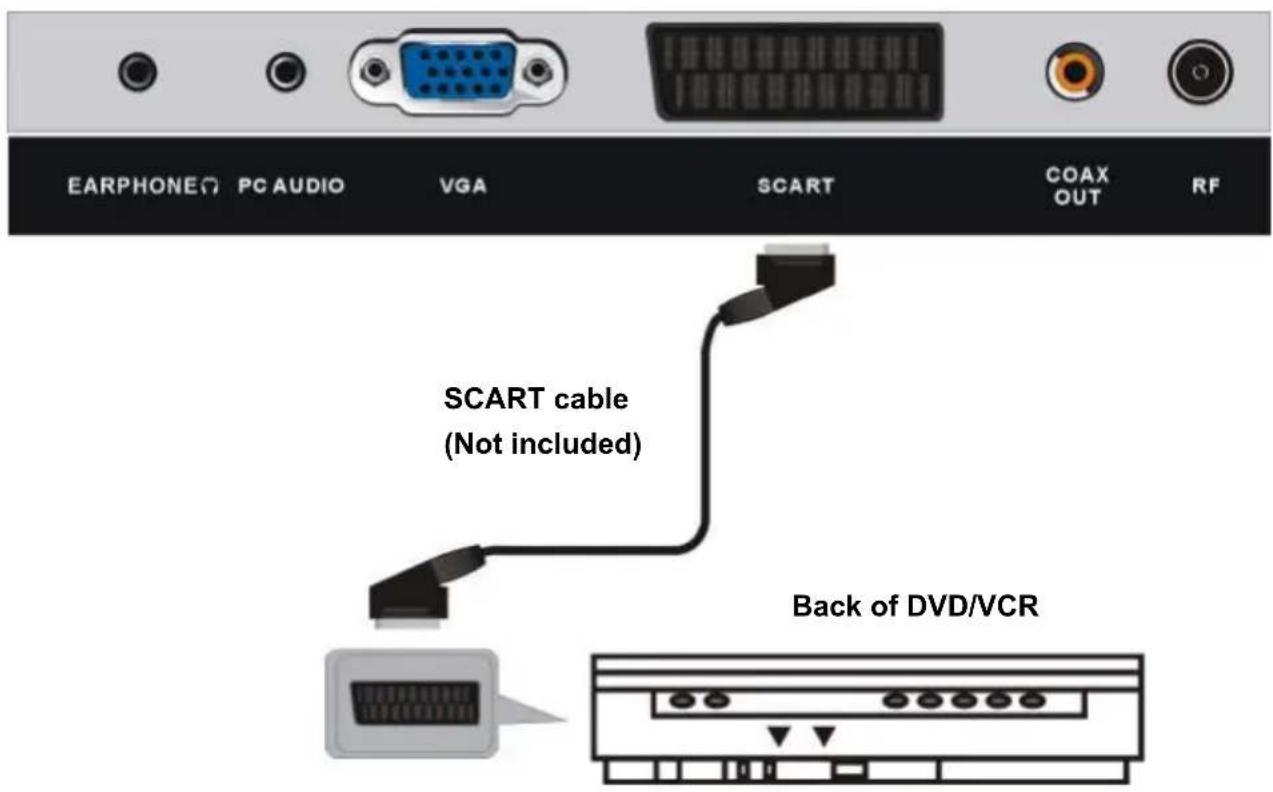

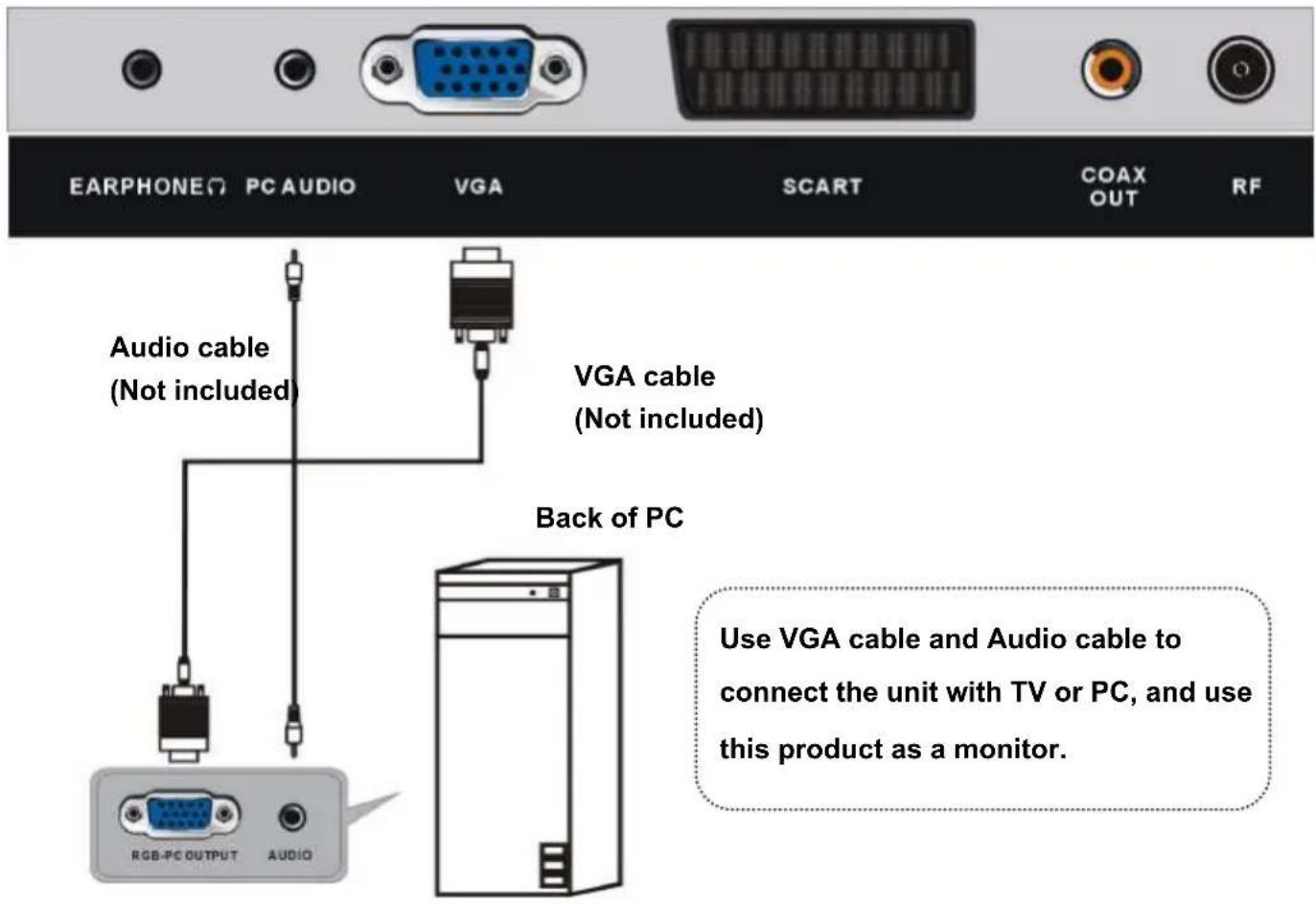

Back of DVD/VCR SCART cable (Not included) Back of PC Use VGA cable and Audio cable to connect the unit with TV or PC, and use this product as a monitor.

VGA cable (Not included) Audio cable (Not included)63

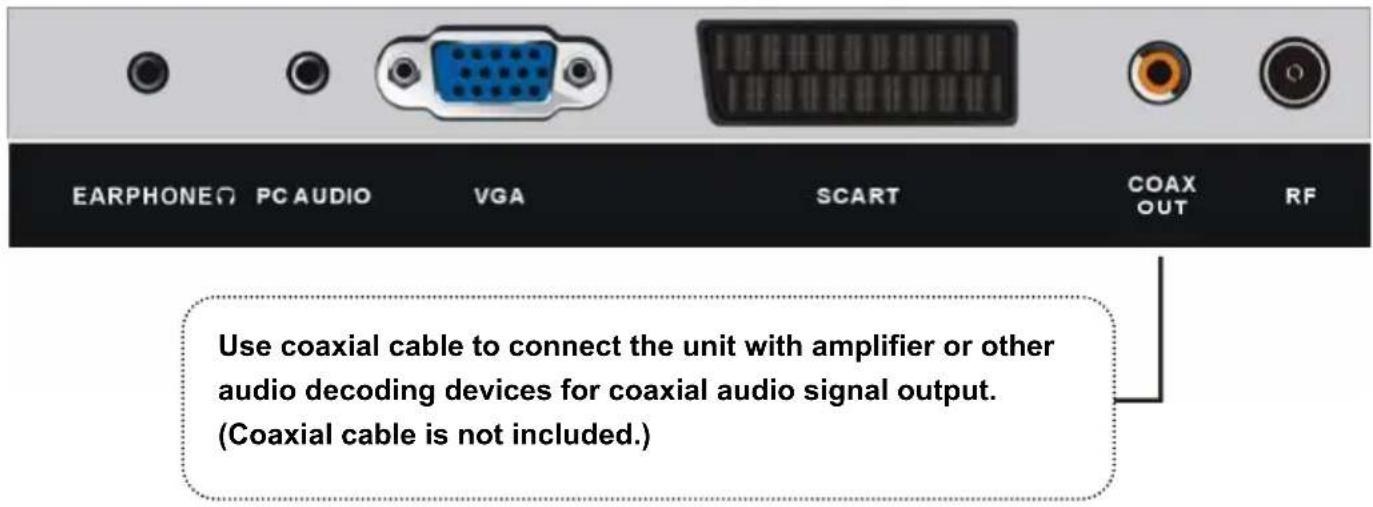

Use coaxial cable to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output. (Coaxial cable is not included.) Back of DVD/VCR For basic connection, use the composite Audio L/R (white/red) and CVBS (yellow) cable to connect the unit with other devices.

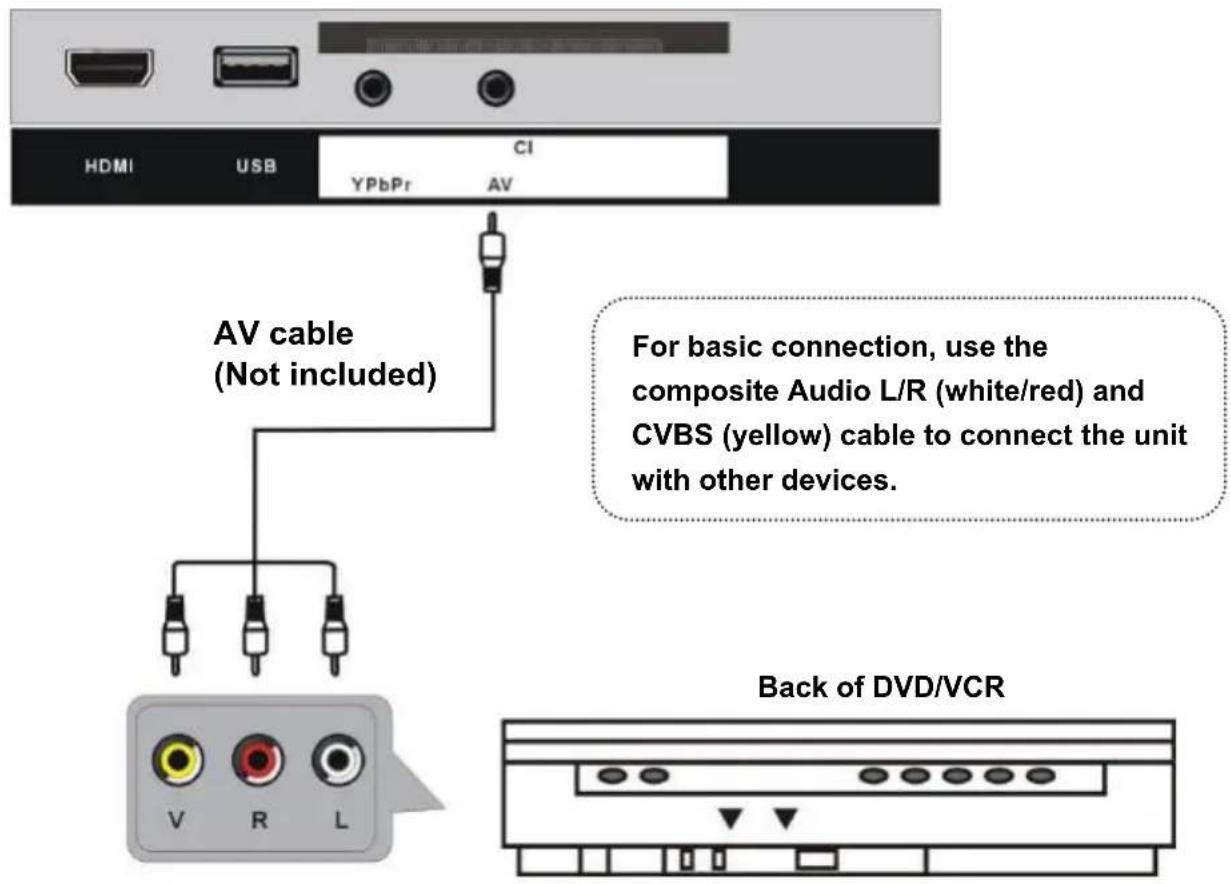

AV cable (Not included)64

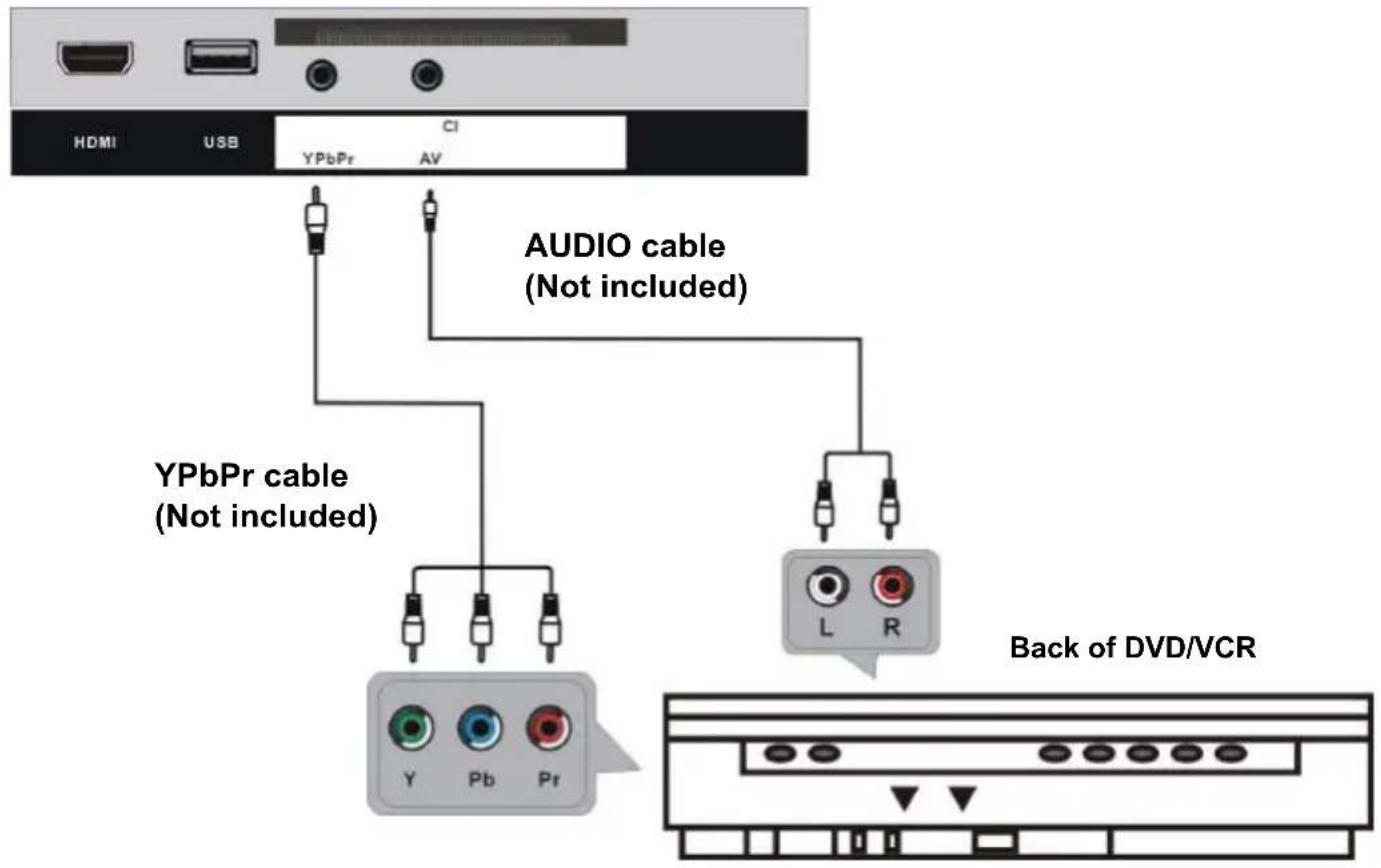

YPbPr cable (Not included) Back of DVD/VCR AUDIO cable (Not included) (Not included)65

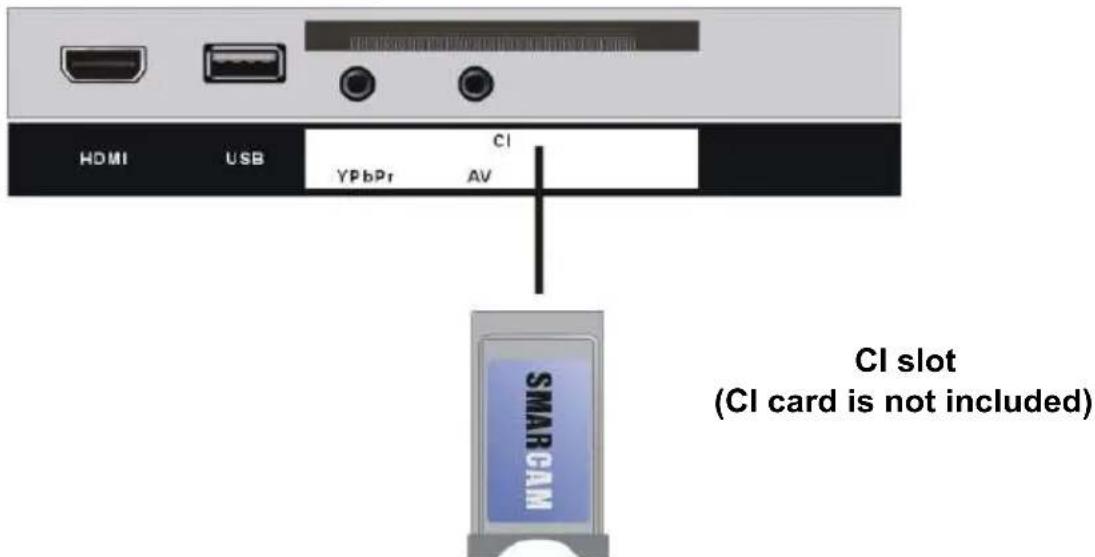

Pay per view services requires a smartcard to be inserted into the TV. If you subscribe to a pay per view service the provider will issue with a CAM card “Smartcard”. The CAM can then be inserted into the COMMON INTERFACE port.

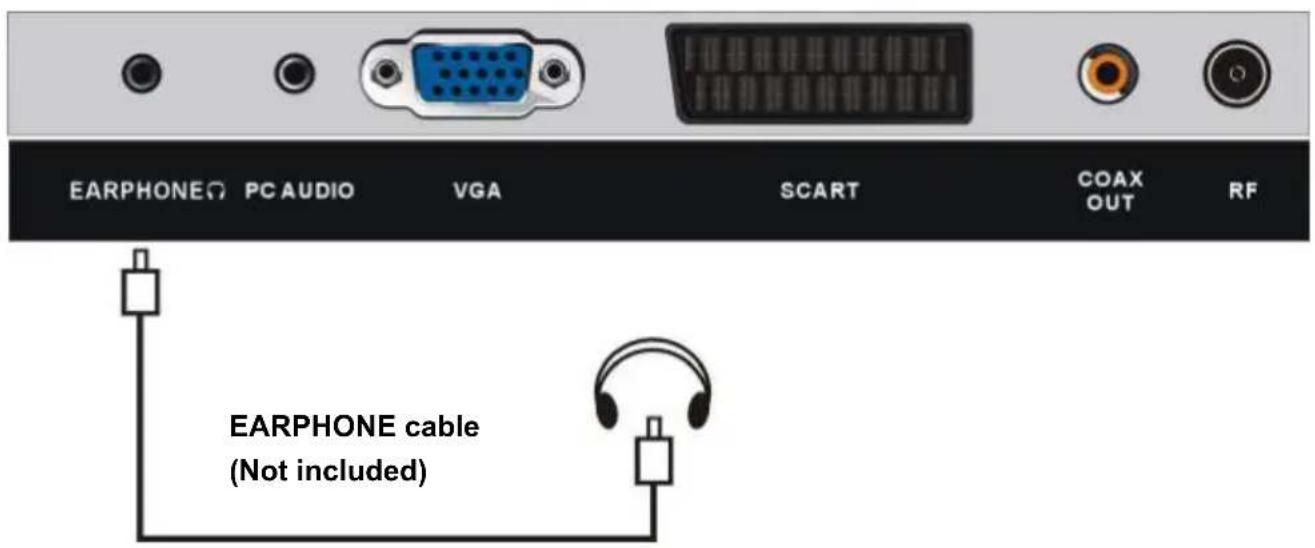

Use the HEADPHONES output of your TV set to listen the audio of the unit through your own stereo headphones. When you connect headphones to the unit, the main speakers will be silenced. Notes: the headphone is not supplied with the TV set. When connecting a headphone, please first reduce the volume to the minimum level and then progressively increase it to a comfortable volume level. Hearing experts advise against exposure to continuous extended play at loud volume levels while using headphone (earphone), possible hearing loss may result. CI slot (CI card is not included)

EARPHONE cable (Not included)66

- Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red). - Press SOURCE button on the unit or remote control to switch the unit to DTV or ATV mode.

SELECT DESIRED PROGRAM

1. Press CH+ button to play next channel.

2. Press CH- button to play previous channel.

3. Press number buttons on remote control directly to select desired program.

NOTE: Press -/-- button repeatedly to switch the digit. VOLUME CONTROL - Press VOL+ or VOL- to adjust the level of current volume. Available range: 0-100. MUTE CONTROL - Press MUTE button to mute the sound, press it again to turn on the sound. SOURCE SETTING - Press SOURCE button on the unit or remote control to display the sources list. - Press UP or DOWN navigation button to select desired input source, and then press OK button to confirm selection. Available options: DTV, ATV, AV, SCART, YPBPR, HDMI, PC, Media. PICTURE MODE - Press P-MODE button on remote control repeatedly to select desired PICTURE mode directly. Available options: Standard, Mild, Personal, Dynamic. SOUND MODE - Press S-MODE button on remote control repeatedly to select SOUND mode directly. Available options: Standard, Music, Personal, Movie.

- Press SLEEP button on remote control repeatedly to select SLEEP TIME directly. Available options: Off, 5/15/30/60/90/120/240 minutes.

- Press ASPECT button on remote control repeatedly to select VIDEO SIZE directly. Available options: Auto, 4:3, 16:9, Zoom1, Zoom2. NOTE: If there’s no signal, pressing ASPECT button will not work. And the available video size may be different for different input source. MULTIAUDIO SETTING - Press AUDIO button on remote control repeatedly to select desired audio language. NOTE: To enable this function, make sure that the channel you are viewing supports multi-audio languages. INFORMATION DISPLAY - Press DISPLAY button on remote control to display information of current program. TV GUIDE (FOR DTV MODE ONLY) - Press GUIDE button on remote control to enter Program Guide menu page.

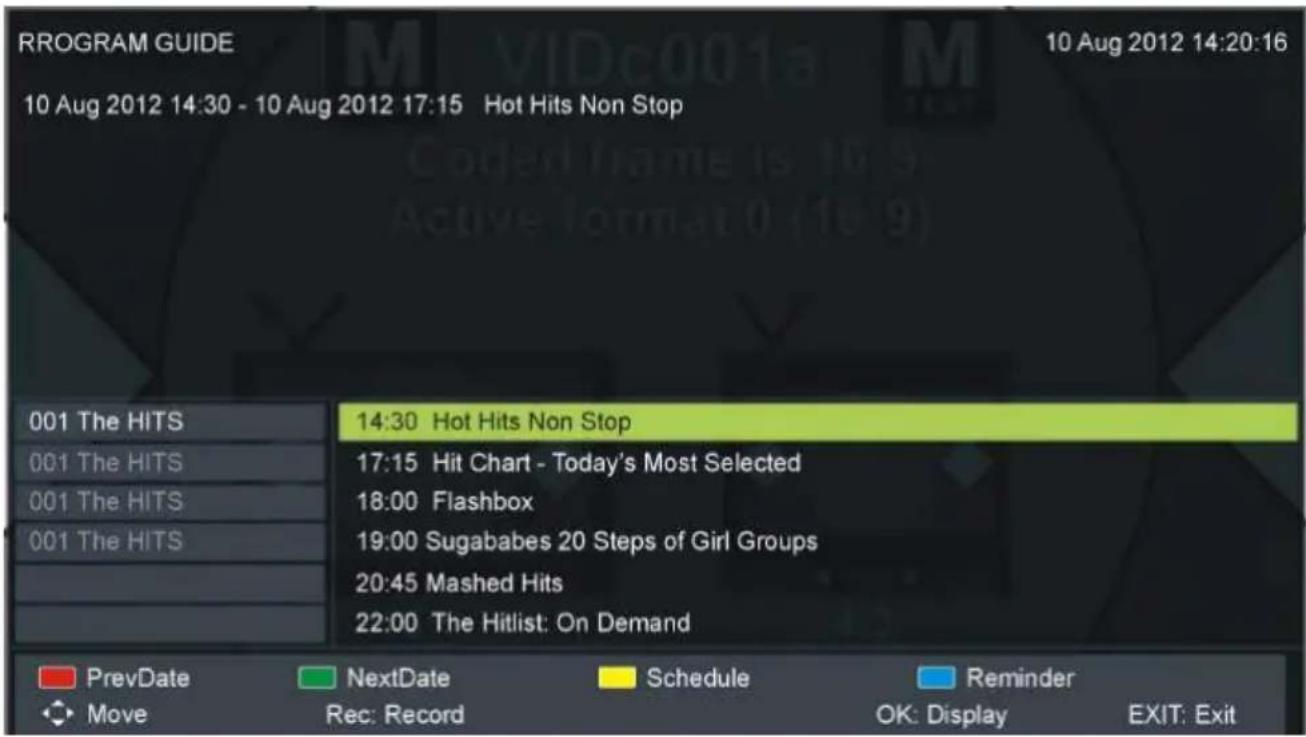

- Press UP/DOWN navigation button to select preferred program - Press LEFT/RIGHT navigation button to switch between left column and right column. - Press RED button to display the TV guide of previous day. - Press GREEN button to display the TV guide of next day. - Press YELLOW button to enter schedule list page. - Press BLUE button to enter reminder setting page.68

QUICK SELECT When viewing an available channel, press OK button on remote control to enter Channel List menu page. - Press UP or DOWN navigation button to select preferred channel. - Press OK button to confirm selection. TELETEXT - Press TEXT button on remote control to display the available teletext information and press it repeatedly to stop playing the teletext. TV/RADIO (FOR DTV MODE ONLY) - Press TV/RADIO button on remote control to switch the unit between TV and radio mode. SUBTITLE - Press SUBTITLE button on remote control repeatedly to select desired subtitle. NOTE: To enable this function, make sure that the channel you are viewing supports multi-subtitle. FREEZE - During normal playing, press FREEZE button on remote control to hold the picture, and press it again to resume normal playing.69

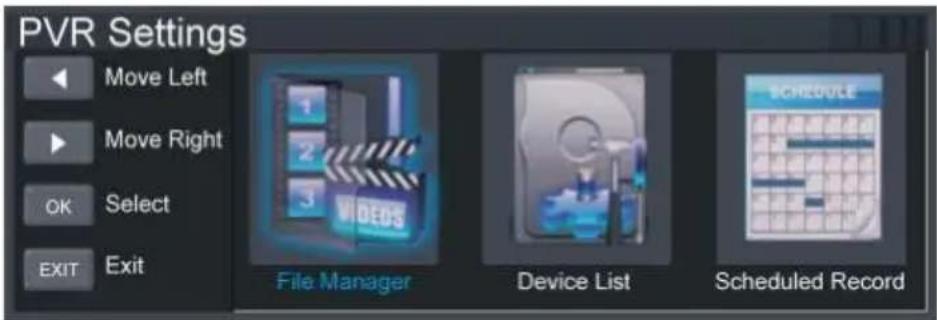

RECORDER (FOR DTV MODE ONLY) - Insert your USB memory device into USB slot first. When watching a digital program: - Press ● button on remote control to start recording directly. - Press button on remote control to call out a dialog box, and select Yes to stop recording; select No to dismiss the dialog box. To watch recorded programs: - Press INDEX button on remote control to call out the PVR Settings page.

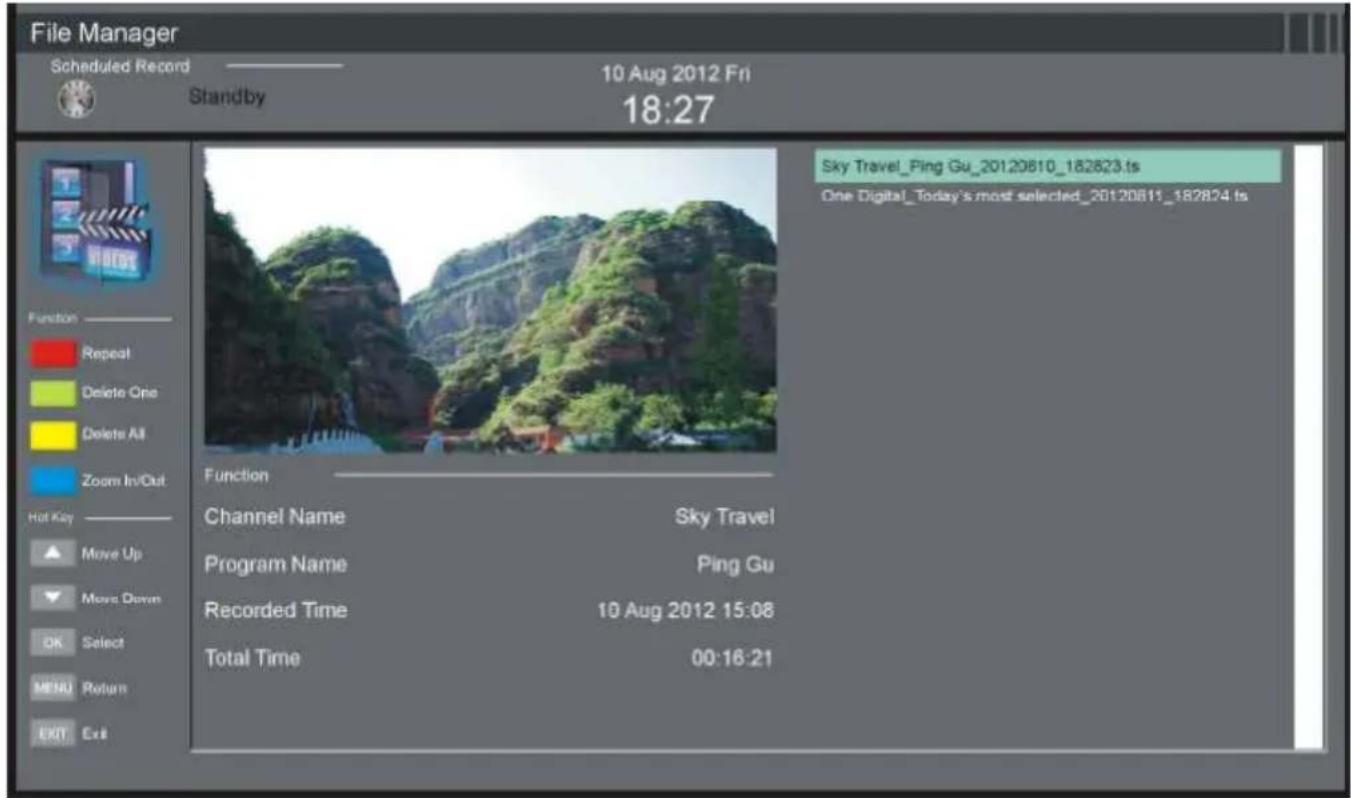

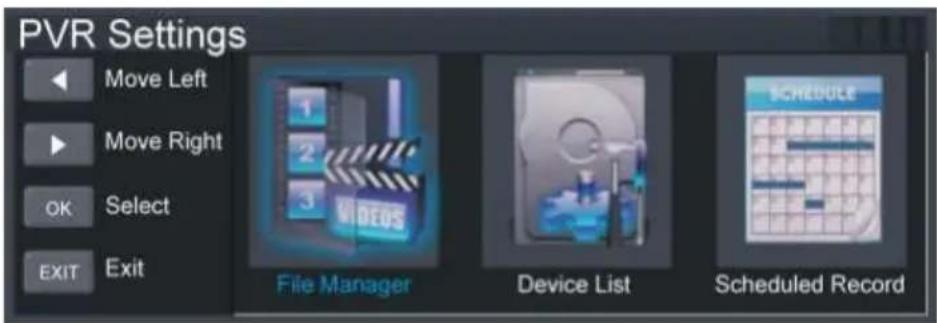

- Highlight File Manager and press OK button to enter it. - Then press UP/DOWN navigation button to select recorded files and press OK button to start playback. TIME SHIFT (FOR DTV MODE ONLY) - Insert your USB memory device into USB slot first. When watching a digital program: -If you don’t want to miss any programs when left, press button on remote control to enter TIME SHIFT mode. - Press button again when you’re back to display the tool bar.

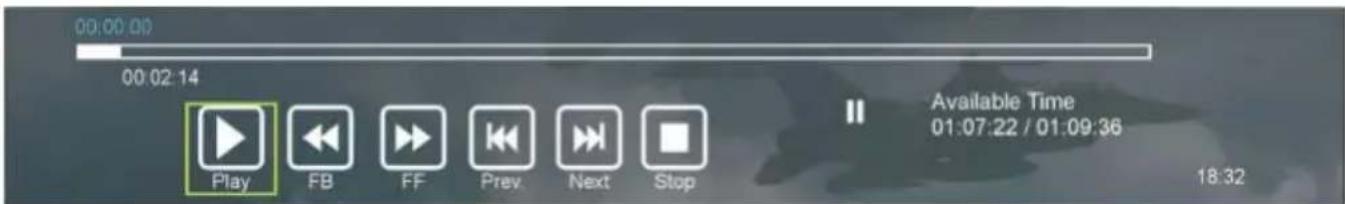

- Press LEFT/RIGHT navigation button to select “Play” and press OK button to play the program in TIME SHIFT mode. - To stop TIME SHIFT, press on remote control to call out a dialog box. Select Yes to exit TIME SHIFT mode and select No to dismiss the dialog box.70

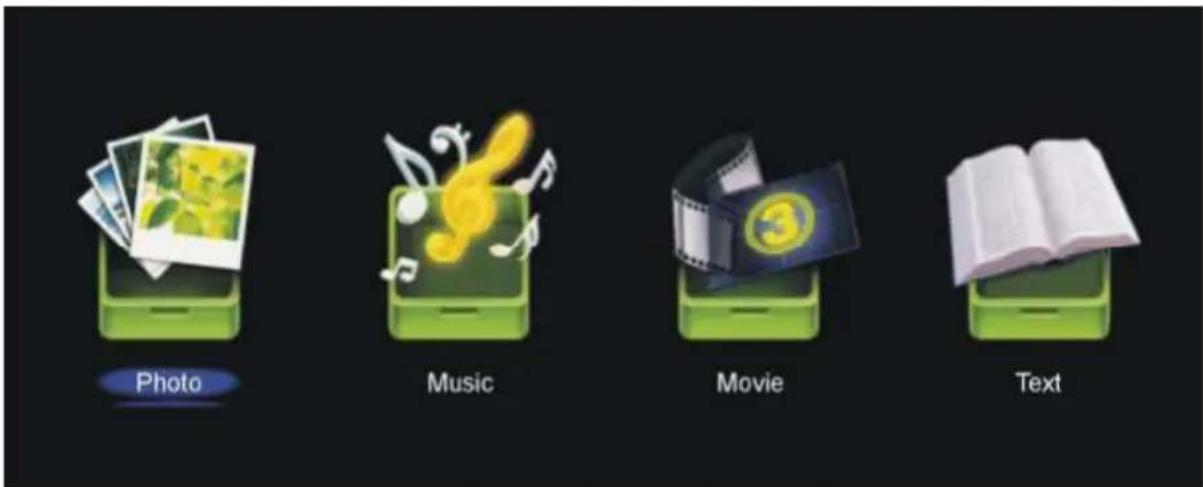

MEDIA PLAYBACK - Press SOURCE button on the unit or remote control to switch the unit to USB (or Media) mode. - Insert a USB memory device into USB slot before following operations. - Press UP/DOWN/LEFT/RIGHT navigation button to move the cursor. - Press EXIT button to return to previous menu page. NOTE: Press MEDIA button on remote control to enter multimedia mode directly.

- Press LEFT/RIGHT navigation button to select Photo in the main menu and press OK button to enter it. - Use navigation buttons to select desired folder or file and press OK button to start playing.

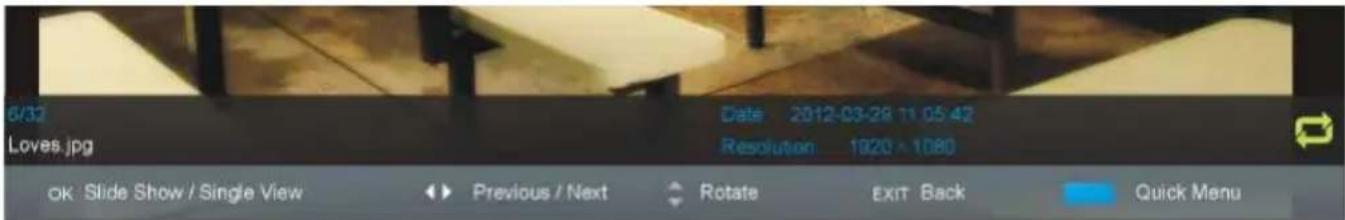

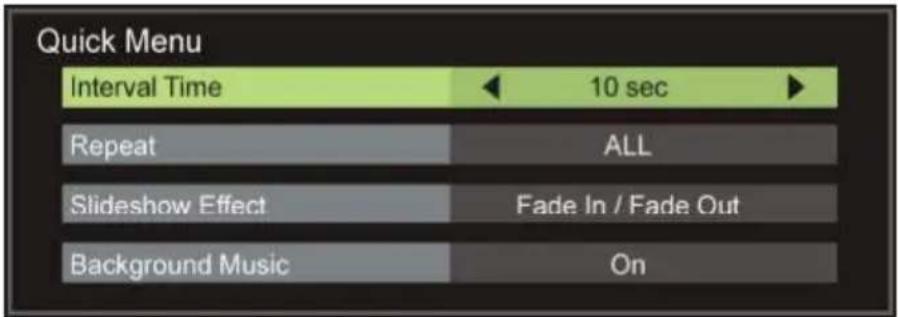

When playing Photo files: - Press DISPLAY button on remote control to hide/display the indication tool bar. - Press OK button repeatedly to switch between Slide Show and Single View. - Press LEFT/RIGHT navigation button to play previous/next file. - Press UP/DOWN navigation button to rotate a photo clockwise/counter clockwise. NOTE: You can rotate a photo only when slide show is paused. - Press BLUE button on remote control to call out Quick Menu and press it again to dismiss the menu.71

Interval Time: Set the slide show interval time. Repeat: Select desired repeat mode. Slideshow Effect: Select desired slide show effect. Background Music: Turn on/off background music.

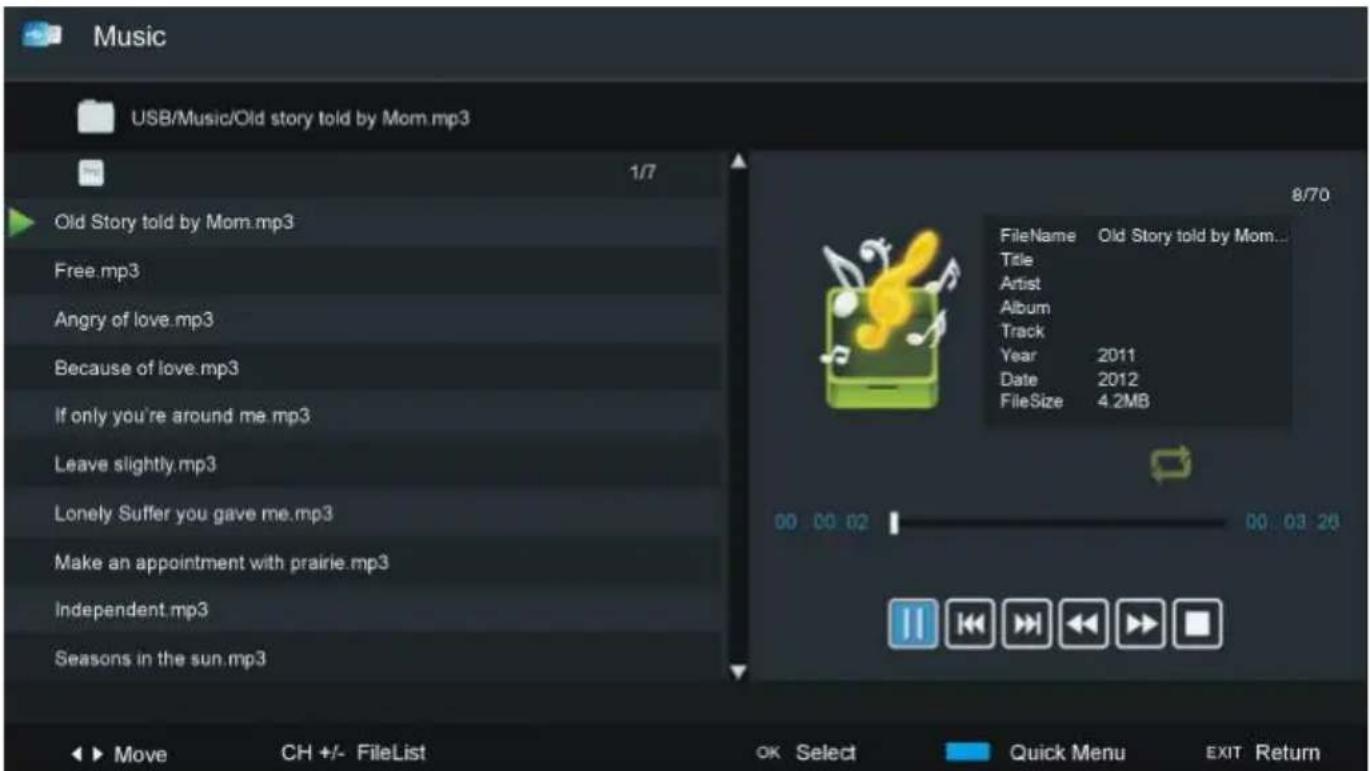

- Press LEFT/RIGHT navigation button to select Music in the main menu and press OK button to enter it. - Use navigation buttons to select desired folder or file and press OK button to start playing.72

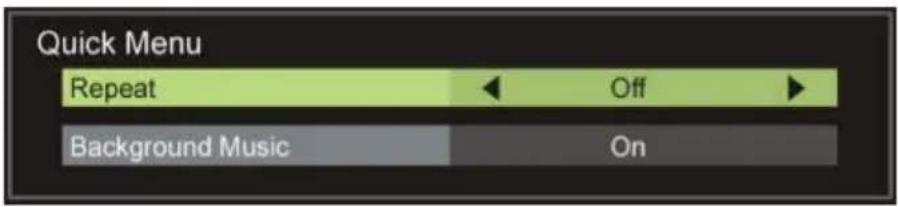

When playing Music files: - Press CH+/- button on remote control to switch between Player and File List. - Press BLUE button on remote control to call out Quick Menu and press it again to dismiss the menu.

Repeat: Select desired repeat mode. Background Music: Turn on/off background music.

- Press LEFT/RIGHT navigation button to select Movie in the main menu and press OK button to enter it. - Use navigation buttons to select desired folder or file and press OK button to start playing.

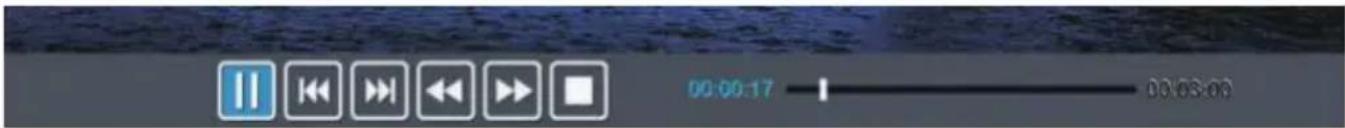

When playing Movie files: - Press DISPLAY button on remote control to hide/display the indication tool bar. - Press LEFT/RIGHT navigation button to select preferred option and press OK button to confirm it.

- Press LEFT/RIGHT navigation button to select Text in the main menu and press OK button to enter it. - Use navigation buttons to select desired folder or file and press OK button to start playing. When playing Text files: - Press LEFT/RIGHT navigation button to display previous/next page. - Input your desired page using number buttons and press OK button to go to desired page directly. - Press BLUE button on remote control to call out Quick Menu and press it again to dismiss the menu.73

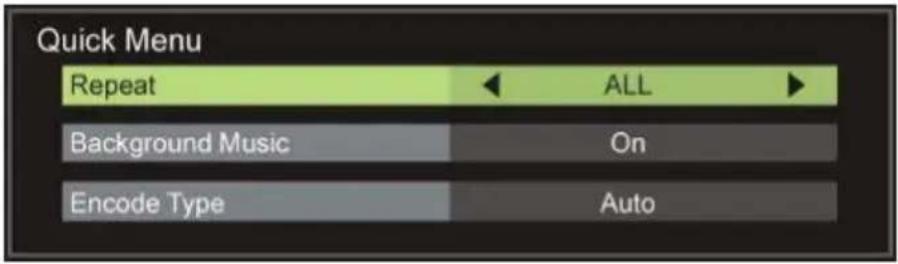

Repeat: Select desired repeat mode. Background Music: Turn on/off background music. Encode Type: Select desired encode type. Remote operations when playing multimedia files: - Press button on remote control to play or pause playing. - Press button on remote control to stop playing. - Press button on remote control to move fast backward. - Press button on remote control to move fast forward. - Press button on remote control to play previous file. - Press button on remote control to play next file.

NOTE: To play your multimedia files, make sure you have selected correct icon in the main menu of MEDIA PLAYBACK. That is to say, you can only play Photo files in PHOTO item, Music files in MUSIC item and so on.74

● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions. ● The settings will be remained in the memory until the settings are changed, even after setting the player to standby mode. Common procedure for initial settings - Press MENU button on the unit or remote control to display the main menu. - Press LEFT or RIGHT navigation button to select submenus. - Press OK or RIGHT navigation button to enter submenu page. - Press UP or DOWN navigation button to select preferred option. - Press LEFT or RIGHT navigation button to adjust the value. - Press MENU button to return to previous menu page. - Press EXIT button to exit menu page. First Time Setup - Connect to power source and turn on this TV, then below setup page will display on the screen:

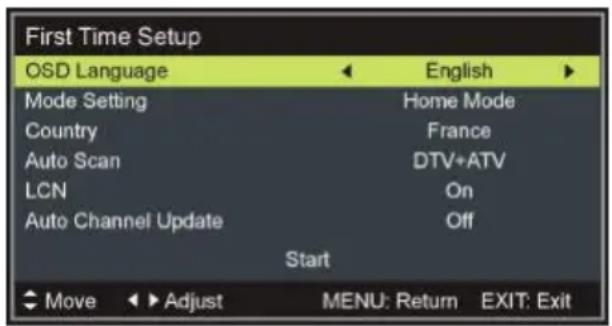

OSD Language: select desired on-screen language. Mode Setting: select Home or Store mode. Country: select the country you’re living in. Auto Scan: select desired scanning type. LCN: turn on/off Logical Channel Number Auto Channel Update: turn on/off Auto Channel Update.

Once above settings are finished, highlight “Start” and press OK button to scanning available programs automatically.

DTV MODE - Press SOURCE button on the unit or remote control to select DTV input source.

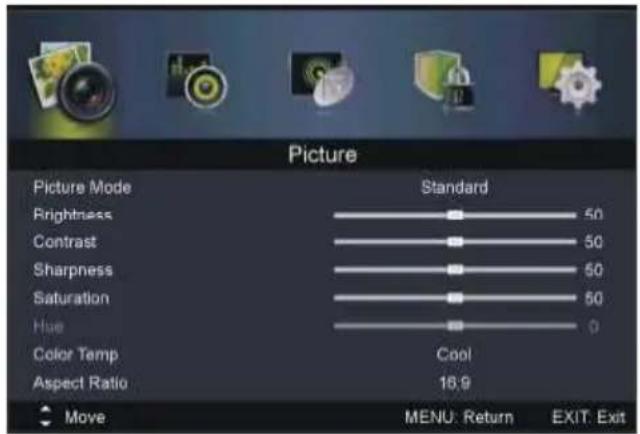

The brightness value of picture can be adjusted from 0-100.

The contrast value of picture can be adjusted from 0-100.

The sharpness value of picture can be adjusted from 0-100.

The colour saturation value of picture can be adjusted from 0-100. NOTE: If the value of Brightness, Contrast, Sharpness or Saturation has been changed, Picture Mode will turn to Personal automatically.

This item is used to adjust the tone of color in NTSC system from -50 to 50.

This item is used to adjust the optimum color temperature for suitable viewing. Available options: Standard, Cool, Warm.

This item is used to adjust the video size. Available options: Auto, 4:3, 16:9, Zoom1, Zoom2. NOTE: If there’s no signal, pressing ASPECT button on remote control will not work. And the available video size may be different in different input source.

1.9 Screen Mode (HDMI mode only)

This item is used to adjust the screen mode in HDMI mode. Available options: Auto, Video, PC.76

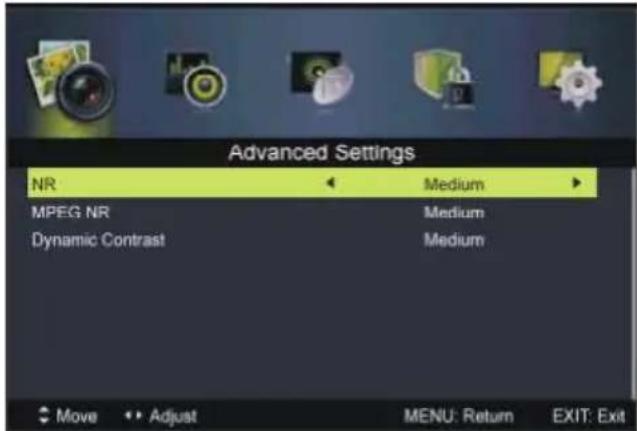

NR (Noise Reduction) This item is used to adjust the NR level. Available options: Off, Weak, Medium, Strong. MPEG NR (MPEG Noise Reduction) This item is used to adjust the MPEG NR level. Available options: Off, Weak, Medium, Strong. Dynamic Contrast This item is used to adjust Dynamic Contrast level. Available options: Off, Weak, Medium, Strong.

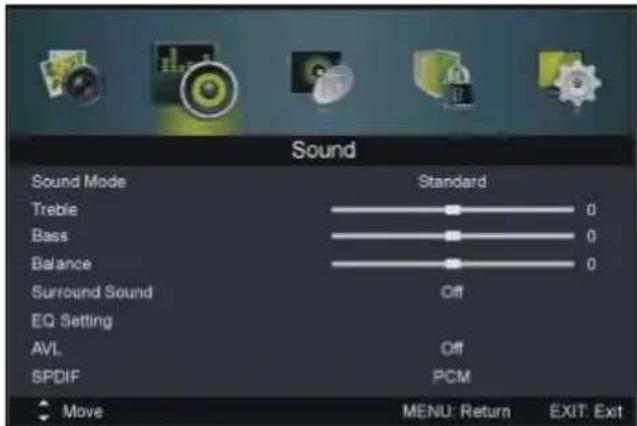

This item is used to adjust the level of higher-pitched sounds from -50 to 50.

This item is used to adjust the level of lower-pitched sounds from -50 to 50. NOTE: If the value of Treble or Bass has been changed, Sound Mode will turn to Personal automatically.

This item is used to adjust the audio output between left and right speaker from -50 to 50.

This item is used to turn on/off Surround Sound function.77

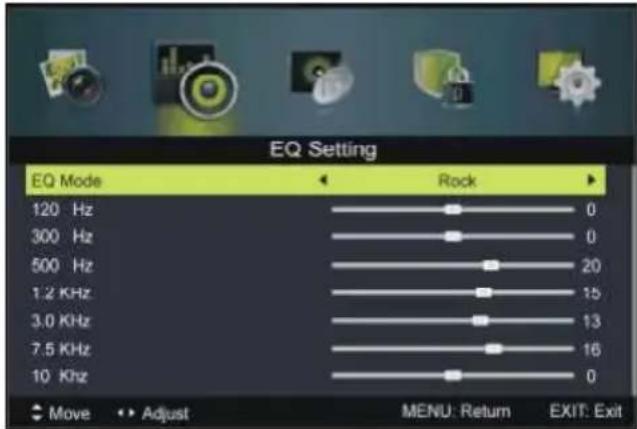

This item is used to set the equalizer. Available EQ Mode: Off, Rock, Pop, Jazz, User.

2.7 AVL (Auto Volume Level)

This item is used to turn on/off AVL function.

- Press OK or RIGHT navigation button to enter it. - Then you can turn on/off Mode and adjust the volume when Mode is on. NOTE: For Visually Impaired users, Audio Description can assist them know a certain scene or action through the narration, instead of see it. However, this function works only when you are viewing programs that contain related narration information.

This item is used to select desired Sound Type. Available options: Stereo, Dual I, Dual II, Mixed.

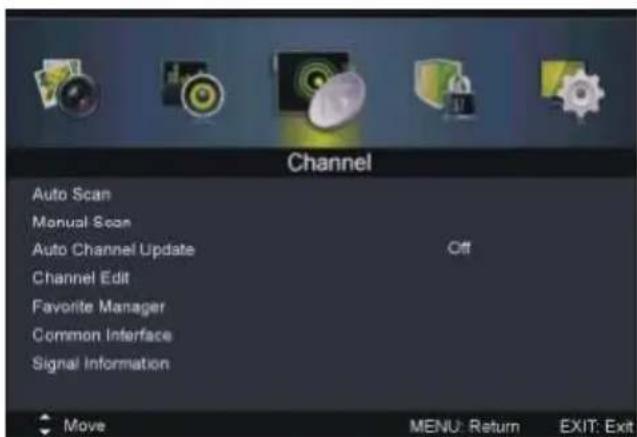

3. Channel (Figure 1)

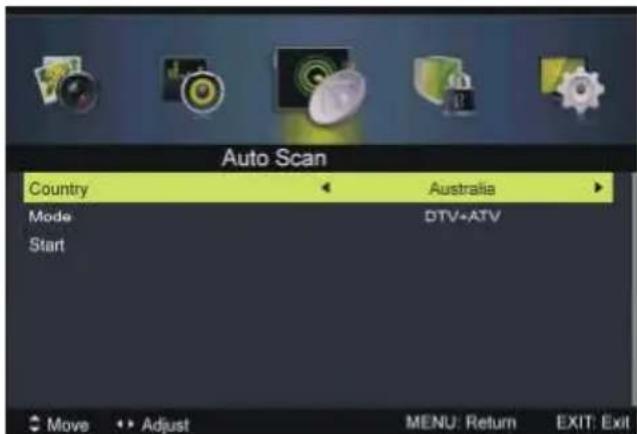

3.1 Auto Scan (Figure 2)

- Press OK or RIGHT navigation button to enter it. Country: Select your country. Mode: Select your scanning type. Start: Start scanning.

- Press OK or RIGHT navigation button to enter it and then you can select digital or analog manual scan.

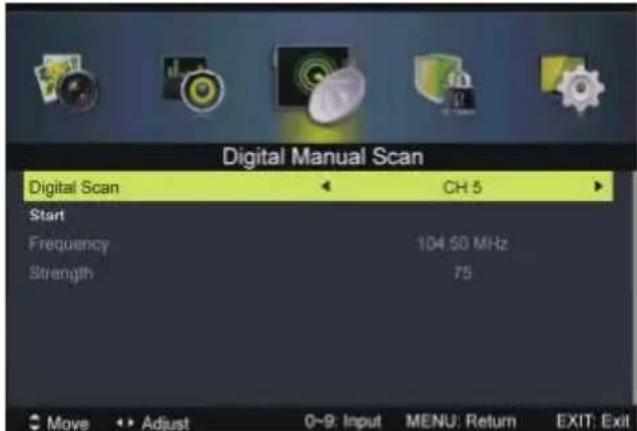

- Press OK or RIGHT navigation button to enter it. Digital Scan: Select the channel. Start: Start scanning. Frequency: For this TV, it’s not user adjustable. Strength: Display the signal strength of current program and it’s not user adjustable.

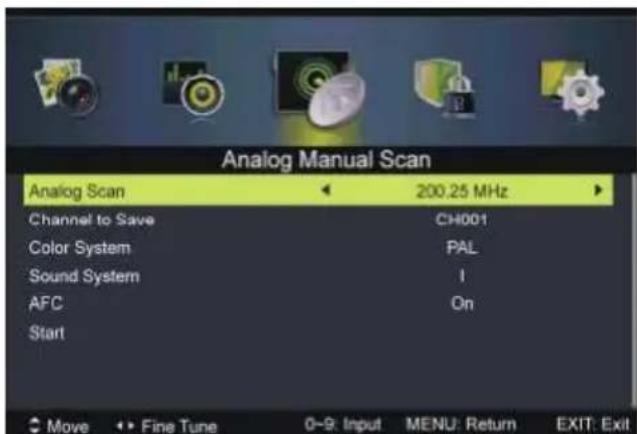

3.22 Analog Manual Scan

- Press OK or RIGHT navigation button to enter it. Analog Scan: Use LEFT/RIGHT navigation button to fine tune it. Channel to Save: Select the channel number to be saved. Color System: Select desired color system Sound System: Select desired sound system. AFC: Turn on/off automatic fine tune. Start: Start scanning NOTE: Color System, Sound System and AFC will not be adjustable if there’s no signal.

3.3 Auto Channel Update

When Auto Channel Update is On, this TV will update the channels automatically if local channel broadcaster has updated programs.

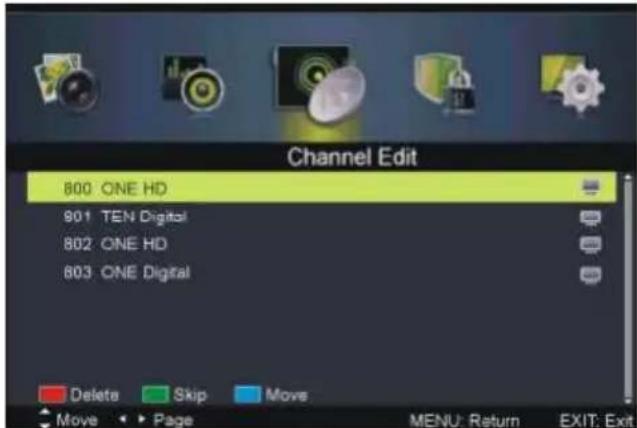

- Press OK or RIGHT navigation button to enter it. - Press UP/DOWN navigation button to highlight desired channel. - Press RED button on remote control to delete highlighted channel. - Press GREEN button on remote control to skip highlighted channel. - Press BLUE button on remote control to enter MOVE mode. Then use UP/DOWN navigation button to select preferred position and press BLUE button again to move it.79

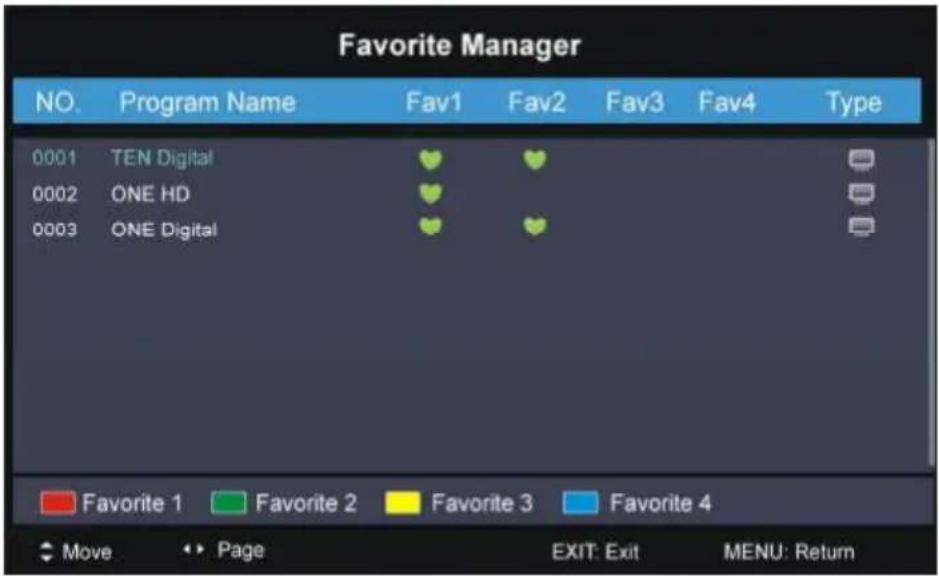

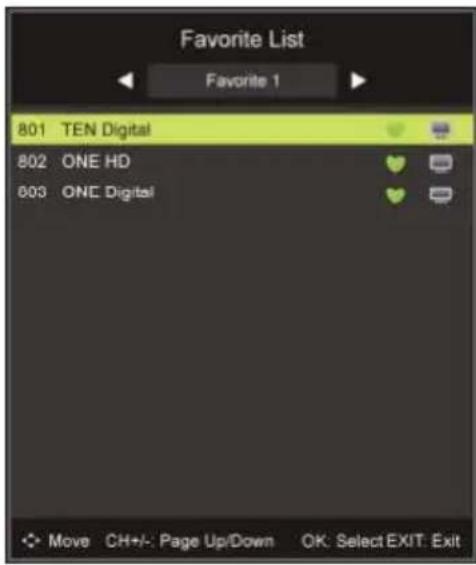

3.5 Favorite Manager

- Press RED / GREEN / YELLOW / BLUE button to add highlighted channel to desired favorite group; press related button again to remove it from favorite group.

3.6 Common Interface

Manage your CAM (Conditional Access Module) when inserted an available card into CI slot.

3.7 Signal Information

This item is used to display signal details, for example: Channel Number, Frequency, Quality and Strength.

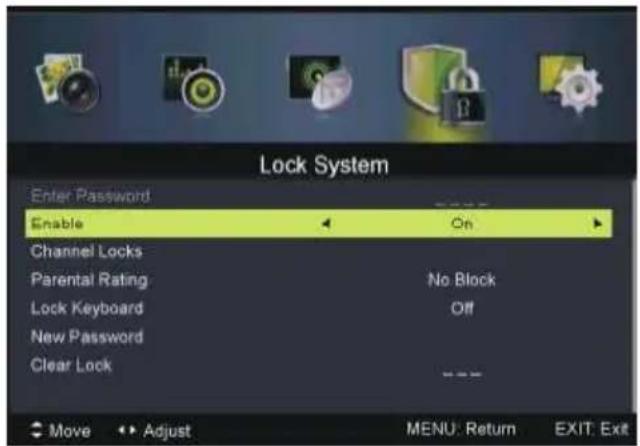

- Press OK or RIGHT navigation button to enter it. - Press UP/DOWN navigation button to select the channel that you want to lock. - Press OK button repeatedly to lock/unlock highlighted channel.80

This item is used to select desired program rating. Available options: No Block, Block G+, Block PG+, Block M+, Block MA+, Block AV+, Block R+, Block All+,

This item is used to turn on/off the lock of buttons on this unit.

- Input your new password using number buttons on remote control and confirm it again to own your private password.

This item is used to clear your current lock settings.

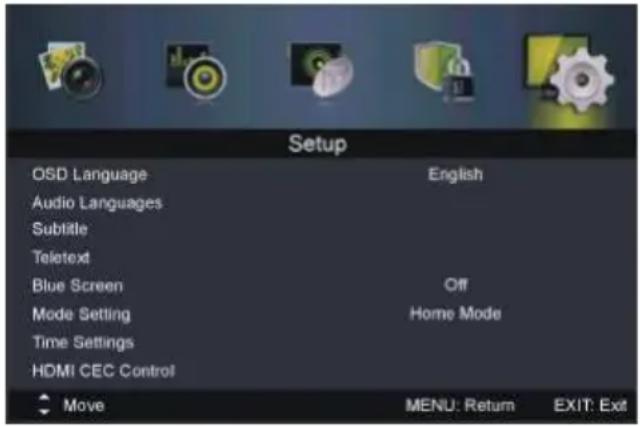

This item is used to select desired on-screen display language.

- Press OK or RIGHT navigation button to enter it. - Then you can select desired Audio Primary Language and Audio Secondary Language. NOTE: Audio Languages will not be adjustable if there’s no signal.

- Press OK or RIGHT navigation button to enter it. - Then you can select desired Subtitle Primary/Secondary Language and turn on/off Hearing Impaired function when Mode is on. NOTE: Subtitle will not be adjustable if there’s no signal.

- Press OK or RIGHT navigation button to enter it. - Then you can select desired Digital TELETEXT Language and Decoding Page Language.

This item is used to turn on/off Blue Screen. The screen background will turn blue at very weak or no signal condition, if Blue Screen is ON.81

This item is used to select Home or Store mode.

This item is used to select desired OSD menu duration. Available options: Off, 10/20/30/60 seconds.

This item is used to adjust the Sleep Timer. Available options: Off, 5/15/30/60/90/120/240 minutes.

This item is used to select desired Auto Sleep (standby) duration. Available options: Off, 3/4/5 hours.

This item is used to select desired time zone.

- Press OK or RIGHT navigation button to enter it. - Press UP/DOWN navigation button to select desired item. - Press LEFT/RIGHT navigation button to adjust the value. Auto Sync: Synchronize the time with your channel if Auto Sync is on. And you can adjust the Date and Time when Auto Sync is off. Power On Timer: Turn on/off auto power on timer. You can adjust the Time, Power On Source, Power On Channel when this timer is on. Power Off Timer: Turn on/off auto power off timer. You can adjust the Time when this timer is on.

To adjust the date and (or) time: - Highlight the date and (or) time and press OK button to enter adjusting page. - Press UP/DOWN navigation button to adjust it. - Press OK button to confirm setting; press EXIT button to cancel it.82

To use HDMI CEC function: - Make sure the HDMI device (Amplifier, etc.) is connected correctly. - Press SOURCE button on the unit or remote control to select HDMI input source.

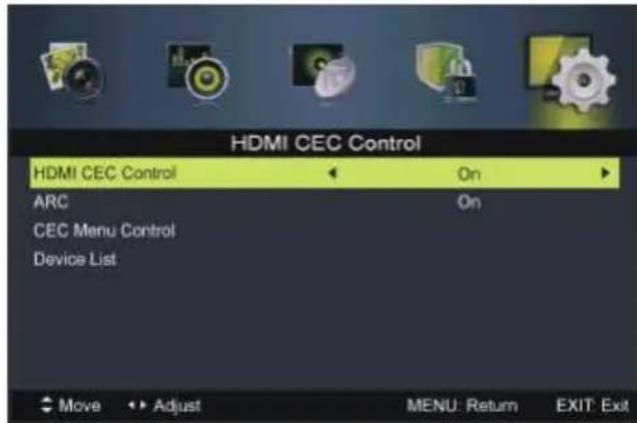

5.81 HDMI CEC Control

This item is used to turn on/off HDMI CEC (Consumer Electronic Control).

This item is used to turn on/off Audio Return Channel. When ARC is on, the TV can return the audio to connected HDMI device (Amplifier, etc.).

5.83 CEC Menu Control

Press OK or RIGHT navigation button to enter it. Home menu: Call out the Home menu of connected CEC device. Option: Call out the Option menu of connected CEC device. Content: Call out the Content menu of connected CEC device.

This item is used to display the available device that connected.

- Press UP/DOWN navigation button to select a recorded file. - Press RED button on remote control to play highlighted file from the beginning. - Press GREEN button on remote control to delete highlighted file. - Press YELLOW button on remote control to delete all recorded files. - Press BLUE button on remote control to zoom in/out.

- In this part, you can check the available space and file system of your USB memory device. - Press RED button on remote control to format your USB memory device.84

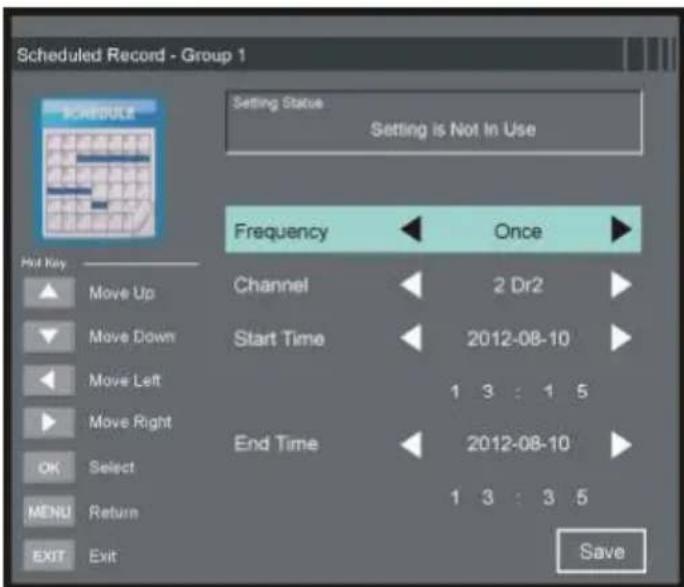

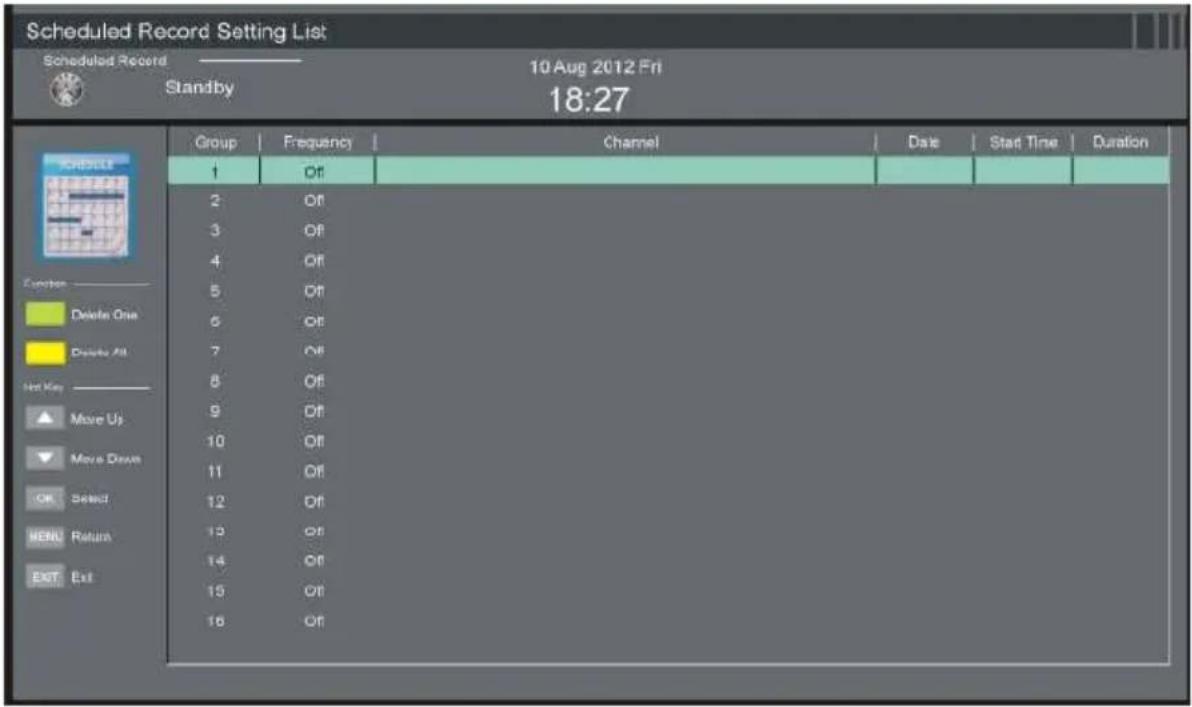

5.93 Scheduled Record

- Press GREEN button on remote control to delete highlighted option. - Press YELLOW button on remote control to delete all. - Press UP/DOWN navigation button to select the Group. - Press OK button to enter Scheduled Record setting page. Frequency - Press LEFT/RIGHT navigation button to select desired mode: Off, Once, Daily, Weekly, Weekend. Channel - Press LEFT/RIGHT navigation button to select desired channel. Start Time - Press navigation buttons to select desired start date and time of your scheduled recording. End Time - Press navigation buttons to select desired end date and time of your scheduled recording. NOTE: Once above settings are completed successfully, select “Save” to save it.

5.10 First Time Setup

This item is used to recall First Time Setup page.85

This item is used to reset to factory default settings.

5.12 Software Update (USB)

This item is used to update software through USB memory device.

- Press SOURCE button on the unit or remote control to select desired input source. - For menu operations in these modes, please refer to the menu operations of DTV mode. PC MODE - Connect a personal computer to this unit. - Power on your computer and this unit. - Press SOURCE button on the unit or remote control to select PC input source. - Press MENU button to display the main menu and select Picture using LEFT/RIGHT navigation button. - Use UP/DOWN navigation button to highlight PC Setting and press OK or RIGHT navigation button to enter it. - Press UP/DOWN navigation button to select preferred item. - Press OK or RIGHT navigation button to enter submenu. Press LEFT/RIGHT navigation button to adjust the value.

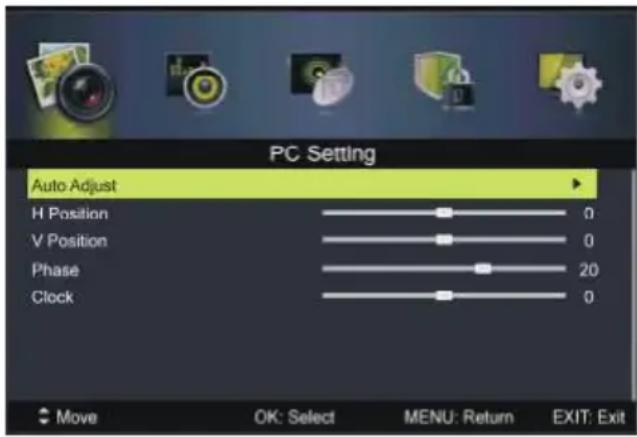

This item is used to adjust the PC screen automatically.

This item is used to adjust the picture apply to the TV (available range: 0 to 31).

This item is used to adjust the signals transfer speed (available range: -30 to +30). NOTE: For other menu operations in PC mode, please refer to the menu operations of DTV mode.86

To bring up Teletext on the screen:

4. Select an analogue TV channel with a teletext signal.

5. Press the TEXT button to go on the teletext pages.

6. Press the TEXT button twice to go back to TV mode.

Choosing a teletext page Enter the page number you want by using the numeric buttons. Page numbers are always 3 numbers. If you press a wrong number, you must complete the three digit number and then re-enter the correct page number. Hold You can press HOLD button to freeze the pages and press it again to unfreeze the page. INDEX Press the INDEX button to go to the main index page of your teletext. Making the text bigger You can double the size of the text on the teletext pages to make it easier to read.

4. Press the SIZE button to make the text on the top half of the page bigger.

5. Press the SIZE button again to make the text on the bottom half of the page bigger.

6. Press the SIZE button again if you want the text reduced to normal size.

Subpages Some teletext pages may contain several subpages. To read the subpage, do the following. You can go to a subpage by pressing the SUBPAGE button. You can then select the page number you want using the numeric buttons on your remote control. For example, if you want the third subpage, you would enter 003. Press the SUBPAGE button again to exit the subpage menu. Press TEXT twice to exit TELETEXT. Colour buttons Press these buttons to go straight to the teletext highlighted in the same color. TELETEXT87

● Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player. ● Wipe the player with a dry, soft cloth. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth. ● Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.

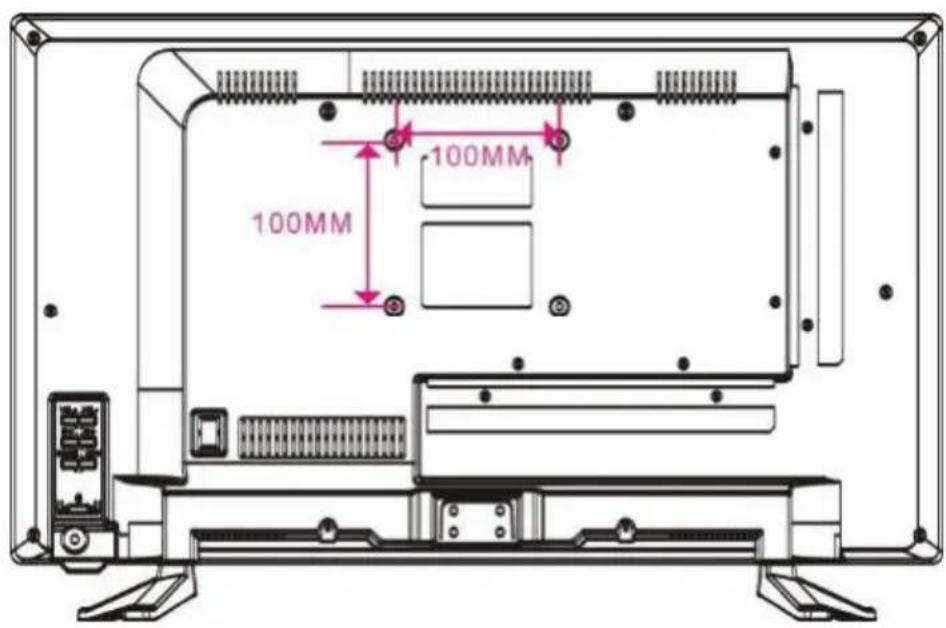

● Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own. ● Do not wall mount the TV while TV is turned on. It may cause personal injury due to electric shock. ● Use standard M4*10mm screws (4 pieces) to mount this TV.

MAINTENANCE WALL MOUNTING Back of your TV88

Specifications are subject to change without notice.

Check the following points before assuming malfunctions of this unit: Symptom[COMMON] Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly. ● No sound. ● Distorted sound. ● Ensure that the equipment is connected properly. ● Ensure that the input setting for the TV and stereo system are correct. ● Adjust the master volume to a suitable volume by pressing VOL+/VOL- button. No operations can be performed with the remote control unit. ● Check the batteries are installed with the correct polarities. ● The batteries are exhausted: replace them with new ones. ● Point remote control at the remote control sensor and operate it again. ● Operate the remote control unit at a distance of no more than 6m from the remote control sensor. ● Remove the obstacles between the remote control and remote control sensor. No key operation (by the main unit and/or the remote control unit) is effective. Disconnect the power plug and then reconnect it. (The player may not be operating properly due to lightning, static electricity or some other factors.) Symptom[TV] Remedy No or poor picture. ● Adjust antenna or use an external antenna. ● Relocate the unit near a window (if inside a building). ● Move units away from this product that causes interference. ● Do Auto Tuning again. ● Try another channel. No sound or poor sound. ● Check the audio settings. ● Press MUTE button on remote control to cancel mute function.

● Unplug the headphone. Noise or other interface. Electronic equipment near the unit is causing interface. Relocate the unit or move the equipment.

End of Life Disposal Warning ! This logo set on the product means that the recycling of this apparatus comes within the framework of the Directive 2002/96/CE of January 27, 2003 concerning the Waste of Electrical and Electronic Equipment (WEEE). This symbol means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products. If you want to dispose of this equipment, please do not use the ordinary dust bin ! - The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product. - Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. - Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product (please contact your local authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority. - If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. - By disposing.of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

Disposal of old electrical appliances91

This product was imported by the Company : LEMA S.A.S. For any questions concerning the conformity of the product, thank you to send your request to :

This unit complies with European Council Directive 2006 / 95 CE (Electromagnetic Compatibility & Low Voltage Directives) IMPORTER
