USER MANUAL 14PT1346 PHILIPS

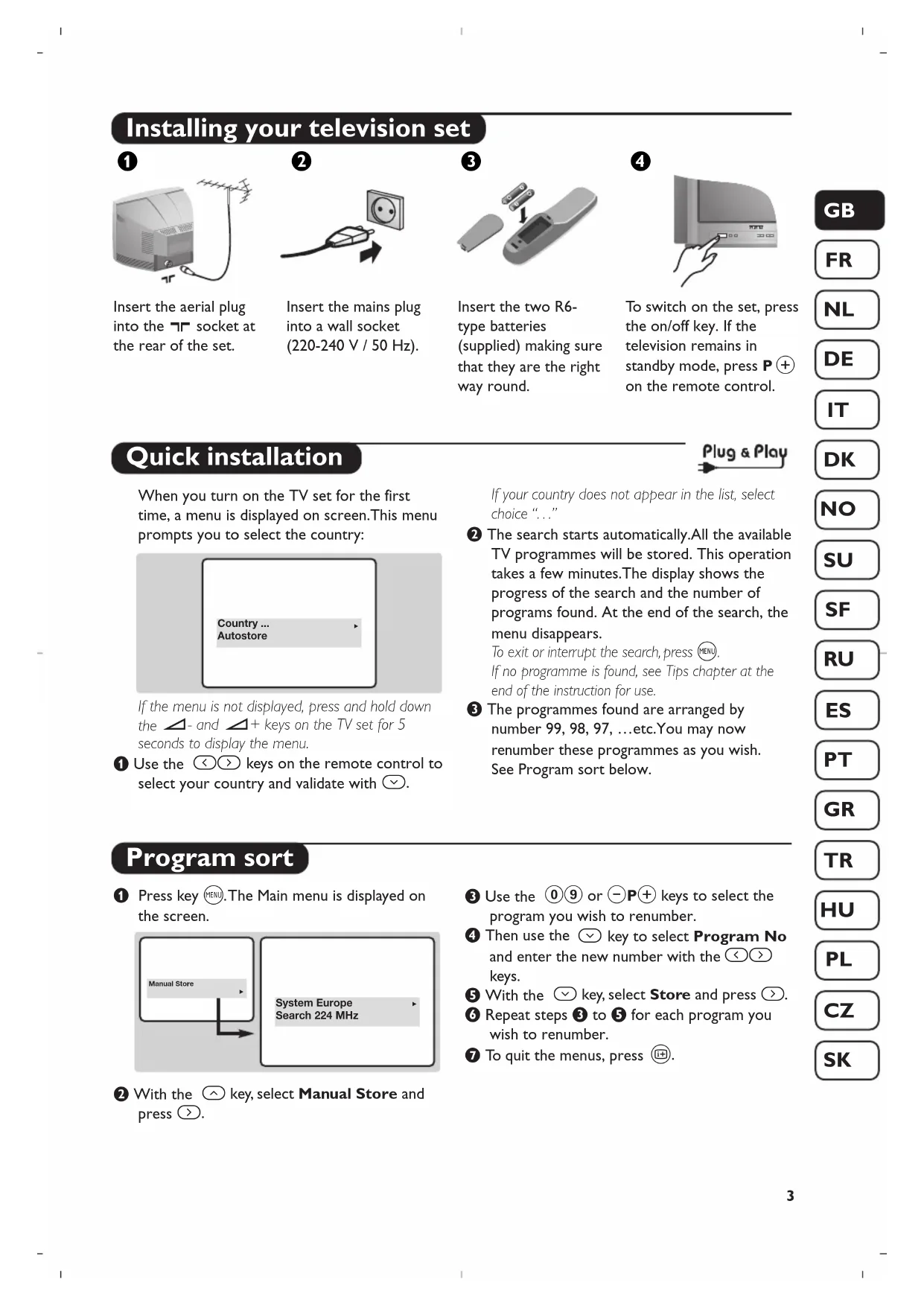

SK3 Installing your television set Insert the aerial plug into the : socket at the rear of the set. Insert the mains plug into a wall socket (220-240 V / 50 Hz). Insert the two R6- type batteries (supplied) making sure that they are the right way round. To switch on the set, press the on/off key. If the television remains in standby mode, press P

on the remote control. æÂê® Quick installation Program sort When you turn on the TV set for the first time, a menu is displayed on screen.This menu prompts you to select the country: If the menu is not displayed, press and hold down the ”- and ”+ keys on the TV set for 5 seconds to display the menu. & Use the Ȭ keys on the remote control to select your country and validate with

If your country does not appear in the list, select choice “. . .” é The search starts automatically.All the available TV programmes will be stored. This operation takes a few minutes.The display shows the progress of the search and the number of programs found. At the end of the search, the menu disappears. To exit or interrupt the search, press H. If no programme is found, see Tips chapter at the end of the instruction for use. “ The programmes found are arranged by number 99, 98, 97, …etc.You may now renumber these programmes as you wish. See Program sort below. & Press key H.The Main menu is displayed on the screen. é With the î key, select Manual Store and press

“ Use the 09 or @P# keys to select the program you wish to renumber. ‘ Then use the Ï key to select Program No and enter the new number with the

keys. ( With the Ï key, select Store and press ¬. § Repeat steps “ to ( for each program you wish to renumber. è To quit the menus, press

SK4 Teletext Teletext callPress the c key to call teletext, change to transparentmode and then exit.The summary appears with a list ofitems that can be accessed.If the channel selected does not broadcast teletext, thescreen remain black.Selecting a pageEnter the number of the page required using the 0 to 9 or @ P # keys (always 3 digits).The number is displayed top left, the counter turns and then the page isdisplayed. Repeat this operation to view another page.If the counter continues searching, the page is not transmitted.Direct access to the itemsColoured areas are displayed at the bottom of thescreen.The 4 coloured keys are used to access theitems or corresponding pages.ContentsPress d to return to the contents page (usually page 100).Enlarge a pagePress x several time to enlarge the page. Stop sub-page acquisitionCertain pages contain sub-pages which follow onautomatically. Press s to stop / resume the sequence. Hidden information (games solutions)Press y to display or hide the concealed information.

• Depending on the model, there are 2 different versions of the remote control. Remote control keys  key not used (teletext version *)

Á Previous programme To access the previously viewedprogramme.Pre-set sound (only available oncertain versions)Used to access a series of stored settings: Voice, Music, Theatre. Menu To call up or exit the menus.Cursor / Format 16:9These 4 keys are used to navigatethrough the menus.The îÏ keysare used to enlarge or compressthe picture vertically. Mute To mute or restore the sound.VolumeTo adjust the sound levelSleepTo select an automatic standby aftera preset time (from 0 to 240minutes).StandbyLets you place the TV set onstandby.To turn on the TV, press P @@, b, 0 to 9. Teletext keys (teletext version *)Pre-set imageUsed to access a series of stored settings: Rich, Natural, Soft, Multimedia and return to Personal. c Teletext call (teletext version*)

d Screen information To display / clear the programnumber and time remaining for thesleeptimer. Press the key for 5seconds to activate permanentdisplay of the number.Program selection To access the next or previousprogramme.The number isdisplayed for a few moments.For some programs, the title of theprogram will be displayed at thebottom of the screen.Number keysDirect access to the programmes.For a 2 digit program, enter the 2nddigit before the dash disappears.Selection of EXT socketPress several times to select theconnected equipment. (only available on certain versions)5 Manual store Other settings in the menu This menu is used to store the programmes one at a time. & Press the H key. é With the î key, select Manual Store and press ¬. Use the îÏ keys to select a setting and the Ȭ keys to adjust. : “ System: select Europe (automatic detection*)

West Europe (BG standard), East Europe (DK standard), UK (I standard) or France (LL’ standard).

• Except for France (LL’ standard), you must select choice France. ‘ Search: press ¬.The search starts. Once a programme is found, the scanning stops. Go to the next step. If you know the frequency of the required programme, this can be entered directly using the 0 to 9 keys. If no programme is found, see Tips chapter at the end of the instruction for use. ( Program No.: enter the required number with the Ȭ or 0 to 9 keys. § Store: press ¬.The program is stored. è Repeat steps ‘ to § for each programme to store. ! To quit the menus, press

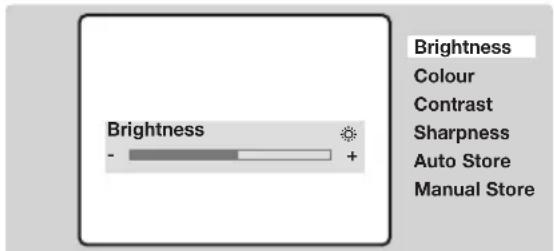

• Brightness: this changes picture brilliance.

• Colour: this changes the intensity of the colour.

• Contrast: this changes the difference between the light and dark tones.

Sharpness: this changes the picture definition.

Auto Store: to start automatic search for all programmes available in your region.Then, you need to use the Manual Store menu to renumber the programmes (see p. 3). To quit or interrupt the search, press

Brightness Colour Contrast Sharpness Auto Store Manual Store Connecting peripheral equipment Use the euroconnector socket located at the back of the set or the front AV connections (when available). To select connected equipment, press several times the n key. Most equipment (decoder,VCR) carries out the switching itself. Headphones socket (only available on certain versions) When headphones are connected, the sound on the TV set will be cut. The

# keys are used to adjust the volume level. The headphone impedance must be between 32 and 600 Ohms. The keys on the TV set The TV set has 4 keys : VOLUME - + (- ” +) and PROGRAM - + (- P +). To access or exit the menus, press simultaneously the ” - and ” + keys.Then use the - P + and - ” + keys to select and adjust. Tips : see at the end of the booklet (p. 57)

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS1362 5A,

A.S.T.A. or BSI approved type.

3. Refit the fuse cover.

In order to maintain conformity to the EMC directive, the mains plug on this product must not be removed. Connecting the aerial The aerial should be connected to the socket marked : at the back of the set.An inferior aerial is likely to result in a poor, perhaps unstable picture with ghost images and lack of contrast. Make-shift loft or set-top aerials are often inadequate.Your dealer will know from experience the most suitable type for your locality. Should you wish to use the set in conjunction with other equipment, which connects to the aerial socket such as TV games, or a video camera it is recommended that these be connected via a combiner unit to avoid repeated connection and disconnection of the aerial plug. Fitting the stand (if provided) Use only the stand provided with the set, making sure that the fixings are properly tightened.A diagram showing how to assemble the stand is packed with the stand. Never use a make-shift stand, or legs fixed with woodscrews. Information for users in the UK (not applicable outside the UK)ß
