USER MANUAL LC40CFE5100E SHARP

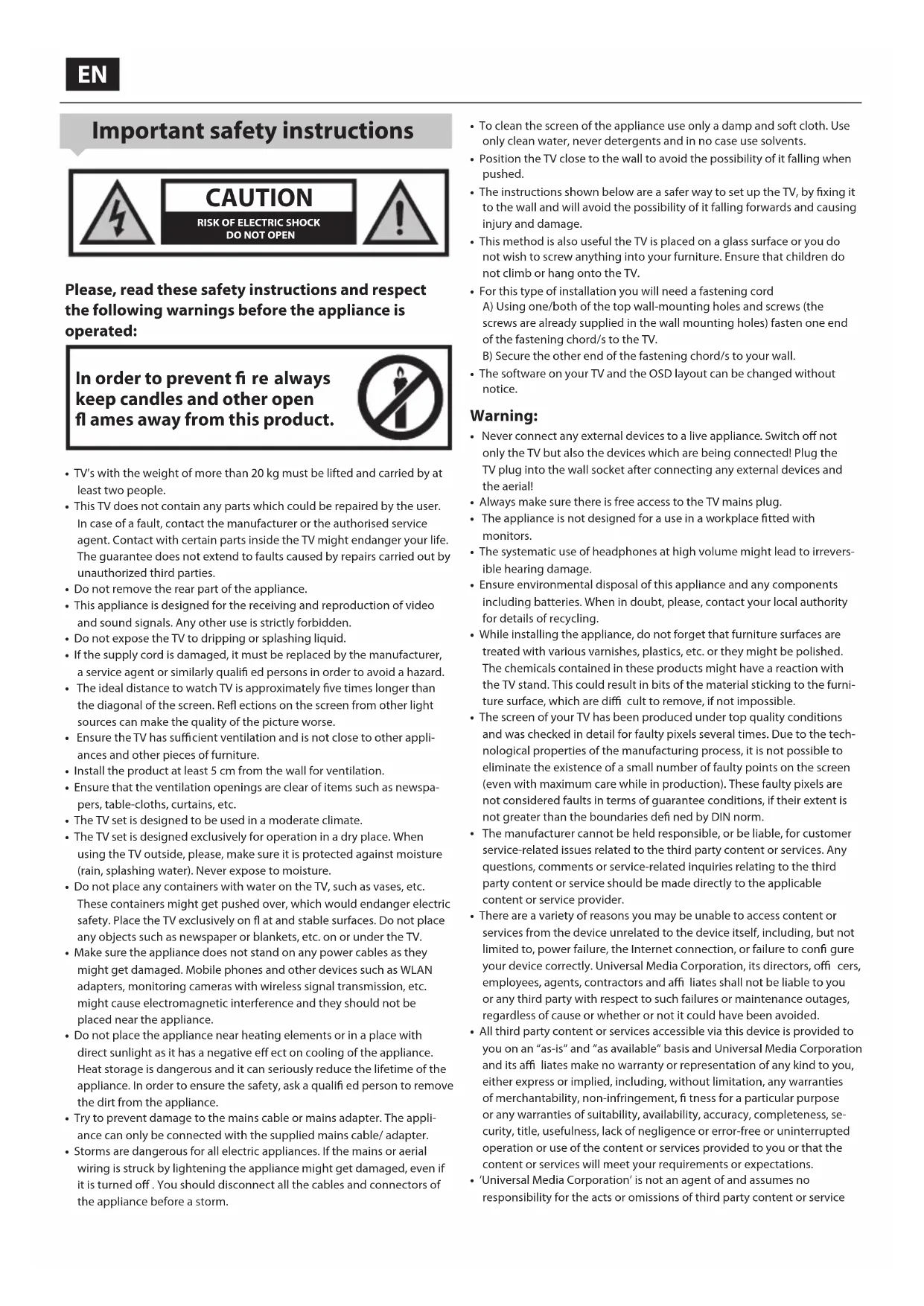

Important safety instructions CAUTION

RISK OF ELECTRIC SHOCKDO NOT OPEN

Please, read these safety instructions and respect the following warnings before the appliance is operated: In order to prevent re always keep candles and other open ames away from this product.

• TV’swith the weight of more than 20 kg must be lifted and carried by at least two people.• This TV does not contain any parts which could be repaired by the user. In case of afault, contact the manufacturer or the authorised service agent. Contact with certain parts inside the TV might endanger your life. The guarantee does not extend to faults caused by repairs carried out by unauthorized third parties.• Do not remove the rear part of the appliance.• This appliance is designed for the receiving and reproduction of video and sound signals. Any other use is strictly forbidden.• Do not expose the TV to dripping or splashing liquid.• If the supply cord is damaged, it must be replaced by the manufacturer, aservice agent or similarly quali ed persons in order to avoid ahazard.
• The ideal distance to watch TV is approximately ve times longer than the diagonal of the screen. Re ections on the screen from other light sources can make the quality of the picture worse.
• Ensure the TV has su cient ventilation and is not close to other appli- ances and other pieces of furniture.• Install the product at least 5 cm from the wall for ventilation.• Ensure that the ventilation openings are clear of items such as newspa-pers, table-cloths, curtains, etc.• The TV set is designed to be used in amoderate climate.• The TV set is designed exclusively for operation in adry place. When using the TV outside, please, make sure it is protected against moisture (rain, splashing water). Never expose to moisture.• Do not place any containers with water on the TV, such as vases, etc. These containers might get pushed over, which would endanger electric safety. Place the TV exclusively on at and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or under the TV.• Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromagnetic interference and they should not be placed near the appliance.• Do not place the appliance near heating elements or in aplace with direct sunlight as it has anegative e ect on cooling of the appliance. Heat storage is dangerous and it can seriously reduce the lifetime of the appliance. In order to ensure the safety, ask aquali ed person to remove the dirt from the appliance.• Try to prevent damage to the mains cable or mains adapter. The appli-ance can only be connected with the supplied mains cable/ adapter.• Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck by lightening the appliance might get damaged, even if it is turned o . You should disconnect all the cables and connectors of the appliance before astorm.• To clean the screen of the appliance use only adamp and soft cloth. Use only clean water, never detergents and in no case use solvents.• Position the TV close to the wall to avoid the possibility of it falling when pushed.• The instructions shown below are asafer way to set up the TV, by fixing it to the wall and will avoid the possibility of it falling forwards and causing injury and damage.• This method is also useful the TV is placed on aglass surface or you do not wish to screw anything into your furniture. Ensure that children do not climb or hang onto the TV.• For this type of installation you will need afastening cordA) Using one/both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening chord/sto the TV.B) Secure the other end of the fastening chord/sto your wall.• The software on your TV and the OSD layout can be changed without notice.

• Never connect any external devices to alive appliance. Switch o not only the TV but also the devices which are being connected! Plug the TV plug into the wall socket after connecting any external devices and the aerial!• Always make sure there is free access to the TV mains plug.
• The appliance is not designed for ause in aworkplace tted with monitors.• The systematic use of headphones at high volume might lead to irrevers-ible hearing damage.• Ensure environmental disposal of this appliance and any components including batteries. When in doubt, please, contact your local authority for details of recycling.• While installing the appliance, do not forget that furniture surfaces are treated with various varnishes, plastics, etc. or they might be polished. The chemicals contained in these products might have areaction with the TV stand. This could result in bits of the material sticking to the furni-ture surface, which are di cult to remove, if not impossible.• The screen of your TV has been produced under top quality conditions and was checked in detail for faulty pixels several times. Due to the tech-nological properties of the manufacturing process, it is not possible to eliminate the existence of asmall number of faulty points on the screen (even with maximum care while in production). These faulty pixels are not considered faults in terms of guarantee conditions, if their extent is not greater than the boundaries de ned by DIN norm. The manufacturer cannot be held responsible, or be liable, for customer service-related issues related to the third party content or services. Any questions, comments or service-related inquiries relating to the third party content or service should be made directly to the applicable content or service provider.• There are a variety of reasons you may be unable to access content or services from the device unrelated to the device itself, including, but not limited to, power failure, the Internet connection, or failure to con gure your device correctly. Universal Media Corporation, its directors, o cers, employees, agents, contractors and a liates shall not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause or whether or not it could have been avoided.• All third party content or services accessible via this device is provided to you on an “as-is” and “as available” basis and Universal Media Corporation and its a liates make no warranty or representation of any kind to you, either express or implied, including, without limitation, any warranties of merchantability, non-infringement, tness for a particular purpose or any warranties of suitability, availability, accuracy, completeness, se-curity, title, usefulness, lack of negligence or error-free or uninterrupted operation or use of the content or services provided to you or that the content or services will meet your requirements or expectations.• ‘Universal Media Corporation’ is not an agent of and assumes no responsibility for the acts or omissions of third party content or service5 providers, nor any aspect of the content or service related to such third party providers.

• In no event will ‘Universal Media Corporation’ and/or its a liates be liable to you or any third party for any direct, indirect, special, incidental, punitive, consequential or other damages, whether the theory of liability is based on contract, tort, negligence, breach of warranty, strict liability or otherwise and whether or not Universal Media Corporation and/or its a liates have been advised of the possibility of such damages. Important information regarding use of video games, computers, captions and other xed image displays.

• The extended use of xed image program material can cause aperma- nent “shadow image “ on the LCD screen (this is sometimes incorrectly referred to as “burnout to the screen“). This shadow image is then perma- nently visible on the screen in the background. It is irreversible damage. You can avoid such adamage by following instructions below:

• Reduce the brightness/contrast setting to aminimum viewing level.

• Do not display the xed image for along period of time. Avoid display- ing of: » Teletext time and charts, » TV/DVD menu, e.g. DVD contents, » In the„Pause“ mode (hold): Do not use this mode for along time, e.g. while watching aDVD or avideo. » Turn o the appliance if you are not using it. Batteries

• Observe the correct polarity when inserting the batteries.

• Do not expose batteries to high temperatures and do not place them on locations where the tempera- ture might increase quickly, e.g. near the re or on the direct sunshine.

• Do not expose batteries to excessive radiant heat, do not throw them into the re, do not disassemble them and do not try to recharge un-rechargeable batteries. They could leak or explode. » Never use di erent batteries together or mix new and old ones. » Dispose of batteries in an environmentally friendly way. » Most of the EU countries regulate the disposal of batteries by law. Disposal

• Do not dispose of this TV as unsorted municipal waste. Return it to adesignated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. CE Statement:

• Hereby, Universal Media Corporation s.r.o. declares that this LED TV is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC. http://www.sharp.eu/av/ documents-of-conformity

• The terms HDMI and HDMI High-De nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

• The “HD TV” Logo is atrademark of DIGITALEUROPE.

• The “HD TV 1080p” Logo is atrademark of DIGITALEUROPE.

• The DVB logo is the registered trademark of the Digital Video Broad- casting - DVB - project.

• Manufactured under license from Dolby Laboratories.

• Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are regis- tered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

• YouTube and the YouTube logo are trademarks of Google Inc

• The Wi-Fi CERTIFIED Logo is a certi cation mark of the Wi-Fi Alliance.

• Wi-Fi CERTIFIED Miracast and Miracast are trademarks of Wi-Fi Alliance

• DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certi cation marks of the Digital Living Network Alliance. CdEN

What is included in the box Supply of this TV includes following parts:

• - supplied only for models without SCART connector ** - Aviable only for models with Mini Composit

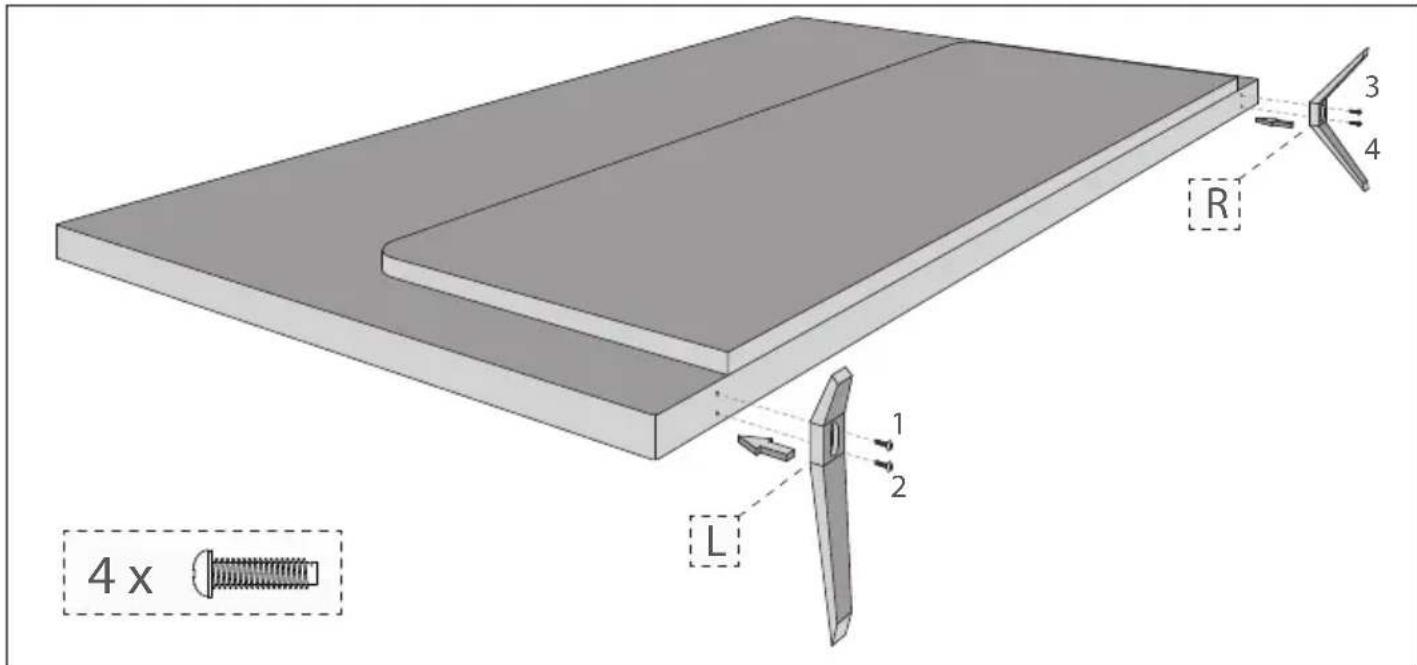

Attaching the Stand Please follow the instructions on last page of this user manual.

Getting started - initial set up

1. Using the RF cable supplied, connect the TV to the TV Aerial wall

socket. Connect the power cable to the Electrical outlet.

2. Insert the batteries supplied into the Remote control.

3. Press and hold GREEN and YELLOW buttons together for more than

3 seconds to pair remote control with your TV. Then press Standby button to power on TV.

4. You will be now welcomed with the First Time Installation screen.

If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. If you wish to make changes to any of the default settings, use the scroll ▲/▼/◄/► buttons. To exit this menu at anytime, press [EXIT] button.

5. Please set desired settings in FIRST TIME INSTALLATION screen.

DVB Antenna - You can choose between Terrestrial (DVB-T), Cable (DVB-C) or Satellite (DVB-S)*. Language - Set the TV Menu language. Country - Set the desired country. Tunning Mode - Choose if you want to tune only Digital (DTV) Analogue (ATV) or both Digital and Analogue (DTV + ATV) Operator - Select Cable provider. If your cable operator is not listed select Others. (Avaliable only if DVB Antenna is set to CABLE) Environment - Select the location of TV. For home use, please select Home Mode. For shop demonstration mode, set Store Mode. Sorting by LCN - Set LCN to ON if you want to arrange channels by provider preferences (only applies to DVB-T and DVB-C channels).

6. Press [Auto Tuning] button to start the tuning process.

7. Optional channel presets DVB-C:

Keep all default settings as recommended. If DVB-C channels are not found, contact your network provider for the valid "Network ID". Then perform anew search. Press the [MENU], select "Network ID" and enter the network ID.

8. Optional channel presets DVB-S2*: Select "Satellite" in the "DVB

Antenna" in the menu for the optional channel presets. Here you can choose between the various satellites. Since selection completed, then the channel list of the exact satellite will be available to be imported into your TV system. Con rm with [OK] button on the remote control, to start scanning. TIP: If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

• - Available only for TVs with DVB-S tuner

Remote control Radio controlled remote control - No more aiming in the TV direction! Refer to remote control picture on the second page of this user manual.

3. DTV – Switch to digital TV source.

4. RADIO – Switch to Digital and switch between TV and radio in Digital

5. USB – Switch to USB source.

6. DVD – no function

7. 0 – 9 – to select aTV channel directly.

– To return to the previous channel viewed.

10. VOL ▲/▼ – To increase / decrease the sound level.

11. S.MODE – Scrolls through sound mode options.

12. P.MODE – Scrolls through picture mode options.

13. FAV – To display favourites menu.

14. CH ▲/▼ – To increase or decrease the channel being watched.

15. (▲/▼/◄/►/ OK) – Allows you to navigate the on-screen menus and

adjust the system settings to your preference.

19. INFO – Press once for now/next channel information. Press twice for

programme information about current programme.

20. ASPECT – To switch the screen between the di erent picture formats.

21. SLEEP – Press repeatedly to cycle through the sleep options.

22. AUDIO – To change the audio language (if available).

23. SUBTITLE – To switch the dialogue at the bottom of the screen (on/

25. TEXT HOLD – Teletext mode - Hold current page which is displayed

DISPLAY – To switch o the screen when listening to radio

– Opens the list of recordings.

– To restart the current chapter

– To advance forward to the next chapter

– To stop the playback / To EJECT the disc press/hold the button for 4 seconds.

– To play in fast rewind mode.

– To play in fast forward mode.

– Additional teletext and OSD functions

- available only with PVR function7

Choosing Mode Input/Source To switch between the di erent input/connections. a) Using the buttons on the remote control:

[SOURCE/ AV] - The source menu will appear.

[▼] or [▲] to select the input you require.

Vol+ to change input/source to the one selected.

• - Only on supported devices

Picture Picture Mode - Choose from the following presets. – Standard - Default settings – Dynamic - Recommended settings for fast moving pictures – Mild - Set to be lighter in colour and less bright – Personal - Lets you manually alter all the settings – Eco - Consume 15% less energy. Contrast - Switch the balance between black and white. Brightness - Increase or decrease the brightness of the picture. Tint - Lets you increase or decrease the level of tint within the picture (for NTSC signal only) Colour - Increases the colour from black and white. Sharpness - Increase or decrease the sharpness of the picture. Colour Temperature - Choose from the following presets. – Normal - Default settings – Warm - Increases red within the picture – Cold - Increases blue within the picture Aspect Ratio - Picture format varies depending on the channel/broadcast. There are a number of di erent options to best meet your needs. – Auto-Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides. – 4:3 - Displays the 4:3 picture in its original size. Side bars are shown to ll the 16:9 screen. – 16:9 - Fills the screen with a regular 16:9 signal. – Zoom 1/2 - The picture is the correct proportion but zoomed in to ll the screen. – Dot by Dot (HDMI) - Will display the picture in its original resolution without any change. – Full Screen - Stretch signal to ll the screen. Noise Reduction - Switch noise reduction on/o .

Sound Sound Mode - Choose from the following presets – Standard - Default settings – Music - Emphasises music over voices – Movie - Provides live and full sound for movies – Personal - Selects your personal sound settings – Sports - Emphasises sound for sports Tip: Treble and bass levels can only be adjusted when the sound mode ‘Personal’ is selected. Treble - To adjust the level of high frequency within the sound. Bass -To adjust the level of low frequency within the sound. Balance - To switch the sound between the left and right speakers. 68.EN Auto Volume Level (AVL) - When ‘on’ is selected, the volume will stay at aconstant level regardless of input/source. Surround Sound - Allows you to turn surround sound e ect ON or OFF. Digital Output - This is the digital Audio output. Choose from the following options: – O - O – Auto - Selects the best settings automatically – PCM- Select this option if you are connecting to aStereo Hi- via digital cable (Pulse-code modulation (PCM) is adigital representation of an analogue signal) Audio Description - Additional sound track for visually impaired. Available only on selected DTV shows. AD Volume - to adjust volume of Audio Description sound track Audio Delay (ms) - Enables the user to adjust sound setting to sync picture and audio for TV speakers. SPDIF Delay (ms) - Enables the user to adjust sound setting to sync picture and audio for external speakers connected via digital audio output.

Auto Adjust - Lets you automatically con gure the television to be used as acomputer monitor. H O set - Changes the horizontal position of the picture. VO set - Changes the vertical position of the picture. Size - increase picture size. Phase - To adjust delay time of phase in order to reduce the noise of picture TIP: If the computer is left in-active for aperiod of time, the television will switch into a‘sleep’ state (the screen will power o to save power). To switch back on press the standby button. TIP: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see ‘OSD Timer’ section.

Channel DVB Antenna* - Set the type of DTV signal – Terrestrial - Terrestrial (DVB-T) – Cable - Cable (DVB-C) Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels. Analogue Manual Tuning - Allows you to manually tune your analogue signal. Digital Manual Tuning - Allows you to manually tune your digital signal. Channel Edit - Allows you to delete, skip and add favourite channels. Signal Information - Information about DVB signal. CI Information - Pay per view services require a“smartcard” to be inserted into the TV. If you subscribe to apay per view service the provider will issue you with a‘CAM’ and a“smartcard”. The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In). Recorded list - List of recorded TV shows. Schedule List - Lists your programme reminders. Dish Setup** - This menu is only available in DVB-S2 mode. You can select the type of satellite, your transponder and your LNB type, etc.

• - Only for models with DVB-T2 tuner ** - Only for models with DVB-Stuner

Lock System Lock - Allows you to lock or unlock the menu. You will be asked to enter a4 digit password. Use the ◄ button to quit the password input. Use the ► button to clear. Default password is 0000. Set Password - Change the default password. Channel lock - Lock speci c TV channels. Parental Guidance - Lock TV channels based on age restriction. Key Lock - Lock the TV buttons. – O - All TV buttons are unlocked – Partial - Only Standby button is unlocked – Full - All TV buttons are locked

Time Clock - Set the date and time. Date and time is set up automatically in DVB mode. O Time - Allows you to set aspeci c time for your TV to turn o . On Time - Allows you to set aspeci c time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or acertain day. Sleep Timer - Lets you set the sleep timer so the television automatically switches o after aset amount of time. O -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min. OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing. Auto standby - Adjustment for the auto standby in hourly increments: O -> 3h -> 4h -> 5h. Time Zone - Change your current time zone.

Network* IP con g - LAN network connection settings – Auto - Will automatically connect the TV to your home network (this is the default setting and is highly recommended) – Manual - Allows you to manually change the IP, Netmask, Gateway and DNS information. Network info - Information about network settings Network test - Network connection test

• - The LAN/Ethernet port is used only for DVB-T2 services. It is not intended to be used for internet/network use.

Settings Language - Allows you to change the language of the menu. Audio Languages - Allows you to change audio language on selected DVB channels. Subtitle Language - Allows you to change subtitles language on selected DVB channels. Hearing Impaired - If signal provides support for the hearing impaired, the subtitles can be played by pressing the “Subtitle”. If you set Hearing Impaired ON and switch to achannel with supports for hearing impaired subtitles will be activated automatically. Blue Screen - Changes the background when there is no input between transparent and ablue background (Only available on some sources). PVR File System - PVR Recording options – Select disk - Select USB port and disk partition – TimeShift Size - Set size time of shift bu er. – Format Start - You can format connected USB storage device to FAT 32 le system.

WARNING: ALL DATA ON THE USB DEVICE WILL BE DELETED

– Speed check - Tests write speed of connected USB storage devices. First Time Installation - Starts the rst time installation. Software Update (USB) - From time to time we may release new rmware to improve the operation of the television (available to download). This menu lets you install the new software/ rmware onto the television. Further details of how to do this will be issued with the rmware. Contact the helpline or refer to the ‘www.sharp.eu’ website.9 Reset TV - This resets the menus to factory settings. HDMI CEC* - Allows you to operate devices connected via HDMI with TV remote control. – Auto standby* - Automatically turn on/ o connected devices via HDMI CEC – Device list* - Allows you to access devices menu and operate the menu using TV remote control. – HDMI ARC* - Sends audio signal from terrestrial/satellite broadcast via HDMI to the AV receiver without using any additional audio cables, this functions is available only on HDMI 2 output.

• - HDMI CEC must be supported by connected device. LED Status - Allows the user to switch the LED Power indicator light ON or OFF, when the TV is being operated. (When this option is set to OFF the LED Power indicator light will flash when the remote control is used) Version Info - shows version of TV software Store Mode* - switch ON/OFF shop demonstration mode

• - available only if store mode was selected during rst time installation

7 Day TV Guide TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the Digital channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

[TV GUIDE]. The following 7 Day TV Guide will appear.

2. Navigate through the menu using

You can now: Record selected TV channel and TV show by pressing the RED button.* Set areminder by pressing GREEN. View aprevious day by pressing YELLOW. View the next day by pressing BLUE. [INFO] shows detailed information about the selected post

[EXIT] to exit the 7 day TV Guide.

• - only for models with recording function

USB mode / Media player USB mode o ers playback of various di erent types of content that you have saved on your USB Memory Stick. On switching to USB source the USB mode menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on le type.

1. You can navigate through the menus using the scroll

▲/▼/◄/►buttons. To con rm the item you wish to play/view press [OK] button.

2. Select the drive you require. (If your drive only has 1 partition you will

3. You can now access the item. Press OK to view.

4. While viewing you may control the item playback modes by using the

remote control buttons or by invoking playback navigation menu and selecting on-screen buttons ▲/▼/◄/► and [OK] NOTE: USB extension cables are not recommended as they can cause a reduction in picture/audio quality and stoppages during play back of USB content.

USB Record - Digital mode* Built into this television is aUSB record facility. This function is available in Digital mode when used in conjunction with acompatible USB memory stick or USB Hard drive. The bene ts of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV).

• One button record, if you decide you want to record the current programme.

• Easy programmable recording from the 7 day TV Guide Due to the nature of the product, it is necessary to use ahigh speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable). Minimum Speci cation - USB Memory Stick – Read Speed - 20 MB/s(Mega Byte Per Second) – Write Speed - 6 MB/s(Mega Byte Per Second) Pause Live TV (Time Shift) * Pausing Live TV is very simple. – Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again. – Press fast forward to go forward in arecording (i.e. to skip adverts). – Press fast rewind to go back in arecording (i.e. if you fast forwarded too far). TIP: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button. One Button Record At any point in time you may decide to record the current channel that you are watching. To do this you need to press the [REC] button. TIP: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode. NOTE: USB record function is only available in Digital TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

• - Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

• *- when the TV is turned o with the remote control and no function is active N/A Media File Ext. Codec Remark Video Audio Movie .mpg MPEG-1, MPEG-2
