USER MANUAL Favorit 88065 VI AEG-ELECTROLUX

Koud water of warm waterr

39 CARE AND CLEANING

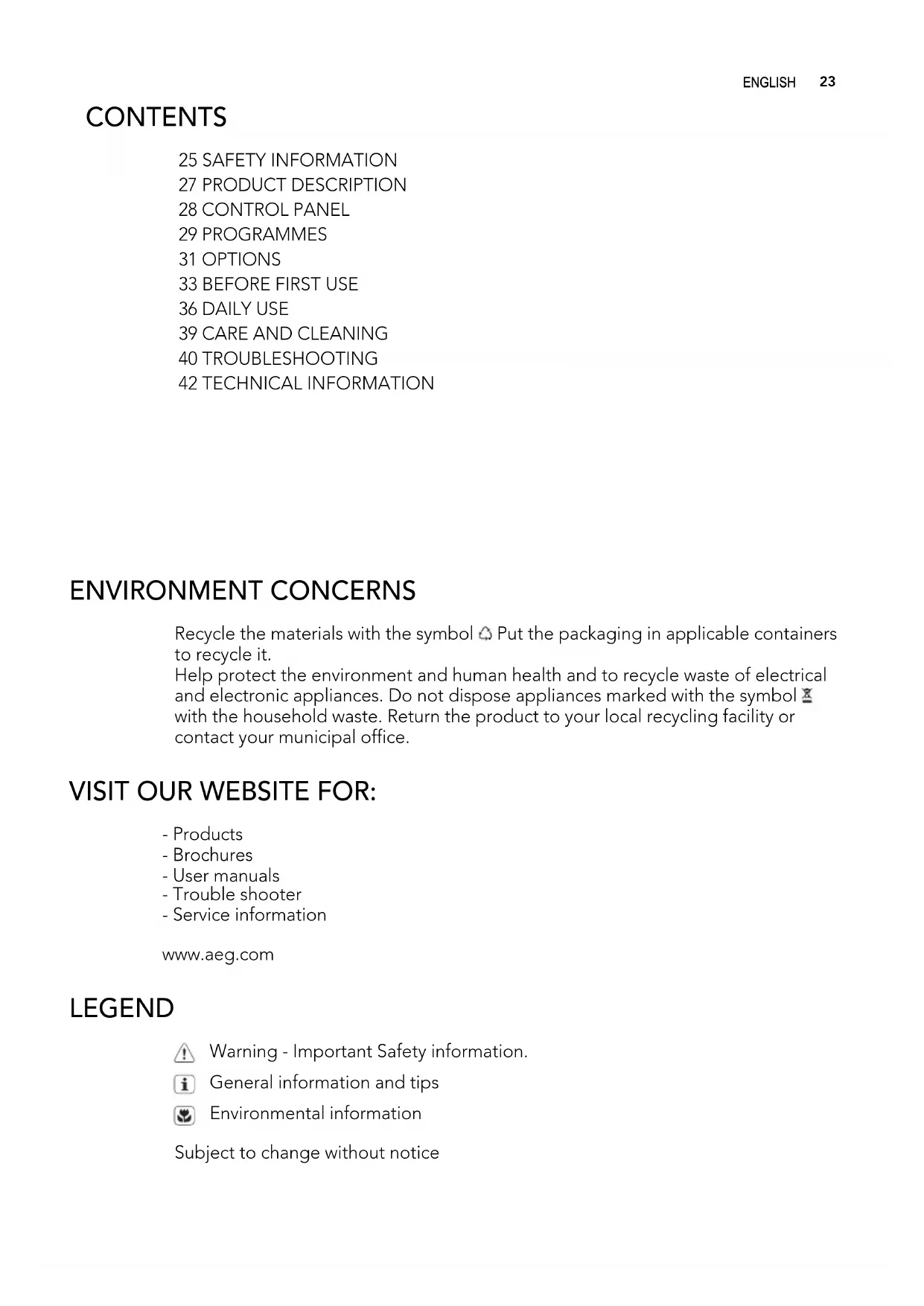

40 TROUBLESHOOTING 42 TECHNICAL INFORMATION ENVIRONMENT CONCERNS Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. VISIT OUR WEBSITE FOR: - Products - Brochures - User manuals - Trouble shooter - Service information www.aeg.com LEGEND Warning - Important Safety information. General information and tips Environmental information Subject to change without notice ENGLISH

23FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you’ll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags… Visit the webshop at: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model PNC Serial Number 24SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not re- sponsible if an incorrect installation and use causes injuries and damages. Al- ways keep the instructions with the ap- pliance for future reference.

CHILDREN AND VULNERABLE

PEOPLE SAFETY WARNING! Risk of suffocation, injury or per- manent disability.

• Do not let persons, children inclu- ded, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervi- sion or instruction for the operation of the appliance by a person who is responsible for their safety. Do not let children play with the appliance.

• Keep all packaging away from chil- dren.

• Keep all detergents away from chil- dren.

• Keep children and pets away from the appliance door when it is open. INSTALLATION WARNING! This appliance must be installed by a qualified or competent per- son.

• Remove all the packaging.

• Do not install or use a damaged ap- pliance.

• Do not install or use the appliance where the temperature is less than 0 °C.

• Obey the installation instruction sup- plied with the appliance.

• Make sure that the appliance is in- stalled below and adjacent to safe structures. Water connection

• Make sure not to cause damage to the water hoses.

• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.

• The first time you use the appliance, make sure that there is no leakage.

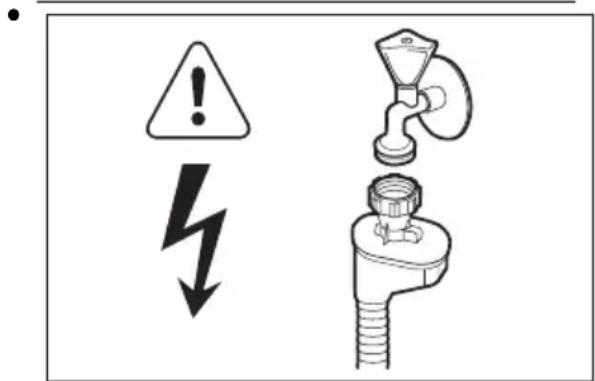

WARNING! Dangerous voltage. The water inlet hose has a safety valve and a sheath with an inner mains cable.

• If the water inlet hose is damaged, immediately disconnect the mains plug from the mains socket. Contact Service to replace the water inlet hose. Electrical connection WARNING! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical informa- tion on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains ca- ENGLISH 25ble. Contact Service or an electrician to change a damaged mains cable.

• Connect the mains plug to the mains socket only at the end of the installa- tion. Make sure that there is access to the mains plug after the installa- tion.

• Do not pull the mains cable to dis- connect the appliance. Always pull the mains plug. USE WARNING! Risk of injury.

• Use this appliance in a household en- vironment.

• Do not change the specification of this appliance.

• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal posi- tion.

• Do not keep the appliance door open without supervision to prevent to fall on it.

• Do not sit or stand on the open door.

• Dishwasher detergents are danger- ous. Obey the safety instructions on the detergent packaging.

• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes. WARNING! Risk of electrical shock, fire or burns.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not use water spray and steam to clean the appliance.

• The appliance can release hot steam if you open the door while a pro- gramme operates. INTERNAL LIGHT WARNING! Risk of injury. Visible LED radiation, do not look directly into the beam. The LED is CLASS 2 and agrees with IEC 60825-1: 1993 + A1:1997 + A2:2001. Emission wave length: 450 nm Maximum emitted power: 548 μW To replace the internal light, contact Service. DISPOSAL WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and dispose of it.

• Remove the door catch to prevent children and pets to get closed in the appliance. 26PRODUCT DESCRIPTION

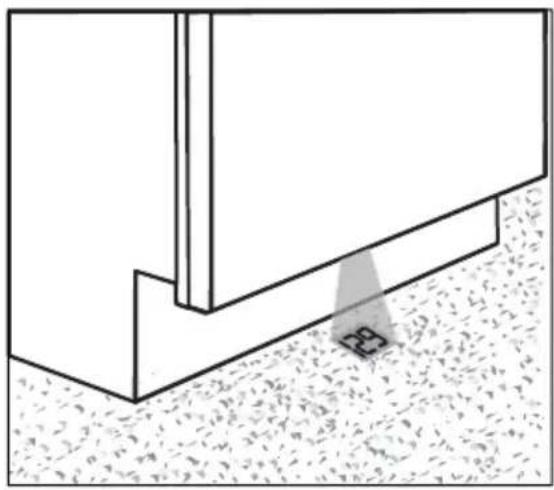

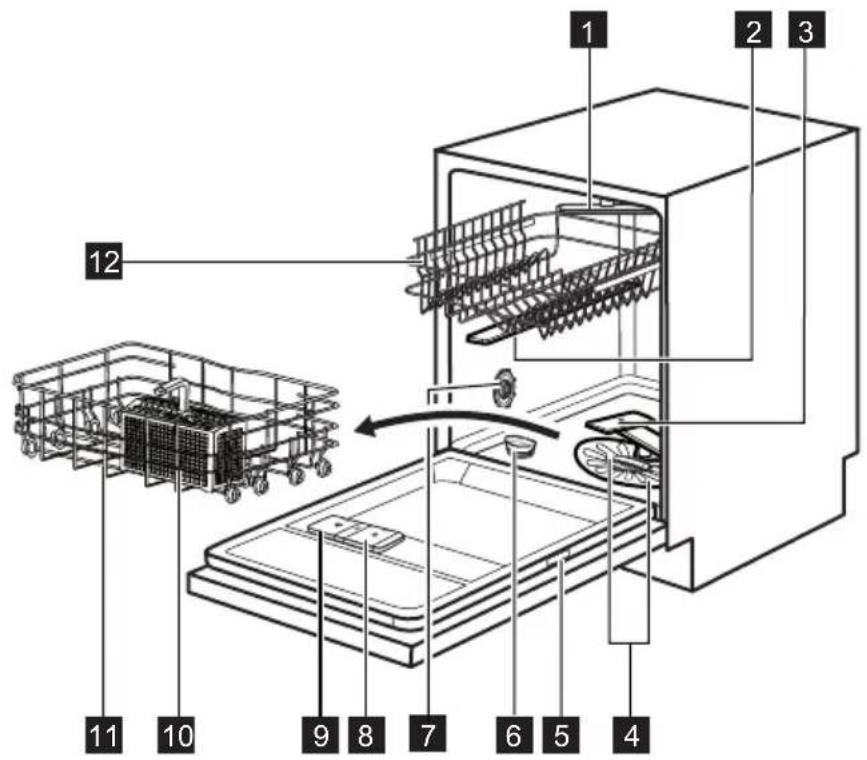

Upper basket TIME BEAM Time Beam is a light beam that shows, on the kitchen floor:

• The programme duration. It decrea- ses with steps of one minute.

• The end of the programme (0:00).

• The time of the delay start. It decrea- ses with steps of one hour (24h, 23h...).

Indicators Indicators Salt indicator. This indicator is off while the programme operates. Rinse aid indicator. This indicator is off while the programme op- erates. End indicator. 28PROGRAMMES Programme Degree of soil Type of load Programme phases Options

All Crockery, cutlery, pots and pans Prewash Wash 45 °C or 70 °C Rinses Dry ExtraHygiene

Heavy soil Crockery, cutlery, pots and pans Prewash Wash 70 °C Rinses Dry

Normal soil Crockery and cutlery Prewash Wash 50 °C Rinses Dry

Fresh soil Crockery and cutlery Wash 60 °C Rinse ExtraHygiene

Normal soil Crockery and cutlery Prewash Wash 50 °C Rinses Dry ExtraHygiene

Mixed soil Crockery, cutlery, pots and pans Prewash Wash 70 °C Rinses Dry 7 Normal or light soil Delicate crockery and glassware Wash 45 °C Rinses Dry

The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and quantity of the water, the energy consumption and the programme duration.

This programme includes the ExtraHygiene option.

This is the most silent washing programme. The pump works at a very low speed to decrease the level of noise. Because of the low speed, the programme duration is long.

With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

This is the standard programme for test institutes. With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for test information.

With this programme you can wash a load with mixed soil. Very heavy soil in the lower basket and normal soil in the upper basket. The water pressure and the water temperature in the lower basket are higher than in the upper basket. ENGLISH 297) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance. Do not use detergent with this programme. Consumption values Programme

The water pressure and temperature, the variations of the mains supply, the options and the quantity of dishes can change the programme duration and the consumption values. 30OPTIONS MULTITAB FUNCTION Activate this function only when you use the combi detergent tablets. This function deactivates the flow of rinse aid and salt. The related indicators are off. The programme duration can increase. Activating the multitab function Activate or deactivate the multi- tab function before the start of a programme. You cannot acti- vate or deactivate this function when a programme operates.

1. Press the on/off button to activate

2. Make sure that the appliance is in

multitab indicator comes on. The function stays on until you deactivate it. Press the multitab touchpad, the multitab indicator goes off. If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Deactivate the multitab function.

2. Set the water softener to the high-

3. Make sure that the salt container

and the rinse aid dispenser are full.

4. Start the shortest programme with a

rinsing phase, without detergent and without dishes.

5. Adjust the water softener to the wa-

ter hardness in your area.

6. Adjust the released quantity of rinse

aid. EXTRAHYGIENE This function gives better results for the hygiene. During the rinsing phase, the temperature stays at 70 °C for 10 to 14 minutes. ACOUSTIC SIGNALS The acoustic signals operate in these conditions:

• The programme is completed.

• The level of the water softener is ad- justed electronically.

• The appliance has a malfunction. Factory setting: on. You can de- activate the acoustic signals. Deactivating the acoustic signals

1. Press the on/off button to activate

2. Make sure that the appliance is in

setting mode. Refer to ‘SETTING AND STARTING A PROGRAMME’.

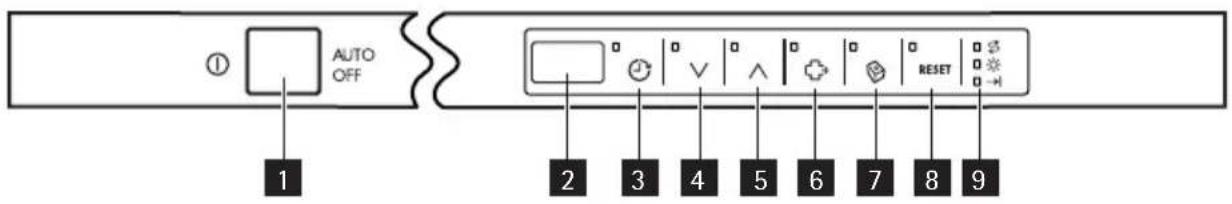

3. Press and hold touchpads (4) and

(5) at the same time until the indica- tors of touchpads (3), (4), (5) and (6) flash.

4. Press touchpad (5),

• The indicators of touchpads (3), (4) and (6) go off.

• The indicator of touchpad (5) continues to flash.

• The display shows the setting of the acoustic signals.

5. Press touchpad (5) to change the

6. Deactivate the appliance to confirm.

SETTING THE TIME BEAM

COLOUR Nine colours are available for this light beam. You can change the colour or deactivate it.

1. Press the on/off button to activate

the appliance. ENGLISH

312. Make sure that the appliance is in

setting mode. Refer to ‘SETTING AND STARTING A PROGRAMME’.

3. Press and hold touchpads (4) and

(5) at the same time until the indica- tors of touchpads (3), (4), (5) and (6) flash.

4. Press touchpad (6).

• The indicators of touchpads (3), (4) and (5) go off.

• The indicator of touchpad (6) continues to flash.

• The display shows a number and the letter C. Each number is rela- ted to a different colour (0C = Time Beam deactivated).

5. Press touchpad (6) again and again

to change the colour.

6. Deactivate the appliance to confirm.

1. Make sure that the set level of the

water softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your lo- cal water authority to know the wa- ter hardness in your area.

4. Open the water tap.

5. Processing residues can stay in the

appliance. Start a programme to re- move them. Do not use detergent and do not load the baskets. If you use the combi detergent tablets, activate the multitab function. These tablets contain detergent, rinse aid and other added agents. Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.

SOFTENER Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these miner- als. The dishwasher salt keeps the water softener clean and in good conditions. Refer to the table to adjust the water softener to the right level. It makes sure that the water softener uses the correct quantity of dishwasher salt and water. You must adjust the water soft- ener manually and electronical- ly. Water hardness Water softener adjustment German degrees (°dH) French degrees (°fH) mmol/l Clarke degrees Manual Elec- tronic

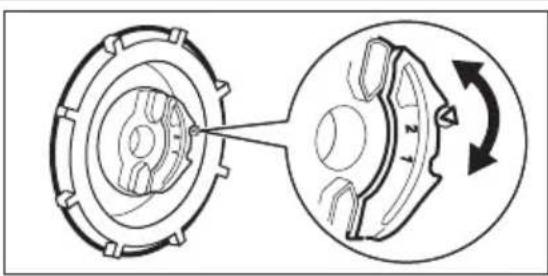

Do not use salt at this level. ENGLISH 33Manual adjustment Turn the water hardness dial to the po- sition 1 or 2. Electronic adjustment

1. Press the on/off button to activate

2. Make sure that the appliance is in

setting mode. Refer to ‘SETTING AND STARTING A PROGRAMME’.

3. Press and hold touchpads (4) and

(5) at the same time until the indica- tors of touchpads (3), (4), (5) and (6) flash.

4. Press touchpad (3).

• The indicators of touchpads (4), (5) and (6) go off.

• The indicator of touchpad (3) continues to flash.

• The acoustic signals operate. Ex- ample: five intermittent acoustic signals = level 5.

• The display shows the setting of the water softener. Example: = level 5.

5. Press touchpad (3) again and again

to change the setting.

6. Deactivate the appliance to confirm.

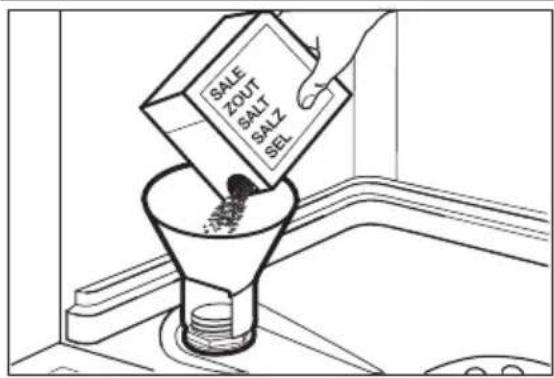

FILLING THE SALT CONTAINER

CAUTION! Only use dishwasher salt. Other products can cause damage to the appliance. Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

1. Turn the cap counterclockwise and

open the salt container.

2. Put 1 litre of water in the salt con-

tainer (only for the first time).

3. Fill the salt container with dish-

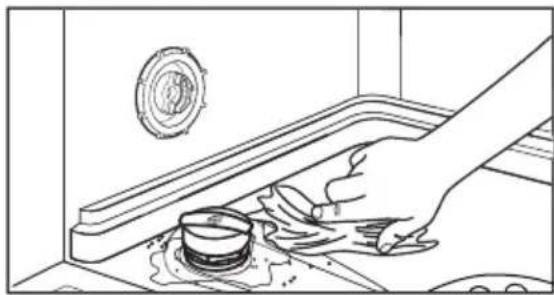

4. Remove the salt around the open-

ing of the salt container.

5. Turn the cap clockwise to close the

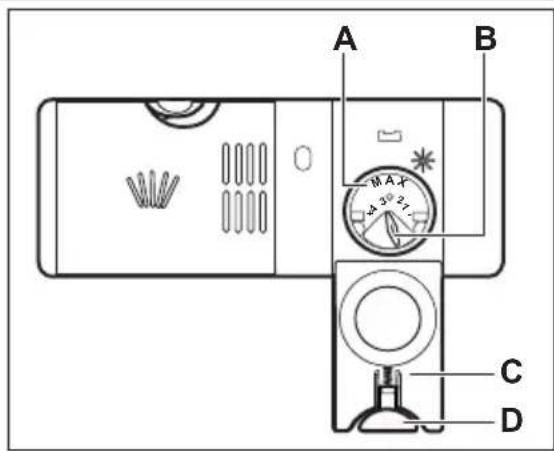

CAUTION! Only use rinse aid for dishwash- ers. Other products can cause damage to the appliance. The rinse aid, during the last rinsing phase, helps to dry the dishes without streaks and stains.

1. Press the release button (D) to

more than the mark 'max'.

3. Remove the spilled rinse aid with

an absorbent cloth to prevent too much foam.

4. Close the lid. Make sure that the

release button locks into position. You can turn the selector of the released quantity (B) between position 1 (lowest quantity) and position 4 (highest quantity). ENGLISH 35DAILY USE

1. Open the water tap.

2. Press the on/off button to activate

the appliance. Make sure that the appliance is in setting mode. Refer to ’SETTING AND STARTING A PROGRAMME’.

• If the salt indicator is on, fill the salt container.

• If the rinse aid indicator is on, fill the rinse aid dispenser.

3. Load the baskets.

4. Add the detergent.

5. Set and start the correct pro-

gramme for the type of load and soil.

Refer to the supplied leaflet with examples of the load of the bas- kets.

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.

• Make soft the remaining burned food on the items.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.

• Make sure that glasses do not touch other glasses.

• Put small items in the cutlery basket.

• Put light items in the upper basket. Make sure that the items do not move.

• Make sure that the spray arms can move freely before you start a pro- gramme.

CAUTION! Use only detergents for dish- washers.

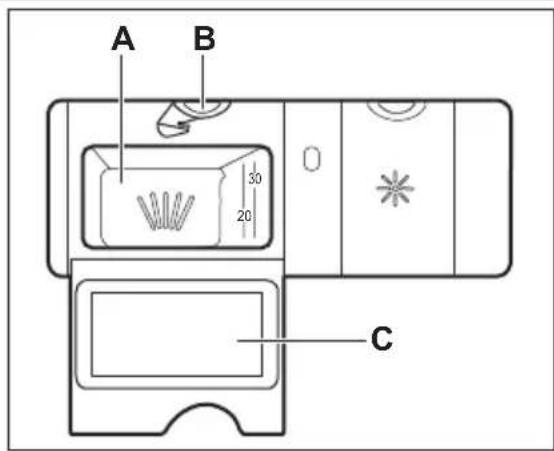

1. Press the release button (B) to

2. Put the detergent in the compart-

3. If the programme has a prewash

phase, put a small quantity of de- tergent on the inner part of the ap- pliance door.

4. If you use detergent tablets, put

the tablet in the compartment (A).

5. Close the lid. Make sure that the

release button locks into position. Do not use more than the cor- rect quantity of detergent. Refer to the instructions on the deter- gent packaging. Detergent tablets do not fully dissolve with short programmes and detergent residues can stay on the dishes. We recommend that you use detergent tablets with long pro- grammes.

SETTING AND STARTING A

PROGRAMME Setting mode The appliance must be in setting mode to accept some operations. The appliance is in setting mode when, after the activation:

• The display shows two horizontal sta- tus bars. If the control panel shows other condi- tions, press RESET until the appliance is in setting mode. Starting a programme without delay start

1. Open the water tap.

2. Press the on/off button to activate

the appliance. Make sure that the appliance is in setting mode.

3. Set the programme.

• The related programme number flashes in the display.

4. If you want, you can set the options.

5. Close the appliance door. The pro-

• The display goes off. If you open the door while the appliance op- erates, the display shows the pro- gramme duration that decreases with steps of 1 minute. Starting a programme with delay start

again until the display shows the de- lay time you want to set (from 1 to 24 hours).

• The delay time flashes in the dis- play.

• The delay indicator is on.

3. Close the appliance door. The

• If you open the door, the display shows the countdown of the de- lay start that decreases with steps of 1 hour.

• When the countdown is completed, the programme starts. Opening the door while the appliance operates If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption. Cancelling the delay start while the countdown operates

1. Open the appliance door.

2. Press the delay touchpad again and

again until the display shows the programme number.

3. Close the appliance door. The pro-

gramme starts. Cancelling the programme Press RESET until:

• The display shows two horizontal sta- tus bars. Make sure that there is deter- gent in the detergent dispenser before you start a new pro- gramme. At the end of the programme When the programme is completed, an intermittent acoustic signal operates.

1. Open the appliance door.

• The end indicator is on.

• The display shows 0.

2. Press the on/off button to deacti-

3. Close the water tap.

If you do not press the on/off button, the AUTO OFF device automatically deactivates the appliance after some minutes. This helps to decrease the ener- gy consumption.

• For better drying results, keep the appliance door ajar for some mi- nutes.

• Let the dishes become cold before you remove them from the appli- ance. Hot dishes can be easily dam- aged.

• First remove the items from the lower basket, then from the upper basket. There can be water on the sides and on the door of the appli- ance. Stainless steel becomes cool more quickly than the dishes.

WARNING! Before maintenance, deactivate the ap- pliance and disconnect the mains plug from the mains socket. Dirty filters and clogged spray arms decrease the washing re- sults. Make a check regularly and, if necessary, clean them.

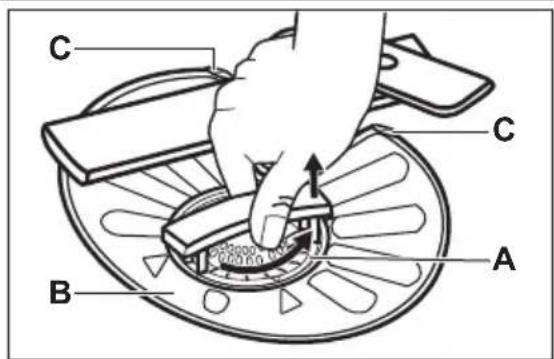

CLEANING THE FILTERS

1. Turn the filter (A) counter-

clockwise and remove it.

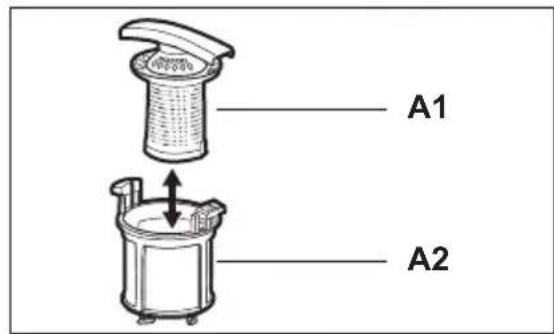

2. To disassemble the filter (A),

pull apart (A1) and (A2).

3. Remove the filter (B).

4. Wash the filters with water.

5. Put the filter (B) to its initial

position. Make sure that it assembles correctly under the two guides (C).

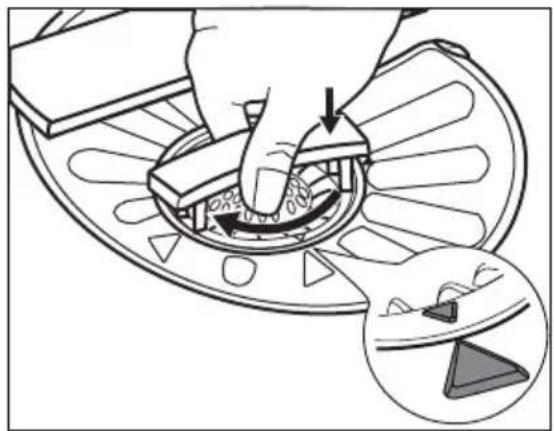

6. Assemble the filter (A) and

put it into position in filter (B). Turn it clockwise until it locks. An incorrect position of the filters can cause bad washing results and dam- age to the appliance.

CLEANING THE SPRAY ARMS

Do not remove the spray arms. If the holes in the spray arms are clog- ged, remove remaining parts of soil with a thin pointed object. EXTERNAL CLEANING Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive clean- ing pads or solvents. ENGLISH 39TROUBLESHOOTING The appliance does not start or it stops during operation. First try to find a solution to the prob- lem (refer to the table). If not, contact Service. With some problems, the display shows an alarm code:

- The appliance does not fill with water.

- The appliance does not drain the water.

- The anti-flood device is on. WARNING! Deactivate the appliance before you make the checks. Problem Possible cause Possible solution The programme does not start. The mains plug is not con- nected in the mains socket. Connect the mains plug. The appliance door is open. Close the appliance door. The fuse in the fuse box is damaged. Replace the fuse. The delay start is set. Cancel the delay start or wait for the end of the countdown. The appliance does not fill with water. The water tap is closed. Open the water tap. The water pressure is too low. Contact your local water au- thority. The water tap is clogged or there is limescale on it. Clean the water tap. The filter in the water inlet hose is clogged. Clean the filter. The water inlet hose has a kink or a bend. Make sure that the position of the hose is correct. The anti-flood device is on. There are water leakages in the appliance. Close the water tap and contact Service. The appliance does not drain the water. The sink spigot is clogged. Clean the sink spigot. The water drain hose has a kink or a bend. Make sure that the position of the hose is correct. After the checks are completed, acti- vate the appliance. The programme continues from the point of interrup- tion. If the problem occurs again, contact Service. If the display shows other alarm codes, contact Service. 40THE WASHING RESULTS AND DRYING RESULTS ARE NOT SATISFACTORY Problem Possible cause Possible solution The dishes are not clean. The filters are clogged. Clean the filters. The filters are not correctly assembled and installed. Make sure that the filters are correctly assembled and in- stalled. The spray arms are clog- ged. Remove remaining soil with a thin pointed object. The programme was not applicable for the type of load and soil. Make sure that the pro- gramme is applicable for the type of load and soil. Incorrect position of the items in the baskets. Water could not wash all items. Make sure that the position of the items in the baskets is correct and that the water can easily wash all items. The spray arms could not turn freely. Make sure that the position of the items in the baskets is correct and does not cause the blockage of the spray arms. The quantity of detergent was not sufficient. Make sure that you add the correct quantity of detergent in the dispenser before you start a programme. There was no detergent in the detergent dispenser. Make sure that you add de- tergent in the dispenser be- fore you start a programme. Limescale particles on the dishes. The salt container is empty. Make sure that there is dish- washer salt in the salt con- tainer. The set level of the water softener is incorrect. Make sure that the set level of the water softener agrees with the water hardness in your area. The cap of the salt contain- er is loose. Tighten the cap. Whitish streaks and stains or bluish lay- ers on glasses and dishes. The released quantity of rinse aid is too much. Decrease the released quan- tity of rinse aid . ENGLISH 41Problem Possible cause Possible solution The quantity of detergent was too much. Make sure that you add the correct quantity of detergent in the dispenser before you start a programme. Dry water drop stains on glasses and dishes. The released quantity of rinse aid was not sufficient . Increase the released quanti- ty of rinse aid. The quality of the detergent can be the cause. Try a different brand of de- tergent. The dishes are wet. • The programme had no drying phase.

• The programme had a low temperature drying phase. For better drying results, keep the door ajar for some minutes. The dishes are wet and matt. The rinse aid dispenser is empty. Make sure that there is rinse aid in the rinse aid dispenser. The quality of the rinse aid can be the cause. Try a different brand of rinse aid. The quality of the combi detergent tablets can be the cause.

• Try a different brand of combi detergent tablets.

• Activate the rinse aid dis- penser and use the rinse aid together with the com- bi detergent tablets. Activating the rinse aid dispenser with the multitab function activated

1. Press the on/off button to activate

2. Make sure that the appliance is in

setting mode. Refer to ‘SETTING AND STARTING A PROGRAMME’.

3. Press and hold touchpads (4) and

(5) at the same time until the indica- tors of touchpads (3), (4), (5) and (6) flash.

4. Press touchpad (4).

• The indicators of touchpads (3), (5) and (6) go off.

• The indicator of touchpad (4) continues to flash.

5. Press touchpad (4) to change the

6. Deactivate the appliance to confirm.

7. Adjust the released quantity of rinse

Cold water or hot water

Connect the water inlet hose to a water tap with a 3/4'' thread.

If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption. ENGLISH 43SOMMAIRE
