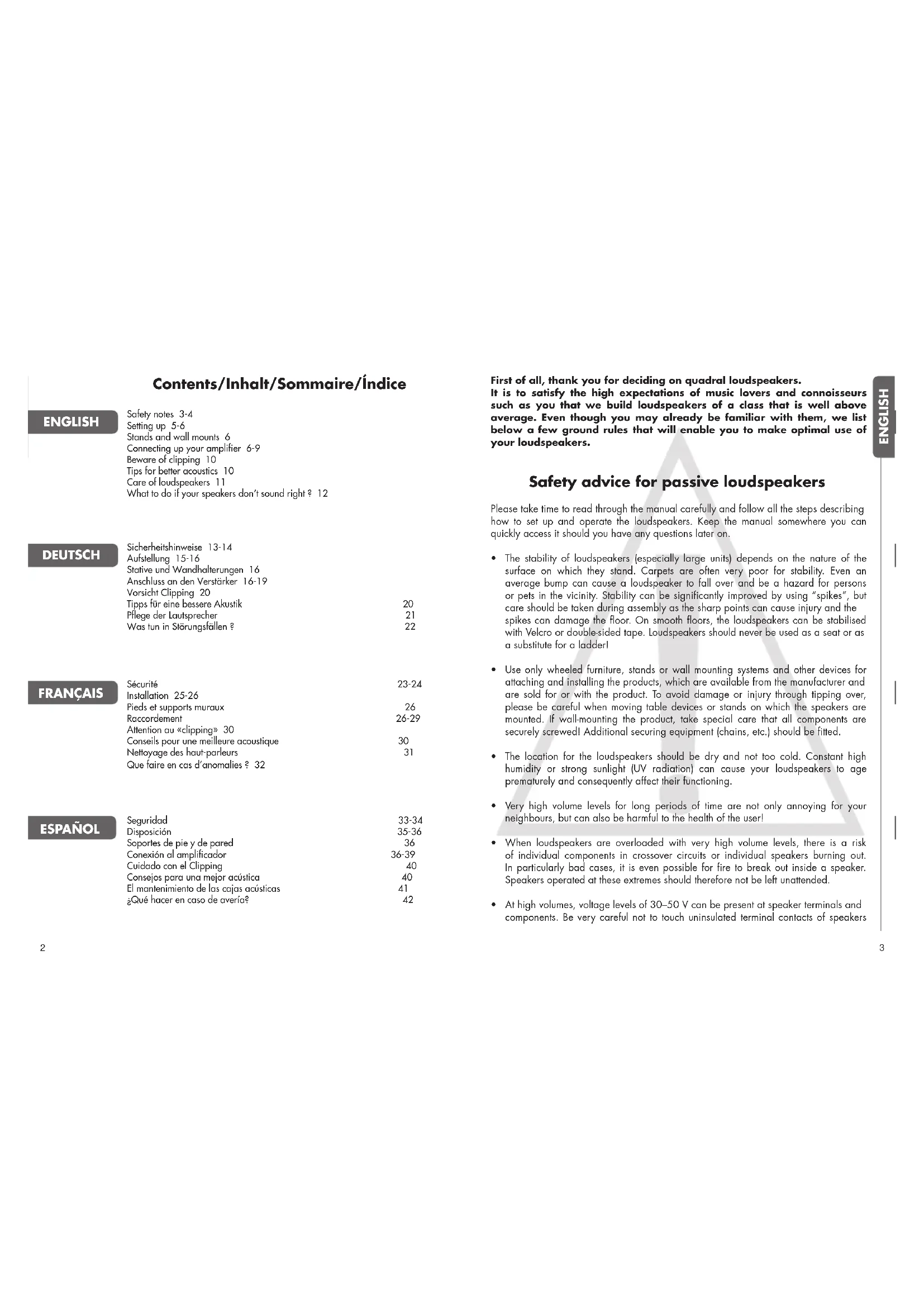

USER MANUAL Chromium Style 50 Quadral

• The stability of loudspeakers (especially large units) depends on the nature of the surface on which they stand. Carpets are often very poor for stability. Even an average bump can cause a loudspeaker to fall over and be a hazard for persons or pets in the vicinity. Stability can be significantly improved by using “spikes”, but care should be taken during assembly as the sharp points can cause injury and the spikes can damage the floor. On smooth floors, the loudspeakers can be stabilised with Velcro or double-sided tape. Loudspeakers should never be used as a seat or as a substitute for a ladder!

• Use only wheeled furniture, stands or wall mounting systems and other devices for attaching and installing the products, which are available from the manufacturer and are sold for or with the product. To avoid damage or injury through tipping over, please be careful when moving table devices or stands on which the speakers are mounted. If wall-mounting the product, take special care that all components are securely screwed! Additional securing equipment (chains, etc.) should be fitted.

• The location for the loudspeakers should be dry and not too cold. Constant high humidity or strong sunlight (UV radiation) can cause your loudspeakers to age prematurely and consequently affect their functioning.

• Very high volume levels for long periods of time are not only annoying for your neighbours, but can also be harmful to the health of the user!

• When loudspeakers are overloaded with very high volume levels, there is a risk of individual components in crossover circuits or individual speakers burning out. In particularly bad cases, it is even possible for fire to break out inside a speaker. Speakers operated at these extremes should therefore not be left unattended.

• At high volumes, voltage levels of 30–50 V can be present at speaker terminals and components. Be very careful not to touch uninsulated terminal contacts of speakers4 ENGLISH

Setting up To obtain optimal sound results, it is generally necessary to try out different set-ups. Since the room conditions have a major effect on sound reproduction, we suggest below a few useful approaches for positioning your quadral loudspeakers. Main speakers (front) Where the speakers are positioned in the listening space has a decisive effect on their sound. Placing the speakers near the corners of the room will essentially give you loud bass reproduction but with little outline. On the other hand, speakers positioned well away from the walls sound precise, but also very bright and thin. The best solution is to place the speakers with at least 30 cm between their backs and the nearest wall. To avoid loud wall reflections, the distance from the side walls of the room can even be 50 cm or more. Bookshelf speaker units sound best on a speaker stand or shelf, with the tweeters arranged at ear height. The cases should be angled and slightly tilted to achieve this. Ss far as possible, the speakers should be equidistant from the listening position, while the distance of the speakers from each other can be rather less than the distance from the listener. Front centre speaker Due to the proliferation of plasma and LCD TVs, these speakers are no longer shielded magnetically. This causes colour and geometrical errors and can occur on older TVs with picture tubes. Since it can’t be placed on the TV set, the center speaker can be set lying down underneath it. The speaker should be at least 30 cm from the television, and a minimum of 20 cm from the floor. Apart from the above, we recommend angling the center speaker so that the tweeter is aimed at the listener in order to enjoy its full sound potential. when in operation. To avoid injury, never put hands or arms into sound outlets (bass reflex tubes). Children and pets, in particular, are at risk from this.

• For safety reasons, we generally forbid the opening of loudspeaker cabinets when in operation or connected since, as explained in the above paragraph, voltages of up to 50 volts can be present inside.

• Improper handling of mains voltage can cause fatal injury! Passive loudspeakers must on no account be connected to the electricity supply! Speaker terminals may only be connected to the appropriate output terminals of the amplifier. You should never connect these terminals to the electricity supply (230 V/115 V) in any way since that will otherwise also immediately destroy the loudspeaker and all connected products. Avoid fitting plugs to ends of speaker cables that could even remotely be confused with mains supply plugs.

• Loudspeakers that are not magnetically shielded can affect the colour of the TV picture or cause distortion. A distance of 50 cm is generally sufficient to avoid problems of this kind. Avoid placing items such as credit cards, diskettes, audio or video cassettes or other magnetic media on the loudspeaker. This could destroy the information stored on them. Similarly, avoid operating magnetic tape devices in the immediate vicinity. CENTERFRONT FRONTSUBWOOFER REAR REAR 50 cm

Rear centre speaker In contrast to 5.1 surround sets, 6.1 systems have an additional rear centre speaker that should be placed behind and slightly above the typical listening position. Rear speakers Whether you direct the rear speakers toward the listening position is a matter of taste. Also, many listeners prefer the rear speakers to be positioned above ear height. This can be achieved by mounting the units on a sturdy wall bracket, a high speaker stand, a sideboard or shelf. Stands and wall brackets To obtain optimal positioning of the front and rear speakers, quadral offers suitable stands and wall brackets. Some speaker models also have a keyhole-shaped cut-out in the back of the speaker for wall mounting. Should you have any questions, please contact us on tel.: [phone], e-mail: [e-mail] Connecting to the amplifier Before connecting the speakers to your hi-fi or surround system, make sure the amplifier/ receiver is switched off and its status LED is not lit. To connect the speakers, you will need a two-core speaker cable for each speaker. Make sure these are of sufficient length and don’t shorten the cables before checking they are long enough to hide behind furniture or under the carpet. For cables longer than 5 metres, we recommend a cross-sectional area of at least 2.5 sq mm per core in order to avoid unnecessary power loss. Strip the insulation of the cores to a length of around 10 mm at both ends of the cable so that they are bared for good contact. Screw terminals For connection, the speakers are provided with colour-coded screw terminals on the back of the cabinet. Loosen the screw terminals and feed the stripped end of the core into the hole that is now free. The two cores of speaker cables have different colouring or shape for recognition. Connect one core to the red, positive terminal – the remaining core to the black terminal. Tighten the screws hand-tight. To ensure correct polarity, check that the core connected to the red, positive terminal of the speaker is also the core that is connected to the red, positive terminal of the amplifier and that the other core is connected to the black, negative terminals of both the speaker and amplifier. With some quadral loudspeakers, you can choose between three modes of operation. a) Conventional mode Do not remove the jumpers, connect the speaker cable as shown in the illustration. b) Biwiring mode Open the jumpers after loosening the four screw terminals on the back of the speaker and connect the cable as shown in the illustration. c) Biamping mode Open the jumpers and connect the cables as shown in the illustration. In the biwiring/biamping mode, the bass frequencies are controlled via the two lower terminals – and the midrange/treble frequencies via the two upper terminals. Make sure you use the correct polarities in these modes and that you remove the jumpers on the speaker terminal to avoid damaging your amplifier.

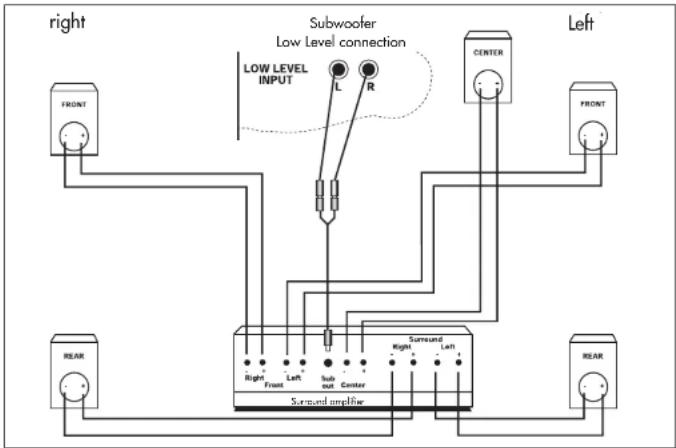

Operation with a surround amplifier Once you have positioned and connected your speakers as shown in the illustration, you should perform the necessary settings in the bass management system of your surround amplifier. Make sure you read the user manual supplied by your amplifier’s manufacturer before doing this. Since bass management primarily depends on the loudspeaker configuration, we give only typical settings below. a) Small and very small satellite speakers must be operated in “small” mode. Perform the setting on your amplifier as follows: Front: small Centre: small Rear: small Subwoofer: yes b) There is no definitive formula for the settings for compact speakers. In this case, the suitable mode may be “large” or “small”. This depends on the volume level you prefer or the sound effect you wish to obtain (refer to the section “Caution, clipping!”). The settings on your amplifier can optionally be configured as follows: Front: large/small Centre: large/small Rear: large/small Subwoofer: yes c) Floorstanding speakers or large bookshelf speakers that are suitable for powerful bass reproduction should be operated in “large” mode. Perform the setting on the amplifier as follows: Front: large Centre: large Rear: large Subwoofer: yes/no For the special quadral centre speakers, we generally recommend “small” mode. Subwoofer If your surround amplifier has a “line subwoofer” output, you can make use of this by using the Y cable shipped with the subwoofer (see illustration). In this case, you connect the front speakers directly to the front speaker terminals of your amplifier. Refer to the connection diagram for wiring your surround system. Refer to the user manual of the active subwoofer for the necessary settings on your subwoofer! Subwoofer Low Level connection Surround-amplifier Left right10 ENGLISH

Caution, clipping Even if the rated output of an amplifier is significantly less than the load rating of the connected boxes, the speakers can easily be damaged by improper operation. This is because the rated output merely indicates how many watts the amplifier is capable of supplying to the speakers without distortion. When an amplifier is overloaded, it not only delivers a lot more power but also mixes in destructive direct current as well as high- frequency oscillations. This phenomenon is known as clipping and can be heard in the form of harsh distortion during loud passages. If you hear distortion, reduce the volume immediately to avoid damaging the speaker units. Amplifier clipping is a typical overload phenomenon that always occurs when you turn the volume and/or tone controls up too high. Even in the middle setting of the tone control, normal amplifiers reach their limits when loud pulses occur if you move the volume control significantly past the 12 o’clock position. Tips for better acoustics

1. Soft foam to prevent loud basses

Depending on the acoustic properties of the listening room and the positioning of the loudspeakers, bass notes can occasionally appear too loud. Some quadral speakers are therefore shipped with pre-cut cylindrical pieces of large-pore foam. If low basses are unpleasantly loud in the listening area, we recommend inserting this foam cylinder into the bass reflex tube of your quadral speaker. But avoid pushing it too far inside as you could have problems removing it afterwards. A noticeable improvement in bass reproduction can be achieved this way.

2. To achieve better acoustic isolation of the loudspeakers from the floor, some

floorstanding speakers are designed to accept spikes. Use of the spikes can be advantageous, depending on the living room / floor.

3. To achieve better acoustic isolation of centre or shelf speakers from the surface on

which they stand, some of these loudspeakers are shipped with 4 self-adhesive rubber feet. Care of loudspeakers Your quadral loudspeakers are best cleaned with a soft, dry cloth. The aluminium housing is best wiped in a longitudinal direction with a damp cloth. Do not use solvents. You should only clean the loudspeaker systems (woofer, midrange units, etc.) when they have become very dirty (small amounts of dust have no effect on the acoustics). Use a soft, dry cloth or a soft brush with very gentle pressure, otherwise there is a risk of damaging the diaphragms. We generally advise against cleaning the tweeter diaphragms because they are extremely sensitive to pressure! Light soil on the fabric front frame can be removed by tapping, with a vacuum cleaner, or by using an adhesive tape when the front frame has been removed. Heavier soil can be removed with a dry foam cleaner (such as Centralin spray). Never use moisture to clean the front frame. The technical details for your product can be found on the back of the speaker cabinet or on the packaging!12 DEUTSCH
