BBTS1100 - Speaker BRANDT - Free user manual and instructions

Product Type	Wireless Bluetooth Speaker
Brand	Brandt
Model	BBTS1100
Power	Rechargeable lithium battery built-in 600 mAh, 3.7 V
Charging	Micro USB port, 5 V, 1.5 A
Power Output	2 × 2 W
Bluetooth Range	≤ 10 meters (depending on environment and connected device)
Wireless Connectivity	Bluetooth
Hands-free Function	Yes (answer/end calls via dedicated button)
AUX Input	3.5 mm jack socket, active in Bluetooth mode (pauses Bluetooth)
AUX Output	3.5 mm jack socket for connection to an external amplifier
Charging Indicator	Red light on during charging, turns off when battery is fully charged
Buttons	Power on/off, Volume +/-, Answer/End call
Built-in Microphone	Yes
Included Accessories	USB charging cable
Maintenance	Clean with a slightly damp soft cloth, then wipe with a dry cloth. Do not immerse in water.
Safety	Do not expose to water, flames, or excessive heat. Leave at least 10 cm of free space around the device.
Recycling	Dispose of the device at a recycling center (non-removable built-in battery).
Compliance	CE

Frequently Asked Questions - BBTS1100 BRANDT

How to charge the Brandt BBTS1100 speaker?

Use the provided USB cable and plug it into a power adapter (not included) or a USB port. Connect it to the micro USB port on the speaker. The red light turns on during charging and turns off when the battery is fully charged.

How to connect the speaker via Bluetooth?

Turn on the speaker with the power switch. It automatically enters pairing mode: the Bluetooth indicator flashes. On your Bluetooth source, enable Bluetooth and search for 'BBTS-1100'. Select it to pair. If a password is requested, enter '0000'.

What to do if the Bluetooth password is requested?

During pairing, if a password is requested, enter 0000 (four zeros).

How to use the hands-free mode?

When the speaker is connected to a phone via Bluetooth, press the Answer/End button to answer or end a call. The built-in microphone allows hands-free calling.

How to connect a device to the AUX input?

In Bluetooth mode, plug a 3.5 mm audio cable into the AUX-IN input on the speaker. Bluetooth is automatically paused and the AUX-IN indicator lights red. Adjust the volume on the speaker; other controls are on the external device. To return to Bluetooth, unplug the AUX cable.

How to use the AUX output?

In Bluetooth mode, plug a 3.5 mm audio cable into the AUX-OUT output on the speaker and connect the other end to an external amplifier. This allows you to listen to music with amplified sound.

How to clean the speaker?

Clean the speaker with a soft, slightly damp cloth, then wipe it with a dry cloth. Never immerse it in water and do not use chemical or abrasive products.

What is the Bluetooth range of the speaker?

The Bluetooth range is approximately 10 meters in open space. It may vary depending on the environment and connected device.

Is the battery replaceable?

No, the rechargeable lithium battery (600 mAh, 3.7 V) is built into the product and is not accessible or replaceable. At the end of its life, the device must be disposed of at a recycling center.

What to do if the speaker does not turn on?

Check that the battery is charged: plug in the USB cable and wait a few minutes. If the red light does not come on, try another cable or charger. If the speaker still does not turn on, contact Darty after-sales service at 0 978 970 970 (local call).

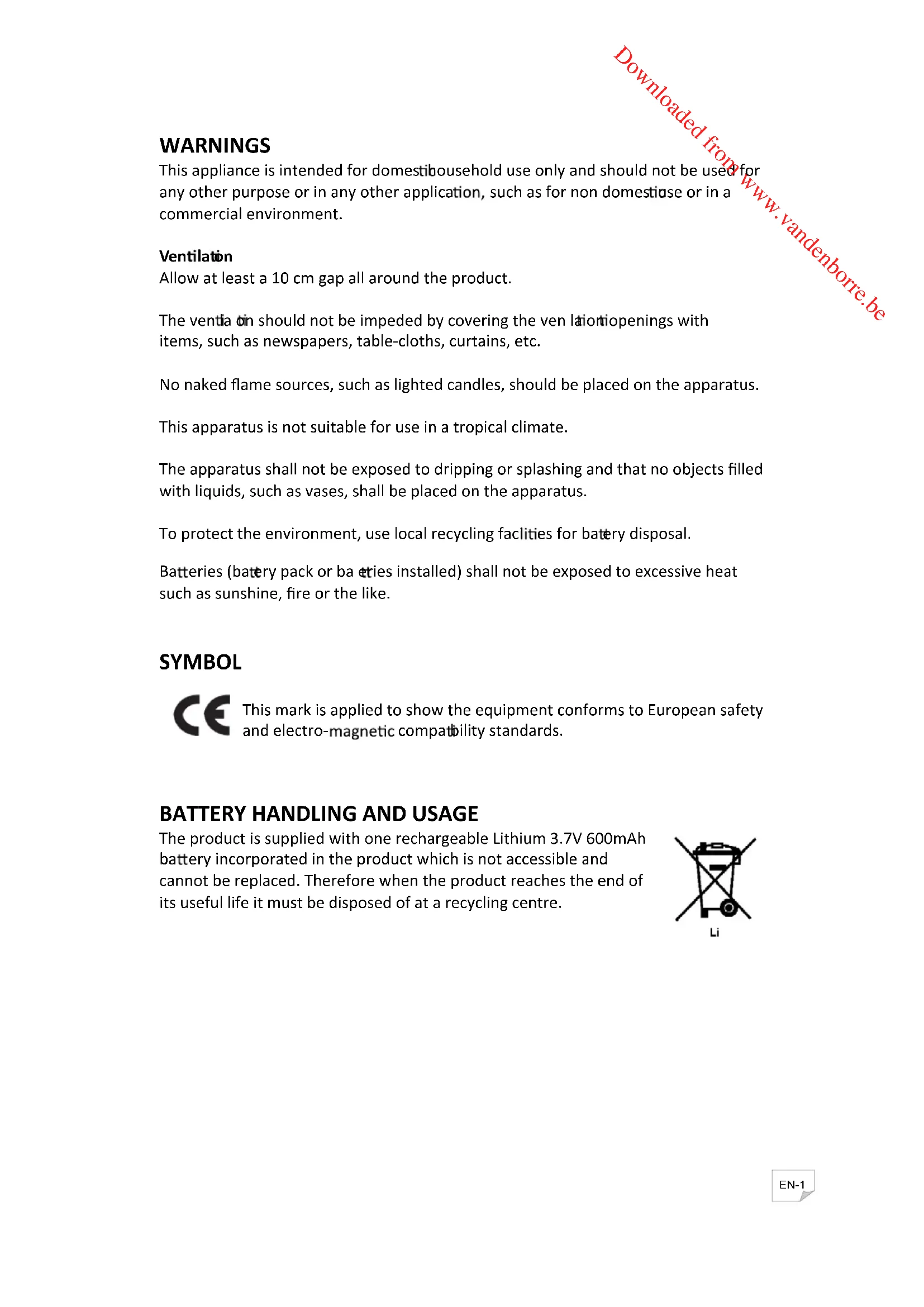

USER MANUAL BBTS1100 BRANDT

This appliance is intended for domesticatehold use only and should not be used for any other purpose or in any other application, such as for non domesticiuse or in a commercial environment.

Ventilation

Allow at least a 10cm gap all around the product.

The venti on should not be impeded by covering the ven laioniopenings with items, such as newspapers, table-cloths, curtains, etc.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

This apparatus is not suitable for use in a tropical climate.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

To protect the environment, use local recycling facilities for battery disposal.

Batteries (battery pack or baeries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

SYMBOL

This mark is applied to show the equipment conforms to European safety and electro-magnetic compatibility standards.

BATTERY HANDLING AND USAGE

The product is supplied with one rechargeable Lithium 3.7V 600mAh battery incorporated in the product which is not accessible and cannot be replaced. Therefore when the product reaches the end of its useful life it must be disposed of at a recycling centre.

Li

CONTROLS

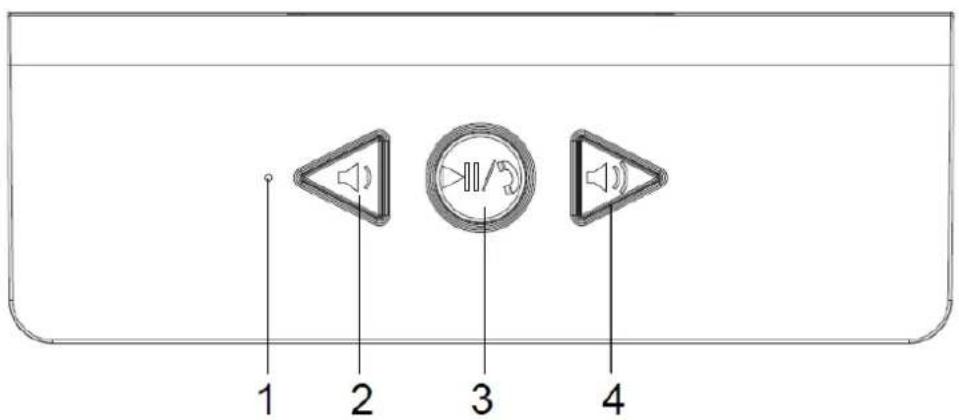

Top View

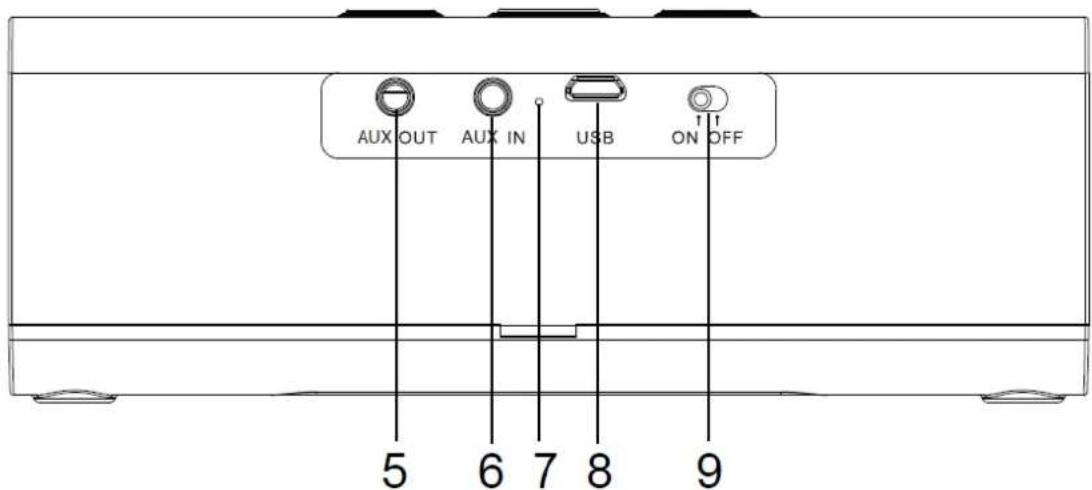

Rear View

1. Microphone
2. Decrease volume button
3. Pairing, Play/Pause, Call answer-hangup button

4. Increase volume button

5. AUX OUT jack

6. AUX IN jack
7. Charging indicator light
8. Micro USB port
9. ON/OFF switch

USB cable

When the USB cable is used as the disconnect device, the disconnect device shall remain readily operable.

The marking plate is located at the bottom of the apparatus.

The speaker has a built-in rechargeable Lithium battery.

Use the provided USB cable to charge the speaker. The charging indicator light will illuminate red. The red indicator light will go out when the speaker is fully charged.

CONNECTING WIRELESSLY

1. Switch on the unit.

2. The speaker will automatically enter pairing mode and the Bluetooth indicator light will flash.

3. To pair, go to Bluetooth settings on your Bluetooth device and connect to "BBTS-1100".

4. Enter "0000" if asked for a passcode.

Mode Status
Bluetooth pairing	Blue indicator light will flash quickly.
Paired	Blue indicator light will stop flashing and music will be heard. NOTE: Once the Bluetooth device is connected for the firsttime, the speaker will remember the paired setting and will automatically reconnect to the same Bluetooth device the next time they are in range.

SPEAKERPHONE

Use the speaker as a portable speakerphone when connected wirelessly via Bluetooth.

Adjust the volume as desired by repeatedly pressing

To pause, press. To resume play, press again.

NOTE:

• When you want to play audio/video from another Bluetooth device, disconnect the speaker from the Bluetooth device already in use.
• To terminate the Bluetooth connection, press and hold for about 3 seconds. A beep will be heard and the Bluetooth indictor light will flash quickly.

HANDS-FREE FUNCTION

If you want to answer/end a call when listening to Bluetooth device via the speaker, press

AUX IN

In Bluetooth mode, connect an audio cable with 3.5 ~mm plug from an auxiliary audio device to the AUX IN jack of the unit.

The system will automatically pause the Bluetooth mode and the AUX IN indicator light will illuminate red.

The volume can be controlled through the unit. Operate other functions on the external device as usual.

To enter Bluetooth mode again, disconnect the audio cable from the unit.

AUX OUT

In Bluetooth mode, connect an audio cable with 3.5mm plug from other power amplifier equipment to the AUX OUT jack of the unit.

You can enjoy the amplified music.

CLEANING AND MAINTENANCE

Clean the unit with a soft slightly damp cloth and wipe it with a dry cloth.

Never immerse it in water.

Do not use abrasive or chemical cleaning agents.

SPECIFICATIONS

Input: DC 5V 1.5A

Power consumption: 2W × 2

Transmission ≤ 10m (It varies when the environmental factors and the

distance: connected Bluetooth devices are different)

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the product, packaging materials and if applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials are recycled in a manner that protects health and the environment.

You must follow laws and regulate about disposal. Waste electrical products and batteries must be disposed of separately from household waste when the product reaches the end of its life.

Contact the store where you bought the product and your local authority to learn about disposal and recycling.

The batteries must be disposed of at your local recycling point.

We apologise for any inconvenience caused by minor inconsistencies in these instructions may occur as a result of product improvement and development.

Darty Plc © UK: EC1N 6TE 10/02/2014

AVERTISSEMENTS

Darty Plc © UK: EC1N 6TE 10/02/2014

Mise au rebut

Hotline Darty France

Darty Plc © UK: EC1N 6TE 10/02/2014

Verwijdering

Darty Plc © UK: EC1N 6TE 10/02 / 2014

Disposition

Darty Plc UK: EC1N 6TE 10/02/2014

Likvidace

Darty Plc © UK: EC1N 6TE 10/02/2014

Likvidácia zariadenia

Declaration of Conformity

The following product has been deemed to comply with the requirements of the listed European Directives:

R&TTE Directive (1999/5/EC)

Electromagnetic Compatibility Directive (2004/108/EC)

Low Voltage Directive (2006/95/EC)

RoHS2 (2011/65/EU)

Product Description: Bluetooth speaker

Brand: Brandt

Model numbers: BBTS-1100BW, BBTS-1100RB

The above listed products conform to the following EU Standards:

EN 300328 V1.8.1 (2012-06)

EN 301489-1 V1.9.2 (2011-09)

EN 301489-17 V2.2.1 (2012-09)

EN 62479 (2010)

EN 55013:2001+A1:2003+A2:2006

EN 55020:2007+A11:2011

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3:2008

EN 60065:2002+A1:2006+A11:2008+A2:2010+A12:2011

The person responsible for this declaration is:

Position: General Manager of Direct Sourcing

Signature:

Date: 10^th February, 2014
