EKF3000 - Coffee maker ELECTROLUX - Free user manual and instructions

Product Type	Drip coffee maker
Brand	Electrolux
Model	EKF3000
Power supply	220-240 V, 915-1080 W
Capacity	2 to 10 cups
Coffee type	Ground coffee, medium grind
Filter	Paper size 1x4
Water tank	Graduated, hinged lid
Carafe	Graduated glass, dishwasher safe
Warming plate	Automatic keep warm
Anti-drip system	Yes, integrated into filter holder
Automatic shut-off	No, manual shut-off required
Indicator light	Yes, on switch
Cleaning	Damp cloth, do not immerse
Descaling	Every 3 months with suitable product
Spare parts	Carafe and filter holder available
Safety	Do not use unattended, keep children away
Standards	Compliant with CE low voltage and EMC

Frequently Asked Questions - EKF3000 ELECTROLUX

How to prepare coffee with the Electrolux EKF3000?

Open the lid, fill the water tank with cold water up to the desired mark, place a paper filter size 1x4 in the filter holder, add ground coffee (about 6-7 g per cup), close the lid, place the carafe on the warming plate and press the on/off switch. The indicator light turns on. Once the coffee has run through, the appliance switches to keep warm. Turn it off manually after use.

How much ground coffee to use?

For a medium-strength coffee, use one teaspoon (about 6-7 g) per cup. Adjust to taste.

How to clean the coffee maker?

Unplug the appliance. Remove the filter holder and rinse it while operating the anti-drip system. Clean the body with a damp cloth, do not immerse. The carafe and its lid are dishwasher safe.

How often to descale the coffee maker?

It is recommended to descaling every 3 months with an environmentally friendly product, such as genuine Electrolux tablets (PNC 900 195 537/7). Follow the instructions: pour the descaler into the tank, run a cycle, then rinse with clean water twice.

What to do if the coffee does not flow or flows slowly?

Check that the tank is full, the filter is not clogged, and the carafe is correctly positioned. If the problem persists, descaling the appliance. Make sure the anti-drip system is working properly.

Can I use whole bean coffee?

No, this coffee maker is designed only for medium grind ground coffee. Use a size 1x4 paper filter.

Is the carafe dishwasher safe?

Yes, the carafe and its lid are dishwasher safe. For the filter holder, manual rinsing is recommended.

How to replace the power cord?

The damaged power cord must be replaced by the manufacturer, its after-sales service or a qualified person. This procedure is not covered by warranty.

Does the appliance shut off automatically?

No, it switches to keep warm mode after coffee is brewed, but you must turn it off manually using the switch. Never leave it unattended.

Where to find spare parts for the Electrolux EKF3000 coffee maker?

You can order a replacement carafe from your specialized distributor or after-sales service, indicating the model (see rating plate). Electrolux descaling tablets are also available.

USER MANUAL EKF3000 ELECTROLUX

Line drawing of a modern kitchen blender with lid and handle (no text or symbols)

PAGE

⑤ Bruksanvisning ..... 3
DK Brugsanvisning 6
N Bruksanvisning ..... 9
FIN Käyttöohje 12
GB Instruction book ..... 15
D Gebrauchsanweisung ..... 18
F Mode d'emploi .....22
NL Gebruiksaanwijzing ..... 26
① Istruzione per l'uso ..... 30
E Instrucciones de uso.....34
P Instruções de utilização ... 38
© CZ Návod k použití ..... 42
PL Instrukcja obsługi ..... 46

H Használati útmutató .....50
SK Návod na obsluhu .....54
SLO Navodilo za uporabo .....58
HR Priručnik....62
SRB Priročnik za navodila .....66
RO Instructiuni de utilizare .....70
LV Rokasgrāmata .....74
LT Instrukcija....78
EST Kasutusjuhend .....82
TR Kullanma kılavuzu .....86
BG Упътване за работа.....90
RUS Инструкция по эксплуатации.94
UA Інструкція з експлуатації...98

A B C D E F G H 1

Line drawing of a bucket pouring liquid into a container (no text or symbols)

Line drawing of a toilet with a funnel and lid, showing internal components and a hanging handle (no text or symbols)

2

S

Bästa köpare,

H Typeskilt (apparatets underside)

!

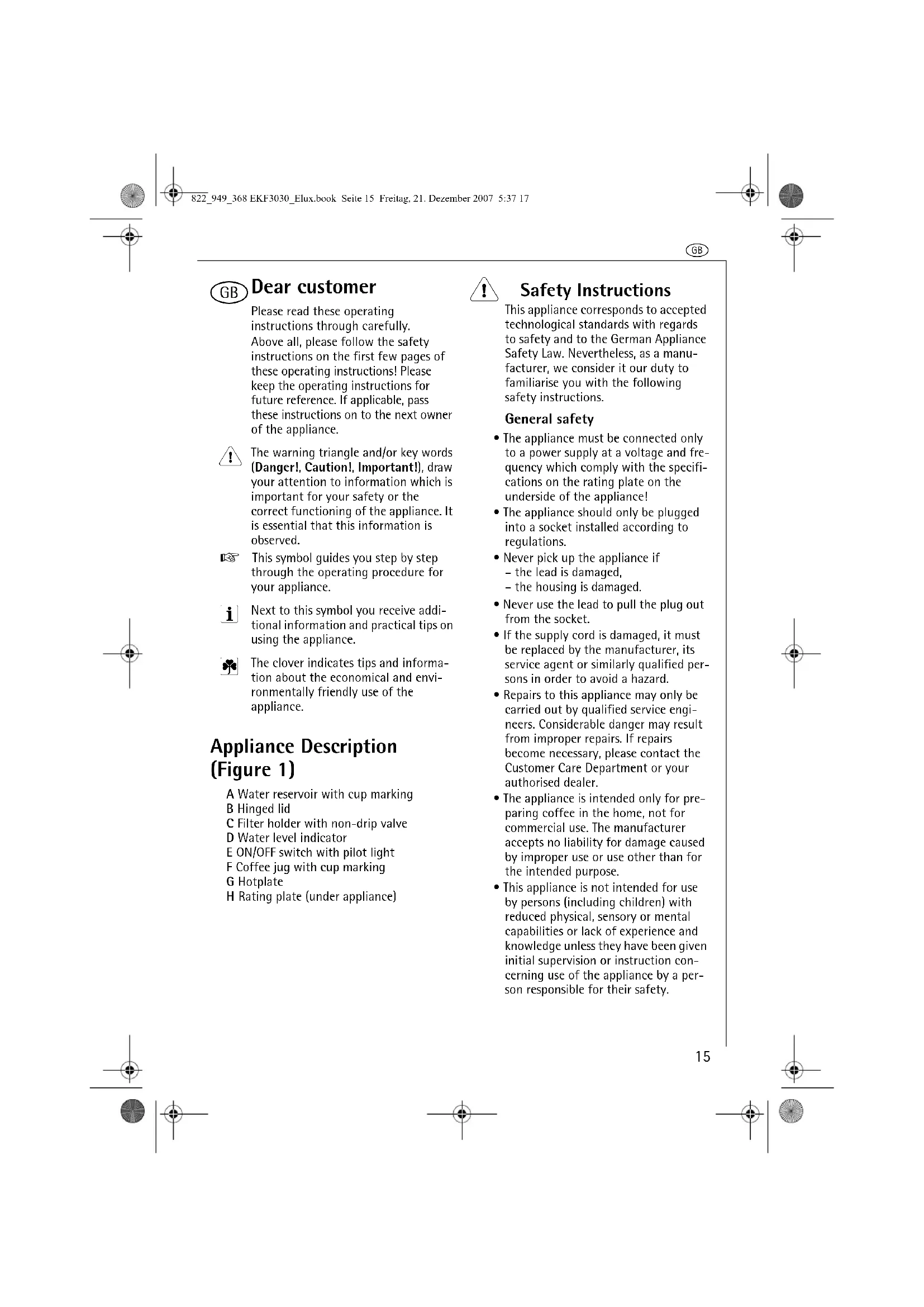

Please read these operating instructions through carefully. Above all, please follow the safety instructions on the first few pages of these operating instructions! Please keep the operating instructions for future reference. If applicable, pass these instructions on to the next owner of the appliance.

!

The warning triangle and/or key words (Danger!, Caution!, Important!), draw your attention to information which is important for your safety or the correct functioning of the appliance. It is essential that this information is observed.

D

This symbol guides you step by step through the operating procedure for your appliance.

i

Next to this symbol you receive additional information and practical tips on using the appliance.

[NO TEXT]

The clover indicates tips and information about the economical and environmentally friendly use of the appliance.

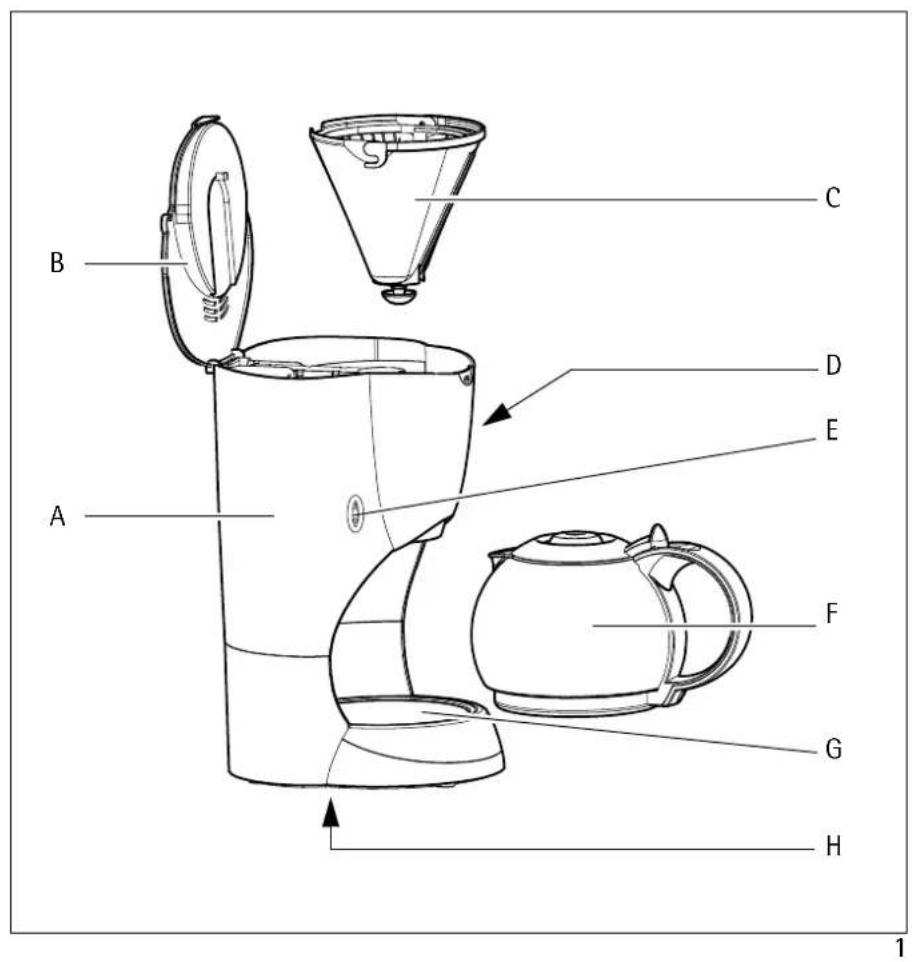

Appliance Description (Figure 1)

A Water reservoir with cup marking
B Hinged lid
C Filter holder with non-drip valve
D Water level indicator
E ON/OFF switch with pilot light
F Coffee jug with cup marking
G Hotplate
H Rating plate (under appliance)

!

Safety Instructions

This appliance corresponds to accepted technological standards with regards to safety and to the German Appliance Safety Law. Nevertheless, as a manufacturer, we consider it our duty to familiarise you with the following safety instructions.

General safety

• The appliance must be connected only to a power supply at a voltage and frequency which comply with the specifications on the rating plate on the underside of the appliance!
• The appliance should only be plugged into a socket installed according to regulations.
• Never pick up the appliance if
• the lead is damaged,
• the housing is damaged.
• Never use the lead to pull the plug out from the socket.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Repairs to this appliance may only be carried out by qualified service engineers. Considerable danger may result from improper repairs. If repairs become necessary, please contact the Customer Care Department or your authorised dealer.
• The appliance is intended only for preparing coffee in the home, not for commercial use. The manufacturer accepts no liability for damage caused by improper use or use other than for the intended purpose.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety.

GB

Safety of children

• Never leave the appliance running unattended. Take particular care when children are around!
  • Children should be supervised to ensure that they do not play with the appliance.

Points to note when using the appliance

• Never allow the cord to come into contact with the hotplate!
• Before cleaning and carrying out maintenance, switch the appliance off and unplug from the mains socket.
• The hotplate, water outlet pipe and filter cover will heat up during use. Keep children away!
• Do not fill the appliance with water when it is hot. Switch the coffee maker off and wait approx. 5 minutes for it to cool down!
• Please follow the instructions for des- caling!
• Never immerse the unit in liquid.
• The manufacturer accepts no liability for any damage caused by improper or incorrect use.
• Do not leave the appliance unattended. Unplug from the mains socket even when leaving the room for a short time.

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Operation

Before using your coffee maker for the first time

Before using the appliance for the first time, clean it by running water through it once or twice without using paper filter and coffee.

Making coffee

Open the lid (figure 1/B).

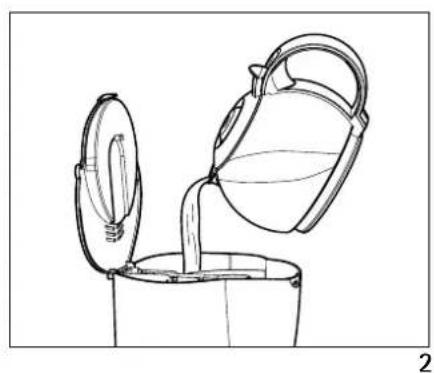

Fill in water (figure 2).

Fill the water reservoir only with fresh cold water. Never fill the water reservoir with mineral water, distilled water, milk, ready made coffee, tea etc.

You can use the coffee jug to fill in the amount of water you require. There is a gauge for 2-10 cups in the water reservoir and on the coffee jug.

The markings apply for the amount of fresh water.

The quantity of coffee produced is lower as the ground coffee absorbs water.

Insert paper filter.

Insert a size 1x4 paper filter in the filter holder (figure 1/C). Please fold the perforated edges before doing this.

Fill in ground coffee.

Please use ground coffee, medium grind. The quantity of coffee is matter of personal taste. For an average strong

coffee one measuring spoon (approx. 6-7 g) is sufficient per cup.

Close the lid (figure 1/B).

Place the coffee jug complete with lid onto the hotplate.

Switch on the appliance with the ON/OFF switch (figure 1/E).

The pilot lamp lights up. After a few seconds, hot water flows into the filter. When the water has stopped flowing, the appliance automatically switches to the warming mode.

After use the appliance must be switched off by hand.

Remove the jug.

Whilst boiling, the jug must not be removed for longer than 30 seconds or the filter will overflow.

Once the jug has been removed, the filter valve prevents coffee from dripping onto the hotplate. The hotplate always keeps the coffee hot. It remains on until the appliance is switched off with the ON/OFF switch (figure 1/E) and the pilot lamp goes out.

i To guarantee uniform coffee strength it should be stirred in the coffee jug after preparation.

If the water has stopped flowing and you wish to refill water for a fresh jug of coffee, switch the appliance off and allow it to cool down for a few minutes.

Cleaning and Care

Unplug the power cord from the mains socket before cleaning.

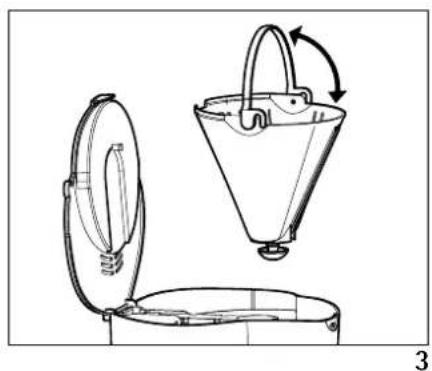

To clean the filter holder, swing up the handle and remove the filter holder (figure 3).

To clean the filter valve thoroughly, activate it several times whilst it is being rinsed.

Reinsert filter holder and swing handle down.

Clean the appliance with a damp cloth but never immerse it in water!

i Coffee jug and jug lid are dishwasher proof.

Descaling - making your coffee maker last longer

As a precautionary measure, we recommend descaling every three months. Only use an environmentally friendly descaler and follow the instructions on the packet. Please do not use a descaler with a concentrated formic base, or any descaler in powder form.

We recommend to use only original decalcifying tabs from Electrolux (PNC 900 195 537/7).

Fill the water reservoir with water and only then add the descaler. Not vice versa! Place the coffee jug with its lid onto the hotplate. Allow the descaler to take effect for about 15 minutes, then switch the appliance on. Switch it off when the descaler solution has finished flowing through. If necessary repeat the descaling process. Following this, allow the appliance to run at least twice with plain water. Thoroughly rinse the coffee jug, lid and filter holder under running water, activate the filter valve repeatedly during the rinse process.

Coffee jug

If your coffee jug smashed, you can purchase a new one from your sales dealer or the service centre specifying the model of your coffee maker, see rating plate (figure 1/H).

Technical Data

Mains voltage: 220 - 240 V Power consumption: 915 - 1080 W

CE This appliance conforms with the following EC Directives:

• Low Voltage Directive 2006/95/EC

• EMC Directive 89/336/EEC with amendments 92/31/EEC and 93/68/EEC

D
