USER MANUAL 240301 NOVA

Line drawing of a coffee maker with digital display and temperature scale (no text or symbols)

240301 Nova Coffee Maker

A 1 2 3 4 5 6 7 8 9 10 11 Max 12 10 8 6 4

2221 TIMER CLOCK 12:00 19 20 15 13 Dalay Blow Hour Minute Program On / Off 14 17181612 B

Read the manual carefully • before use. Keep the manual for future reference.

Only use the appliance and • the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.

Do not use the appliance if any part or any accessory is damaged or defective.

If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years.

Do not use the appliance • near bathtubs, showers, basins or other vessels containing water.

Do not immerse the • appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands.

Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.

Clean the appliance and the • accessories. Refer to the section "Cleaning and maintenance".

Electrical safety

Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 mm^2 ). Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the • mains cable and the extension cable.

Make sure that the mains • cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Keep the mains cable away • from heat, oil and sharp edges.

Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not pull the mains cable • to disconnect the mains plug from the mains.

Disconnect the mains plug • from the mains when the

appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for coffee makers

The appliance is suitable for • domestic use only.

Do not use the appliance • outdoors.

Do not use the appliance in • damp environments.

Only use the appliance in • frost-free environments if the appliance is filled with water.

Place the appliance on a stable and flat surface.

Place the appliance on a • heat-resistant and splash-proof surface.

Do not place the appliance • on a hob.

Do not place the appliance • on hot surfaces or near open flames.

Make sure that the appliance · does not come into contact with flammable material.

Keep the appliance away • from heat sources.

Be careful with hot water • and steam to avoid burns.

Cleaning and maintenance

Warning!

• Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids.

Caution!

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• The coffee pot can be cleaned in the dishwasher. Do not clean the appliance and the other accessories in the dishwasher.

Regularly check the appliance for possible damage.

Clean the outside of the appliance with a soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth.

Clean the accessories after each use:

• Clean the coffee pot in soapy water or in the dishwasher.
• Clean the coffee filter and the coffee filter holder in soapy water.
• Rinse the accessories under running water.
• Thoroughly dry the accessories.

Description (fig. A & B)

Your 240301 Nova coffee maker has been designed for making coffee. You can make coffee using the supplied coffee filter or using paper coffee filters (1x4). The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

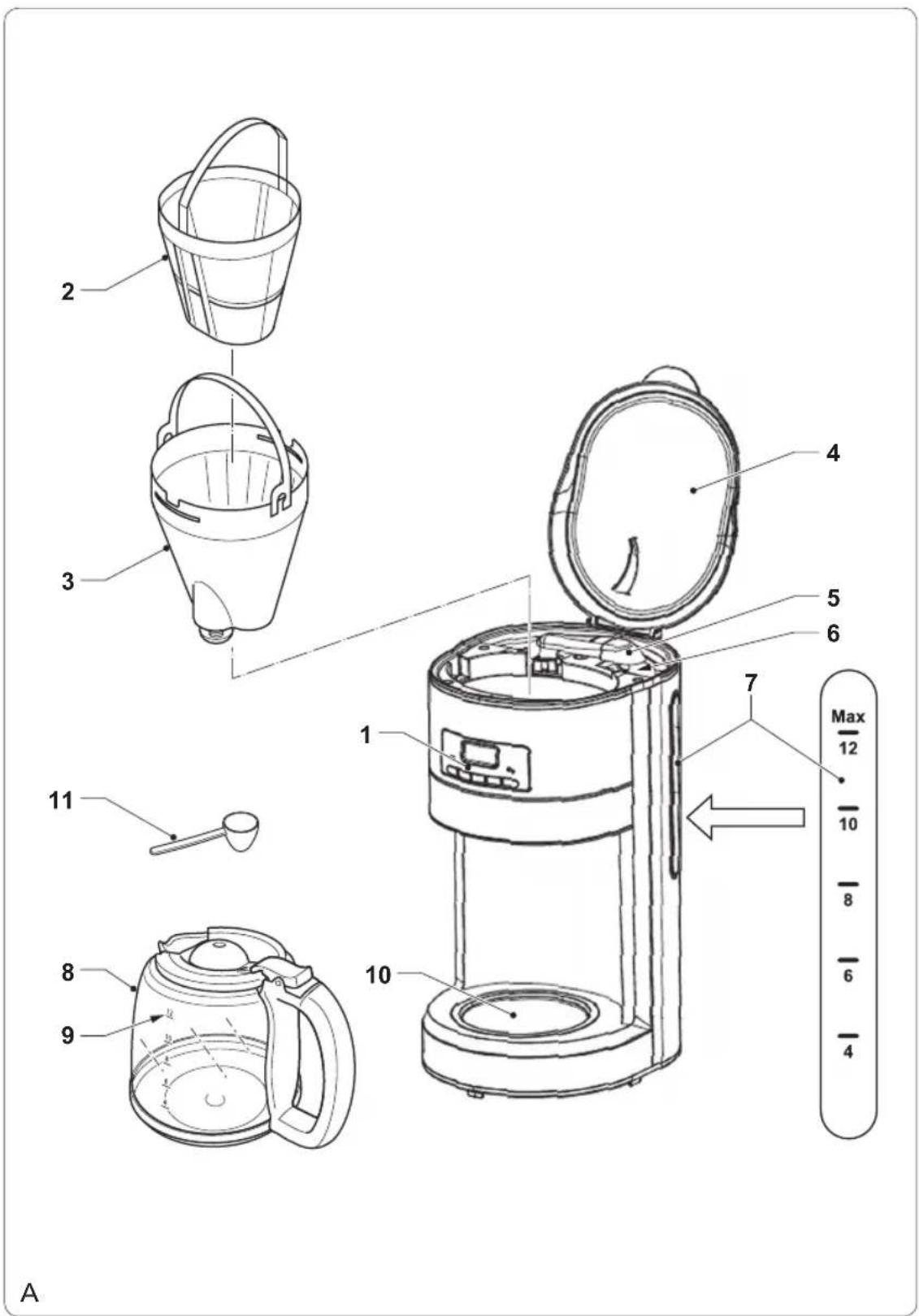

Coffee maker (fig. A)

1. Control panel
2. Coffee filter
3. Coffee filter holder
4. Cover
5. Coffee dispenser
6. Water reservoir

7. Water level indicator

8. Coffee pot

9. Coffee level indicator
10. Heating plate
11. Measuring spoon

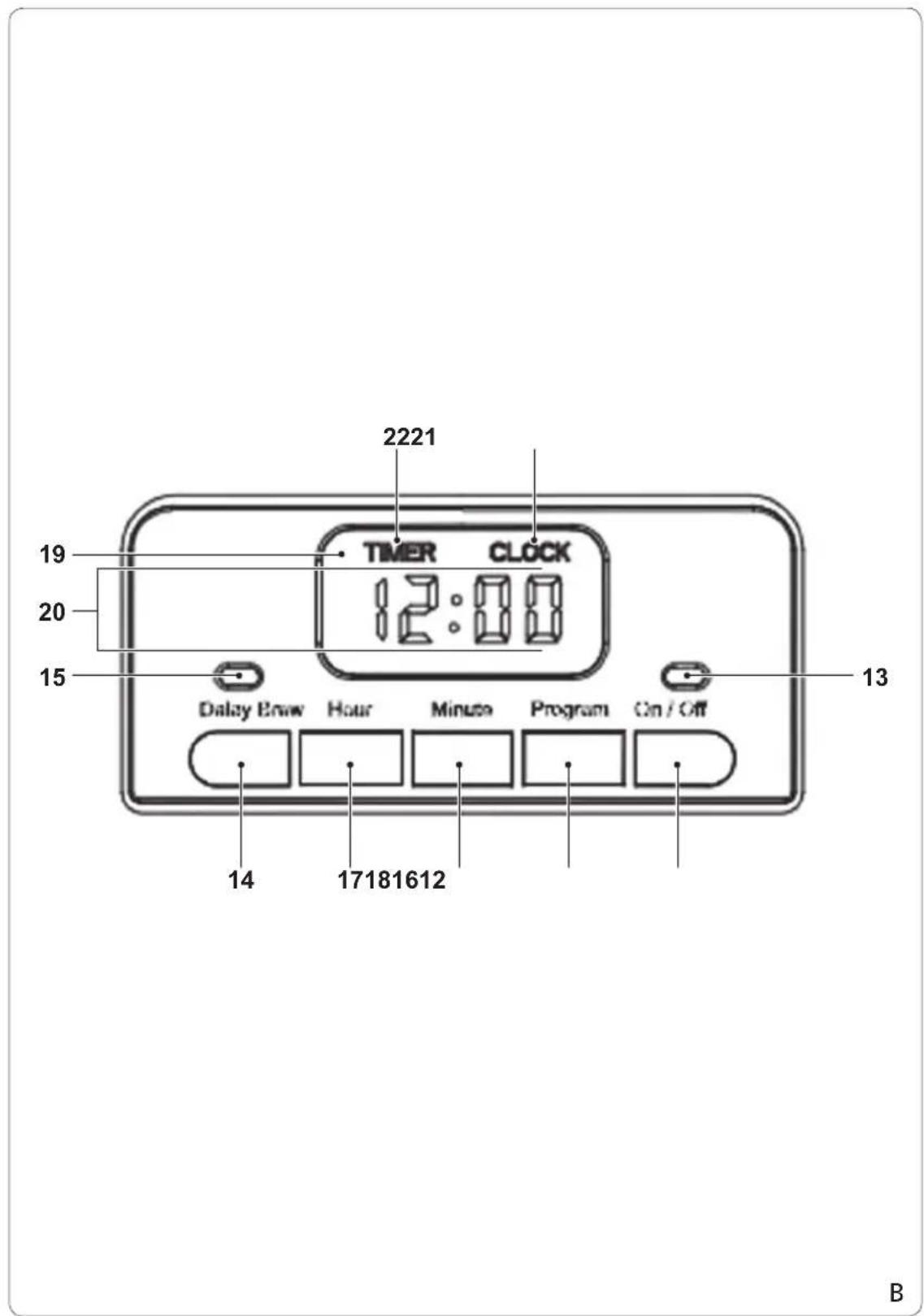

Control panel (fig. B)

1. On/off button
2. On/off indicator
3. Pause button
4. Pause indicator
5. Program button
6. Hour button
7. Minute button
8. Display
9. Time indicator
10. Clock indicator
11. Timer indicator

Note: The coffee pot is not suitable for use in the microwave.

Initial use

To clean the inside of the appliance before • first use, only use water for the first few times. Refer to the section "Hints for use". Do not use a coffee filter or any ground coffee. When finished, dispose of the water.

Clean the appliance. Refer to the section • "Cleaning and maintenance".

Clean the accessories. Refer to the section • "Cleaning and maintenance".

Use

Setting the time (fig. B)

Clock

Press the program button (16) once.

The clock indicator (21) comes on.

Repeatedly press the hour button (17) to set the hours.

Repeatedly press the minute button (17) to set the minutes.

Press the program button (16) again to save the settings. The clock indicator (21) goes off.

Timer

The appliance has a delay start function which makes it possible to program the time for starting the coffee-making process.

Press the program button (16) twice. The · timer indicator (22) comes on.

Repeatedly press the hour button (17) to set the hours.

Repeatedly press the minute button (17) to set the minutes.

Press the program button (16) again to save the settings. The timer indicator (22) goes off.

Note: You can cancel the delay start function at any time by pressing the on/off button (12) once. If you want to make coffee immediately, press the on/off button (12) again.

Hints for use (fig. A & B)

Warning!

- Before filling the water reservoir, switch off the appliance and remove the mains plug from the wall socket.

- Do not fill the water reservoir with more water than required for making the coffee.

Caution!

• Do not use the appliance without water in the water reservoir.
• Do not exceed the maximum mark when you fill the water reservoir. Make sure that the water level is always above the minimum mark during use.
• Only use cold water to fill the water reservoir.
• Do not use carbonated water or other liquids to fill the water reservoir.
• If you use other coffee filters, only use paper coffee filters (1x4) that are suitable for the appliance.

Place the appliance on a stable and flat surface.

Open the cover (4).

Fill the water reservoir (6) with water up to the required mark on the water level indicator (5).

Move the coffee dispenser (5) towards the rear of the appliance.

Place the coffee filter holder (3) into the appliance.

Take one of the following actions: •

• Place the supplied coffee filter (2) in the coffee filter holder (3).
• Place a suitable paper coffee filter in the coffee filter holder (3).

Put the required amount of coffee in the • coffee filter.

Move the coffee dispenser (5) towards the front of the appliance.

Close the cover (4).

• Place the coffee pot (8) on the heating plate (10).
  Insert the mains plug into the wall socket.
• If you want to use the delay start function, set the timer. Refer to the section "Setting the time".
• To switch on the appliance, press the on/off button (12). The on/off indicator (13) comes on. The appliance starts making coffee.

Warning!

• Do not remove the cover from the water reservoir during the coffee-making process.
  • If you want to interrupt the process:

• To pause the process, press the pause button (14). The on/off indicator (1) goes off. The pause indicator (15) comes on.

• To resume the process, press the on/off button (12) once. The pause indicator (15) goes off.
• To start making coffee again, press the on/off button (12) again. The on/off indicator (13) comes on.

If the process is completed, the appliance will switch to keep-warm mode.

• To switch off the appliance, press the on/off button (1). The on/off indicator (1) goes off.
• Remove the mains plug from the wall socket.
• Allow the appliance to cool down completely.
