USER MANUAL 240300 NOVA

Technical diagram of a portable water heater with labeled parts and exploded view

1

Diagram of a portable kitchen appliance with lid open and internal compartments, showing interior and exterior views (no text or symbols)

2

Illustration of a portable coffee maker with lid and side arm, showing internal components and control panel (no text or symbols)

3

Algemeen

This stylish NOVA coffee maker is suitable for making 3 to 15 cups of coffee. The appliance has a water level indicator, a pause-and-serve function and a hotplate. The appliance also has a timer function, so that it will turn on automatically at a set time. This function can be used, for example, so that there is delicious coffee ready for you when you get out of bed in the morning.

Operation and controls

See figure 1.

The appliance includes the following:

1 Glass jug with a lid
2 Housing
3 'RUN' indicator light
4 Display
5 Hour setting button ('HOUR')
6 On/Off button ('ON/OFF')
7 Cover for the filter holder
8 Filter holder
9 Measuring spoon
10 Water reservoir with level indication
11 Programming button ('PROG')
12 Minute setting button ('MIN')
13 'AUTO' indicator light
14 Power cord and plug
15 Hotplate

Before using for the first time

1 Take the appliance out of the box and remove all of the packaging materials.
2 Place the appliance on a flat, sturdy surface.

3 Insert the plug into the plug socket.
4 To clean the inside of the appliance, only use water for the first few times. Follow the instructions given in 'Making coffee', except do not use a paper filter or any ground coffee. When finished, throw the water away and clean the appliance (see 'Maintenance and cleaning').

Setting the clock

'12:00' will be shown on the display after the plug has been inserted into the plug socket. The clock must be set to the correct time if you wish to use the timer function (see 'Setting the timer') or if you wish the appliance to display the correct time.

1 Press the programming button ('PROG'). 'CLOCK' will appear in the top right-hand corner of the display.
2 Press the hour and minute setting buttons ('HOUR' and 'MIN') to set the time.
3 'CLOCK' will disappear after 10 seconds and the time will then be set.

Making coffee

1 Open the lid of the filter holder.
2 Fill the water reservoir with the desired volume of water (a minimum of 3 cups and a maximum of 15 cups, as indicated).

See figure 2.

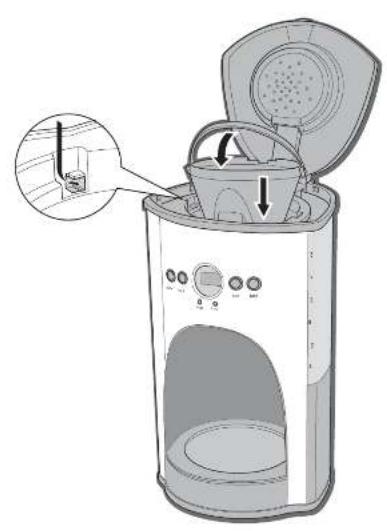

3 Place the filter holder and lock it properly in the appliance, before placing the glass jug.

See figure 3.

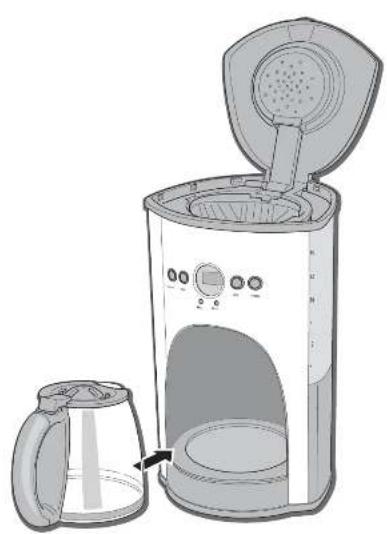

4 Place the glass jug on the hotplate.
5 Place a paper coffee filter (size 1x4) in the filter holder and fill it with the required quantity of ground coffee (as a standard, 1 level measuring spoon per cup).
6 Fold the lid of the filter holder closed.
7 Press the On/Off button ('ON/OFF'). The 'RUN' indicator light will be lit. The

coffee will now be made. The hotplate will keep the coffee warm.

8 Remove the glass jug from the hotplate to pour a cup of coffee. The appliance has a pause-and-serve function, so that you can remove the jug from the hotplate whilst the coffee is still being made. Replace the jug in time to prevent the filter from overflowing.
9 Turn off the appliance after use by pressing the 'On/Off' button ('ON/OFF') twice. The 'RUN' light will go out. If you forget to turn off the appliance, it will turn off automatically after two hours.

When you press the 'On/Off' button only once, the 'AUTO' light will be lit. For its function, see 'Setting the timer'.

Setting the timer

The coffee maker will start working automatically at the set time. Make sure the appliance has been prepared to make coffee (see steps 1 to 6 of ‘Making coffee’).

1 Press the programming button ('PROG') once or twice, until the text 'TIMER' appears in the top left-hand corner of the display.
2 Press the hour and minute setting buttons ('HOUR' and 'MIN') to set the timer.
3 Quickly press the On/Off button ('ON/OFF') once or twice, until the 'AUTO' indicator light will be lit. The current time will be displayed again after 10 seconds. The timer function is now set.

Each time you press the 'On/Off' button, the 'RUN' and 'AUTO' indicator lights will be lit one by one. For the function of the 'RUN' indicator light, see 'Making coffee'.

If you later wish to see the set time, carry out step 1.

If you wish to alter the set time, carry out steps 1 to 3 again.

If you wish to turn off the timer function, press the On/Off button ('ON/OFF'). The 'AUTO' indicator light will go out. If you wish to reactivate the timer with a time that was set previously, carry out steps 1 and 3 again.

Tips for delicious coffee:

• Keep the appliance clean (see 'Maintenance and cleaning').
• Use fresh, clean water.
• Keep the coffee in a cold, dry location in a sealed container.

Maintenance and cleaning

• Never clean the appliance when it is turned on or is still hot. Turn off the appliance and wait until it has cooled down before cleaning it.
• Make sure moisture does not get into the appliance, except for the water reservoir.
• Do not immerse the appliance in water or in other liquids. If this does happen, do not use the appliance again.
• Never use aggressive or abrasive cleaning products.

1 Make sure the appliance has been turned off and has cooled down.

2 Remove the plug from the plug socket.

3 Remove the filter holder from the appliance.

4 Remove the paper filter and dispose of it together with the used coffee grounds.

5 Clean the filter holder in warm water with washing-up liquid or place it in a dishwasher.

6 Dispose of any coffee that may still be in the jug. Clean the inside of the jug

with warm water and washing-up liquid or place it in a dishwasher.

7 Clean the exterior of the appliance and the hotplate with a soft, damp cloth.

Descaling

Scale may have a negative effect on the appliance's performance. Scale often occurs in areas with hard water. We advise you to use a suitable descaling agent when scale appears. Always follow the instructions for the descaling agent. Less scale will form if you use a water purification appliance.

Complaints or problems as a result of furring or scale are not covered by the warranty.

Safety

General information

• Read these instructions carefully and keep them for future reference.
• Only use this appliance as described in these instructions.
• Only use this appliance for domestic purposes.
• The use of this appliance by children or persons with a physical, sensory, mental or motor disability or persons who lack the necessary knowledge and experience may result in a dangerous situation. Persons responsible for their safety must give explicit instructions or supervise the use of the appliance.
• Make sure children do not play with the appliance.
  • Repairs may only be carried out by a qualified service technician. Never try to repair the appliance yourself.
• Only use accessories recommended by the supplier. The use of other

accessories may result in damage to the appliance, thereby creating hazards for the user.

Heat and electricity

• Before use, verify that the mains voltage is the same as that indicated on the appliance's type plate.
• Plug the appliance into an earthed plug socket.
  • Always remove the plug from the plug socket when the appliance is not going to be used a long period of time.
• Always remove the plug from the plug socket by pulling the plug, not the power cord.
• Never pull the power cable to move the appliance.
• Do not use the appliance if the power cord or the appliance has been damaged. To avoid risks, send the appliance to our service department. A damaged power cord may only be replaced by our service department using the special tools required for the repair.
• Make sure the appliance and the power cord do not come into contact with heat sources, such as a hot hob or a naked flame.
• Make sure the power cord and the plug do not come into contact with water.
• To avoid the risk of fire, the appliance must be able to release the heat that it produces. Make sure the appliance has sufficient space around it and does not come into contact with inflammable materials. The appliance may not be covered.

During use

• Never use the appliance outdoors.

• Never use the appliance in a humid room.

• Make sure your hands are dry before you touch the appliance, the power cord or the plug.

• Place the appliance on a stable, flat surface where it cannot fall over.
• Do not allow the power cord to hang over the edge of a kitchen surface, a work surface or a table.
• Switch off the appliance and remove the plug from the plug socket in the event of a malfunction during use and before cleaning the appliance, fitting or removing an accessory or storing the appliance after use.
• Keep the appliance out of the reach of small children.
• Do not use the appliance near another heat source. Make sure the hot parts of the appliance do not come into contact with inflammable fabrics, such as tea towels.
• Certain parts of the appliance can become hot. To avoid being burnt, do not touch the hot parts of the appliance. Only hold the glass jug by the handle.
• Do not turn on the appliance until you have filled the water reservoir. Only fill the water reservoir with cold water.
• Never fill the water reservoir above the maximum mark.
• Do not use the glass jug if it is cracked.
• Never immerse the appliance, the power cord or the plug in water or any other liquid.
• Do not touch the appliance if it has fallen into water. Remove the plug from the plug socket immediately. Do not use the appliance again.
• Clean the appliance thoroughly after use (see ‘Maintenance and cleaning’). Allow the appliance to cool down before you store it, clean it or carry out maintenance work.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
• The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW

WARNING: THIS APPLIANCE MUST BE EARTHED

The environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

If you wish to dispose of the appliance whilst it still works properly or can be easily repaired, ensure that the appliance is recycled.

When the appliance reaches the end of its useful life, it should be disposed of in a responsible manner, thereby ensuring the reuse of the appliance or its parts. Do not dispose of the appliance with normal household waste, but hand it over to a recycling collection point. Contact your local authority for information about available disposal and collection systems in your area.

Applicable European guidelines:

• 2002/95/EC

• 2002/96/EC
