1. ⚠️ SAFETY INSTRUCTIONS

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

1.1 Children and vulnerable people safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

1.2 General safety

WARNING!

Keep ventilation openings, in the appli- ance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

- Do not damage the refrigerant circuit.

- The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

1.3 Daily Use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

1.4 Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

• Never use a hair drier or other heating appliances to speed up defrosting. Excessive heat may damage the plastic interior, and humidity could enter the electric system making it live.

1.5 Installation

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

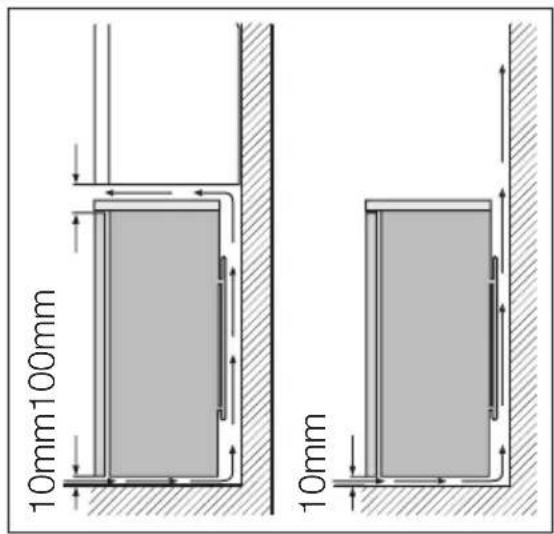

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

1.6 Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

1.7 Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam con-

tains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

2. CONTROL PANEL


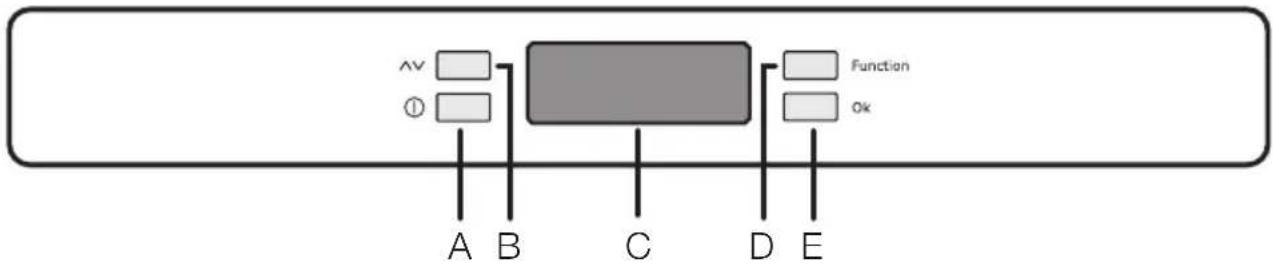

A - Appliance button ON/OFF D - Function button
B - Temperature regulation button E - Confirmation button
C - Temperature and function indicator

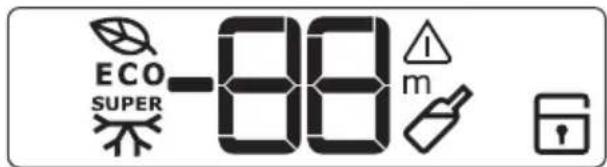

2.1 Display

ECO SUPER -88 m

Eco Mode is activated Temperature alarm

Action Freeze is activated Drinks Chill is activated

Negative Temperature sign Child Lock is activated

Temperature

2.2 Switching on

Insert the plug into the power outlet. If the display is not illuminated, press button (A), to start the appliance.

For optimal food storage select the Eco Mode and the temperature is set to -18°C in the freezer.

• Wait ca. 24 h, before loading food into the freezer compartment.
• To select a different temperature see "Temperature regulation".

2.3 Switching off

The appliance is shut off by pressing button (A) until a countdown from -3 -2 -1 is completed.

2.4 Temperature regulation

The temperature may be changed by pressing the button (B).

The current temperature setting flashes and by pressing button (B) again the set temperature is possible to change in steps of one degree.

After some seconds is shown the set default temperature.

2.5 Functions Menu

By activating the key (D) the functions menu is operating. Each function could be confirmed by pressing button (E). If there is no confirmation after some seconds the display will go out from the menu and return in normal condition. The following functions are indicated:

Eco Mode function

Action Freeze function

Drinks Chill function

Child Lock function

2.6 Eco Mode Function

The Eco Mode function is activated by pressing key D (several times if necessary) until the corresponding icon appears (or setting the temperature at -18°C).

You must confirm the choice by pressing key E within few seconds. You will hear the buzzer and the icon remains lighted. In this condition the chosen temperatures are automatically set (-18°C), in the best conditions for storing food.

It is possible to de-activate the function at any time by changing the selected temperature in the compartment.

2.7 Action Freeze Function

To freeze fresh foods, press button (D) repeatedly to access the Action Freeze function.

Confirm the selection by pressing button (E), and you will hear the buzzer and the display will show rotating lines.

To achieve maximum freezing capacity,allow a pre-cooling period of 24 hours,before placing the fresh food in the FASTFREEZE compartment .

The freezing process takes 24 hours. During this period do not put other foods in the freezer.

This function stops automatically after 52 hours.

It is possible to deactivate the function at any time by pressing button (D) until the corresponding icon will flash and then button (E).

2.8 Drinks Chill Function

The Drinks Chill function is to be used as a safety warning when placing bottles in the freezer compartment. It is activated by pressing key (D) (several times if necessary) until the corresponding icon appears

You must confirm the choice by pressing key (E) within few seconds. You will hear the buzzer and the icon remains lighted. In this condition it operates a timer with a default value of 30 min. and it could change from 1 to 90 min., by pressing key (B) you select the minutes needed. At the end of the selected time there are the following indications:

• on the indicator 88 the symbol 0 flashing
• the icon ^m flashing
• sounding of an acoustic alarm until key (E) is pressed

At this point bear in mind to remove the drinks contained in the freezer compartment.

It is possible to deactivate the function at any time by pressing key (D) until the corresponding icon will flash and then key (E).

2.9 Child Lock Function

The Child Lock function is activated by pressing key (D) (several times if necessary) until the corresponding icon appears ☐.

You must confirm the choice by pressing key (E) within few seconds. You will hear the buzzer and the icon remains lighted. In this condition any possible operation through the keys does not cause any change as long as this function is activated.

It is possible to de-activate the function at any time by pressing key (D) until the corresponding icon will flash and then key (E).

2.10 Temperature alarm

Temperature increase in the freezer compartment (for example due to an power failure or door is open) is indicated by:

• flashing temperature

• flashing icon

• acoustic buzzer When normal conditions are restored:
  • the acoustic alarm will stop

• the temperature value continues to flash
• the Alarm icon continues to flash When you press button (E) to deactivate the alarm, the highest temperature

3. DAILY USE

3.1 Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

3.2 Use of the freezer compartment

The symbol means that the freezer is suitable for freezing fresh food and for long term storage. The temperature may be regulated between -15°C and -24°C. We suggest setting the temperature to -18°C, which is optimal for energy consumption and frozen food storage.

Difference between setting temperature and actual temperature is normal.

Especially when:

• a new setting has recently been selected
• the door has been open for a long time
• warm food has been placed in the compartment.

Difference until 5°C inside the compartment are quite normal.

During operation the temperature indicator shows setting value.

reached in the compartment appears on indicator 88 for some seconds. Then it returns on the normal operation showing the temperature of the selected compartment. During the alarm phase, the buzzer can be switched off by pressing button (E).

3.3 Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 24 hours on the Action Freeze setting. If large quantities of food are to be stored, remove all drawers and baskets from appliance and place food on cooling shelves to obtain the best performance.

WARNING!

Make sure that foods do not exceed the load limit stated on the side of the upper section (where

applicable)

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

3.4 Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

3.5 Cold accumulators

The freezer contains at least one cold accumulator which increases storage time in the event of a power cut or breakdown.

4. HELPFUL HINTS AND TIPS

4.1 Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

4.2 Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.

5. CARE AND CLEANING

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

5.1 Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.

- rinse and dry thoroughly.

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

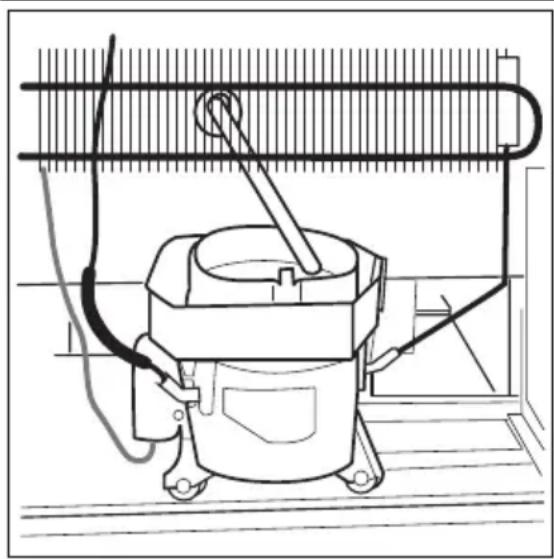

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/dam-

age the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added. After cleaning, reconnect the equipment to the mains supply.

5.2 Defrosting of the freezer

The freezer compartment of this model, on the other hand, is a "no frost" type. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods. The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.

5.3 Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

6. WHAT TO DO IF...

During operation of the appliance some smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart information is given about them to avoid unnecessary charges on service.

The appliance operates discontinuously, so the stopping of compressor does not mean being no current. That is why you must not touch the electrical parts of the appliance before breaking the circuit.

The operation of the appliance goes with certain sounds (compressor and circulating sound). This not means a trouble, but a normal operation.

Problem Possible cause Solution
The appliance is noisy.	The appliance is not supported properly.	Check if the appliance stands stable (all feet and wheels should be on the floor). Refer to "Levelling".
The cushion spacers located between the back of the cabinet and the pipes come loose.		Put them back in place again.
The buzzer sounds. The Alarm icon flashing.	The temperature in the freezer is too high.	Refer to "High Temperature Alarm".
is displayed in the temperature display	An error has occurred in measuring the temperature.	Call your service representative (the cooling system will continue to keep food products cold, but temperature adjustment will not be possible).
The compressor operates continually.	The Temperature regulator may be set incorrectly.	Set a warmer temperature.
The door is not closed	correctly.	Refer to "Closing the door".
The door has been	opened too frequently.	Do not keep the door open longer than necessary.
The food temperature is too high.	too high.	Let the food temperature decrease to room temperature before storage.
The room temperature is too high.	too high.	Decrease the room temperature.
There is too much frost and ice.	Food are not wrapped properly.	Wrap the food better.
The door is not closed	correctly.	Refer to "Closing the door".
The door gasket is de-formed or dirty.	formed or dirty.	Refer to "Closing the door".
The temperature in the appliance is too low.	The Temperature regulator may be set incorrectly.	Set a higher temperature.
The temperature in the appliance is too high.	The Temperature regulator may be set incorrectly.	Set a lower temperature.
The door is not closed	correctly.	Refer to "Closing the door".
The food temperature is too high.	too high.	Let the food temperature decrease to room temperature before storage.
The temperature in the freezer is too high.	Food is too near to each other.	Store food so that there is cold air circulation.
Large quantities of food to be frozen were put in at the same time.	better.	Insert smaller quantities of food to be frozen at the same time.
The appliance does not operate.	the appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power. There is no voltage in the mains socket.		Connect another electrical appliance to the mains socket. Check fuse. Contact a qualified electrician.
The door has been open to long.		Close the door.
A large quantity of drops ice covers the top compartment inside the appliance. .	There is too much frost and ice on the evaporator of the appliance, the door was open for too long time.	Refer to "Cleaning the evaporator".

As much as the advice does not lead to result, call the nearest brand-mark service.

6.1 Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Contact the Service Center.

6.2 Cleaning the evaporator

Technical line drawing of a mechanical device with no visible text or symbols

1. Switch off the appliance.
2. Disconnect the mains plug from the mains socket.
3. Remove all foods from the freezer and put them in a fresh place.
4. Move the appliance far from the wall.
5. Leave the door open.
6. After approximately 20 minutes the drain hose at the rear of the cabinet starts to discharge water into the drip tray.
7. To prevent the water overflowing from the drip tray dry with a sponge.
8. The defrosting process ends when the water stops dripping. It may take several hours if the problem started long before.
9. Move the appliance to the original position.
10. Clean and dry the inside of the appliance.
11. Connect the mains plug into the mains socket.
12. Switch on the appliance.

7. INSTALLATION

WARNING!

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

7.1 Location

10mm100mm 10mm

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

If the cabinet is placed in a corner and the side with the hinges facing the wall, the distance between the wall and the cabinet must be at least 10 mm to allow the door to open enough so that the shelves can be removed.

WARNING!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

7.2 Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic

power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

7.3 Rear spacers

Technical line drawing of a mechanical assembly with a cylindrical component and directional arrows (no text or symbols)

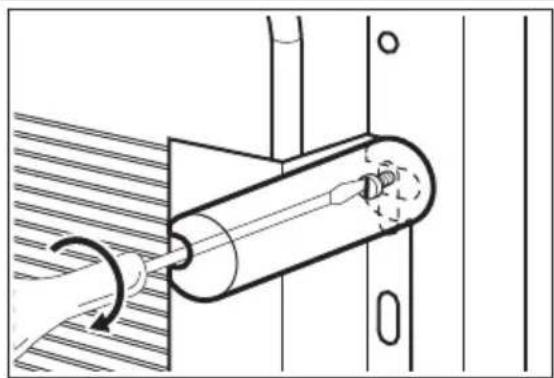

Inside the appliance you find two spacers which must be fitted as shown in the figure.

Slacken the screws and insert the spacer under the screw head, then retighten the screws.

7.4 Door reversibility

Before carrying out any operations, remove the plug from the power socket. To change the opening direction of the door, proceed as follows:

- To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

Technical diagram showing mechanical assembly with labeled components D and directional arrows indicating motion or movement

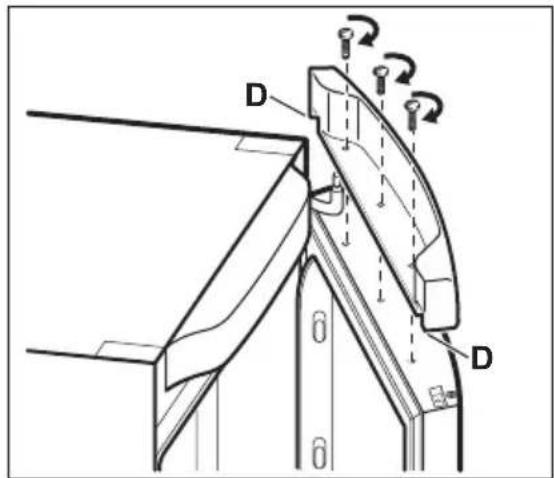

Open the door with the appliance in the upright position. Unscrew the screws and remove the upper door plastic trim.

Remove the little plastic cover from the door plastic trim and refit on the opposite side (D).

Lay down the appliance back side down.

Technical diagram showing mechanical assembly with labeled components A, B, and C, including a close-up view of a component.

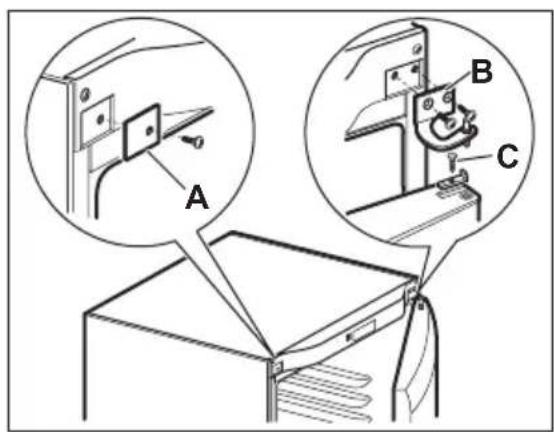

Remove the screw of the hinge cover plug (A).

Unscrew the upper hinge and remove it (B).

Unscrew the screw and remove the door stopper (C).

E 2 1 4 3 5 F

Remove the door.

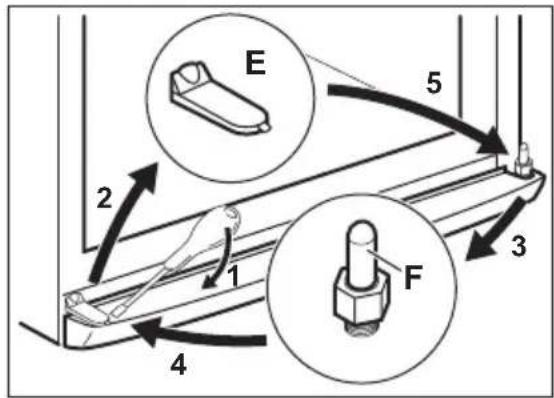

Remove using a tool the cover (E), unscrew the lower hinge pivot (F) and place it on the opposite side. Reinsert the cover (E) on the opposite side.

Reinsert the door.

Pay attention that the front board of the doors are parallel to the front board of the top.

Fix the door stopper on the opposite side.

Position and fix the upper hinge (that can be found in the instruction for use bag) on the opposite side.

Fix the screw of the new cover hinge (that can be found in the instruction for use bag).

Lift up the appliance to vertical position.

Open the door and reposition the upper door plastic trim with screws.

Technical line drawing of a mechanical bracket with a close-up inset showing a screw inserted into a vertical component (no text or symbols)

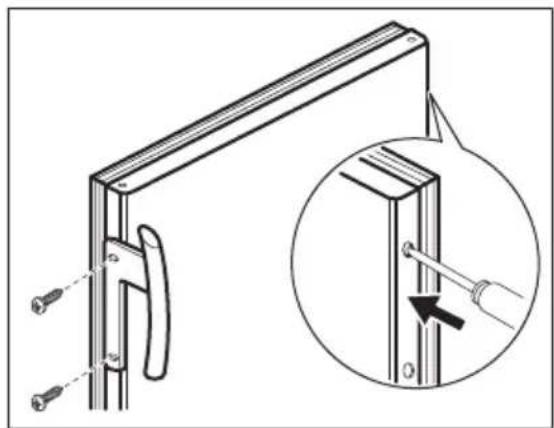

Fix the handle on the opposite side, insert the plastic plugs into the holes left open that can be found in the instruction for use bag.

WARNING!

Reposition, level the appliance, wait for at least four hours and then connect it to the power socket.

In case you do not want to carry out the above mentioned operations, contact the nearest After Sales Service Force. The After Sales Service specialist will carry out the reversibility of the doors at your cost.

WARNING!

After having reversed the opening direction of the doors check that all the screws are properly tightened and that the magnetic seal adheres to the cabinet.

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket. Lay down the appliance back side down.

8. TECHNICAL DATA

Dimension of the recess

Height 1800 mm

Width 600 mm

Depth 650 mm

Rising Time 20 h

Voltage 230-240 V

Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

9. ENVIRONMENT CONCERNS

Recycle the materials with the symbol

. Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical

and electronic appliances. Do not dispose appliances marked with the symbol ✗

with the household waste. Return the product to your local recycling facility or contact your municipal office.

SOMMAIRE

1. INSTRUCTIONS DE SÉCURITÉ 32
2. BANDEAU DE COMMANDE 34
3. UTILISATION QUOTIDIENNE 37
4. CONSEILS 38
5. ENTRETIEN ET NETTOYAGE 38
6. EN CAS D'ANOMALIE DE FONCTIONNEMENT 39
7. INSTALLATION 42
8. CARACTÉRISTIQUES TECHNIQUES 46
9. EN MATIÈRE DE PROTECTION DE L'ENVIRONNEMENT ..... 46

NOUS PENSONS À VOUS

Technical line drawing of a mechanical device with hoses and a central shaft (no text or symbols)

10mm100mm 10mm

Technical line drawing of a mechanical assembly with a cylindrical component and directional arrow (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A, B, and C, including a close-up of detail view A.

Technical line drawing of a mechanical bracket with an inset showing a screwdriver inserted into a slot (no text or symbols present)

www.electrolux.com/productregistration

Technical line drawing of a mechanical device with hoses and a central shaft (no text or symbols)

10mm100mm 10mm

Technical line drawing of a mechanical assembly with a cylindrical component and directional arrows (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components D and directional arrows indicating motion or movement.

Technical diagram showing mechanical assembly with labeled components A, B, and C, including a close-up of detail view A.

Technical line drawing of a mechanical bracket with a close-up inset showing a screwdriver inserted into a slot (no text or symbols)

www.electrolux.com/productregistration

Technical line drawing of a mechanical device with no visible text or symbols

10mm100mm 10mm

Technical line drawing of a mechanical assembly with a cylindrical component and directional arrow (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A, B, and C, including a magnified inset view of a bracket detail.

Technical line drawing of a mechanical bracket with an inset showing a screwdriver inserted into a slot (no text or symbols present)
