Product type	Condenser tumble dryer
Brand	Hotpoint-Ariston
Model	Aqualtis AQC9 2F7
Rated capacity (cotton)	9 kg
Energy efficiency class	A++
Annual energy consumption	259.3 kWh
Dimensions (W x D x H)	595 x 640 x 850 mm
Net weight	50 kg
Power supply	220-240 V, 50 Hz, 2000 W max
Drying technology	Heat pump
Number of programs	16 (Standard Cotton, Synthetics, Wool, Silk, etc.)
Drying levels	Damp, Ready to iron, Delicate hanger, On hanger, Delicate store, Ready to store, Ready to wear
Available options	Delayed start, Alarm, Anti-crease, Less lint, High temperature
Regular maintenance	Clean the filter after each cycle, empty the water tank, clean the heat pump filter after 5 cycles
Safety devices	Child lock, automatic shut-off, compressor protection
Spare parts	Original only, available from after-sales service
After-sales service	Certified technician, model and serial number required

Frequently Asked Questions - Aqualtis AQC9 2F7 HOTPOINT-ARISTON

Why won't my tumble dryer start?

Check that the appliance is plugged in, the door is properly closed, the program is correctly selected, and the Start button has been pressed. Also ensure the fuse has not blown.

Why does drying take a long time?

This may be due to a clogged filter, a full water tank, a dirty heat pump filter, overloading, or too low ambient temperature. Clean the filter and check the tank.

What does the error message 'F' followed by a number mean?

Turn off the appliance, unplug it, and clean the filter. Plug it back in and restart a program. If the code persists, note it down and contact after-sales service.

Why is the 'Empty water' indicator flashing?

The water tank is full. Empty it immediately. If the indicator is steady, it is a reminder. Remember to empty the tank after each cycle.

How to clean the heat pump filter?

Unplug the appliance, open the door, remove the filter cover by turning the 4 clips, then separate the two parts of the filter. Clean them under running water or with a vacuum cleaner. Reassemble in reverse order.

Can I install the tumble dryer in a cupboard?

No, not recommended. The tumble dryer requires good ventilation to operate efficiently. Install it in a well-ventilated room, away from heat sources.

How to use delayed start?

Select a compatible program, press the Delayed start button multiple times to add hours (from 1h to 24h). The start will occur after the programmed delay.

What to do if the screen displays 'dOn'?

Your tumble dryer is in Demo mode. Press and hold the On/Off and Start/Pause buttons simultaneously for 3 seconds to exit this mode.

Why does the remaining time vary during the cycle?

The remaining time is continuously adjusted based on humidity level and load. It is normal for the displayed time to increase or decrease.

How to maintain the drum?

Clean the drum with a damp cloth, without abrasives or steel wool. A colored film may appear, it is harmless. Remove small items after each cycle.

USER MANUAL Aqualtis AQC9 2F7 HOTPOINT-ARISTON

! This symbol reminds you to read this instruction manual.

! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and, should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the dryer so that the new owner may be informed about warnings and suggestions on how the dryer works.

! Read these instructions carefully; the following pages contain important information on installation and suggestions on how the appliance works

Contents

Installation, 2

Where to put your dryer

Ventilation

Electrical connection

Levelling the tumble dryer

Before you start using your dryer

Warnings, 4

General safety

Save energy and respect the environment

Care and maintenance, 6

Disconnecting the power supply

Cleaning the filter after each cycle

Checking the drum after each cycle

Empty the water container after each cycle

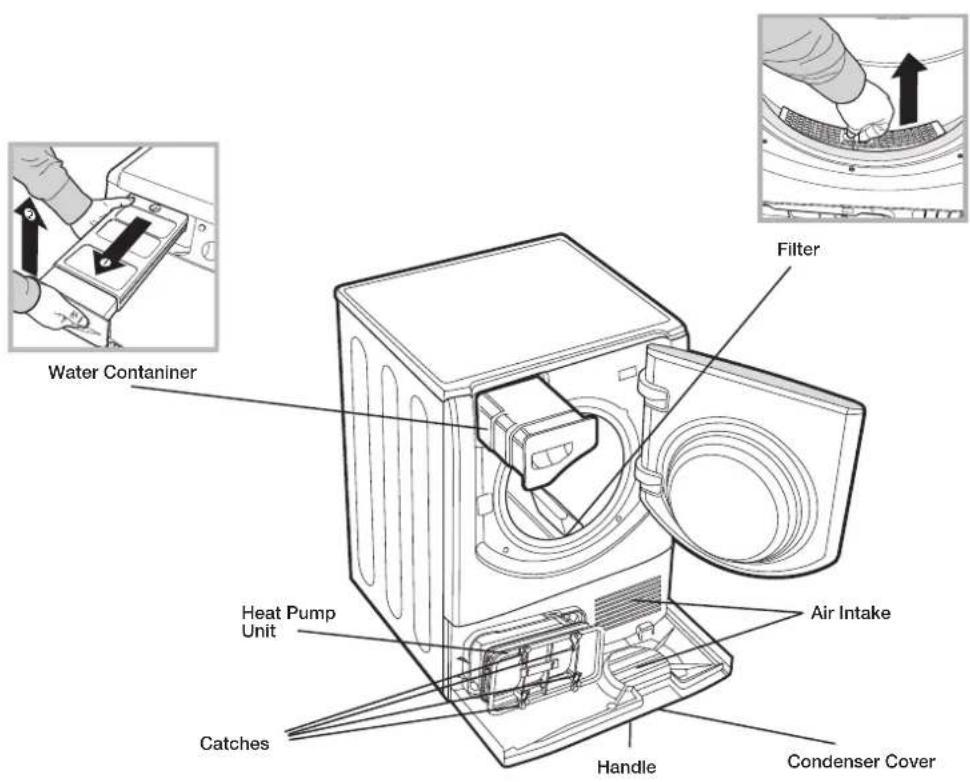

Cleaning the Heat Pump Filter

Cleaning the tumble dryer

Dryer Description, 8

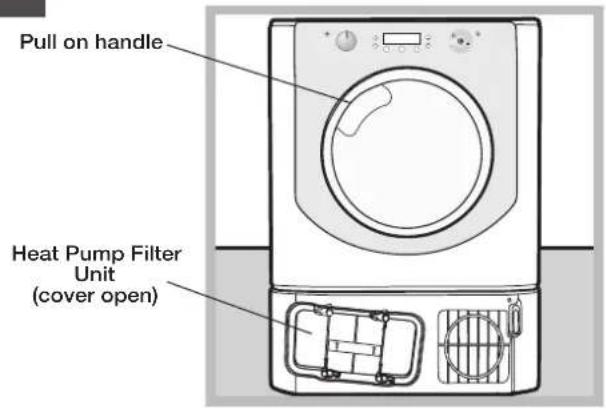

To open door

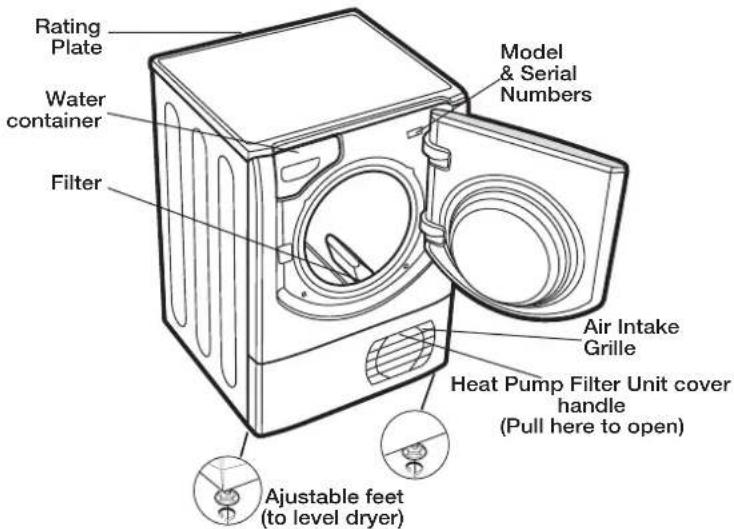

The Features

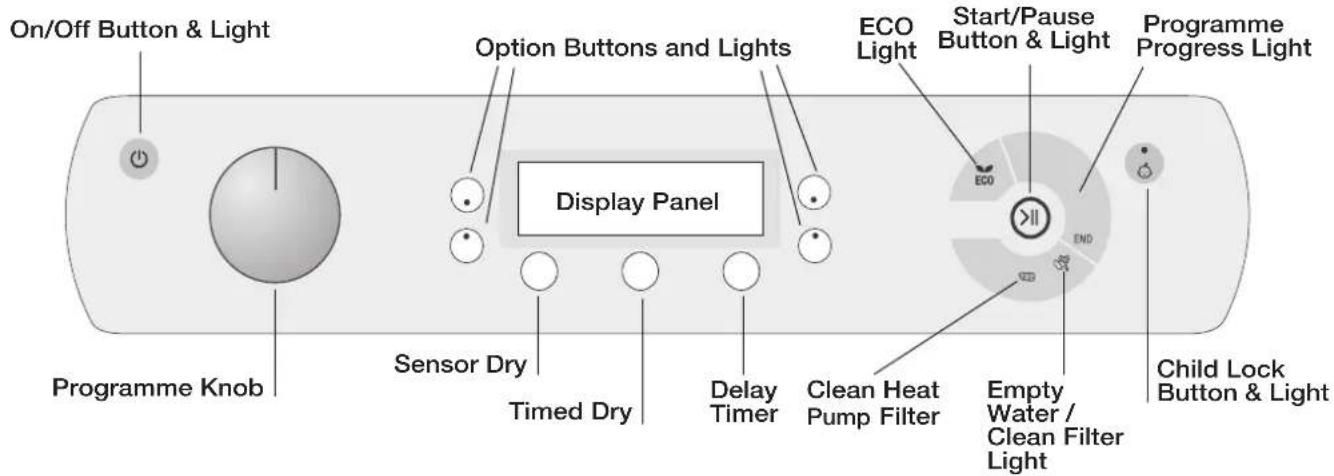

Control Panel

The Display, 9

Start and Programmes, 10-15

Choosing a Programme

Special Programmes

Programmes Table

The Controls

Laundry, 16

Sorting your laundry

Care labels

Drying times

Troubleshooting, 17

Service, 18

Spare parts

Essential Contact Information

Disposal of old household appliances

To activate you free\* 5 years parts guarantee

Call free on 0800 519 2102

*Labour charges not included. Terms and conditions apply. Lines open 364 days a year.

Calls are free from a BT landline. Charges from other providers and mobiles may apply.

Where to put your dryer

- Place your dryer at a distance from gas ranges, stoves, heaters, or cooktops because flames can damage the appliance. The dryer should be installed in an ambient room temperature of between 20 to 23°C for optimum

10 mm 15 mm 15 mm

performance. But will function if the room is between 14 and 30°C. If you are going to install the appliance under a work counter, be sure to leave a 10 mm space between the top and any other objects on or above the machine and a 15 mm space between the sides and lateral furnishings or walls. This is to ensure proper air circulation. The appliance must be installed with the rear surface placed against a wall.

Ventilation

- When the dryer is in use, there has to be adequate ventilation. Make sure you put your dryer in an environment that is not damp and has proper air circulation throughout. Airflow around the dryer is essential to condense the water produced during the washing, the dryer will not operate efficiently in an enclosed space or cupboard.

! If using the dryer in a small or cold room some condensation will be experienced.

!We do not recommend that the dryer is installed in a cupboard but the dryer must never be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the dryer door.

Diagram of an appliance interior showing internal components and airflow paths (no text or labels)

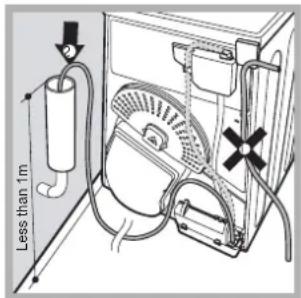

Less than 1m

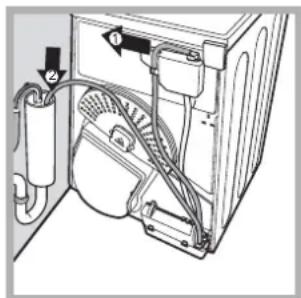

Fig. A Fig. B

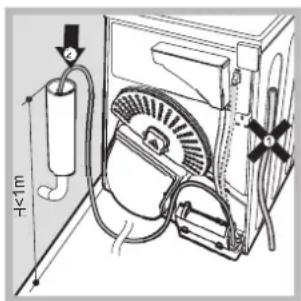

Water Drain

If the machine is positioned close to a drain it is possible to drain the condensed water directly without using the waterbottle. In which case it is no longer necessary to empty the water bottle at the end of each cycle. If the Dryer is positioned above or close to a Washing Machine the same drainage can be used. Just remove unlink the tube indicated in figure A and connect it to the drainage. If the drainage is further away than the length of the tube it is possible to

buy and connect a tube of the same diameter and the necessary length in order to reach the drainage. To install the new tube just substitute the existing one as indicated in figure B inserting it in the same place.

! The drain tube has to be below 1 m from the bottom of the Dryer.

! Once the Dryer has been installed please assure that the drain tube is not bent or kinked.

Electrical connections

Before plugging the appliance into the socket, check the following:

• Make sure your hands are dry.
- The socket must have an earth connection.
- The socket must be able to withstand the machine's maximum power output as indicated on the rating plate (see Description of the tumble dryer).
- The power supply voltage must fall within the values indicated on the data plate (see Description of the tumble dryer).
- The socket must be compatible with the dryer's plug. Should this not be the case, replace the plug or the socket.

! DO NOT use extension cords.

! The dryer must not be installed outdoors, even if the space is sheltered. It can be very dangerous if exposed to rain or storms.

! Once installed, the dryer's electrical wire and plug must be within reach.

! The power cord must not be bent or squashed.

! The power cord is supplied fitted with a BS1363 plug and with a 13 amp BS1362 fuse. If it is necessary to fit a replacement fuse, it must be a 13 Amp ASTA approved to BS1362 type. WARNING: The plug must not be used without a fuse cover. If a replacement fuse holder/cover is required, it must be of the same colour coding or wording as shown on the base of the plug. Replacements are available from authorised dealers.

Changing the plug

The wires in the power cord are coloured in accordance with the following.

! If the plug being replaced is a non-rewirable type, then the cut-off plug must be disposed of safely. DO NOT leave it where it can be inserted into a socket and create a shock hazard.

! The power cord must be regularly checked. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard. (see Assistance). New or longer electric cords are supplied by authorised dealers at a supplementary cost.

! The manufacturer denies any responsibility should any of these rules not be followed.

! If in doubt about any of the above consult a qualified electrician.

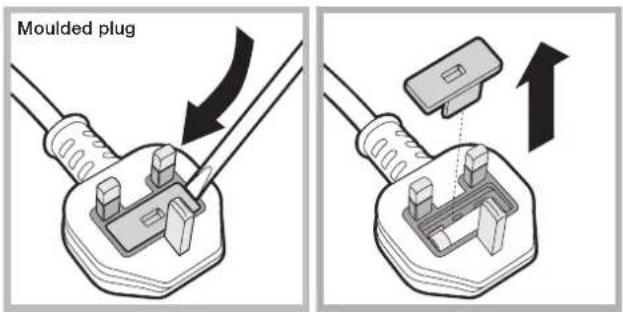

Moulded plug

Green and Yellow (Earth) wire to terminal marked "E", symbol x, or coloured green and yellow.

GREEN & YELLOW BROWN BLUE 13 ampere fuse CROSS BAR CORD GRIP

13A ASTA approved fuse to BS 1362.
Brown (live) wire to terminal marked "L" or coloured red.

Levelling the tumble dryer

The dryer must be installed level for correct operation.

When you have installed your dryer in its final location check that it is level first side-to-side, then front to back. If the dryer is not level, adjust the two legs up or down until your dryer is level.

Line drawing of a battery casing with two side panels and rotation arrows indicating clockwise motion (no text or symbols)

Diagram showing a mechanical component with a magnified inset of its base detail (no text or symbols)

Before you start using our dryer

Once you've installed your dryer and before you use it, clean the inside of the drum to remove any dust that could have accumulated during transportation.

Warning! Before you use your dryer ensure that its has been in a upright position for at least 6 hours.

Maximum load: 9 kg

GB

Product Data - Regulation 3982/2012.
BrandHotpoint/Ariston
ModelAQC9 2F7 TM2 1 (EU)
Rated capacity of cotton laundry for the "standard cotton programme" at full load - kg	9.0
This household tumble drier is a Condenser
Energy efficiency class on a scale from A+++ (low consumption) to D (high consumption)	A++
The weighted Annual Energy Consumption (AEc)* kWh 1) 259.3
This household tumble drier is a Automatic
Energy consumption full load; Edry - kWh 2) 2.2
Energy consumption partial load; Edry1⁄2 - kWh 2) 1.16
Power consumption: off-mode (Po) - Watts 0.17
Power consumption: left-on mode (Pl) - Watts 3.73
Duration of the 'left-on mode' for power management system - minutes	30
Prog. Time - weighted (Tt) full & partial load - minutes 3)	186
Full load (Tdry) - minutes	251
Partial load (Tdry1⁄2) - minutes	137
Condensation efficiency class on a scale from G (least efficient) to A (most efficient)	B
Average condensation efficiency - %
weighted (Ct) full & partial load 3)	81
full load (Cdry)	82
partial load (Cdry1⁄2)	81
Airborne acoustical noise emissions - dB(A) re 1 pW	70.0
1) The "standard cotton" at full and partial load are the standard programmes to which the information in the label and the fiche relates. The standard cotton program is suitable to dry at cupboard level (0%) cotton laundry and is the most efficient programme in terms of energy consumption. Partial load is half the rated load.
2) based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3) Weighted average of 3 cycles at full load and 4 cycles at half load.
Regulation 3982/2012.
Energy consumption in kWh, for program "Synthetics" full load	0.61
Programme time in minute, for program "Synthetics" full load	80
Partial load for program "Synthetics" N/A

GB

! This appliance has been designed and built according to international safety standards. These warnings are given for safety reasons and must be followed carefully.

General safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This tumble dryer has been designed for home, and not professional, use.
• Do not touch the appliance while barefoot or with wet hands or feet.
• Unplug the machine by pulling on the plug, not the cord.
• After using the dryer, turn it off and unplug it. Keep the door closed to make sure that children do not use it as a toy.
• Children should be supervised to ensure that they do not play with the dryer.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away from the appliance unless continuously supervised.
• The appliance must be installed correctly and have proper ventilation. The air intake at the front of the dryer should never be obstructed (see Installation).
• Never use the dryer on carpeting where the pile height would prevent air from entering the dryer from the base.
• Check to see if the dryer is empty before loading it.
• The back of the dryer could become very hot. Never touch it while in use.
• Do not use liquid fabric softeners in the dryer; add it to the final rinse of your wash.
• Do not overload the dryer (see Laundry for maximum loads).
• Do not load items that are dripping wet.
• Carefully check all instructions on clothing labels (see Laundry).
• Do not tumble dry large, very bulky items.

• Do not tumble dry acrylic fibres at high temperatures.

• Do not turn off the dryer when there are still warm items inside.

• Clean the filter after each use (see Maintenance).
• Empty the Water Container after each use (see Maintenance).
• Clean the Heat Pump filter unit at regular intervals (see Maintenance).
• Do not allow lint to collect around the dryer.
• Never climb on top of the dryer. It could result in damage.
  • Always follow electrical standards and requirements (see Installation).
  • Always buy original spare parts and accessories (see Service).

WARNING: Never stop the dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

To minimise the risk of fire in your tumble dryer, the following should be observed:

• Tumble dry items only if they have been washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that HAVE NOT been washed with water.
• Do not dry garments that have been treated with chemical products.
• Do not tumble dry items that have been spotted or soaked with vegetable or cooking oils, this constitutes a fire hazard. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as a tumble dryer. The items become warm, causing an oxidisation reaction with the oil, Oxidisation creates heat. If the heat cannot escape, items can become hot enough to catch fire. Piling, stacking or storing oil-effected items can prevent heat from escaping and so create a fire hazard. If it is unavoidable that fabrics containing vegetable or cooking oil or those that have been contaminated with hair care products be placed in a tumble dryer they should first be washed with extra detergent - this will reduce, but not eliminate the hazard. They should not be removed from the dryer and piled or stacked while hot.
• Do not tumble dry items that have previously been cleaned in or washed in, soaked in or soiled with petrol/gasoline, dry cleaning

solvents or other flammable or explosive substances. Highly flammable substances commonly used in domestic environments including cooking oil, acetone, denatured alcohol, kerosene, spot removers, turpentine, waxes and wax removers. Ensure these items have been washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Do not tumble dry items containing foam rubber (also known as latex foam), or similarly textured rubber like materials. Foam rubber materials can, when heated, produce fire by spontaneous combustion.
• Fabric softener or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless the practice is specifically recommended by the manufacturer of the fabric softener product.
• Do not tumble dry undergarments that contain metal reinforcements eg. bras with metal reinforcing wires. Damage to the tumble dryer can result if the metal reinforcements come loose during drying.
• Do not tumble dry rubber, plastic articles such as shower caps or babies waterproof covers, polythene or paper.
• Do not tumble dry rubber backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber coated tennis shoes.
• Remove all objects from pockets such as lighters and matches.

! WARNING: Never stop the dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Save energy and respect the environment

• Wring out all items to eliminate excess water before tumble drying (if you use a washing machine first, select a high spin cycle). Doing this will save time and energy during drying.
• Always dry full loads - you save energy: single items or small loads take longer to dry.
• Clean the filter after each use to contain energy consumption costs (see Maintenance).

Disconnecting the power supply

! Disconnect the dryer when not in use or during cleaning and maintenance operations.

Cleaning the filter after each cycle

The filter is a fundamental component of the dryer: its function is to collect lint and fluff that form during drying.

Diagram of a folding chair or folding frame with curved sides and a central panel, showing no text or symbols.

Clean the filter once drying is completed, by rinsing it under running water or cleaning it with a vacuum cleaner. Should the filter become clogged, the flow of air inside the dryer will be seriously

hampered: drying times becomes longer and more energy is consumed. Moreover, the dryer may become damaged.

Diagram of a hand pressing down on a curved mechanical component with an upward arrow (no text or symbols)

The filter is located in front of the dryer seal (see Picture).

Removing the filter:

1. Pull the filter's plastic handle upwards (see Picture).

2. Clean the fluff off the

filter and replace it correctly. Ensure that the filter is pushed fully home.

! Do not use the dryer unless the filter has been replaced in its holder.

Checking the drum after each cycle

Rotate the drum manually to remove smaller items (handkerchiefs) that could have been left inside the dryer.

Cleaning the drum

! Avoid using abrasives, steel wool or stainless steel cleaning agents to clean the drum. A coloured film may appear on the stainless steel drum surface: it may be caused by a combination of water and/or cleaning agents such as wash-softeners. This coloured film does not affect the dryer's performance.

Emptying the water container after each

cycle

Diagram showing a hand pressing a device with directional arrows and a labeled component, likely illustrating a mechanical or electrical process.

Remove the water container and empty it into a sink or other suitable drain outlet, then replace it correctly.

Always check the water container and empty it before starting a new drying cycle.

-Failure to empty the water container may cause the following:

• The dryer stops heating (thus the load may still be damp at the end of the drying cycle).
• The "Empty water container" LED activates to show that the water container is full.

Priming the Water Collection System

When your dryer is new, the Water Container will not collect Water until the system is primed, this will take 1 or 2 drying cycles. Once primed it will collect Water during every cycle.

Cleaning the Heat Pump Filter Unit

- Periodically (every 5 drying cycles) remove Heat pump filter unit and clean any build up of fluff from the surface of the filter by rinsing it under running water or with your vacuum cleaner.

We however recommend that you clean this filter after every drying cycle to optimize the dryers performance.

To remove Heat pump filter unit:

1. Unplug the dryer and open the door.
2. Remove the filter unit by rotating the 4 clips to the vertical position then pulling the filter unit towards you.
3. Separate the two parts of the filter unit and clean the surface of the filter.

! Warning: The front of the heat pump is made from thin metal plates.

Take care that you do not damage these or cut yourself when cleaning, removing or replacing the filter unit.

Hand placing a button into a computer monitor with a black arrow indicating left motion (no text or symbols)

Technical line drawing of two mechanical housing compartments with mounting holes (no text or symbols)

1. If there is any build up of fluff on the plates Carefully clean this off with a damp cloth, sponge or vacuum cleaner. Never use your Fingers.
2. Assemble the two parts of the filter clean the surface of the seals and replace with the 4 clips into the horizontal position, sure that the catches have been secured.

Cleaning the tumble dryer

• The external metal, plastic and rubber parts can be cleaned with a damp cloth.
• Clean the front air intake grille regularly (every 6 months) with a vacuum cleaner to remove any lint, fluff or dust deposits. Furthermore, remove any lint deposits from the front part of the condenser and from the filter area, using a vacuum cleaner every so often.
  ! Do not use solvents or abrasives.
  ! Have the dryer checked regularly by authorised technical personnel in order to ensure that the electrical and mechanical parts work safely (see Assistance).

Quick Tips

!Remember to clean your filter and Heat Pump filter unit after each load.

! Remember to empty your water container after each load.
! Doing this will keep your machine working at its BEST!

GB

Water Container Heat Pump Unit Catches Handle Condenser Cover Filter Air Intake

GB
To open door

Pull on handle Heat Pump Filter Unit (cover open)

The Features

Rating Plate Water container Filter Model & Serial Numbers Air Intake Grille Heat Pump Filter Unit cover handle (Pull here to open) Adjustable feet (to level dryer)

Control Panel

On/Off Button & Light Option Buttons and Lights Display Panel ECO Light Start/Pause Button & Light Programme Progress Light ECO ECO Timed Dry Delay Timer Clean Heat Pump Filter Empty Water / Clean Filter Light Child Lock Button & Light Programme Knob Sensor Dry

The On/Off button/light ☐ if the dryer is running and this button is pressed and held for more than 3 seconds the dryer is turned off. The light signals that your dryer is in use or ready to select a programme.

The Programmes knob sets the programme: rotate until the indicator is pointing to the programme you want to select (see Start and Programmes).

The Option buttons/ lights select available options for your selected programme. The lights indicate that the option has been selected (see Start and Programmes).

The Display Panel has three sections: Sensor Dry = Drying level, Timed dry = Drying time and Time to End / Delay start each with a corresponding selection button (see The Display).

START/PAUSE button with indicator light >> when the green indicator light flashes slowly, press the button to start the programme. When the cycle has started, the indicator light is illuminated in a fixed manner. To pause the programme, press the button again; the indicator light will turn orange and begin to flash again. To restart the programme from the point at which it was interrupted, press the button again (see Start and Programmes).

The Programme Progress Lights indicate each state of the programme by turning on as appropriate.(see Start and Programmes).

Note: this light also flashes amber during post care phase.

The Empty Water indicator "h2o" signals that the water container should be emptied. The light will take a few seconds to go out after replacing the empty water container; the dryer must be running for this to happen (see The Controls). Note: if the water bottle is full the display shows "h2o" and the indicator flashes, the heat is turned off and your clothes will not dry.

The Empty Water Clean Filter Light gives a reminder before every programme, that its essential to clean the filter and empty the water container every time the dryer is used (see Care and maintenance).

The Clean Heat Pump Filter Light gives a reminder, that its essential to clean this filter at regular intervals (see Care and maintenance).

The Child Lock button/light ☑ Press and hold this button after selecting your programme and any options. This prevents the programme settings from being changed. When the light is lit the other buttons and programme knob are disabled. Hold the button to cancel and the light will go out.

ECO Light - this light is illuminated as you select options that use less energy (see the controls).

The Display has three sections each with its corresponding button.

After selecting a programme that has a Sensor Dry Option, press and release the button until the required dryness sensing level is displayed. If the sensing option is not available the display will flash and the buzzer beeps three times.

! Some drying programmes are not compatible with all 7 sensor drying levels.

Dryness levels available

Damp dry: the most delicate level which makes sure that your clothes are not dripping wet. After a hand-wash the perfect level to then hang your clothes if you do not want to tumble dry them all the way to the end.

Iron Dry: a very delicate drying, It is useful for garments you would like to iron afterwards.

Hanger plus: just the drying status to hang delicate garments up (as curtains).

Hanger Dry: just the drying level to hang the garments up.

Light dry: ideal for delicate clothes to be folded and placed into the cupboard.

Cupboard Dry: the garments are completely dry and are ready to be folded and placed in the cupboard.

Ready to Wear: used for clothes to be worn straight away once the cycle is completed.

Timed Dry

After selecting a Programme that has a Timed Dry Option, press the Timed Button to select a drying time. The display will reduce the selected time each time you press and release this button (see Start and Programmes). Each press decreases the set time 220, 180, 150, 120, 90, 60, 40 and then repeats. If the Timed Dry option is not available the display will flash and the buzzer beeps three times. The selected time remains displayed after the programme starts and can be changed during the programme if you wish.

! You can either choose a sensor dry level or a drying time.

Delay Start

After selecting a Programme that has a Delay Start Option a delay start time can be selected. Each press of the Delay start button ⚙ advances the delay setting in 1 hour increments from "1h" to "24h" then "OFF" and then after five seconds cancels the delay.

For delays of 10 hours or more the display counts down the time in hours until 10 hours, then the display shows "9:59" and then counts down in minutes. For delays of 9 hours or less the display shows hours and minutes and then counts down in minutes for all of the delay.

After the Start/Pause Button >|| is pressed the delay time can be changed or cancelled if you wish.

When the delay period finished the Symbol is off and the Time to End is displayed. If you have chosen a timed drying the display during programming will show the drying time only in the timed drying display in the middle. After having pressed start the machine will turn the time display on and visualize the countdown of the programme time.

Time to End

If the delay icon is off the time displayed is the Time to End of the programme running. When timed programmes are selected the time displayed throughout the cycle is the actual time remaining. When an Automatic programme is selected the time displayed is an estimate of the time remaining. When the programme is selected the display shows the time required to dry a full load, The remaining time is constantly monitored during the drying cycle and is updated to show the best forecast. The time to end is displayed in hours and minutes and counts down each minute.

The colon between the hours and minutes display flashes to show that the time is counting down. The Display also shows if there is a problem with your dryer, if this occurs the display will show F followed by a fault code number, the four option lights and the pause light will also flash Orange (see Troubleshooting).

Choosing a Programme

1. Plug the dryer into the electrical socket.
2. Sort your laundry according to fabric type (see Laundry).
3. Open the door and make sure the filter is clean and in place and the water container is empty and in place (see Maintenance).
4. Load the machine and make sure that the items are not in the way of the door seal. Close the door.
5. If the ON/Off light is not lit; press the On/Off Button ⏻
6. Select the Programmes selection that corresponds with fabric being dried by checking the Programmes table (see Programmes) as well as the indications for each type of fabric (see Laundry).
7. Where available, choose Sensor Dry or Timed Dry option pressing and releasing the corresponding button until the desired level or time is displayed.
   ! See programmes table, for more details.
8. Set a delay time and other options as necessary (see The Display).
9. If you wish the buzzer to sound at the end of the programme, press the sound button ☐If you have selected the Crease Care option, this option is not available.
10. Press the START button >> to begin. The display will show the estimated time to end.
    During the drying programme, you can check on your laundry and take out the items that are dry while the others continue drying. When you close the door again, press

START in order to resume drying.

If you open the door to check your laundry you will extend the drying time as the heat pump compressor will not start until 5 minutes after you close the door and pressed the start Button (see The Controls).

1. During the last few minutes of Drying Programmes before the programme is completed, the final COOL TUMBLE phase is entered (fabrics are cooled), this phase should always be allowed to complete.

2. To let you know that your programme is complete the buzzer will beep 3 times and the display shows END (Note: if the SOUND option was selected the buzzer beeps 3 times every 30 seconds for 5 minutes). Open the door, take your laundry out, clean the filter and replace it. Empty the water container and replace it (see Maintenance).

If the Crease Care option has been selected and you do not take the clothes out immediately the clothes will tumble occasionally for 10 hours or until you open the door.

1. Switch dryer off using the On/Off button.

Standby mode

This tumble dryer, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press and hold the On-Off button until the dryer reactivates.

Special Programmes

Easy Iron Programme

Easy Iron is a short 10 minute programme (8 minutes of heat followed by a 2 minutes cool tumble period) which fluffs the fibres of clothing that has been left in the same position/location for an extended period of time. The cycle relaxes the fibres and makes them easier to iron and fold.

! Easy Iron is not a drying programme and should not be used for wet articles of clothing.

For best results:

1. Do not load more than maximum capacity. These numbers refer to dry weight:

Fabric: Max

Cotton and Cotton mix 2.5 kg

Synthetics 2

Denim 2

1. Unload the dryer immediately after the end of the drying cycle, hang, fold or iron the articles and put them away in the closet. Should this not be possible, repeat the cycle.

The Easy Iron effect varies from one fabric to the next. It works very well on traditional fabrics like Cotton or Cotton mix, and less well on acrylic fibres and on materials such as Tencel.®

Wool Programme

• This is a programme for tumble dryer safe garments marked with the symbol ☐
• It can be used for load sizes up to 1 kg (approximately 3 sweaters).
  • We recommend that garments are turned inside out before drying.
• Loads dried using this programme are usually ready to wear, but on some heavier garments the edges may be slightly damp. Allow these to dry naturally as over-drying could damage garments.
  ! Unlike other materials, the mechanism of wool shrinkage is irreversible; i.e. it will not stretch back to original size and shape.
  ! This program is not suitable for Acrylic garments.

Jeans

• This is a programme for Jeans made from Denim Cotton. Before drying your Jeans turn the front pockets inside out.
• It can be used for load sizes up to 3 kg (approximately 4 pairs).
• It can also be used on other garments made from same material such as jackets.
• Loads dried using this programme are usually ready to wear; the edges or seams may be slightly damp. If this is found try turning the jeans inside out and running the programme again for a short period.
• The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer.
• Use this cycle only for a 100% cotton load, do not mix dark and light coloured items. Do not use this cycle for garments with embroidery and accessories (pins,...), turn the pockets insideout
  ! We do not recommend that you use this programme if your jeans have elastic waist bands or embroidery.

Special Programmes

Shirts

High Heat option

• This is a programme for Shirts made from Cotton.
- It can be used for load sizes up to 3 kg (approximately 10 shirts).
- Loads dried using this programme are usually ready to wear; the edges or seams may be slightly damp. If this is found try turning the shirts inside out and running the programme again for a short period.
- The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer.

Low Heat option

- This is a programme for Shirts made from synthetic materials or a mixture of natural and synthetics materials such as Polyester and Cotton.

- It can be used for load sizes up to 3 kg (approximately 14 shirts).

- Loads dried using this programme are usually ready to wear; the edges or seams may be slightly damp. If this is found try turning the shirts inside out and running the programme again for a short period.

Note: The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer.

Silk

• This is a programme for drying your Delicate Silk.
- It can be used for load sizes up to 0.5 kg.
- Loads dried using this programme are usually ready to use, but on some heavier garments the edges may be slightly damp. If this is found try removing the load and open them out then run the programme again for a short period.
- Only for garments labelled suitable for tumble drying.
- The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer.

Cuddly Toys

- With the cuddly toy cycle user can remove dust easier and wash the cuddly toys more often because the drying time is very much reduced compared to drying in the open air. It's a delicate drying cycle that dries at low temperature and with soft mechanical action to maintain at best the original look and the shine of the hair.

Note: For allergy protection, just freeze for 24hrs your cuddly toys, wash and dry. Repeat every 6 weeks. Before drying remove accessories such as clothes, collars, or sound boxes and protect plastic eyes (using masking tape).

The programme time will vary dependant on the exact make up of the load. The maximum load should not exceed 2.5 kg and no individual item should be greater than 600 g.

Baby Delicate

• This is a programme for drying your baby's small delicate items of clothing and bedding (Cotton and Chenille) and for drying your Delicate Clothes.
• Do not dry items such as bibs and nappy pants with plastic coverings.
• It can be used for load sizes up to 2 kg.
• Loads dried using this programme are usually ready to use, but on some heavier garments the edges may be slightly damp. If this is found try turning them inside out and running the programme again for a short period.
• The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer.

Blended fabrics

This program permits to dry mixed loads consisting of colored cottons and synthetics only with the dry level Cupboard dry. When reaching the dry level suitable for synthetics, an alarm signals that garments are ready for removal. The tumble dryer stops and the Start/Pause light blinks. Remove synthetics, close the door and press the Start/Pause button. The tumble dryer goes on working until remaining cotton garments reach the dry level Cupboard dry. The cycle can be used for loads up to 3 kg.

Refresh

Thanks to a cool air flow, oxygen penetrates the fibers and transports unpleasant odors such as cigarette smoke, frying, smog out of the clothes. With this short program, you can easily refresh your garments in just 20 minutes.

! Airing is not a drying programme and should not be used for wet articles of clothing.

- If can be used on any load size up to 9 kg, but is more effective on smaller loads.

20-minute programme that airs your clothes with cool air. Use also to cool warm clothes.

Anti Allergy

The programme has the ‘Seal of Approval’ endorsement from ‘Allergy UK’, which reflects the effective reduction and elimination of allergens from the clothes. With this programme, thanks to the achievement of constant temperature for an extended period of time, the effects of the most common allergens (including House Dust Mite) are neutralized.

Can be used on wet load to dry and treat or on a dry load just to treat your laundry. Maximum load is 9 kg for a wet load and 4 kg for a dry load.

Bed & Bath

• This is a programme for Cotton Towels and sheets.
- It can be used for load sizes up to 9 kg.
- Loads dried using this programme are usually ready to use; the edges or seams may be slightly damp especially on large items. If this is found try opening them out and running the programme again for a short period.
- The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer.

Activewear

- This programme is specific for drying water-repellent fabrics and sports jackets (e.g. Gore-Tex, polyester, nylon). Drying the garment after a wash cycle has a beneficial effect as it reactivates the garment's water-repellent treatment.

It can be used for loads of up to 2 kg. Dryness level: only Cupboard Dry

- The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer.

Heat & Enjoy

- The Heat & Enjoy cycle helps to heat towels & bathrobes for a warm sensation after a bath or a shower. It is also useful for warming clothes before dressing during winter. The cycle heats the clothes up to 37^ (the body temperature) and keeps the same temperature for a maximum of 4 hours or until the user stops the cycle by opening the door.

Load: 3 Kg.

!Note: during this programme a ○ icon rotates in the display until the temperature target is reached at which point the dryness level icon flashes.

Colored Cycle

This program helps to preserve your colored garments by controlling motor speed, drum rotation as well as temperature, which is lower.

• It can be used on cottons on each load up to maximum of 3 kg.
• The duration of this program will depend on load size, selected dry level and spin speed during washing.

The wool drying cycle of this tumble drying machine has been tested and approved by The Woolmark Company. The cycle is suitable to dry wool garments which are

labeled “hand wash” provided that the garments are washed in a Woolmark endorsed hand washing cycle and tumble dried according to the instruction issued by the manufacturer. M1219.

In UK, Eire, Hong Kong and India the Woolmark symbol is a certification trademark.

Programmes Table

! If the On/Off light is not lit; Press the On/Off Button and then select programme.

GB

Programme W	What it does How to set it Notes	/ Options available
Easy Iron	Brief programme (approximately 10 minutes) that softens fibres of clothing that is ready for ironing.	1. Position the PROGRAMME knob on 📄.2. Select Alarm Option if required.3. Press the Start Button >II	! This is not a drying programme (see previous page).Options availableSound 📄.
Refresh	20 min cool programme to air your clothes	1. Position the PROGRAMME knob on 📄.2. Select Alarm Option if required.3. Press the Start Button >II	Sound 📄.
Standard CottonShirts	Dries: your Cotton clothes.N.B: Max. load 6 kg (with Low Heat option)	1. Position the PROGRAMME knob on 📄.2. Choose Sensor Dry 🎋 or Timed Dry 🎋(see next page).3. Select any Options if required.4. Press the Start Button >II	Sound 📄 or Crease care 📄 Delay Start . High Heat Ⓔ Less Fluff 🔍Sensor Dry option, automatic drying:Damp dry 📄 iron dry , Hanger Plus , Hanger dry ✦ Light dry 🎋 Cupboard dry , Ready to Wear *. 🔴
	Dries your shirt.	1. Position the PROGRAMME knob on 📄.2. Choose Sensor Dry 🎋 or Timed Dry 🎋(see next page).3. Select any Options if required.4. Press the Start Button >II	Sound 📄 or Crease care 📄 Delay Start . High Heat Ⓔ Less Fluff 🔍Sensor Dry option, automatic drying:Damp dry 📄 iron dry , Hanger Plus , Hanger dry ✦ Light dried 🎋 Cupboard dry . 🔴
Blended fabrics	It dries blended synthetic and cotton garments.	1. 1. Position the PROGRAMME knob on 📄.2. Choose Sensor Dry 🎋 (see next page).3. Select any Options if required.4. Press the Start Button >II	Sound 📄 or Crease care 📄
Anti Allergy	Anti Allergy treatment for your cotton clothes.	1. Position the PROGRAMME knob on 📄.2. Select any Options if required.3. Press the Start Button >II	Sound 📄 or Crease care 📄 Delay Start . 🔴
Synthetics	Dries: your synthetics clothes.	1. Position the PROGRAMME knob on 📄.2. Choose Sensor Dry 🎋 or Timed Dry 🎋(see next page).3. Select any Options if required.4. Press the Start Button >II	Sound 📄 or Crease care 📄 Delay Start . 🔴Sensor Dry option, automatic drying:Damp dry 📄 iron dry , Hanger Plus , Hanger dry ✦ Light dry 🎋 Cupboard dry . 🔴
Bed & Bath	Dries your Towels and bedding.	1. Position the PROGRAMME knob on 📄.2. Choose Sensor Dry 🎋 (see next page).3. Select any Options if required.4. Press the Start Button >II	Sound 📄 or Crease care 📄 Delay Start . Less Fluff 🔍Sensor Dry option, automatic drying:Damp dry 📄 iron dry , Hanger Plus , Hanger dry ✦ Light dry 🎋 Cupboard dry , Ready to Wear *. 🔴(We suggest to use only Cupboard dry)
[WAZZ]Jeans	Dries denim clothes.	1. Position the PROGRAMME knob on 📄.2. Choose Sensor Dry 🎋 (see next page).3. Select any Options if required.4. Press the Start Button >II	Sound 📄 or Crease care 📄 Delay Start . 🔴Sensor Dry option, automatic drying:Damp dry 📄 iron dry , Hanger Plus , Hanger dry ✦ Light dry 🎋 Cupboard dry , Ready to Wear *. 🔴
Wool	Dries: your Woollen clothes.	1. Position the PROGRAMME knob on 📄.2. Select any Options if required.3. Press the Start Button >II	Sound 📄.
Silk	Dries your silk items.	1. Position the PROGRAMME knob on 📄.2. Choose Sensor Dry 🎋 (see next page).3. Select any Options if required.4. Press the Start Button >II	Sound 📄Sensor Dry option, automatic drying:Damp dry 📄 iron dry 🎋 Hanger Plus , Hanger dry ✦ Light dry 🎋 Cupboard dry . 🔴(We suggest to use only Cupboard dry)
[DDSA]Baby Delicate	Dries your baby clothes.	1. Position the PROGRAMME knob on 📄.2. Choose Sensor Dry 🎋 or Timed Dry (see next page).3. Select any Options if required.4. Press the Start Button >II	Sound 📄 or Crease care 📄 Delay Start . 🔴Sensor Dry option, automatic drying:Damp dry 📄 iron dry , Hanger Plus , Hanger dry ✦ Light dry 🎋 Cupboard dry . 🔴(We suggest to use only Cupboard dry)

* just with High Heat option on

Programme What it does How to set it Notes / Options available
[25K4]Cuddly Toys	Dries your cuddly toy.	1. Position the PROGRAMME knob on [IMAGE].2. Select any Options if required.3. Press the Start Button >II	Sound [IMAGE] Delay Start [IMAGE]
[746C]Colored Cycle	Dries colored clothes.	1. Position the PROGRAMME knob on [IMAGE].2. Select any Options if required.3. Press the Start Button >II	Sound [IMAGE] Delay Start [IMAGE]Sensor Dry option, automatic drying:Damp dry [IMAGE]ron dry , [anger Plus , Hanger dry [IMAGE]light dry , Cupboard dry . [IMAGE](We suggest to use only Cupboard dry)
Activewear	Dries your sports clothes.	1. Position the PROGRAMME knob on [IMAGE].2. Select any Options if required.3. Press the Start Button >II	Sound [IMAGE] or Crease care [IMAGE]Delay Start . [IMAGE]
Heat & Enjoy	Heats your towel & bathrobe.	1. Position the PROGRAMME knob on [IMAGE].2. Press the Start Button >II	-

Sensor Drying and Timed Drying

First select a programme (see programmes table).

Programme	What it does How to set it	Notes / Options available
Sensor Drying	Always use Sensor Dry if possible for drying your clothes. It will guarantee you best drying results.The heat setting depends on the programme (material option) selected.	1. Press and release the sensor Dry button until the display shows the desired selection. Each press advances 🎨, 🎨, 🎨, and 🎨 then repeats.! Some sensing programmes do not have all 7 dryness level options.2. Select any Options if required.3. Press the Start Button >||	Options availableSound 🎨 or Crease care 🎨 Delay Start . 🎨High Heat Ⓔ. Less Fluff 🎨Consult suggested drying times (see Laundry).The last few minutes of these programmes is the cool tumble phase.
Timed Drying(220, 180, 150, 120, 90, 60 or 40 minutes)	Always use timed drying option if you want to decide the drying time.The heat setting depends on the Programme (material option) selected.	1. Press and release the Timed Button until the display shows the required selection. Each decreases time 220' , 180' , 150' , 120' , 90' , 60' , 40' and then repeats.Baby Delicates have a maximum time of 180' .2. Select any Options if required.3. Press the Start Button >||	Options availableSound 🎨 or Crease care 🎨 Delay Start . High Heat Ⓔ.Consult suggested drying times (see Laundry).The last few minutes of these programmes is the cool tumble phase.

! For the best performance do not open the door before the cycle has finished.

The Controls

- Programme knob

! Warning, if after pressing the start button the programme knob position is changed, the new position will NOT change the programme selected.

To change programme press Start/Pause Button>to pause the programme, the light flashes Amber, select new programme and any option, the light will then flash green. Press the Start/Pause Button>and the new programme will start.

- Option Buttons/ Lights

These buttons are used to customise the selected programme to your requirements. Not all options are available for all programmes (see Start and Programmes). If an option is not available and you press the button, the buzzer will beep three times. If the option is available the option light next to the button lights to confirm the selection.

- ECO Light

This light is illuminated when you select programme options that will use less energy than the default setting. Examples are if you choose an Automatic or sensing programme or use a timed dry setting less than the default time. This light does not indicate that the optimum setting for energy use has been selected; it only shows you that your selected options will use less energy.

- Progress (Drying, Cool tumble,) Lighting

The Progress lights show you the status of the programme. At each stage of the programme the corresponding light turns on.

- Delay Start

The start of some programmes (see Start and Programmes) can be delayed for up to 24 hours (see The Display). Ensure the water bottle is emptied and the filter is cleaned before setting a delayed start.

- Less Fluff

By reducing the mechanical action during the final drying stage the amount of lint and fluff produced is substantially reduced protecting the fibres of your garments. Note: For Shirts programme, if you have selected Low Heat option, this option is not available.

- Sound

A buzzer sounds at the end of the drying cycle to signal that the programme has ended and the garments are ready to be removed. Note: If you have selected the Crease Care option, this option is not available.

- Crease Care

When a delayed start and this option have been selected the clothes are tumbled occasionally during the delayed period to help prevent creases developing.

After end of the drying and cool tumble cycles, the clothes are occasionally tumbled to help prevent creases developing, should you not be available to remove the load immediately after the programme is complete. The ENight is on during this phase after end of the cycle and the start/pause light flashes amber. flashes amber. Note: If you have selected the Sound option, this option is not available.

- High Heat

When a drying time is selected, pressing this button sets a high heat drying and the indicator light above the button lights up.

• Empty Water Clean Filter Light "h2o"

[Unreadable]

(If you have plumbed your dryer to a drain the light can be ignored for the water bottle, as there is no need to empty the water container). When on (not flashing) it reminds you to empty the water container. If the water container fills during a programme, the heater turns off and the dryer does a period of Cool Tumble then the light flashes and the buzzer sounds. You must empty the container and restart the dryer or the clothes will not dry. After re-starting the dryer the light will take a few seconds to go out. To avoid this always empty the water container each time you use the dryer (see Maintenance).

! Please note that you ALWAYS have to clean the filter even if you have plumbed your dryer to a drain.

- Door Opening

Opening the door (or pressing the Start/Pause Button) during a programme will stop the dryer and have the following effects. Note: The Start/Pause Light flashes Amber during the Post Care phase of a programme.

- During a delay phase the delay will continue to count down. The start button must be pressed to resume the delay programme. One of the delay lights will flash to show the current delay setting.

- The start button must be pressed to resume the programme. The progress lights will change to show the current status and the Start/Pause light will stop flashing and turn green.

- During the post creasecare phase of a drying program, the Programme will finish. Pressing the Start/Pause button will restart a new program at the beginning.

- Changing the Programmes knob will select a new programme and the Start/Pause Light will flash green. You can use this to select the "Refresh" programme to cool the clothes if you find them dry enough. Pressing the start/pause button to begin new Programme.

- Heat Pump Protection System

The heat pump sytem has a compressor protection feature, that operates if you open the door or there is a power disruption or you turn off the dryer. This system will prevent the heat pump compressor from starting for 5 minutes after the door is closed and the programme started.

- Note

If you have a power cut, switch off the power or remove the plug. When power is restored, plug in the machine, press and hold the ON/OFF button until the dryer reactivates, then press Start/Pause button.

Sorting laundry

• Check the symbols on the care labels of the various garments to verify whether the garments can be safely tumble dried.
• Sort laundry according to the type of fabric.
  • Empty all pockets and check for loose buttons.
• Close zips and hooks and fasten belts and strings without tightening them.
• Wring out garments to remove the maximum amount of water possible.

! Do not load the dryer when garments are dripping wet.

Maximum load sizes

Do not overload the drum.

The following values indicate the weight of dry garments: Natural fibres: maximum 9 kg

Synthetic fibres: maximum 3 kg

! Do not overload the dryer as this may result is reduced drying performance.

Care labels

Always check the care labels, especially when placing garments in the tumble dryer for the first time. Below are the most commonly used symbols:

☐ May be tumble dried.
Do not tumble dry.
Tumble dry – high heat.
Tumble dry – low heat.

Drying times

Drying times are approximate and may vary depending on the following:

• Amount of water retained by items after the spin cycle: towels and delicate items retain a lot of water.
• Fabrics: items of the same fabric, but with different texture and thickness may have different drying times.
• Amount of laundry: single items and small loads may take longer to dry.
• Drying: if items are to be ironed, they can be removed from the dryer while still slightly damp. Items that require complete drying can be left longer.
• Heat setting.
• Temperature of the room: the lower the temperature of the room, the longer it will take for the dryer to dry clothing.
• Bulk: certain bulky items require special care during the drying process. We suggest removing these items and replacing them in the dryer once they have been shaken out: repeat this procedure several times during the course of the drying cycle.

! Do not over-dry items.

All fabrics contain natural dampness which helps to keep them soft and fluffy.

The drying times provided refer to the automatic Cupboard dry programmes.

The Timed drying settings are also indicated to enable you to select the most suitable timed option.

The weight refers to dry items.

Drying times

CottonHigh Heat		1 Kg 2 Kg	3 Kg 4 Kg	5 Kg 6 Kg	7 Kg 8-9 Kg
	Automatic minutes	60-90 80	-100 120-130	120-140	140-180 150	-190 170-200	200-250
	Timed	60 or 90 90	90-120 120	-140 150			150 or 180	180-220 220
	Drying times 800-1000 rpm in washing machine
SyntheticsLow Heat				1 Kg		2 Kg		3 Kg 4 Kg
	Automatic minutes			40-50		50-70		70-90	80-120
	Timed Dry setting			40 or 60		40 or 60		60 or 90	90 or 120
	Drying times on reduced spin in washing machine
Acrylics (Delicates)Low Heat				1 Kg			2 Kg
	Automatic minutes			Timed dry only
	Timed Dry setting			40 or 60 or 90			90 or 120 or 150
	Drying times on reduced spin in washing machine

One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the following troubleshooting suggestions.

GB

Problem:

The dryer won't start.	· The plug is not plugged into the socket, or not making contact.· There has been a power failure.· The fuse has blown. Try to plug another appliance into the socket.· You are using an extension cord. Try to plug the dryer's power cord directly into the socket.· The door is not closed securely.· The programme has not been set properly (see Start and Programmes).· The START button has not been pressed (see Start and Programmes).
Drying cycle will not begin.	· You have set a delay time (see Start and Programmes).· You have pressed the start button; there will be a short delay before the dryer starts. Wait for drying to begin,do not press the start button again or the dryer will pause and not begin drying.
It is taking a long time to dry.	· The filter has not been cleaned (see Maintenance).· The water container needs emptying? The empty water light is flashing and “h2o” message is displayed? (see Maintenance).· The Heat Pump Filter needs cleaning (see Maintenance).· The temperature setting is not ideal for the type of fabric you are drying (see Start and Programmes, and Laundry).· The correct drying time has not been selected for this load (see Laundry).· The air intake grille is obstructed (see Installation and see Maintenance).· The items are too wet (see Laundry).· The dryer is overloaded (see Laundry).
The Empty water light is flashing but the dryer has only been running for a short period.	· The water container was probably not emptied at the start of the programme. Do not wait for the empty water signal always check and empty the container before starting a new drying programme (see Maintenance).
Empty water light is on and the water container is not full.	· This is normal the empty water flashes when the container is full. If the light is on but not flashing its just a reminder to empty the container (see Start and Programmes).
Programme finishes and clothes damper than expected.	! For safety the dryer has a maximum programme time of 5 hours. If an automatic programme has not sensed the required final moisture in this time the dryer will complete the programme and stop. Check the above points and run the programme again, if the results are still to damp, contact the service centre (see Service).
The Display shows a fault code F followed by one or two numbers, the option lights and pause light are flashing.	· If the display shows F followed by one or two numbers, Turn off and remove plug, Clean the Filters (see Maintenance). Then replace plug turn on and start another program. If the number is displayed again Note down the number and contact the service centre (see Service).
The display briefly shows “dOn” every 6 seconds.	· The dryer is in ‘Demo’ mode. Press and hold both the On/Off and Start/Pause buttons for 3 seconds. The display will show “dOn” for 3 seconds and then the dryer will resume normal operation.
Time to End display changes during drying.	· The time to end is continuously monitored throughout the drying cycle and the time is adjusted to give the best-estimated time. The displayed time may increase during the cycle and this is normal.
The dryer makes a thumping noise during the first few minutes of operation.	· This is normal, particularly if the dryer has not been used for a while. If the noise persists throughout the whole drying cycle then contact the service centre.
The lights on the dryer control panel are off although the dryer is switched on.	· The dryer has gone into standby mode to save power. This occurs if you have left the dryer on or have had a power cut. It occurs after 30 minutes: - if you leave the dryer without starting a programme; - after your drying programme has finished. Press and hold the ON/OFF button until the dryer reactivates

Heat Pump System

This dryer is fitted with a sealed heat pump system to dry your clothes. To operate, the heat pump contains fluorinated greenhouse gases (F gases) which are covered by the Kyoto Protocol. These F gases are contained in a hermetically sealed unit. This sealed unit contains 0.29 kg of the F gas R134a which acts as a refrigerant. If the sealed unit fails then it must be replaced by a new sealed unit. Contact your nearest service centre for advise. Note: The gases contained in the sealed unit are not hazardous to health, but if they escape they will have an impact on global warming.

Before calling the Service Centre:

• Use the troubleshooting guide to see if you can solve the problem yourself (see Troubleshooting).
• If not, turn off the dryer and call the Service Centre closest to you.

Spare Parts

This dryer is a complex machine. Repairing it yourself or having a nonauthorised person try to repair it could cause harm to one or more persons and to the machine, and could invalidate the spare parts warranty.

Call an authorised technician if you experience problems while using the machine.

Please note that it is an offence for an unqualified person to undertaken any servicing or repair work that involves breaking into the sealed heat pump unit.

Essential Contact Information

HOTPOINT SERVICE - Service You Can Rely On

At Hotpoint we pride ourselves on offering our customers the best service we possibly can, wherever you are in the UK and Ireland. Rest assured though, no one knows a Hotpoint appliance better than we do and our service is second to none...

Wherever you are we can be there – we have over 1,000 highly skilled Hotpoint engineers covering the whole of the UK and Ireland ensuring fast, reliable, local service.

‘Right first time’ – our engineers have the latest tools to help get your Hotpoint appliance back up and running the first time we visit. Experts in our field – all of our engineers are trained to the highest standard at our Hotpoint Training Centre of Excellence with unrivalled expertise and product knowledge.

Skilled staff – we have over 400 skilled UK based call centre staff, dedicated to offering you excellent service 364 days a year.

Telephone in the United Kingdom: 08448 224 224

Telephone in the Republic of Ireland: 0818 313 413

www.hotpointservice.co.uk

Please note:

Our advisors will require the following information:

• name, address and postal code
- telephone number
- type of malfunction
- date of purchase

• model number
• serial number

This information can be found on the data plate located behind the door.

Information on recycling and disposal

As part of our continual commitment towards environmental protection, we reserve the right to use recycled quality components to reduce costs for our customers and to minimise materials wastage.

• Disposing of the packaging materials: follow local regulations to allow for recycling of packaging materials.
• In order to minimise the risk of injury to children, remove the door and plug, then cut the power supply cord flush with the appliance. Dispose of these parts separately to prevent the appliance from being connected to a power supply socket.

Disposal of old household appliances

The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materialsthey contain and reduce the impact on human health and the environment. This dryer has a sealed heat pump unit containing Fgases which should be recovered and destroyed. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must beseparately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

This appliance conforms to the following EU directives:

• 2006/95/EC (Low Voltage Directive)
• 2004/108/EC (Electromagnetic Compatibility Directive).

MÁQUINA DE SECAR ROUPA

PT

Português

AQUALTIS

AQC9 2F7

www.hotpoint.eu

Technical line drawing of a mechanical device with a fan and pump, no text or symbols present

Technical diagram showing a device with labeled dimensions and components, including a cylinder and fan assembly.

Fig. A Fig. B

Ligação eléctrica

Antes de introduzir a ficha na tomada eléctrica, verifique o seguinte:

Diagram of a battery casing with two side-mounted sensors and bidirectional arrows indicating rotation (no text or symbols)

Technical diagram showing a mechanical component with an inset close-up of its base and side view (no text or symbols)

Diagram of a folding chair or folding cabinet with curved legs and internal compartments, showing rotational motion (no text or symbols)

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

Diagram showing a hand pressing down an electrical switch with directional arrows and a 61-degree angle indicator.

Diagram of a hand pressing down on a device panel with a black arrow indicating force (no text or symbols present)

Technical line drawing of two mechanical components with wheels and housing (no text or symbols)

Diagram of a refrigerator interior showing wiring and components (no text or labels)

Less than 1m

Fig. A Fig. B

Diagram of a battery casing with two side slots and rotation arrows indicating clockwise motion (no text or symbols)

Technical diagram showing a mechanical component with an inset close-up of its base and side view (no text or symbols)

Diagram of a curved mechanical or architectural component with internal grid structure, no visible text or symbols

Diagram showing a hand pressing down on a curved mechanical component with an upward arrow (no text or symbols)

Illustration of a hand pressing down on a device with arrows indicating direction (no text or symbols)

Illustration of a hand pressing down on a computer ventilation cover (no text or symbols visible)

Technical line drawing of two mechanical housing components with mounting brackets (no text or symbols)
