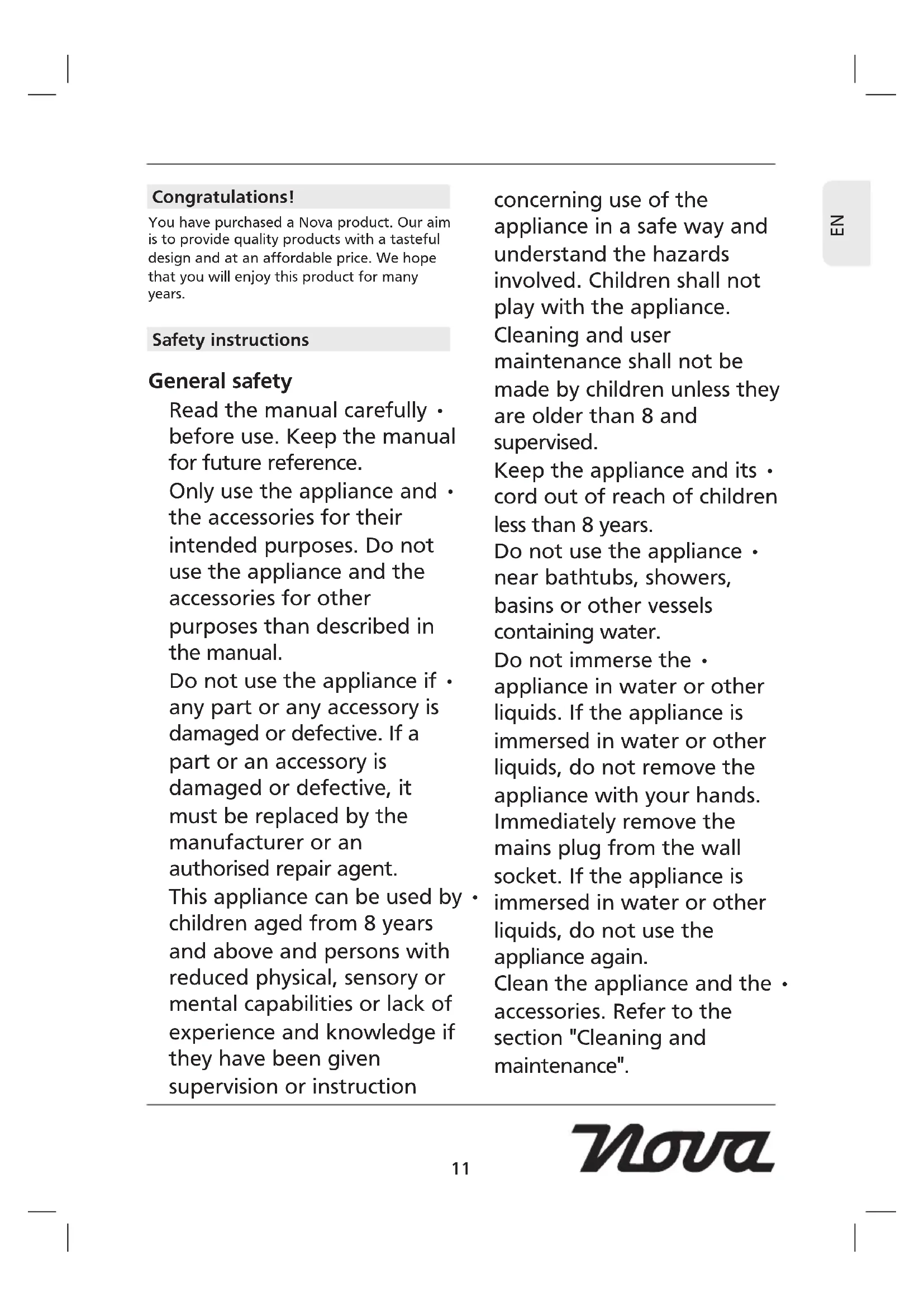

Congratulations! You have purchased a Nova product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years. Safety instructions General safety Read the manual carefully • before use. Keep the manual for future reference. Only use the appliance and • the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. Do not use the appliance if • any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. This appliance can be used by • children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its • cord out of reach of children less than 8 years. Do not use the appliance • near bathtubs, showers, basins or other vessels containing water. Do not immerse the • appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again. Clean the appliance and the • accessories. Refer to the section "Cleaning and maintenance".12

Electrical safety Before use, always check that • the mains voltage is the same as the voltage on the rating plate of the appliance. The appliance is not intended • to be operated by means of an external timer or separate remote-control system. Make sure that water cannot • enter the contact plugs of the mains cable. Always fully unwind the • mains cable. Make sure that the mains • cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away • from heat, oil and sharp edges. Do not use the appliance if • the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not pull the mains cable • to disconnect the mains plug from the mains. Disconnect the mains plug • from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance. Safety instructions for vacuum cleaners The appliance is suitable for • domestic use only. Do not use the appliance • outdoors. Do not use the appliance • without the dustbag compartment. Do not use the appliance • without the motor filter. Do not use the appliance without the outlet filter. Do not use the appliance to • vacuum liquids. Do not use the appliance to • vacuum flammable materials. Only hold the appliance by • the handgrip. Keep the motor unit away • from your eyes and face. Always work from bottom • up when using the appliance on stairs. Store the appliance in a dry • place when not in use. Make sure that children do not have access to stored appliances.13

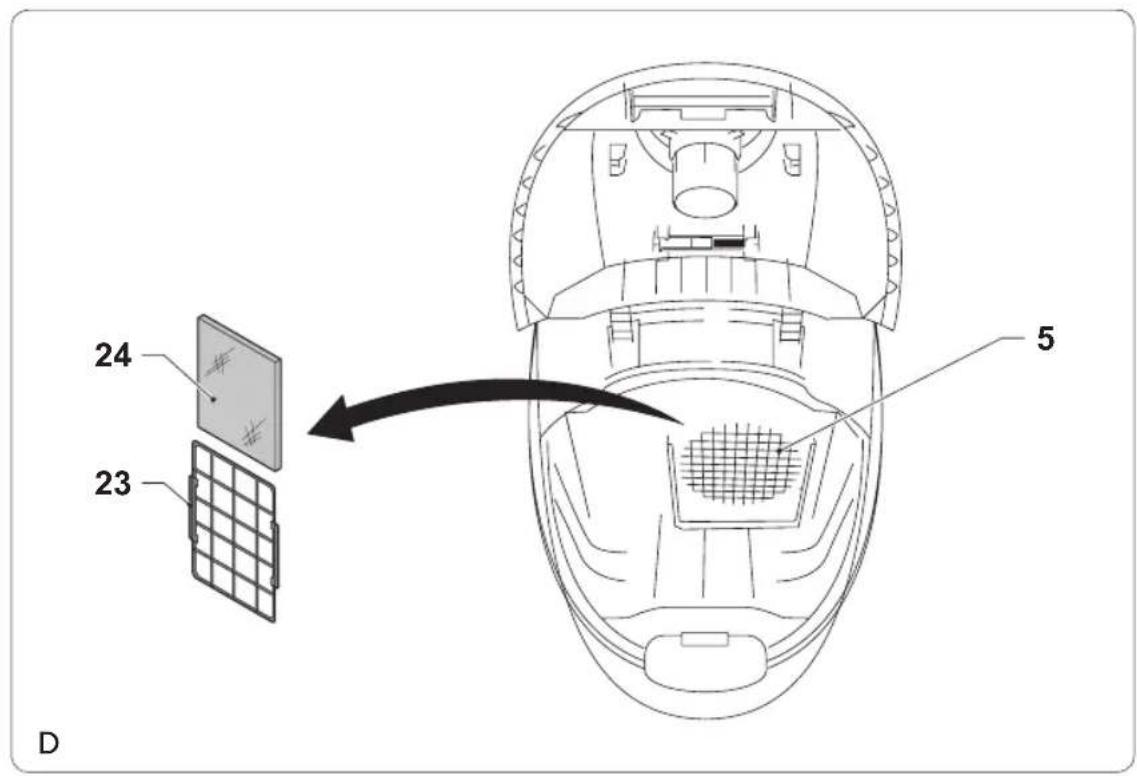

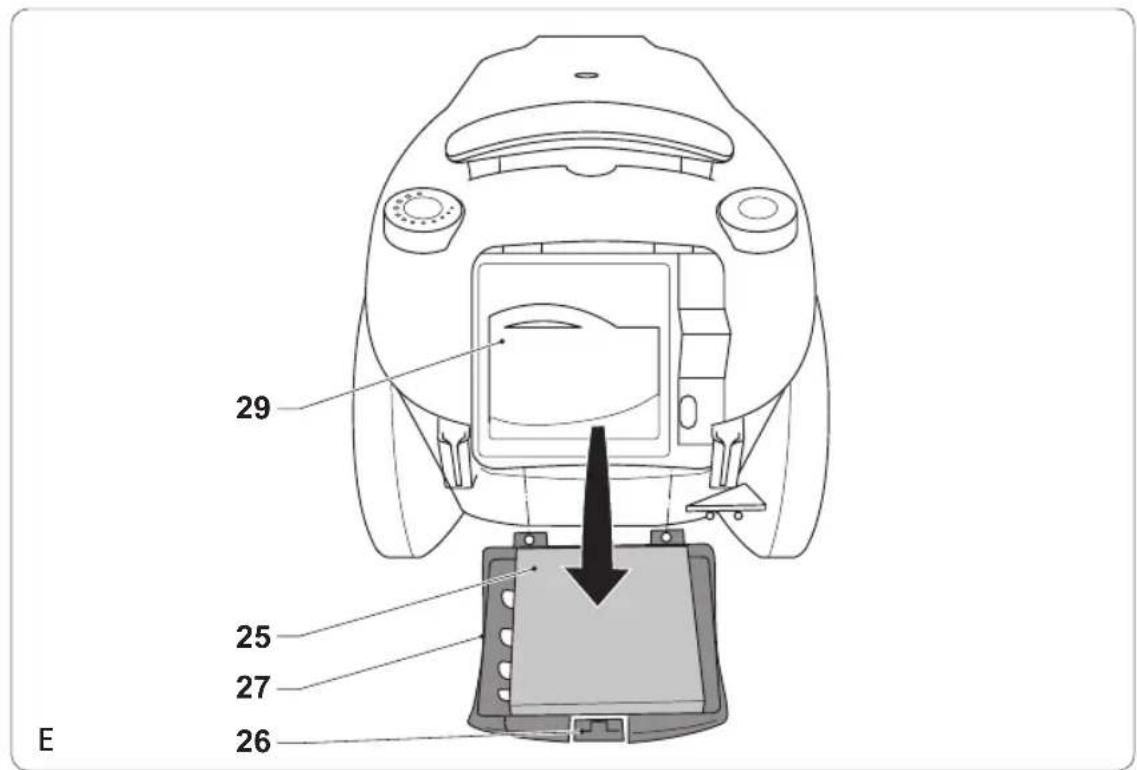

Cleaning and maintenance Before you proceed, we need you to pay attention to the following notes: - Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or any other liquids for cleaning. Before you proceed, we would like you to focus your attention on the following notes: - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. Regularly check the appliance for possible • damage. Regularly clean the ventilation slots using • a soft brush. Store the appliance in a dry place, out of • the reach of children. Replacing the dustbag (fig. A - C) The dustbag (21) must be replaced when the bag-full indicator (3) comes on. Replacement dustbags are available from our service station. If you have questions regarding the dustbag, contact the service station. To remove the full dustbag (21), refer to • the section "Mounting and removing the dustbag". To mount the empty dustbag (21), refer to • the section "Mounting and removing the dustbag". Cleaning and replacing the motor filter (fig. A - D) Before you proceed, we would like you to focus your attention on the following notes: - Do not wash or rinse the motor filter. The motor filter (24) reduces the amount of dust entering the motor unit to a minimum. The motor filter must be cleaned regularly. The motor filter must be replaced after several months or whenever worn or damaged. Replacement motor filters are available from our service station. Keep the release button (6) pressed and • open the cover (19). If necessary, remove the dustbag (21). • Refer to the section "Mounting and removing the dustbag". Remove the filter holder (23) from the • dustbag compartment (5). Remove the motor filter (24) from the filter • holder (23). Remove the dust from the filter using a • soft brush. If the filter is worn, use a new filter. Insert the motor filter (24) into the filter • holder (23). Place the filter holder (25) into the dustbag • compartment (5). If necessary, mount the dustbag (21). Refer • to the section "Mounting and removing the dustbag". Close the cover (19) until the release • button (6) clicks into place. Cleaning and replacing the outlet filter (fig. E) Before you proceed, we would like you to focus your attention on the following notes: - Do not wash or rinse the outlet filter. The outlet filter (25) reduces the amount of dust entering the motor unit to a minimum. The outlet filter must be cleaned regularly. The outlet filter must be replaced after several months or whenever worn or damaged. Replacement outlet filters are available from our service station. Press the tab (26) and remove the cover • (27). Remove the outlet filter (25) from the filter • holder (29). Remove the dust from the filter using a • soft brush. If the filter is worn, use a new filter. Insert the outlet filter (25) into the filter • holder (29). Mount the cover (27) until the tab (26) • clicks into place.14

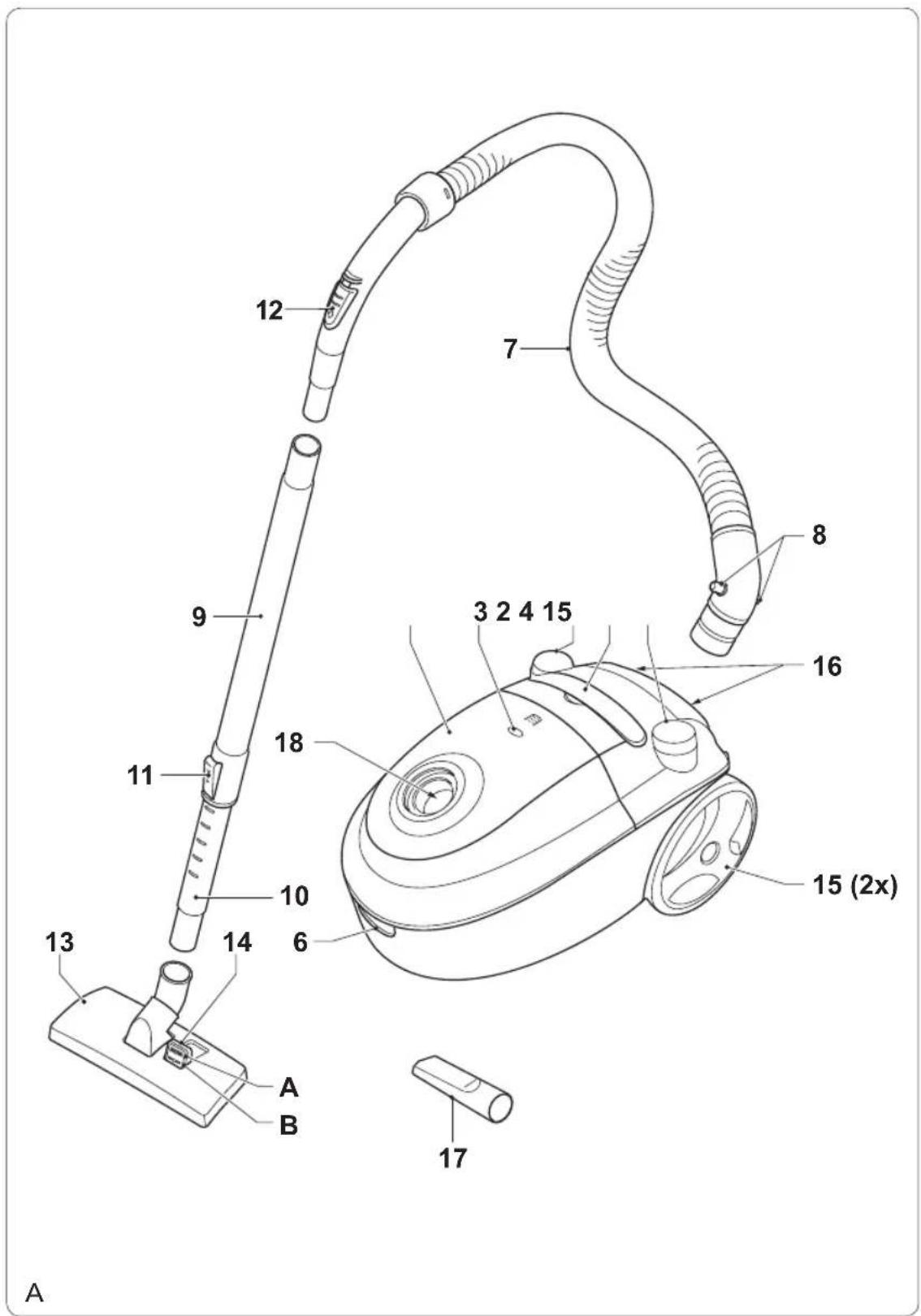

Description (fig. A) Your 330600 Nova vacuum cleaner has been designed for vacuuming dry substances. The appliance is not suitable for vacuuming wet substances. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

5. Dustbag compartment

6. Release button (dustbag compartment)

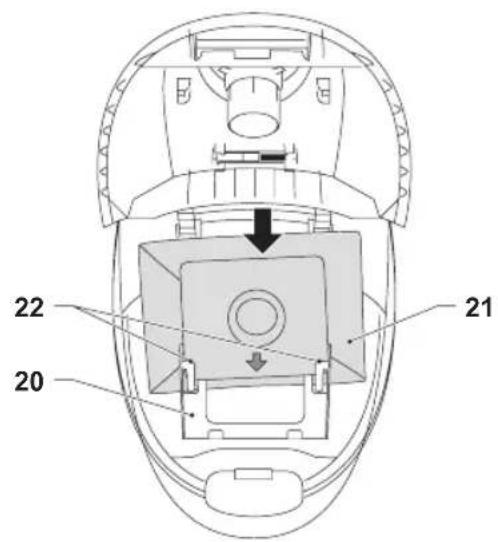

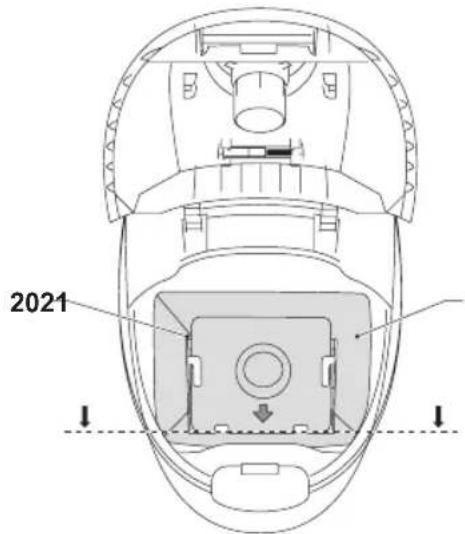

Assembly (fig. A) Before you proceed, we need you to pay attention to the following notes: - Before assembly or disassembly, switch off the appliance and remove the mains plug from the wall socket. Mounting and removing the dustbag (fig. A - C) The dustbag and the dustbag holder must be properly mounted in order to close the cover of the dustbag compartment. Before you proceed, we need you to pay attention to the following notes: - Do not use the appliance without the dustbag. Mounting the dustbag Keep the release button (6) pressed and • open the cover (19). Insert the dustbag (21) into the slots (22) • of the dustbag holder (20). Slide the dustbag (21) to the end of the dustbag holder (20). Close the cover (19) until the release • button (6) clicks into place. Make sure that the hole in the dustbag (21) aligns with the hose connection (18). Removing the dustbag Keep the release button (6) pressed and • open the cover (19). Remove the dustbag (21) from the dustbag • holder (20). Close the cover (19) until the release • button (6) clicks into place. Mounting and removing the hose (fig. A) Before you proceed, we would like you to focus your attention on the following notes: - Before mounting the hose, make sure that the dustbag compartment is inserted into the appliance. To mount the hose (7), insert the hose • outlet into the hose connection (18) until the release buttons (8) click into place. To remove the hose (7), keep the release • buttons (8) pressed and pull the hose outlet from the hose connection (18). Mounting and removing the tube (fig. A) To mount the tube, insert the hose (7) into • the tube (9). To remove the tube, pull the hose (7) from • the tube (9). Mounting and removing the accessories (fig. A) Mounting and removing the suction nozzle (fig. A) The suction nozzle (13) can be mounted to the extension tube (10). To mount the suction nozzle, insert the • extension tube (10) into the suction nozzle (13). To remove the suction nozzle, pull the • extension tube (10) from the suction nozzle (13).15

Mounting and removing the crevice nozzle (fig. A) The crevice nozzle (17) can be used for vacuuming in narrow and hard-to-reach places. The crevice nozzle (17) can be mounted to the hose (7) or to the extension tube (10). To mount the crevice nozzle to the hose, • insert the hose (7) into the crevice nozzle (17). To mount the crevice nozzle to the • extension tube, insert the extension tube (10) into the crevice nozzle (17). To remove the crevice nozzle, pull the • crevice nozzle (17) from the hose (7) or the extension tube (10). Use Unwinding and rewinding the mains cable (fig. A) The mains cable rewind button (2) can be operated by hand or foot. Before you proceed, we would like you to focus your attention on the following notes: - Do not unwind or rewind the mains cable while the appliance is switched on. - Always hold the mains plug to unwind the mains cable. Never pull the mains cable. Before use, hold the mains plug and • unwind a sufficient length of the mains cable from the back of the appliance. After use, press the mains cable rewind • button (2) to rewind the mains cable back into the appliance. Manually guide the mains cable to make sure that it does not swing back. Make sure that the mains plug is correctly located. Adjusting the length of the tube (fig. A) Keep the locking knob (11) pressed and • slide the extension tube (10) to the required position. Release the locking knob (11).• Adjusting the suction nozzle (fig. A) The floor surface selector can be set to adjust the suction nozzle to the required floor surface. The floor surface selector can be operated by hand or foot. For vacuuming on laminates, tiles, etc., • press the corresponding part (A) of the floor surface selector (14). For vacuuming on carpets, press the • corresponding part (B) of the floor surface selector (14). Switching on and off (fig. A) The on/off button can be operated by hand or foot. To switch on the appliance, press the • on/off button (1). To switch off the appliance, press the • on/off button (1) again. Adjusting the suction force (fig. A) The speed control button can be used to adjust the suction force. Set the speed control button (1) to the • required position: - For vacuuming on hard surfaces (e.g. floors), set a high suction force. - For vacuuming on soft surfaces (e.g. upholstery), set a low suction force. Adjusting the airflow (fig. A) The airflow can be adjusted using the airflow control switch. To adjust the airflow, set the airflow • control switch (12) to the required position. U.K. Wiring instructions The wires in the mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN LIVE As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.16

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. Should the fuse in the BS1363 plug require replacement, a 13Amp BS1362 fuse must be fitted. This is a double-insulated appliance and does not need an earth connection. Warning! On no account should either the live or neutral wires be connected to the earth terminal. Disclaimer Subject to change; specifications can be changed without further notice.17
