Welcome to iBLIK RadioStation

Thank you for buying our iBLIK RadioStation hybrid digital radio, we feel sure that it will provide you with years of enjoyment and reliable service.

This guide has been designed to quickly get you up-and-running and listening to internet radio, offer guidance on the more complex features of this product and provide information on safety, warranty and registration.

iBLIK RadioStation Overview

iBLIK RadioStation is the ultimate 'one box' digital radio, providing an unprecedented choice of over 11,000 stations from around the globe.

Whether your preferred station is broadcasting from your own country on DAB or DAB+ digital radio, or on the other side of the world via the internet radio platform, iBLIK RadioStation is ready to deliver:

iBLIKRadioStation also includes an iPod dock for music playback and charging, as well as coverage of traditional FM radio, and comprehensive electronic alarm clock functionality.

Throw-in class-leading audio performance and the ability to stream music from your PC or Mac, and iBLIK RadioStation becomes the radio of choice for the digital generation.

Warranty

Revo Technologies Ltd warrants to the purchaser that this product will be free from parts and manufacturing defects in the course of normal use for a period of one year from the date of purchase.

This warranty does not apply in cases of accidental damage, where the case has been removed, wear and tear, negligence, modification or inappropriate use.

Should you encounter problems with this product, please contact your supplier or alternatively see page 2 of this guide for technical support contact details.

Warranty Registration

It is a warranty condition that you register your purchase by either completing the warranty card enclosed with your radio or alternatively registering online at www.revo.co.uk/register

Before Getting Started

IMPORTANT

To ensure that your iBLIK RadioStation is running the latest software release (and therefore has access to the latest software

features], we advise you to perform a software update. Please see page 17 of this operating guide for full details.

Network Connection

In order to use the internet radio functions of your iBLIK RadioStation, you will require either a wireless [Wi-Fi] or wired LAN broadband internet connection.

For setup instructions please see page 7.

NB. If your wireless network is configured to use Wired Equivalent Privacy (WEP), or Wi-Fi Protected Access (WPA or WPA2) data encryption, you need to know the WEP or WPA code (Web Key) in order to allow iBLIK to connect to your wireless network.

Registering Your Radio and Accessing Additional Services

Some of iBLIK RadioStation's more advanced internet radio features can only be accessed by visiting the Frontier Internet Radio Portal (www.wifiradio-frontier.com).

These features include the ability to create a "Favours" list and add unlisted radio stations and podcasts. See page 9 for instructions on how to register your radio.

iBLIK RadioStation and DAB+

iBLIK RadioStation is capable of receiving broadcasts on the new DAB+ digital radio platform - without the need for modification or additional software. Meaning that iBLIK

is ready for future developments. This facility is in addition to iBLIK's reception of standard DAB signals.

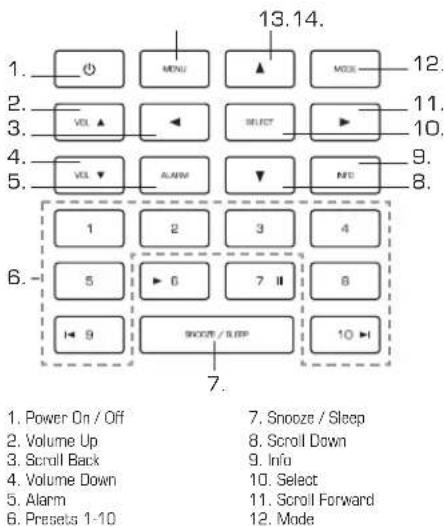

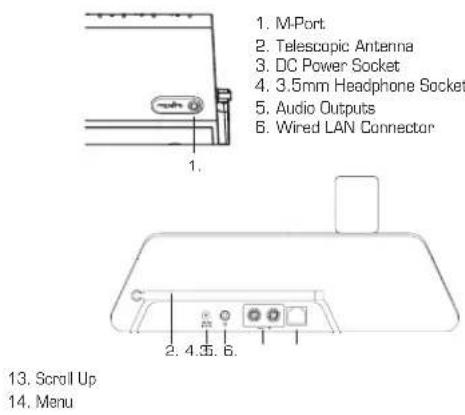

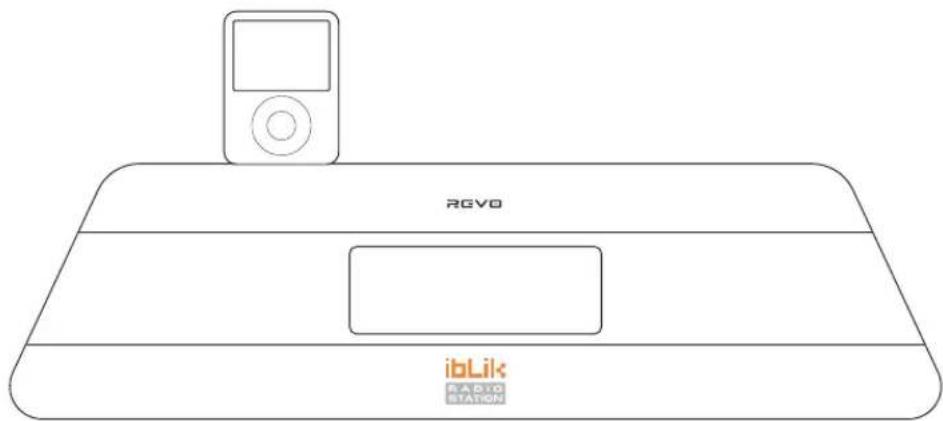

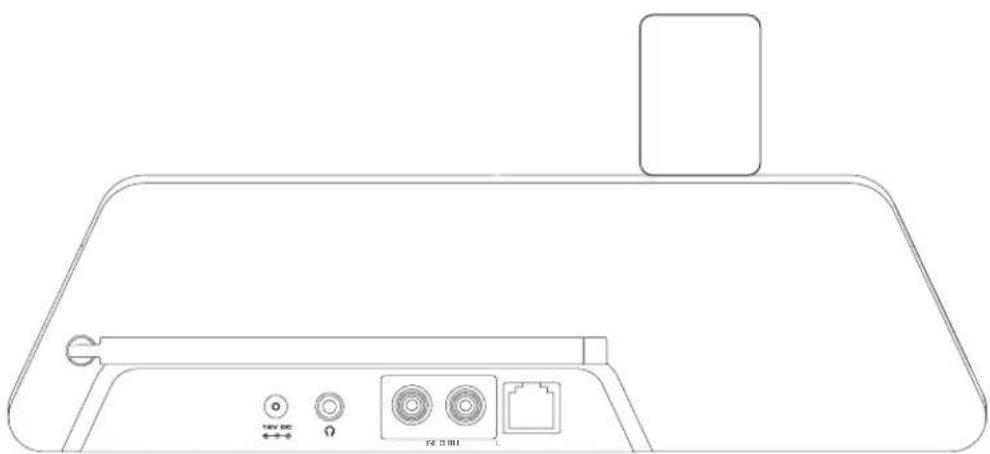

Controls and Connectors

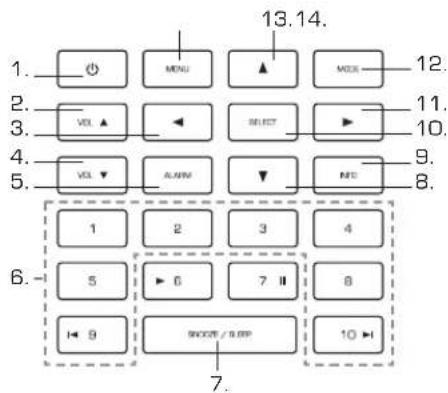

Media Player Controls

PlayPauseSkipBackForward

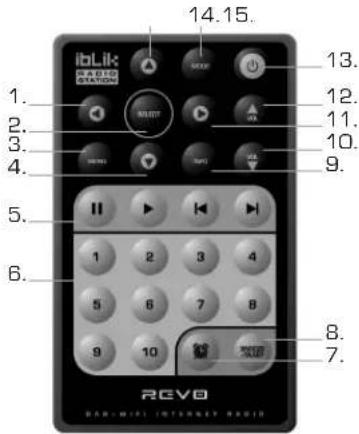

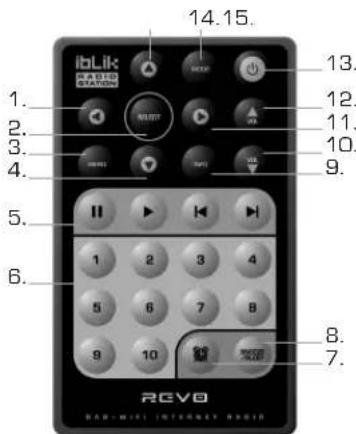

Remote Control

1.Scroll Back
2. Select
3. Menu
4.Scroll Down
5. Media Player Controls
6. Presets 1-10
7. Alarm / Clock
8. Snooze / Sleep
9. Info
10. Volume Down
11.Scroll Forward
12. Volume Up
13. Power On / Off
14.Mode
15.ScrollUp

1. Media Player Controls

Pause

Play

Skip Back Slip Forward

Powering iBLIK RadioStation

Your iBLIK RadioStation can be powered from the mains using the power adaptor supplied.

To power from the mains, insert the power adaptor plug into the DC power socket on the rear of iBLIK RadioStation. Pressing the button will switch iBLIK RadioStation on.

Only use the power adaptor supplied. Replacements can be purchased from our website www.revo.co.uk, or alternatively call us on 01555 66 61 61.

Getting Started

Socket

or

iBLIK RadioStation is a sophisticated digital radio device, with several modes of operation and many advanced features.

In order for you to get the most out of iBLIK's functions, it is important that you learn how to use the cursor based control system, and also understand how iBLIK's menus work.

iBLIK RadioStation's Control Method

iBLIK RadioStation's control method is based around seven main keys as identified below.

Scroll Up:

Press to scroll through menu options

Scroll Back:

Press to return to the previously selected menu entry. Repeatedly pressing will return you to the top level of the Mode menu (for the mode you are in).

▶ Scroll Forward:

When in text entry screens, this key can be used to navigate through the characters. It can also be used to move through to the next menu level.

Scroll Down:

Press to scroll through menu options

SELECT - Press to select the current menu entry. In FM mode, pressing SELECT will initiate an FM scan.

Menu:

Press to enter [or return to] the Mode menu for the mode of operation you are currently in. Pressing for a second time will return you to the 'playing' screen.

Mode:

Sequentially cycles through each of the modes of operation.

Using these keys, you will be able to perform most functions and navigate through iBLIK RadioStation's various menus

iBLIK RadioStation's Menu Explained

iBLIK RadioStation has three types of menu as follows:

Main Menu

This is iBLIK RadioStation's principle (top level) menu, and allows you to enter different operating modes, setup the radio, and view information such as software version and your radio's ID number.

Mode Menus

The Mode menus are so called because they show the functions available within the context of each of the operating modes [internet radio mode, DAB mode, iPod mode, FM mode etc. etc.].

Pressing the MENU button at any time will take you to the Mode menu of the operating mode your radio is currently in. Each Mode menu includes a listing for Main Menu - selecting this option will return you to the top level Main Menu [as described above].

Main Menu

The Main menu provides access to the following modes and sub-menus:

Internet Radio

Music Player

DAB

FM

Mport

iPod

Sleep

Alarms

System Setup

Info

On powering-up iBLIK RadioStation for the first time, you will be presented with this menu. To select an option from the menu, simply use the or keys to move through the menu options, and press

SELECT or to make a selection or move to the next menu level.

yard

Setting the Time and Date

The time and date can be set in one of two ways, either manually from the Time Setup menu, or automatically by selecting Auto update from the Time Setup Menu as follows:

Manually

Time

To set the time manually, first press the MENU key.
Using the and cursor keys, scroll to "System setup" and press the SELECT or key.
Using the and cursor keys, scroll to "Time setup" and press the SELECT or key.
Choosing "Set clock" will allow you to manually set the time.
Use the and cursor keys to set the hours then press the SELECT or key.
Use the and cursor keys to set the minutes then press the SELECT or key.

Date

To set the date manually, first press the MENU key.
Using the and cursor keys, scroll to "System setup" and press the SELECT or key.
Using the and cursor keys, scroll to "Time setup" and press the SELECT or key.
Choosing "Set date" will allow you to manually set the date.
Use the and cursor keys to set the day then press the SELECT or key.
Use the and cursor keys to set the month then press the SELECT or key.
Use the and cursor keys to set the year then press the SELECT or key.

Automatically

To set the time and date automatically, first press the MENU key.
Using the and cursor keys, scroll to "System setup" and press the SELECT or key.
Using the and cursor keys, scroll to "Time setup" and press the SELECT or key.
Using the and cursor keys, scroll to "Auto update" and press the select or key. There are now two types of Auto update available to select, "update from NET" and "update from DAB. Using the and cursor keys, select the type of Auto update you wish to use. Pressing SELECT or will confirm your selection.

Auto update from DAB

Auto update from NET

If you have selected "Set from DAB", the radio will automatically set the date and time the next time you listen to a DAB station. The local time and date will be set and there is no need to adjust the clock for Daylight Saving.
If you have selected "Set from NET", the radio will automatically set the date and time the next time you listen to an internet radio station. The time will be set to GMT, depending on your location you may now need to adjust the Timezone.
The Timezone is set from within the "Time setup" menu. Using the and cursor keys, scroll to "Set timezone" and press the SELECT or key.
Using the and cursor keys, choose the GMT offset required for your location. Press the SELECT or key to confirm your selection.
During daylight saving months, you can Set DST to On. This option is found in the "Time setup Menu".
Using the and cursor keys, scroll to "DST" and press the SELECT or key.
Using the and cursor keys, choose "ON" or "OFF", then press the SELECT or key to confirm your choice.

Please note, once you have set the GMT offset and DST, your selection will be reapplied after a power cut meaning the correct time will be set automatically.

Internet Radio Mode

Connecting to your broadband network

In order to access iBLIK RadioStation's internet radio features, first you must connect to your Wi-Fi broadband connection.
Firstly, select 'Internet Radio' from iBLIK's main menu, or press the MODE key until 'Internet Radio Mode' appears on the display.
- iBLIK RadioStation's will now ask you to select a 'Wlan region'. To do so, use the and cursor keys to scroll through the selections. Press the SELECT or key to make your selection.
■ iBLIK RadioStation's will ask you to choose the network you'd like to use. If there is more than one available, all will be listed. If you are using a wired LAN connection choose 'Wired' option from the network list. To make your selection use the and cursor keys to scroll through the options. Press the SELECT or key to make your choice.
If the Wi-Fi network you have chosen doesn't require a password, iBLIK RadioStation's will automatically connect.
If your chosen network has security enabled, you will be asked to input the relevant key or password. Remember, the password will be case-sensitive.
Use the and cursor keys to scroll through the banks of characters. Use the and keys to move the flashing cursor along the row of characters, and press SELECT when your chosen character is flashing. When the password has been entered, move the flashing cursor to the symbol at the end of the line and press SELECT. iBLIK RadioStation's will now connect to the network.
iBLIK RadioStation's will remember the security key or password, you will not be required to enter it again, even after iBLIK has been disconnected from main power.
iBLIK can also remember keys and passwords for multiple Wi-Fi networks.
If at some time you would like to connect to another Wi-Fi network, you can do so by selecting 'Wizard' from the 'Internet Setup' option on the main menu, and entering the required key/password.
Advanced users can edit their Wi-Fi settings by accessing the 'System Setup' option from the Main menu.

Using Internet Radio Features

The internet radio mode allows you to choose from a number of services, including listening to live radio or Podcasts. There are five options on the internet radio menu as follows:

My Favourites: Used to navigate to your favourite stations. This list is compiled using your PC/Mac via the internet radio portal. See page 9 for details.

Stations: Find stations by location, genre, most popular, new station or by alphabetical search.

Podcast: Find Podcasts or 'Listen-Again' services by location, genre or search.

My Added Stations: Shows stations which you have personally added to iBLIK RadioStation's list through the vTuner internet radio portal. See page 9 for details.

Help: Find your Access Code here, see page 9.

Choosing A Station

To select a station, enter 'Internet Radio Mode' from the Main Menu or by pressing the MODE key until 'Internet Radio Mode' is displayed on iBLIK's LCD display.
Using the and cursor keys, scroll to the Stations' option and press SELECT or the key.
You now have the option of selecting a station by location (country), genre, alphabetical search, most popular stations or new stations. Using the and cursor keys, scroll through the list and press SELECT or the key to choose your search criteria.
Choosing location will give you an alphabetical list of continents/regions and then a list of countries. Use the ▲and cursor keys, scroll through the list and press SELECT or the key to choose your country. You will then be given the option of choosing a genre, to further refine your search.
After selecting your search criteria, you will be presented with a list of stations that meet your requirements. Simply select a station from the list to begin listening.

Choosing A Podcast

Podcasts (also referred to as 'Listen Again') are selected in the same way as a regular station.
- Select 'Podcast' from the 'Internet Radio' menu, you can search for a station by location, genre or a combination of both.
The main difference is that when you have selected a station, you will then be presented with a list of 'shows' or Podcasts available from that station.
- Select your choice by using the and cursor keys, scroll through the list and press SELECT or the key to make your selection.

My Favourites

It is possible to compile a list (or lists) of your favourite stations, allowing quick and easy access to a number of varied stations. To do this you must first register your radio and then choose your favourites by visiting the Frontier Internet Radio Portal - see 'Internet Radio Portal' section below for details.
When in 'Internet Radio Mode', choose 'Station List' from the options, then select 'My Favourites'.
If you have set up a 'My Favourites' list via the Frontier Portal, your list will appear on iBLIK's screen.

My Added Stations

If you have added any of your own stations to iBLIK's already huge station list [via the Frontier Portal - see section below], they will be listed here. The 'My Added Stations' option can be found under 'Station List' in 'Internet Radio Mode'.

Help

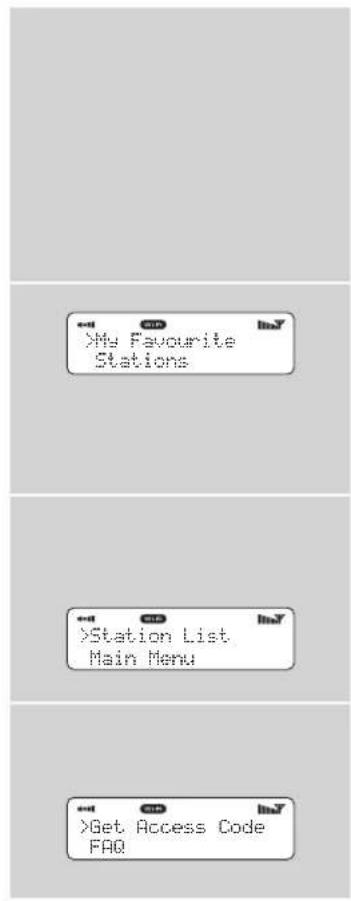

The 'Help' option is where you can find the Access Code that you require to register your radio on the Frontier Portal (see below for full instructions). A helpful FAQ audio track can also be found under this heading.

Internet Radio Portal

Access Additional Features

Some of iBLIK RadioStation's more advanced internet radio features can only be accessed by visiting the Frontier Internet Radio Portal.
In order to access these features you must first register your radio.

Registering Your Radio

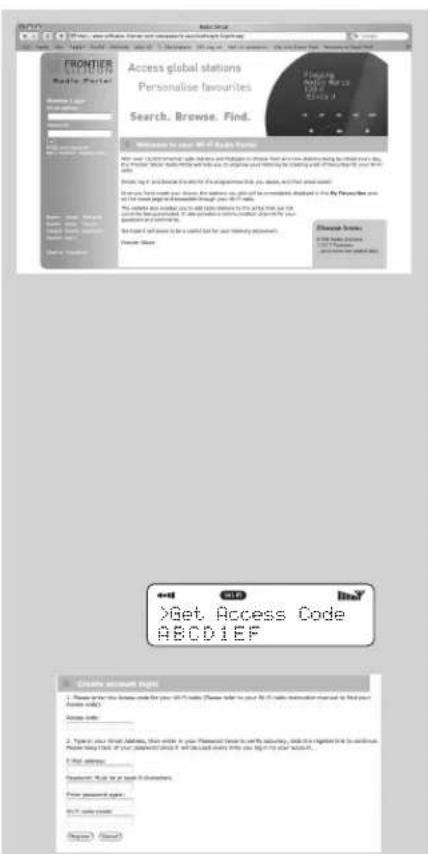

Firstly, open your web browser on your PC or Mac and go to the Frontier Portal at http://www.wifiradio-frontier.com
- Click on the Register link, (located on the left hand panel) to begin the registration process.

You will now be asked for an Access Code.

To find your Access Code enter 'Internet Radio Mode', select 'Station List' from the options, then select 'Help'. From the 'Help' menu now select "Get Access Code".
Now fill-in the rest of the from to complete the registration process. You will now be able to login and take advantage of the various additional features and services offered by the Frontier Internet Radio Portal.

Music Player Mode

Music Player Operation

iBLIK RadioStation's media player functionality allows you to play audio files (ACC, AIFF, AU, MP3, RM, WAV and WMA) and playlists (M3U) stored on a networked PC or Apple Mac. The media player functions have been tested and certified to operate with Windows 2000, Windows XP, Windows Vista and Mac OSX 10.2 - 10.4.9 (currently Mac OSX 'Leopard' is not supported).

Windows PC Set-Up

There are two Music Player modes available. Each of them requires different settings, and either one can be used to playback music from a media server.

Shared Folders (CIFS)

In order to set up the device to playback music stored on shared network drives, user name, password and domain settings must be configured to work with the PC share settings. This is only required if the user has set a password on his/her shared folders.

PC: Domain/Workgroup configuration

The Domain configuration item can be found on a Windows XP machine as follows:

1. From the start menu, select Control Panel > System then select the Computer Name tab.
2. The Domain or Workgroup that this Computer is a member of is displayed in this tab.
3. If the PC is not a member of any Domain or Workgroup then one must be joined. To do this click on the change button on the computer name tab and enter the name of the domain [default on Windows XP is MSHOME].
4. A reboot of the PC may be prompted if the Domain or Workgroup has been changed.

PC: Setting up a new user account [Windows XP]

iBLIK RadioStation may require you to set-up a user account on each PC that you wish to browse. By default most PCs have at least one user account associated with it. The user name and password (optional) needs to be the same on each PC as the Internet Radio only stores one user name and one password. For windows XP this can be set up as follows:

1. From the start menu, select Control Panel -> User accounts

2. From this screen left click the Add ... and enter the new user name and the Domain/Workgroup setting noted above. Select the type of user (limited) and then select 'create account'.

3. Select the user just created, select 'Create Password ...' and enter a password for this user.

4. Note the User Name and Password.

Note for Windows VISTA: Users have to turn on the Guest account via manage user accounts in the control panel in VISTA, then add access to either 'Everyone' or 'Guest' on the shared drive. They could create a new account for the internet radio, with a password, if they are concerned about security. The Guest account has no password by default, so the Wi-Fi radio will connect to it from its factory default settings.

PC: Configuring A Shared Drive

From the Start menu select My Computer and navigate to the directory you wish to share. Right click on the directory and select Sharing and Security. Configure the shared drive as read only, and ensure that the User Name created above has read access to the share.

Wi-Fi Radio: Storing TheUsername And Password

Before the radio can stream music from a PC, you need to ensure you have shared folder available on the PC, and set up the radio so that it knows the username and password (if one has been set) for the shared folder on the PC. This can be set up using the PC settings menu.

Shared Media (UPnP)

Media sharing uses Windows Media Player (WMP) 11 and above as media server. This mode does not require any setting in the radio, but the PC needs to be configured to allow the radio access to the media. You will only have to do it once, following the next steps.

1. The PC must be connected to network (wired or wireless) that will be used to share media with the radio.
2. Ensure that the radio is powered on and connected to the same network as the PC.
3. In WMP, add to the media library the audio files and folders you want to share with your internet radio [in Library > Add to library].
4. In the WMP main window, click on Library, then Media sharing.

The Internet radio is presented as an "Unknown Device". Make sure that the device has access to the shared media by selecting it and clicking . Then click OK>.

The PC is now ready to stream the music to the radio.

Music Player Mode

Apple Mac Set-Up

Set-Up for OSX 10.2.1 -> 10.4.9

Setup Windows File Sharing on the MAC:

From the Dock', click System Preferences'. From the 'System Preferences' window (under the Internet & Network section) click Sharing.

From the 'Sharing' window, do the following:

Under the 'Services' section, enable 'Personal File Sharing' and 'Windows Sharing'. Also, click 'Start' for each of these services. Under Windows file sharing you will also need to 'enable' the account you wish to share from [This needs your administrator password].

Under the 'Firewall' section, keep firewall off.

Under the 'Internet' section, keep 'Internet Sharing' off.

Setup an Account:

From the 'System Preferences' window, under the 'System' section, click 'Accounts'. Select an account and remember its 'Short Name' and password. This information will be used by iBLIK RadioStation when connecting to your Mac.

Directory Setup:

From the 'Dock', click 'Finder'. From the 'Finder' window, click 'Applications > Utilities'. Holding Ctrl click on 'Directory Access' then select 'Get Info' and ensure that read / write enabled. Next double click on 'Directory Access' and enable the following:

AppleTalk LDAPv®

SLP SMB/CIFS

Also, for the 'SMB/CIFS' item, click 'Configure' and select an appropriate workgroup.

To allow your iBLIK RadioStation you need to add your login details, by following the path Main Menu System Setup Internet Setup PC Settings. You should input your short username and administrator password here. Ensure that your Mac is successfully connected to the wireless network. Note, you may need to wait for few minutes for the changes to take effect. You should now be able to access the audio files on your Mac by selecting Browse SharedFolders on iBLIK, then selecting the workgroup chosen in the step above. On selecting your Mac scroll through the available folders until you find the one which contains your music files.

Apple Mac Set-Up

Set-Up for OSX Leopard 10.5.1-->

Setup Windows File Sharing on the MAC:

From the Dock, click 'System Preferences'. From the 'System Preferences' window (under the 'Internet & Network' section) click 'Sharing'.

From the 'Sharing' window, do the following:

Under the 'Services' section, enable 'File Sharing' click 'Start' for this service. Then under the shared folders click the "+" and select the folder which contains your music files. Then Select the music folder from the shared folders area, in the users area make sure "Everyone" is set to read and write. Finally click on "Options" and make sure "Share files and folders using AFP" is checked and "Share files and folders using SMB" (This will require your admin password to activate) lastly make sure your account is also checked as active.

Ensure that your Mac is successfully connected to the wireless network. Note, you may need to wait for few minutes for the changes to take effect.

You should now be able to access the audio files on your Mac by selecting 'Browse > SharedFolders' on iBLIK, then selecting your Mac from the list of devices. On selecting your Mac, you should see your folder that you selected above.

DAB Mode

Choosing a Station

Extend the telescopic antenna found on the rear of iBLIK RadioStation.
Enter 'DAB Mode' from the Main Menu or by pressing the MODE key until 'DAB Mode' is displayed on iBLIK's LCD display.
If this is the first time iBLIK RadioStation has been used in DAB Mode, it will scan for DAB stations in your area and store them in memory.
- When the station scan has been completed, stations will be displayed in numeric then alphabetic order. The first station in the list will be selected.
If no DAB signal is found, it may be necessary for you to relocate your radio. Or visit www.ukdigitalradio.com/coverage to check that DAB coverage is available in your area.
Select your station choice by using the and cursor keys, scroll through the station list and press SELECT or the key to make your selection.

MODE

DAB Mode

m7

Scanning...

i

BrwRok

BECAsian

BBC 6Music

Service not available

中

Playing

To Change the Display Mode

• iBLIK has nine different display modes.

Simply press the INFO button to cycle through each mode. These display modes are explained in the table opposite:

Display option Example

Normal display

with scrolling text

P

Clls: Rost max

in7

Signal level,

indicator on bar

shows minimum

acceptable level

i.1kSPORT

糟

m7

1

Type of broadcast

D

EPA

in7

Broadcaster

BECReacti

BEC National DFE

B

Station name and

BPC

1.2023年4月2日

m7

.

Signal strength

BBC Radio 1

5.4.3.10

12

96

Data rate and

1

1202kpm 6

1

Time

Pepo

11:48:03

m = 311

Date

E

18.12-2007

DAB Mode Menu Options

iBLIK RadioStation has a number of additional functions that are accessed through the DAB Mode menu, as follows:

Station Order

Press the MENU key in DAB Mode then press select Station order.

To specify the order in which stations are displayed

Select the Station order option.
Use the and cursor keys to scroll through the options, and press SELECT or the key to make your selection.

The following table describes the options available under the 'Station Order' menu:

Station order Description

Alphanumeric Lists stations in alphabetical order.

Ensemble Lists stations by multiplex.

Valid Lists only active stations

Manual Tune

Choose the Manual Tune option from the DAB Mode menu.
The Manual Tune selection screen allows you to select a particular frequency to tune to. The list of frequencies displayed is dependant on the currently-set frequency band and contains all of the frequencies within that band. It starts with the short name of the frequency, for example 12B, and is followed by the actual frequency in MHz.
If there is a station corresponding to this station number and frequency, the display will show the name, frequency, and a tuning meter will show the signal strength.

DRC - Dynamic Range Control

iBLIK RadioStation includes a dynamic range control that automatically boosts the volume of quieter sounds for listening in noisy environments.
The DRC control is found in the DAB Mode menu under 'DRC'. There are three pre-defined settings as follows:

Local and Full Scan

As time passes, new stations will become available in your area. To find them and add them to your station list it is necessary to perform either a 'Local' or 'Full' scan. Both operations can be accessed via the DAB Mode menu.
A Local Scan performs a shorter scan of only the 'local' ensemble range.
A Full Scan will take longer, but will cover the complete DAB ensemble range.

Favourite Station Presets

• iBLIK RadioStation allows you to store 10 favourite station presets, either via the 10 preset keys on iBLIK itself, or on the iBLIK remote control.
  To save the station you are currently listening to as a preset, simply press and hold a preset key (from 1 - 10) for 2 seconds. iBLIK will confirm that the key has been programmed by displaying 'Preset Stored' on iBLIK's LCD screen.
  Please note, if you store a preset on a key that was already holding a favourite station, the previous station will automatically be erased.

DRC Description

DRC Low Dynamic Range Control is set to half

DRC High The recommended setting for noisy environments

DRC Off Dynamic Range Control is switched off

FM Mode

• Extend the telescopic antenna found on the rear of iBLIK RadioStation.
  Enter FM Mode' from the Main Menu or by pressing the MODE key until FM Mode' is displayed on iBLIK's LCD display.
  If this is the first time iBLIK has been in FM mode, it will start at the beginning of the FM frequency range. Otherwise, the last FM station you were listening to will be selected.
  To scan through the FM frequency range press the and buttons.
  To 'SEEK' the next active station, press the SELECT button.

Favourite Station Presets

iBLIK RadioStation allows you to store 10 favourite station presets, either via the 10 preset keys on iBLIK itself, or on the iBLIK remote control.
To save the station you are currently listening to as a preset, simply press and hold a preset key (from 1 - 10) for 2 seconds. iBLIK will confirm that the key has been programmed by displaying 'Preset Stored' on iBLIK's LCD screen.
Please note, if you store a preset on a key that was already holding a favourite station, the previous station will automatically be erased.

MODE

87.5倍比z

F1

BBC Radio 1 Preset Stored

MPort Mode

Using MPort

Revo's MPort connector allows for quick and easy connection of an iPod, similar MP3 player or sound source.
Using the connection lead supplied, iBLIK is transformed into a high quality digital audio speaker system.
- Connect one end of the supplied audio lead to the headphone (or auxiliary out) socket of your source device, then connect the other end to the MPort on the side of iBLIK.
Now press the MODE key and cycle through the options until 'MPort Mode' is displayed.

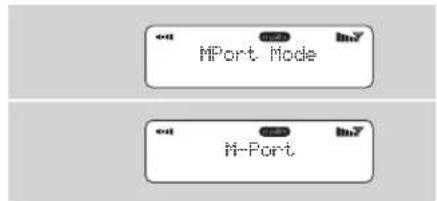

iBLIK's LCD screen will now display the word 'MPort' on its screen.
- You should adjust the output volume level on both the source device and on iBLIK itself to gain optimal volume levels and sound performance.

iPod Mode

Selecting and Fitting the Dock Adaptor

Before using your iPod with iBLIK RadioStation, please select the adapter that is compatible with your model of iPod, as detailed in the table below:

Clock Adapter number	iPod 4th generation (colour display)	iPod nano 1st generation	iPod 5th generation (video)	iPod nano 2nd generation (-aluminium)	iPod mini	iPod classic
3					4GB, 6GB
6	20GB, 30GB
7	40GB, 60GB
8		1GB, 2GB, 4GB
9			30GB			80GB
10			60GB, 80GB			160GB
11				2GB, 4GB, 8GB

The table above lists the seven iPod Dock Adaptors that are supplied with iBLIK RadioStation.

Each Dock Adaptor is numbered (see diagram on right).

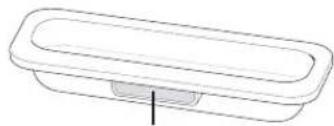

Select the correct adapter number and clip it into the recess on the top face of iBLIK, ensuring that the number side is facing the rear.

iBLIK is compatible with all iPod models that connect to the iPod Universal Dock.

A compatible Dock Adaptor is supplied with most iPod models, if you do not have one, you should contact Apple.

Dock Adaptor Number

Connecting an iPod

Enter 'iPod Mode' from the Main Menu or by pressing the MODE key until 'iPod Mode' is displayed on iBLIK's LCD display.

Controlling Your iPod

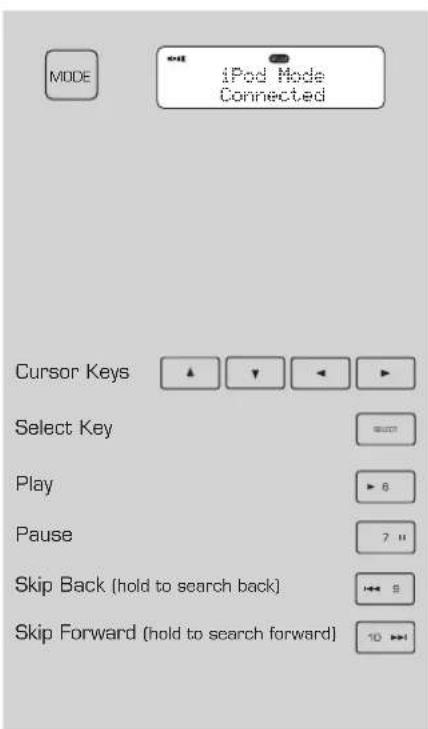

Once connected, you can control the iPod in three different ways as follows:

1] By using the controls on the iPod itself, as normal.

2] By using the keys on the iBLIK's keypad as follows:

3) By using the iBLIK RadioStation remote control. These keys behave in the same way as the controls on the iBLIK keypad.

Alarms Mode

iBLIK RadioStation must have its clock and date set to use the alarm functionality.

Full instructions can be found on page 6 of this operating guide.

Setting An Alarm

iBLIK allows you to store up to four different alarm programmes in memory.
To set an alarm, press the ALARM button.
iBLIK will now ask you to choose which of the four alarm memories you'd like to use. Use the and keys too choose an alarm and press SELECT.
You can now switch this alarm on or off
To set the wake-up time, press SELECT and use the and keys to set the wake up hour, then press SELECT or the key to move onto the minute setting. When your wake-up time has been set, press SELECT.
- You can now choose the alarm type. To choose alarm type, use the and cursor until 'Days' is displayed, then press SELECT or the key. There are four options: Daily, Once, Weekdays or Weekends. Make your selection using and then confirm by pressing SELECT or the key.
You can now decide whether you would like to be waken up by Internet Radio, DAB, FM, iPod or Buzzer. To choose the wake-up mode press the key to view the 'Mode' option and press SELECT.
You can now decide whether you would like to be woken-up by the last played station, or by a specific preset (if none are set, iBLIK will wake you up using the default Buzzer).
You will now have the option to set the wake-up volume for your alarm. Use the and keys to adjust the volume and press SELECT to set.
Finally, you should select Save from the menu to complete your alarm programme.
When iBLIK has an active alarm in its memory, the alarm icon will appear on the top line of iBLIK's display at all times.
To halt an alarm, press any button on iBLIK's keypad. Alternatively, tap the SNOOZE button to mute the alarm for a period of 5 minutes. When iBLIK is in Snooze mode, the Snooze icon will be displayed on the LCD screen, together with the current time and remaining Snooze time.
To cancel a preset alarm, go back into the ALARM programming mode and change ON' to OFF. The details of the alarm will continue to be retained in memory, and the alarm programme can be switched back on again at a later date.

Alarm1:Off
Alarm2:Off

Set Alarm Time 07:15

Days: Dails Mode: DAB Mode

Dally Once

Internet Radio DFB Mode

Mode: DAB Mode Last listened

1

W

1 27 Wm707:28:915:00

07:15

off

Sleep Mode

Setting A Sleep Period

It is possible to programme iBLIK RadioStation to turn off after a predefined period of time. To do so, select the 'Sleep' option from the Main Menu.
Now, using the and keys, you can select a sleep time period of 15, 30, 45, 60, 75 or 90 minutes.
iBLIK will now automatically put itself into standby mode after the time has elapsed.

System Setup

Internet Setup

Advanced users can find and edit their Wi-Fi settings in this section, these include MAC address, DHCP status, PC Settings,SSID, IP Settings etc.

Time Setup

The time can be set in one of two ways, either manually via the System Setup option on the Main Menu, or alternatively simply press the MODE key until iBLIK RadioStation enters DAB Mode. In DAB mode, iBLIK will automatically set the correct time and date from the DAB transmitter. iBLIK will remember its time setting even when in standby mode, and will only lose the time/date when power is removed.
Under the 'Time Setup' menu, you can also switch between 12 an 24 hour clock formats.
Lastly, the 'Auto Update' option in the Time Setup' menu allows you to select whether or not the time should be synchronised with the DAB broadcaster clock or from the internet. If 'No Update' is selected, then the clock remains as manually set.

Factory Reset

In the unlikely event that iBLIK RadioStation should 'crash', freeze' or start behaving in a strange way, it is possible to perform a full software reset. This operation will completely reset iBLIK's memory, clearing all WEP/WPA codes and user settings. This will effectively return iBLIK to its default factory settings.

Software Update

It is possible to remotely update iBLIK RadioStation's software via your Wi-Fi internet connection, to ensure that you have all the latest features, or to fix known bugs in the software. To check whether there are any updates available, simply go to the 'System Setup' option on the 'Main Menu' and select 'Software Update'. iBLIK will search to see if a software update is necessary, then report back. If an update is available and necessary, iBLIK will start the download process and install its new software automatically.

Info

Software Version and Radio ID

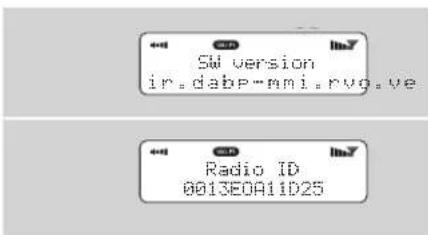

You may be asked for one or both of these pieces of information when dealing with a technical support issue.
Both can be found under the 'Info' heading, located in the 'Main Menu'.

Troubleshooting

Wi-Fi Internet Radio

If you are experiencing any problems with your iBLIK RadioStation please read the following 'troubleshooting' guide. Alternatively you can visit the support section of the Revo website (www.revo.co.uk) or call our technical support staff on 01555 66 61 61.

If you have trouble connecting iBLIK RadioStation to your wireless network, these steps may help to resolve the problem:

1. Confirm that a Wi-Fi connected PC can access the Internet (i.e. can browse the web) using the same network.
2. Check that a DHCP server is available, or that you have configured a static IP address on the radio.
3. Check that your network's firewall is not blocking any outgoing ports.

As a minimum, iBLIK RadioStation needs access to UDP and TCP ports 80, 554, 1755, 5000 and 7070.

1. Check your access point does not restrict connections to particular MAC addresses. You can view the radio's MAC address under the 'Internet Setup' section, accessed via the 'System Setup' option on iBLIK's main menu.
2. If you have an encrypted network, check that you have entered the correct key or pass phrase into the radio. Remember that text-format keys are case sensitive. If, when attempting to connect to an encrypted network, your radio displays: 'Wireless error' followed by a 5-digit number, then please ensure that you enter the correct pass phrase for the network. If the problem persists, then you may need to consult your network configuration.

If iBLIK RadioStation can connect to the network successfully, but is unable to play particular stations, it may be due to one of the following causes:

1. The station is not broadcasting at this time of the day [remember it may be located in a different time zone].
2. The station has reached the maximum allowed number of simultaneous listeners.
3. The station is not broadcasting anymore.
4. The link on the radio is out of date.
5. The Internet connection between the server (often located in a different country) and you is slow.

DAB Digital Radio

I hear a 'burbling' noise on some stations.
A. If the signal strength is too low, a breakup in reception can occur. This sound is the result. Make sure that iBLIK's antenna is fully extended and in an upright position. If the problem persists, move iBLIK to another location or check that you are in an area where reception of this station is possible. Visit: www.ukdigitalradio.com/coverage to check DAB coverage in your area.
a. I get a 'No stations available' message?
A. Make sure that your antenna is fully extended and vertical. Check the signal strength and move iBLIK to another location if necessary.
a. iBLK's clock isn't set.
A. iBLIK needs to be able to pick-up a DAB signal or have its clock set manually. See page 6 for full instructions on how to set the time and date.

User Licence

By using this product, the user agrees to the following End User Licence conditions:

1) Refrain from modifying, translating, reverse engineering, decompiling, disassembling or using other means to discover the Source Code or otherwise replicate the functionality of the Client Code, except to the extent that this restriction is expressly prohibited by applicable law.
2) This agreement disclaims on behalf of Real Networks Inc. all warranties and conditions other than those set forth in this End User Licence, express and implied, including implied warranties or conditions of merchantability and fitness for a particular purpose; and effectively exclude all liability for indirect, special, incidental and consequential damages, such as lost profits.
3) This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a licence from Microsoft.

REVO

ibLil

R A D I O

STATION

Revo Technologies Ltd The Inox Building

Caldwellside Lanark

Scotland, United Kingdom ML11 7SR

Règles de sécurité

Email. [e-mail]

Site Internet: www.revo.co.uk

Controls and Connectors

Media Player Controls

Jouer

Pause

Saut arrriere

Saut avant

Télékommande

Média partages (UPnP)

Service not available

中

BBLBRSIC

Play ing

Normal display with scrolling text

P

ENL RADIO I

CANS COST MAX

Signal level,

indicator on bar

shows minimum

acceptable level

tIKSPORT

糟凿凿凿门糟凿凿凿

Type of broadcast

1

100,9810 1

FOP MUSIC

Broadcaster

1

EMC National

Station name and

EPC

10

中

BBC Radio 1

Sig strength

Data rate and

中

BSC 59101

12CRBFR Spero

Time

中

EBC Radio 6M

11:48:03

Date

中

1042007

10-12-2007

Options du menu en mode DAB

Station order Description

Clock Adapter number	iPod 4th generation (colour display)	iPod nano 1st generation	iPod 5th generation (video)	iPod nano 2nd generation (-aluminium)	iPod mini	iPod classic
3					4GB, 6GB
6	20GB, 30GB
7	40GB, 60GB
8		1GB, 2GB, 4GB
9			30GB			80GB
10			60GB, 80GB			160GB
11				2GB, 4GB, 8GB

Days: Dails Mode: DAB Mode

Dally Once

Internet Radio DFB Mode

Mode: DAB Mode Last listened

1111 1111

W

-22 07:20:015:00

-07:15

off

Mode de veille

Revo Technologies Ltd

The Inox Building

Caldwellside

Lanark

Scotland, United Kingdom

ML11 7SR

Tel. [phone]

Int. Tel. [phone]

Fax.[phone]

Int. Fax. [phone]

Email: [e-mail]

Website: www.revo.co.uk

Media Player Controls

1. Media Player Controls

Pause

Wiedergabe

Rücklauf Vorlauf

The time and date can be set in one of two ways, either manually from the Time Setup menu, or automatically by selecting Auto update from the Time Setup Menu as follows:

Manuell

Zeit

Music Player Operation

Clock Adapter number	iPod 4th generation (colour display)	iPod nano 1st generation	iPod 5th generation (video)	iPod nano 2nd generation (-aluminium)	iPod mini	iPod classic
3					4GB, 6GB
6	20GB, 30GB
7	40GB, 60GB
8		1GB, 2GB, 4GB
9			30GB			80GB
10			60GB, 80GB			160GB
11				2GB, 4GB, 8GB

Days: Daily Mode: DAB Mode

Daily Once

Internet Radio DAB Mode

Mode: DFB Mod Last listened

Harn Volur

1

07:20:01 5:00

07:15

off

Schlaf Funktion

Setting A Sleep Period

Revo Technologies Ltd

The Inox Building

Caldwellside

Lanark

Scotland, United Kingdom

ML11 7SR

Tel. [phone]

Int. Tel. [phone]

Fax.[phone]

Int. Fax. [phone]

Email: [e-mail]

Sito web: www.revo.co.uk

Controls and Connectors

Comandi Media Player

Play Pausa Skip Indietro Skip Avanti

Telekomando

5. Comandi Media Player

Pause

Play

Skip Back Step Forward

Radio Wi-Fi: Memorizzare Username e Password

Media Condivisi (UPnP)

Clock Adapter number	iPod 4th generation (colour display)	iPod nano 1st generation	iPod 5th generation (video)	iPod nano 2nd generation (-aluminium)	iPod mini	iPod classic
3					4GB, 6GB
6	20GB, 30GB
7	40GB, 60GB
8		1GB, 2GB, 4GB
9			30GB			80GB
10			60GB, 80GB			160GB
11				2GB, 4GB, 8GB

Copyright 2008 Revo Technologies Ltd. All rights reserved.

Revo Technologies Ltd

The Inox Building

Caldwellside

Lanark

Scotland, United Kingdom

ML11 7SR

Tel. [phone]

Int. Tel. [phone]

Fax. [phone]

Int. Fax. [phone]

Email: [e-mail]

Website: www.revo.co.uk

[e-mail] Eller gā inn pa hjemmesiden for feilsaicking pa web: www.revo.co.uk/support

Made for

iPod

Media Player Controls

Play

Fjernkontrollen

1.Scroll Back
2. Select
3. Menu
4. Scroll Down
5. Media Player Controls
6. Presets 1-10
7. Alarm / Clock
8. Snooze / Sleep
9. Info
1D. Volume Down
11. Scroll Forward
12. Volume Up
13. Power On/Off
14.Mode
15.ScrollUp

1. Media Player Controls

Pause

Play

Skip Back Shift Forward

Music Player Operation

Shared Folders (CIFS)

Station order Description

Clock Adapter number	iPod 4th generation (colour display)	iPod nano 1st generation	iPod 5th generation (video)	iPod nano 2nd generation (-aluminium)	iPod mini	iPod classic
3					4GB, 6GB
6	20GB, 30GB
7	40GB, 60GB
8		1GB, 2GB, 4GB
9			30GB			80GB
10			60GB, 80GB			160GB
11				2GB, 4GB, 8GB

Tabellen over gir 7 muligheter for "iPod Dock" adaptere somkommen med iBLIK RadioStation.

m = 311

Innsovnings modus

Stille inn en innsvningsperiode

Software Version and Radio ID

You may be asked for one or both of these pieces of information when dealing with a technical support issue.
Both can be found under the 'Info' heading, located in the 'Main Menu'.

Radio is our Religion

Revo Technologies Ltd The Inox Building Caldwellside Lanark Scotland United Kingdom ML11 7SR

Telephone Support 01555 686 161

Online Support www.revo.co.uk/support [e-mail]
