USER MANUAL Clipster Active ION
User Guide (English)
- Make sure all items listed in the BOX CONTENTS are included in the box.
- READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.
- MAKE SURE THAT YOU HAVE COMPLETELY CHARGED THE BATTERY PRIOR TO FIRST USE FOR MAXIMUM BATTERY LIFE.
Box Contents
- Clipster Active
Active Mount - Mounting Strap
USB Charging Cable
Quickstart Guide
Go to ionaudio.com for product registration.
Charging Clipster Active
Use the included micro-USB cable to connect Clipster Active to (A) a USB power adapter connected to a power outlet or (B) your computer (powered on) for 2.5 hours.
Setup
- Connect Clipster Active's hook to secure material such as a backpack loop, belt loop or purse handle.

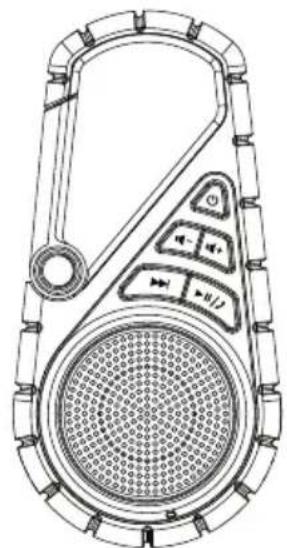

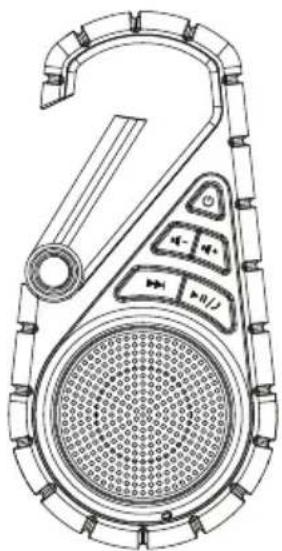

- Make sure the hook is locked into place (see pictures below).
UNLOCKED
LOCKED

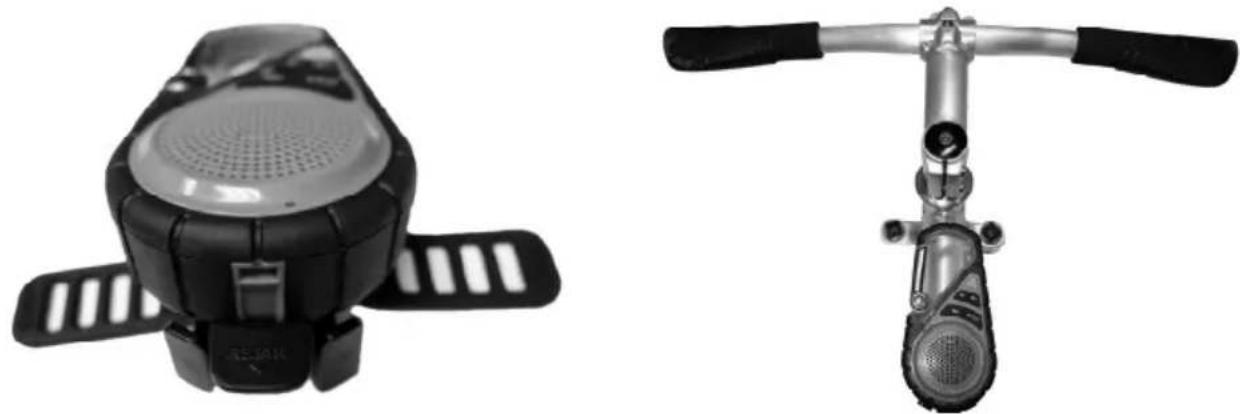

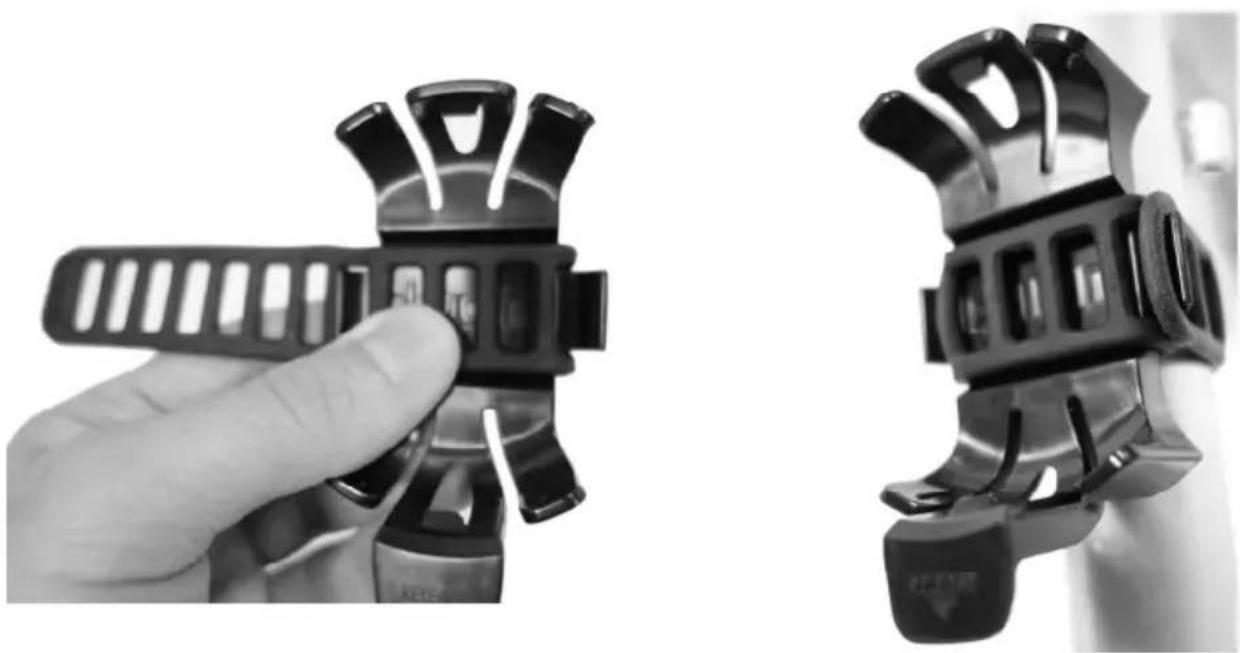

Connecting the Active Mount to Clipster Active
To connect the Active Mount to Clipster Active:
- Connect the mounting strap slots to the hook on one side of the Active Mount.
- Wrap the mounting strap around a bike frame tube (or any sturdy place you would like to mount Clipster Active) and connect the strap to the hook on the other side of the Active Mount to secure the connection.
- Insert the front hook first, then rock the unit back toward the release latch for easy installation.
- To remove the Active Mount from Clipster Active, press down on the release latch on the Active Mount.

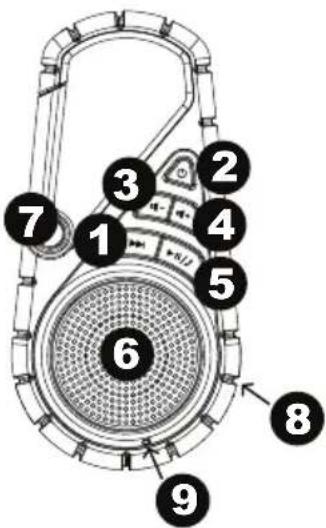

Parts Description
- Track Skip: Press this button to advance to the next track on a connected Bluetooth device.
- Power On/Off: Hold this button down for 3 seconds to power Clipster Active on/off.
- Volume Down: Decreases the speaker volume on Clipster Active.
- Volume Up: Increases the speaker volume on Clipster Active.
- Play/Pause/Call-Answer: Press this button to start/pause music playback on a paired music device. Press this button to answer a call. To disconnect a phone call, press and release the button.
- Speaker: This full-range speaker plays audio from a paired Bluetooth device.
- Clip: Use this carabiner style "hook" to clip to a belt loop, backpack, or purse.
- Micro-USB Port: Use the included micro-USB cable to connect this port to a computer USB port to charge Clipster Active.
- Microphone: The signal sent from the built-in microphone is sent to a paired Bluetooth device.
Pairing a Bluetooth Device
- Press and hold the Power button for 3 seconds to power on Clipster Active.
- Open Bluetooth settings on your music device (smartphone, tablet, etc.).
- Connect to Clipster Active.
- If your device requires a passcode or PIN, enter the number zero ("0") four times.
- Play music and adjust Clipster Active volume buttons.
- Attach the active mount to the location of your choice, adjusting the mounting strap length and tightness.
- To disconnect the Bluetooth connection, hold the Play/Pause/Call-Answer button for 2 seconds.
LED Activity:
Blinking Blue LED = Bluetooth pairing mode
Solid Blue LED = Connected to a Bluetooth device
Blinking Red LED = Battery is low and needs to be recharged
Solid Red LED = The Battery Charging LED will be lit while the unit is charging and the red LED will turn off when charging has completed.
Answering Phone Calls
- Press and release the Play/Pause/Call-Answer button.
- Adjust volume with the Volume Down/Up controls.
- To disconnect a phone call, press and release the Play/Pause/Call-Answer button.
Standby Mode
Clipster Active will power off after 15 minutes if no audio is playing, and there is no Bluetooth connection.
Per collegare Active Mount al Clipster Active:
Technical Specifications
Battery: Built-in rechargeable lithium-ion battery
Battery Life: 3-4 hours (at max volume); 15-20 hours (at 50% volume)
Power input for charging: 5V DC, 0.2A
Speaker Output: 1.5W
Supported Bluetooth Profile: A2DP, HFP, and AVRCP
Trademarks and Licenses
ION Audio is a trademark of ION Audio, LLC, registered in the U.S. and other countries.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by ION Audio is under license.
All other product or company names are trademarks or registered trademarks of their respective owners.
