USER MANUAL KDLH7R JVC

Technical line drawing of two electronic component blocks with an arrow indicating assembly (no text or symbols)

KD-LH5R

JVC 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 560 570 580 590 600 610 620 630 640 650 660 670 680 690 700

For installation and connections, refer to the separate manual.

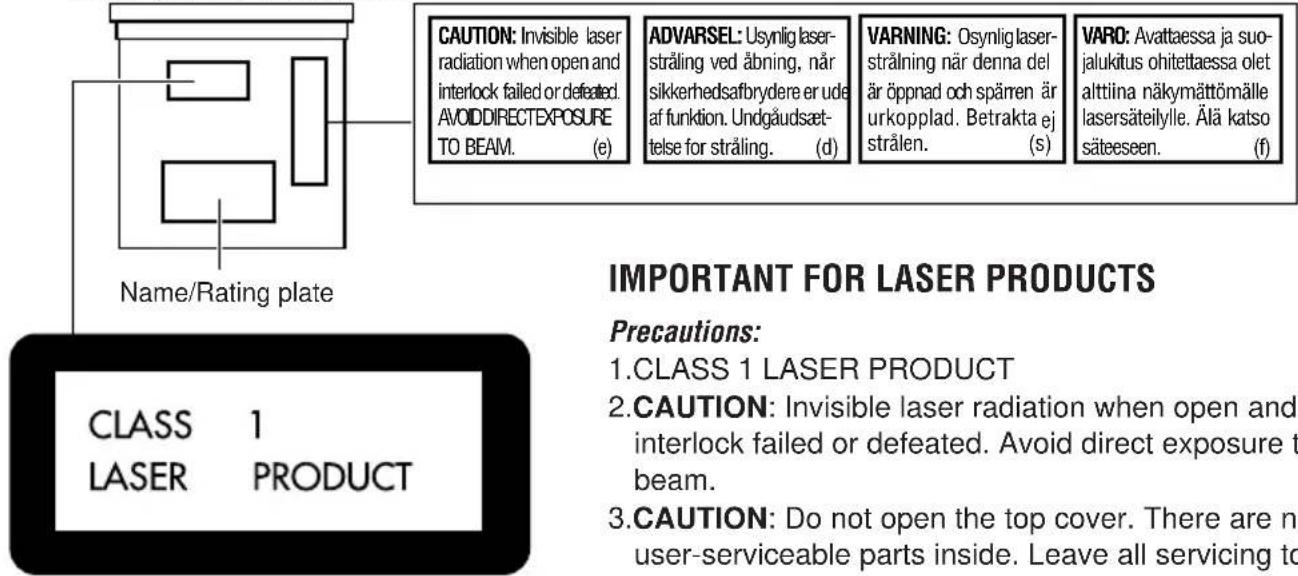

Bottom panel of the main unit

CAUTION: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e) ADVARSEL: Usynlig laser-stråling ved åbning, när sikkerhedsafbrydere er ude af funktion. Undgåudsæt- telse for stråling. (d) VARNING: Osynlig laser-strålning när denna del är öppnad och spären är urkopplad. Betrakta ej strålen. (s) VARO: Avattaessa ja suo-jalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f) IMPORTANT FOR LASER PRODUCTS Precautions: 1.CLASS 1 LASER PRODUCT 2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. 3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to

Caution:

This product contains a laser component of higher laser class than Class 1.

IMPORTANT FOR LASER PRODUCTS

Precautions:

1. CLASS 1 LASER PRODUCT
2. CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.
4. CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.
5. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

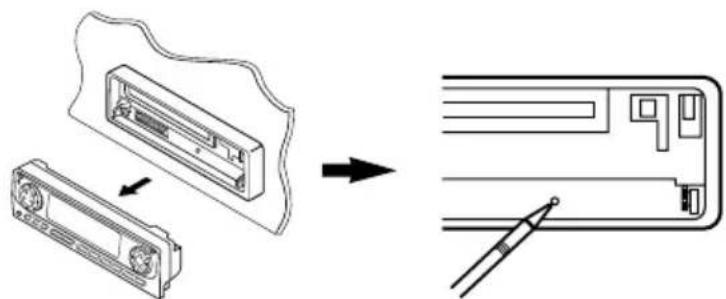

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or similar tool.

This will reset the built-in microcomputer.

Diagram illustrating the process of inserting a device into a memory card, with an arrow indicating the transformation.

Note:

- Your preset adjustments – such as preset channels or sound adjustments – will also be erased.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit's chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

\*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.

\* Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

CONTENTS

How to reset your unit.... 2

How to use the MODE (M) button ...... 3

LOCATION OF THE BUTTONS...... 4

Control panel 4

Preparing the remote controller .... 5

Remote controller 6

BASIC OPERATIONS ...... 7

Turning on the power 7

RADIO OPERATIONS...... 8

Listening to the radio 8

Storing stations in memory 10

Tuning in to a preset station 11

RDS OPERATIONS ...... 12

What you can do with RDS.... 12

Other convenient RDS functions and adjustments 16

CD OPERATIONS ...... 19

Playing a CD 19

Locating a track or a particular portion on a CD 20

Selecting CD playback modes.... 21

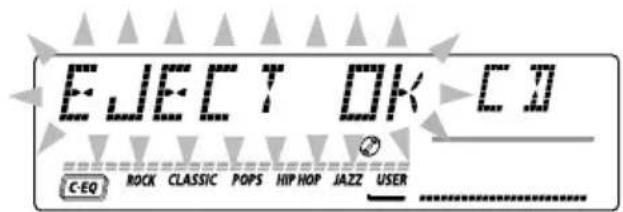

Prohibiting CD ejection 22

Playing a CD Text 22

MP3 INTRODUCTION 23

(ONLY FOR KD-LH7R)

What is MP3? 23

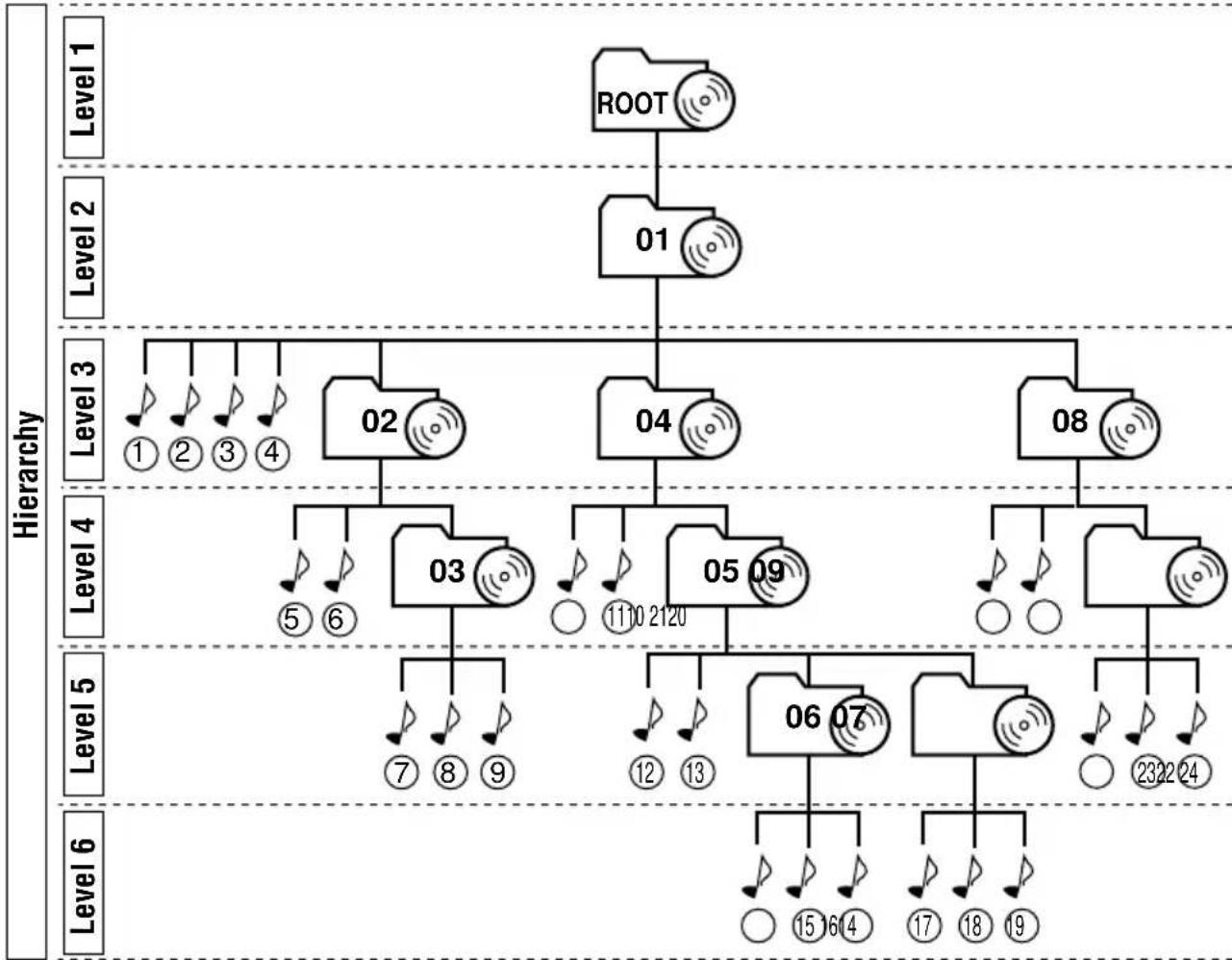

How are MP3 files recorded and played back? 23

MP3 OPERATIONS ...... 25

(ONLY FOR KD-LH7R)

Playing an MP3 disc 25

Locating a file or particular portion on an MP3 disc 26

Selecting MP3 playback modes 28

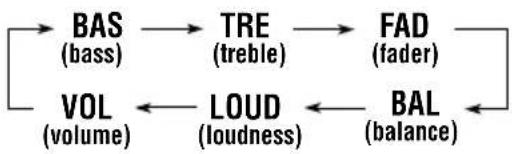

SOUND ADJUSTMENTS 29

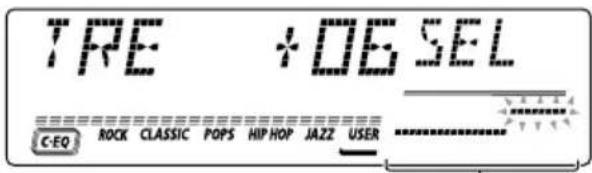

Adjusting the sound 29

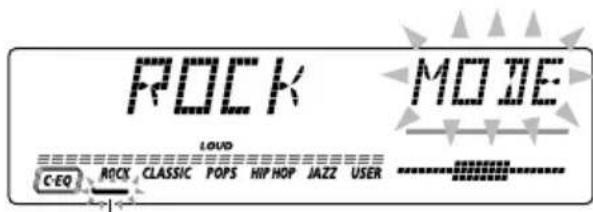

Selecting preset sound modes (C-EQ: custom equalizer) 30

Storing your own sound adjustments ..... 31

OTHER MAIN FUNCTIONS ...... 32

Setting the clock 32

Changing the general settings (PSM) ..... 32

Assigning names to the sources (only for KD-LH7R) 36

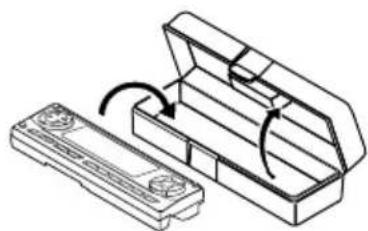

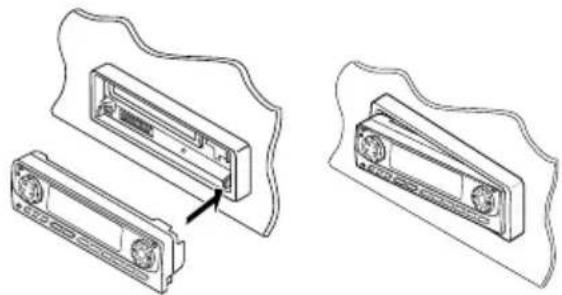

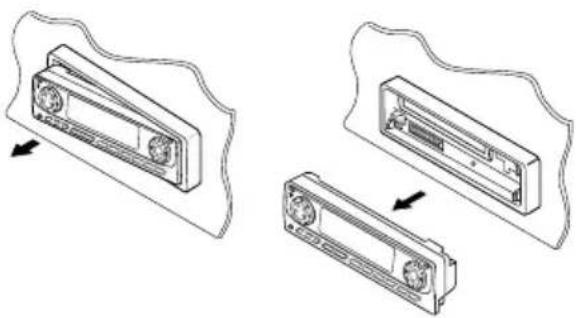

Detaching the control panel.... 37

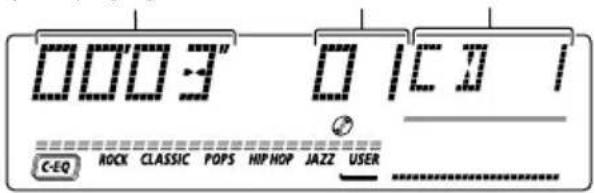

CD CHANGER OPERATIONS ...... 38

Playing CDs 38

Selecting CD playback modes.... 40

EXTERNAL COMPONENT OPERATIONS ... 41

Playing an external component 41

DAB TUNER OPERATIONS ...... 42

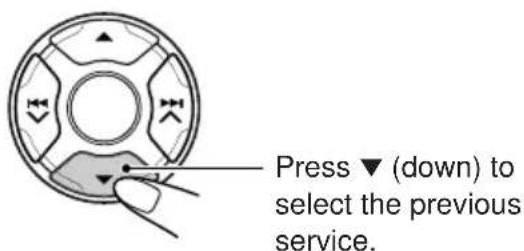

Tuning in to an ensemble and one of the services 42

Storing DAB services in memory 44

Tuning in to a preset DAB service 44

What you can do more with DAB...... 45

TROUBLESHOOTING.... 46

MAINTENANCE 48

Handling CDs 48

SPECIFICATIONS 49

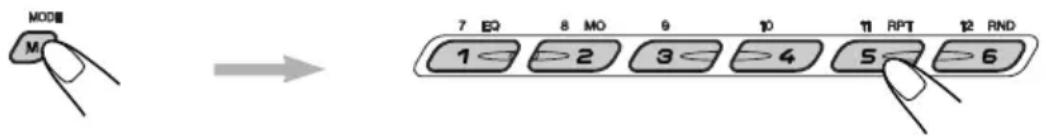

How to use the MODE (M) button:

If you press MODE (M), the unit goes into functions mode and the number buttons work as different function buttons.

MODE M 7 EQ 8 MO 9 10 11 RPT 12 RND 1 < >2 3 < >4 5 < >6

To use these buttons as number buttons again after pressing MODE (M), wait for 5 seconds without pressing any number button until the functions mode is cleared.

- Pressing MODE (M) again also clears the functions mode.

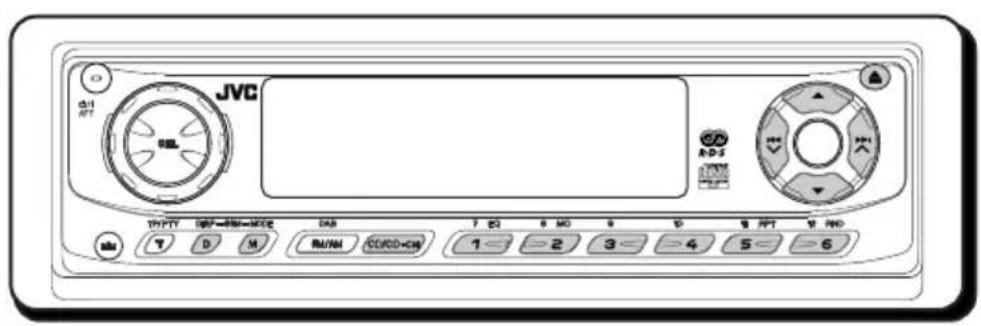

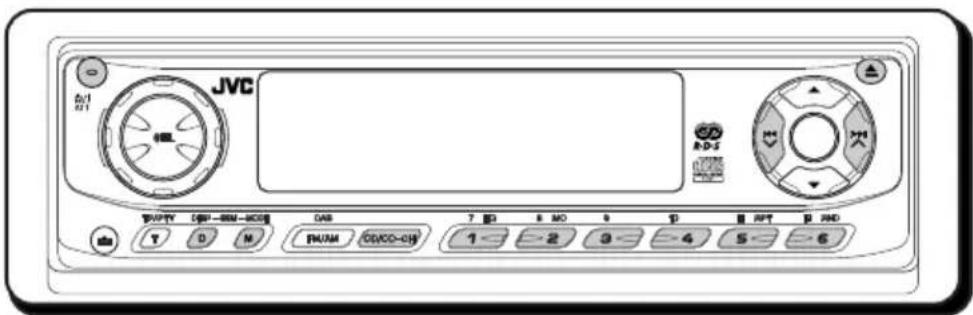

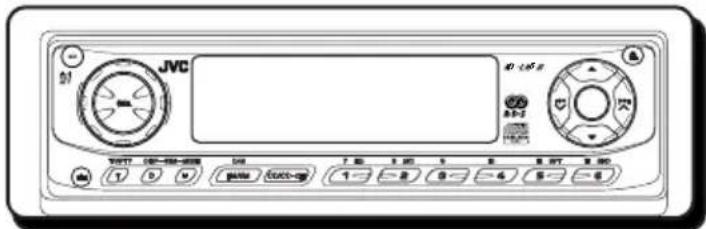

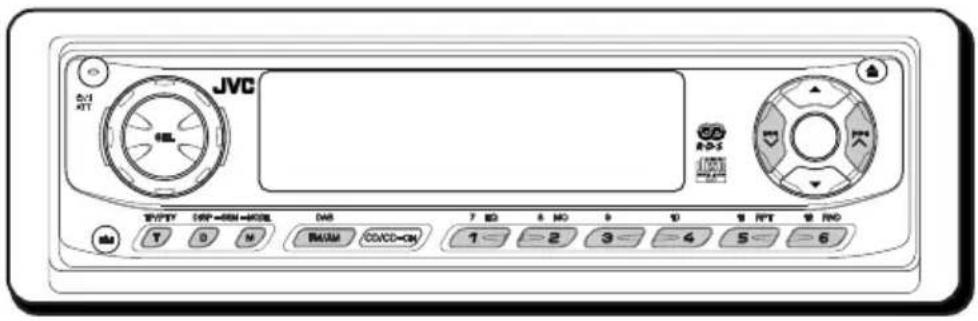

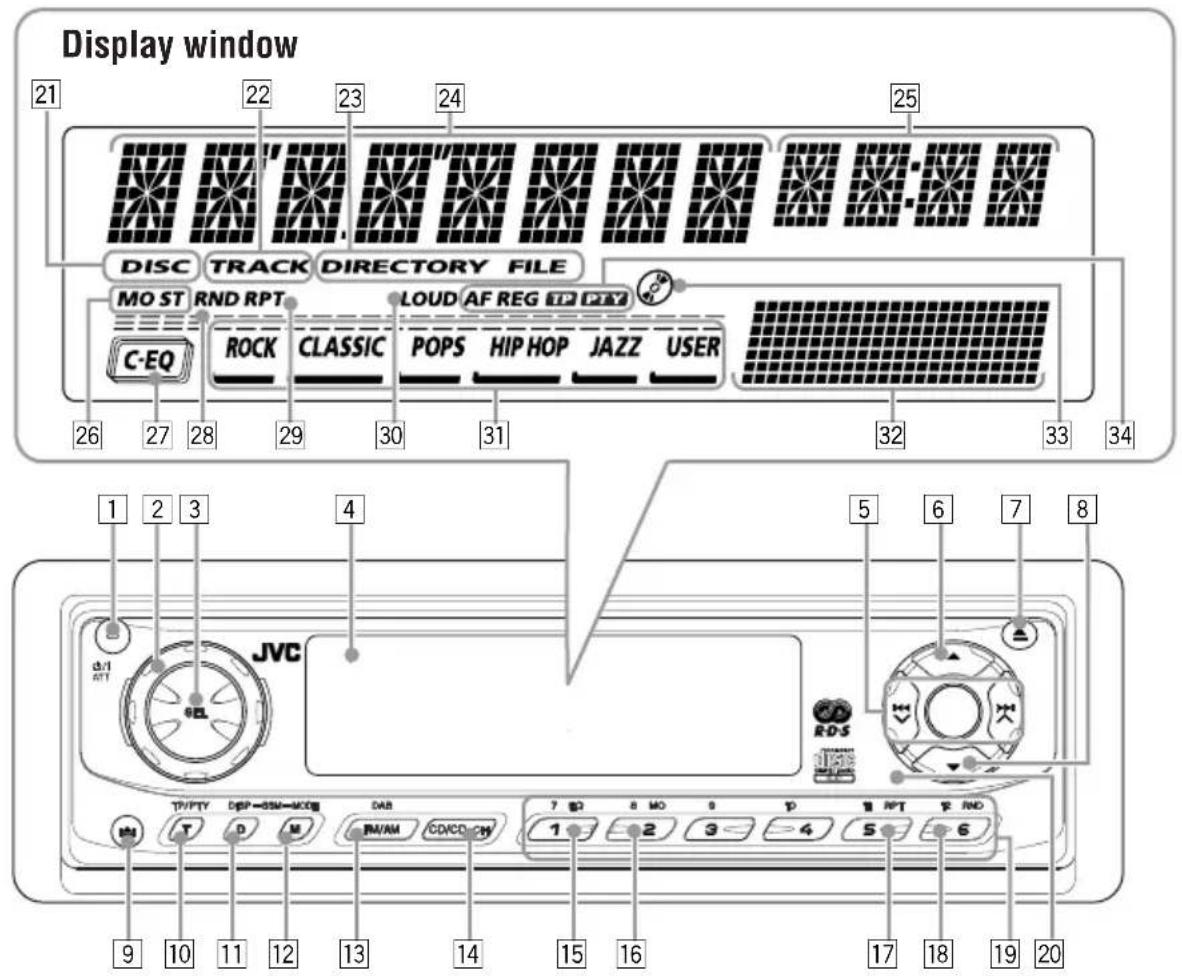

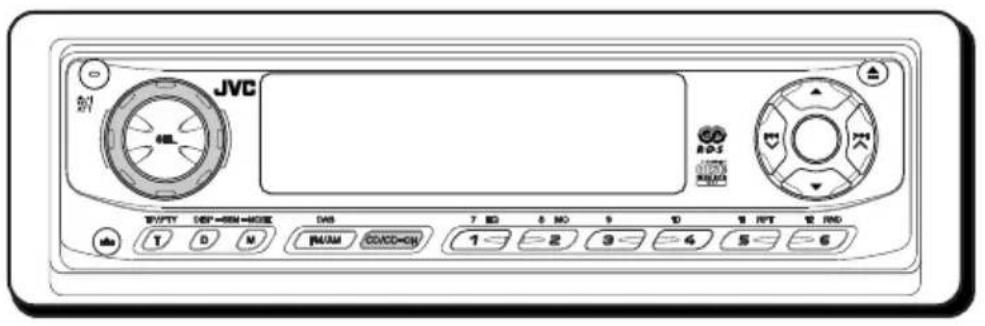

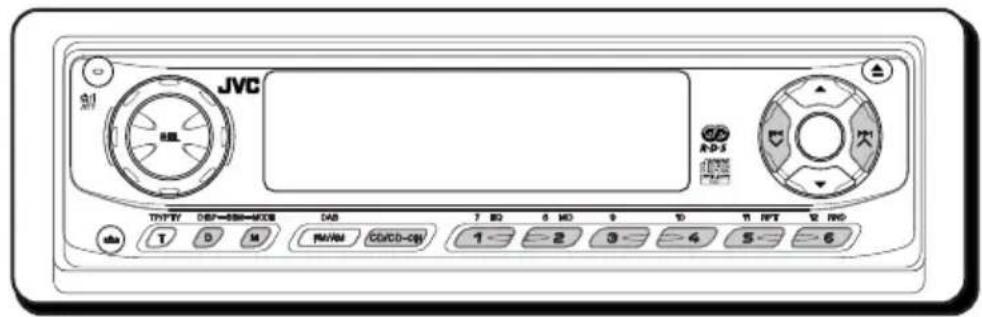

Control panel

Display window 21 22 23 24 25 DISC TRACK DIRECTORY FILE MO ST RND RPT LOUD AF REG 12 CLASSIC POPS HIP HOP JAZZ USER C-EQ 26 27 28 29 30 31 32 33 34 1 2 3 4 d/1 JVC RDS TP/PTY Disp=85M=MCOS DAB 7 8 9 10 11 12 13 14 15 16 17 18 19 20 T D M FM/AM CD/CD CN 1 2 3 4 5 6

1 (standby/on/attenuator) button
2 Control dial
3 SEL (select) button
4 Display window

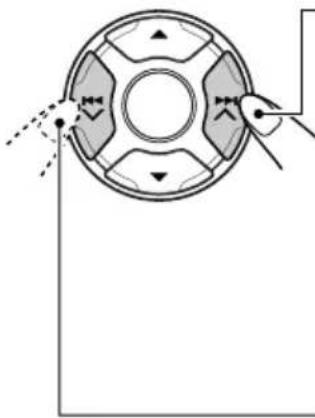

5 |◀◀ /▶◀ buttons
6 ▲ (up) button
7 ▲ (eject) button
8 ▼ (down) button
9 (control panel release) button
10 TP/PTY (T) (traffic programme/programme type) button
11 DISP (D) (display) button

- Also functions as SSM buttons when pressed together with MODE (M) button.

12 MODE (M) button

- Also functions as SSM buttons when pressed together with DISP (D) (display) button.

13 FM/AM DAB button
14 CD/CD-CH button
15 EQ (equalizer) button
16 MO (monaural) button
17 RPT (repeat) button
18 RND (random) button

19 Number buttons
20 Remote sensor

Display window

21 DISC indicator
22 TRACK indicator
23 MP3 indicators (only for KD-LH7R) DIRECTORY, FILE
24 Main display
25 Source/clock display
26 Tuner reception indicators MO (monaural), ST (stereo)
27 C-EQ (custom equalizer) indicator
28 RND (random) indicator

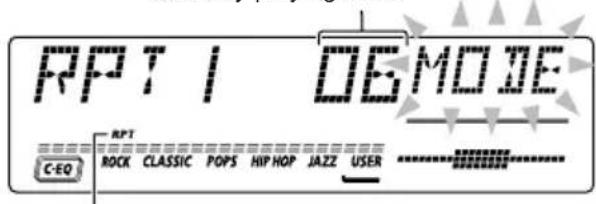

29 RPT (repeat) indicator
30 LOUD (loudness) indicator
31 Sound mode indicators ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER.
32 Volume (or audio) level indicator Equalization pattern indicator

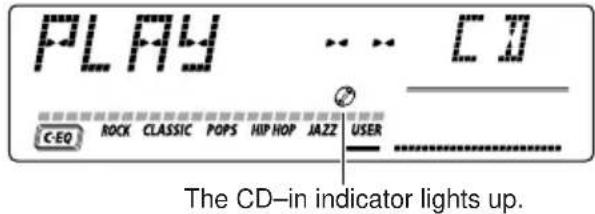

33 CD-in indicator

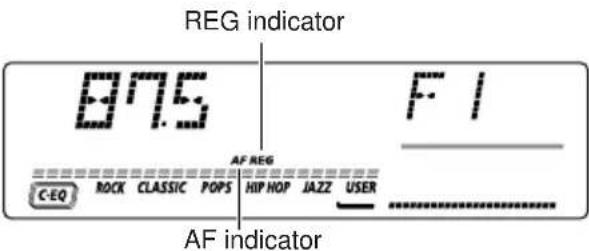

34 RDS indicators AF, REG, TP, PTY

Preparing the remote controller

This section is only for KD-LH7R.

KD-LH5R can also be remotely controlled with an optionally purchased remote controller. We recommend that you use remote controller RM-RK50 with your unit.

Before using the remote controller:

- Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between.

Remote sensor

Close-up of a computer control panel with buttons and a pointer (no readable text or symbols)

- Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

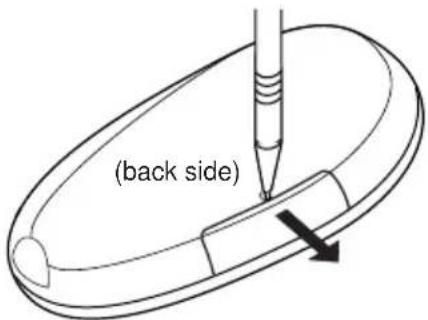

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Lithium coin battery (product number: CR2025)

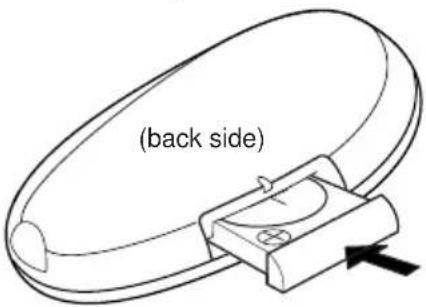

3. Return the battery holder.

Insert again the battery holder pushing it until you hear a clicking sound.

(back side)

WARNING:

- Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

- Do not recharge, short, disassemble or heat the battery or dispose it in a fire. Doing any of these things may cause the battery to give off heat, crack or start a fire.

- Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.

- When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack or start a fire.

- Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack or start a fire.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

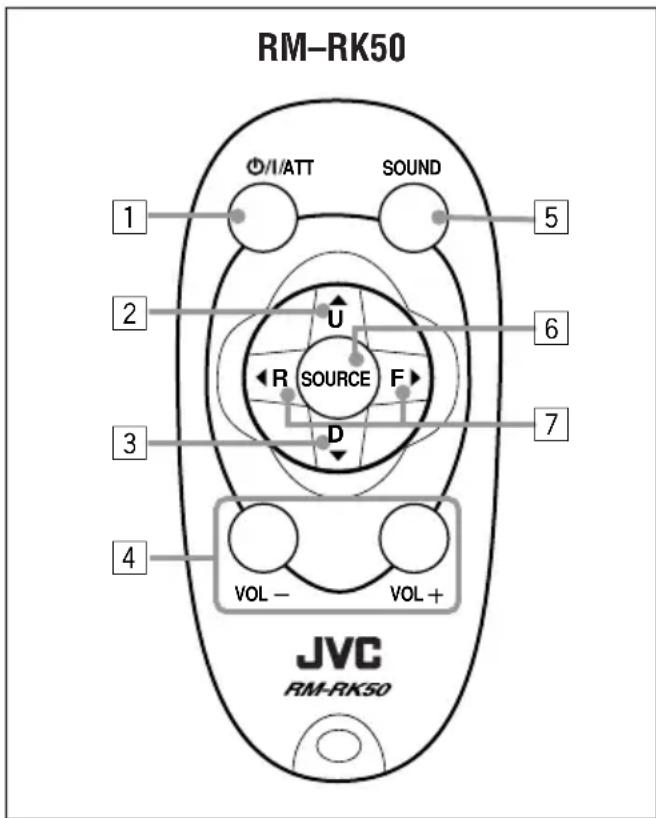

Remote controller

RM-RK50 I/ATT SOUND 1 2 U R SOURCE F 3 D 4 VOL - VOL + JVC RM-RK50

1• Turns on the unit if pressed when the unit is turned off.

• Turns off the unit if pressed and held until "SEE YOU" appears on the display.
• Drops the volume level in a moment if pressed briefly.

Press again to resume the volume.

2• Selects the band while listening to the radio (or the DAB tuner).

Each time you press the button, the band changes.

- Skips to the next disc while listening to the CD changer.

Each time you press the button, the disc number increases, and the selected disc starts playing.

- Skips to the first file of the next directory while listening to an MP3 disc. Each time you press the button, you can move to the next directory and start playing the first file—not available for KD-LH5R.

3• Selects the preset stations while listening to the radio (or the DAB tuner).

Each time you press the button, the preset station number increases, and the selected station (or service) is tuned in.

- Skips to the previous disc while listening to the CD changer.

Each time you press the button, the disc number decreases, and the selected disc starts playing.

- Skips to the first file of the previous directory while listening to an MP3 disc. Each time you press the button, you can move to the previous directory and start playing the first file—not available for KD-LH5R.

4 Functions the same as the control dial on the main unit.

NOTE: This button does not function for the preferred setting mode adjustment.

5 Selects the sound (C-EQ) mode.

Each time you press the button, the sound (C-EQ) mode changes.

6 Selects the source.

Each time you press the button, the source changes.

7• Searches stations while listening to the radio.

• Selects services while listening to the DAB tuner if pressed briefly.
• Searches ensembles while listening to the DAB tuner if pressed for more than 1 second.
• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.
• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

JVC 31 VDD SPR-000-000 T D M NAM GOTC-04 7 SP 8 NO 9 10 11 RT 12 NO 1 - 2 3 - 4 5 - 6 1 3 2

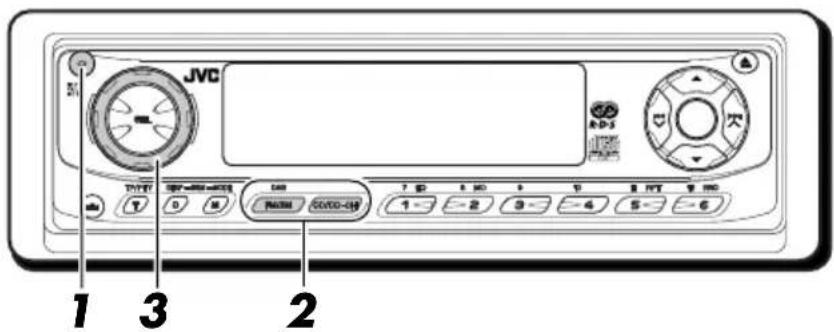

Turning on the power

1 Turn on the power.

"HELLO" appears on the display.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

2 Select the source.

To operate the tuner (FM or AM), see pages 8 – 18.

To play a CD, see pages 19 – 22.

To play an MP3 disc, see pages 23 – 28.

To operate the CD changer, see pages 38 - 40.

To operate the external component (LINE IN), see page 41.

To operate the DAB tuner, see pages 42 - 45.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

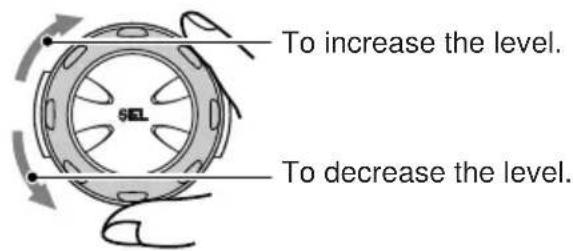

3 Adjust the volume.

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

To increase the volume.

To decrease the volume.

Volume level appears

VOL 20 SEL C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER Volume or audio level indicator (see page 34)

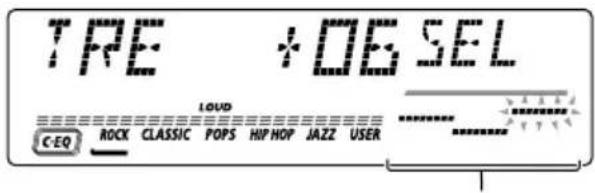

4 Adjust the sound as you want. (See pages 29 – 31.)

To drop the volume in a moment

Press briefly while listening to any source. "ATT" starts flashing on the display, and the volume level will drop in a moment.

To resume the previous volume level, press the button briefly again.

- If you turn the control dial, you can also restore the sound.

To turn off the power

Press for more than one second.

"SEE YOU" appears, then the unit turns off.

- If you turn off the power while listening to a disc, CD play will start from where playback has been stopped previously, next time you turn on the power.

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 32.

JVC 0/1 ATT 48L RDS RDS T T G M DAS 7 12 6 NO 9 10 9 RFT 9 RIO BAGM CD/CD-CN 1- 2 3- 4 5- 6

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

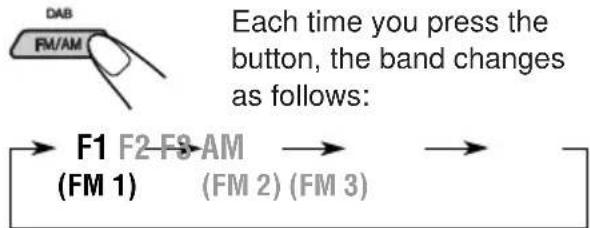

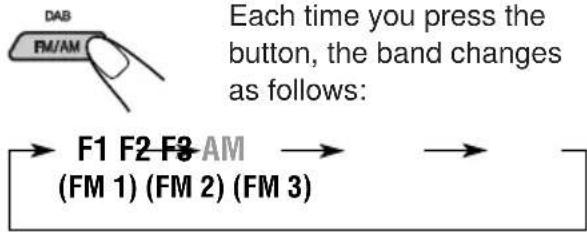

1 Select the band (FM1 - 3, AM).


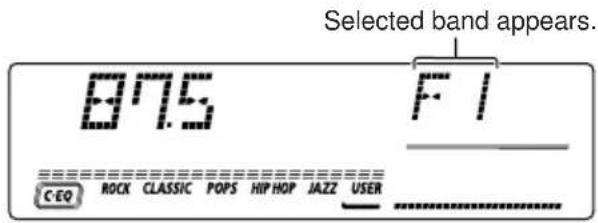

Selected band appears. 8:75 F1 C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

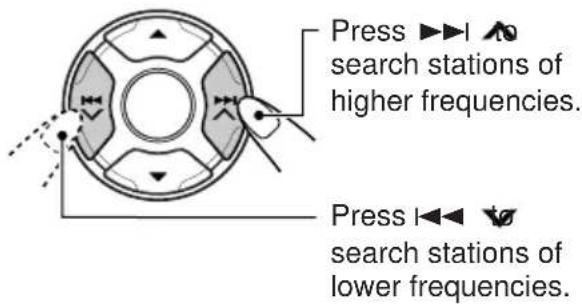

2 Start searching a station.

Press ►►► I to search stations of higher frequencies. Press I◄►► V search stations of lower frequencies.

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have pressed for searching.

Searching a station manually: Manual search

1 Select the band (FM1 - 3, AM).

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

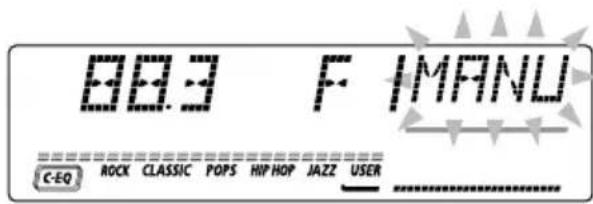

2 Press and hold ▶▶| ∧ or ◀◀▽ until "MANU" (manual) starts flashing on the display.

Circular mechanical component with six blades and a central hub, no text or symbols visible

88.3 F IMANU C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

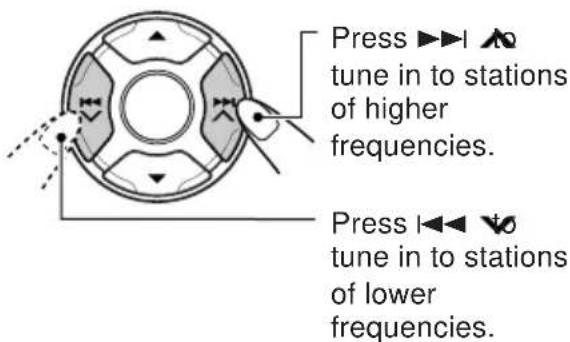

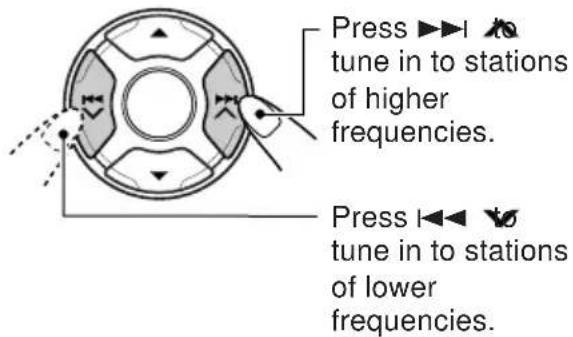

3 Tune in to a station you want while "MANU" is flashing.

Press ►►► I ► tune in to stations of higher frequencies. Press I◄► ► tune in to stations of lower frequencies.

• If you release your finger from the button, the manual mode will automatically turn off after 5 seconds.
• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM – MW/LW) until you release the button.

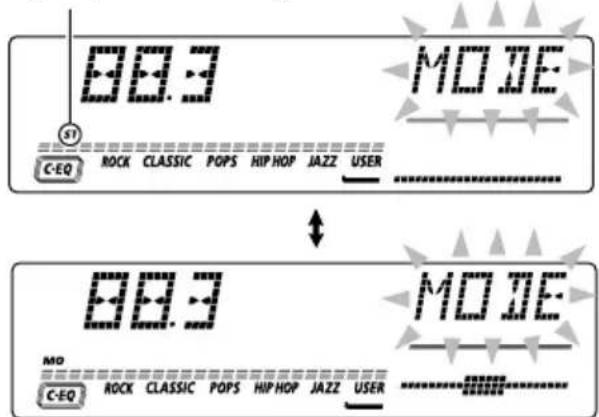

When an FM stereo broadcast is hard to receive:

1 Press MODE (M) to enter the functions mode while listening to an FM stereo broadcast. "MODE" appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press MO (monaural), while "MODE" is still on the display, so that the MO indicator lights up on the display. Then, each time you press MO (monaural), the MO indicator lights up and goes off alternately.

Lights up when receiving an FM broadcast in stereo.

88:3 MO JOE C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER 88:3 MO JOE C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved (the ST indicator goes off).

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
- Manual preset of both FM and AM stations

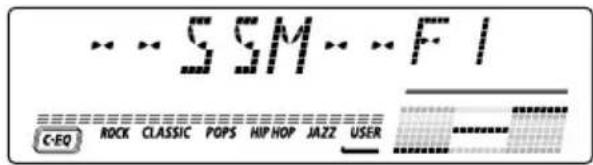

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).

1 Select the FM band (FM1 – 3) you want to store FM stations into.

2 Press and hold both buttons for more than 2 seconds.

...SSM...F1 C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

“SSM” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.

Ex.: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band.

1 Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

DAB FM/AM Each time you press the button, the band changes as follows: F1 F2-F3-AM (FM 1) (FM 2) (FM 3)

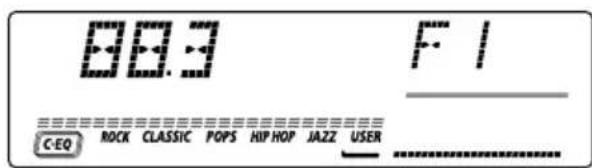

2 Tune in to a station (in this example, of 88.3 MHz).

Press ►►► I to tune in to stations of higher frequencies. Press I◄► ↓► tune in to stations of lower frequencies.

08.3 F1 C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

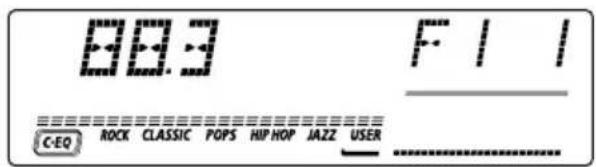

3 Press and hold the number button (in this example, 1) for more than 2 seconds.

00:3 F11 C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

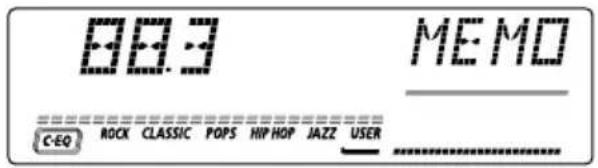

Selected band/preset number and "MEMO" (memory) appear alternately for a while.

08:3 MEMO C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

4 Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see "Storing stations in memory" on pages 10 and 11.

1 Select the band (FM1 - 3, AM).

2 Select the number (1 - 6) for the preset station you want.

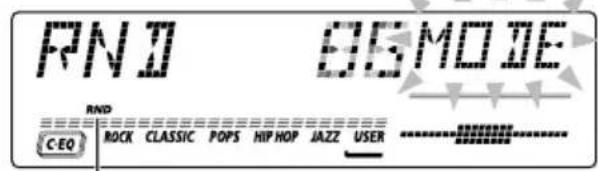

7 EQ 8 MO 9 10 11 RPT 12 RND 1<= >2 3<= >4 5<= >6

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.

Another advantage of RDS function is called "Enhanced Other Networks." By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favourite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)
• Standby Reception of TA (Traffic Announcement) or your favourite programme
  • PTY (Programme Type) search
• Programme search
  • And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on the next page.)

Two types of the RDS data are used to make Network-Tracking Reception work correctly — PI (Programme Identification) and AF (Alternative Frequency).

Without receiving these data correctly from the RDS station you are listening to, Network-Tracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of network-tracking reception to continue listening to the same programme in its finest reception.

When shipped from the factory, "AF" is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to "off."
  With this setting, the unit switches to another station within the same network when the receiving signals from the current station become weak. (In this mode, the programme may differ from the one currently received.)
  The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to "on."
  With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak.
  Both the AF indicator and the REG indicator light up.

- OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

REG indicator 875 F1 AF REG C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER AF indicator

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception is also activated (“AF”) automatically. On the other hand, Networking-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 45.)

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 33.)

2 Select "AF-REG (alternative frequency/regionalization reception)" if not shown on the display.

Diagram of a circular mechanical component with six segments and directional arrows, no text or symbols present

3 Select the desired mode – “AF,” “AF REG” or “OFF.”

SREL

4 Finish the setting.

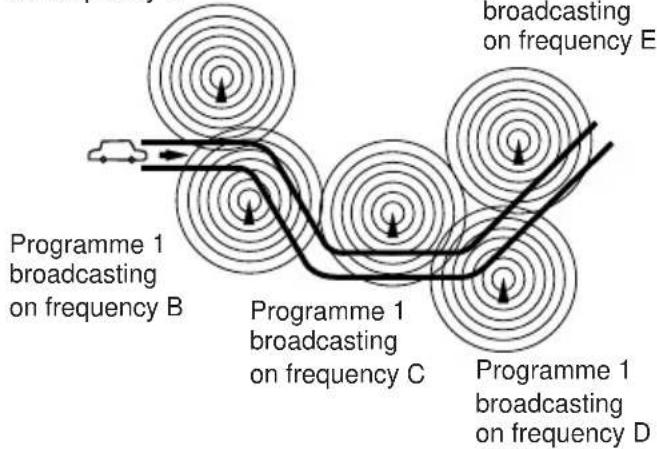

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency E

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station or CD and other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press TP/PTY (T) to activate TA Standby Reception.

■When the current source is FM, the TP indicator either lights up or flashes.

- If the TP indicator lights up, TA Standby Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 17) and the traffic announcement can be heard.

- If the TP indicator flashes, TA Standby Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ▶▶▶ ▲ or ▶◀◀ ▼ to search for such a station.

When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

■When the current source is other than FM, the TP indicator lights up.

If a station starts broadcasting a traffic announcement, "TRAFFIC" appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception, press TP/PTY (T) again.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favourite programme (PTY: Programme Type) from the current source (another FM station, CD or other connected components).

- PTY Standby Reception will not work if you are listening to an AM station.

You can select your favourite programme type for PTY Standby Reception.

When shipped from the factory, PTY Standby Reception is turned off. ("OFF" is selected for PTY Standby Reception.)

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 33.)

SEL

2 Select "PTY STBY (standby)" if not shown on the display.

Diagram of a circular mechanical component with six blades and a central hub, showing alignment or adjustment (no text or symbols)

3 Select one of the twenty-nine PTY codes. (See page 18.)

SEL

Selected code name appears on the display and is stored into memory.

• To cancel the PTY Standby Reception, select "OFF."

4 Finish the setting.

S圈

■When the current source is FM, the PTY indicator either lights up or flashes. • If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station. • If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ▶▶▶ or ◀◀◀ ▼ search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

■When the current source is other than FM, the PTY indicator lights up. If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception, select "OFF" in step 3 on the left column. The PTY indicator disappears.

Searching your favourite programme

You can search any one of the PTY codes.

In addition, you can store your 6 favourite programme types in the number buttons.

When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favourite programme types, see below.

To search your favourite programme type, see page 16.

1	2	3
POP M	ROCK M EASY M
4	5	6
CLASSICS	AFFAIRS	VARIED

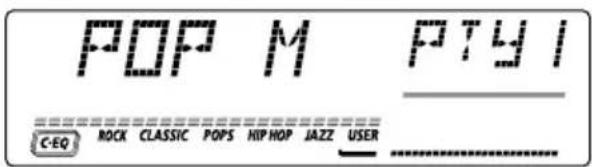

To store your favourite programme types

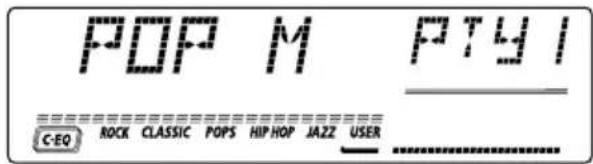

1 Press and hold TP/PTY (T) for more than 2 seconds while listening to an FM station.

POP M PTYI C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

The last selected PTY code appears.

2 Select one of the twenty-nine PTY codes. (See page 18.)

SEL

Selected code name appears on the display.

3 Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

7 EQ 8 MO 9 10 11 RPT 12 RND 1←→2 3←→4 5←→6

"MEMO" and the selected code name will flash alternately. Then, only the selected code name will continue flashing on the display.

4 Press and hold TP/PTY (T) for more than 2 seconds.

To search your favourite programme type

1 Press and hold TP/PTY (T) for more than 2 seconds while listening to an FM station.

POP M P741 C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

The last selected PTY code appears.

2 Select one of the PTY codes.

7 EQ 8 MO 9 10 11 RPT 12 RND 1←→2 3←→4 5←→6 OR

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

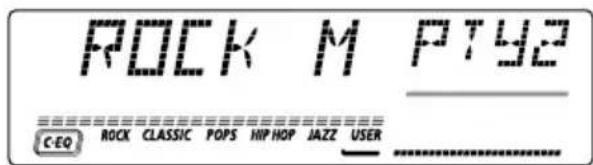

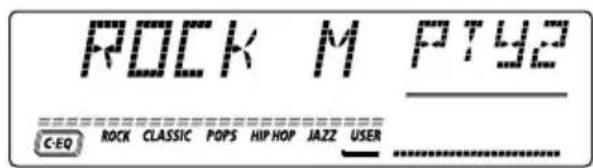

ROCK M PT92 C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

Ex.: When "ROCK M" is selected

3 Press ▶▶| ∧ or ◀◀◀ ∨ to start PTY search for your favourite programme.

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.
• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Changing the display mode while listening to an FM station

You can change the initial indication on the display to station name (PS NAME) or station frequency (FREQ) while listening to an FM RDS station.

- See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

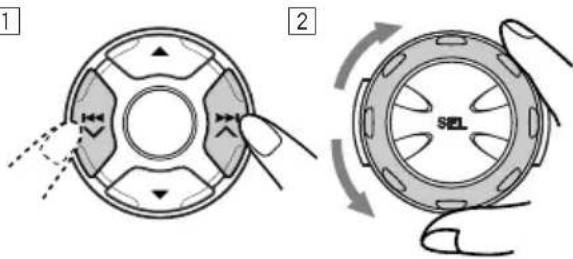

2 Press ▶▶| ∧ or ◀◀◀ √ to select "TU DISP (tuner display)."
3 Turn the control dial to set to the desired indication ("PS NAME" or "FREQ").
4 Press SEL (select) to finish the setting.

Note:

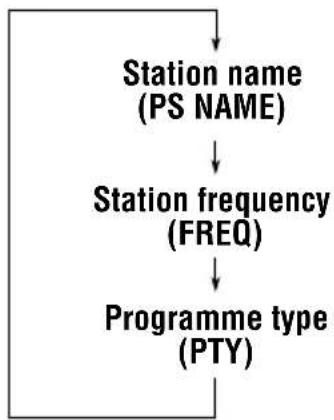

By pressing DISP (D), you can change the display while listening to an FM RDS station.

Each time you press the button, the following information appears on the display:

- Then, the display goes back to the original indication in several seconds.

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in.

However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

- The unit takes some time to tune in to another station using Programme search.

To activate programme search, follow the procedure below.

- See also "Changing the general settings (PSM)" on pages 32 and 33.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

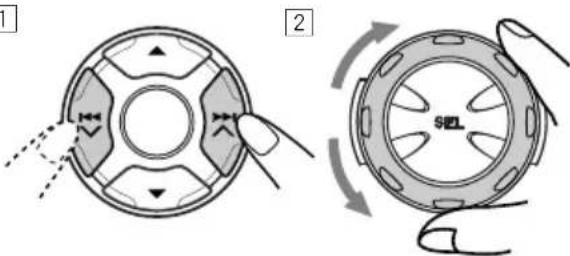

2 Press ▶▶▶ | ∧ or ◀◀◀ ▼ to select "P(Programme)-SEARCH."

3 Turn the control dial clockwise to select "ON." Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same procedure and select "OFF" in step 3 by turning the control dial counterclockwise.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

- See also "Changing the general settings (PSM)" on pages 32 and 33.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

2 Press ▶▶▶ I ∧ or ◀◀◀ ▼ to select "TA VOL."

3 Turn the control dial to set to the desired volume. You can set it from "VOL 00" to "VOL 50."

4 Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

- See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

2 Press ▶▶| ∧ or ◀◀◀ ∨ to select "AUTO ADJ."

3 Turn the control dial counterclockwise to select "OFF."

Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same procedure and select "ON" in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting "AUTO ADJ" to "ON." Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News

AFFAIRS: Topical programmes expanding on current news or affairs

INFO: Programmes which impart advice on a wide variety of topics

SPORT: Sport events

EDUCATE: Educational programmes

DRAMA: Radio plays

CULTURE: Programmes on national or regional culture

SCIENCE: Programmes on natural science and technology

VARIED: Other programmes like comedies or ceremonies

POP M: Pop music

ROCK M: Rock music

EASY M: Easy-listening music

LIGHT M: Light music

CLASSICS: Classical music

OTHER M: Other music

WEATHER: Weather information

FINANCE: Reports on commerce, trading, the Stock Market, etc.

CHILDREN: Entertainment programmes for children

SOCIAL: Programmes on social activities

RELIGION: Programmes dealing with any aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people can express their views either by phone or in a public forum

TRAVEL: Programmes about travel destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with recreational activities such as gardening, cooking, fishing, etc.

JAZZ: Jazz music

COUNTRY: Country music

NATION M: Current popular music from another nation or region, in that country's language

OLDIES: Classic pop music

FOLK M: Folk music

DOCUMENT: Programmes dealing with factual matters, presented in an investigative style

JVC R-D-3 OUTPUT CWP-BMI-ACOS DAS T D M BUAM CD/CO-CH 7 MP 8 NO 9 1 2 3 4 5 6

Playing a CD

1 Open the control panel.

Diagram showing a finger pressing a button next to a device with an arrow indicating motion (no text or symbols present)

2 Insert a disc into the loading slot.

Technical line drawing of a CD or DVD disc assembly (no text or symbols)

The unit turns on, draws a disc and starts playback automatically.

3 Close the control panel by hand.

Isometric line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

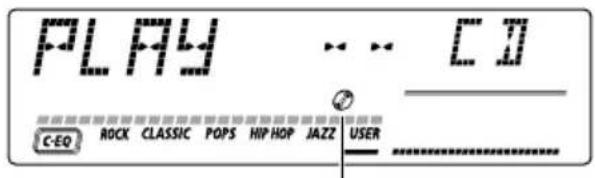

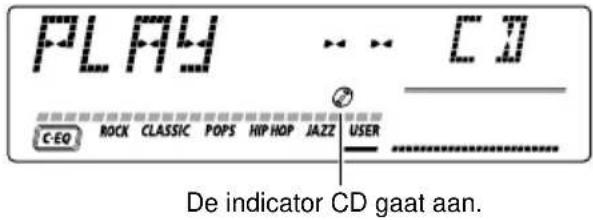

PLAY ... [ ] C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER The CD-in indicator lights up.

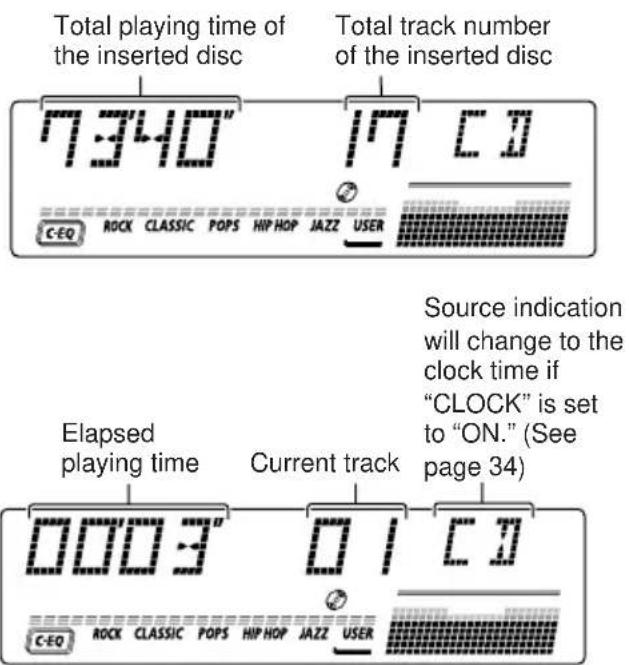

Total playing time of the inserted disc 7:340" 17 C C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER Source indication will change to the clock time if "CLOCK" is set to "ON." (See page 34) Elapsed playing time Current track 0003" 01 C C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

Notes:

• When a disc is already in the loading slot, selecting "CD" as the source starts CD play.
• When a disc is inserted upside down, the disc automatically ejects (if the control panel is open). If the control panel is closed, "PLEASE" and "EJECT" appear alternately.
• If you change the source, CD play also stops (without ejecting the disc). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

To stop play and eject the disc

Press ▲.

CD play stops, the control panel opens, then the disc automatically ejects from the loading slot. If you change the source, the CD play also stops (without ejecting the disc this time).

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.)
• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Diagram of a circular mechanical component with six blades and a central hub, showing internal structure and alignment lines (no text or symbols)

Press and hold ▶▶▶▲ while playing a disc, to fast-forward the track.

Press and hold ◀◀◀ ,▼ while playing a disc, to reverse the track.

To go to the next or previous tracks

Diagram of a circular mechanical component with directional arrows indicating motion or force (no text or symbols)

Press ▶▶▶ briefly, while playing a disc, to go ahead to the beginning of the next track.

Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press I◀◀ ▼briefly, while playing a disc, to go back to the beginning of the current track.

Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

7 EQ 8 MO 9 10 11 RPT 12 RND 1 < >2 3 < >4 5 < >6

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 - 6: Press 1 (7) - 6 (12) briefly.
• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

Selecting CD playback modes

To play back tracks at random (Random Play)

You can play back all tracks on the disc at random.

1 Press MODE (M) to enter the functions mode while playing a disc.

"MODE" appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press RND (random), while "MODE" is still on the display, so that the RND indicator lights up on the display.

Then, each time you press RND (random), the random play mode turns on and off alternately.

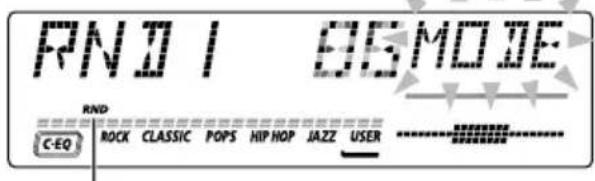

RND RND CEO ROCK CLASSIC POPS HIP HOP JAZZ USER

RND indicator

When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing.

To play back tracks repeatedly (Repeat Play)

You can play back the current track repeatedly.

1 Press MODE (M) to enter the functions mode while playing a disc.

"MODE" appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press RPT (repeat), while “MODE” is still on the display, so that the RPT indicator lights up on the display.

Then, each time you press RPT (repeat), the repeat play mode turns on and off alternately.

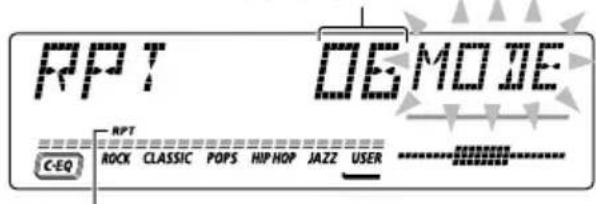

Track number of the currently playing track

RPT DEMOJE C-EQ MPT ROCK CLASSIC POPS HIP HOP JAZZ USER

RPT indicator

When the repeat mode is turned on, the RPT indicator lights up on the display.

Prohibiting CD ejection

You can prohibit CD ejection and can lock a disc in the loading slot.

While pressing CD/CD-CH, press and hold ⏻/1 ATT for more than 2 seconds.

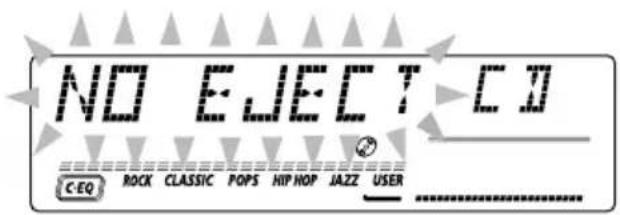

NO ELECT CD CEO ROCK CLASSIC POPS HIP HOP JAZZ USER

"NO EJECT" flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc, press again for more than 2 seconds, while pressing CD/CD-CH.

EJECT OK CD C-EQ ROCK CLASSIC POPS HIP NOP JAZZ USER

"EJECT OK" flashes on the display for about 5 seconds, and the disc is unlocked.

Playing a CD Text

In a CD Text, some information about the disc (its disc title, performer and track title) is recorded. You can show these disc information on the display.

Select text display mode while playing a CD Text.

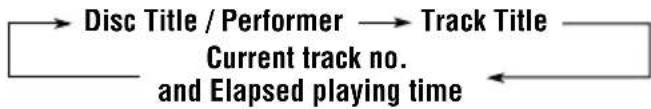

Each time you press the button, the display changes as follows:

Notes:

• When the disc title/performer is shown, the DISC indicator lights up.
  When the track title is shown, the TRACK indicator lights up.
• The display shows up to 8 characters at one time and scrolls if there are more than 8 characters. Some characters or symbols will not be shown (and be blanked) on the display.
  (Ex. “ABCâ!d#”⇒“ABCA D”)
• When you press DISP (D) while playing a conventional CD, "NO NAME" appears for the disc title/performer and the track title.

This chapter is only for KD-LH7R.

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3*. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps**). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

* This player is not compatible with the data encoded with Layer 1 and 2 formats.
** Bit rate is the average number of bits that one second of audio data will consume. The unit used is Kbps (1000 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

This unit is incorporated with an MP3 decoder. You can play back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-ROMs.

Compatible with ID3v1

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3 file.

This unit can show ID3v1 tags (album name, performer name and song title) on the display. (See page 36.)

• Some characters cannot be shown correctly.
• This unit is not compatible with ID3v2.

Other Main Features in this unit:

• Maximum number of directories/files: 289 (Total)
• Available characters for directory/file names: A-Z, 0-9, _ (underscore)
- Maximum number of characters for file name (ISO 9660 Level 1): 12 (inclusive of separation mark—“.” and extension code—“mp3”)
(ISO 9660 Level 2): 31 (inclusive of separation mark—“.” and extension code—“mp3”) (Joliet): 64 (inclusive of separation mark—“.” and extension code—“mp3”)

• Maximum number of characters for directory name: 64

Precautions when recording MP3 files on a CD-R or CD-RW

This unit can only read MP3 files that are recorded in the format that is compliant with ISO 9660 Level 1, Level 2 or Joliet.

How are MP3 files recorded and played back?

MP3 "files (tracks)" can be recorded in "directories (folders)"—in PC terminology. During recording, the files and directories can be arranged in a way similar to arranging files and directories/folders of computer data.

"Root" is similar to the root of a tree. Every file and directory can be linked to and be accessed from the root.

Playback order, file search order, and directory search order of the MP3 files recorded on a disc are determined by the writing (or encoding) application; therefore, playback order may be different from the one you have intended while recording the directories and the files.

The illustration on the next page shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched on this unit.

Notes:

• The unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.
• The unit cannot read or play an MP3 file without the extension code—mp3.
• The unit is not compatible with Playlist*.

* A playlist is a simple text file, used on a PC, which enables users to make their own playback order without physically rearranging the files.

MP3 directory/file configuration


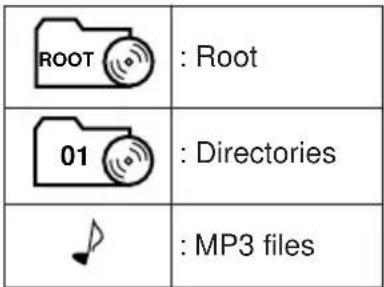

ROOT : Root 01 : Directories : MP3 files

Note:

There is no limit to the number of hierarchy levels (nested directories). However, up to 8 hierarchy levels is recommended for stable operations.

MP3 playback/search order

• The numbers in circles below the MP3 files (♪) indicate the playback order and search order of the MP3 files. Normally this unit plays back MP3 files in the recorded order.
• The numbers inside the directories indicate the playback order and search order of the directories on an MP3 disc. Normally this unit plays back MP3 files in the directories in the recorded order.

JVC d/d ATT 80L R-D-S TYP/FTY 0.5V=800=3000 SEAB 7 20 6 MO 9 10 11 PPT 12 PMO T D M RUNM CURCO=40 1-2 3-4 5-6

This chapter is only for KD-LH7R.

Refer also to "CD OPERATIONS" on pages 19 to 22.

Playing an MP3 disc

1 Open the control panel.

Diagram showing a finger pressing a button next to a device with an arrow indicating motion (no text or symbols present)

2 Insert an MP3 disc into the loading slot.

Technical line drawing of a CD inside a mechanical housing (no text or symbols)

The unit draws the disc. Playback starts automatically from the first file of the first directory once disc scan is complete.

3 Close the control panel by hand.

Diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

The display changes to show the following:

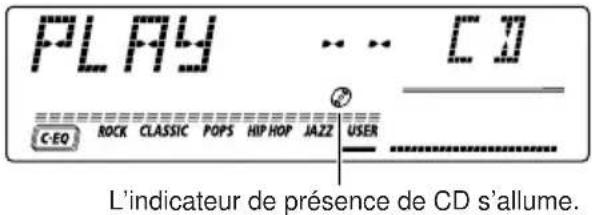

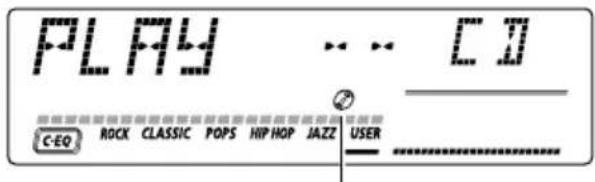

PLAY ... CJ C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

CD-in indicator lights up.

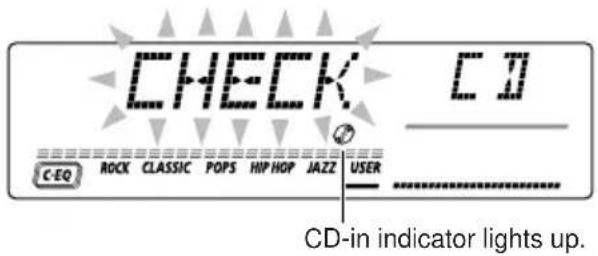

CHECK C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER CD-in indicator lights up.

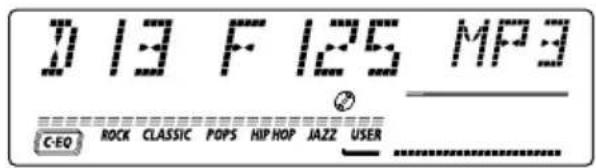

D 13 F 125 MP3 C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

Ex.: When the disc contains 13 directories and 125 MP3 files.

Notes:

• All the files on the disc will be played repeatedly until you stop playback—All File Repeat Play.
• MP3 discs require a longer readout time. (It differs due to the complexity of the directory/file configuration.)
• If you change the source or turn the power off, MP3 playback stops (without ejecting the disc). Next time you select disc play as the source or turn the power on, MP3 playback starts from where playback has been stopped previously.

To change the display information

While playing back an MP3 file, you can change the file information shown on the display. Each time you press DISP (D), the display changes to show the following:

- When "TAG DISP" is set to "TAG ON" (initial setting: see page 36)

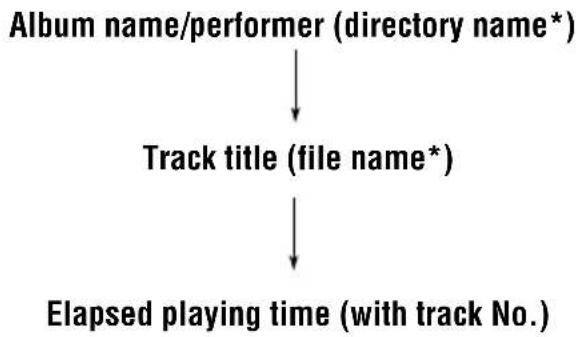


* If an MP3 file does not have ID3 tags, directory name and file name appear.

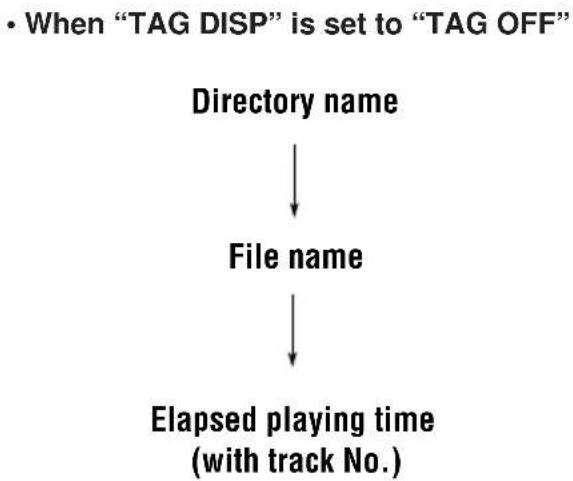


Note:

The display shows up to 8 characters at one time and scrolls if there are more than 8 characters.

See also "To select the scroll mode - SCROLL" on page 35.

To stop play and eject the disc

Press ▲.

Playback stops, the control panel moves down, and the disc automatically ejects from the loading slot.

Locating a file or particular portion on an MP3 disc

To fast-forward or reverse the file

Diagram of a circular mechanical component with directional arrows and control points (no text or symbols)

Press and hold ▶▶▶ ▲ while playing an MP3 disc, to fast-forward the file.

Press and hold ▶▼ while playing an MP3 disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Press ▶▶▶ I briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back. (See "MP3 playback/search order" on page 24.)

Press ◀◀◀ briefly, while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back. (See "MP3 playback/search order" on page 24.)

To go to a particular directory directly

IMPORTANT:

To directly select the directories using the number button(s), it is required that directories are assigned 2 digit numbers at the beginning of their directory names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If directory name is "01 ABC"

→press 1 to go to Directory 01 ABC.

If directory name is "1 ABC,"

pressing 1 does not work.

If directory name is "12 ABC"

→press and hold 6 (12) to go to

Directory 12 ABC.

Press the number button corresponding to the directory number to start playing the first file in the selected directory.

7 MO 8 MO 9 10 11 RPT 12 RND 1 < >2 3 < >4 5 < >6

• To select a directory number from 01 – 06: Press 1 (7) – 6 (12) briefly.
• To select a directory number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

Notes:

• If "MP3" flashes on the display after you have selected a directory, it means that the directory does not contain any MP3 files.
• You cannot directly select a directory with a number greater than 12.

To select a particular file in a directory, press ▶▶▶ ▲ or ▶◀◀ ▼ after selecting the directory.

To skip to the next directory

Circular diagram with six directional arrows and a hand pointing to the top-left quadrant (no text or symbols)

Press ▲ (up) briefly while playing an MP3 disc. Each time you press the button consecutively, the next directory is located (and the first file in the directory starts playing, if recorded).

Note:

If the directory does not contain any MP3 files, it is skipped.

To skip to the previous directory

Circular mechanical component with six arms and a finger pointing to one (no text or symbols)

Press ▼ (down) briefly while playing an MP3 disc. Each time you press the button consecutively, the previous directory is located (and the first file in the directory starts playing, if recorded).

Note:

If the directory does not contain any MP3 files, it is skipped.

Selecting MP3 playback modes

To play back files at random (Random Play)

You can play back all files on the MP3 disc at random.

MODIII M ↓ 12 RND 5

1 Press MODE (M) while playing an MP3 disc. The unit enters the functions mode.
2 Press RND (random), while "MODE" is still on the display, so that the RND indicator lights up on the display. Then, each time you press RND (random), the random play mode changes as follows:

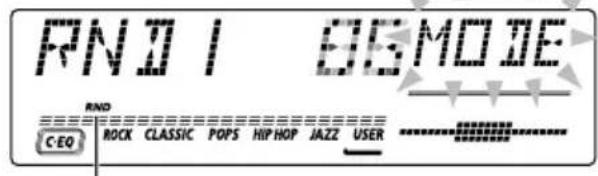

RND C:EQ ROCK CLASSIC POPS HIP HOP JAZZ USER BE MODE

RND indicator

Mode	RND Indicator	Plays at random
RND1 Lights	All files of	the current directory.
RND2 Flashes	All files	on the disc.

To play back files repeatedly (Repeat Play)

You can play back the current file or all the files in the current directory repeatedly.

MOD M ↓ TI RPT S

1 Press MODE (M) while playing an MP3 disc. The unit enters the functions mode.
2 Press RPT (repeat), while "MODE" is still on the display, so that the RPT indicator lights up on the display. Then, each time you press RPT (repeat), the repeat play mode changes as follows:

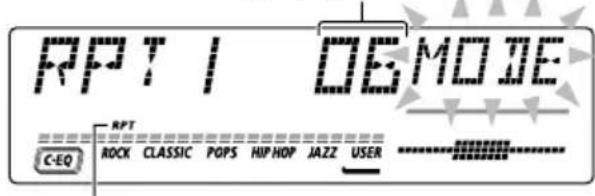

Track number of the currently playing track

RPT DEMOJE C-EO RPT ROCK CLASSIC POPS HIP HOP JAZZ USER

RPT indicator

Mode	RPT Indicator	Plays repeatedly
RPT1 Lights	The current file (or specified file).
RPT2 Flashes	All files of the current directory (or specified directory).

Adjusting the sound

You can adjust the sound characteristics to your preference.

1 Select the item you want to adjust.

Diagram of a circular component with a central label 'SPL' and a finger pointing to it (no text or symbols beyond the label)

Each time you press the button, the adjustable items change as follows:

Indication	To do: Range
BAS Adjust	the bass. -06 (min.)	+06 (max.)
TRE Adjust	the treble. -06 (min.)	+06 (max.)
FAD* Adjust	the front R06 (Rear only)and rear speaker balance. F06 (Front only)
BAL Adjust	the left L06 (Left only)and right speaker balance. R06 (Right only)
LOUD Boost	low and high frequencies to produce a well-balanced sound at low volume level.	LOUD ONLOUD OFF
VOL Adjust	the volume. 00 (min.)	50 (max.)

* If you are using a two-speaker system, set the fader level to "00."

2 Adjust the level.

To increase the level. To decrease the level.

TRE +OEG SEL C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

Equalization pattern changes as you adjust the bass or treble.

Note:

Normally, the control dial works as the volume control. So you do not have to select "VOL" to adjust the volume level.

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode

(C-EQ: custom equalizer) suitable to the music genre.

- There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

1 Press MODE (M).

"MODE" appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press EQ (equalizer) while "MODE" is still on the display.

The last selected sound mode is recalled and applied to the current source.

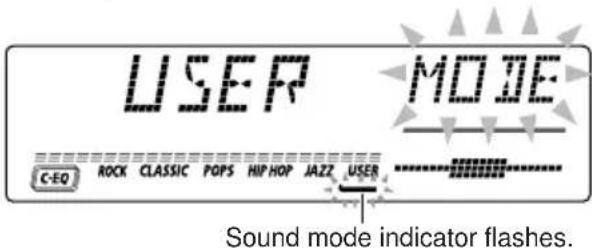

USER MODE C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER Sound mode indicator flashes.

Ex.: If you have selected "USER" previously

3 Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

ROCK MODE LOUD C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

Sound mode indicator flashes.

Ex.: When you select "ROCK"

Indication	For: Preset values
		BAS TR	E LOUD
USER (Flat	sound) 00 00	OFF
ROCK Rock	or +03 +01 ON disco music
CLASSIC	Classical +01 -02 OFF music
POPS Light	music +04 +01 OFF
HIP HOP	Funk or Rap +02 00 ON music
JAZZ	Jazz music +02 +03 OFF

Note:

You can adjust each sound mode to your preference, and store it in memory.

If you want to adjust and store your original sound mode, see "Storing your own sound adjustments" on page 31.

To store a sound mode separately for each playback source (C-EQ Link)

You can select a sound mode and store it in memory. It will be recalled every time you select the same source and will be shown on the display. A sound mode can be stored for each of the following sources — FM1, FM2, FM3, AM, CD and external components.

- See also "Changing the general settings (PSM)" on page 32 and 33.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ ▲ or ◀◀◀ ▼ to select "CEQ LINK (custom equalizer link)."
3 Turn the control dial clockwise to select "LINK ON."
4 Press SEL (select) to finish the setting.

To cancel C-EQ Link, repeat the same procedure and select "LINK OFF" in step 3.

Note:

When the “CEQ LINK” setting is changed, sound mode (C-EQ) is automatically reset to “USER.”

- When "CEQ LINK" is set to "LINK ON"

The selected sound mode can be stored in memory for the current source.

Each time you change to the same source, the same sound mode is also recalled and shown on the display. The C-EQ indicator also flashes.

- When "CEQ LINK" is set to "LINK OFF"

The selected sound mode effect applies to any source.

Storing your own sound adjustments

You can adjust the sound modes to your preference and store your own adjustments in memory.

- There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

1 Press MODE (M).

"MODE" appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press EQ (equalizer) while "MODE" still on the display.

The last selected sound mode is recalled and applied to the current source.

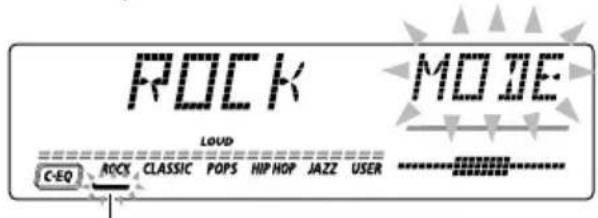

POCK MOJE LOUD C-EQ ACCS CLASSIC POPS HIP HOP JAZZ USER

Sound mode indicator flashes.

Ex.: If you have selected "ROCK" previously

3 Select the sound mode you want to adjust.

4 Select the item you want to adjust.

• See page 29 for details.

Diagram of a circular mechanical component with a central knob and a finger pointing to it (no text or symbols)

5 Adjust the level.

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

To increase the level.

To decrease the level.

TRE +06 SEL LOUD C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

Equalization pattern changes as you adjust the bass or treble.

Ex.: When you adjust "TRE"

6 Repeat steps 4 and 5 to adjust the other items.

7 Repeat the same procedure to store other sound modes.

To reset to the factory settings, repeat the same procedure and reassign the preset values listed in the table on page 30.

Setting the clock

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 33.)

S圈

2 Set the hour.

1 Select "CLOCK H (hour)" if not shown on the display.
2Adjust the hour.

1

Diagram illustrating two mechanical or electrical component states: (1) circular component with internal components and (2) axial view with rotation arrows and labeled 'SEL' component.

3 Set the minute.

1 Select "CLOCK M (minute)."
2Adjust the minute.

1

Diagram illustrating the circular mechanical component with labeled parts and directional arrows indicating rotation or movement.

4 Set the clock system.

1 Select "24H/12H."
2 Select "24H" or "12H."

1

Diagram illustrating the working principle of a rotary knob, showing step 1 and step 2 with directional arrows and labeled 'SEL' on the knob.

5 Finish the setting.

Diagram of a circular component with a central star-like feature and a finger pointing to it (no text or symbols)

To check other information during play, press DISP (D).

Each time you press the button, the other information (either the clock or the source name) will be shown on the upper part of the display for a while.

- Pressing DISP (D) with the unit turned off will show the clock time for about 5 seconds.

Changing the general settings (PSM)

You can change the items listed on the next page by using the PSM (Preferred Setting Mode) control.

Basic Procedure

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 33.)

Diagram of a circular mechanical component with a central cross and a finger pointing to it (no text or symbols)

2 Select the PSM item you want to adjust. (See page 33.)

Diagram of a circular mechanical component with directional arrows and shaded segments, no text or symbols present

3 Adjust the PSM item selected.

Diagram of a circular mechanical component with rotational arrows indicating motion (no text or symbols)

4 Repeat steps 2 and 3 to adjust the other PSM items if necessary.

5 Finish the setting.

SCL

Preferred Setting Mode (PSM) items

1 Hold.	2 Select.	3 Set. Counter-clockwise	Clockwise	Factory-preset settings	See page
CLOCK H Hour adjustment		Back Advance		0:00 32
CLOCK M	Minute adjustment	Back Advance
CEQ LINK	Custom equalizer link	LINK OFF	LINK ON	LINK OFF	30, 34
24H/12H 24/12-hour time display		12H 24H	24H	32
AUTO ADJ	Automatic clock setting	OFF	ON	ON 17
CLOCK	Clock display	OFF ON	ON 34
TU DISP Tuner display		FREQ	PS NAME	PS NAME	16
AF-REG Alternate frequency/Regionalization reception		AF ↔ AF REG↑→ OFF* ←		AF 12
PTY STBY	PTY standby	OFF → 29 programme types(see page 18)↑		OFF 14
TA VOL	Traffic announcement volume	VOL 00 — VOL 50 VOL 20 17
P-SEARCH Programme search		OFF	ON	OFF 17
DAB AF**	Alternate frequency search	AF OFF	AF ON AF ON	45
DAB VOL**	DAB volume adjustment	DAB VOL -12 to DAB VOL 12		DAB VOL 00	45
LEVEL	Level indicator	OFF ↔ AUDIO 1↑→ AUDIO 2 ←		AUDIO 2 34
DIMMER*** Dimmer mode		AUTO ↔ OFF↑→ ON ←		AUTO 34
TEL	Telephone muting	OFF ↔ MUTING 1↑→ MUTING 2 ←		OFF 34
BEEP	Key-touch tone	OFF ON ON 35
SCROLL	Scroll mode	ONCE AUTO↑→ OFF ←		ONCE	35
EXT IN****	External component	CHANGER	LINE IN	CHANGER	35
TAG DISP***	Tag display	TAG OFF	TAG ON	TAG ON	35

- Press SEL (select) to finish the setting.

* Displayed only when "DAB AF" is set to "AF OFF".

** Displayed only when the DAB tuner is connected.

*** Only for KD-LH7R.

**** Displayed only when one of the following sources is selected - FM, AM and CD.

To set Custom Equalizer Link – CEQ LINK

A different sound mode (C-EQ) can be stored in memory for each source so that you can change the sound modes simply by changing the sources. When shipped from the factory, this mode is deactivated.

• LINK ON: Different sound modes for different sources.
• LINK OFF: One sound mode for all sources.

To set the clock display - CLOCK

You can set the clock to be shown on the display when the unit is turned on.

When shipped from the factory, the clock is set to be shown on the display.

• ON: Clock display is turned on.
- OFF: Clock display is turned off. When "OFF" is selected, the current source name or station band appears instead of the clock display (except when "LINE IN" is selected as the source).

To select the level meter – LEVEL

You can select the level display according to your preference.

When shipped from the factory, "AUDIO 2" is selected.

• AUDIO 1: Level meter illuminates from bottom to top.
• AUDIO 2: Alternates level meter (moves from bottom to top) and illumination display.
- OFF: Erases the audio level indicator.

To select the dimmer mode – DIMMER (only for KD-LH7R)

When you turn on the car head lights, the display automatically dims (Auto Dimmer).

When shipped from the factory, Auto Dimmer mode is activated.

• AUTO: Activates Auto Dimmer.
• OFF: Cancels Auto Dimmer.
• ON: Always dims the display.

Note:

Auto Dimmer equipped with this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming.

In this case, set the dimmer mode to "ON" or "OFF."

To select the telephone muting – TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either "MUTING 1" or "MUTING 2," whichever mutes the sounds from this unit.

When shipped from the factory, this mode is deactivated.

• MUTING 1: Select this if this setting can mute the sounds.
• MUTING 2: Select this if this setting can mute the sounds.
  • OFF: Cancels the telephone muting.

To turn on/off the key-touch tone – BEEP

You can deactivate the key-touch tone if you do not want it to beep each time you press a button. When shipped from the factory, the key-touch tone is activated.

• ON: Activates the key-touch tone.
• OFF: Deactivates the key-touch tone.

To select the scroll mode – SCROLL

You can select the scroll mode for the disc information if it consists of more than 8 characters. When shipped from the factory, Auto Scroll mode is set to "ONCE."

• ONCE: Scrolls only once.
• AUTO: Repeats the scroll (in 5-second intervals).
  • OFF: Cancels Auto Scroll.

To select the external component to use - EXT IN

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied).

To use the external component as the playback source through this unit, you need to select which component – CD changer or external component – to use.

When shipped from the factory, CD changer is selected as the external component.

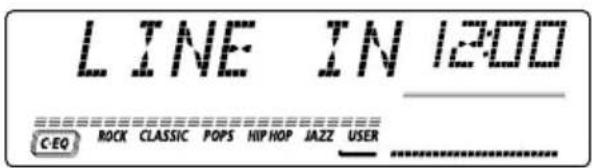

• LINE IN: To use the external component other than CD changer.
- CHANGER: To use the CD changer.

Note:

For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).

To turn the tag display on or off - TAG DISP (only for KD-LH7R)

An MP3 file can contain file information called "ID3 Tag" where its album name, performer, track title, etc. are recorded.

There are two versions-ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). This unit is compatible only with ID3v1.

When shipped from the factory, "TAG ON" is selected.

- TAG ON: Turns on the ID3 tag display while playing MP3 files.

* If an MP3 file does not have ID3 tags, directory name and file name appear.

Note:

If you change the setting from "TAG OFF" to "TAG ON" while playing an MP3 file, the tag display will be activated when the next file starts playing.

- TAG OFF: Turns off the ID3 tag display while playing MP3 files. (Only the directory name and file name can be shown.)

Assigning names to the sources

This section is only for KD-LH7R.

You can assign names to discs (both in this unit and in the CD changer).

After assigning a name, it will appear on the display when you select the source.

Sources Maximum number of characters
CDs*	up to 32 characters(up to 40 discs)

* You cannot assign a name to a CD Text or an MP3 disc.

1 Select a source you want to assign a name to.

When you select a source, the power automatically comes on.

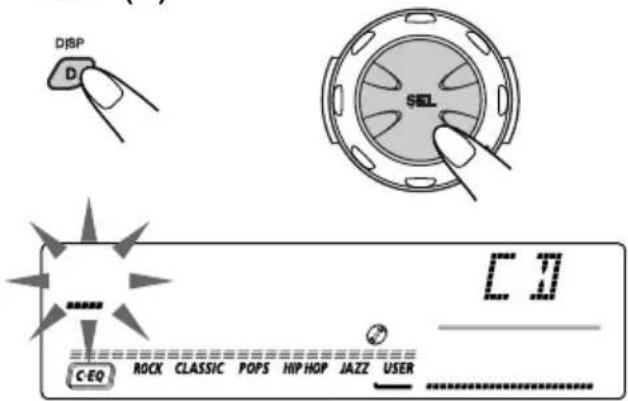

2 Press and hold SEL (select) for more than 2 seconds while pressing DISP (D).

DISP D SEL C EJ C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

Ex.: When you select CD as the source

3 Select a character.

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

• See next column for available characters.

4 Move the cursor to the next (or previous) character position.

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

5 Repeat steps 3 and 4 until you finish inputting the name.

6 Finish the procedure while the last selected character is flashing.

Diagram of a circular component with a central mark and a finger pointing to it (no text or symbols)

To erase the input characters

Insert spaces using the same procedure described above.

Available characters

A B	C D	E F	G H	I J
K L	M N	O P	Q R	S T
U V	W X	Y Z				0 1	2 3
4 5	6 7	8 9				-	/	<	>
space

Notes:

• When you try to assign a name to the 41st disc, "NAME FULL" appears on the display. (In this case, delete unwanted names before assignment.)
• When the CD changer is connected, you can assign names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit.
  • These characters are also used while showing ID3 tags of the MP3 disc.
  Some characters or symbols will not be shown (and be blanked) on the display.
  (Ex. “ABCâ!d#”⇒“ABCA D”)

Detaching the control panel

You can detach the control panel when leaving the car.

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

1 Unlock the control panel.

Diagram of a cassette tape being inserted into a slot, with an arrow indicating the insertion direction (no text or symbols present)

2 Pull the control panel out of the unit.

Technical line drawing showing two views of a cassette tape device with cooling fans, no text or symbols present

3 Put the detached control panel into the provided case.

Technical line drawing of a mechanical component with an open section and a side view showing internal structure (no text or symbols)

Attaching the control panel

1 Insert the right side of the control panel into the groove on the panel holder.

Technical line drawing of two mechanical components with no visible text or symbols

2 Press the left side of the control panel to fix it to the panel holder.

Technical line drawing of a mechanical component with two circular features, no text or symbols present

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate.

To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Diagram of two electronic components connected by wires, showing internal wiring (no text or symbols)

Connectors

JVC R-D-3 TNT/TV DBF=850=900S CAB 7 BD 6 HD 9 TD 11 FFT V: RVD D M NAVM CD/CD-CB 1-2 3-4 5-6

We recommend that you use one of the CH-X series with your unit.

If you have another CD automatic changer, consult your JVC car audio dealer for connections.

- For example, if your CD automatic changer is one of the KD-MK series, you need a cord (KS-U15K) for connecting it to this unit.

Before operating your CD automatic changer:

• Refer also to the Instructions supplied with your CD changer.
• If no discs are in the magazine of the CD changer or the discs are inserted upside down, "NO DISC" will appear on the display. If this happens, remove the magazine and set the discs correctly.
• If "RESET 1" – "RESET 8" appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

Playing CDs

Select the CD automatic changer (CD-CH).

CD/CD-CH CD CD-CH*

* If you have changed the "EXT IN" setting to "LINE IN" (see page 35), you cannot select the CD changer.

Playback starts from the first track of the first disc. All tracks of all discs are played back.

Elapsed playing time Track number Disc number**

0003" 01CJ 1 C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

** When "CLOCK" is set to "ON" (see page 34), disc number will soon change to clock time.

Note on One-Touch Operation:

When you press CD/CD-CH, the power automatically turns on. You do not have to press ONTAT on the power.

To fast-forward or reverse the track

Diagram of a circular mechanical component with six blades and a handle, no text or symbols present

Press and hold ▶▶▶ ∧ while playing a disc, to fast-forward the track.

Press and hold ◀◀◀ ,▼ while playing a disc, to reverse the track.

To go to the next track or the previous tracks

Diagram of a circular mechanical component with internal segments and a pointer, no text or symbols present

Press ▶▶▶ ▶ briefly, while playing a disc, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press ◀◀◀ ▶briefly, while playing a disc, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to the next discs or the previous discs

Diagram of a rotary knob with labeled directional arrows and dashed lines indicating movement or positioning.

Press ▲, while playing a disc, to go to the next disc. Each time you press the button consecutively, the first track of the next disc is located and played back.

Press ▼, while playing a disc, to go to the previous disc. Each time you press the button consecutively, the first track of the previous disc is located and played back.

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

7 8Q 8 MO 9 10 11 RPT 12 RND 1 < >2 3 < >4 5 < >6

• To select a disc number from 1 - 6: Press 1 (7) - 6 (12) briefly.
- To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

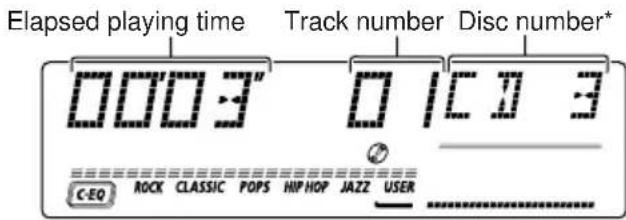

Elapsed playing time Track number Disc number* 0003" 0133 C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

* When "CLOCK" is set to "ON" (see page 34), disc number will soon change to clock time.

To show the CD Text information

This is possible only when connecting a JVC CD automatic changer equipped with CD Text reading capability.

See "Playing a CD Text" on page 22.

Selecting CD playback modes

To play back tracks at random (Random Play)

1 Press MODE (M) to enter the functions mode while playing a disc.

"MODE" appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press RND (random), while

"MODE" is still on the display, so that the RND indicator lights up on the display.

Then, each time you press RND (random), the random play mode changes as follows:

RND C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER BE MODE

RND indicator lights up.

Ex.: When you select "RND1."

Mode	RND Indicator	Plays at random
RND1 Lights	All tracks disc, then the	of the current the tracks of the next disc and so on.
RND2 Flashes	All tracks inserted in the	of all discs the magazine.

To play back tracks repeatedly (Repeat Play)

1 Press MODE (M) to enter the functions mode while playing a disc.

"MODE" appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press RPT (repeat), while “MODE” is still on the display, so that the RPT indicator lights up on the display.

Then, each time you press RPT (repeat), the repeat play mode changes as follows:

Track number of the currently playing track

RPTI DEMOJE C-EO RPT ROCK CLASSIC POPS HIP HOP JAZZ USER

RPT indicator lights up.

Ex.: When you select "RPT1."

Mode	RPT Indicator	Plays repeatedly
RPT1 Lights The current track (or specified track).
RPT2 Flashes All tracks of the current disc (or specified disc).

JVC 40L RD-5 RUMA OUTPUT DSP=80M+400K DAS 7 MO 8 MO 9 TO 10 PFT 11 RIO T D N RAM CO/CD+CH 1 >2 3 >4 5 >6

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).
• Before operating the external component using the following procedure, select the external input correctly. (See “To select the external component to use – EXT IN” on page 35.)

1 Select the external component (LINE IN).

CD/CD-CH CD LINE IN

LINE IN 12:00 C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

• If "LINE IN" does not appear on the display, see page 35 and select the external input ("LINE IN").
• Displayed only when one of the following sources is selected – FM, AM and CD.

Note on One-Touch Operation:

When you press CD/CD-CH, the power automatically comes on. You do not have to press 📋 and 📌 on the power.

2 Turn on the connected component and start playing the source.
3 Adjust the volume.

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

4 Adjust the sound characteristics you want. (See pages 29 – 31.)

JVC R-D3 M-24 TRIPTY DBF=100=5000 GAS 7 BD 8 MD 9 D 8 INT 9 NO T D M R/WM CD/CD-CH 1 > 2 3 > 4 5 > 6

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

- Refer also to the Instructions supplied with your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available today. It can deliver CD quality sound without any annoying interference and signal distortion.

Furthermore, it can carry text, pictures and data.

In contrast to FM broadcast, where each programme is transmitted on its own frequency, DAB combines several programmes (called “services”) to form one “ensemble.”

With the DAB tuner connected with this unit, you can enjoy these DAB services.

Tuning in to an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning in to an ensemble, you can select a service you want to listen to.

Before you start....

Press DAB (FM/AM) briefly if CD, CD changer or external component is the current source.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

←→FM/AMDA

2 Select the DAB band (DAB1, DAB2 or DAB3).

Each time you press the button, the DAB band changes as follows:

D1 D2 D3 (DAB 1) (DAB 2) (DAB 3)

Note:

This receiver has three DAB bands (DAB1, DAB2, DAB3). You can use any one of them to tune in to an ensemble.

3 Start searching an ensemble.

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Press ▶▶▶1 search ensembles of higher frequencies.

Press I◀◀ √ search ensembles of lower frequencies.

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have pressed for searching.

4 Select a service you want to listen to.

Diagram of a rotary dial with directional arrows and a hand pointing to the center, showing text labels like 'A', 'B', 'C'.

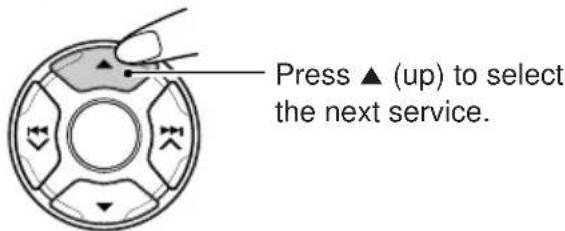

Press ▲ (up) to select the next service.

Diagram of a rotary knob with directional arrows and a finger pointing to the center (no text or symbols)

Press ▼ (down) to select the previous service.

To change the display information while tuning in to an ensemble

Normally service name is shown on the display. If you want to change the display information, press DISP (D).

Each time you press the button, the following information appears on the display for a while.

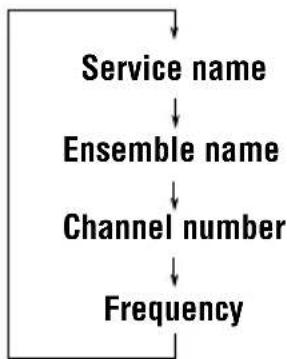

To tune in to a particular ensemble without searching:

1 Press and hold DAB (FM/AM) to select DAB tuner as the source.
2 Press DAB (FM/AM) repeatedly to select the DAB band (DAB1, DAB2 or DAB3).
3 Press and hold ▶▶▶ I ∧ or ◀◀◀ ∨ for more than 1 second.
4 Press ▶▶▶ or ◀◀▶ repeatedly until the ensemble you want is reached.
- If you hold down the button, the frequency keeps changing until you release the button.

To restore the FM/AM tuner

Press and hold DAB (FM/AM) again.

Storing DAB services in memory

You can preset up to 6 DAB services in each DAB band (DAB1, DAB2 and DAB3) manually.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

2 Select the DAB band (DAB1, DAB2 or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

D1 D2 D3 (DAB 1) (DAB 2) (DAB 3)

3 Tune in to an ensemble you want.

Circular mechanical component with six blades and central hub, no text or symbols visible

4 Select a service of the ensemble you want.

Press ▲ (up) to select the next service.

Press ▼ (down) to select the previous service.

5 Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds.

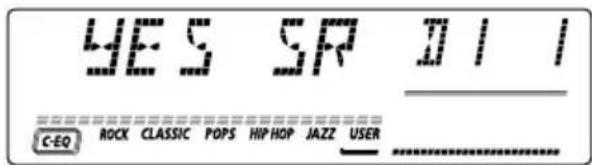

YES SR J11 C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

Selected band/preset number and "MEMO" (memory) appear alternately for a while.

↑↓

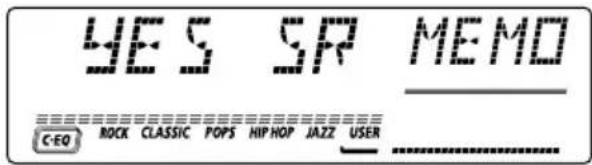

YES SR MEMO CESO ROCK CLASSIC POPS HIP HOP JAZZ USER

6 Repeat the above procedure to store other DAB services into other preset numbers.

Notes:

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.
• Preset DAB services are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the DAB services again.

Tuning in to a preset DAB service

You can easily tune in to a preset DAB service. Remember that you must store services first. If you have not stored them yet, see the column on the left.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

←→ FM/AMDA

2 Select the DAB band (DAB1, DAB2 or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

3 Select the number (1 - 6) for the preset DAB service you want.

7 EQ 8 MO 9 10 11 RPT 12 RND 1 2 3 4 5 6

What you can do more with DAB

Tracing the same program automatically (Alternative Reception)

You can keep listening to the same program.
• While receiving a DAB service:

When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same program.

• While receiving an FM RDS station:

When driving in an area where a DAB service is broadcasting the same program as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

Note:

When reception switches between DAB and FM, the listening volume level may increase or decrease inconveniently. This change in the volume level results from unequal audio injection levels at broadcaster site, but not from the malfunction of this unit.

To prevent this inconvenience, you can adjust the DAB volume level (see next column).

To adjust the DAB volume level

You can adjust the input level of DAB tuner and store it in memory. By adjusting the input level properly to match it to the FM sound level, you will not need to adjust the volume level each time you change the source.

When shipped from the factory, DAB volume level is set at "00."

- See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ or ◀◀◀ to select "DAB VOL (volume)".
3 Turn the control dial to set to the desired volume. You can set it from “-12” to “12.”
4 Press SEL (select) to finish the setting.

To use Alternative Reception

When shipped from the factory, Alternative Reception is activated.

- See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ or ▶◀◀ to select "DAB AF" (alternative frequency).
3 Turn the control dial to select the desired mode.

• AF ON: Traces the program among DAB services and FM RDS stations — Alternative Reception. The AF indicator lights up on the display (see page 12).
• AF OFF: Deactivates Alternative Reception.

Note:

When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 12) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception.

4 Press SEL (select) to finish the setting.

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms		Causes	Remedies
General Playback	Sound is sometimes interrupted.	You are driving on rough roads.	Stop playback while driving on rough roads.
		Disc is scratched.	Change the disc.
		Connections are incorrect.	Check the cords and connections.
	Sound cannot be heard from the speakers.	The volume level is set to the minimum level.	Adjust it to the optimum level.
		Connections are incorrect.	Check the cords and connections.
	CD cannot be played back.	Disc is inserted upside down.	Insert the disc correctly.
	CD-R/CD-RW cannot be played back.Tracks on the CD-R/CD-RW cannot be skipped.	CD-R/CD-RW is not finalized.	Insert a finalized CD-R/CD-RW.Finalize the CD-R/CD-RW with the component which you used for recording.
	“NO DISC” appears on the display.	No disc in the loading slot.	Insert a disc into the loading slot.
		Disc is inserted incorrectly.	Insert the disc correctly.
	Disc cannot be ejected.	Disc is locked.	Unlock the disc (See page 22.)
	This unit does not work at all.	The built-in microcomputer may function incorrectly due to noise, etc.	Press the reset button on the panel holder using a ball-point pen after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)
FM/AM	SSM (Strong-station Sequential Memory) automatic preset does not work.	Signals are too weak.	Store stations manually.
	Static noise while listening to the radio.	The antenna is not connected firmly.	Connect the antenna firmly.
“NO DISC” appears on the display.	No disc in the magazine.	Insert a disc.	CD Changer
“RESET 8” appears on the display.	This unit is not connected to a CD changer correctly.	Connect this unit and the CD changer correctly and press the reset button of the CD changer.
“RESET 1” – “RESET 7” appears on the display.	——	Press the reset button of the CD changer.
Disc cannot be played back.	MP3 files do not have the extension code—mp3 in their file names.	Add the extension code—mp3 to their file names.	MP3 Playback (Only for KD-LH7R)
	MP3 files are not recorded in the format compliant with ISO 9660 Level 1, ISO 9660 Level 2, or Joliet.	Change the disc.(Record MP3 files using a compliant application.)
Files skip, or 00'00" appears and playback stops.	Files are encoded in Layer 1 or Layer 2 format.	Insert a disc that contains files encoded in Layer 3 format.
Noise is generated.	The file played back is not an MP3 file (although it has the extension code—mp3).	Skip to another file or change the disc.(Do not add the extension code—mp3 to non-MP3 files.)
A longer readout time is required (“CHECK” keeps flashing on the display).	Readout time varies due to the complexity of the directory/file configuration.	Do not use too many hierarchies and directories.Also, do not record any other types of audio tracks together with MP3 files.
Files cannot be played back as you have intended them to play.	Playback order is determined when the files are recorded.	——
Elapsed playing time is not correct.	This sometimes occurs during play. This is caused by how the files are recorded on the disc.	——
“MP3” flashes on the display.	There are no MP3 files in the current directory.	Select another directory.
“NO FILES” appears on the display for a while, then “PLEASE” and “EJECT” appear alternately.	There are no MP3 files in this disc.	Insert a disc that contains MP3 files.
Correct characters are not displayed. (e.g. album name)	This unit can only display alphabets (capital: A–Z, small: a–z), numbers, and a limited number of symbols.	——

Handling CDs

This unit has been designed to reproduce CDs, CD-Rs, CD-RWs and CD Text.

Only for KD-LH7R:

- You can also play back MP3 discs.

How to handle discs

When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by

Center holder

Illustration of hands using a rotary dial to measure a circular component (no text or symbols visible)

the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

- Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

Illustration of hands holding a CD or DVD disc with an arrow indicating direction (no text or symbols)

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Line drawing of two hands holding a CD or DVD disc, one with a pencil inserted (no text or symbols)

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying.

We recommend that you stop disc playback while driving on such rough roads.

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

When playing a CD-R or CD-RW

You can play back your original CD-Rs or CD-RWs recorded in audio CD format (or in MP3 format: only for KD-LH7R.) However, they may not be played back depending on their characteristics or recording conditions.

- User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they are already "finalized."

- Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

- Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the player's lens is dirty.

- CD-Rs or CD-RWs are susceptible to high temperatures or high humidity; so do not leave them inside your car.

- CD-RWs may require a longer readout time. (This is caused by the fact that the reflectance of CD-RWs is lower than for regular CDs.)

CAUTIONS:

- Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

- Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

- Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

- Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel

Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance: 2.0 V/20 kΩ load

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 ∝ V/75 Ω)

50 dB Quieting Sensitivity: 16.3 dBf (1.8 ∝ V/75 Ω)

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[AM Tuner]

Sensitivity: 20 ∝ V

Selectivity: 35 dB

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

[For KD-LH7R only:]

MP3 recording format: MPEG 1/2 Audio Layer 3

Max. Bit rate: 320 Kbps

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

(11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Mass: 1.4 kg (excluding accessories)

Design and specifications subject to change without notice.

Diagram showing a device component being processed into a device rear panel, with an arrow indicating the process.

Hinweis:

Close-up of a computer control panel with buttons and a dial (no readable text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Hinweis:

Diagram of a circular mechanical component with directional arrows and control points (no text or symbols)

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram of a circular mechanical component with six blades and central hub, showing alignment and adjustment arrows (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular device with a central hub and a finger pointing to it, no text or symbols present.

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a hand pressing a button on a circular mechanical component (no text or symbols)

Diagram of a wheel with directional arrows indicating rotational motion (no text or symbols)

Diagram showing a finger pressing a button next to an open device with a scroll, no text or symbols present

Technical line drawing of a mechanical component with a circular housing and an arrow indicating direction (no text or symbols)

Isometric line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

PLAY C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram of a circular mechanical component with internal blades and directional arrows, no text or symbols present

JVC 0/1 21 16L RDS RDS THTY 00P-80N-HOSI DAS T 25 S NO S 10 S RFT W RND T 0 M Guam COVID-CH 1= >2 3= >4 5= =6

Diagram showing a finger pressing a button next to an open device with a scroll (no text or symbols present)

Technical line drawing of a CD or DVD disc assembly (no text or symbols)

Isometric line drawing of a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram of a circular mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a circular mechanical component with directional arrows and shaded segments, no text or symbols present.

Circular diagram with six directional arrows and a hand pointing to the top-left quadrant (no text or symbols)

Circular mechanical component with six directional arrows and a finger pointing to it (no text or symbols)

Diagram of a circular device with a central component and a finger pointing to it (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular device with a central hub and a finger pointing to the center (no text or symbols)

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

2

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with labeled parts and directional arrows indicating motion or force directions.

2

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with internal blades and arrows indicating motion or force (no text or symbols)

2

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular device with a central knob and a finger pointing to it (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a cassette tape being inserted into a slot, with a magnified inset showing the pin (no text or symbols present)

Technical line drawing showing two views of a cassette tape device with cooling fans, no text or symbols present

Technical line drawing of a mechanical component with an open lid and internal structure (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Anschlüsse

JVC HVPTY DBP=30M=600S GAS T NO 5 NO 9 D M AFT V MD T D M RUM COCO-CH 1 >2 3 >4 5 >6

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram of a rotary knob with arrows indicating direction (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with six blades and a central hub, showing internal structure and alignment lines (no text or symbols)

Diagram of a rotary dial with directional arrows and control knob, showing hand placement on top panel

Diagram of a circular mechanical component with directional arrows and a finger pointing to it (no text or symbols)

Circular mechanical component with six arms and central hub, showing directional arrows (no text or symbols)

Diagram of a rotary dial with directional arrows and labeled zones, showing hand placement for dial orientation.

Diagram of a hand pointing to a circular component with directional arrows (no text or symbols)

Illustration of hands holding a circular object with an arrow indicating direction (no text or symbols)

Line drawing of two hands holding a CD or DVD disc (no text or symbols)

Max. Bitrate: 320 kbit/s

ALLGEMEIN

Diagram illustrating the process of inserting a device into a device, showing component assembly and pin alignment.

Remarque:

INTRODUCTION AU MP3 23

(SEULEMENT POUR LE KD-LH7R)

Close-up of a computer monitor with control buttons and a rotary knob (no visible text or symbols)

Diagram of a mechanical component with a circular inset showing a cross and directional arrow (no text or symbols)

JVC R-D-3 1 3 2

Mise sous tension

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

F1 F2 F3 AM (FM 1) (FM 2) (FM 3)

Remarque:

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

00.3

F

IMFNU

C-EQ ROCK CLASSIC POPS HIP HOP JAZZ USER

Diagram of a circular mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Circular mechanical component with six arms and central hub, no visible text or symbols

Diagram of a circular mechanical component with six blades and central hub, showing alignment and adjustment arrows (no text or symbols)

Diagram of a circular mechanical component with a central knob and a finger pointing to it (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

PICK M P792 C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER

Diagram showing a finger pressing a button next to a device with an arrow indicating motion (no text or symbols present)

Diagram of a CD inside a rectangular housing with an arrow indicating direction (no text or symbols)

Isometric line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Maintenez pressée

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

RPT DEMOJE CEO APT ROCK CLASSIC POPS HIP HOP JAZZ USER

Indicateur RPT

Diagram showing a finger pressing a button next to an open device with a scroll inside (no text or symbols)

Technical line drawing of a CD or DVD disc assembly (no text or symbols)

Diagram of a mechanical component with a black arrow indicating force or movement (no text or symbols)

Diagram of a circular mechanical component with directional arrows and control points (no text or symbols)

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Circular diagram with six directional arrows and a hand pointing to the top-left quadrant (no text or symbols)

Circular diagram with six directional arrows and a finger pointing to the center (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with a central hub and a finger pointing to it (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with six segments and directional arrows, no text or symbols present

2

SEL

Diagram of a circular mechanical component with directional arrows and labeled parts 1 and 2

2

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with labeled parts and directional arrows indicating motion or force directions.

2

Diagram of a wheel with directional arrows indicating rotational motion (no text or symbols)

Diagram of a circular mechanical component with six blades and directional arrows, no text or symbols present

Diagram of a circular mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

A B	C D	E F	G H	I J
K L	M N	O P	Q R	S T
U V	W X	Y Z				0 1	2 3
4 5	6 7	8 9				-	/	<	>
espace

Remarques:

Line drawing of a cassette tape with an arrow pointing to it, no text or symbols present

Technical line drawing showing two views of a device with ports and connectors, no text or symbols present

Technical line drawing of a mechanical component with a housing and a side view showing internal structure (no text or symbols)

Technical line drawing of two mechanical components with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with two circular features, no text or symbols present

Diagram of a circular mechanical component with directional arrows and control points (no text or symbols)

Maintenez pressé

Diagram of a circular mechanical component with internal segments and directional arrows, no text or symbols present

Appuyez brièvement

Diagram of a hand pressing down on a circular mechanical component with arrows indicating direction (no text or symbols)

Diagram of a car wheel with directional arrows indicating rotation, no text or symbols present

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram of a hand pressing a circular component with directional arrows (no text or symbols)

Diagram of a circular mechanical component with directional arrows and a finger pointing to it (no text or symbols)

D1 D2 D3 (DAB 1) (DAB 2) (DAB 3)

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a rotary dial with directional arrows and labeled zones, showing hand placement on top.

Diagram of a hand pressing a button on a circular mechanical component (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Illustration of hands holding a CD or DVD disc with an arrow indicating direction (no text or symbols)

Illustration of two hands holding a CD or DVD disc, no text or symbols present

11,3 dBf (1,0 ∝ V/75 Ω)

Diagram showing a device component being processed into a device with a pen, illustrating the process from external casing to internal components.

Opmerking:

27 De indicator C-EQ (custom equalizer)

28 De indicator RND (random)

29 De indicator RPT (repeat)

30 De indicator LOUD (loudness)

34 De indicators RDS AF, REG, TP, PTY

Diagram of a mechanical component with an arrow indicating rotation or force direction (no text or symbols)

Lithium knoopcelbatterij (Productnummer: CR2025)

JVC R-D-3 1 3 2

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with directional arrows and control points (no text or symbols)

Opmerking:

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram of a circular mechanical component with six segments and directional arrows, no text or symbols present.

3 Selecteer de gewenste modus – "AF", "AF REG" of "OFF".

SEL

4 Voltooi de instelling.

Diagram of a circular device with a central hub and a finger pointing to it, no text or symbols present.

Diagram of a circular mechanical component with arrows indicating direction, no text or symbols present

Diagram of a circular device with a central component and a finger pointing to it (no text or symbols)

EDUCATE: Educatieve programma's

Diagram showing a hand holding a circular button next to an open device with a scroll arrow (no text or symbols)

Technical line drawing of a CD or DVD disc assembly (no text or symbols)

Isometric line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

PLAY ... CD C-EO ROCK CLASSIC POPS HIP HOP JAZZ USER De indicator CD gaat aan.

Diagram of a circular mechanical component with six blades and a handle, showing internal structure and alignment (no text or symbols)

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram showing a hand holding a circular object next to an open device with a scroll arrow (no text or symbols present)

Technical line drawing of a CD inside a rectangular housing (no text or symbols)

Isometric line drawing of a device casing with an arrow indicating direction (no text or symbols)

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram of a circular mechanical component with directional arrows and shaded regions, no text or symbols present.

Circular diagram with six directional arrows and a hand pointing to the top-left quadrant (no text or symbols)

Circular diagram with directional arrows and a finger pointing to the center (no text or symbols)

Diagram of a circular component with a central star-like pattern and a finger pointing to it (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical component with rotational arrows and 'SEL' label, no readable text or symbols beyond the label

Diagram of a circular mechanical component with labeled parts and directional arrows indicating motion or force

Diagram of a wheel with directional arrows indicating rotational motion (no text or symbols)

3 Stel de minuten in.

Diagram of a circular mechanical component with labeled parts and directional arrows indicating motion or force

SET

Diagram of a circular mechanical component with labeled parts and directional arrows indicating motion or force directions.

Diagram of a car wheel with directional arrows indicating rotation, no text or symbols present

5 Voltooi de instelling.

Diagram of a circular component with a central 'SEL' and a finger pointing to it (no text or symbols beyond the label)

Diagram of a circular mechanical component with a finger pointing to the center (no text or symbols)

Circular mechanical component with six blades and a central hub, no visible text or symbols

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Diagram of a circular mechanical component with arrows indicating direction, no text or symbols present

A B	C D	E F	G H	I J
K L	M N	O P	Q R	S T
U V	W X	Y Z				0 1	2 3
4 5	6 7	8 9				-	/	<	>
spatie

Opmerkingen:

Line drawing of a cassette tape with an arrow pointing to it, no text or symbols present

Technical line drawing showing three views of a device casing with ports and connectors (no text or symbols)

Technical line drawing of a mechanical component with an open section and a side view showing internal features (no text or symbols)

Technical line drawing of two mechanical components with a highlighted section (no text or symbols)

Technical line drawing of a cassette tape mechanism inside a housing (no text or symbols)

Technical line drawing of two electronic components with connectors (no text or symbols)

Connectors

JVC RDS THTY DBP=85N=600S GAS T EQ 5 NO 9 D 8 RFT 9 NO T D M INAM COCO-CHY 1-2 3-4 5-6

Diagram of a circular mechanical component with directional arrows and control points (no text or symbols)

Diagram of a circular mechanical component with directional arrows and a pointer, no text or symbols present

Diagram of a rotary knob with directional arrows indicating rotation (no text or labels)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

JVC H-D-5 R1000 OUTPUT DAS=80M+800E DAS 7 BD 6 NO 9 TO 10 RPT TO RMD 1 D M EAM/CC/CO-CN 1-2 3-4 5-6

Diagram of a circular mechanical component with internal blades and mounting holes, no text or symbols present

Diagram of a rotary dial with directional arrows and a hand pointing to the top-left quadrant

Diagram of a circular mechanical component with directional arrows and a finger pointing to a feature (no text or symbols)

Diagram of a circular mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a rotary dial with directional arrows indicating rotation (no text or symbols)

Diagram of a circular mechanical component with directional arrows and a finger pointing to a section (no text or symbols)

Illustration of hands using a compass to measure a circular object (no text or symbols present)

Illustration of hands holding a CD or DVD with an arrow indicating direction (no text or symbols)

Line drawing of two hands holding a CD or DVD disc, one pointing at the disc (no text or symbols)

Haperingen:

Stereo-scheiding: 30 dB

Vangbereik: 1,5 dB

[AM-zenders]

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit
