USER MANUAL AM2320 RCF

Loudspeaker connection 11

Power supply voltage change 12

Example of connection 12

Specifications 13

ITALIANO

Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference. The manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions.

RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.

WARNING: To prevent the risk of fire or electric shock, never expose this product to rain or humidity.

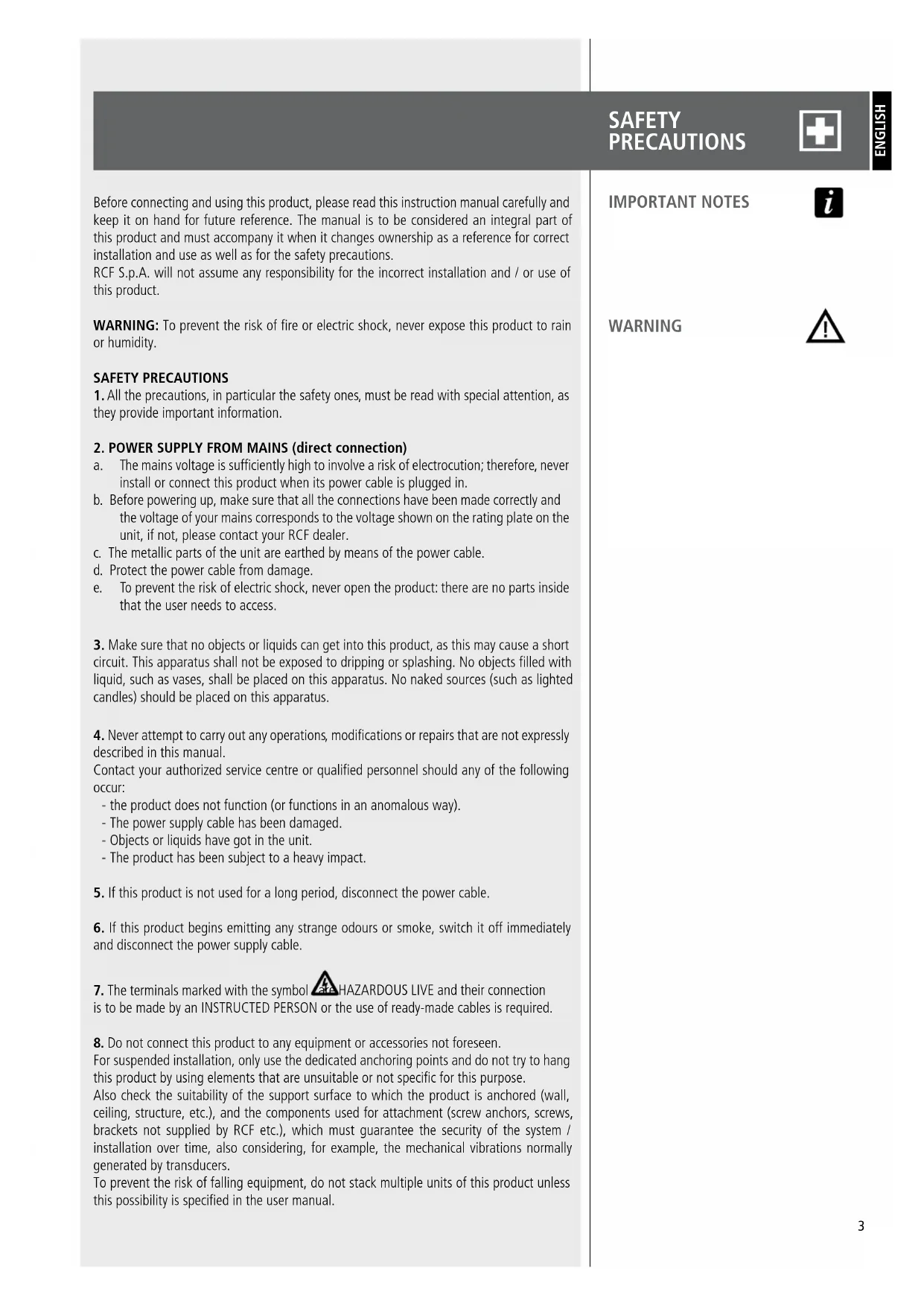

SAFETY PRECAUTIONS

1. All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.

2. POWER SUPPLY FROM MAINS (direct connection)

a. The mains voltage is sufficiently high to involve a risk of electrocution; therefore, never install or connect this product when its power cable is plugged in.
b. Before powering up, make sure that all the connections have been made correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit, if not, please contact your RCF dealer.
c. The metallic parts of the unit are earthed by means of the power cable.
d. Protect the power cable from damage.
e. To prevent the risk of electric shock, never open the product: there are no parts inside that the user needs to access.

1. Make sure that no objects or liquids can get into this product, as this may cause a short circuit. This apparatus shall not be exposed to dripping or splashing. No objects filled with liquid, such as vases, shall be placed on this apparatus. No naked sources (such as lighted candles) should be placed on this apparatus.
2. Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.

Contact your authorized service centre or qualified personnel should any of the following occur:

• the product does not function (or functions in an anomalous way).
• The power supply cable has been damaged.
• Objects or liquids have got in the unit.

• The product has been subject to a heavy impact.

• If this product is not used for a long period, disconnect the power cable.

• If this product begins emitting any strange odours or smoke, switch it off immediately and disconnect the power supply cable.

• The terminals marked with the symbol are HAZARDOUS LIVE and their connection is to be made by an INSTRUCTED PERSON or the use of ready-made cables is required.

• Do not connect this product to any equipment or accessories not foreseen.

For suspended installation, only use the dedicated anchoring points and do not try to hang this product by using elements that are unsuitable or not specific for this purpose.

Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

To prevent the risk of falling equipment, do not stack multiple units of this product unless this possibility is specified in the user manual.

IMPORTANT NOTES

WARNING

1. RCF S.p.A. strongly recommends this product is only installed by professional qualified installers (or specialised firms) who can ensure correct installation and certify it according to the regulations in force.

The entire audio system must comply with the current standards and regulations regarding electrical systems.

1. Supports and trolleys

The equipment should be only used on trolleys or supports, where necessary, that are recommended by the manufacturer. The equipment / support / trolley assembly must be moved with extreme caution. Sudden stops, excessive pushing force and uneven floors may cause the assembly to overturn.

1. There are numerous mechanical and electrical factors to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.).

2. Hearing loss

Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure. To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices. When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones.

See the technical specifications in loudspeaker instruction manuals to know their maximum sound pressure levels.

IMPORTANT NOTES

To prevent the occurrence of noise on microphone / line signal cables, use screened cables only and avoid putting them close to:

• equipment that produces high-intensity electromagnetic fields (for example, high power transformers).

• Mains cables.

• Loudspeaker lines.

OPERATING PRECAUTIONS

• Do not obstruct the ventilation grilles of the unit. Situate this product far from any heat sources and always ensure adequate air circulation around the ventilation grilles.
• Do not overload this product for a long time.
• Never force the control elements (keys, knobs, etc.).
• Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts of this product.

IMPORTANT NOTES

OPERATING PRECAUTIONS

RCF S.p.A. would like to thank you for having purchased this product, which has been designed to guarantee reliability and high performance.

AM 2160 and AM 2320 are mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.).

Both the models have identical features, but the nominal power: AM 2160 is a 160 W amplifier; AM 2320 is a 320 W amplifier.

The amplifier output is available either for low impedance loudspeakers (min. 4 Ω) or 100 - 70 V constant voltage line (for loudspeakers having 100 - 70 V transformers).

Input 1 has a signal detection circuit ('VOX') providing automatic priority operation.

All inputs 1, 2, 3 and 4 can access the priority through an external command (connected to the removable connector). Inputs 2 and 3 also have an RJ 45 socket for quick connection of an RCF BM 3001 paging microphone (through CAT5 cable).

The MUSIC ON HOLD aux output allows to send the music (the output signal of the device connected to the AUX INPUT A) to additional amplifiers, mixers, phone systems ('music on hold' function), etc.

The 4 mic.-line inputs have a common 'presence' control and separate high-pass filters that are useful for improving speech intelligibility.

The 2 aux inputs have independent tone controls (common for both aux inputs).

Front panel LED's indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal level (SIG/PK).

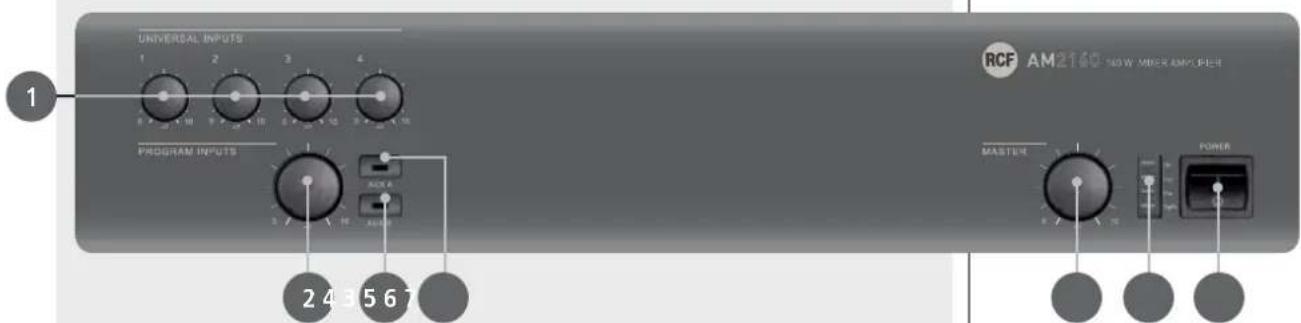

FRONT PANEL

1VOLUME CONTROLS FOR EACH UNIVERSAL INPUT (1, 2, 3, 4).

Note: unused channels should always be turned counterclockwise (to 0).

2UX INPUT VOLUME CONTROL.

Note: turn counterclockwise (to 0) if aux inputs are not used.

3UX A BUTTON (with LED).

It turns on (LED is lit) / off the AUX INPUT A to the internal amplifier (and PRE OUT).

If activated, the AUX INPUT B signal will not be sent to the internal amplifier (the AUX B button LED will turn off).

The AUX INPUT A signal is always sent to the MUSIC ON HOLD output (that is not affected by the AUX A and AUX B buttons).

4UXB BUTTON (WITHLED).

It turns on (LED is lit) / off the AUX INPUT B to the internal amplifier (and PRE OUT).

If activated, the AUX INPUT A signal will not be sent to the internal amplifier (the AUX A button LED will turn off).

It takes 10 seconds (after pressing either the AUX A or the AUX B button) to store on its memory the last selection.

5 INTERNAL AMPLIFIER MASTER VOLUME CONTROL.

Note: the audio outputs having RCA connectors (MUSIC ON HOLD and PRE OUT) are not affected by the MASTER volume control.

6 LEDs.

ON green: the device is switched on

PROT red: overload protection orange: thermal protection

PRIOR yellow: priority by either the VOX function or an universal input or the SEQ. COMMAND.

SIG/PK green: the signal level is higher than -15 dB green + red: the signal level is in the 0÷ +2 dB range red: the signal level is equal or higher than +3 dB

10 dB = signal level that allows to get the amplifier maximum power.
The internal 'limiter' circuit helps to avoid the amplifier overloading, yet it is advisable to reduce the MASTER volume (or a single channel volume where a too high signal is present) when the SIG/PK LED is continuously indicating red.
7MAIN POWER SWITCH (0 = OFF; 1 = ON)

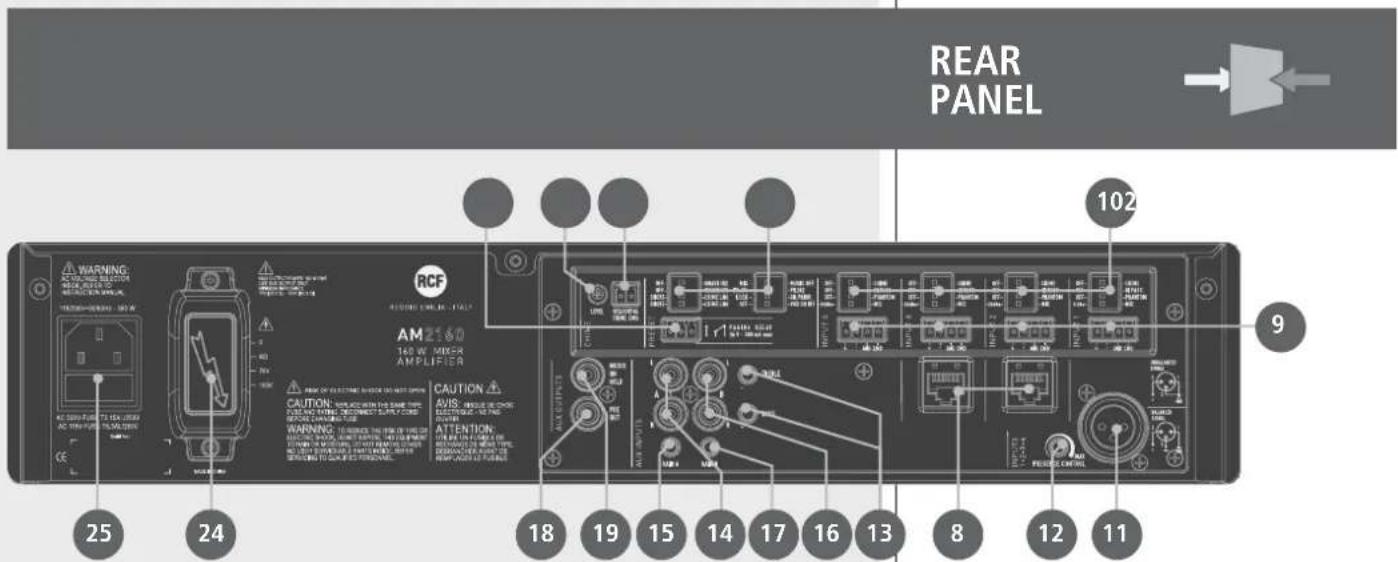

8 RJ 45 SOCKETS (CHANNELS 2 AND 3) TO CONNECT AN RCF BM 3001 PAGING MICROPHONE PER SOCKET.

Note: when a BM 3001 paging microphone is connected, it is necessary to set the dip-switches 3 and 4 of the relevant channel to the -20 dBu + PHANTOM mode (see 10 below).

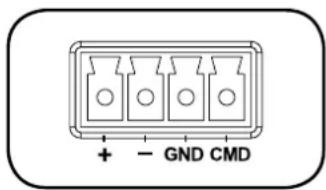

9 BALANCED AUDIO INPUTS (CHANNELS 1, 2, 3, 4) WITH Sockets FOR REMOVABLE CONNECTORS.

+Hot audio input

Cold audio input

GND Ground

CMD Command - priority access when connected to ground

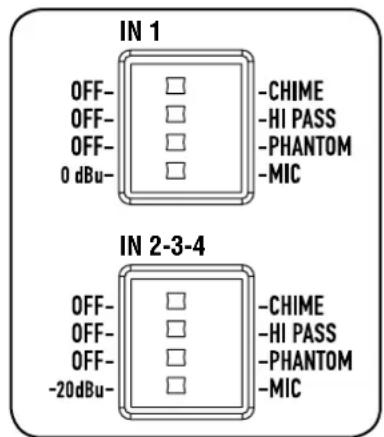

10ACH CHANNEL HAS 4 DIP-SWITCHES:

1	OFF - CHIME	OFF: the chime is disabled.	CHIME: the chime will be played as soon as a priority command is activated.
2	OFF - HI PASS	OFF: the audio hi-pass filter is not inserted (flat frequency response).	HI PASS: the audio hi-pass filter is inserted.
3	OFF - PHANTOM	OFF: the PHANTOM power supply is not available on the relevant audio input.	PHANTOM: the PHANTOM power supply is available on the relevant audio input.
4	CHANNEL 10 dBu - MIC	0 dBu: input level = 0 dBu (775 mV).	MIC: microphone audio input.
5	CHANNELS 2, 3, 4 -20 dBu - MIC	-20 dBu: input level = -20 dBu (78 mV).	MIC: microphone audio input.

Examples of dip-switches 3 and 4 settings:

DIP 3 DIP 4 MODO USE (EXAMPLES)

OFF 0 dBu 0 dBu (CHANNEL 1). CD/MP3 players, tuners, message players, phone systems.
PHANTOM 0 dBu 0 dBu + PHANTOM (CHANNEL 1).	Pre-amplified (0 dBu output) paging microphone that needs 'phantom' power supply.
OFF -20 dBu	-20 dBu (IN. 2, 3, 4).	Audio source having a -20 dBu output.
PHANTOM -20 dBu	-20 dBu + PHANTOM (CHANNELS 2, 3, 4).	BM 3001 paging microphone.
OFF MIC MIC.	Dynamic microphones.
PHANTOM MIC MIC + PHANTOM.	Electret microphones.

When a BM 3001 paging microphone is used, it is necessary to choose the -20dBu+ PHANTOM' mode in the relevant channel (dip-switch no.3 set to PHANTOM; dip-switch no.4 set to -20 dBu).

11 CHANNEL NO.1 XLR INPUT.

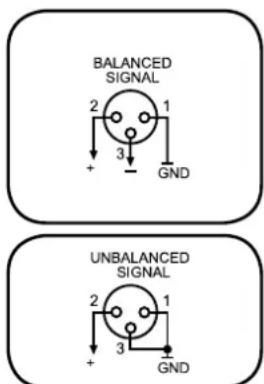

BALANCED CONNECTION

+ Hot
- Cold
GND Ground

UNBALANCED CONNECTION

12RESENCE CONTROL (F = 2.15KHZ) COMMON FOR ALL THE CHANNELS 1, 2, 3, 4.
EUX INPUT (A & B) TREBLE AND BASS CONTROLS.
14UX INPUT A WITH DUAL RCA CONNECTOR.
The two channels of the stereo source connected to the AUX INPUT A are summed

internally (to get a mono signal); the same for the stereo source connected to the AUX INPUT B.

15UX INPUT A GAIN CONTROL.
16UX INPUT B WITH DUAL RCA CONNECTOR.
17UX INPUT B GAIN CONTROL.
18RE OUT audio output (with RCA connector) that sends the same signal routed to the internal amplifier (signal that can be either a single source with priority or the mix of all the channels 1, 2, 3, 4 and the selected AUX INPUT).
Use PRE OUT for connection of additional external amplifiers.
19 USIC ON HOLD AUDIO OUTPUT (with RCA connector) that sends a mono signal of the source connected to the AUX INPUT A.
7 The MUSIC ON HOLD output (if an external music source has been connected to the AUX INPUT A) can be used for the connection to a telephone system (in order to have the 'music on hold' function).
20 DIP-SWITCHES PRESET TO SET THE PRIORITY OPTIONS:

1.	MIX - MUSIC OFF	MIX: the selected AUX INPUT is always present in the (mixed) signal sent to the amplifier, even during a priority command.	MUSIC OFF: the selected AUX INPUT is not sent to the amplifier during a priority command.
2.	PRIOINPUT 1 PRIO INPUT 2	PR. IN1: the channel 1 has the highest priority level with override (but the CHIME SEQUENTIAL COMMAND) through the relevant command (or VOX), if the dip-switch no.3 has been set to 'graduated priority'.	PR. IN2: the channel 2 has the highest priority level with override (but the CHIME SEQUENTIAL COMMAND) through the relevant command, if the dip-switch no.3 has been set to 'graduated priority'.
3.	I/LCK - GR. PRIOR.	I/LCK: interlocked priority mode (read the 'Operation' section).	GR. PRIOR.: graduated priority mode (read the 'Operation' section).
4.	OFF - VOX ON IN1	OFF: the channel 1 VOX function is off.	VOX ON IN1: the channel 1 VOX function is on (automatic priority when a signal is detected on the audio INPUT 1).
5.	OFF - SMART IN2	OFF: the channel 2 priority is kept only if the relevant command is still present ('push' mode).	SMART IN2: the channel 2 priority is switched on / off by every impulse of the relevant command ('toggle' mode).
6.	OFF - SMART IN3	OFF: the channel 3 priority is kept only if the relevant command is still present ('push' mode).	SMART IN3: the channel 3 priority is switched on / off by every impulse of the relevant command ('toggle' mode).
7.	SHORT - CHIME LNG	SHORT: short chime (before paging).	CHIME LONG: long chime (before paging).
8.	SHORT - CHIME LNG	SHORT: the short chime is continuously played when the 'CHIME SEQUENTIAL COMMAND' is activated.	CHIME LONG: the long chime is continuously played when the 'CHIME SEQUENTIAL COMMAND' is activated.

21HIME LEVEL (a trimmer adjustable by using a small screwdriver).
22 HIME SEQUENTIAL COMMAND WITH REMOVABLE CONNECTOR (activated when the 2 pins are short-circuited) to send the chime continuously (the chime type can be selected by the dip-switch no.8, see 20-8).
23AGING RELAY CONTACTS (3 PIN REMOVABLE CONNECTOR).

The internal relays switches when a priority command is present.

1 Normally open

2 Common

3 Normally closed

Max. voltage on contacts: 24 V; max. current: 0.5 A

24 MPLIFIER OUTPUT (AM 2160: max. 160 W; AM 2320: max. 320 W) to loudspeakers

(100/70 V constant voltage line - 4 Ω impedance).

Use 1 output only (read the section 'Loudspeaker connection').

25 AINS CONNECTOR WITH FUSE.

Before connecting the power supply cable, verify that the apparatus voltage (230 or 115V ac) corresponds to the available mains supply.

Note: the fuse type is marked on the rear panel (below the mains connector).

PAGING RELAY 24 V - 500 mA max

OPERATION

Vox' is an internal circuit that automatically activates the channel 1 priority when a signal is detected on the audio INPUT 1.
If no priority command is present (including VOX and CHIME SEQUENTIAL COMMAND), all the channels 1, 2, 3, 4 and the selected AUX INPUT are mixed together.
The music volume (coming from a CD / MP3 player, a tuner, etc.) depends on the aux input volume control on the front panel (see 2) and also the relevant GAIN control setting (see 15 and 17) on the rear panel.
The aux inputs can be activated / muted through the front panel buttons (see 3 and 4).

PRIORITY

If a priority command is present (or VOX), the selected AUX INPUT can be either included in the mixed signal sent to the amplifier or excluded, according to dip-switch no.1 setting (see 20: the 8 dip-switch group).

During a priority command ('PRIOR' LED turns on), only the audio signal of the channel with priority (and an AUX INPUT, if turned on) is sent to the amplifier (and the PRE OUT output).

1 The selected aux input is always excluded from the signal sent to the amplifier when the CHIMESEQUENTIAL COMMAND is activated.

The priority mode and the VOX function are set through the dip-switches no.2 and no.3 of the 8 dip-switch group (see 20):

POWER ON (OR WHEN

A PRIORITY COMMAND ENDS)

DIP 2 DIP3 MODE

...I/LCK INTERLOCKED

Only the first priority command of channels

1 ÷ 4 (and also channel 1 VOX, if enabled through the dip-switch no.4) is accepted.

Any other priority command will not be accepted until the previous is removed.

Note: the only event that can always be activated later (and can override a previous priority) is the CHIME SEQUEN COMMAND.

PRIO IN1

GR. PRIOR.

GRADUATED PRIORITY 1

A priority command having a higher level can override the previous one.

The priority levels are:

1. (highest) CHIMESEQUENTIAL COMMAND
2. channel 1 (including VOX)
3. channel 2
4. channel 3
5. channel 4

PRIO IN2

GR. PRIOR.

GRADUATED PRIORITY 2

A priority command having a higher level can override the previous one.

The priority levels are:

1. (highest) CHIME SEQUENTIAL COMMAND
2. channel 2
3. channel 1 (including VOX)
4. channel 3
5. channel 4

1 The dip-switch no.2 (8 dip-switch group) allows you to switch the priority level between the channels 1 and 2. This setting does not work in the interlocked priority mode.

As soon as a priority event ends, the initial state will be restored (the channels 1, 2, 3, 4 and the selected aux input will be mixed together, unless another priority event is in progress).

The chime sequential command makes the chime (short or long, depending on the dip-switch no.8 setting, see 20) be continuously repeated. This command has the highest priority level and always removes the selected aux input from the signal sent to the amplifier.

The dip-switches no.5 and no.6 (8 dip-switch group, see 20) allow choice of priority mode for channels 2 and 3 between 'push' (the priority is kept only if the command is still present) and 'toggle' (the priority is switched on / off by every impulse of the command).

Note: the chosen priority mode is applied to both BM 3001 paging microphones (if present) and priority commands (of removable connectors).

Each input gain can be set to either MIC or -20 dBu (0 dBu for the channel 1). It is also possible to turn the PHANTOM power supply on/off, to insert / remove the high-pass filter and to enable / disable the chime, which is played on every priority event.

The chime is not played when using the channel 1 VOX function (a priority command is needed to play the chime).

Its melody can be either short or long (dip-switch no.7 of the 8 dip-switch group, see 20).

When the chime is playing (a few seconds), the selected aux input is not sent to the amplifier.

Channels 2 and 3 have an input with RJ 45 socket, to which a BM 3001 paging microphone

CHIMESEQUENTIALCOMMAND

CHANNEL 2-3 'PUSH'

TOGGLE' PRIORITY MODE

4 DIP-SWITCH GROUP

(PER EACH CHANNEL 1÷4)

INFORMATION

ABOUT THE CHIME

can be connected (note: it is necessary to set the dip-switches no.3 and no.4 to the '-20 dBu + PHANTOM' mode, see 10, second table).

When the BM 3001 paging microphone is on (ready to talk), its LED turns ON.

When the chime is playing (if chime is enabled), the BM 3001 microphone is momentarily muted.

The paging microphone priority mode depends on the settings mentioned above.

The paging microphone is muted by events having a higher priority level (than the channel 2 or 3, to which the paging microphone is connected).

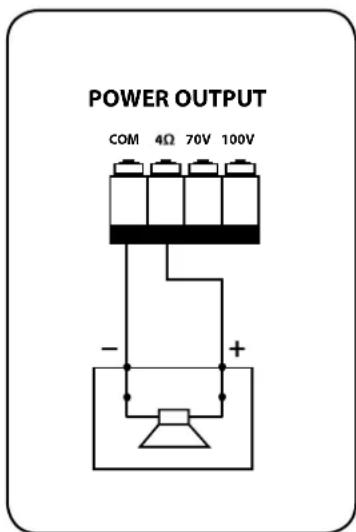

LOUDSPEAKER CONNECTION

Use 1 output only, DO NOT MIX 100/70 V and 4 Ω CONNECTIONS!

Each loudspeaker shall have a line transformer with the input voltage equal to the line voltage (70 / 100V)
- The loudspeaker total power shall not be higher than the amplifier maximum power.

The loudspeaker total impedance shall not be lower than 4 .Note: a total impedance equal to 4 allows the amplifier maximum power delivery. A higher impedance leads to a reduction of the power delivered by the amplifier (e.g. 8 : approx. 12 power, 16 : approx. 14 power). An impedance lower than 4 overloads the amplifier.
- Loudspeaker models shall be chosen by considering the max. power (AM 2160: 160 W on a 4 Ω load; AM 2320: 320 W on a 4 Ω load) that the amplifier can deliver.
- Loudspeaker line should be as short as possible; long cables may need large wire cross-sections.
- Do not use, at the same time, both the low impedance output (4) and the constant voltage output (70V or 100V), as this overloads the amplifier.

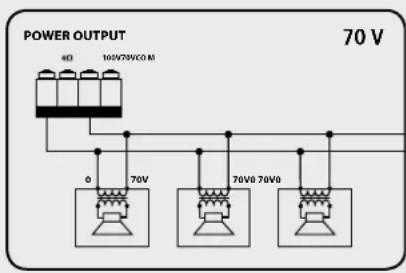

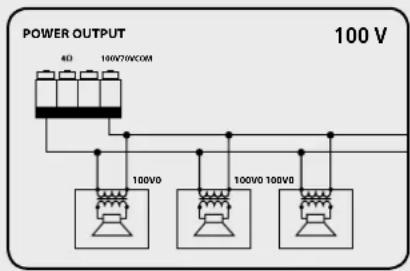

70/100V CONSTANT VOLTAGE OUTPUTS

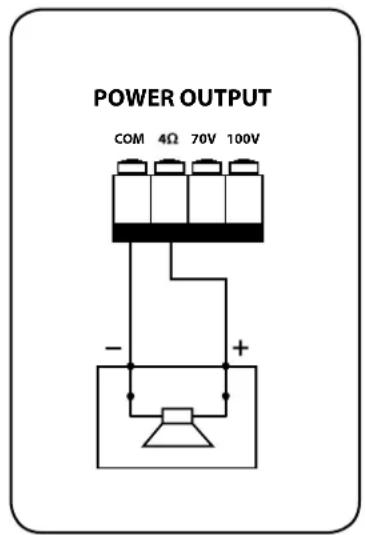

LOW IMPEDANCE OUTPUT (4 Ω)

IMPORTANT: This manual section is for qualified personnel only. The following instructions are to be ignored by the user.

Make sure the device is not connected to the mains (unplug the power supply cable).

Remove the lid.

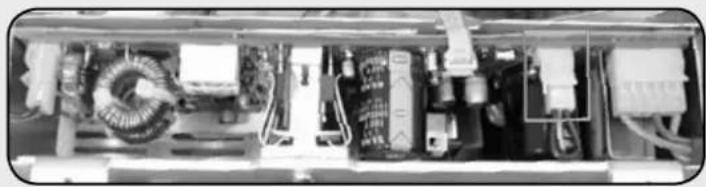

The voltage change connector is highlighted by a square.

If the mains voltage is 230V set the connector to the 230Vac position (see the picture 2), according to the PCB indication (looking at the connector front, the central pin is connected to the right one).

If the mains voltage is 115V set the connector to the 115 Vac position (see the picture 3), according to the PCB indication (looking at the connector front, the central pin is connected to the left one).

Refit the device lid.

Before connecting the device to the mains, make sure that the fuse (inside the IEC power supply connector of the rear panel, see 25) is the correct current rating for the mains voltages (read the fuse indication below the connector).

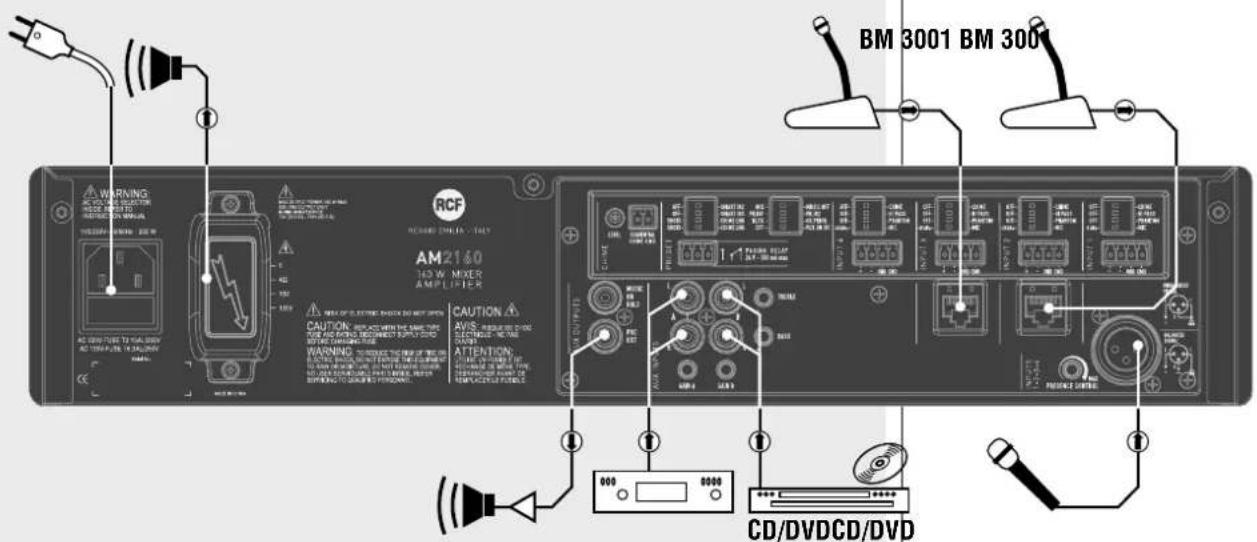

EXAMPLE OF CONNECTION

AMPLIFIER

Output (RMS) power

Frequency response

SIGNAL / NOISE RATIO

Channels 1÷ 4

Aux

Distortion (at 1 kHz, nominal power)

AUX INPUT TONE CONTROLS

Bass

Treble

PRESENCE control (inputs 1 ÷ 4 )

High-pass filter (inputs 1 ÷ 4 )

INPUT SENSITIVITY / IMPEDANCE

MIC (channels 1 ÷ 4 )

-20 dBu (channels 2 ÷ 4 )

0 dBu (channel 1)

AUX INPUT (A, B)

AUX OUTPUT level / impedance

(pre / music on hold)

'Phantom power' voltage / current

LOUDSPEAKER OUTPUTS

Low impedance

Constant voltage (AM 2160)

Constant voltage (AM 2320)

PROTECTIONS

Amplifier

Power supply

GENERIC

Operating voltage

Power (consumption)

Dimensions (w, h, d)

Net weight

160 W (AM 2160), 320 W (AM 2320)

50Hz÷ 13.5kHz

60 dB

80 dB

< 0.3%

± 8 dB @ 80 Hz

±8dB@13kHz

+10dB@2.15kHz

150 Hz

Balanced, -56 dBu (max - 25 dBu) / 10 kΩ

Balanced, -28 dBu (max 0 dBu) / 5 kΩ

Balanced, -7 dBu (max + 19 dBu) / 10 kΩ

Adjustable -4÷ +15 dBu (max +22 dBu) / 20 kΩ

-1dBu/600Ω

32V/18mA

4Ω

70 V (31 Ω) / 100 V (62 Ω)

70V (16 Ω) / 100 V (31 Ω)

Overload, short circuit, thermal

fuses

115-230V/50-60Hz

350 W (AM 2160), 600 W (AM 2320)

442 mm, 88 mm, 230 mm (2U 19" rack)

4.8kg (AM 2160), 6.2kg (AM 2320)

CMD Command - priority access when connected to ground

ASCUN CANALE DISPONE DI 4 MICROINTERRUTFORI "DIP-SWITCH":

1 OFF - CHIME OFF: the chime is disabled.

CHIME: the chime will be

played as soon as a priority command is activated.

2 OFF-HI PASS

OFF: the audio hi-pass filter is not inserted (flat frequency response).

HI PASS: the audio hi-pass filter is inserted.

3 OFF - PHANTOM

OFF: the PHANTOM power supply is not available on the relevant audio input.

PHANTOM: the PHANTOM power supply is available on the relevant audio input.

4 CHANNEL 1

0 dBu-MIC

0 dBu: input level = 0 dBu (775 mV).

MIC: microphone audio input.

5

CHANNELS 2,3,4 -20 dBu-MIC

-20 dBu: input level = -20 dBu (78 mV).

MIC: microphone audio input.

OFF 0 dBU 0 dBu (CHANNEL 1)

CD/MP3 players, tuners,

message

PHANTOM

0 dBu 0 dBu + PHANTOM (CHANNE

Pre-amplified (0 dBu output) paging microphone that needs phantom power supply.

OFF

-20 dBu

-20 dBu (IN. 2, 3, 4).

Audio source having a -20 dBu output.

PHANTOM

-20 dBu

-20 dBu + PHANTOM (CHANNELS 2, 3, 4).

BM 3001 paging microphone.

OFF MIC

MIC.

Dynamic microphones.

PHANTOM

MIC

MIC + PHANTOM.

Electret microphones.

ALL'ACCENSION (OPPURE

AL TERMINE DI UNA PRIORITA)

DIP 2 DIF 3 MODO

USCITE A TENSION COSTANTE 70/100V

USCITA BASSA IMPEDENZA (4 Ω)

Controllo PRESENCE (ingressi 1÷ 4

Filtro passa-alto (ingressi 1÷ 4

SENSIBILITA D'INGRESSO / IMPEDENZA

MIC (canali 1÷ 4

-20 dBu (canali 2÷ 4

0 dBu (canale 1)

AUX INPUT (A, B)

Livello d'uscita / impedenza

AUX OUTPUT (pre / music on hold)

1. All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.

2. ALIMENTATION SECTEUR

EOUTON AUX A (AVEC LED).

Electret microphones.

(pre / music on hold)

Voltage constant (AM 2160)

Voltage constant (AM 2320)

PROTECTIONS

Amplificateur

70V (31Ω)/ 100V (62Ω)

70V (16 Ω) / 100 V (31 Ω)

Surcharge, court-circuit, thermique

Alimentation electrique, Fusibles

115-230V/50-60Hz

350 W (AM 2160), 600 W (AM 2320)

442 mm, 88 mm, 230 mm (2U 19" rack)

4.8kg (AM 2160), 6.2kg (AM 2320)

WICTIGER HINWEISE

(Pre Out, Music On Hold)

160 W (AM2160), 320 W (AM2320)

50 Hz - 13,5 kHz

60 dB

80 dB

<0.3%

±8dB @ 80 Hz

±8dB @ 13 kHz

+10 dB @ 2,15 kHz

150 Hz

-56 dBu (max. -25 dBu) / 10 kΩ, symmetrisch

-28 dBu (max. 0 dBu) / 5 kΩ, symmetrisch

-7 dBu (max. +19 dBu) / 10 kΩ, symmetrisch

-4 + 15 dBu (max. +22 dBu) / 20 kΩ

-1 dBu / 600 Ω

32V/18mA

4Ω

70V(31) / 100V(62)

70V(16Ω)/100V(31Ω)

442 mm, 88 mm, 230 mm (2 Rack-HE)

4,8 kg (AM2160), 6,2 kg (AM2320)

www.rcf.it

HEADQUARTERS:

RCF S.p.A. Italy

tel.[phone]

e-mail: [e-mail]

RCF UK

tel.[phone]

Int. [phone]

e-mail: [e-mail]

RCF France

tel. [phone]

e-mail: [e-mail]

RCF Germany

tel. [phone]

e-mail: [e-mail]

RCF Spain

tel. [phone]

e-mail: [e-mail]

RCF Belgium

tel. +32 (0) 3 - 3268104

e-mail: [e-mail]

RCF USA Inc.

tel. [phone]

e-mail: [e-mail]
