Product Type	Microwave
Brand	Smeg
Model	FME20EX1
Power supply	Single-phase, 230 V, earthed plug
Main functions	Microwave, Grill, Microwave + Grill, Weight defrost, Time defrost, Drink, Pizza, Chicken, Programming up to 3 functions, Clock, Child safety lock
Grill power	Not specified, but reaches high temperatures
Capacity	Approximately 20 liters (estimated based on the model)
Maintenance and cleaning	Exterior: neutral detergent and damp cloth. Interior: damp cloth after each use; turntable dishwasher safe. Steam cleaning: place a glass of water for 4 min at max power
Safety	Child safety lock (press STOP for 3s), automatic stop when door opened, do not use metal containers, do not heat pure alcohol, earthed plug mandatory
Spare parts and repairability	Replaceable lamp: 25 W, access via side cover. Power cord replaceable by qualified technician
General information	Manual available in multiple languages (FR, DE, EL, EN, ES, IT, NL, PT). Manufacturer: SMEG

Frequently Asked Questions - FME20EX1 SMEG

How to set the clock on the Smeg FME20EX1 microwave oven?

Press the CLOCK button until the display flashes. Turn the rotary knob to set the hours, press CLOCK again to go to minutes, then turn the knob to set the minutes. Finally press CLOCK to confirm.

How to activate the child safety lock?

Press the STOP button for 3 seconds. A beep sounds and the screen displays 4 dashes. To unlock, press the START button for 3 seconds.

How to automatically defrost food by weight?

Press the Defrost button (once). Select the food type using the + and - buttons, then enter the weight by turning the rotary knob. Press START. The oven will pause to turn the food, then resume when you press START again.

Can I use metal containers in this microwave?

No, except for exceptions: thin strips of aluminum foil to protect the ends of food, provided they are at least 2 cm from the walls. Very fine metal skewers are also tolerated.

How to clean the inside of the oven?

After each use, clean with a damp cloth. For stubborn dirt, place a glass of water on the turntable and heat for 4 minutes at max power. The steam softens residues, making them easy to wipe off afterwards.

What to do if the oven does not heat?

First check that the socket works (test with another device). Make sure the door closes properly: if it is not properly closed, microwaves will not be produced. If the problem persists, contact technical support.

How to use the grill function?

Press the GRILL button. Turn the rotary knob to set the cooking time (e.g. 10 min). Press START. Use the supplied rack for best results. Caution: the grill becomes very hot.

What is the maximum microwave power?

The manual does not specify the exact power. By default, the oven operates at maximum power if no modification is made. Use the + and - buttons to adjust the power during programming.

How to program several functions in sequence (e.g. defrost then cooking)?

Select the first function (e.g. Defrost), enter the settings, then press CLOCK/PROGRAMMING. Choose the next function (e.g. Microwave), enter time and power, press CLOCK again to add a third function if desired. Finally, press START.

How to replace the interior oven lamp?

Unplug the appliance. Remove the cover of the lamp compartment located on the left side. Replace the bulb with a new 25 W one. Replace the cover. If your model does not have a cover, call technical support.

USER MANUAL FME20EX1 SMEG

Instructions for Use Microwave

Front view of a microwave oven with control panel and display (no text or symbols visible)

smeg

smeg

ES ¡PRECAUCIÓN! Durante el funcionamiento del horno microondas, el marco y la puerta pueden alcanzar temperaturas que aconsejan tener precaución durante su utilización.
DE VORSICHTI Der Mikrowellenherd kann während der inbetriebnahme na tür und türrahmen bohe temperaturen erreichen, vorsicht ist empfohlen.
GB WARNING! During the functioning of the microwave oven, the frame and the door may reach temperatures which require care when using the appliance.
FR ATTENTION! Lors du fonctionnement du four microondes, le cadre et la porte peuvent atteindre des températures élevées qui nécessitent de prendre desprécautions pendant son utilisation.
PT ATENÇÃO! Durante o funcionamento do forno microondas, o aro e a porta podem alcançar temperaturas elevadas pelo que se aconselha precaução durante a sua utilização.
NL WAARSCHUWING! Wanneer de magnetron in working is kunnen de rand en de deur heel erg warm worden, voozichtigheid is dan ook geboden.
IT PRECAUZIONE! Durante il funzionamento del forno microonde, la cornice e la porta possono raggiungere temperature che consigliano di agire con precauzione durante il suo utilizzo.
GR ΠΡΟΣΟΧΗ! Κατά την διάρκειο λετουργίας του φόρχου μικροκυμμότων το πλαίοιο και η πόρτα μπορεί να υερμονδούν υπερβονικά γι' αυτό και συνίσταται προσοχή κατά την διάρκεια της χρήσης του.

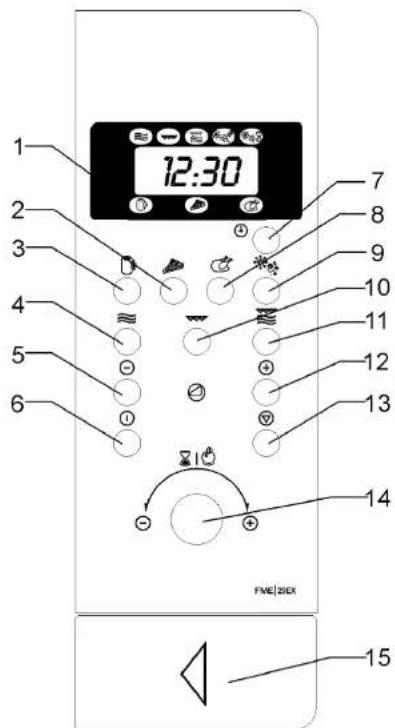

1 12:30 2 7 8 3 9 4 10 11 5 12 6 13 14 FWE | 20EX 15

FME 20EX1

Microondas Mikrowelle Microwave Micro-ondes Magnetronoven Microonde Μικροκυμμάτων

Niveles de potencia. Einstellung der leistung. Power Levels. Niveaux de puissance. Nivels de potência Vermogensstanden. Livelli di Potenza. Emineåa loxúoc.

	Microondas. Mikrowelle.Microwave. Micro-ondes.Microonde. Mikrokújupara.	P 01 —— 170W
		P 02 —— 340W
	Grill + Microondas.Girlleistung + Mikrowelle.Grill + Microwave.Grill + Micro-ondes.Grill + Microunde.FexpA + Mikrokújupara.	P 03 —— 510W
		P 04 —— 680W
		P 05 —— 850W
	Grill. Grilleistung .Grill. Grelhador FexpA.

Especificaciones. Leistungsbesschreibung. Specifications. Specifications. Especificações. Specificaties. Specifiche. Продиаграфес.

• Tension CA, Wechselspannung, AC Line Voltage, Tension CA, Tensão AC, Spanning CA. Tensione CA, São CA. 230V / 50Hz
• Fusible. Sicherung. Fuse. Fusible. Fusível. Zekering. Fusible. Acqálata. 12A / 250V
• Potencia requerida. Aufgenommen Leistung. Power required. Puissance requise. Potência requerida. Vereist vermogencia. Potenza richiesta. Anaróquén idyúc. 1200 W
• Potencia del grill, Grilleistung, Grill power, Puissance du grill. Potencia do grelhador Vermogen van de grill. Potenza del grill, loxúç yxpiλ. 1050W
• Potencia de salida microondas. Mikrowellenausgangsleistung. Microwave output power. Puissance de sortie microondes. Potência de saída microondas. Uitgangsvermögen magnetron. Potenza de uscita microonde. Ioyúc sőðou μικροκυμμάτων. 850W
• Frequencia de microondas. Mikrowellenfrequenz. Microwave frequency. Frequency de microondas. Frequência de microondas. Frequentie van de microgait. Frequenza di microonde. Συχνότης μικροκυμμότων. 2450MH7
• Dimensiones exteriores (An×Al×F). Außenabmessungen (B×H×T). External dimensions (W×H×D). Dimensions exterleures (L×H×P). Dimensions exteriores (L×A×P). Buitenafmetingen (B×H×L). Dimensioni esterne (LargxLung,xPr.). Eßurspikó pääzyöç (Πλ × Υψ × Β). ———— 480 × 305 × 350 mm
• Dimensiones de la cavidade (An×Al×F). Innenabmessungen (B×H×T). Cavity dimensions (W×H×D). Dimensions de la cavite (L×H×P). Dimensões da cavidade (L×A×P). Atmetingen van de utsparing (B×H×L). Dimensioni della cavita (Larg×Lung×Pr). MéycDoc gúpou (Πλ × Yμ × B) — 305 × 210 × 305 mm
• Capacidad del horno. Fassungsvermögen. Oven capacity. Capacité du four. Capacidade do forno. Capaciteit van de oven. Capacità del forno. Xopntikótητο του φόρνου. 201
• Peso. Gewicht. Weight. Poids. Peso. Gewicht. Peso. Bápoc. 21 kg

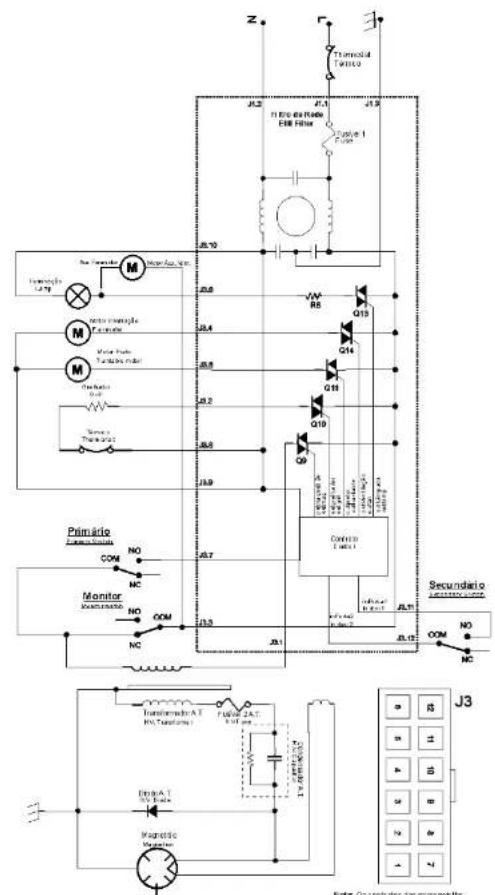

Electrical Diagram

Transistors M M M Control Tensile Primary Monitor NC NC NC JL10 JL2 JL3 JL4 JL5 JL6 JL7 JL8 JL9 JL10 JL11 JL12 JL13 JL14 JL15 JL16 JL17 JL18 JL19 JL20 JL21 JL22 JL23 JL24 JL25 JL26 JL27 JL28 JL29 JL30 JL31 JL32 JL33 JL34 JL35 JL36 JL37 JL38 JL39 JL40 JL41 JL42 JL43 JL44 JL45 JL46 JL47 JL48 JL49 JL50 JL51 JL52 JL53 JL54 JL55 JL56 JL57 JL58 JL59 JL60 JL61 JL62 JL63 JL64 JL65 JL66 JL67 JL68 JL69 JL70 JL71 JL72 JL73 JL74 JL75 JL76 JL77 JL78 JL79 JL80 JL81 JL82 JL83 JL84 JL85 JL86 JL87 JL88 JL89 JL90 JL91 JL92 JL93 JL94 JL95 JL96 JL97 JL98 JL99 JN3

Notes: Constance does misprove the with no chance for de parts sheets. Notes: The MCHOWEN AND IN YOUR DOG SOLUTION

ENGLISH

Dear Client,

First, we would like to thank you for choosing our product. We are sure that this modern, functional and practical microwave oven, manufactured from the best materials, will satisfy your requirements.

You are advised to read our operation manual carefully and the enclosed pamphlet to enable you to get the best results from your Microwave oven.

PLEASE KEEP THESE DOCUMENTS FOR FUTURE REFERENCE.

Contents

Installation Instructions .... 3

Important Information ....4

Description of the Microwave Oven 5

The advantages of a microwave oven: 5

How the microwave oven works 5

Why does the food heat up? 6

Operating Instruction....7

Setting the clock 7

Safety Block 7

Microwave Function....8

Grill Function 8

Microwave and Grill Function....8

Defrost by Weight (Automatic) 9

Defrost by Time (Manual)....10

Special Function: DRINK 10

Special Function: PIZZA....10

Special Function: CHICKEN....11

Programming the Microwave Oven....11

While in operation 12

Interrupting the Operation....12

Advice for Good Usage of the Oven 13

Working with microwaves....13

Functioning of the grill....13

Advice on the use of Cookware 14

Metal....14

Glass....14

Porcelain....14

Glazed Ceramic Dishes 14

Plastic 14

Wood....15

Recipient Test 15

Lids 15

Oven Maintenance....16

Cleaning....16

Light Replacement....16

Official Technical Assistance Service (T.A.S.) 17

Solving Problems 17

Cord Replacement....17

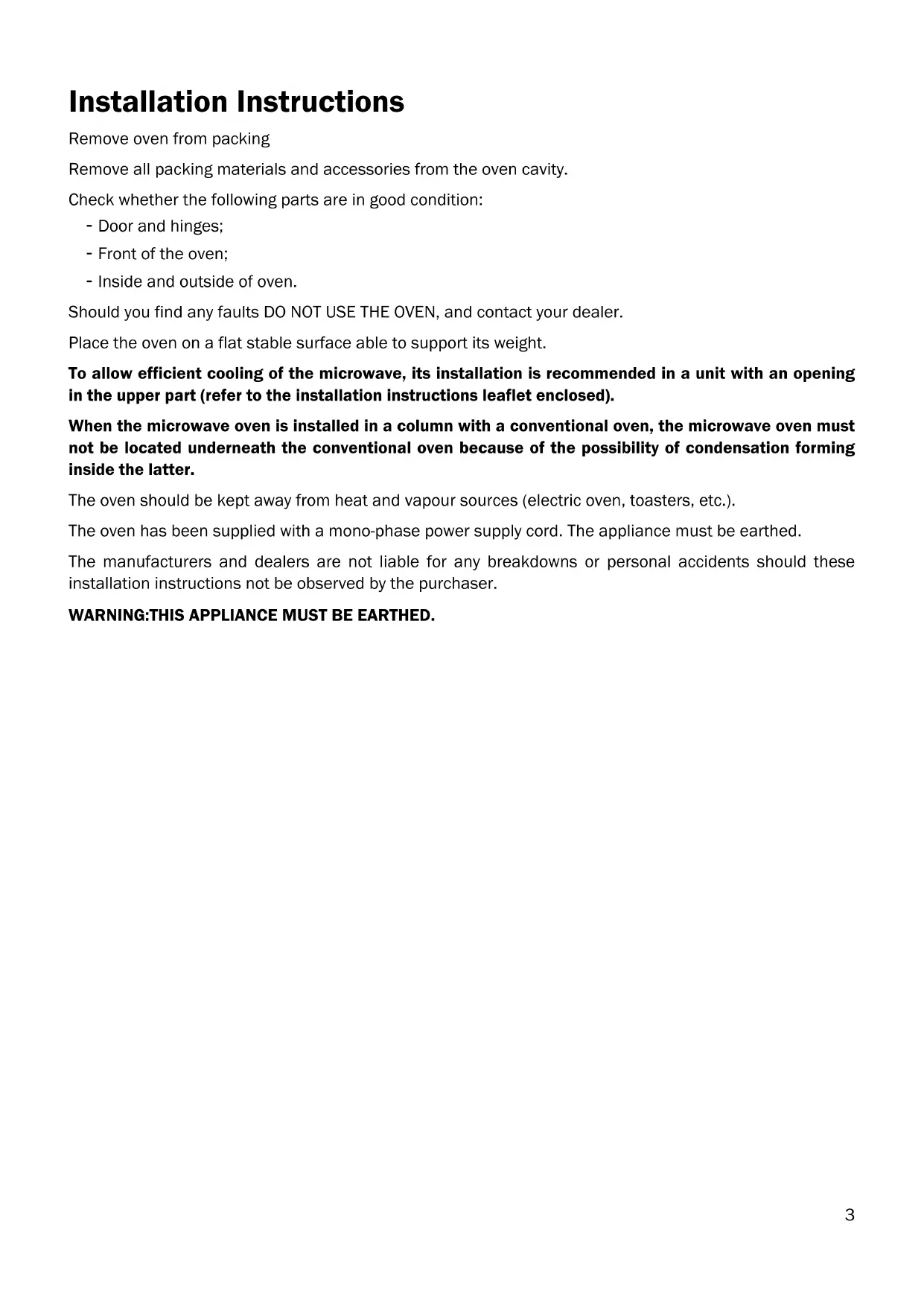

Installation Instructions

Remove oven from packing

Remove all packing materials and accessories from the oven cavity.

Check whether the following parts are in good condition:

• Door and hinges;
• Front of the oven;
• Inside and outside of oven.

Should you find any faults DO NOT USE THE OVEN, and contact your dealer.

Place the oven on a flat stable surface able to support its weight.

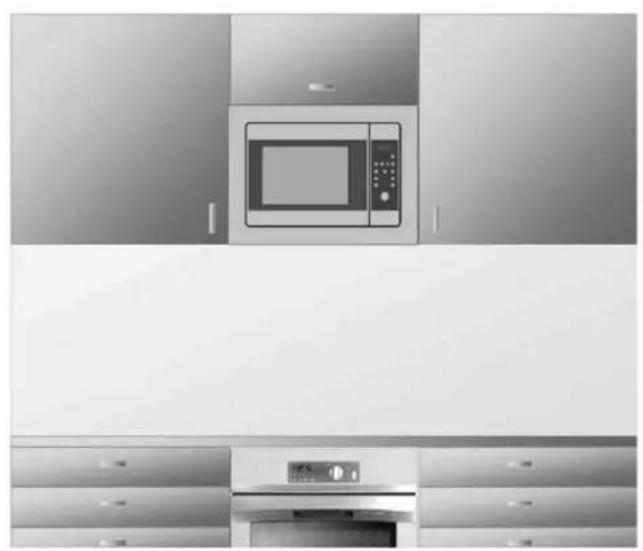

To allow efficient cooling of the microwave, its installation is recommended in a unit with an opening in the upper part (refer to the installation instructions leaflet enclosed).

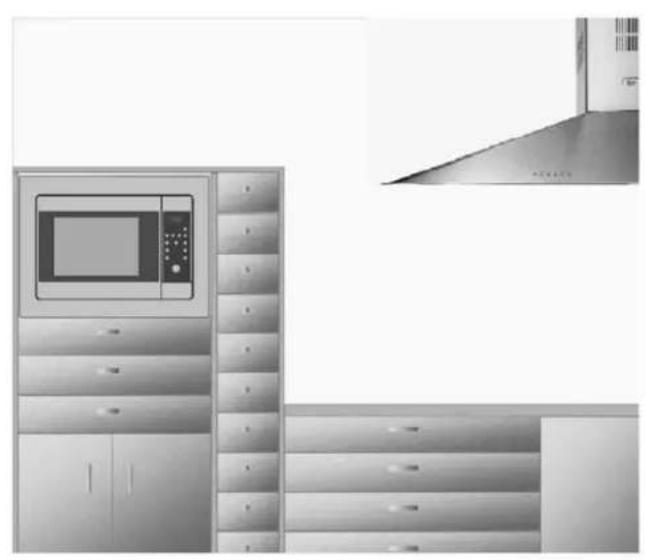

When the microwave oven is installed in a column with a conventional oven, the microwave oven must not be located underneath the conventional oven because of the possibility of condensation forming inside the latter.

The oven should be kept away from heat and vapour sources (electric oven, toasters, etc.).

The oven has been supplied with a mono-phase power supply cord. The appliance must be earthed.

The manufacturers and dealers are not liable for any breakdowns or personal accidents should these installation instructions not be observed by the purchaser.

WARNING:THIS APPLIANCE MUST BE EARTHED.

Important Information

WARNING: If the door or the door hinges are damaged, the oven should not be switched on until repaired by a qualified technician.

WARNING: It is dangerous for anyone, except a qualified technician, to tamper with the apparatus or try to repair it in any way by removing any lid or covering which assures protection against the exposure to microwave energy.

WARNING: Liquids and other food should not be heated in airtight recipients as these can explode.

WARNING: Children should only be allowed to use the oven without adult supervision if they have been given the appropriate instructions so that they can use the oven safely and understand the dangers of its incorrect use.

WARNING: When the microwave oven is operated in the Combination mode (microwaves + grill), children should only be allowed to use the unit under adult supervision due to the high temperatures generated.

When heating food in plastic or paper recipients, check the oven frequently in case they ignite.

If any smoke is detected, then switch off the oven or disconnect it and keep the door closed in order for any flame to die out.

After warming up baby bottles or baby food jars, stir or shake its contents and check the temperature before feeding, to avoid burns.

Warming up drinks in the microwave oven may result in a delayed eruptive boiling, therefore one should be careful when handling the recipient.

Eggs with their shell and whole boiled eggs shouldn't be warmed up in microwave ovens as they may explode.

Do not use any metal utensils inside the oven unless they were supplied with the oven and for that purpose.

Do not warm up liquids or other food in closed recipients as they may explode.

Do not warm up pure alcohol or alcoholic drinks. DANGER OF FIRE.

When in doubt, choose short periods to cook, heat or defrost food with microwaves. With long cooking periods the food may become dry and even begin to burn.

Do not use the oven for anything other than warming, cooking or defrosting food.

Do not operate the oven without its tray nor when empty.

Keep the oven ventilation holes open. Never cover any air vents or openings.

Description of the Microwave Oven

The advantages of a microwave oven:

In a conventional oven the heat radiated by the resistances or gas burners, slowly penetrates the food from the outside to the inside. There is, therefore, a great loss of energy in the heating of the air, oven components and recipients.

On the other hand, in microwave ovens the heat is generated in the interior of the food itself, heating it from the inside outwards. There is therefore no loss of energy as the air, interior walls of the oven and recipients (when adequate) do not heat up with microwaves.

In short, microwave ovens have the following advantages:

1. Save on cooking time: in general there is a 3/4 reduction of the cooking time than with conventional methods.
2. Ultra-quick defrosting that prevents bacteria development.
3. Electricity saving.
4. Maintaining the nutritive value of the food due to the cooking time reduction.
5. Easy cleaning.

How the microwave oven works

In the microwave oven there is a high voltage valve called "Magnetron" that converts electric energy to microwave energy. These electromagnetic waves are conducted to the inside of the oven cavity by means of wave-guide and spread by a mode stirrer or by a turntable.

Inside the oven the microwaves spread out in all directions and are reflected by the metallic walls, penetrating the food evenly.

Why does the food heat up?

Most food contains water, whose molecules vibrate with microwaves.

The friction between the molecules generates heat, which causes a temperature rise in the food, defrosting it, cooking it or keeping it warm.

As the heat is formed inside the food:

• It may be cooked with little or no liquid or fat;
• Defrosting, heating or cooking in the microwave oven is quicker than in a conventional oven;
• Vitamins, minerals and nutritive substances are preserved;
• There is no change in the natural colour and smell of the food.

The microwaves pass through porcelain, glass, cardboard or plastic but not through metal. Therefore, recipients made of or containing metal should not be used in the microwave oven.

The microwaves are reflected by the metal...

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

...they pass through glass, porcelain...

Simple line drawing of a cylindrical container with internal lines and arrows indicating flow or movement (no text or symbols)

...they are absorbed by the food.

Illustration of a chicken on a tray with directional arrows indicating flow or movement (no text or symbols)

Operating Instruction

Consult the picture on the enclosed leaflet and proceed as follows:

1. Plug your microwave into a suitable electric current (see Installation Instructions).
2. Open the door by pressing the Door Open button (15). In the models without this button, you need only pull the door open. The oven light should switch on.
3. Place the recipient with food on the turntable or on the grill rack.
4. Select the function and cooking time required, as described in the following chapters.
5. Close the door and press the START button (6).
6. The oven will start working. The Display (1) will show the functioning time decreasing.

Setting the clock

How to Proceed Display (1)
1. Press the CLOCK button (7) until the digits start blinking.2. Introduce the hour by turning the ROTATING knob (14) either way.3. Press the CLOCK button (7) again to change the minutes.4. Introduce the minutes by turning the ROTATING knob (14) either way.5. Press the CLOCK button (7) to stop.

Safety Block

How to Proceed Display (1)
1. The oven function can be blocked (for example: to avoid children using it) by pressing the STOP button (13) for 3 seconds. At the end of these seconds there will be an alarm sound, the Display (1) will show 4 lines and the oven won’t work. Note: you can see the clock by pressing the START button (6).
2. To unblock it, press the START button (6) for 3 seconds. At the end of these seconds there will be an alarm sound and the Display (1) will show the clock once again.

Microwave Function

How to Proceed Display (1)
1. Press the MICROWAVE (4) button: the Microwave function indicator will light up.2. Introduce the functioning time (example: 10 minutes), by turning the ROTATING button either way.
3. To change the microwave power, press the - (5) and +(12) buttons. If you don't press these buttons, the oven will work as default at maximum power.4. Press the START button (6). The oven will start working.

Grill Function

How to Proceed Display (1)
1. Press the GRILL button (10): the Grill function indicator will light up.2. Introduce the functioning time (example: 10 minutes), by turning the ROTATING knob (14) either way.3. Press the START button (6). The oven will start working.

Microwave and Grill Function

How to Proceed Display (1)
1. Press the MICROWAVE + GRILL button (11): the MICROWAVE + GRILL function indicator will light up.2. Introduce the functioning time (example: 10 minutes), by turning the ROTATING knob (14) either way.
3. To change the microwave power, press the - (5) and + (12) buttons. If you don’t press these buttons, the oven will work as default at maximum power.4. Press the START button (6). The oven will start working.

Defrost by Weight (Automatic)

How to Proceed Display (1)
1. Press the DEFROST button (9): the Defrost by Weight function indicator will light up.2. Introduce the type of food, by pressing the - (5) and + (12) buttons. If you don't press these buttons, it will select type 1 food as default.
3. Introduce the weight of the food (example: 1,2 kg), by turning the ROTATING knob (14) either way.4. Press the START button (6). The oven will start working.5. When the oven stops and the alarm sounds, open the door and turn the food over. Close the door and press the START button (6).

The following table describes the different Defrost by Weight programmes; the respective weight ranges; defrost time ranges; standing time ranges (to allow temperature evenness) and recommendations.

Code	Food	Weight	Defrost Time	Standing Time	Recommendation
1 Meat 0,1 - 1,5 kg 4 - 61 min 20 - 30 min Cover the thinner ends with tin foil.
					Turn the meat when the oven whistle sounds.
2 Poultry 0,1 - 1,5 kg 4 - 61 min 20 - 30 min Cover the thinner ends with tin foil.
					Turn the meat when the oven whistle sounds.
3 Fish 0,1 - 1,5 kg 4 - 63 min 20 - 30 min Cover the tail of the fish with tin foil.
					Turn the fish when the oven whistle sounds.
4	Fruit	0,1 - 0,5 kg	2 - 13 min	5 - 10 min	Place the fruit in a glass dish and cover it during defrosting and standing time.
5	Bread	100 - 800 g	2 - 19 min	5 - 10 min	Place the bread on the glass turntable covered with kitchen paper towel.

IMPORTANT NOTES:

• In the Defrost by Weight function, the introduced weight is that of the food alone, not including the dish.
• Use the Defrost by Weight function only for raw food.
• This function has better results if the food is at a temperature of -18^ and if the food is taken directly from the freezer to the oven.
• If the food is at a higher temperature (either because it isn't a 3 star freezer or because the food has been out of the freezer for more than 20 minutes) the oven calculated time will be more and there may be a risk of fire. In these cases, select a weight which is lower than the real food weight.
• In the cases above and when the food is already cooked and frozen, use the Defrost by Time function, starting with short periods of time.
• When you use tin foil to protect the thinner parts of the food, make sure that it doesn't touch the oven walls, otherwise there may be damages.

Defrost by Time (Manual)

How to Proceed Display (1)
1. Press the DEFROST button (9) twice: the Defrost by Time function indicator will light up.2. Introduce the defrosting time (example: 12 minutes), by turning the ROTATING knob (14) either way.3. Press the START button (6). The oven will start working.4. When the oven stops and the alarm sounds, open the door and turn the food over. Close the door and press the START button (6).

Special Function: DRINK

How to Proceed Display (1)
1. Place the drink (150 to 300 ml of coffee, tea, milk, water, etc.) in a heat resistant recipient on the turntable.2. Press the Special Function DRINK button (3): the Special Function DRINK indicator will light up.3. Press the START button (6). The oven will start working.

Special Function: PIZZA

How to Proceed Display (1)
1. Sprinkle the turntable with flour and place the pizza directly on the turntable.2. Press the Special Function PIZZA button (2): the Special Function PIZZA indicator will light up.3. Press the START button (6). The oven will start working.4. At the end, there will be a standing time during which the oven will continue working and the Special Function PIZZA indicator will blink.

Special Function: CHICKEN

How to Proceed Display (1)

1. Spread olive oil and spices (salt, pepper, etc.) over the separated chicken pieces (400 to 500 g) and place them in a heat resistant recipient on the turntable.2. Press the Special Function CHICKEN button (8): the Special Function CHICKEN indicator will light up.3. Press the START button (6). The oven will start working.4. The total preparation time is of 30 minutes, divided into 4 periods of 7,5 minutes. At the end of the first 3 periods the oven will stop and the alarm will sound. Turn the chicken pieces over and press the START button (6) again.5. At the end, there will be a standing time during which the oven will continue working and the Special Function CHICKEN indicator will blink.

Programming the Microwave Oven

The Normal Functions (Microwave, Grill, Microwave + Grill, Defrost by Weight and Defrost by Time) can be programmed in sequence to a maximum of 3 functions.

For example, to defrost by weight 800 g of meat, cook it in Microwaves for 10 minutes at power 4 and finally using the Microwave + Grill function for 8 minutes at power 3, you should proceed as follows:

How to Proceed Display (1)
1. Press the DEFROST button (9): the Defrost by Weight function indicator will light up.2. Introduce the type of food, (meat = type 1) by pressing the - (5) and + (12) buttons.
3. Introduce the weight of the food (0,8 kg), by turning the ROTATING knob (14).4. Press the CLOCK / PROGRAMMING (7) to activate the next function.
5. Press the MICROWAVE button (4): the Microwave function indicator will light up.6. Introduce the functioning time (10 minutes), by turning the ROTATING knob (14).
7. Press the – button (5) to change the microwave power to 4.8. Press the CLOCK / PROGRAMMING (7) to activate the next function.
How to Proceed Display (1)
9. Press the MICROWAVE + GRILL button (11): the Microwave + Grill function indicator will light up.10. Introduce the functioning time (8 minutes), by turning the ROTATING knob (14).
11. Press the - button (5) twice to change the microwave power to 3.12. Press the START button (6). The oven will start working.

While in operation ...

You can open the oven door at any time while the food is being cooked; this way:

• THE PRODUCTION OF MICROWAVES IS IMMEDIATELY INTERRUPTED;
• the Grill will be switched off, however, remaining very hot;
• the Timer will automatically stop, indicating the time still left.

Then, if you wish you may:

• Stir or turn the food, to improve even heating;
• Change the microwave power level by pressing the - (5) or + (12) buttons;
• Select another function by pressing the Function (2, 3, 4, 8, 9, 10, 11) buttons;
• Change the functioning time left by turning the ROTATING knob (14).

Close the door again and press the START button (6). The oven will restart working.

Interrupting the Operation

To stop the oven before completing its programmed time, press the STOP (13) button or open the door.

If you don't wish to continue cooking the food, close the door and press the STOP (13) button again. The oven will emit a sound and the Display (1) will show the Clock.

At the end of the functioning time, the oven will stop, emit 3 signal sounds and the Display (1) will show the word "End". The sound signals are repeated every 30 seconds until the door is opened or the STOP button (13) pressed.

Advice for Good Usage of the Oven

Working with microwaves

Before using any dish, make sure that it is appropriate for use in microwaves (SEE ADVICE ON THE USE OF UTENSILS AND RECIPIENTS).

Always make a slit in the food's shell before cooking it.

Whenever heating liquids use a recipient with a large opening to allow the vapour to escape.

Remember that:

1. Larger quantities of food require more cooking time.
2. The lower the food temperature the more cooking time is needed.

3. Less dense foods cook faster.

4. An even distribution of the food in the oven guarantees better results. The cooking of different types of foods simultaneously is possible by placing the dense food in an outside circle and the less dense in the centre of the plate.

5. Better results are achieved by allowing the food to stand before serving because it continues to cook for some time after the oven is switched off.

6. The cooking time may be shortened and the liquids preserved (the food doesn't dry out) by covering the food. The lids should be transparent to allow the microwaves through and they should have a small opening for the vapour to escape.

Functioning of the grill

For best results of the grill, use the grill rack supplied with the appliance.

Do not place the grill rack in contact with the cavity's metal surface as there may be an electric arc and consequent damages.

IMPORTANT NOTES:

1. While the grill is being used for the first time, the producing of fumes and odours is normal, due to the oils used in the manufacturing process.
2. After the first uses Of the grill, it is normal for the perforated area that protects the heating elements of the grill to deform and to become a golden colour due to the high temperatures that the grill reaches during use.
3. The glass on the door reaches high temperatures during grilling. Therefore the oven should be installed at least 80 cm above the floor, SO AS TO BE OUT OF REACH OF CHILDREN.
4. While in operation, the inside walls of the oven and the grill become very hot, therefore the use of kitchen gloves is recommended.
5. During extended use of the grill it is normal for the heating elements to switch off for short periods due to the action of the safety temperature limiter.
6. Do not use plastic containers or others that have poor temperature resistance, as these could be destroyed due to the high temperatures that the grill reaches.

Advice on the use of Cookware

Metal

Do not use metal dishes, tinned food, food wrapped in tin foil and cutlery inside the microwave oven. The metal reflects the microwaves and food is not heated.

The food should be removed from its tin foil containers and placed in dishes adequate for use in the microwave oven. As microwaves don't penetrate tin foil, the food heats only on the surface. By using appropriate dishes, the heat is evenly distributed throughout the food.

EXCEPTIONS:

To cook or defrost pieces of meat of irregular sizes, you may cover the thinner parts with tin foil, which should be kept at least 2 cm away from the oven walls, otherwise these may cause an electric arc.

Metal spits may be used as long as they are smaller than the pieces of meat.

Glass

All heat proof glass containers may be used.

Crystal contains a percentage of lead, which may cause it to crack if used in the microwave oven. The same may happen to glass dishes with jagged edges.

Porcelain

Porcelain dishes may be used but they should not have hollow handles. Humidity may be formed inside the hollow handles, which will cause an increase in pressure that may cause them to break.

Glazed Ceramic Dishes

This type of dish may heat considerably.

Painted glazed ceramic dishes may be used if the painting is done under the glaze.

Many glazes and colours contain metallic substances. If this is the case they should not be used in the microwave as they may be damaged.

Recipients with silver and gold glazes may go dark.

Plastic

Plastic dishes should be heat resistant (at least 180^ C) or they may be deformed when used in the microwave. Melamine dishes are not suitable for use in the microwave as they heat up too much.

To cook or heat food in plastic bags, they should be perforated to allow vapour to escape thus preventing the bag from bursting.

Wood

Wooden recipients should not be used in the microwave. Wood contains water which evaporates and may cause the recipient to crack.

Recipient Test

If in doubt about the use of glass, glazed ceramic or porcelain dishes in the microwave oven, do the following test:

1. Place the empty dish and a glass of water inside the microwave oven;
2. Close the door;
3. Set the Power Level Selector at maximum power;
4. Adjust the timer to 1 minute;

Note: the oven starts

If during this test you hear any noise along with sparks, turn off the oven immediately.

Any kind of cookware that has this kind of behaviour or is very hot when removed from the oven should not be used in the microwave oven.

EXCEPTIONS:

Glazed ceramic dish recipients contain many water molecules and heat a lot, but can be used in the microwave oven.

If in doubt, contact the supplier of the cookware, and make sure that they are appropriate for microwaves.

Lids

The use of glass lids, plastic lids or plastic film is advisable because:

1. They prevent the release of excessive vapours especially when cooking for longer periods.
2. They increase the speed of heating food.
3. They prevent the food from drying up.
4. They prevent the loss of the food aroma.

The lids should have holes to avoid pressure. Plastic film should be perforated.

Baby bottles, baby food jars and other similar recipients should be warmed up without lids as they can burst.

Oven Maintenance

Cleaning

MAKE SURE THAT THE OVEN IS UNPLUGGED BEFORE CLEANING THE OVEN.

DON'T USE ABRASIVE CLEANING PRODUCTS.

OUTSIDE

1. Clean the outside surface with a neutral detergent, warm water and dry it with a damp cloth.
2. Avoid water from entering the oven ventilation holes.

INSIDE

1. Clean the oven walls with a damp cloth after each use.
2. Avoid water from entering the ventilation holes in the oven's interior.
3. If some time has passed by since the last cleaning and the oven's interior is dirty, place a glass of water on the tray and switch on the oven for 4 minutes on the highest setting. Moisture will form on the oven walls that will be easily cleaned.
4. The tray can be washed with regular dish washing detergent or in the dishwasher.

DOOR, DOOR SEAL, AND OVEN FRONT

1. These parts should always be clean, especially the contact surface between the door and the oven front, to prevent microwave leakage.

2. Use neutral detergent, warm water and dry the surface with a soft cloth.

Light Replacement

In some models the light may be replaced by the user. These ovens have a lid on the left-hand side.

To replace the light, do as follows:

1. Unplug the oven;
2. Remove the lid from the light compartment;
3. Replace the light bulb for a new one (25 W);
4. Replace the lid.

WARNING: in the models without the lid to replace the light bulb, this should be done by the Technical Assistance Service because special tools are required.

Official Technical Assistance Service (T.A.S.)

Solving Problems

Repairs or interventions carried out by an unqualified serviceman can cause dangerous situations.

Every and any kind of repair or intervention should be done by the manufacturer, authorised agents or qualified technicians.

If you detect any abnormalities in the oven, check the following before you contact T.A.S:

1. Check if the outlet into which the oven is plugged has power. To do so, plug another appliance into the same outlet and check if it works.
2. If the oven lamp switches on, but the food does not heat up, check if the door is well closed (if the door is not properly closed, no microwaves will be produced).

Cord Replacement

If the cord is damaged, it should be replaced by the manufacturer, authorised agents or qualified technicians in order to avoid any dangerous situation and also because special tools are required.

DEUTSCH

Verehrter Kunde,

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

Simple line drawing of a bowl with liquid inside, showing directional arrows (no text or symbols)

Illustration of a chicken on a tray with directional arrows indicating flow or movement (no text or symbols)

Gebrauchsanweisung

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

Simple line drawing of a bowl with arrows indicating flow or direction (no text or symbols)

Illustration of a chicken resting on a tray with directional arrows indicating movement (no text or symbols)

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

Simple line drawing of a bowl with shading and directional arrows indicating flow or movement (no text or symbols)

Illustration of a chicken on a tray with directional arrows indicating motion (no text or symbols)

Gebruiksaanwijzing

Front view of a microwave oven with control panel and digital display (no text or symbols visible)

smeg

ITALIANO

Gentile Cliente,

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

Simple line drawing of a bowl with arrows indicating direction (no text or symbols)

Line drawing of a chicken on a tray with arrows indicating direction (no text or symbols)

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

Simple line drawing of a cylindrical container with internal shading and directional arrows (no text or symbols)

Line drawing of a chicken on a tray with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

...atravessam vidro Porcelana...

Simple line drawing of a bowl with liquid and arrows indicating flow or direction (no text or symbols)

Illustration of a chicken on a tray with directional arrows indicating motion (no text or symbols)

Simple line drawing of a cooking pot with arrows indicating direction (no text or symbols)

Simple line drawing of a bowl with arrows indicating direction (no text or symbols)

Illustration of a chicken on a tray with directional arrows indicating flow or movement (no text or symbols)

Οδηγίες λειτουργίας

Installation Leafet Microwave

Warning! The microwave oven plug shall be accessible after installation.

Modern kitchen interior with microwave oven, oven, and cabinet (no visible text or symbols)

A

Interior view of a kitchen appliance with microwave oven, cabinet, and hood (no visible text or symbols)

B

Modern kitchen interior with stainless steel cabinets, microwave oven, and oven (no visible text or symbols)

C

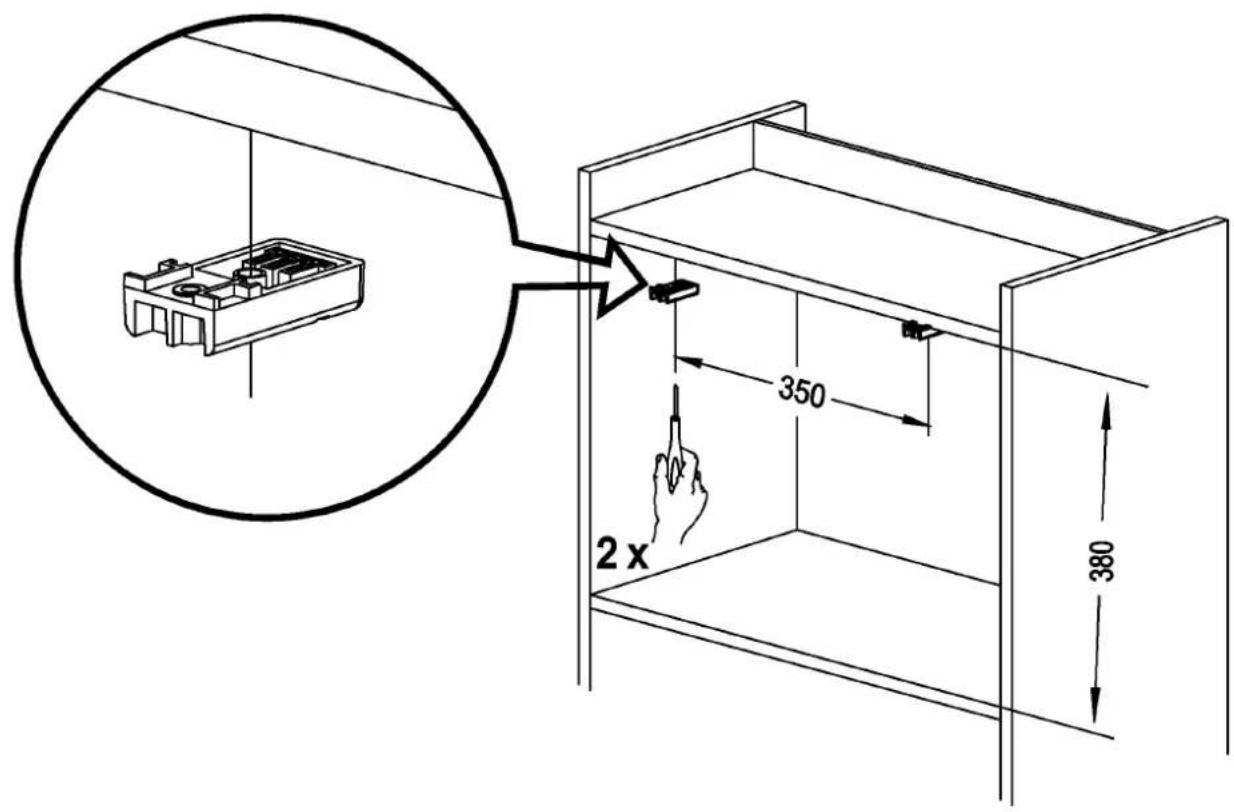

2 x 350 380

2 x

A-1

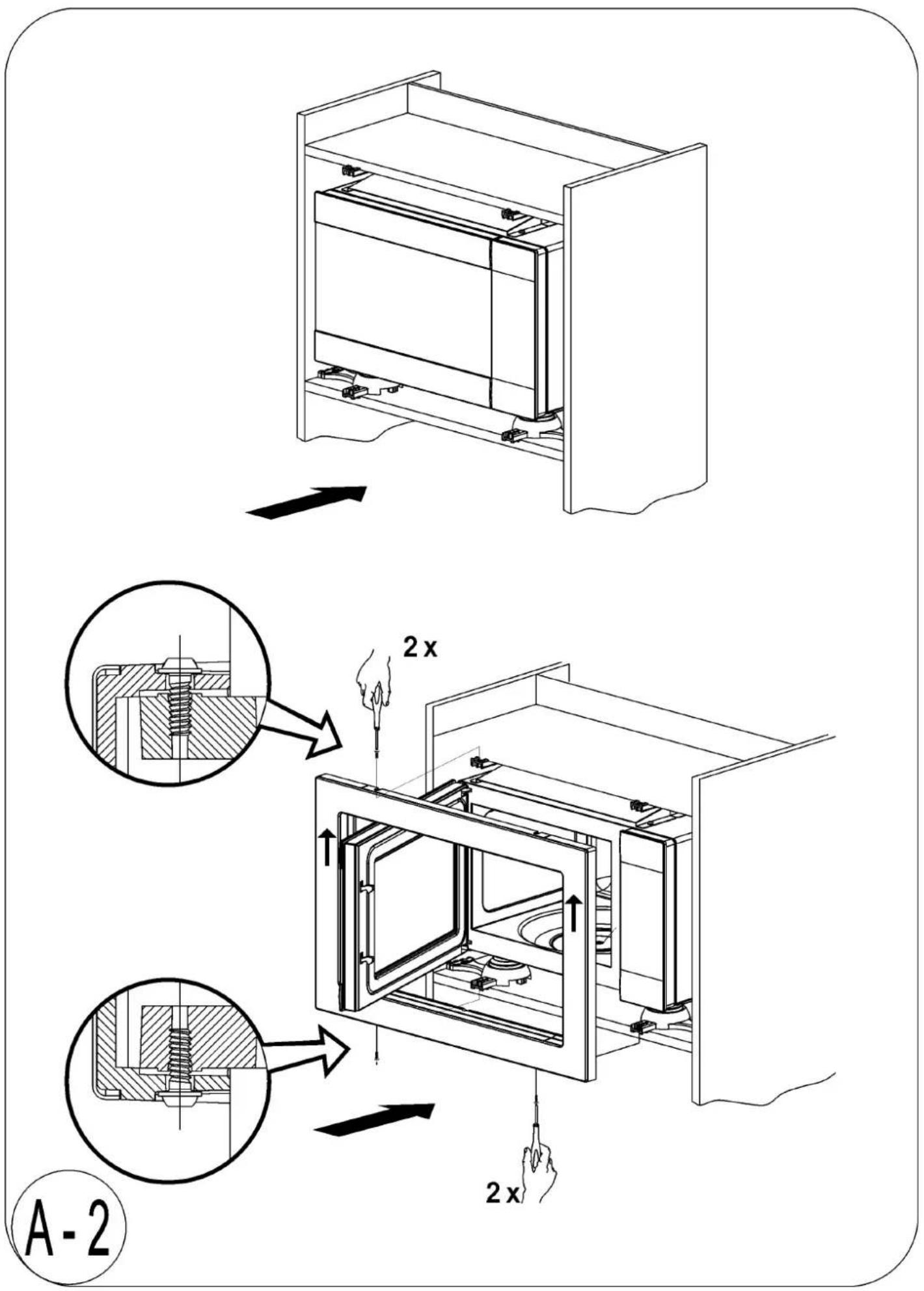

A-2 2x 2x

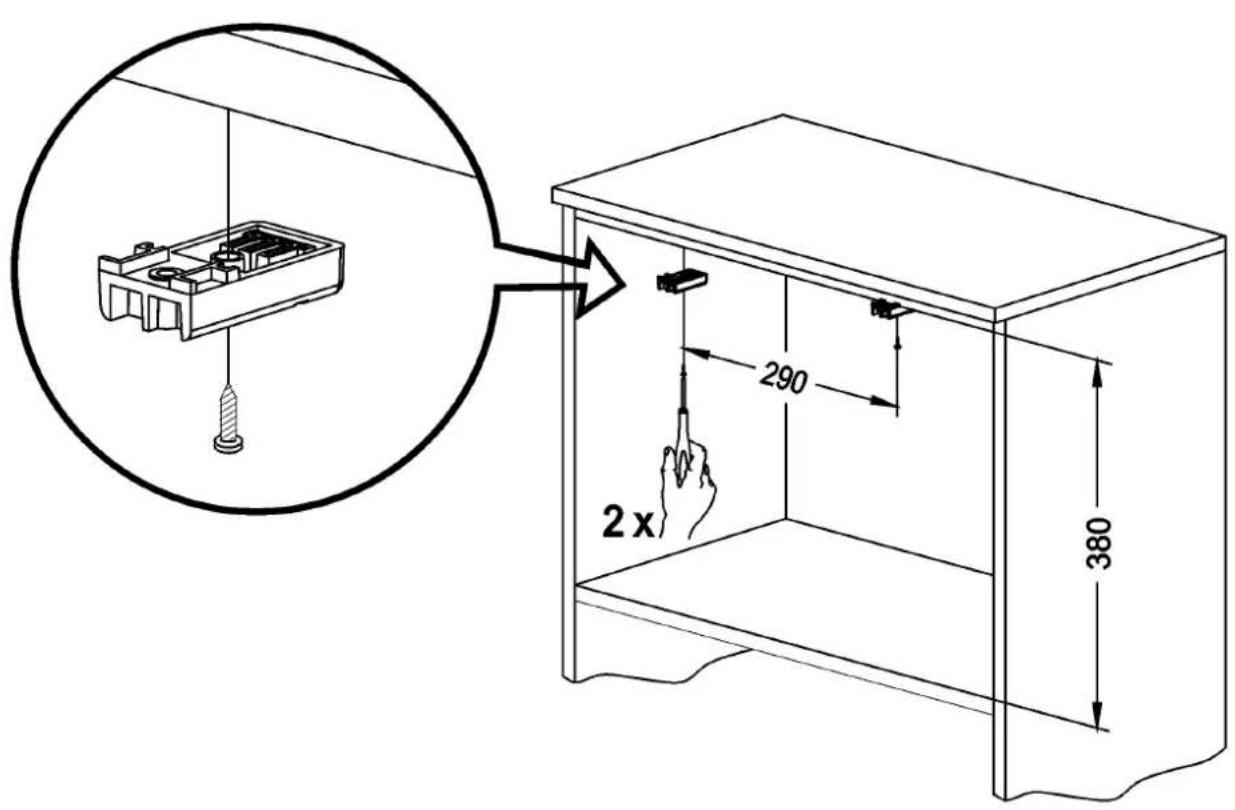

290 2x 380

2x

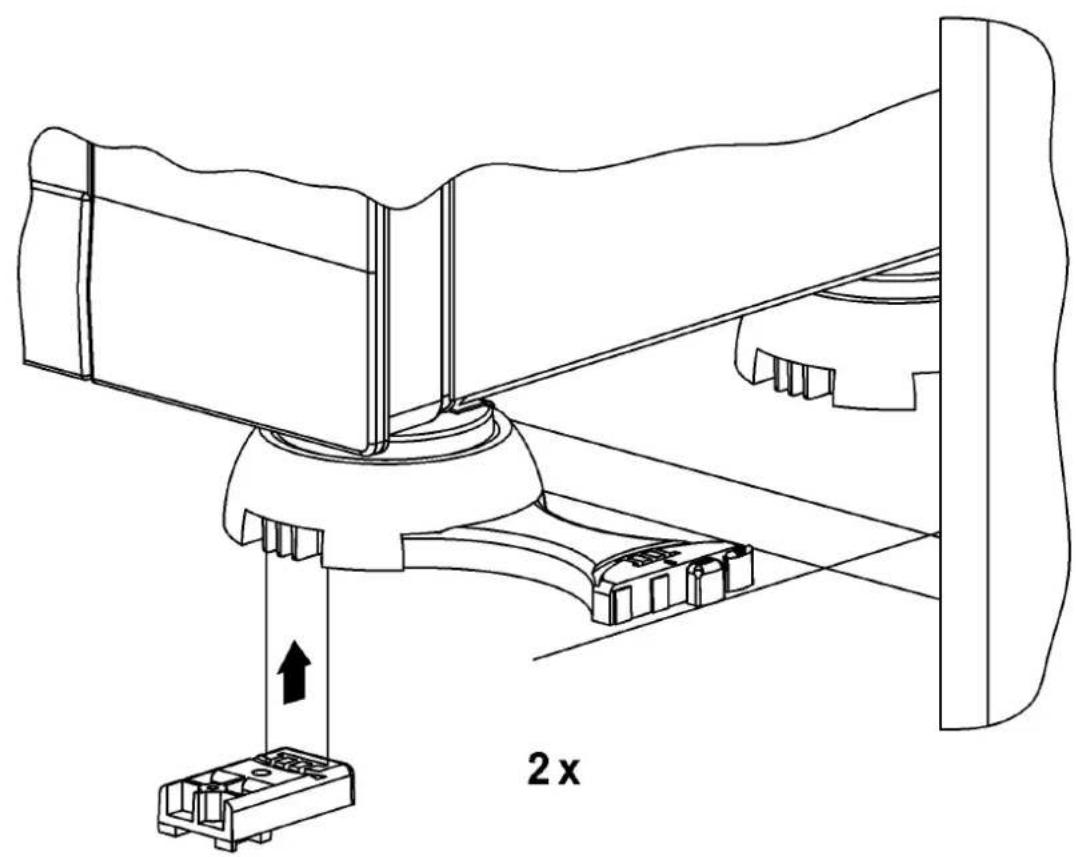

B-1

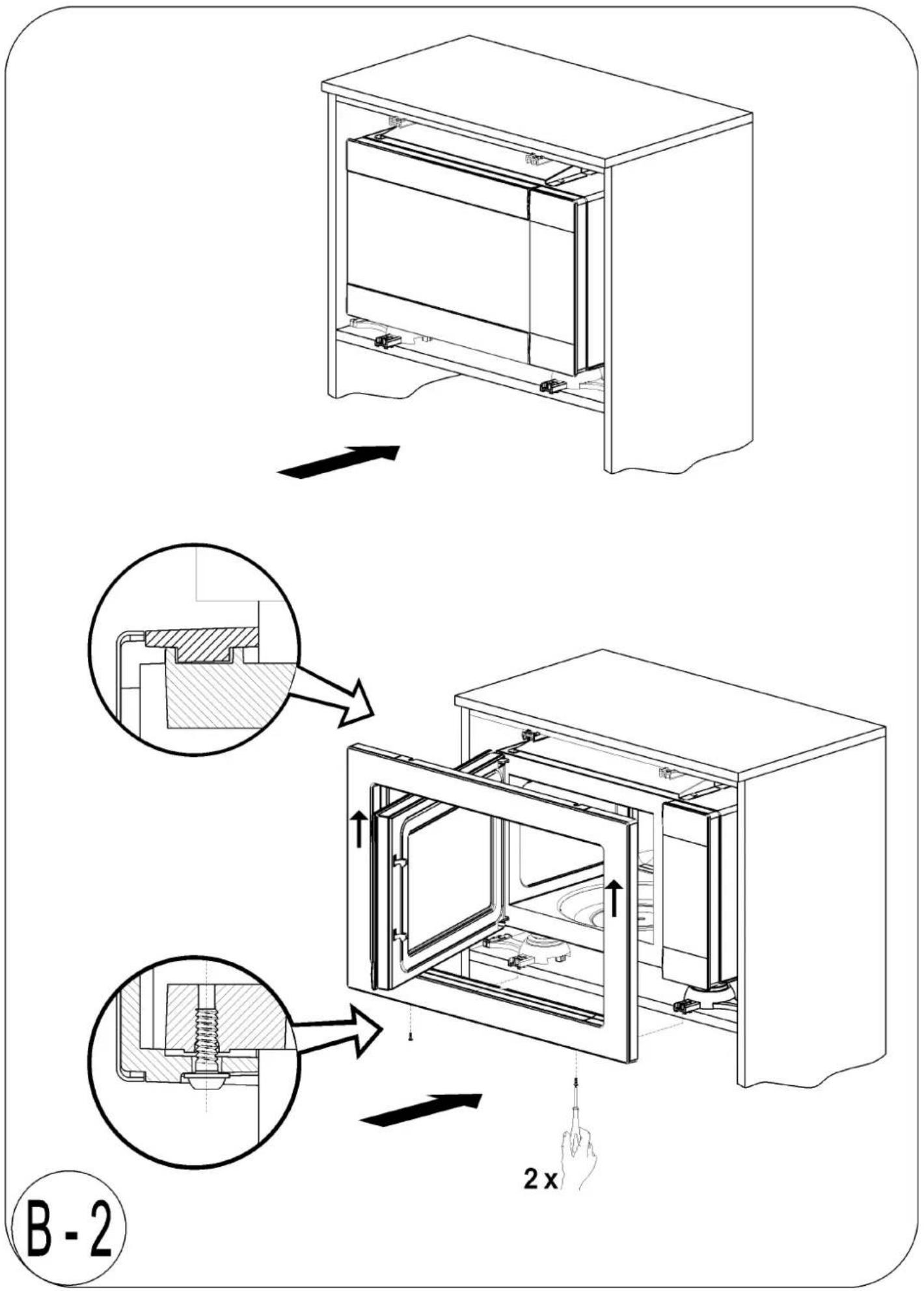

B-2 2x

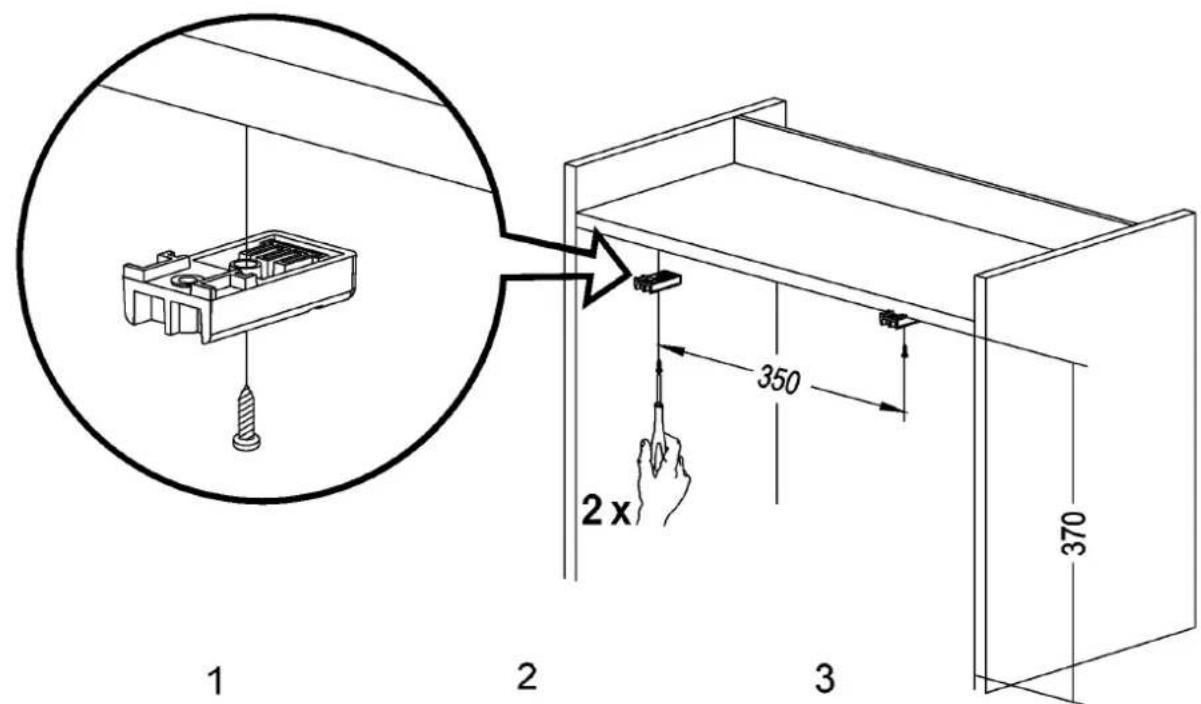

1 2 3 350 2 x 370

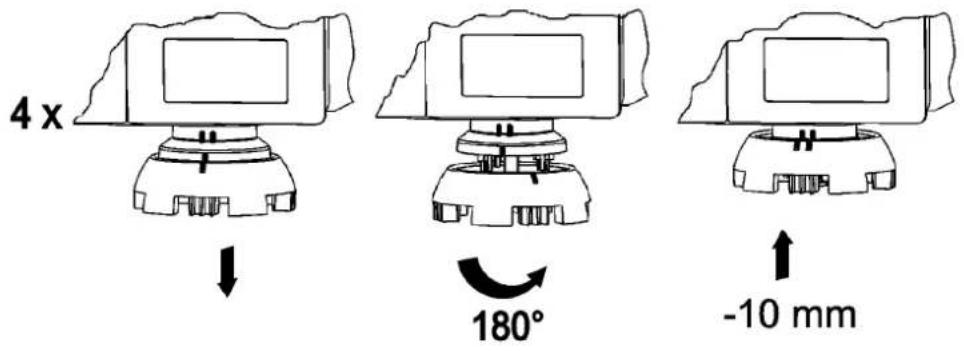

4 x 180° -10 mm

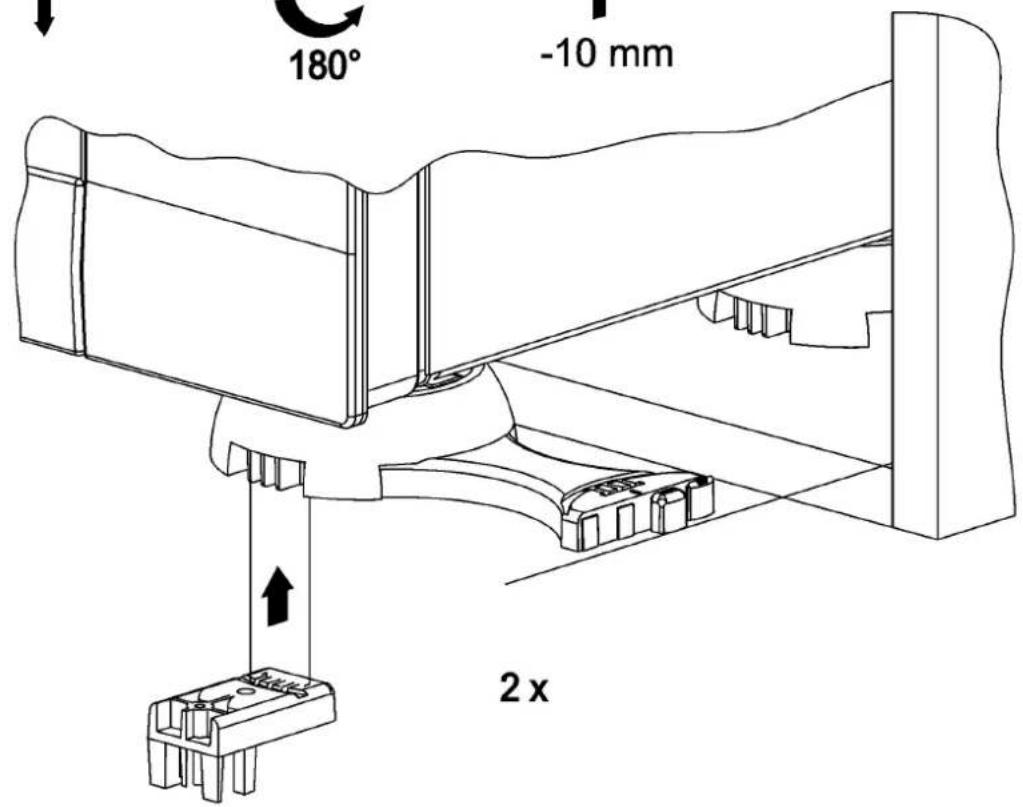

180° -10 mm 2 x

C-1

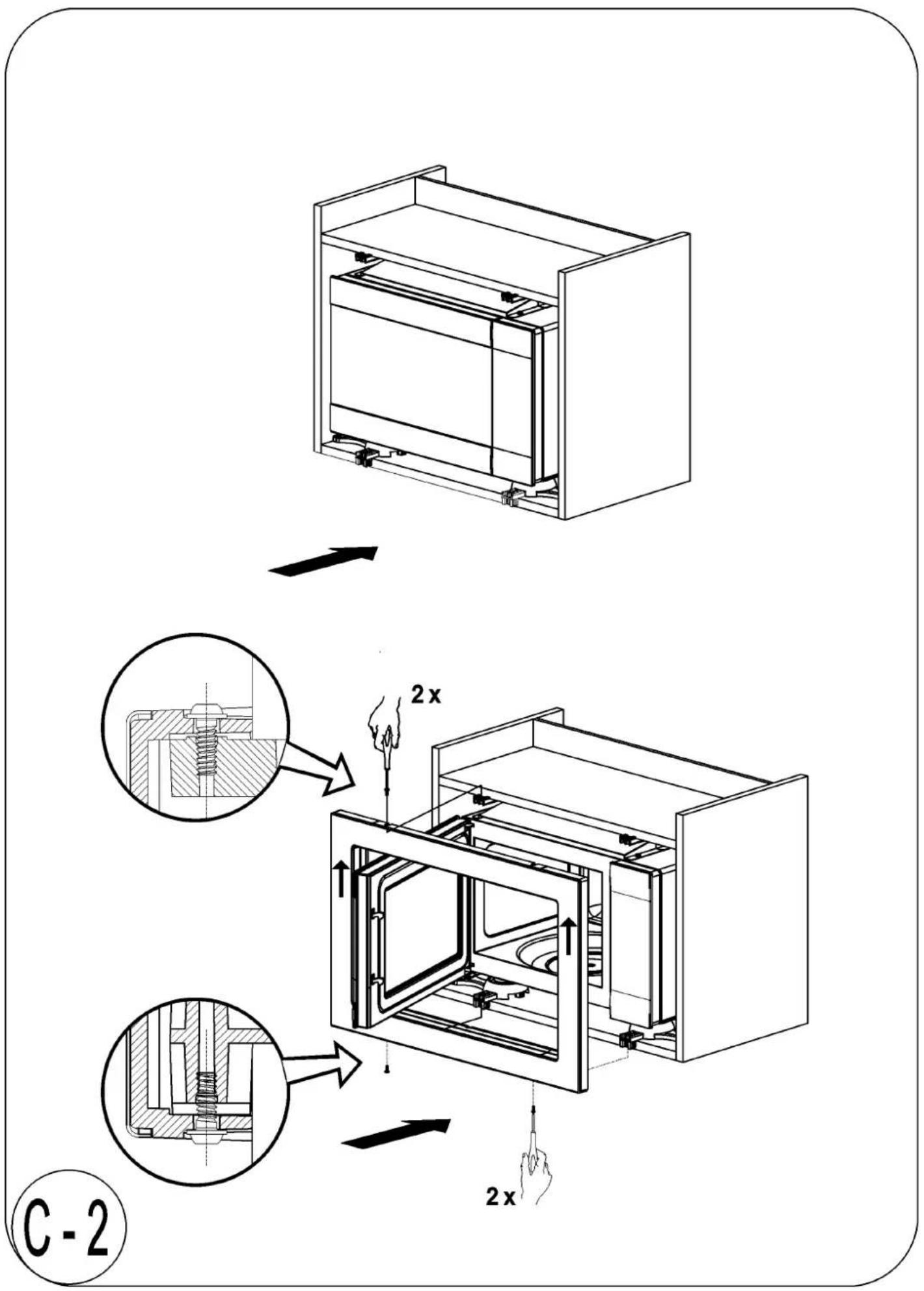

C-2 2x 2x

smeg

SMEG S.p.A.
