USER MANUAL MWO 617 WH WHIRLPOOL

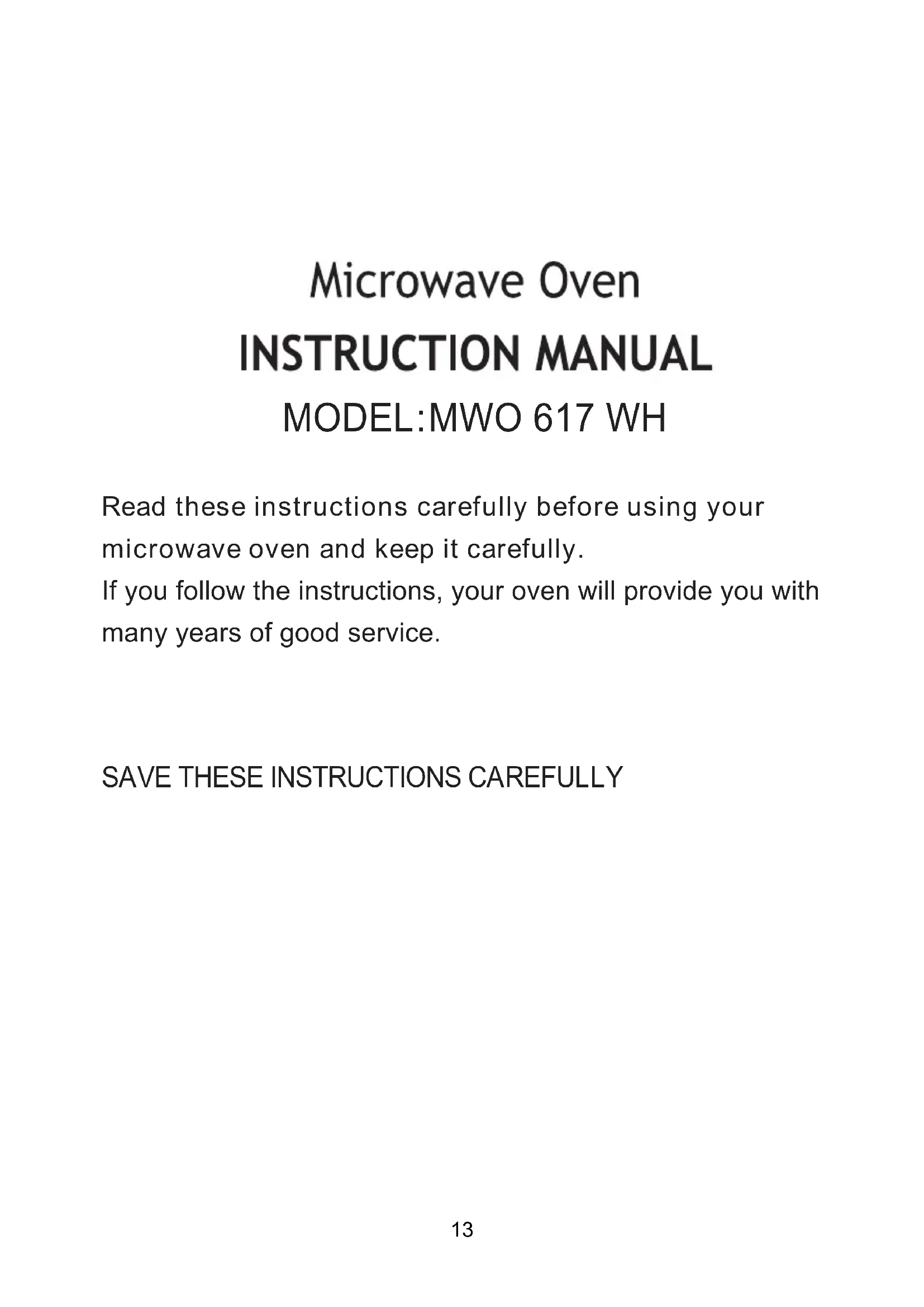

12SAVE THESE INSTRUCTIONS CAREFULLY

Read these instructions carefully before using your microwave oven and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. MWO 617 WH230V~50Hz1270W 800W 20L 245mmModel:Rated Voltage:Rated Input Power(Microwave):Rated Output Power(Microwave):Oven Capacity:Turntable Diameter:External Dimensions(LxWxH):Net Weight: If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. ADDENDUM

433x330x258mm Approx.10.8kgIMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons using your appliance, follow basic precautions, including the following:

3. Warning: Only allow children to use the

oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

4. Warning: When the appliance is operated

in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)

5. Only use utensils suitable for use in

6. The oven should be cleaned regularly and

any food deposits should be removed.

7. Read and follow the specific:"PRECAU-

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is observed, switch off or unplug

the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage

purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles

from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in

accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled

eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended

uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

18. Do not use this oven near water, in a

wet basement or near a swimming pool.

19. The temperature of accessible surfaces

may be high when the appliance is operating. Keep cord away from heated on the oven.

21. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. surface, and do not cover any

Warning: It is hazardous for anyone

other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. When heating beverages or water in your microwave oven, overheating of the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

1) Avoid using straight-sided containers

2) Stir the liquid before placing the

container in the oven and let the teaspoon remain in the container.

3) After heating, allow standing for a

short time, stirring again before carefully removing the container from the oven. ventilation openings or exposure to excessive microwave oven energy when 1523.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 24.Children should be supervised to ensure that they do not play with the appliance. 25.The microwave oven shall not be placed in a cabinet. After heating baby food or liquids in a baby food jar, always stir and check the temperature before serving. This will ensure that the heat is evenly distrib- uted and the risk of scalding or burns can be avoided. Ensure the Lid and the Teat is removed before heating!

16DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding To Reduce the Risk of Injury to Persons CLEANING

1. Clean the inside of the oven after using

with a slightly damp cloth.

2. Clean the accessories in the usual way

3. The door frame and seal and

neighboring parts must be cleaned carefully with a damp cloth when they are dirty. Two-round-pin plug

1. A short power-supply cord is provided to

reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2)The extension cord must be a grounding- type 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord. can result in electric shock. Before cleaning the oven be sure to disconnect it from the power supply. The earthing of this appliance is compulsory. The manufacturer will accept no responsibility for injury to persons, animals or damage to objects arising from the non-observance of this require- ment. The manufacturers are not liable for any problems caused by the user's failure to observe these instructions. 17CAUTION Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven Utensils Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5cm away from oven walls. Follow manufacturer’s instructions. The bottom of browning dish must be at least 5mm above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metalic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term in 4 min cooking only. Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Browning dish Glass jars Glassware UTENSILS See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metalic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap Dinnerware Remarks Use for short–term in 4 min cooking/warming only. Do not leave oven unattended 18A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system Materials to be avoided in microwave oven Utensils Aluminum tray Food carton with metal handle Metal or metal- trimmed utensils Metal twist ties Paper bags Plastic foam Wood

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1 Metal shields the food from microwave energy. Metal trim may cause arcing. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack. May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. May cause arcing and could cause a fire in the oven. Shut off oven power if the door is opened during operation. Remarks 19Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Countertop Installation Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. Installation

1. Select a level surface that provide

enough open space for the intake and/or outlet vents. A minimum clearance of 7.5cm is required between the oven and any adjacent walls. One side must be open. (1) Leave a minimum clearance of 30cm above the oven. (2) Do not remove the legs from the bottom of the oven. (3) Blocking the intake and/or outlet openings can damage the oven. (4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household

outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a

range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. Hub (underside) Glass tray Turntable ring assembly a. Never place the glass tray upside down. The glass tray should turn freely. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray

turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable Installation Turntable shaft 7.5cm 7.5cm 30cm OPEN 20Function/Power Control Panel and Features OPERATION Operation Instructions Output17% micro.33% micro.55% micro.77% micro.100% micro. ApplicationSoften ice creamSoup stew, soften butter or defrostStew, fishRice, fish, chicken, ground meatReheat, milk, boil water, vegetables, beverage Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron. PowerTimer1.Set cooking power by turning the power knob to desired level.2.Set the time of cooking by turning the timer knob to desired time per your food cooking guide.3.The microwave oven will automatically start cooking after power level and time are set.4.After the cooking time is up, the unit will " Dong " to stop.5.If the unit is not in use, always set time to "

400w Defrost Keep warm 600w 800w POWERDefrostKeep warm Timer Defrost(g) 400w 600w 800w 200g 400g 600g 800g 1000g MWO 617 WH 21Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. Operation in this manner is likely to damage the appliance 22The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regula- tions for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Before scrapping, cut off the mains cord so that the appliance cannot be connected to the mains.
