USER MANUAL MWO 61801 WH WHIRLPOOL

According to W aste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

45SAVE THESE INSTRUCTIONS CAREFULLY

Read these instructions carefully before using your microwave oven and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. 46Specifications Model:Rated Voltage:Rated Input Power(Microwave):Rated Output Power(Microwave):Rated Input Power(Grill):Oven Capacity:Turntable Diameter:External Dimensions(LxWxH):Net Weight: (a) Do not attempt to operate this oven with the door open since this canresult in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

47To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated

in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a

competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision or instruction concerning useof the appliance in a safe way andunderstand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shallnot be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of

children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food

deposits should be removed.

7. Read and follow the specific:"PRECAU- TIONS TO

8. When heating food in plastic or paper containers,

keep an eye on the oven due to the possibility of ignition.

and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes.

Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from

paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the

installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should

not be heated in microwave ovens since they may explode, even after microwave heating has ended. 15.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.

16. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement

or near a swimming pool.

19. The temperature of accessible surfaces may be high

when the appliance is operating. The surfaces are liable to get hot during use.Keep cord away from heated surface, and do not cover any vents on the oven. 4920. Do not let cord hang over edge of table or counter.

21. Failure to maintain the oven in a clean condition

could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 22.The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in

delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 25.Children should be supervised to ensure that they do not play with the appliance. 26.The appliances are not intended to be operated by means of an external timer or separate remote-control system. 27.Accessible parts may become hot during use. Young children should be kept away. 28.Steam cleaner is not to be used. 29.During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. 30.Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) 5031. WARNING: The appliance and its accessible parts become hot during use.Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. 32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.) 33.The rear surface of appliance shall be placed against a wall. 34.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE

REFERENCE 51To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance. WARNING Electric Shock HazardImproper use of the grounding can result inelectric shock. Do not plug into an outlet untilappliance is properly installed and grounded. This appliance must be grounded. In theevent of an electrical short circuit, grounding reduces the risk of electricshock by providing an escape wire forthe electric current. This appliance isequipped with a cord having a groundingwire with a grounding plug. The plug mustbe plugged into an outlet that is properly installed and grounded. Consult a qualified electrician orserviceman if the grounding instructio nsare not completely understood or if doubtexists as to whether the appliance isproperly grounded. If it is necessary touse an extension cord , use only a 3-wire

1. A short power-supply cord

is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord isused: 1)The marked electrical rating of the cordset or extension cord should be at least asgreat as the electrical rating of the appliance. 2)The extension cord must be a grounding-type 3-wire cord. 3)The long cord should be arranged so thatit will not drape over the counter top ortabletop where it can be pulled on bychildren or tripped over unintentionally. extension cord. 52CLEANING Be sure to unplug the appliance from thepower supply.

1. Clean the cavity of the oven after using with a slightly damp

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be

cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers

to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the

food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent personto carry out any service or repairo peration that involves the removalof a cover which gives protection against exposure to microwave energy. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

UTENSILS See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metalic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. 53Materials you can use in microwave oven Utensils Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5cm away from oven walls. Follow manufacturer’s instructions. The bottom of browning dish must be at least 5mm above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metalic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term in 4 min cooking only. Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Browning dish Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap Dinnerware Remarks Use for short–term in 4 min cooking/warming only. Do not leave oven unattended Materials to be avoided in microwave oven Utensils Aluminum tray Food carton with metal handle Metal or metal- trimmed utensils Metal twist ties Paper bags Plastic foam Wood Metal shields the food from microwave energy. Metal trim may cause arcing. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack. May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. May cause arcing and could cause a fire in the oven. Remarks 54A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

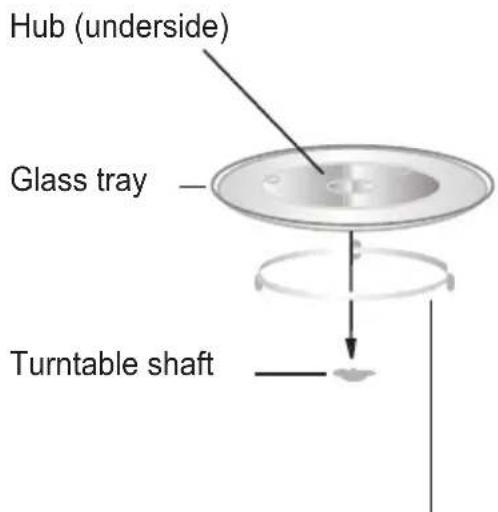

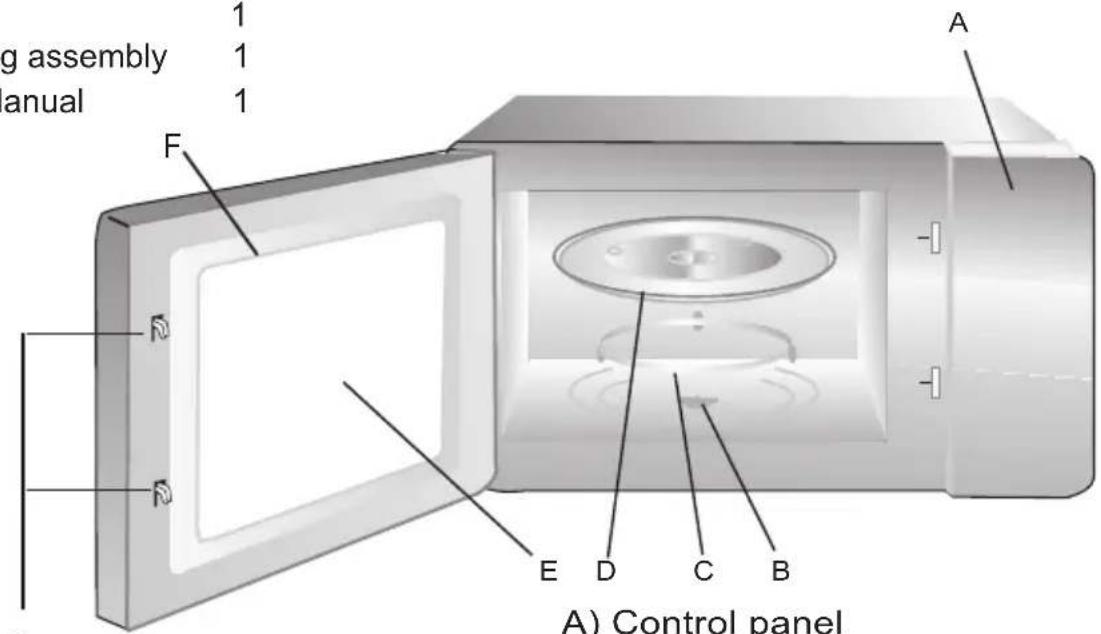

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1 Shut off oven power if the door is opened during operation. H) Grill Rack( Only for Grill series) Hub (underside) Glass tray Turntable ring assembly a. Never place the glass tray upside down. The glass tray should turn freely. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray

turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable Installation Turntable shaft

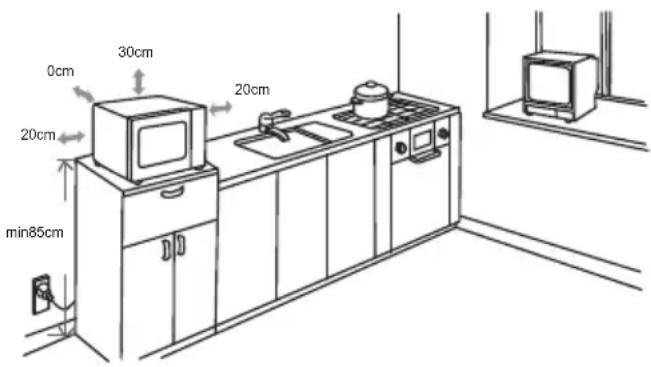

55Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Countertop Installation Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. Installation 1.Select a level surface that provideenough open space for the intakeand/or outlet vents. (1) The minimum installation height is 85cm. (2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. (3) Do not remove the legs from the bottom of the oven. 20cm 30cm 20cm min85cm 0cm (4) Blocking the intake and/ or outlet openings can damage the oven. (5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a

standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install

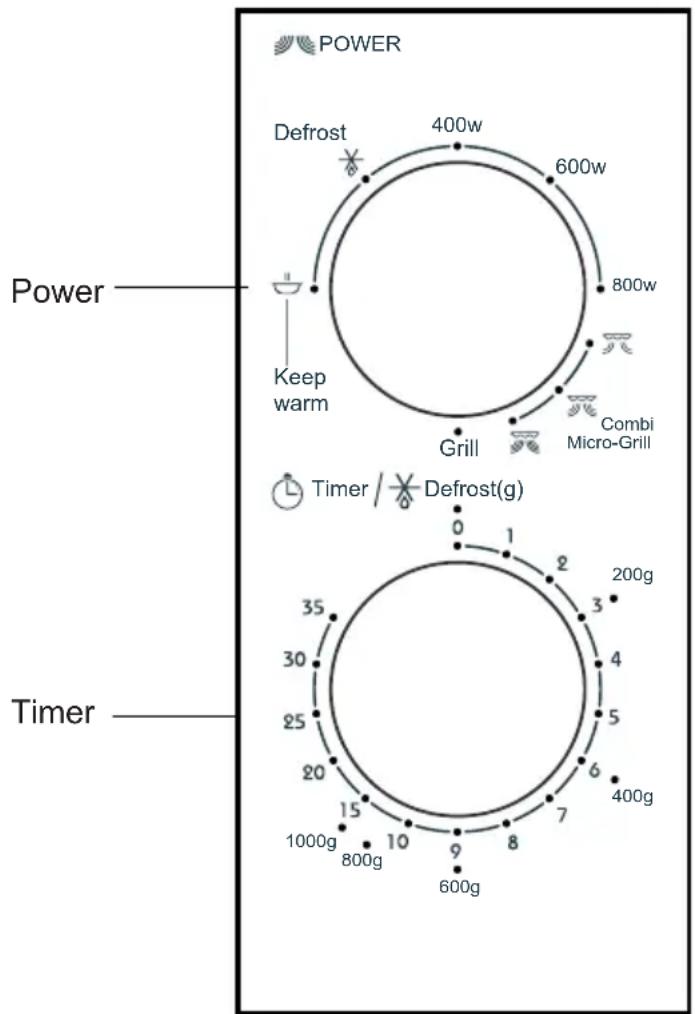

oven over arange cooktop or other heat-producing appliance. If installed near or over a heatsource, the oven could be damaged andthe warranty would be void. The accessible surfacemay be hot duringoperation. 56Function/Power Control Panel and Features OPERATION Operation Instructions Output 17% micro. 33% micro. 55% micro. 77% micro. 100% micro. Application Soften ice cream Soup stew, soften butter or defrost Stew, fish Rice, fish, chicken, ground meat Reheat, milk, boil water, vegetables, beverage Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron. Power Timer 1.Set cooking power by turning the power knob to desired level. 2.Set the time of cooking by turning the timer knob to desired time per your food cooking guide. 3.The microwave oven will automatically start cooking after power level and time are set. 4.After the cooking time is up, the unit will
