NVU83 - Gps SONY - Free user manual and instructions
Find the device manual for free NVU83 SONY in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Personal GPS Navigation System |
| Brand | Sony |
| Model | NVU83 (NV-U83) |
| Dimensions (L × H × D) | Approx. 145 × 87 × 20 mm |
| Weight | Approx. 250 g |
| Power Supply | 5 V DC via car battery adapter or optional AC adapter |
| Display | 4.8-inch TFT LCD touchscreen (16:9) - 816 × 480 pixels |
| Main Features | GPS navigation with voice guidance, Bluetooth hands-free (NV-U83), gesture control, address or point of interest search |
| Battery | Rechargeable lithium-ion, charging: approx. 3 h (on) / 1.5 h (standby), battery life: up to 2 h |
| Connectivity | USB, headphone jack, Memory Stick Duo, Bluetooth version 2.0 (NV-U83) |
| GPS | Built-in GPS antenna |
| Supplied Accessories | Car battery adapter, USB cable, mount with suction cup |
| Maintenance and Cleaning | Clean the suction cup surface with a soft damp cloth; clean the screen with a cleaning cloth |

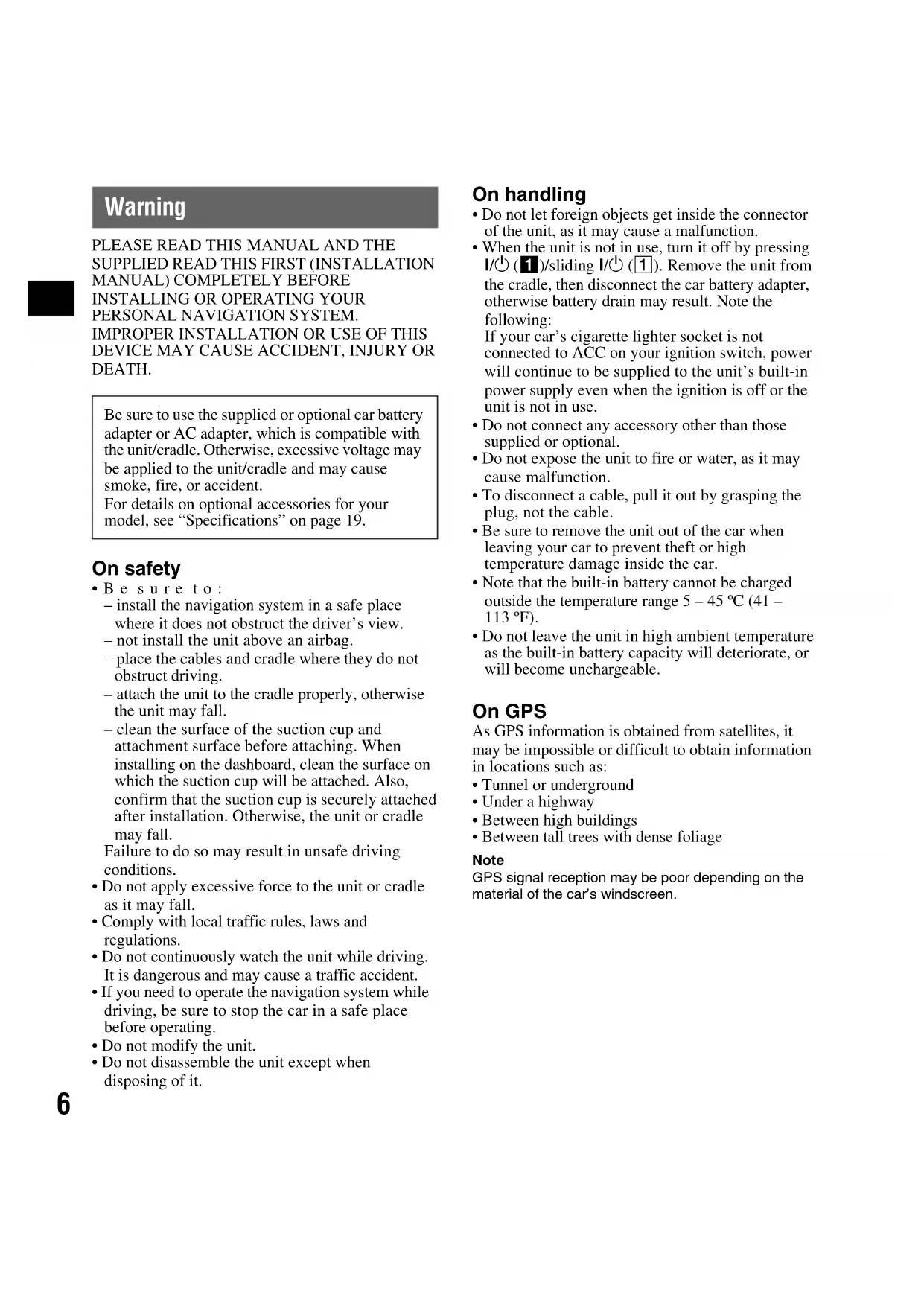

| Safety | Install where it does not obstruct the driver's view and away from airbags; do not look at the screen while driving |
| Spare Parts and Repairability | Adapter fuse: 2.5 A; battery replaceable by qualified service technician |
| General Information | Operating temperature: 5 to 45 °C |
Frequently Asked Questions - NVU83 SONY
How do I turn on the Sony NVU83?
For NV-U93T/U83 models, press the I/O button (1). For NV-U73T/U53 models, slide the I/ switch (1).
How do I perform the initial setup?
Follow the on-screen instructions after first power-on. You can adjust settings via the settings menu ('System Settings' section of the manual).
What should I do if the device does not receive GPS signals?
Make sure you are in an open area (without tall buildings). Go to 'More...' > 'GPS Status' to check reception. If the issue persists, move the vehicle or use an external GPS antenna (U73T/U53 models).
How do I use the Bluetooth function to make calls?
Enable Bluetooth in the 'Phone' menu > 'Phone Settings' > 'Bluetooth Signal' set to 'On'. Then pair your phone via 'Connect Phone' > 'New Registration'. Once connected, you can make calls from the 'Call' menu.
How do I reset the device if it freezes?
Press the RESET button (located on the device) with a pointed object, then turn the device back on. GPS reception may take a few minutes after reset.
How do I adjust the volume of voice guidance?
During route guidance, tap the speaker icon on the screen, then adjust the volume with the +/- buttons.
How do I set a destination by address?

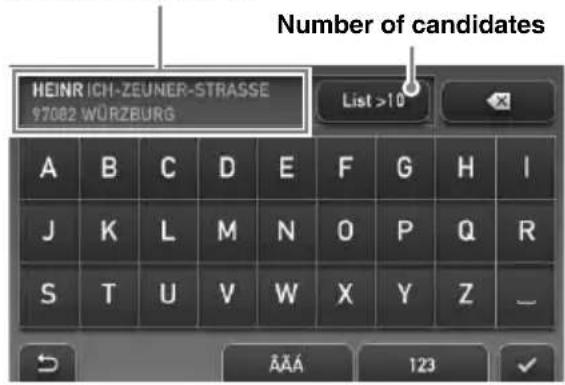

From the main menu, select 'Navigation' > 'Enter Address', then enter the country, locality, street, and number. Confirm and select 'Calculate Route' to start guidance.
What types of memory cards are compatible?
The device accepts Memory Stick Duo (with or without MagicGate) and Memory Stick PRO Duo up to 4 GB. Only reading is possible, not formatting or writing.
How do I clean the suction cup and screen?
Clean the suction cup with a soft, lint-free damp cloth, then dry it. For the screen, use a commercially available cleaning cloth. Do not use abrasive products.
What is the battery life?
The built-in lithium-ion battery provides up to 2 hours of use depending on usage. Charging time is about 3 hours with the device on, or 1.5 hours in standby.
