Three vintage mobile phones in different colors (white, black, red) with no visible text or symbols on their surfaces.

A 100 A 101 A 102

Operating Instructions Part 2

Digital Cellular Phone

Before operating this equipment please read these

instructions (parts 1 and 2) completely

Manuel Partie 2

© Panasonic Mobile Communications Co., Ltd. 2004

Tel. [phone]

TOP SERVICE

Westerloseweg 10

2440 GEEL

Tel. [phone]

TELECTRO SC

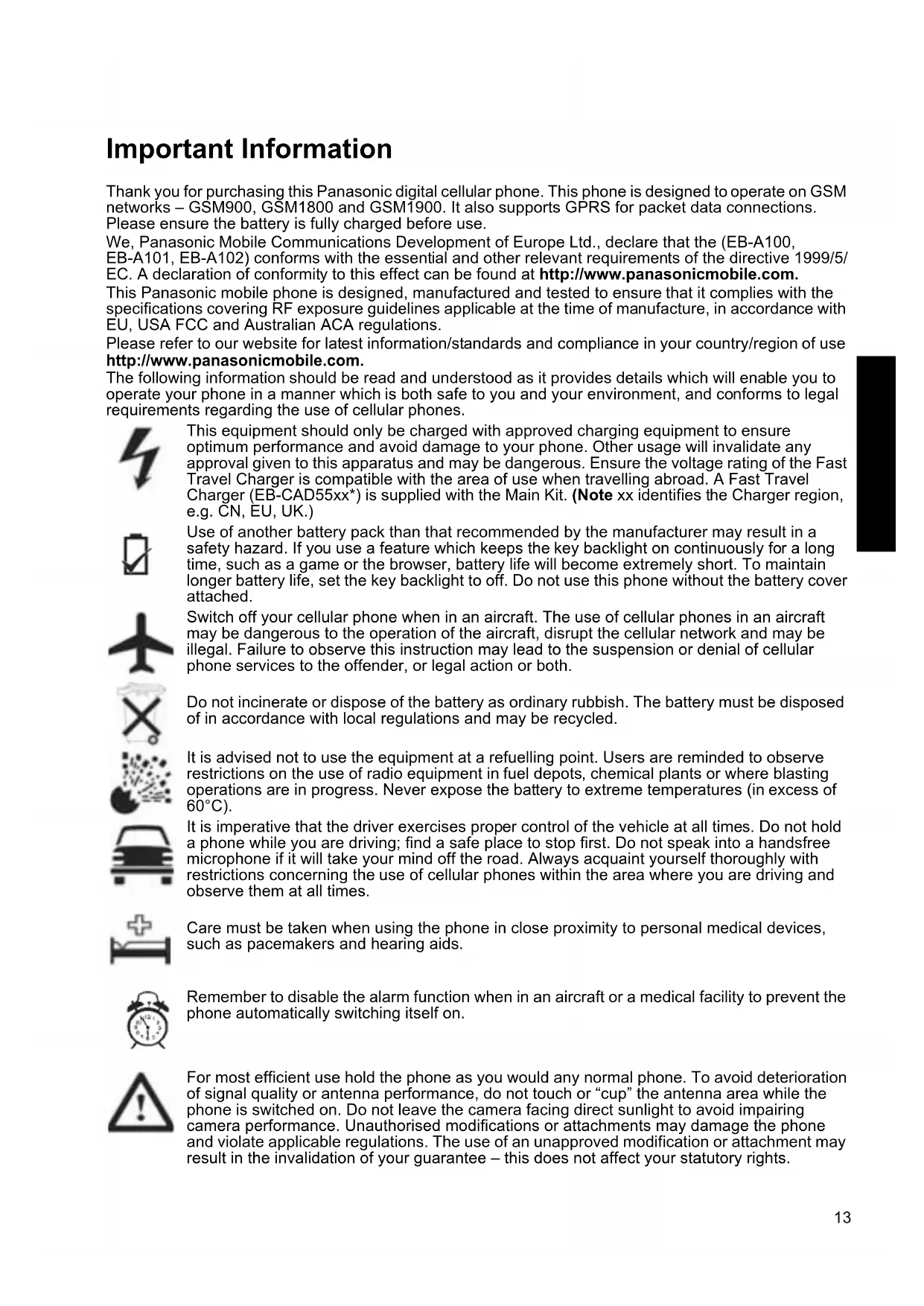

Thank you for purchasing this Panasonic digital cellular phone. This phone is designed to operate on GSM networks – GSM900, GSM1800 and GSM1900. It also supports GPRS for packet data connections. Please ensure the battery is fully charged before use.

We, Panasonic Mobile Communications Development of Europe Ltd., declare that the (EB-A100, EB-A101, EB-A102) conforms with the essential and other relevant requirements of the directive 1999/5/EC. A declaration of conformity to this effect can be found at http://www.panasonicmobile.com.

This Panasonic mobile phone is designed, manufactured and tested to ensure that it complies with the specifications covering RF exposure guidelines applicable at the time of manufacture, in accordance with EU, USA FCC and Australian ACA regulations.

Please refer to our website for latest information/standards and compliance in your country/region of use http://www.panasonicmobile.com.

The following information should be read and understood as it provides details which will enable you to operate your phone in a manner which is both safe to you and your environment, and conforms to legal requirements regarding the use of cellular phones.

This equipment should only be charged with approved charging equipment to ensure optimum performance and avoid damage to your phone. Other usage will invalidate any approval given to this apparatus and may be dangerous. Ensure the voltage rating of the Fast Travel Charger is compatible with the area of use when travelling abroad. A Fast Travel Charger (EB-CAD55xx*) is supplied with the Main Kit. (Note xx identifies the Charger region, e.g. CN, EU, UK.)

Use of another battery pack than that recommended by the manufacturer may result in a safety hazard. If you use a feature which keeps the key backlight on continuously for a long time, such as a game or the browser, battery life will become extremely short. To maintain longer battery life, set the key backlight to off. Do not use this phone without the battery cover attached.

Switch off your cellular phone when in an aircraft. The use of cellular phones in an aircraft may be dangerous to the operation of the aircraft, disrupt the cellular network and may be illegal. Failure to observe this instruction may lead to the suspension or denial of cellular phone services to the offender, or legal action or both.

Do not incinerate or dispose of the battery as ordinary rubbish. The battery must be disposed of in accordance with local regulations and may be recycled.

It is advised not to use the equipment at a refuelling point. Users are reminded to observe restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in progress. Never expose the battery to extreme temperatures (in excess of 60^ C).

It is imperative that the driver exercises proper control of the vehicle at all times. Do not hold a phone while you are driving; find a safe place to stop first. Do not speak into a handsfree microphone if it will take your mind off the road. Always acquaint yourself thoroughly with restrictions concerning the use of cellular phones within the area where you are driving and observe them at all times.

Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.

Remember to disable the alarm function when in an aircraft or a medical facility to prevent the phone automatically switching itself on.

For most efficient use hold the phone as you would any normal phone. To avoid deterioration of signal quality or antenna performance, do not touch or "cup" the antenna area while the phone is switched on. Do not leave the camera facing direct sunlight to avoid impairing camera performance. Unauthorised modifications or attachments may damage the phone and violate applicable regulations. The use of an unapproved modification or attachment may result in the invalidation of your guarantee – this does not affect your statutory rights.

When your handset, the accompanying battery or charging accessories are wet, do not put those in any type of heating equipment, such as a microwave oven, a high pressure container, or a drier or similar. It may cause the battery, handset and/or charging equipment to leak, heat up, expand, explode and/or catch fire. Moreover, the product or accessories may emit smoke and their electrical circuits may become damaged and cause the products to malfunction. Panasonic is not responsible for any and all damages, whether direct or indirect, howsoever caused by any misuse.

It is recommended that you create a copy or backup, as appropriate, for any important information and data which you store in your phone's memory. In order to avoid accidental loss of data, please follow all instructions relating to the care and maintenance of your phone and its battery. Panasonic accepts no liability for any and all losses howsoever arising from any loss of data, including but not limited to direct and indirect losses (to include, but not limited to consequential loss, anticipated savings, loss of revenue).

Your phone may have the capability of storing and communicating personal information. It is recommended that you take care to ensure that any personal or financial information is stored separately from your phone. You should use the security features, such as Phone Lock and/or Sim Lock, provided in the handset as a measure of protection for information held. Panasonic accepts no liability for any and all losses howsoever arising from any loss of data including but not limited to direct and indirect losses (to include, but not limited to consequential loss, anticipated savings, loss of revenue).

Your phone may have the capability of downloading and storing information and data from external sources. It is your responsibility to ensure that in doing this you are not infringing any copyright laws or other applicable legislation. Panasonic accepts no liability for any and all losses howsoever arising from any loss of data or any such infringement of copyright or IPR, including but not limited to direct and indirect losses (to include, but not limited to consequential loss, anticipated savings, loss of revenues).

If your phone has an integral or add-on camera, you are advised to take appropriate care over the use of it. It is your responsibility to ensure that you have permission to take photographs of people and objects and that you do not infringe any personal or third party rights when using the camera. You must comply with any applicable international or national law or other special restrictions governing camera use in specific applications and environments. This includes not using the camera in places where the use of photographic and video equipment may be prohibited. Panasonic accepts no liability for any and all losses howsoever arising from any infringement of copyright or intellectual property rights, including but not limited to direct and indirect losses.

This equipment should only be used with Panasonic approved accessories to ensure optimum performance and avoid damage to your phone. Panasonic is not responsible for damage caused by using non-Panasonic approved accessories.

This phone must be used in compliance with any applicable international or national law or any special restrictions governing its use in specified applications and environments. This includes but is not limited to use in hospitals, aircraft, whilst driving and any other restricted uses.

The display layouts and screenshots within this document are for illustrative purposes and may differ from the actual displays on your phone. Panasonic reserves the right to change the information in this document without prior notice.

The liquid crystal display (LCD) uses high-precision production technology, and in certain circumstances pixels may appear brighter or darker. This is due to characteristics of the LCD and is not a manufacturing defect.

Pressing any of the keys may produce a loud tone. Avoid holding the phone close to the ear while pressing the keys.

Extreme temperatures may have a temporary effect on the operation of your phone. This is normal and does not indicate a fault. The display quality may deteriorate if the phone is used in environments over 40^ C for a long time.

Do not modify or disassemble the equipment. There are no user serviceable parts inside.

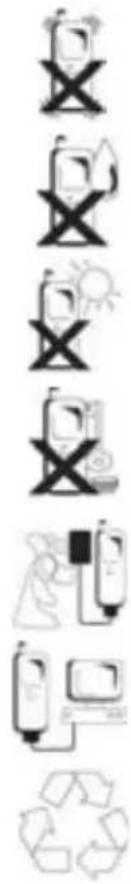

Collection of icons representing environmental protection symbols and recycling, including warning signs, sun, fire extinguisher, and recycling symbol.

Do not subject the equipment to excessive vibration or shocks. Do not drop the battery.

Avoid contact with liquids. If the equipment becomes wet, immediately remove the battery and contact your dealer.

Do not leave the equipment in direct sunlight or a humid, dusty or hot area. Never throw a battery into a fire. It may explode.

Keep metallic items that may accidentally touch the terminals away from the equipment/battery. Batteries can cause property damage, injury, or burns if terminals are touched with a conductive material (i.e. metal jewellery, keys, etc.).

Always charge the battery in a well ventilated area, not in direct sunlight, between +5°C and +35°C. It is not possible to recharge the battery if it is outside this temperature range.

When connecting the phone to an external source, read the operating instructions of the equipment for the correct connection and safety precautions. Ensure the phone is compatible with the product it is being connected to.

When disposing of any packing materials or old equipment check with your local authorities for information on recycling.

SAR - A100

European Union – RTTE

THIS PANASONIC PHONE (MODEL EB-A100) MEETS THE EU REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) energy recommended by The Council of the European Union. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organisations through periodic and thorough evaluation of scientific studies. The limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for mobile phones employs a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit recommended by The Council of the European Union is 2.0 W/kg*. Tests for SAR have been conducted using standard operating positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.

Before a phone model is available for sale to the public, compliance with the European R&TTE directive must be shown. This directive includes as one essential requirement the protection of the health and the safety for the user and any other person. The SAR value for this model phone, when tested for use at the ear, for compliance against the standard was 0.743 W/kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the EU requirements for RF exposure.

*The SAR limit for mobile phones used by the public is 2.0 watts/kilogram (W/kg) averaged over ten grams of tissue. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national reporting requirements and the network band.

For SAR information in other regions please look under product information at http://www.panasonicmobile.com/health.html

SAR - A101

European Union – RTTE

THIS PANASONIC PHONE (MODEL EB-A101) MEETS THE EU REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) energy recommended by The Council of the European Union. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organisations through periodic and thorough evaluation of scientific studies. The limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for mobile phones employs a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit recommended by The Council of the European Union is 2.0 W/kg*. Tests for SAR have been conducted using standard operating positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.

Before a phone model is available for sale to the public, compliance with the European R&TTE directive must be shown. This directive includes as one essential requirement the protection of the health and the safety for the user and any other person. The SAR value for this model phone, when tested for use at the ear, for compliance against the standard was 0.737 W/kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the EU requirements for RF exposure.

*The SAR limit for mobile phones used by the public is 2.0 watts/kilogram (W/kg) averaged over ten grams of tissue. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national reporting requirements and the network band.

For SAR information in other regions please look under product information at http://www.panasonicmobile.com/health.html

SAR - A102

European Union – RTTE

THIS PANASONIC PHONE (MODEL EB-A102) MEETS THE EU REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) energy recommended by The Council of the European Union. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organisations through periodic and thorough evaluation of scientific studies. The limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for mobile phones employs a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit recommended by The Council of the European Union is 2.0 W/kg*. Tests for SAR have been conducted using standard operating positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.

Before a phone model is available for sale to the public, compliance with the European R&TTE directive must be shown. This directive includes as one essential requirement the protection of the health and the safety for the user and any other person. The SAR value for this model phone, when tested for use at the ear, for compliance against the standard was 0.699 W/kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the EU requirements for RF exposure.

*The SAR limit for mobile phones used by the public is 2.0 watts/kilogram (W/kg) averaged over ten grams of tissue. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national reporting requirements and the network band.

For SAR information in other regions please look under product information at http://www.panasonicmobile.com/health.html

Licensing

CP8 Patent

© Panasonic Mobile Communications Co., Ltd. 2004

Information in this document is subject to change without notice. No part of these instructions may be reproduced or transmitted in any form or by any means without obtaining express permission from Panasonic Mobile Communications Co., Ltd.

Java™

Java™ and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

C€0168

Jbed ^TM ME

Jbed (Java™ VM) is the registered trademark of esmertec, Inc.

esmertec

T9® Text Input

T9 ^ is a trademark of Tegic Communications Inc. T9 ^ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928 and 6,011,554; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.

Teleca Application

WAP: "Browser RA 2.1" MMS: "MMS Application, Version 1.3" JAM (under KVM Statement): "JAM, Version RA1.2"

V-enablerTM

V-enabler (VSCL) is the trademark of eValley, Inc.

Specifications

Bands Supported ...... GSM 900 Class 4

GSM1800 Class 1

GSM1900 Class 1

Standby Time* 90 to 300 hours

Talk Time* 3 to 12 hours

Temperature Range

Charging ....+5°C \~ +35°C

Storage -20^ +60^

Weight (A100).... 66 g (including battery)

Weight (A101).... 69 g (including battery)

Weight (A102).... 68 g (including battery)

Dimensions (A100)

Height 77 mm

Width.... 44 mm

Depth 17.8 mm

Dimensions (A101)

Height 80 mm

Width.... 44 mm

Depth 19 mm

Dimensions (A102)

Height 77 mm

Width.... 44 mm

Depth 18 mm

Volume.... 55 cc

Supply Voltage 3.7 V (780 mAh Li-ion)

Antenna.... Fixed

Charge Time** Up to 150 min

SIM Type.... 3 V only

Contacts Memory.... 250 entries + SIM

Animation Themes 2

User Composed Melodies.... 5

Games 2

Backlight Colour...... Blue

Ring Tones.... Preset: 15

Composed: 5

Scheduler.... Up to 50 entries

Alarm.... 1

Maximum Graphics Size .... Main: W112 x H64 pixels (monochrome)

NOTE: Specifications are subject to change without notice.

*Talk and Standby times depend on network conditions, SIM usage and battery condition.

**Charging time depends on usage and condition.

EU Warranty

EU/EEA – Wide guarantee is applicable in the EU/EEA and Switzerland.

Panasonic GSM European Service Guarantee Conditions

Dear Customer,

Thank you for buying this Panasonic digital cellular telephone. The Panasonic GSM European Service Guarantee only applies while travelling in countries other than where the product was purchased. Your local guarantee is applicable in all other cases. If your Panasonic GSM telephone requires service while abroad, please contact the local service company shown on this document.

The Guarantee

The applicable period of the European wide guarantee for GSM is generally 12 months for the main body and 3 months for the rechargeable battery. With respect to a product used in a country other than a country of purchase, notwithstanding what is stated in the conditions below, the customer will benefit, in that country of use, from these guarantee periods of, respectively, 12 and 3 months, if these conditions are more favourable to him than the local guarantee conditions applicable in such country of use.

Conditions of Guarantee

When requesting guarantee service the purchaser should present the warranty card together with proof of purchase, to an authorised service centre.

The guarantee covers breakdowns due to manufacturing or design faults; it does not apply to other events such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us.

Your sole and exclusive remedy under this guarantee against us is the repair, or at our option the replacement, of the product, or any defective part or parts. No other remedy, including, but not limited to, incidental or consequential damage or loss of whatsoever nature shall be available to the purchaser.

This is in addition to and does not in any way affect any statutory or other rights of consumer purchasers. This guarantee applies in countries shown on this document at the authorised service centres detailed for that country.

United Kingdom

Service Centres in England

Tel. [phone]

Ireland

Service Centres in Ireland

Tel. [phone]

EU/EEA – Wide Guarantee: Conditions applicable in any country other than the country of original purchase.

When the purchaser finds the appliance to be defective, he should promptly contact the proper sales company or national distributor in the EU/EEA country where this guarantee is claimed, as indicated in the “Product Service Guide” or the nearest authorised dealer together with this guarantee and proof of date of purchase. The purchaser will then be informed whether:

(i) the sales company or national distributor will handle the repair service; or
(ii) the sales company or national distributor will arrange for trans-shipment of the appliance to the EU/EEA country where the appliance was originally marketed; or
(iii) the purchaser may himself send the appliance to the sales company or national distributor in the EU/EEA country where the appliance was originally marketed.

If the appliance is a product model which is normally supplied by the sales company or national distributor in the country where it is used by the purchaser, then the appliance, together with this guarantee card and proof of date of purchase, should be returned at the purchaser's risk and expense to such sales company or distributor, which will handle the repair service. In some countries, the affiliated sales company or national distributor will designate dealers or certain service centres to execute the repairs involved.

If the appliance is a product model which is not normally supplied in the country where used, or if the appliance's internal or external product characteristics are different from those of the equivalent model in the country where used, the sales company or national distributor may be able to have the guarantee repair service executed by obtaining spare parts from the country where the appliance was originally marketed, or it may be necessary to have the guarantee repair service executed the sales company or national distributor in the country where the appliance was originally marketed.

In either case, the purchaser must furnish this guarantee card and proof of date of purchase. Any necessary transportation, both of the appliance and of any spare parts, will be at the purchaser's risk and expense, and there may be a consequent delay in the repair service.

Where the consumer sends the appliance for repair to the sales company or national distributor in the country of use of the appliance, the service will be provided on the same local terms and conditions (including the period of guarantee coverage) as prevail for the same model appliance in the country of use, and not the country of initial sale in the EU/EEA. Where the consumer sends the appliance for repair to the sales company or national distributor in the EU/EEA country where the appliance was originally marketed, the repair service will be provided on the local terms and conditions prevailing in the country of initial sale in the EU/EEA.

Some product models require adjustment or adaptation for proper performance and safe use in different EU/EEA countries, in accordance with local voltage requirements and safety or other technical standards imposed or recommended by applicable regulations. For certain product models, the cost of such adjustment or adaptation may be substantial and it may be difficult to satisfy local voltage requirements and safety or other technical standards. It is strongly recommended that the purchaser investigates these local technical and safety factors before using the appliance in another EU/EEA country.

This guarantee shall not cover the cost of any adjustments or adaptations to meet local voltage requirements and safety or other technical standards. The sales company or national distributor may be in a position to make the necessary adjustments or adaptations to certain product models at the cost of the purchaser. However, for technical reasons it is not possible to adjust or adapt all product models to comply with local voltage requirements and safety or other technical standards. Moreover, where adaptations or adjustments are carried out the performance of the appliance may be affected. If in the opinion of the sales company or national distributor in the country where the appliance is used the purchaser has the necessary adjustments or adaptations to local voltage requirements and technical or safety standards properly made, any subsequent guarantee repair service will be provided as above indicated, provided the purchaser discloses the nature of the adjustment or adaptation if relevant to the repair. (It is recommended that the purchaser should not send adapted or adjusted equipment for repair to the sales company or national distributor in the country where the appliance was originally marketed if the repair relates in any way to the adaptation or adjustment.)

This guarantee shall only be valid in territories subject to the laws of the European Union and the EEA. Please keep this guarantee with your receipt.

PANASONICGSMMOBILETELEPHONE

WARRANTYTERMS

1. This warranty is in addition to and does not in any way affect an statutory or other right of consumer purchasers. This warranty applies to the United Kingdom, Isle of Man & Channel Island only, for users in Eire, please contact your retailer or supplier. The warranty period is 12 months from date of purchase and is applicable to the original purchaser only.
2. The product is approved for use on GSM mobile telephones system and should only be used for normal purposes and in accordance with the standard operating instructions.
3. Thewarranty covers breakdowns duetomanufacturing ordersign faults; it does not apply todamage, however caused, wear and tear, neglect, incorrect adjustment repair, or to any item so far limited natural life.

4. In the event of failure, please take the following action:

5. Refertotheinstructionbookinordertoidentifyandpossiblycorrecttheproblem.

6. If the problem is duetocoverage, reception or billing, please contact your air time retailer or service provider who has number can be found from your monthly invoice.
7. If you cannot resolv the problem, contact the Panasonic Helpline on 08705159159. Before you telephone have the following information to hand:

oThemodelandserialnumberofyourtelephone,anditsphonenumber
○Yourfulladdressandpostcode
○Acopyofyouroriginalinvoice,receptorbillofsaleforthepurchaseofthe telephone.

1. If the problem cannot be resolved over the telephone, arrangements will be made to repair the telephone. Remove the SIM from the telephone and store it in a safe place. Please pack the telephones suitable for transit. Including in the packing:

2. Themobiletelephone

3. Therechargeablebattery
4. ACAdaptor

5. Acopyofyourinvoice,receptorbillofsale.(Note;itisthecustomersresponsibility toprovideproofofwarranty)

6. Panasonic will us reasonable endeavour to ensure your telephone is returned to you within a maximum of working days from reporting the fault to the Helpline. Please note that delays in transit may be encountered for Channel Islands, Northern Ireland, Isle of Man, Scottish Islands and other islands.

7. Yoursoleandexclusiveremedyunderthisguaranteeagainstusisfortherepair,orat ouroptionthereplacement,oftheproduct,oranydefectivepartorparts.Noother remedy,including,butnotlimitedto,incidentalorconsequentialdamageorlossof whatsoevernatureshallbeavailabletothepurchaser.
8. Rechargeable batteries have alimited naturallife, inordertoprolong their lifethey should only be used and charged as shown in the instruction book. Replacement batteries may be purchased either from your retailer or the Helplinenumbershown overleaf.

IMPORTANT

Writeyourmobiletelephonenumberandlockcodehere:

TelephonenumberLockcode

YourPanasonicGSMmobiletelephonehasawarrantyfor12monthsfromdateofpurchase.

If you feel your phone is faulty and your service provider or air time retailer cannot resolve the problem, please contact thePanasonicHelplineon:

08705159159

TheHelplineoperates

9:00AM-5:30PMMonday-Friday

(excludingBankHolidays)

Iffaulty, arrangementswillbemadetorepairthetelephoneandreturnittoyou. Wewillusereasonableendeavourstoensurethisiswithinamaximumof5workingsdays.

Seeoverforfulltermsandconditions

KEEPTHISCARDINASAFEPLACE

Declaration of Conformity – A100

Panasonic

Panasonic Mobile Communications Development of Europe Limited

D04-MCUK-D057-1

Declaration of Conformity

We, Panasonic Mobile Communications Development of Europe Ltd

2 Gables Way, Colthrop, Thatcham, Berkshire, RG19 4ZB, UK

declare under our sole responsibility that the product

GSM Cellular Mobile Radio, Model number EB-A100, Trade name: Panasonic A100

to which this declaration relates is in conformity with the following standard(s) or other normative documents

EN 301 511, EN 301 489-1, EN 301 489-7, EN60950, EN50360

following the provisions of EC Council Directive(s)

1999/5/EC, in accordance with essential requirements 3.1(a), 3.1(b), and 3.2, under Annex IV on

the basis of TCF assessment by BABT, NB No. 0168

Issued on;

27th APRIL 2009

Signed by the manufacturer;

(Signature):

K. Takashoshi

Mr. K. Takahashi Director

Declaration of Conformity – A101

Panasonic

Panasonic Mobile Communications Development of Europe Limited

D04-MCUK-D063-1

Declaration of Conformity

We, Panasonic Mobile Communications Development of Europe Ltd

2 Gables Way, Colthrop, Thatcham, Berkshire, RG19 4ZB, UK

declare under our sole responsibility that the product

GSM Cellular Mobile Radio, Model number EB-A101, Trade name: Panasonic A101

to which this declaration relates is in conformity with the following standard(s) or other normative documents

EN 301 511, EN 301 489-1, EN 301 489-7, EN60950, EN50360

following the provisions of EC Council Directive(s)

1999/5/EC, in accordance with essential requirements 3.1(a), 3.1(b), and 3.2, under Annex IV on

the basis of TCF assessment by BABT, NB No. 0168

Issued on;

17 June 04

Signed by the manufacturer;

(Signature)

RyWaltmore

Dr. R. Westmore

Managing Director

Declaration of Conformity - A102

Panasonic

Panasonic Mobile Communications Development of Europe Limited

D04-MCUK-D068-1

Declaration of Conformity

We, Panasonic Mobile Communications Development of Europe Ltd

2 Gables Way, Colthrop, Thatcham, Berkshire, RG19 4ZB, UK

declare under our sole responsibility that the product

GSM Cellular Mobile Radio, Model number EB-A102, Trade name: Panasonic A102

to which this declaration relates is in conformity with the following standard(s) or other normative documents

EN 301 511, EN 301 489-1, EN 301 489-7, EN60950, EN50360

following the provisions of EC Council Directive(s)

1999/5/EC, in accordance with essential requirements 3.1(a), 3.1(b), and 3.2, under Annex IV on

the basis of TCF assessment by BABT, NB No. 0168

Issued on; 1 ^st September 2004

Signed by the manufacturer;

(Signature):

Ryllbatmore

Dr R Westmore

Managing Director

Matsushita Mobile Communications Development of Europe Limited

2 Gables Way, Colthrop, Thatcham, Berkshire RG19 4ZB

Tel: [phone] Fax: [phone]

Web: www.panasonicmobile.com

VAT Reg No. GB765338211

Registered in England No. 4168880

Informations importantes

© Panasonic Mobile Communications Co., Ltd. 2004

Tel. [phone]

TOP SERVICE

Westerloseweg 10

2440 GEEL

Tel. [phone]

TELECTRO SC

© Panasonic Mobile Communications Co., Ltd. 2004

© Panasonic Mobile Communications Co., Ltd. 2004

MMS: "MMS Application, Version 1.3"
