Product Type	Mobile Phone
Brand	Panasonic
Model	EB-VS7
Form Factor	Clamshell
Dimensions (H x W x D)	90 x 45 x 20 mm
Weight	90 g
Display Type	Internal TFT, 1.9 inches, 176 x 220 pixels
External Display	Monochrome, 96 x 64 pixels
Battery Type	Li-Ion 700 mAh
Standby Time	Up to 300 hours
Talk Time	Up to 5 hours
Main Camera	1.3 MP, 1280 x 960 pixels
Video Recording	Yes, QCIF@15fps
Memory	10 MB internal, microSD slot (up to 1 GB)
Connectivity	Bluetooth 1.2, IrDA, USB 1.1
Messaging	SMS, MMS, Email
Browser	WAP 2.0/xHTML
Music Player	MP3/AAC player
Radio	FM radio with RDS
Cleaning	Wipe with dry cloth; avoid liquids
Safety	SAR: 0.68 W/kg (head), 0.45 W/kg (body)
Spare Parts & Repairability	Battery and SIM cover replaceable; service by authorized center
General Information	Released 2005; supports 2G GSM 900/1800/1900

Frequently Asked Questions - EB-VS7 PANASONIC

How do I insert the SIM card and battery?

Turn off the phone, remove the back cover, slide the SIM card into the slot with gold contacts facing down, then insert the battery and replace the cover.

Why won't my phone turn on?

Ensure the battery is charged. If not, connect the charger and wait 10 minutes. If still off, try a soft reset by removing the battery for 30 seconds.

How can I save contacts to the phone memory?

Go to Contacts, select 'Add New', choose 'Save to Phone', enter the details, and press Save. Up to 500 contacts can be stored internally.

What is the maximum memory expansion?

The phone supports microSD cards up to 1 GB. Insert the card into the slot under the back cover with the label facing up.

How do I transfer files via Bluetooth?

Enable Bluetooth in Settings > Connections, pair with the other device, then select the file and choose 'Send via Bluetooth'. Accept on the receiving device.

Can I use this phone with a 3G SIM?

No, the EB-VS7 is a 2G GSM phone only. It works with GSM 900/1800/1900 networks, not with 3G/4G SIM cards unless the network is backward compatible.

How do I set a custom ringtone?

Go to Profiles, select the active profile, choose 'Ringtone', then 'My Sounds' to select a downloaded MP3. The file must be stored in the phone memory.

Why is the camera not working?

Make sure the lens is clean and the phone is not in power-saving mode. Press the camera button on the side or select Camera from the main menu.

How do I reset the phone to factory settings?

Go to Settings > Phone Setup > Reset. Enter the security code (default: 0000 or 1234), then confirm. This erases all user data, so backup first.

What should I do if the battery drains quickly?

Check for apps running in background, reduce screen brightness, turn off Bluetooth and IrDA when not in use, and avoid extreme temperatures. If persists, replace the battery.

USER MANUAL EB-VS7 PANASONIC

VS7_CIWA_AAA.book Page i Monday, August 29, 2005 10:00 AM

VS7/MX7/SA7

Operating Instructions

Contents

Important Information .... 1

Safety considerations...... 1

Care and maintenance..... 7

SAR....9

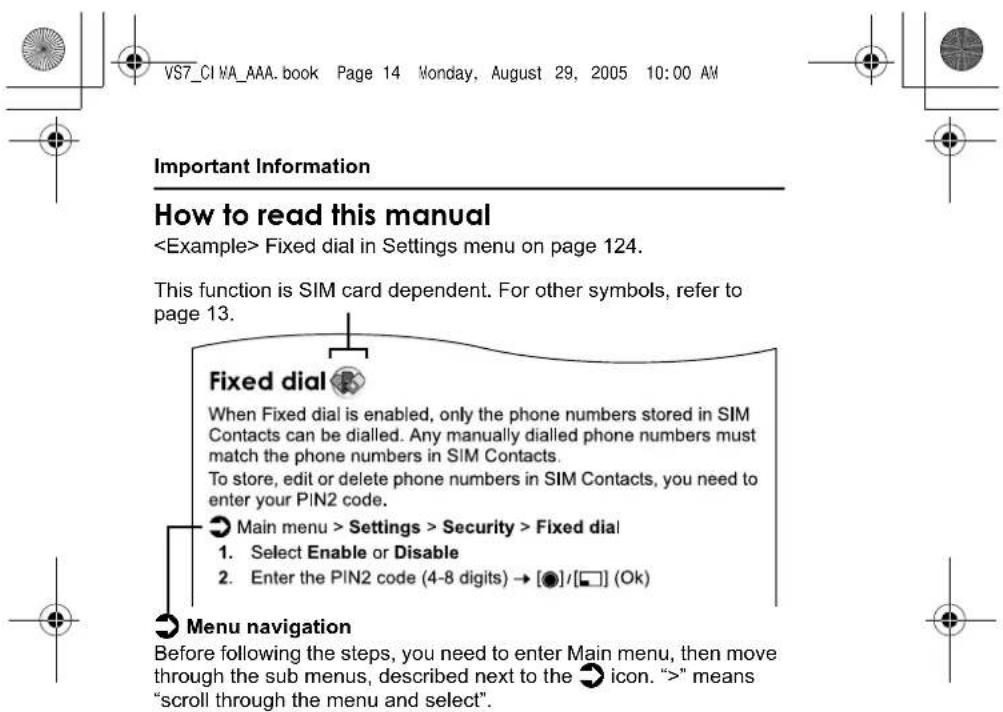

About this manual 13

About Your Phone...... 16

Phone overview.... 16

Key functions.... 18

Display 21

DRM....23

Indicator/Illumination Light ... 24

Getting Started 25

Installing the SIM card and the battery 25

Charging the battery...... 27

Opening/closing the phone .. 29

Switching the phone on/off... 29

Menu Navigation...... 30

Main menu structure ..... 30

Displaying the menu.... 31

Navigating the applications .. 32

Basic Operations...... 33

Making calls 33

Answering calls 35

Silent mode 37

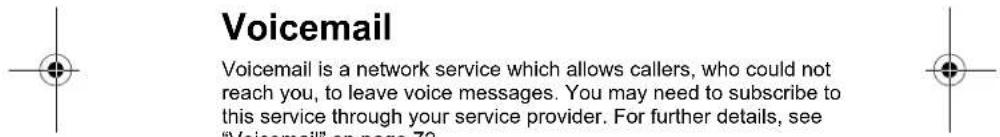

Voicemail 37

In-call operations ....38

Multiple calls operation .....40

Text entry.....42

Contacts......47

Contacts menu structure.....47

Viewing the Contacts list.....48

Making a call from

Contacts....49

Adding contacts ....50

Editing a Contacts card.....52

Call log....53

Speed dial....54

Groups....55

Advanced....55

Service numbers......58

Messages ....59

Messages menu structure ....59

Creating a new message .....60

Receiving messages......65

Inbox....66

Archive....70

Web mail....71

Chat 72

Voicemail 72

Messages settings....73

Memory status 75

1

VS7_CIMA_AAA.book Page ii Monday, August 29, 2005 10:00 AM

Contents

Camera 76 Sounds 142

Camera menu structure.....76 Videos ..... 145

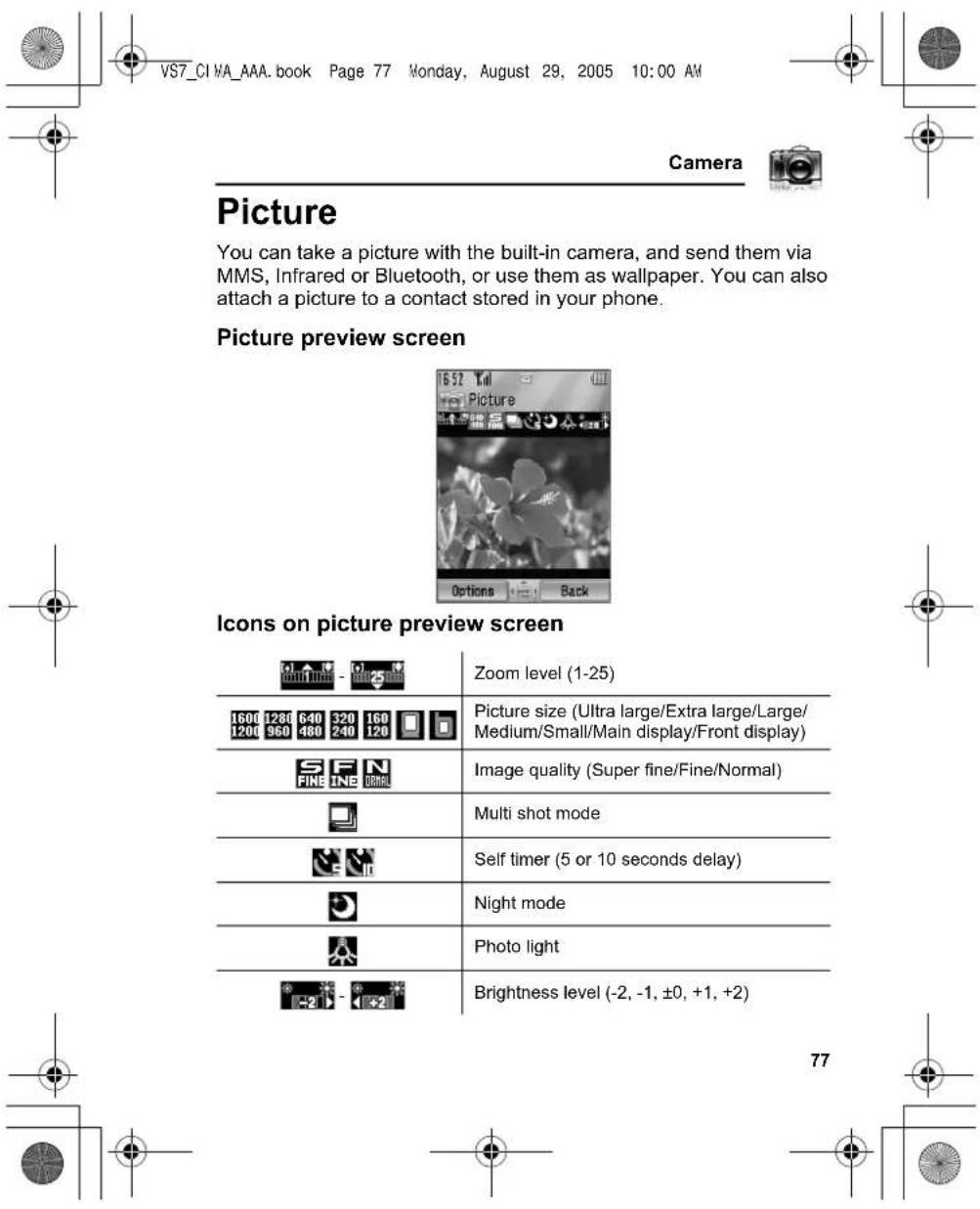

Picture 77 Games 146

Video 83 Text templates 147

Browser 87

Browser menu structure .....87 Games..... 149

Setting up your Browser .....87 Games menu structure..... 149

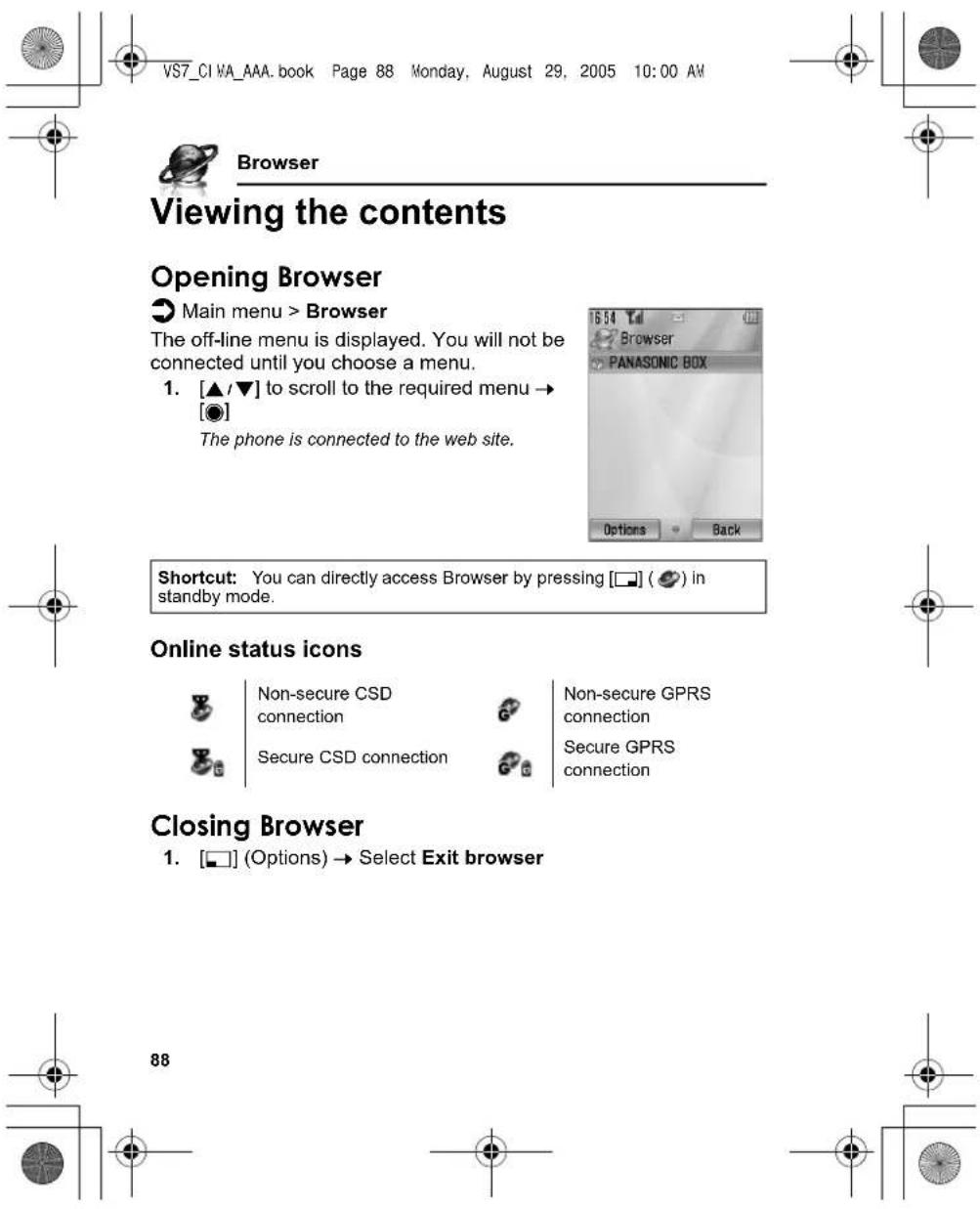

Viewing the contents .....88 Games..... 150

Browser options....89 Download games .... 152

Settings 95 Information 153

Settings menu structure.....95

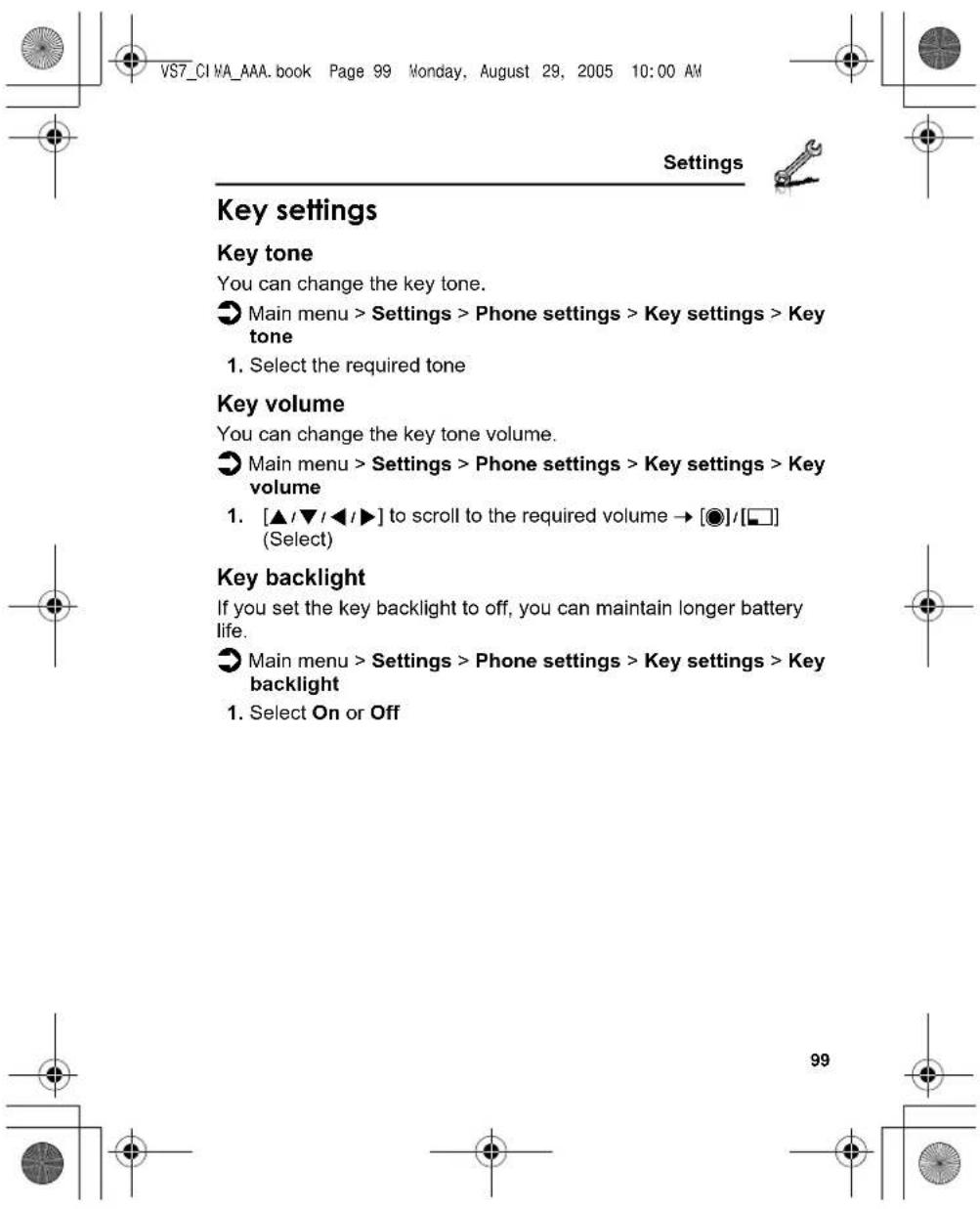

Phone settings....96 Appendix 154

Display settings 102 Accessories 154

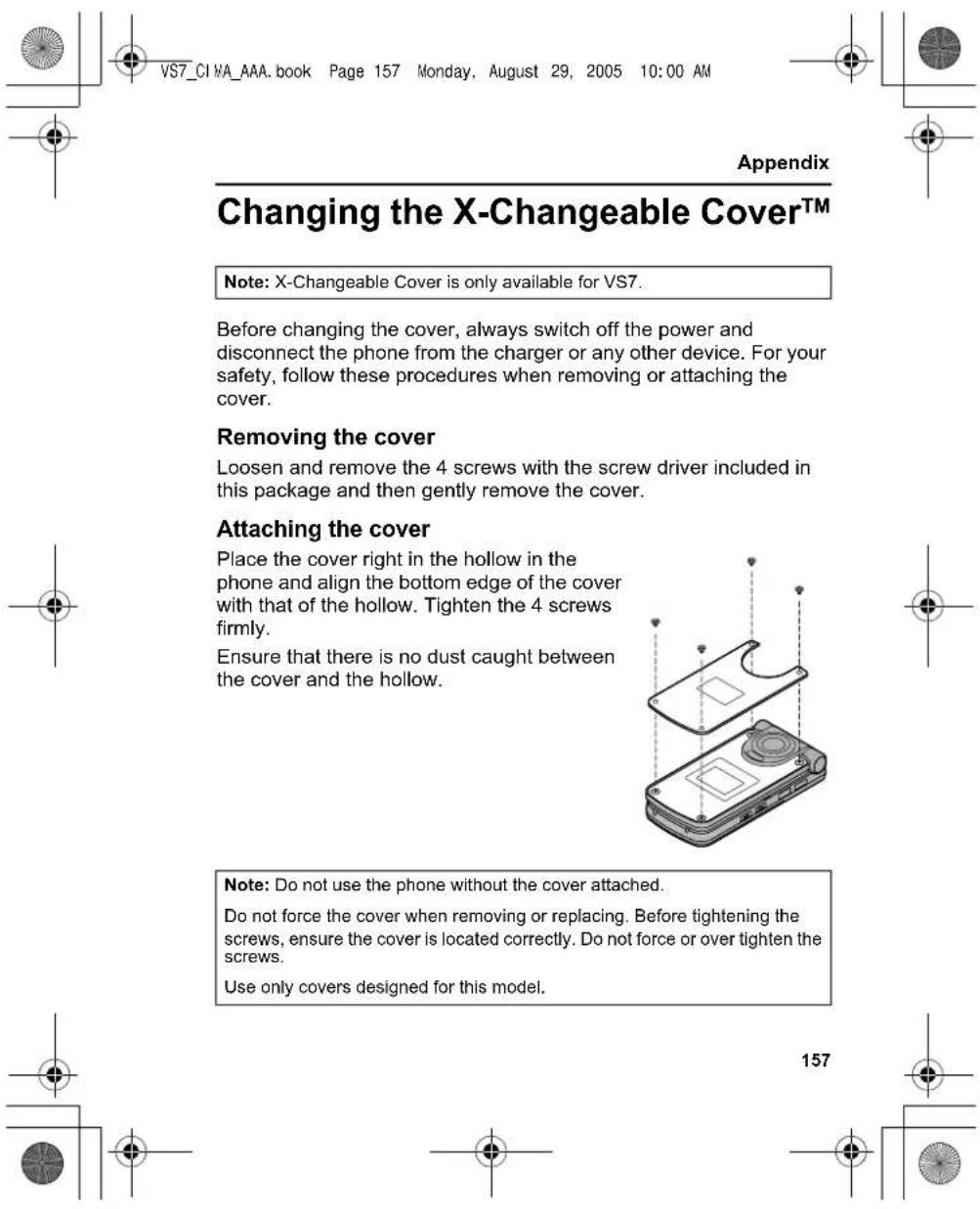

Sounds & alerts ....105 Changing the X-Changeable

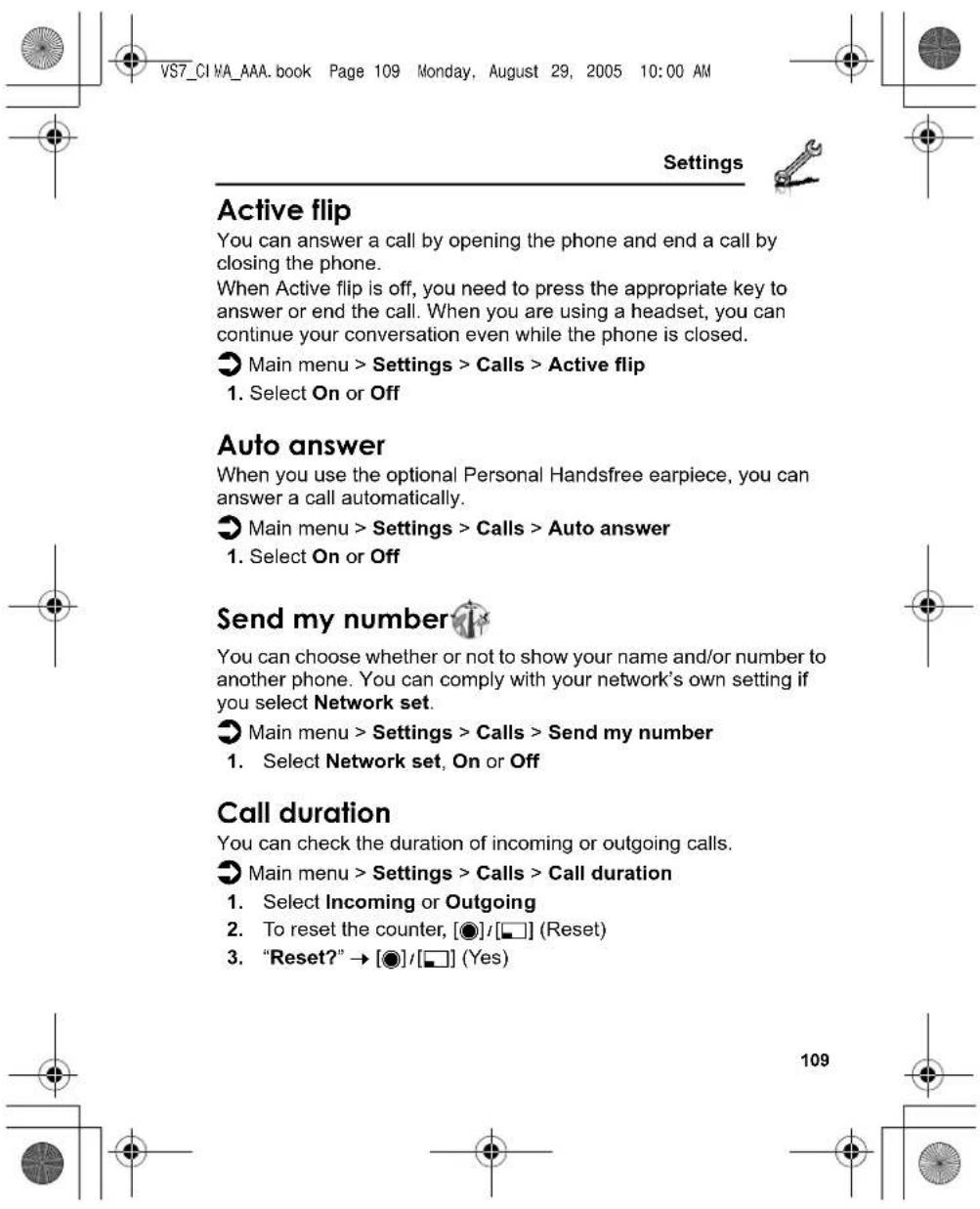

Calls....107 Cover™....157

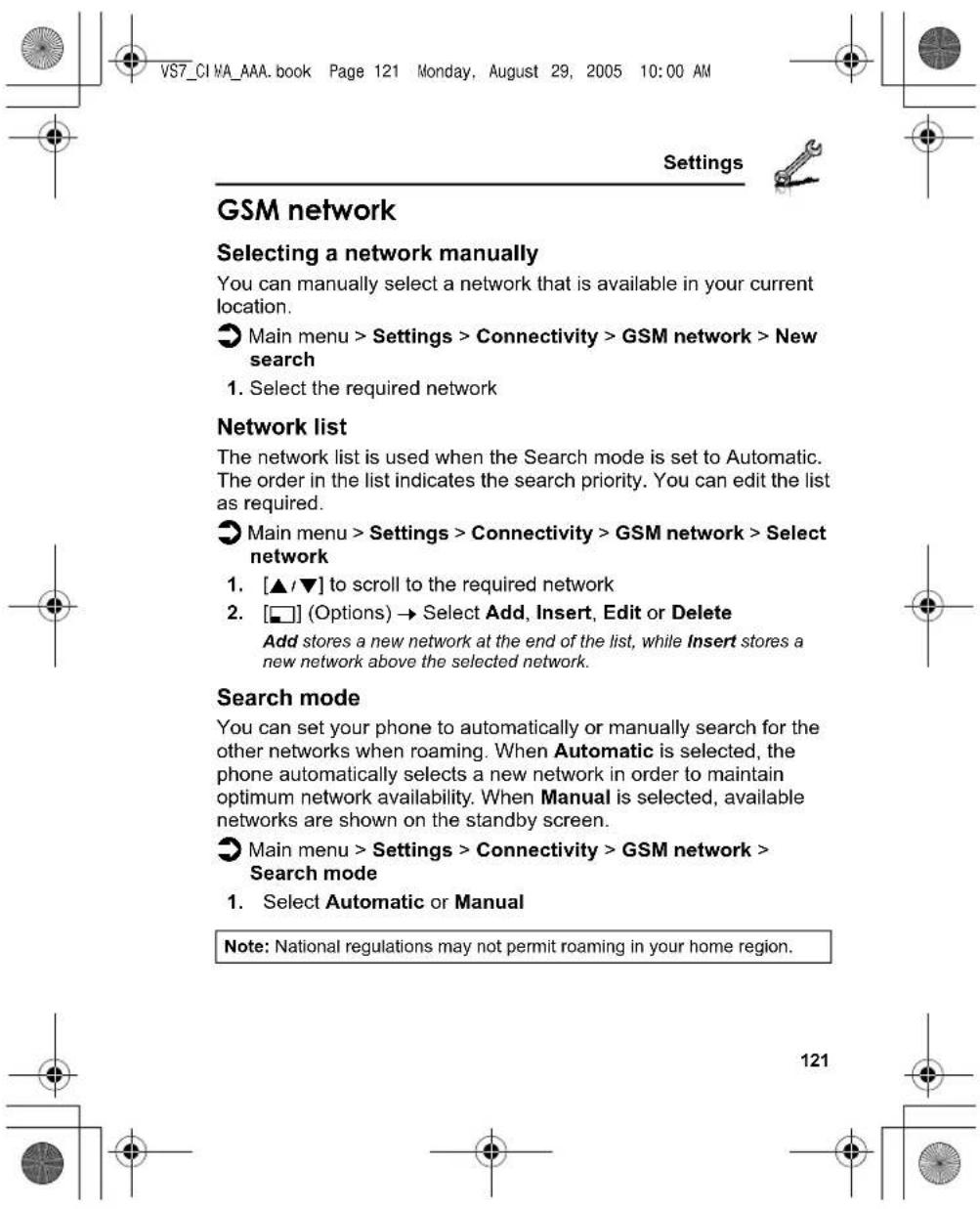

Connectivity....111 Troubleshooting....158

Security....123 Glossary of terms .... 161

Tools.... 126

Tools menu structure......126 Licensing......165

SIM Tool Kit 127

Alarms 127 EU Warranty 169

Sound recorder....129

Calculator 130 Declaration of

Calendar 131

Browsing Calendar .....131 Index 175

Creating Calendar events...133

Managing Calendar events..135

My Media 137

My Media menu structure ...137

Pictures....138

||

VS7_CIMA_AAA.book Page 1 Monday, August 29, 2005 10:00 AM

Important Information

Thank you for purchasing this Panasonic digital cellular phone. This phone is designed to operate on GSM networks – GSM900, GSM1800 and GSM1900. It also supports GPRS for packet data connections. Please ensure the battery is fully charged before use. We, Panasonic Mobile Communications Development of Europe Ltd., declare that the EB-VS7/MX7/SA7 conforms with the essential and other relevant requirements of the directive 1999/5/EC. A declaration of conformity to this effect can be found at http://panasonic.co.jp/pmc/products/en/support/index.html

Safety considerations

The following information should be read and understood as it provides details, which will enable you to operate your phone in a manner which is both safe to you and your environment, and conforms to legal requirements regarding the use of cellular phones.

Power

This equipment should only be charged with approved charging equipment to ensure optimum performance and avoid damage to your phone. Other usage will invalidate

any approval given to this apparatus and may be dangerous. Ensure the voltage rating of the Travel charger is compatible with the area of use when travelling abroad. A Travel charger (EB-CA001xx*) is supplied with the Main Kit.

Note* xx identifies the charger region, e.g. CN, EU, UK, AU, US.

Battery

Use of another battery pack than that recommended by the manufacturer may result in a safety hazard.

If you use a feature which keeps the key backlight on

continuously for a long time, such as a game or browser, battery life will become extremely short. To maintain longer battery life, set the Key backlight to off. (See "Key backlight" on page 99.)

Do not use this phone without the battery cover attached.

VS7_CIMA_AAA.book Page 1 Monday, August 29, 2005 10:00 AM

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

1

VS7_CIMA_AAA.book Page 2 Monday, August 29, 2005 10:00 AM

Important Information

Disposing of the Battery

Do not incinerate or dispose of the battery as ordinary rubbish. The battery must be disposed of in accordance with local regulations and may be recycled.

Aircraft

Switch off your cellular phone when in an aircraft. Ensure that the settings of the alarm functions will not contravene regulations whereby it may automatically power on when in

an aircraft or medical facility etc. The use of cellular phones in an aircraft may be dangerous to the operation of the aircraft, disrupt the cellular network and may be illegal. Failure to observe this instruction may lead to the suspension or denial of cellular phone services to the offender, or legal action or both.

Do Not Use

It is advised not to use the equipment at a refuelling point. Users are reminded to observe restrictions on the use of radio equipment in fuel depots, chemical plants or where

blasting operations are in progress. Never expose the battery to extreme temperatures (in excess of 60^ C).

Driving

It is imperative that the driver exercises proper control of the vehicle at all times. Do not hold a phone while you are driving; find a safe place to stop first. Do not speak into a

handsfree microphone if it will take your mind off the road. Always acquaint yourself thoroughly with restrictions concerning the use of cellular phones within the area where you are driving and observe them at all times.

Electronic Devices

Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.

2

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

2

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 3 Monday, August 29, 2005 10:00 AM

Important Information

Heating Equipment

When your handset, the accompanying battery or charging accessories are wet, do not put those in any type of heating equipment, such as a microwave oven, a high pressure

container, or a drier or similar. It may cause the battery, handset and/or charging equipment to leak, heat up, expand, explode and/or catch fire. Moreover, the product or accessories may emit smoke and their electrical circuits may become damaged and cause the products to malfunction. Panasonic is not responsible for any and all damages, whether direct or indirect, howsoever caused by any misuse.

Backup Copies & Security

It is recommended that you create a copy or backup, as appropriate, of any important information and data which you store in your phone's memory. In order to avoid

accidental loss of data, please follow all instructions relating to the care and maintenance of your phone and its battery.

Your phone has the capability of storing and communicating personal information. It is recommended that you take care to ensure that any personal or financial information is stored separately from your phone. You should use security features, such as the SIM lock to protect information held in your phone. Panasonic accepts no liability for any and all losses howsoever arising from any loss of data, including but not limited to direct and indirect losses (to include, but not limited to consequential loss, anticipated savings, loss of revenue).

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and a circular pattern, no text or symbols present

VS7_CIMA_AAA.book Page 4 Monday, August 29, 2005 10:00 AM

Important Information

Downloading

Your phone has the capability of downloading and storing information and data from external sources. It is your responsibility to ensure that in doing this you are not

infringing any copyright laws or other applicable legislation. Panasonic accepts no liability for any and all losses howsoever arising from any loss of data or any such infringement of copyright or intellectual property rights, including but not limited to direct and indirect losses (to include, but not limited to consequential loss, anticipated savings, loss or revenues).

Efficient Use

For most efficient use, hold the phone as you would any normal phone. To avoid deterioration of signal quality or antenna performance, do not touch or "cup" the antenna

area while the phone is switched on. Unauthorised modifications or attachments may damage the phone and violate applicable regulations. The use of an unapproved modification or attachment may result in the invalidation of your guarantee – this does not affect your statutory rights.

Camera

You are advised to take appropriate care over the use of the internal camera. It is your responsibility to ensure that you have permission to take photographs of people and

objects and that you do not infringe any personal or third party rights when using the camera. You must comply with any applicable international or national law or other special restrictions governing camera use in specific applications and environments. This includes not using the camera in places where the use of photographic and video equipment may be prohibited. Panasonic accepts no liability for any and all losses howsoever arising from any infringement of copyright or intellectual property rights, including but not limited to direct and indirect losses. Do not leave the camera facing direct sunlight, as this may impair its performance.

4

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA.book Page 5 Monday, August 29, 2005 10:00 AM Important Information Other important information The colour liquid crystal display (LCD) uses high-precision production technology, and in certain circumstances pixels may appear brighter or darker. This is due to characteristics of the LCD and is not a manufacturing defect. This phone is designed, manufactured and tested to ensure that it complies with the specifications covering RF exposure guidelines applicable at the time of manufacture, in accordance with EU, USA FCC and Australian ACA regulations. This phone should only be used with Panasonic approved accessories to ensure optimum performance and avoid damage to your phone. Panasonic is not responsible for damage caused by using non-Panasonic approved accessories. This phone must be used in compliance with any applicable international or national law or any special restrictions governing its use in specified applications and environments. This includes but is not limited to use in hospitals, aircraft, whilst driving and any other restricted uses. Some of the contents described in this manual are subject to change without notice.

Important Information

Other important information

The colour liquid crystal display (LCD) uses high-precision production technology, and in certain circumstances pixels may appear brighter or darker. This is due to characteristics of the LCD and is not a manufacturing defect.

This phone is designed, manufactured and tested to ensure that it complies with the specifications covering RF exposure guidelines applicable at the time of manufacture, in accordance with EU, USA FCC and Australian ACA regulations.

This phone should only be used with Panasonic approved accessories to ensure optimum performance and avoid damage to your phone. Panasonic is not responsible for damage caused by using non-Panasonic approved accessories.

This phone must be used in compliance with any applicable international or national law or any special restrictions governing its use in specified applications and environments. This includes but is not limited to use in hospitals, aircraft, whilst driving and any other restricted uses.

Some of the contents described in this manual are subject to change without notice.

VS7_CI_MA_AAA.book Page 6 Monday, August 29, 2005 10:00 AM Important Information Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Pure geometric diagram with three identical crosshair-like shapes and no text or symbols

VS7_CIMA_AAA.book Page 7 Monday, August 29, 2005 10:00 AM

Important Information

Care and maintenance

Pressing any of the keys may produce a loud tone. Avoid holding the phone close to the ear while pressing the keys.

Extreme temperatures may have a temporary effect on the operation of your phone. This is normal and does not indicate a fault. The display quality may deteriorate if the phone is used in environments over 40°C for a long time.

Do not modify or disassemble the equipment. There are no user serviceable parts inside.

Do not subject the equipment to excessive vibration or shocks. Do not drop the battery.

Avoid contact with liquids or moisture. If the equipment becomes wet, immediately remove the battery and charger. Keep the phone dry.

Do not leave the equipment in direct sunlight or a humid, dusty or hot area. Never throw a battery into a fire. It may explode.

Keep metallic items that may accidentally touch the terminals away from the equipment/battery. Batteries can cause property damage, injury, or burns if terminals are touched with a conductive material (i.e. metal jewellery, keys, etc.).

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

7

VS7_CI_MA_AAA.book Page 8 Monday, August 29, 2005 10:00 AM Important Information Always charge the battery in a well ventilated area, not in direct sunlight, between +5°C and +35°C. It is not possible to recharge the battery if it is outside this temperature range. When connecting the phone to an external source, read the operating instructions of the equipment for the correct connection and safety precautions. Ensure the phone is compatible with the product it is being connected to. When disposing of any packing materials or old equipment, check with your local authorities for information on recycling.

VS7_CIMA_AAA.book Page 9 Monday, August 29, 2005 10:00 AM

Important Information

SAR

THIS MODEL (EB-VS7) MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES and the requirements of the EU Directive 1999/5/EC.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. These guidelines also form the basis of international regulations and standards on RF Exposure.

The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear, for compliance against the standard, was 0.645 W/kg. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in the user guide. For body worn operation, this phone has been tested and meets the RF exposure guidelines when used with a Panasonic accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5cm from the body. In this case, the highest tested SAR value is 0.359 W/kg.

As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum level required to communicate with the network.

The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting the length of calls or using a 'hands-free' device to keep the mobile phone away from the head and body.

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

9

VS7_CIWA_AAA.book Page 10 Monday, August 29, 2005 10:00 AM

Important Information

Additional Information can be found on the websites:

World Health Organization (http://www.who.int/emf)

ICNIRP (http://www.icnirp.org)

Panasonic (http://panasonic.co.jp/pmc/products/en/support/index.html)

THIS MODEL (EB-MX7) MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES and the requirements of the EU Directive 1999/5/EC.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. These guidelines also form the basis of international regulations and standards on RF Exposure.

The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear, for compliance against the standard, was 0.624 W/kg. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in the user guide. For body worn operation, this phone has been tested and meets the RF exposure guidelines when used with a Panasonic accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5cm from the body. In this case, the highest tested SAR value is 0.272 W/kg.

As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum level required to communicate with the network.

10

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CIWA_AAA.book Page 11 Monday, August 29, 2005 10:00 AM

Important Information

The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting the length of calls or using a 'hands-free' device to keep the mobile phone away from the head and body.

Additional Information can be found on the websites:

World Health Organization (http://www.who.int/emf)

ICNIRP (http://www.icnirp.org)

Panasonic (http://panasonic.co.jp/pmc/products/en/support/

index.html)

THIS MODEL (EB-SA7) MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES and the requirements of the EU Directive 1999/5/EC.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. These guidelines also form the basis of international regulations and standards on RF Exposure.

The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear, for compliance against the standard, was 0.630 W/kg. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in the user guide. For body worn operation, this phone has been tested and meets the RF exposure guidelines when used with a Panasonic accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5cm from the body. In this case, the highest tested SAR value is 0.291 W/kg.

11

VS7_CI_MA_AAA.book

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIWA_AAA.book Page 12 Monday, August 29, 2005 10:00 AM

Important Information

As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum level required to communicate with the network.

The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting the length of calls or using a 'hands-free' device to keep the mobile phone away from the head and body.

Additional Information can be found on the websites: World Health Organization (http://www.who.int/emf) ICNIRP (http://www.icnirp.org) Panasonic (http://panasonic.co.jp/pmc/products/en/support/index.html)

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CI_MA_AAA.book Page 13 Monday, August 29, 2005 10:00 AM Important Information

About this manual

Symbols used in this manual

The following symbols are used in this manual to represent the limited availability of the function or service.

= Depending on your SIM card.

= Depending on network availability.

= Depending on your network operator. The service may only be available on a subscription basis.

Graphics

The graphic elements in this manual are for illustrative purposes and may differ from the actual phone and/or graphic elements displayed on the phone. The phone illustrations provided in this manual are of the VS7 model. Panasonic reserves the right to change the information in this manual without prior notice.

Keys

Keys in this manual may differ from the actual keys on your phone. Refer to page 18 for the icons that represent the keys in this manual.

Pure geometric diagram with crosshair and circular elements, no text or symbols present

VS7_CI_MA_AAA.book Page 14 Monday, August 29, 2005 10:00 AM Important Information How to read this manual Fixed dial in Settings menu on page 124. This function is SIM card dependent. For other symbols, refer to page 13. Fixed dial When Fixed dial is enabled, only the phone numbers stored in SIM Contacts can be dialled. Any manually dialled phone numbers must match the phone numbers in SIM Contacts. To store, edit or delete phone numbers in SIM Contacts, you need to enter your PIN2 code. Main menu > Settings > Security > Fixed dial 1. Select Enable or Disable 2. Enter the PIN2 code (4-8 digits) → [●]/[□] (Ok) Menu navigation Before following the steps, you need to enter Main menu, then move through the sub menus, described next to the ➤ icon. “>” means “scroll through the menu and select”.

Pure geometric diagram with three identical crosshair-like shapes and centerlines, no text or symbols present.

VS7_CI_MA_AAA.book Page 15 Monday, August 29, 2005 10:00 AM Important Information In the example: From Main menu, press Navigation key (up/down/left/right) to scroll to Settings and press Navigation key (centre). Press Navigation key (up/down) to scroll to Security and press Navigation key (centre) or Left Soft key (Select)*¹. Press Navigation key (up/down) to scroll to Fixed dial and press Navigation key (centre) or Left Soft key (Select)*¹. You can also select Fixed dial by pressing [3]. Now you can continue onto the step 1: 1. Press Navigation key (up/down) to scroll to Enable or Disable, then press Navigation key (centre) or Left Soft key (Select)*¹ 2. Enter the PIN2 code (4-8 digits), then press Navigation key (centre) or Left Soft key (Ok)*¹ *¹ The word is shown in the lower left hand corner of the display, indicating a command that the key gives to the phone when you press it. Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32. 15

Important Information

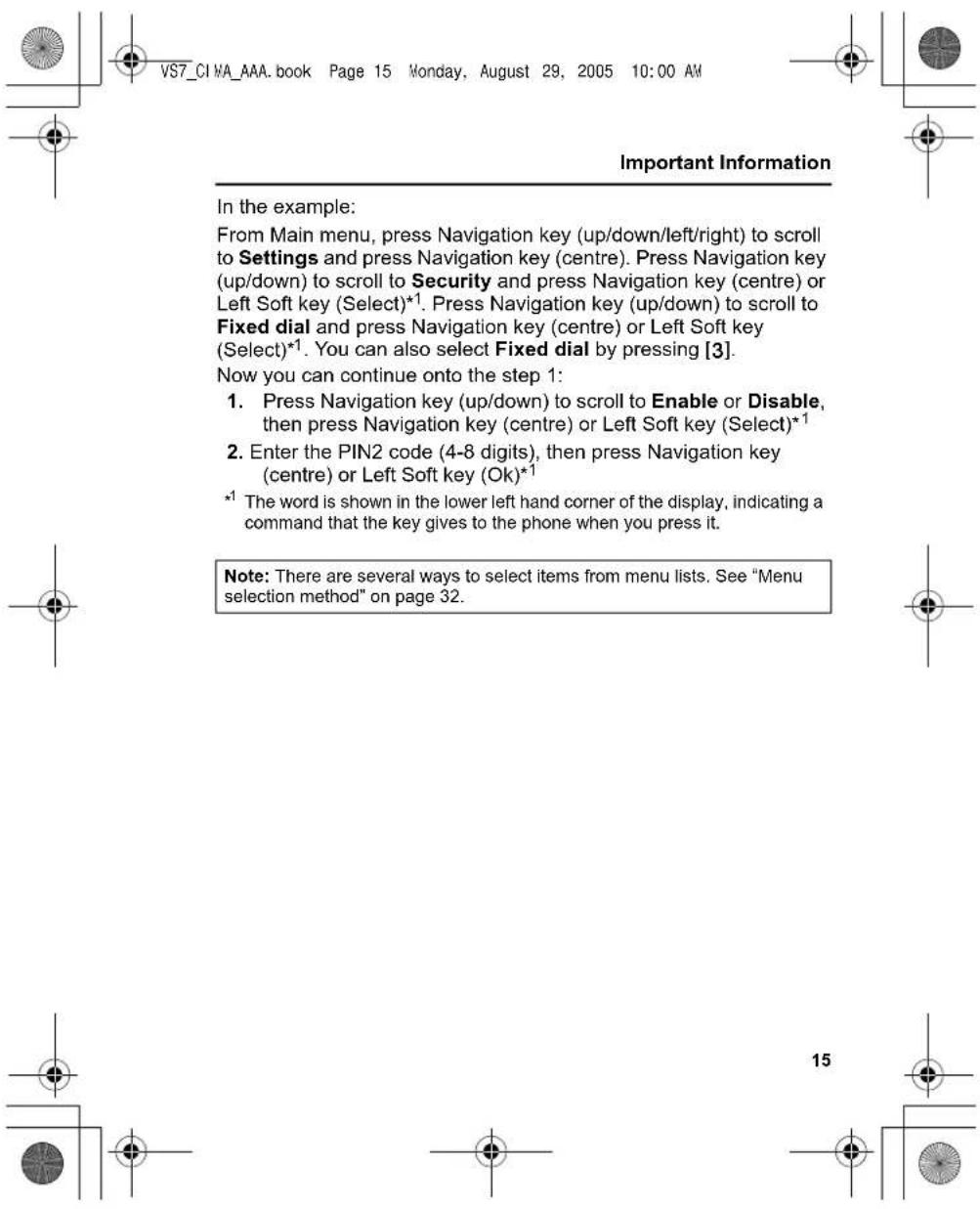

In the example:

From Main menu, press Navigation key (up/down/left/right) to scroll to Settings and press Navigation key (centre). Press Navigation key (up/down) to scroll to Security and press Navigation key (centre) or Left Soft key (Select)*1. Press Navigation key (up/down) to scroll to Fixed dial and press Navigation key (centre) or Left Soft key (Select)*1. You can also select Fixed dial by pressing [3].

Now you can continue onto the step 1:

1. Press Navigation key (up/down) to scroll to Enable or Disable, then press Navigation key (centre) or Left Soft key (Select) ^*1
2. Enter the PIN2 code (4-8 digits), then press Navigation key (centre) or Left Soft key (Ok) ^*1
   *1 The word is shown in the lower left hand corner of the display, indicating a command that the key gives to the phone when you press it.

Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32.

Pure technical diagram showing three identical cross-sectional views with circular features and centerlines, no text or symbols present.

VS7_CI_MA_AAA.book Page 16 Monday, August 29, 2005 10:00 AM About Your Phone Phone overview Note: The phone illustrations provided in this manual are of the VS7 model. Earpiece Panasonic Main Display Macro Mode Switch Navigation key One Push Auto Open button Left Soft key Call key Asterisk key Charging Indicator Right Soft key Power/End key Silent Mode key Microphone

VS7_CI_MA_AAA.book Page 17 Monday, August 29, 2005 10:00 AM About Your Phone Speaker Multi Function key Infrared Port Side-up key Side-down key Camera Lens Personal Handsfree Connector/ Charging Connector/ USB Cable Connection Indicator/ Illumination Light Front display Panasonic Note: Do not remove the front panel from your MX7 phone. 17

VS7_CI_MA_AAA.book Page 18 Monday, August 29, 2005 10:00 AM

About Your Phone

Key functions

Key name Function		Key icon*1
Navigation key	Press outside edges to scroll up [▲], down [▼], left [◀] or right [▶] to move through menus and text. Press centre [●] to select option, perform Alert mute, or take a picture or record a video clip in Camera mode.	[▲][▼][◀][▶][●]
Left Soft key	Perform the functions indicated by the text shown in the lower left-hand corner of the display.	[□]
Right Soft key	Perform the functions indicated by the text shown in the lower right-hand corner of the display.	[□]
Call key	Make or answer a call.	[↘]
Power/End key	Press and hold to switch the phone on/off. End or reject a call. Return to standby mode.	[○×]
Numeric keys	Enter numbers and characters. Press and hold [2]-[9] for Speed dialling. Press and hold [0] to enter the international prefix (+).	[0] to [9]
Asterisk key	Enter “✗”. In text entry mode, press to change the letter case, or press and hold to change the input method.	[※]
Silent Mode key	Enter “#”. Press and hold to switch the Silent mode on/off. While entering a phone number, press and hold to enter a pause (p).	[#]
Side-up key*2	Scroll page up. Increase volume or zoom level. Perform Alert mute.	[□]
Side-down key*2	Scroll page down. Decrease volume or zoom level. Perform Alert mute.	[□]

18

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CIWA_AAA.book Page 19 Monday, August 29, 2005 10:00 AM

About Your Phone

Key name Function		Key icon*1
Multi Function key*2	Take a picture or record a video clip in Camera mode. Perform Alert mute.	[[]]

^*1 The key icons given in the table represent the actual keys on the phone.

^2 Located on the right side of the phone.

Quick keys

You can easily access features instead of navigating through the menus.

	Key Function
In standby mode
Short press	[●] Open	Main menu/Keyguard off
	[□] Open	Messages menu
	[□] Open	Browser
	[▲]/[▼]/[◀]/[▶]	Open the shortcut menu
	[^] Open	Call log
	[□]/[□]	Increase/decrease the volume
Long press	[●] Keyguard on
	[1] Dial your voice mailbox
	[2]-[9]	Speed dial
	[#] Silent mode on/off
	[□] Switch to Picture mode

Pure geometric lines and shapes without any text, numbers, or symbols

19

VS7_CIWA_AAA.book Page 20 Monday, August 29, 2005 10:00 AM

About Your Phone

	Key Function
During a call
Short press	[▲]/[▶]/[□]	Increase the volume
	[▼]/[◀]/[□]	Decrease the volume
	[□] Start/stop sound recording
	[↘]	Switch between hold and unhold on one call or switch between one active and one held call
In Menu list
Short press	[1]-[9]	Select Menu 1-9
	[※] Select Menu ✘
	[0] Select Menu 0
	[#] Select Menu #

20

VS7_CI_MA_AAA.book Page 21 Monday, August 29, 2005 10:00 AM About Your Phone Display Main display (in standby mode) Signal strength icon Time — Battery charge level icon Date — Wallpaper — Left Soft key selection area — Right Soft key selection area Note: The current operator name is shown on standby display. You can change the position of the operator name. See "Operator name" on page 102. Front display (in standby mode) Signal strength icon — Battery charge level icon External Wallpaper — 12/07/05 21:34 21

VS7_CIWA_AAA.book Page 22 Monday, August 29, 2005 10:00 AM

About Your Phone

Status icons

The status icons are displayed or animated according to the currently activated functions.

Icon Meaning
	Signal strength; the more bars visible, the stronger the signal
	In roaming area
	Battery charge level
	Battery is charging
	GPRS is available
	Silent profile is active
	Meeting profile is active
	Outdoor profile is active
	Car profile is active
	SMS message storage area is full
	MMS message storage area is full
	Java^TM application is suspended
	Unread SMS message
	Unread MMS message
	Unread WAP Push message
	Call diverts is on
	Infrared is active
	Bluetooth is active

22

About Your Phone

Icon Meaning

Bluetooth headset or handsfree is connected

USB connection is available

New voicemail received

All tones are off

Vibration alert is on

Alarm is set

Non-secure CSD connection

Secure CSD connection

Non-secure GPRS connection

Secure GPRS connection

Keyguard is on

DRM

Your phone has DRM (Digital Right Management) that is used to control actions such as sending downloaded ringtones, graphics and sound clips to other people. Files downloaded and indicated by the icon () can be used with restriction enforced by suppliers. The restriction includes use of such files for a limited period of time only or specified number of times.

To check the status of your rights, e.g. expiration date or number of times it can be used, see Details setting on page 139, 144 and 150. For further information, contact your service provider.

VS7_CI_MA_AAA.book Page 24 Monday, August 29, 2005 10:00 AM

About Your Phone

Indicator/Illumination Light

The Indicator/Illumination Light flashes or beams when the events in the table below occur.

To specify the illumination colours for the events, see "Illuminations" on page 98.

Events Description
When you are receiving a call/ missed calls	Flash or beam in the selected colour.To set a different illumination colour for respective contacts, see "Storing a contact in your phone" on page 50.
When you receive an SMS/MMS message
When you receive a WAP Push message	Flash or beam in the selected colour.When you are having a conversation
When the flip is closed
When the battery is charging	Flash in the specified colour.
When data is being transferred
Schedule notification Beam in the specified colour. See "Creating Calendar events" on page 133 or "Setting the alarm" on page 127.
Alarm

Note: If the Indicator/Illumination Light is set to on for battery charging and the phone is switched on, the Indicator/Illumination Light illuminates during charging. If the phone is switched off, the Indicator/Illumination Light will not illuminate.

24

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VS7_CIWA_AAA.book Page 25 Monday, August 29, 2005 10:00 AM

Getting Started

Installing the SIM card and the battery

The SIM (Subscriber Identity Module) card and the battery must be installed before using your phone.

Before handling the SIM card and the battery, ensure that the phone is switched off and the charger is disconnected from the phone.

Inserting/removing the SIM card

See "Inserting/removing the battery" on page 26 to remove the battery cover and the battery.

Inserting the SIM card

Position the SIM card as shown, with gold contacts facing down and the notched corner turned to the right. Carefully slide the SIM card into the SIM card pocket until the card is all the way seated.

Removing the SIM card

Place a finger on the bottom edge of the SIM card and gently slide it out.

VS7_CI WA_AAA.book Page 26 Monday, August 29, 2005 10:00 AM

Getting Started

Inserting/removing the battery

Inserting the battery

1. Insert the small tabs at the top of the battery into the notch at the top of the battery compartment. Ensure the 3 gold contacts align with the 3 gold pins in the phone.
2. Replace the cover on the phone. Make sure the cover clicks into place.

Removing the battery

1. Place your finger on the small bar at the top of the cover. Slide the cover slightly toward the bottom of the phone, then lift the cover off the phone.
2. Place your finger on the tab at the base of the battery. Lift the battery off the compartment.

26

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIWA_AAA.book Page 27 Monday, August 29, 2005 10:00 AM

Getting Started

Charging the battery

Your phone can be charged either when it is switched on or off. You can use your phone even while it is charging.

Ensure that the battery is inserted into the phone before charging.

1. Open and hold the connector cover.

Connect the charger to Charging Connector, then connect the charger to the mains power supply.

Illustration of hands holding a device with a cable and connector (no text or symbols)

1. When charging is complete, disconnect the charger from the outlet before removing the plug from the phone. Then hold the connector cover and press and hold the release buttons on both sides of the connector's end and pull gently to disconnect the charger from the phone.

Illustration of hands holding a device with arrows indicating action (no text or symbols)

After you have removed the Charging Connector, replace the connector cover over the socket.

Note: DO NOT force the connector as this may damage the phone and/or the charger.

If the battery has been deeply discharged, it may take several minutes before the Battery charge level indicator is displayed.

27

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIWA_AAA.book Page 28 Monday, August 29, 2005 10:00 AM

Getting Started

Battery charge level indicator

While charging Charging	complete

Charging Indicator goes out when charging is completed.

Low battery warning

When the battery power is low, a "Battery low" message is displayed and a warning tone sounds. The phone automatically switches off after the tone. Fully recharge the battery. If you receive the low battery warning during a conversation, charge your phone to continue with the conversation.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with crosshair and concentric circles, no text or symbols present

VS7_CI_MA_AAA.book Page 29 Monday, August 29, 2005 10:00 AM Getting Started Opening/claring the shares

Opening/closing the phone

You can open your phone by pressing One Push Auto Open button.

One Push Auto Open button

Flip setting

When Active flip setting is set to On (see page 109), you can answer a call by opening the phone and end a call by closing the phone.

When One push SMS setting is set to On (see page 73), new SMS messages can be displayed by opening the flip.

Switching the phone on/off

1. Press and hold [∅] for several seconds to switch the phone on
   A greeting may be displayed and the phone enters standby mode.
2. Press and hold [_×] for several seconds to switch the phone off

Note: If your SIM card is PIN protected, your PIN code will be requested. Enter the PIN code and [●]/[□] (Ok). See "Security" on page 123.

DO NOT switch off the phone while resetting/downloading/deleting a file or running/terminating a Java™ application.

Pure technical diagram with geometric symbols and crosshair lines, no readable text or labels

VS7_CIWA_AAA.book Page 30 Monday, August 29, 2005 10:00 AM

Menu Navigation

Main menu structure

Games

Games 150

Download ^*1 152

Settings ....153

Information .....153

My Media

Pictures 138

Sounds 142

Videos...... 145

Games.... 146

Text templates ..... 147

Memory status..... 148

Calendar .....131

Browser

PANASONIC BOX ...87

Camera

Picture....77

Video....83

Messages

Create new 60

Inbox.... 66

Archive 70

Web mail ^*1 71

Chat ^*1 72

Voicemail 72

Messages settings... 73

Memory status ..... 75

Tools

SIM tool kit ^2 .....127

Alarms....127

Sound recorder .....129

Calculator....130

Contacts

Contacts list...... 48

Add contact.... 50

Call log 53

Speed Dial list..... 54

View groups..... 55

Advanced 55

Service numbers*1*2 58

Settings

Phone settings ..... 96

Display settings..... 102

Sounds & alerts..... 105

Calls.... 107

Connectivity .....111

Security.... 123

30

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIWA_AAA.book Page 31 Monday, August 29, 2005 10:00 AM

Menu Navigation

Displaying the menu

The menu system allows you to access functions which do not have their own dedicated buttons on the keypad.

In standby mode:

1. [●]

Main menu appears with 9 menu options. (See "Main menu structure" on page 30.)

1. [▲/▼/◄/►] to scroll to the required menu → [●]/[□] (Select)

To go back to Main menu:

1. [☐] (Back) repeatedly until Main menu screen appears

00:03 Main menu Messages Select Exit

Shortcut: To jump to and open one of the 9 application items, simply press the Numeric key corresponding to the required item's location. The numbering system is:

1	2	3
4	5	6
7	8	9

31

Pure geometric lines and crosshair symbols without any text or labels

VS7_CIWA_AAA.book Page 32 Monday, August 29, 2005 10:00 AM

Menu Navigation

Navigating the applications

Current settings

When you highlight an item in the menu list, the current setting of the item is displayed in the bar just above the menu list.

In the case shown to the right, the current setting of Warning tone is "Off".

16:28 Sounds & alerts Off Assign ringtone Incoming volume Message alert Message volume Warning tone Startup tone Shutdown tone Select Back

Menu selection method

There are several ways to select items: by using center Navigation key or Left Soft key, or by entering the required number, × or # given to the item.

To select Warning tone in the display shown above:

• [▲/▼] to scroll to Warning tone → [◎]
• [▲/▼] to scroll to Warning tone → [□] (Select)
- Press the menu number [5]

Keys corresponding to the menu numbers

• [1]-[9]: Menu 1-9
• [ *]: Menu *
• [ 0]: Menu 0
• [ #]: Menu #

Note: Direct access keys to the menus with no menu numbers/symbols are not available.

32

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

VS7_CIWA_AAA.book Page 33 Monday, August 29, 2005 10:00 AM

Basic Operations

Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32.

Making calls

To make a call, your phone must be within the range of a network with adequate signal strength.

Standard dialling

In standby mode:

1. Enter the area code and phone number → [↘]/[◎]
2. When the other party answers, talk into Microphone
3. 0 / [□] (End) to hang up The duration of the call is displayed.

Note: To erase a digit: [☐] (Clear)

To increase the earpiece volume: [▲]/[▶]/[☐]

To decrease the earpiece volume: [▼]/[◀]/[□]

If Active flip is set to On (see page 109), you can answer a call by opening the phone and end a call by closing the phone.

Auto redial

Your phone will automatically redial the number up to 10 times under certain conditions, such as no answer, destination number is busy, network busy, or some connection errors.

When your call is rejected:

1. "Auto redial?" [☐] (Yes) to start Auto redial
2. To stop Auto redial while redialling, [☐] / [☐] (Cancel)

33

VS7_CIMA_AAA.book

Page 33

Monday, August 29, 2005

10:00 AM

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

VS7_CI WA_AAA.book Page 34 Monday, August 29, 2005 10:00 AM

Basic Operations

Contacts dialling

You can make calls using the numbers in Contacts.

Main menu > Contacts > Contacts list

1. [▲/▼] to scroll to the required contact OR Enter letters to find a contact beginning with the specific letters

2. [ ]

3. If the card has several phone numbers stored, [▲/▼] to scroll to the required number → [◎]/[□] (Call)

Contacts Peter +09809887679 Mike Pat Peter Rick Sandy Tom Options Back

Recent call dialling

You can make calls using the numbers in Call log. In standby mode:

1. [↘]

2. [◀/▶] to switch to Dialled numbers, Answered calls or Missed calls screen

3. [▲/▼] to scroll to the required number → [↘]

International dialling

The international prefix (+) and the destination country/region code should be entered, followed by the area code and phone number.

1. Press and hold 0 until "+" is displayed
2. Enter the country/region code
3. Enter the area code and phone number → [ ]

Note: Many countries/regions include an initial "0" in the area code. This should, in most cases, be omitted when dialling international numbers. For further help, contact your service provider.

34

Pure geometric lines and symbols without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIWA_AAA.book Page 35 Monday, August 29, 2005 10:00 AM

Basic Operations

Emergency call

To make an emergency call, your phone must be within the range of a network.

When SIM card is inserted:

1. Enter the local emergency number → [↘]/[◎]

Note: Most countries support the international emergency number 112. If you find the number does not work on your phone, contact your service provider.

When SIM card is not inserted:

1. [☐] (Options) → Select SOS

Answering calls

When there is an incoming call, the phone rings and/or vibrates (depending on your phone setting). (See "Sounds & alerts" on page 105.)

When the phone is ringing and/or vibrating:

1. [↘]/[□] (Accept)

Note: If Any key answer is set to On (see page 108), you can answer a call by pressing any key except [✗], [☑], [☐] (Cancel), [☐], [☐] and [☐]. If Active flip is set to On (see page 109), you can answer a call by opening the phone and end a call by closing the phone.

Rejecting calls

When the phone is ringing and/or vibrating:

1. [∞]/[□] (Cancel)

35

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI WA_AAA.book Page 36 Monday, August 29, 2005 10:00 AM

Basic Operations

Missed call notification

If you cannot answer a call, Missed call notification appears on the standby screen.

To view the Missed call list:

1. [●]i[□] (View)

2. To call back, [▲/▼] to scroll to the required log → [↘]

Alert mute

You can turn the ringing tone and/or vibration off before answering a call.

When the phone is ringing and/or vibrating:

1. When the phone is closed: [☐]/[☐]/[☐]

When the phone is open: [●]

1. [ ] to answer the call

Answering a second call

When on an active call, you may receive another call.

To enable this service, Call waiting must be active. (See "Call waiting" on page 108.)

If you hear an alert tone during a call:

1. [↘]/[□] (Accept)

The first call is placed on hold.

1. [↘] to switch between the two calls if required

To reject another call:

1. [☐] (End)

To end the active call and answer the incoming call:

1. [∅] to end the active call

2. [ ] to answer the call

36

Pure geometric lines and symbols without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA. book Page 37 Monday, August 29, 2005 10:00 AM Basic Operations

Auto answer

When you use the optional Personal Handsfree earpiece, you can answer a call automatically. To enable this service, Auto answer must be on. (See "Auto answer" on page 109.)

Silent mode

To use your phone in a quiet situation, you can activate the Silent mode. You can personalise the Silent mode setting. (See "Profiles" on page 96.)

In standby mode:

1. Press and hold [#] to activate/deactivate the Silent mode

Voicemail Voicemail is a network service which allows callers, who could not reach you, to leave voice messages. You may need to subscribe to this service through your service provider. For further details, see "Voicemail" on page 72.

Retrieving stored voice messages

When a new voice message is stored, an alert sounds and ( ) appears on the display and you receive an SMS notification.

1. Press and hold [1] to call your voice mailbox
   If the number is not valid, contact your service provider.
2. Follow the recorded instructions
3. [∅] when finished

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

VS7_CI_MA_AAA.book Page 38 Monday, August 29, 2005 10:00 AM Basic Operations In-call operations In-call options (while connected to an active call) When on a call, the following options are available. 1. [☐] (Options) → Select the required option Hold call/Resume Put or resume a call on hold. From contacts Access the Contacts list. Create SMS Create a new SMS message. Inbox (SMS) Access Inbox (SMS). Calendar Access Calendar. Speaker mode/ Handheld mode/ Bluetooth mode Switch to Speaker, Handheld or Bluetooth talking mode. Record Record the conversation. The sound clip is saved to My Media. Hold You can put a call on hold. During a call: 1. [↘] to switch between Hold call and Resume OR [☐] (Options) → Select Hold call or Resume

VS7_CIWA_AAA.book Page 39 Monday, August 29, 2005 10:00 AM

Basic Operations

Handsfree talking

You can have a conversation without holding the phone to your ear.

Swapping between Speaker and Handheld mode

1. [☐] (Options) → Select Speaker mode or Handheld mode

Volume control

You can adjust the volume of the phone earpiece, speaker, headset or Bluetooth audio device if attached.

To increase the volume:

1. [▲]/[▶]/[□]

To decrease the volume:

1. [▼]/[◀]/[□]

DTMF

DTMF (Dual Tone Multi Frequency) can be sent during a conversation. These are often used to access voicemail, paging and computerised home banking. For example, you may need to enter a number to remotely access voicemail messages. A phone number may be stored in the Contacts card together with a DTMF sequence, allowing the number to be dialled upon recall and the DTMF sequence to be sent automatically.

To send DTMF during a call:

1. Enter digits 0-[9], [*] or [#]

Pause dial

Using pauses allows you to send DTMF automatically.

1. Enter the phone number
2. Press and hold [#] until a "p" is displayed

3. Enter the DTMF digits after the pause, e.g. enter the number to access voicemail messages

4. [↘]/[◎]

When the call is connected, the DTMF sequence is sent after 3 seconds.

39

Pure geometric lines and crosshair symbols without any text or labels

DTMF

VS7_CI WA_AAA.book Page 40 Monday, August 29, 2005 10:00 AM

Basic Operations

Making a second call

You can make another call while on a call.

During a call:

1. Enter the second phone number or select a phone number from the Contacts list To access Contacts list, see "In-call operations" on page 38.

2. [↘]

The first call is put on hold.

1. [↘] to switch between the two calls if required

Multiple calls operation

In-call options (while on multiple calls)

When on more than one call, the following options are available.

1. [☐] (Options) → Select the required option

Swap Switch between one active and one held call.
Merge	Enable multi-party conversation when two calls are connected (one active, one on hold). See “Conference” on page 41.
From contacts Access the Contacts list.
Create SMS Create a new SMS message.
Inbox (SMS) Access Inbox (SMS).
Calendar Access Calendar.
Speaker mode/ Handheld mode/ Bluetooth mode	Switch to Speaker, Handheld or Bluetooth talking mode.
Record	Record the conversation. The sound clip is saved to My Media.

40

Pure geometric lines and symbols without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIWA_AAA.book Page 41 Monday, August 29, 2005 10:00 AM

Basic Operations

Conference

You can have a conversation with up to 5 different parties at the same time.

During a call (one active call and one call on hold):

1. [☐] (Options) → Select Merge

The 2 calls are joined into a Conference call.

To add new participants:

1. Call the next person or answer an incoming call

2. [☐] (Options) → Select Merge

To end the Conference call:

1. [0×]

To split the caller from the Conference call and talk privately:

During a Conference call:

1. [☐] (Options) → Select Conference call

2. [▲/▼] to scroll to the required caller you wish to talk to

3. [☐] (Options) → Select Split

The remaining callers can continue with the Conference call.

1. To end the private call and rejoin the Conference call, [☐] (Options) → Select Merge

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

41

VS7_CIWA_AAA.book Page 42 Monday, August 29, 2005 10:00 AM

Basic Operations

Text entry

Input method

Your phone provides three text input methods to enter characters.

T9®	A predictive text entry system. You can enter a word with fewer key presses.
Multi-tap	A traditional way to type in a letter. Press a key several times until the required letter appears.
Numeric	You can enter numbers (0-9), *, # and +.

An icon on the upper left of the screen shows the current input method and letter case.

Input method Icon Letter case
T9 ^	T9↑Automatic
	T9↑Upper case
	T9 Lower case
Multi-tap	Abc Automatic
	ABC Upper case
	abc Lower case
Numeric 123 -

42

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

VS7_CI_MA_AAA.book Page 43 Monday, August 29, 2005 10:00 AM Basic Operations Changing the input method Press and hold [✗] to cycle through the input methods as follows. T9 (T9↑) → Multi-tap (Abc) → Numeric (123) Changing the letter case Press [✗] repeatedly until the icon for the required letter case mode appears. Auto capital change When the letter case is set to Automatic (T9↑ and Abc), the first character is entered as upper case and subsequent letters as lower case. When one of the following characters [. (Period) ! ? ] is entered, the next character is entered as upper case.

Basic Operations

Changing the input method

Press and hold [✗] to cycle through the input methods as follows.

T9 (T9↑) → Multi-tap (Abc) → Numeric (123)

Changing the letter case

Press [✗] repeatedly until the icon for the required letter case mode appears.

Auto capital change

When the letter case is set to Automatic (T9↑ and Abc), the first character is entered as upper case and subsequent letters as lower case.

When one of the following characters [ . (Period) ! ? ] is entered, the next character is entered as upper case.

Two perpendicular target symbols with crosshair centers, no text or labels present

Pure mechanical cross-section diagrams without any text, numbers, or symbols

VS7_CI WA_AAA.book Page 44 Monday, August 29, 2005 10:00 AM

Basic Operations

T9 ^® text input method

The T9 ^® text input method enables you to enter text faster and easier. You only need to press a key once for any letter you require on that key. The program searches its built-in dictionary to predict the word that most closely matches your key presses.

1. In text entry screen, press a key once for any letter you require on that key
2. Continue pressing other keys until the end of a word is reached
3. Select the required word

OR

If the required word is not in the dictionary, “?” is displayed after the word.

[□] (Spell) → Enter the correct word → [●]/[□] (Add)

The word is added to the internal dictionary automatically.

For example, to enter "Hello!", press keys as follows.

Key	[4]	[3]	[5]	[5]	[6]	[1]	[▼] x 4
Display | He	Gel	Hell	Hello.	Hello!

My dictionary

Words that you enter in My dictionary are added to the internal dictionary so that they are suggested next time.

To add words to My dictionary:

1. In text entry screen, [☐] (Options) → Select My dictionary
2. Enter a word → [◎]/[□] (Add)

44

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

VS7_CIWA_AAA.book Page 45 Monday, August 29, 2005 10:00 AM

Basic Operations

Editing text

Inserting/deleting text

Move the cursor by pressing [▲/▼/◄/►] to the position you want to insert or delete a letter. Press [☐] (Clear) to delete a character. Press and hold [☐] (Clear) to delete all the characters.

Copying/cutting/pasting text

1. [☐] (Options) → Select Copy or Cut
2. [▲/▼/◄/►] to move to the text you wish to copy or cut
3. [●]/[□] (Start) → [▲/▼/◄/►] to highlight the text → [●]/[□] (Stop)
4. [▲/▼/◄/►] to move to a new required location
5. [☐] (Options) → Select Paste

Options

When entering text, the following options may be available by pressing [☐] (Options).

Use contacts*1	Access Contacts menu to use Contacts data.
Copy/Cut/Paste See "Copying/cutting/pasting text" on page 45.
Add symbol	Show the Symbol list from which you can select any symbol available on your phone.
Input method Select the input method.
T9 on/off*1	Turn On or Off the predictive dictionary.
Input language*1	Select a language you wish to write in.
My dictionary*2	Add words to the internal dictionary.
Exit Exit the text edit mode.

*1 Depends on each application.
*2 Not available in Chinese T9 mode.

45

Pure geometric lines and crosshair symbols without any text or labels

VS7_CIWA_AAA.book Page 46 Monday, August 29, 2005 10:00 AM

Basic Operations

The following table shows characters available on your phone. The characters vary depending on the Input language setting (see page 45).

Key	Input method (Input language: English)
	T9 ^ (T9 , T9 or T9)	Multi-tap (Abc, ABC or abc)	Numeric(123)
[0] Space			0
			(Press and hold) +
[1] .,-?!' @ :;/ 1		.,?1!"-:;@/*( )#+_=[]{}';i¿&%\^~|<>€¢£¥¤§'(Space)←(Linefeed)	1
[2] ABC 2 (a b c 2)		ABC 2 Γ Ä Ä Ä Ä Ä E Ç(a b c 2 α β γ á ä á æ à ä ä)	2
[3] D E F 3 (d e f 3)		D E F 3 Δ É Ê(d e f 3 δ ε ζ é è ë)	3
[4] G H I 4 (g h i 4)		G H I 4 Θ Í (g h i 4 η θ i i)	4
[5] J K L 5 (j k l 5)		J K L 5 ∧ (j k l 5 κ λ μ)	5
[6] M N O 6 (m n o 6)		M N O 6 ∃ÑÓŐŐ Ø ō ō(m n o 6 v ξ ó ó ñ ó ø ó ō ō)	6
[7] P Q R S 7 (p q r s 7)		P Q R S 7 Π Σ(p q r s 7 π ρ s σ β)	7
[8] T U V 8 (t u v 8)		T U V 8 Φ Ú Ú ê(t u v 8 τυ φ ú ù ü ù)	8
[9] W X Y Z 9 (w x y z 9)		W X Y Z 9 Ψ Ω (w x y z 9 χ ψ ω)	9
[*]	Letter case change *
	(Press and hold) Input method change
[#]	.,?!"-:;@/*( )#+_=[]';i¿&%\^~|<>€¢£¥¤§'(Space)←(Linefeed)		#
	(Press and hold) Linefeed

Shortcut: To enter numbers while in T9 or Multi-tap method, press and hold the required numeric key 0-[9].

46

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

VS7_CIWA_AAA.book Page 47 Monday, August 29, 2005 10:00 AM

Contacts

Contacts menu structure

Contacts list 48

Add contact 50

Phone....50 SIM....52

Call log.... 53

Dialled numbers .... 53 Answered calls .... 53 Missed calls.... 53

Speed Dial list 54

View groups 55

Advanced 55

Synchronisation ....55
My number....56
Display by 57
Memory status 57
Copy all from SIM 57
Copy all to SIM 57
Delete all....58

Service numbers ^*1 .....58

Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32.

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

47

VS7_CI WA_AAA.book Page 48 Monday, August 29, 2005 10:00 AM

Contacts

Viewing the Contacts list

You can search for a phone number in the Contacts list. All the numbers stored in the phone and SIM card are displayed.

Searching for a contact

Main menu > Contacts > Contacts list

1. [▲/▼] to scroll to the required contact OR

Enter letters to find a contact beginning with the specific letters

1. To view the Contacts card, [●]

Contacts Peter +09809887879 Mike Pat Peter Rick Sandy Tom Options Back

Options

In the Contacts list, the following options are available by pressing [☐] (Options).

View View the selected	Contacts card.
Call Call the selected contact.
Create message	Create an SMS or MMS, and send it to the selected contact. See “Creating a new message” on page 60.
Edit	Edit the selected contact. See “Editing a Contacts card” on page 52.
Search Search a contact by entering characters.
Add contact	Add a new contact. See “Adding contacts” on page 50.
Delete Delete the selected contact.

48

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Delete Delete the selected contact. 48

VS7_CIWA_AAA.book Page 49 Monday, August 29, 2005 10:00 AM

Contacts

Speed dial	Assign the selected contact to a Speed dial. See "Assigning speed dial keys" on page 54.
Copy to phone/SIM	Copy the selected contact to the phone or the SIM card.
Send via	Send the selected contact to another device via infrared or Bluetooth. See "Infrared" on page 111 or "Bluetooth® wireless technology" on page 113.

Making a call from Contacts

Main menu > Contacts > Contacts list

1. [▲/▼] to scroll to the required contact OR Enter letters to find a contact beginning with the specific letters

2. [↘]

3. If the card has several phone numbers stored, [▲/▼] to scroll to the required number → [●]/[□] (Call)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and a circular pattern, no text or symbols present

VS7_CI WA_AAA.book Page 50 Monday, August 29, 2005 10:00 AM

Contacts

Adding contacts

Storing a contact in your phone

In the phone, you can store detailed information for each contact.

The entries are retained even if you damage your SIM card.

Main menu > Contacts > Add contact > Phone

1. [▲/▼] to scroll to the required field → [◎]

2. Enter information → [●] To enter characters, see "Text entry" on page 42.

3. When entries are completed, [☐] (Save)

	First name*1	Enter the first name.
	Last name*1	Enter the last name.
	Mobile number*1	Enter the phone numbers.
	Home number*1
	Work number*1
	Mobile email*1	Enter the e-mail addresses.
	Personal email*1
	Work email*1
	Birthday Enter the contact's birthday.
	Postal address	Enter Additional info, No./street, Postal code, City, State and Country.
	Note Enter notes.

50

VS7_CIWA_AAA.book Page 51 Monday, August 29, 2005 10:00 AM

Contacts

	Ringtone	Select the required ringtone fromor My Media. To download a ringtone, select Download ^2 .
	Message alert	Select the required Message alert fromor My Media. To download a Message alert, select Download ^2 .
	Illuminations	Selector the required illumination colour.
	Picture Select the required picture.
	Group Select the required group.

*1 The contact entry can be saved when at least one of the items is filled.

Note: When you attach a picture from My Media to a Contacts card, it will appear on the screens when the contact calls you. If the picture used is oversized for the Contacts card you will be prompted to save a resized copy in My Media.

For downloading contents, visit http://box.panasonic.com/

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

VS7_CI_MA_AAA.book Page 52 Monday, August 29, 2005 10:00 AM Contacts Storing a contact in your SIM card You can store some information for each contact in your SIM card. Main menu > Contacts > Add contact > SIM 1. [▲/▼] to scroll to the required field → [◎] 2. Enter information → [◎] Name Enter the name. Tel number Enter the phone number. 3. [□] (Save) Note: The length of name and number, and the total amount of data are SIM dependent. Storing a contact from Call log See "Saving a phone number from Call log" on page 53. Editing a Contacts card Main menu > Contacts > Contacts list 1. Highlight the required Contacts card (See "Searching for a contact" on page 48.) 2. [□] (Options) → Select Edit 3. Edit the required entry → [□] (Save) 52

VS7_CIWA_AAA.book Page 53 Monday, August 29, 2005 10:00 AM

Contacts

Call log

Recently dialled phone numbers, answered calls and missed calls are stored in Call log. The numbers in the Call log list can be used to call, send a message or add to Contacts.

Viewing/Dialling from Call log

Main menu > Contacts > Call log

1. [◀/▶] to move to Dialled numbers, Answered calls or Missed calls
2. [▲/▼] to scroll to the required log → [◎]
3. [●] to call

Shortcut: You can directly view the Dialled numbers list by pressing [ ] in standby mode.

Saving a phone number from Call log

Main menu > Contacts > Call log

1. [◀/▶] to move to Dialled numbers, Answered calls or Missed calls
2. [▲/▼] to scroll to the required phone number
3. [☐] (Options) → Select Add to contacts
4. Select New or Add
5. If New is selected: Enter other information If Add is selected: Highlight the required contact → [☐] (Select) → If there is no empty field, "Would you like to replace?" → [☐]/[☐] (Yes) → Select the number you want to replace in Phone Contacts
6. [☐] (Save)

53

VS7_CIMA_AAA.book Page 53 Monday, August 29, 2005 10:00 AM

VS7_CI WA_AAA.book Page 54 Monday, August 29, 2005 10:00 AM

Contacts

Options

In each Call log list, the following options are available by pressing [☐] (Options).

Call Call the selected number.
Create message	Create an SMS or MMS message to the selected number.
Add to contacts	Store the selected number to Contacts. See “Saving a phone number from Call log” on page 53.
Delete Delete the selected number.
Delete all Delete all the logs in the list.

Speed dial

You can quickly dial phone numbers by pressing keys 2-9.

Assigning speed dial keys

Main menu > Contacts > Speed Dial list

1. [/] to scroll to the required key [●]
2. Enter phone number → [●]

To assign a speed dial key to a contact:

Main menu > Contacts > Speed Dial list

1. [▲/▼] to scroll to the required key → [□] (LookUp)
2. Highlight the required contact → [☐] (Select)
3. If the card has several phone numbers stored, [▲/▼] to scroll to the required number → [●]/[□] (Select)

Using the speed dial keys

In standby mode:

1. Press and hold a speed dial key ([2]-[9]) → [☐] (Call)

54

1. 54

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA.book Page 55 Monday, August 29, 2005 10:00 AM Contacts

Groups

You can categorise the Contacts list stored in your phone into 20 groups.

Viewing group members

Main menu > Contacts > View groups

1. Select the required group The contacts in the selected group are displayed.

Renaming a group

Main menu > Contacts > View groups
1. [▲/▼] to scroll to the required group → [□] (Rename)
2. Enter a new group name → [◎]

Advanced

Synchronisation

You can synchronise your Contacts list with your network server. You can just send changes or send all your records to the network server. For further details, see "Synchronisation" on page 118.

To send only changes to the network server:

Main menu > Contacts > Advanced > Synchronisation > Modified contacts

The phone confirms completion.

To send all your records to the network server:

Main menu > Contacts > Advanced > Synchronisation > All contacts

The phone confirms completion.

Pure technical drawing lines showing three orthographic views with crosshair markers and circular features (no text or symbols)

VS7_CI WA_AAA.book Page 56 Monday, August 29, 2005 10:00 AM

Contacts

My number

You can store your own numbers in the phone and SIM card.

Storing numbers in Mobile profile

Main menu > Contacts > Advanced > My number > Mobile profile

1. [●]/[□] (Create)
2. Repeat steps 1-3 in "Storing a contact in your phone" on page 50

Storing numbers in SIM profile

Main menu > Contacts > Advanced > My number > SIM profile

1. When the profile is empty: [●]/[□] (Create) When the profile has the stored number(s): [□] (Options) → Select Create
2. Repeat steps 1-3 in "Storing a contact in your SIM card" on page 52

Options

When viewing My number, the following options are available by pressing [☐] (Options).

Edit Edit the profile.
Create*1	Create a new profile.
Delete Delete the profile.
Send via	Send the profile via infrared or Bluetooth. See “Infrared” on page 111 or “Bluetooth® wireless technology” on page 113.

^1 Available only for SIM profile.

56

Pure electrical circuit lines without any symbols

VS7_CI_MA_AAA.book Page 57 Monday, August 29, 2005 10:00 AM Contacts Displaying the Contacts list sorted by last name/first name You can choose to sort the Contacts list by contact's last name or first name. Main menu > Contacts > Advanced > Display by 1. Select First name or Last name Memory status You can see the amount of memory available in the Contacts list. Main menu > Contacts > Advanced > Memory status Note: The amount of memory for SIM storage depends on your SIM card. To decrease the amount of phone memory used, delete unwanted data or store data on your PC (see "USB" on page 122). Copying contacts You can copy all the contacts from SIM card to phone, or from phone to SIM card. Copying all the contacts from SIM card to phone Main menu > Contacts > Advanced > Copy all from SIM 1. "Copy?" → [●]/[□] (Yes) Copying all the contacts from phone to SIM card Main menu > Contacts > Advanced > Copy all to SIM 1. "Only Name and Number fields can be copied. Continue?" → [●]/[□] (Yes)

VS7_CI_MA_AAA. book Page 58 Monday, August 29, 2005 10:00 AM Contacts Deleting Phone Contacts You can delete all the contacts stored in your phone. Main menu > Contacts > Advanced > Delete all 1. "Delete all contacts in phone?" → [☐] (Yes) 2. "Are you Sure?" → [☐] (Yes) Service numbers If your SIM card includes SDN (Service Dialling Number), you can call a service number by selecting from the list. SDN enables you to access special services provided by your network operator, such as customer support, emergency services, etc. Main menu > Contacts > Service numbers 1. [▲/▼] to scroll to the required item → [●]/[☐] (Call)

VS7_CIWA_AAA.book Page 59 Monday, August 29, 2005 10:00 AM

Messages

Messages menu structure

Create new....60 SMS message....61 MMS message....64

Inbox 66 SMS 67 MMS 68

Archive....70 SMS....70 MMS....70

Web mail ^1 ..... 71 Chat ^1 ..... 72

Voicemail....72 Call Voicemail....72 Set mailbox number....72

Messages settings ....73 SMS....73 MMS....74

Memory status ....75 SMS....75 MMS....75

Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and a circular pattern, no text or symbols present

VS7_CI_MA_AAA.book Page 60 Monday, August 29, 2005 10:00 AM Messages Creating a new message Messaging types SMS Short Message Service allows you to send and receive short text messages on any network that has roaming agreement. (Dependent on the recipient's phone parameters.) With the Illumination feature, you can express special feelings in a message. MMS Multimedia Messaging Service allows you to send messages containing text, pictures, sound and video clips from your phone to other MMS-enabled phones or e-mail addresses. The recipient can play it as a slide show. Note: The message centre number for SMS should be preprogrammed on the SIM card. Changing this number (see Message centre setting on page 73) may cause failure of a text message. Your phone may have already been set with an MMS profile when purchased. To change the settings of the profile, see Advanced setting on page 74. Sending or editing of a forward locked picture/sound clip/video clip indicated by the icon ( ) restricted.

VS7_CIWA_AAA.book Page 61 Monday, August 29, 2005 10:00 AM

Messages

Creating an SMS message

Main menu > Messages > Create new > SMS message

1. Create text message → [◎]

See "Text entry" on page 42 for entering text.

1. To enter recipient's phone number directly: Enter number To select recipient's phone number from Contacts: [●] → Highlight the required contact → [□] (Select) → If the card has several phone numbers stored, [▲/▼] to scroll to the required number → [●]/[□] (Select)

2. [●] to send the message

Creating an Illumination message with emoticons

With the Illumination feature, you can express special feelings in a message. The Indicator/Illumination Light responds to the pictographs in an Illumination message and light in combinations of colours and light patterns when you receive and view an Illumination message.

Main menu > Messages > Create new > SMS message

1. Create text message

2. [☐] (Options) → Select Templates

3. Select Illumination templates

4. Select the required emoticon

See "Emoticon list" on page 62.

To preview the Illumination of the messages you create:

[□] (Options) → Select Preview illumination

Note: Only recipients who have an Illumination message capable phone can view messages with Illumination.

Pure electrical circuit lines without any symbols

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

VS7_CIWA_AAA.book Page 62 Monday, August 29, 2005 10:00 AM

Messages

Emoticon list

Emoticon	Indicator Colour	Light Pattern
:-)	Colour 3	A
:-D (^_)		B
>:-<
:*	Colour 6
:-P C (
:'(	Colour 1	B (;_)
:-(		A
:-/	Colour 5
:-S		B
:-[		C
:->	Colour 2	A
8-)		B
=:(-)	Colour 4
:-0
(:)		C
:-I	Colour 7
I-(		A
;-)	Colour 8

Emoticon	Indicator Colour	Light Pattern
^o^/	Colour 3	A
(>o<)/		B:-||(
^3^	Colour 60	- ) A ( o^- A
*~o-* )
	Colour 1	B
(T_T)		A
(?_?)	Colour 5
( >_< )		B
(-_;		C
( ^w^ )	Colour 2	A
^&^		B
(@_(@))	Colour 4
( ^o^ )
p( ^- )p		A
(-_)	Colour 7	C
(__)Zzz		A
( ^\_ )"	Colour 8

• Pattern A: [Firefly] flickers slowly for about 4 seconds.
• Pattern B: [Flash] flickers fast for about 3 seconds.
• Pattern C: [Beam] lights for about 3 seconds.

62

VS7_CIWA_AAA.book Page 63 Monday, August 29, 2005 10:00 AM

Options

When creating a text message, the following options are available by pressing [☐] (Options).

Send Send the text as an SMS message.
Send to many Send the text to more than one recipients.
Preview illumination Preview illumination message.
Templates	Select Illumination templates to create an illumination message or User templates to use the stored text templates.
Count message	The long message may be divided into several messages. You can check the concatenated message number.
Save Save the message in Unsent folder.
Use contacts Use data saved within your Contacts cards.
Copy/Cut/Paste Copy, cut or paste the text.
Add symbol	Show the Symbol list from which you can select any symbol available on your phone.
Input method Select the input method.
T9 on/off	Turn the predictive dictionary On or Off.
Input language Select a language you wish to write in.
My dictionary Add words to the internal dictionary.
Exit Exit the text edit mode.

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

VS7_CI WA_AAA.book Page 64 Monday, August 29, 2005 10:00 AM

Messages

Creating an MMS message

Main menu > Messages > Create new > MMS message

1. Select Add picture, Add text, Add sound or Add video

2. If Add text is selected: Create text message → [●]

See "Text entry" on page 42 for entering text.

If Add picture/Add sound/Add video is selected: Select the required item stored to My Media → [☐] (Select)

You can also download new files, take new pictures, record new sound or video clips for the MMS message.

1. To add more than one picture, text, sound or video clip, [▲/▼] to scroll to Slides → [◎] → [◎]/[□] (Yes)

2. Repeat steps 1-3 if required

To send the message:

1. [☐] (Options) → Select Send

2. [▲/▼] to scroll to Add subject → [◎]

3. Enter subject → [●]

4. [▲/▼] to scroll to Add recipient → [◎]

5. Select From contacts, Enter number or Enter email address

6. If From contacts is selected: Highlight the required contact → [☐] (Select) → If the card has several numbers stored, [▲/▼] to scroll to the required number → [●]/[☐] (Select)

If Enter number/Enter email address is selected: Enter number/email address → [●]

1. [▲/▼] to scroll to Send → [◎]

Note: When you select Add video and record a new video clip in step 2, the recording time is fixed to For MMS sending.

You cannot attach a video clip together with a picture file or sound clip to one slide.

For downloading contents, visit http://box.panasonic.com/

64

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CIWA_AAA.book Page 65 Monday, August 29, 2005 10:00 AM

Messages

Slide options

When Slides is highlighted, the following options are available by pressing [☐] (Options).

Add new Add a new slide.
Send	Send the MMS message after entering subject and recipient number or address.
Slide duration Specify duration of the slide.
Remove slide Remove the slide from the MMS message.
Preview slide Preview the MMS message as a slide.

Receiving messages

Receiving SMS messages

When you receive a new SMS message, the message icon (☑) is displayed along with a tone, illumination, and/or vibration. The SMS notification also appears on the standby screen. When One push SMS setting is set to On (see page 73), new SMS messages can be displayed by opening the flip. You can also check received SMS messages on the Front display.

Reading SMS messages

When an SMS notification is displayed on the standby screen:

1. [●]/[□] (View)
   If there is more than one notification, [▲▼] to scroll to New SMS before step 1. If there is one SMS message, the message is automatically displayed.

2. If there is more than one SMS message, [▲/▼] to scroll to the required message header in SMS Inbox → [◎]

3. When the message is displayed, [●] to show the message details (sender's number, date, message centre's number) if required

65

VS7_CIMA_AAA.book Page 65 Monday, August 29, 2005 10:00 AM

Pure geometric lines and crosshair symbols without any text or labels

VS7_CIWA_AAA.book Page 66 Monday, August 29, 2005 10:00 AM

Messages

Receiving MMS messages

When you receive a new MMS message, the message icon (B) is displayed along with a tone, illumination, and/or vibration. The received MMS messages are stored in Inbox.

Reading MMS messages

To read the received MMS messages, see "MMS Inbox" on page 68.

Note: If you do not want to receive MMS messages automatically, select Never in Auto download setting (see page 74). In this case, you will receive a message notification first, and then you will need to receive messages manually.

Inbox

Inbox stores received SMS and MMS messages.

Main menu > Messages > Inbox Numbers in brackets show the number of unread messages and the total number of messages in each inbox.

66

VS7_CI_MA_AAA.book Page 67 Monday, August 29, 2005 10:00 AM Messages

SMS Inbox

SMS message icons

Unread message Read message

Reading SMS messages

Main menu > Messages > Inbox > SMS

1. [▲/▼] to scroll to the required message header → [◎]
2. [●] to show the message details (sender's number, date, message centre's number) if required

Options

When viewing the list of messages or the selected message, the following options are available by pressing [☐] (Options).

Reply	Create reply message in SMS or MMS.
Forward Forward the selected message.
Call Call the sender's number.
Add to contacts Store the sender's number to Contacts.
Use detail*1	Use phone number, e-mail or web address in the selected message to call, create message, add to Contacts, etc.
Delete Delete the selected message.
Delete all*2	Delete all the SMS messages.
View Illumination*1	Check the illumination of the message.

^*1 Available only when viewing the selected message.
^2 Available only when viewing the list of messages.

Pure geometric diagram with crosshair and circular elements, no text or symbols present

VS7_CI_MA_AAA.book Page 68 Monday, August 29, 2005 10:00 AM Messages MMS Inbox MMS message icons Unread message MMS notification Read message Reading MMS messages Main menu > Messages > Inbox > MMS 1. [▲/▼] to scroll to the required message header → [●] Options in the message list When viewing the list of messages, the following options are available by pressing [☐] (Options). Reply Create reply message by SMS or MMS. Reply to all Create reply message to all recipients. Forward Forward the selected message. Call Call the sender's number. Add to contacts Store the sender's number or e-mail address to Contacts. Delete Delete the selected message. Delete all Delete all the MMS messages and notifications. Protect/Unprotect Protect or unprotect the selected message. Details Show details for the selected message. Note: Sending or editing of a forward locked file indicated by the icon ( ) is restricted.

VS7_CIWA_AAA.book Page 69 Monday, August 29, 2005 10:00 AM

Messages

Options while viewing messages

When viewing the message, the following options are available by pressing [☐] (Options).

Reply	Create a reply message by SMS or MMS.
Reply to all Create a reply message to all the recipients.
Play again Play the selected message.
Message font size*1	Select the required font size.
Save picture Save the attached picture to My Media.
Save sound Save the attached sound clip to My Media.
Save video Save the attached video clip to My Media.
Use detail	Use the phone number, e-mail or web address in the selected message to call, create message, add to Contacts, etc.
Attached files Show the attached files.

Options for notification

When the notification is highlighted, the following options are available by pressing [☐] (Options).

Receive Receive new messages.
Forward Forward the message.
Reject	Delete the notification from the message list and the message from the server.
Call Call the sender's number.
Delete all Delete all the	MMS messages and notifications.
Protect/Unprotect Protect or unprotect the message.
Details Show details for the selected message.

69

VS7_CI WA_AAA.book Page 70 Monday, August 29, 2005 10:00 AM

Messages

Archive

Archive stores SMS and MMS messages that are sent or waiting to be sent.

SMS	Sent Store sent SMS messages.
	Unsent	Store undelivered and unfinished SMS messages.
MMS	Sent Store sent MMS messages.
	Outbox Store undelivered MMS messages.
	Drafts Store unfinished MMS messages.

Viewing messages

Main menu > Messages > Archive > SMS or MMS

1. Select the required folder
2. [▲/▼] to scroll to the required message → [◎]

Options for SMS

In Sent and Unsent folders, the following options are available by pressing [☐] (Options).

Send Send the selected message.
Call Call the sender's number.
Use detail*1	Use phone number, e-mail or web address in the selected message to call, create message, add to Contacts, etc.
Delete Delete the selected message.
Delete all*2	Delete all the SMS messages in the folder.
View Illumination*1	Check the illumination of the message.

-1 Available only when viewing the selected message.
*2 Available only when viewing the list of messages.

70

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

VS7_CIWA_AAA.book Page 71 Monday, August 29, 2005 10:00 AM

Messages

Options for MMS

In Sent, Outbox and Drafts folders, the following options are available by pressing [☐] (Options).

Edit Edit the selected message.
Forward*1	Forward the selected message.
Send*2	Send the selected message.
Delete Delete the selected message.
Delete all Delete all the messages in the folder.
Protect/Unprotect Protect or unprotect the selected message.
Details Show details for the selected message.

*1 Available only in Sent folder.

^2 Available only in Outbox and Drafts folder.

Web mail

Web mail is an innovative service that lets you stay up-to-date with all of your messages. You need to subscribe to this service. For further information, contact your service provider.

Connecting to internet mail

Main menu > Messages > Web mail

Your phone is connected to the Internet via a WAP connection to retrieve e-mail messages.

1. Follow the screen contents

71

VS7_CI WA_AAA.book Page 72 Monday, August 29, 2005 10:00 AM

Messages

Chat

Chat lets you enjoy the fun of instant messaging wherever you are. It's the fun way to chat on-line. For further information, contact your service provider.

Main menu > Messages > Chat

1. Follow the screen contents

Voicemail

Voicemail is a network service which allows callers, who could not reach you, to leave voice messages. You may need to subscribe to this service. For further information, contact your service provider.

Retrieving stored voice messages

When a new voice message is stored, an alert sounds and ( ) appears on the display, and you receive an SMS notification.

When an SMS notification is displayed on standby screen:

1. [●]/[□] (Call)
2. Follow the recorded instructions

OR

Main menu > Messages > Voicemail > Call Voicemail

1. Follow the recorded instructions

Shortcut: You can also press and hold [1] in standby mode to call your voice mailbox.

Changing the voice mailbox number

Main menu > Messages > Voicemail > Set mailbox number

1. Enter new voice mailbox number → [●]/[□] (Ok)

72

72

VS7_CIWA_AAA.book Page 73 Monday, August 29, 2005 10:00 AM

Messages

Messages settings

SMS settings

Main menu > Messages > Messages settings > SMS

1. Select the required setting

Message lights			Decide whether or not you want the Indicator/ Illumination Light to illuminate when receiving an illumination message.
Message lights view			Decide whether or not you want the Indicator/ Illumination Light to illuminate when viewing an illumination message.
Message centre Edit the message centre number.
Delivery report			Select On to receive delivery reports.
Store sent SMS			Select On to store sent messages to the Sent folder.
Message font size*1			Select the required font size.
Bearer type Select the data bearer type.
One push SMS			Select On to display new SMS messages by opening the flip.

*1

73

VS7_CIWA_AAA.book Page 73 Monday, August 29, 2005 10:00 AM

VS7_CI WA_AAA.book Page 74 Monday, August 29, 2005 10:00 AM

Messages

MMS settings

Main menu > Messages > Messages settings > MMS

1. Select the required setting

Reports	Select Request read(check if the other party has read the message),Send read(inform the other party that you have read the message when asked),Request delivery(check if the other party has received the message) orSend delivery(inform the other party that you have received the message when asked).
Priority	Select Low, Normal or High for the message priority level.
Validity period	Set a time period for the message centre to attempt message delivery. Select 1 day, 7 days or Maximum.
Auto download	Select Always on(messages are retrieved automatically after receiving message notifications),On when home(messages are retrieved automatically in your service area) or Never(messages are retrieved manually).
Player mode	Select Auto(display MMS slides, or playback video/sound clips automatically) orManual(display MMS slides, or playback video/sound clips manually).
Message font size*1	Select the required font size.
Advanced	If required, edit the information onMessage server, WAP profiles, Fetch on server*1and Anonymous reject*1. Select Information to view MMS software information.

*1

74

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CI_MA_AAA.book Page 75 Monday, August 29, 2005 10:00 AM Messages Memory status You can see the amount of memory available for storing messages. Main menu > Messages > Memory status > SMS or MMS Note: To decrease the amount of phone memory used, delete unwanted data or store data on your PC (see "USB" on page 122). 75

VS7_CI_MA_AAA.book Page 76 Monday, August 29, 2005 10:00 AM Camera Camera menu structure Picture......77 Video......83 Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32. 76

VS7_CI_MA_AAA.book Page 77 Monday, August 29, 2005 10:00 AM Camera Picture You can take a picture with the built-in camera, and send them via MMS, Infrared or Bluetooth, or use them as wallpaper. You can also attach a picture to a contact stored in your phone. Picture preview screen 16:52 Picture Options Back Icons on picture preview screen Zoom level (1-25) 1600 1284 640 320 160 1200 960 480 240 120 Picture size (Ultra large/Extra large/Large/ Medium/Small/Main display/Front display) S F N FINE TNE NORMAL Image quality (Super fine/Fine/Normal) Multi shot mode Self timer (5 or 10 seconds delay) Night mode Photo light Brightness level (-2, -1, ±0, +1, +2) 77

Camera


You can take a picture with the built-in camera, and send them via MMS, Infrared or Bluetooth, or use them as wallpaper. You can also attach a picture to a contact stored in your phone.

Picture preview screen

Black and white photo of a flower with visible petals, displayed within a mobile app interface (no text or symbols on the flower itself)

Icons on picture preview screen

	Zoom level (1-25)
1600 1280 640 320 160 120	Picture size (Ultra large/Extra large/Large/Medium/Small/Main display/Front display)
SFNFINE INORIAL	Image quality (Super fine/Fine/Normal)
	Multi shot mode
	Self timer (5 or 10 seconds delay)
	Night mode
	Photo light
	Brightness level (-2, -1, ±0, +1, +2)

77

VS7_CI_MA_AAA. book Page 78 Monday, August 29, 2005 10:00 AM Camera Taking a picture Main menu > Camera > Picture 1. The display acts as a viewfinder. Move the phone around to frame your subject 2. [●]/[□] to capture the image Operations after taking a picture To save the image to My Media: [□] (Save)/[□] You can save the image by pressing [□] whether the flip is open or closed. To return to the preview screen without storing the image: [□] (Delete) To send the captured image via MMS: [●] → See "Creating an MMS message" on page 64 Taking a self-portrait You can take your self-portrait using Front display. Main menu > Camera > Picture 1. Close the flip. Look at yourself in Front display 2. [□] on the side of the phone 3. The image appears on both the Main display and the Front display. For further operation, see "Operations after taking a picture" on page 78 Shortcut: To directly open the picture preview screen, press and hold [□] in standby mode. Caution: To avoid impairing camera performance, DO NOT leave the phone with the camera facing direct sunlight. 78

VS7_CI_MA_AAA.book Page 79 Monday, August 29, 2005 10:00 AM Camera Note: To send a picture via infrared or Bluetooth, or use as wallpaper, save the image once, and then go to My Media. (See "Pictures" on page 138.) If the camera is left in certain conditions including the preview screen and capture screen for 3 minutes, the phone automatically exits Picture mode. If left in the preview screen, but with the options menu displayed, the phone remains in this state. If certain situations such as receiving calls occur during camera operation, the phone exits Camera mode. If a captured image is on the screen, it is saved to My Media. Zoom [▲]/[■] to zoom in one level [▼]/[■] to zoom out one level You can also press and hold the keys to quickly reach the required zoom level. Note: Zoom function may not be available when the picture size is set to Ultra large 1600x1200. Adjusting the brightness level The picture brightness indicator shows the current brightness level. [▶] to increase the brightness level [◀] to decrease the brightness level Taking close-up pictures You can take sharp pictures from a close distance by using Macro Mode. (Macro focus range: 10 cm) Slide the Macro Mode Switch to (◀) before taking close-up pictures.

VS7_CIWA_AAA.book Page 80 Monday, August 29, 2005 10:00 AM

Camera

Viewing pictures

Pictures taken with the built-in camera are saved to My Media. To view the saved pictures, see "Viewing pictures" on page 138.

Picture settings

In the preview screen, the following options are available by pressing [☐] (Options).

Picture size	Select the required size from Ultra large 1600x1200, Extra large 1280x960, Large 640x480, Medium 320x240, Small 160x120, Main display 240x320 or Front display 96x64.
Image quality	Select the required quality from Super fine, Fine or Normal.
Photo light	Select On to light up your subject before snapping a picture.
Night mode	Select On to take a picture in low light conditions.
Multi shot mode	15 continuous shots is available. See “Continuous shooting” on page 82.
Effect	Select the required colour from Normal, Sepia, Monochrome or Negative.
Self timer	Select the amount of time delay you require for shooting from Off, 5 seconds or 10 seconds.
Shutter sound	Select the required sound from Pattern 1-5.
Switch to video Switch	from Picture mode to Video mode.
Available space	Show the number of files which can be saved in the current picture size and image quality. You can see the number of files which can be saved in other image qualities by pressing [ ] (Quality), and in other picture sizes by pressing [▲/▼].
Set to default Reset the current picture settings to default.
Help Show direct key operation in the preview screen.

80

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CI_MA_AAA.book Page 81 Monday, August 29, 2005 10:00 AM Camera Direct key operation You can change the picture settings by pressing one of the numeric keys which correspond to the functions as follows. Some functions are depicted by the icon. See "Icons on picture preview screen" on page 77. [1]: Switch to video [2]: Picture size [3]: Image quality [4]: Multi shot mode [5]: Self timer [6]: Night mode [7]: Effect [0]: Help [#]: Photo light Adding a picture to Contacts card If a picture is attached to a Contact card, it appears on the screen when the contact calls you. To attach a picture to a contact, save the image once, and then go to Contacts. See "Adding contacts" on page 50.

VS7_CI WA_AAA.book Page 82 Monday, August 29, 2005 10:00 AM

Camera

Continuous shooting

In Multi shot mode, you can capture a succession of 15 images with just one press. When you set Multi shot mode on, the picture size is fixed to Medium 320x240 and Night mode off.

Main menu > Camera > Picture

1. [☐] (Options) → Select Multi shot mode
2. Select On
3. [●]/[□] to shoot The captured images are displayed as thumbnails.

Note: You cannot take pictures in Multi shot mode when the phone is closed. Once you close the phone, Multi shot mode is switched off.

To view the captured images:

[▲/▼/◄/►] to scroll to the required thumbnail → [◎] You can view the next image by pressing [►] or [▼], and the previous image by pressing [◄] or [▲].

To save a captured image:

1. When the required thumbnail is highlighted or the required image is displayed on the screen, [☐] (Options) → Select Save this one only The picture is stored to My Media.

To save all the captured images:

1. In thumbnail screen or when one of the images is displayed on the screen, [☐] (Options) → Select Save all pictures OR When one of the images is displayed on the screen, [●] All the pictures are stored to My Media.

Note: All the captured images are also saved by pressing [] on thumbnail screen or when one of the images is displayed on the screen.

82

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA.book Page 83 Monday, August 29, 2005 10:00 AM Camera

Video

You can record video clips with the built-in camera, and send them via MMS, infrared or Bluetooth.

Video preview screen

16:54 Yal Video 00:00 Options Back

Icons on video preview screen

	Zoom level (1-25)
	Recording time(Extended video/For MMS sending)
	Self timer (5 or 10 seconds delay)
	Photo light
	Brightness level (-2, -1, ±0, +1, +2)

Pure technical drawing lines showing three orthographic views with crosshair markers and circular features (no text or symbols)

VS7_CI WA_AAA.book Page 84 Monday, August 29, 2005 10:00 AM

Camera

Recording a video clip

Main menu > Camera > Video

1. Main display acts as a viewfinder. Move the phone around to frame your subject
2. [●]/[□] to start recording
3. Video recorder records until reaching the clip size limit or until you press [●]/[□]/[□] (Stop)
4. Select the required action

Playback Playback the recorded video clip.
Save to My Media Save	the recorded video clip to My Media.
Send as MMS	Attach the recorded video clip to an MMS message. See “Creating an MMS message” on page 64.

Caution: To avoid impairing camera performance, DO NOT leave the phone with the camera facing direct sunlight.

Note: To send a video clip via infrared or Bluetooth, save the video clip once, and then go to My Media. (See "Videos" on page 145.)

If the video is left in the preview screen or a recorded video clip is displayed for 3 minutes, the phone automatically exits Video mode. If left in preview screen, but with the options menu displayed, the phone remains in this state.

If certain situations such as receiving calls occur during camera operation, the phone exits Camera mode. The recording ends automatically, and the already recorded video clip is saved to My Media.

84

Pure electrical circuit lines without any symbols

VS7_CI_MA_AAA.book Page 85 Monday, August 29, 2005 10:00 AM Camera Zoom [▲]/[□] to zoom in one level [▼]/[□] to zoom out one level You can also press and hold the keys to quickly reach the required zoom level. Note: You cannot change the zoom level while recording. Adjusting the brightness level The video clip brightness indicator shows the current brightness level. [▶] to increase the brightness level [◀] to decrease the brightness level Note: You cannot change the brightness level while recording. Playing video clips Recorded video clips are saved to My Media. To play the saved video clips, see "Playing video clips" on page 145.

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

VS7_CIWA_AAA.book Page 86 Monday, August 29, 2005 10:00 AM

Camera

Video settings

In the preview screen, the following options are available by pressing [☐] (Options).

Recording time	Select the video recording time from Extended video or For MMS sending.
Photo light	Select On to light up your subject before recording a video clip.
Effect	Select the required colour from Normal, Sepia, Monochrome or Negative.
Self timer	Select the amount of time delay you require for recording from Off, 5 seconds or 10 seconds.
Switch to picture Switch from Video mode to Picture mode.
Available space	Show the number of files which can be saved in the current recording time. You can see the number of files which can be saved in other recording time by pressing [☐] (RecTime).
Help Show direct key operation in the preview screen.

Direct key operation

You can change the video settings by pressing one of the numeric keys which correspond to the functions as follows. Some functions are depicted by the icon. See "Icons on video preview screen" on page 83.

[1]: Switch to picture
[2]: Recording time
[5]: Self timer

[#]: Photo light

86

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA.book Page 87 Monday, August 29, 2005 10:00 AM Browser Browser menu structure PANASONIC BOX Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32. Setting up your Browser Your phone's WAP (Wireless Application Protocol) browser allows you to access services supported by the network such as news, weather reports, sports, etc. Before Internet services can be accessed, you need to subscribe to your service provider to enable the relevant configuration information. (Your service provider may have already completed the connection settings. To configure the WAP profile settings, see "WAP profiles" on page 93.) Note: Modifying the preinstalled settings without accurate knowledge may cause a failure in connection.

VS7_CI_MA_AAA.book Page 88 Monday, August 29, 2005 10:00 AM Browser Viewing the contents Opening Browser Main menu > Browser The off-line menu is displayed. You will not be connected until you choose a menu. 1. [▲/▼] to scroll to the required menu → [●] The phone is connected to the web site. Shortcut: You can directly access Browser by pressing [□] (_) in standby mode. Online status icons Non-secure CSD connection Secure CSD connection Non-secure GPRS connection Secure GPRS connection Closing Browser 1. [□] (Options) → Select Exit browser

VS7_CIWA_AAA.book Page 89 Monday, August 29, 2005 10:00 AM

Browser

Browser options

While Browser is on-line or off-line, the following options are available.

Main menu > Browser [Off-line]

OR

Main menu > Browser > Required menu [On-line]

1. [☐] (Options) → Select the required option

Select Select the required item.
Bookmarks Go to the bookmark list.
Enter address Go to URL entry.
Save media*1*2	The image in contents is saved to My Media.
Set as bookmark*1	The displayed URL is saved to the bookmark list.
Service Inbox Open Service Inbox.
Reload page*1	Reload this page.
Advanced	Go to homepage, clear the cache, view or send the current URL, or view the current WAP information.
Settings	Edit WAP profiles/Push access settings or view the security information.
Exit browser*1	Terminate the browser.

*1 Available only when the web page is displayed.

*2 Available only when the web page has the image, melody or video contents.

89

VS7_CI WA_AAA.book Page 90 Monday, August 29, 2005 10:00 AM

Browser

Bookmarks

Once you bookmark your favourite page or a frequently accessed page, you can jump to the page quickly. You can also categorise the bookmarked pages into 10 folders and rename each folder.

While off-line or on-line:

1. [☐] (Options) → Select Bookmarks
2. [▲/▼] to scroll to the required bookmark folder → [●]

3. [▲/▼] to scroll to the required bookmark

4. To load the URL: [●]

To select the required option: [☐] (Options)

Go to page Jump to the web page.
Add bookmark Add to the bookmark list.
Edit Edit the selected bookmark name and URL.
Move to Move the selected bookmark to another folder.
Delete Delete the selected bookmark.
Send bookmark	Send the bookmarked URL via SMS or MMS.
Delete all in folder Delete all the bookmarks in the folder.

Renaming a bookmark folder

[▲/▼] to scroll to the required bookmark folder → [☐] (Options) → Select Rename → Enter a new folder name → [●]

Deleting all bookmarks

In the bookmark list:

[☐] (Options) → Select Delete all → [☐] (Yes)

All the saved bookmarks are deleted, and the folder names return to the default.

90

Pure geometric diagram with crosshair and concentric circles, no text or symbols present

VS7_CI_MA_AAA.book Page 91 Monday, August 29, 2005 10:00 AM Browser Enter address You can directly go to the required web page by entering the URL. While off-line or on-line: 1. [☐] (Options) → Select Enter address 2. Enter URL → [●] Save media Images, melodies or videos on the web page can be saved to My Media. When the web page is displayed: 1. [☐] (Options) → Select Save media 2. [●]/[☐] (Select) to save Note: Panasonic is not responsible for the performance of downloaded contents or possible corruption of phone software. Set as bookmark You can save the URLs of your favourite pages in Bookmarks. When the web page is displayed: 1. [☐] (Options) → Select Set as bookmark 2. Enter title → [●] 3. [▲/▼] to scroll to the required folder → [●]/[☐] (Save)

VS7_CI WA_AAA.book Page 92 Monday, August 29, 2005 10:00 AM

Browser

Service Inbox

View WAP Push message and go to URL.

While off-line or on-line:

1. [☐] (Options) → Select Service Inbox
2. To load the URL: [●] To select the required option: [□] (Options)

Go to page Jump to the web page.
View message*1	View the message.
Delete Delete the message.

*1 Available only when text and URL are delivered from your service provider.

Reload page

Current page can be reloaded.

When the web page is displayed:

1. [☐] (Options) → Select Reload page

92

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

VS7_CIWA_AAA.book Page 93 Monday, August 29, 2005 10:00 AM

Browser

Advanced

While off-line or on-line:

1. [☐] (Options) → Select Advanced
2. Select the required option

Home Jump to the set-up homepage.
Clear cache Delete the contents stored in the cache.
View current URL*1	View the URL of the current page.
Send current URL*1	Send the URL of the current page via SMS or MMS.
WAP information View	WAP browser information.

*1 Available only when the web page is displayed.

Settings

WAP profiles

If no settings are present, contact your service provider. You can check or edit the current WAP profile settings, or add new WAP profile settings.

Main menu > Browser [Off-line]

1. [☐] (Options) → Select Settings
2. Select WAP profiles
3. [▲/▼] to scroll to the required profile
4. [☐] (Options) → Select Activate, Edit or Delete
5. If Edit is selected, you can edit the following information: Profile name, Homepage, Proxy IP, Proxy port, Use proxy and Data connections

Note: You need to configure GPRS or CSD before configuring the WAP profile settings. See "Data connections" on page 122.

93

VS7_CIMA_AAA.book Page 93 Monday, August 29, 2005 10:00 AM

VS7_CI WA_AAA.book Page 94 Monday, August 29, 2005 10:00 AM

Browser

Push access

Set up Push access to receive WAP messages.

While off-line or on-line:

1. [☐] (Options) → Select Settings
2. Select Push access
3. Select Service indication, Service loading or Other messages
4. Select On or Off

Security

View security information.

While off-line or on-line:

1. [☐] (Options) → Select Settings
2. Select Security
3. Select the required item

Certificates	Select Certificate 1-20.
Current certificate*1	View the current certificate.
Session Info*1	View session information.

*1 Available only while secure connection.

94

Pure electrical circuit lines without any symbols

VS7_CIWA_AAA.book Page 95 Monday, August 29, 2005 10:00 AM

Settings

Settings menu structure

Phone settings 96

Profiles 96

Language 97

Time and date 97

Illuminations 98

Key settings.... 99

Master reset 101

Display settings ...... 102

Main display 102

Front display.... 103

Main menu icons 104

Themes 105

Backlight time.... 105

Sounds & alerts ...... 105

Assign ringtone 105

Incoming volume 106

Message alert.... 105

Message volume 106

Warning tone 106

Startup tone 106

Shutdown tone 106

Vibration alert 106

Calls....107

Call diverts....107

Call waiting 108

Any key answer 108

Active flip 109

Auto answer....109

Send my number 109

Call duration 109

Service charge*1*2 110

Connectivity...... 111

Infrared 111

Bluetooth 113

Data connections.....122

Security 123

PIN entry....123

Change PIN2....124

Fixed dial 124

Call barring 124

*1

+2

Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32.

95

VS7_CIMA_AAA.book

Page 95

Monday, August

29, 2005

10:00 AM

VS7_CI WA_AAA.book Page 96 Monday, August 29, 2005 10:00 AM

Settings

Phone settings

Profiles

You can switch among different profiles in your phone, each with a distinct combination of alert method, ringtone, etc. Profiles are set up for use in the following environments:

Normal For everyday settings.

Silent For formal occasions.

Meeting For meetings.

Outdoor For noisy environments.

Car For driving occasions.

Activating a profile

Main menu > Settings > Phone settings > Profiles

1. [▲/▼] to scroll to the required profile

2. [●]

OR

[☐] (Options) → Select Activate

Setting a profile

You can personalise the individual settings within a profile. For further details about the individual settings, see "Sounds & alerts" on page 105.

Main menu > Settings > Phone settings > Profiles

1. [▲/▼] to scroll to the required profile

2. [☐] (Options) → Select Edit

3. Select the required item

4. Select the required setting

96

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

VS7_CIWA_AAA.book Page 97 Monday, August 29, 2005 10:00 AM

Settings

Language

You can change the language used for display messages and/or text entry. Automatic uses the language dictated by the country/region code of the SIM card.

Main menu > Settings > Phone settings > Language > Display language or Input language

1. Select Automatic or the required language

Time and date

You can set your Home clock and Away clock.

Home clock

You can set the current time and date on your phone.

Main menu > Settings > Phone settings > Time and date > Home clock

1. Select the required setting

Set date & time	Enter the time → [▼] → Enter the date
Home area Select your home area.
Summer time	Select On to activate the summer time mode.

Away clock

You can set Away clock to display the time in the area you choose.

Main menu > Settings > Phone settings > Time and date > Away clock

1. Select the required setting

Set time zone Select the required area.
Summer time	Select On to activate the summer time mode.

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

VS7_CI WA_AAA.book Page 98 Monday, August 29, 2005 10:00 AM

Settings

Choosing clock

You can choose either Home clock or Away clock to be displayed on your phone.

Main menu > Settings > Phone settings > Time and date > Select clock > Home clock or Away clock

Display format

You can select the required display format for the date and time.

Main menu > Settings > Phone settings > Time and date > Display format > Time or Date

1. To set Time format: Select 24 hour or 12 hour To set Date format: Select the required format (DD=date, MM=month, YY=year)

Illuminations

The Indicator/Illumination Light flashes or beams when you receive calls/messages, have a conversation, the flip is closed, the battery is charging or data is transferred.

Main menu > Settings > Phone settings > Illuminations

1. Select the required event

Incoming	Select the required colour or Off.
Message
In conversation
Flip close
Charging	Select On or Off.
Data transfer

Note: You can check the Flip close illumination by pressing [☐ / ☐] while the phone is in standby mode with the flip closed.

98

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

VS7_CI_MA_AAA.book Page 99 Monday, August 29, 2005 10:00 AM Settings Key settings Key tone You can change the key tone. Main menu > Settings > Phone settings > Key settings > Key tone 1. Select the required tone Key volume You can change the key tone volume. Main menu > Settings > Phone settings > Key settings > Key volume 1. [▲/▼/◄/►] to scroll to the required volume → [●]/[□] (Select) Key backlight If you set the key backlight to off, you can maintain longer battery life. Main menu > Settings > Phone settings > Key settings > Key backlight 1. Select On or Off

VS7_CI WA_AAA.book Page 100 Monday, August 29, 2005 10:00 AM

Settings

Keyguard

Keyguard prevents any keys from being accidentally pressed e.g. when the phone is being carried. When Keyguard is enabled, the Keyguard icon (P) appears on the display. When a call is received, Keyguard is temporarily disabled and you can answer the call.

To enable Keyguard:

Main menu > Settings > Phone settings > Key settings > Keyguard

1. "Would you like to lock keypad?" → [●]/[□] (Yes)

OR

In standby mode:

1. Press and hold [●]
2. "Would you like to lock keypad?" → [●]/[□] (Yes)

Note: Emergency calls can still be made with the Keyguard enabled but there is no indication that you are dialling the number.

To disable Keyguard:

When ( ) appears on the display:

1. [●] → "Would you like to unlock?" → [●]/[□] (Yes)

Shortcut keys

Navigation key [▲/▼/◄/►] can be used as a Shortcut key. It is possible to assign a specific menu to Navigation key so that you can access the menu directly from standby mode.

Main menu > Settings > Phone settings > Key settings > Shortcut keys

1. Select Navigation up, Navigation right, Navigation down or Navigation left
2. Select the required menu

100

VS7_CI_WA_AAA.book Page 101 Monday, August 29, 2005 10:00 AM Settings Master reset You can reset your phone to the factory settings, except for the settings for Language, Time and date, and Calendar. User data such as contacts, messages, call logs and data stored in My Media remains on the phone. Password is required for master reset. The factory set password is 0000. Resetting Main menu > Settings > Phone settings > Master reset > Reset settings 1. "Would you like to reset all phone settings?" → [●]/[□] (Yes) 2. Enter the password → [●]/[□] (Ok) Changing the password Main menu > Settings > Phone settings > Master reset > Password setting 1. Enter the current password → [●]/[□] (Ok) 2. Enter a new password → [●]/[□] (Ok) 3. Enter the new password again → [●]/[□] (Ok)

VS7_CI WA_AAA.book Page 102 Monday, August 29, 2005 10:00 AM

Settings

Display settings

Main display

You can change the wallpaper, brightness and position of the operator name on the Main display.

Wallpaper

You can change the wallpaper on the standby screen.

Main menu > Settings > Display settings > Main display > Wallpaper

1. Select My Media or Download*1

2. [▲/▼/◄/►] to scroll to the required wallpaper

3. To set: [☐] (Select)

To view and set: [◎] → [◎]/[□] (Select)

Brightness

You can adjust the brightness of the display.

Main menu > Settings > Display settings > Main display > Brightness

1. [▲/▼] to adjust the brightness level → [◎]/[□] (Select)

Operator name

You can change the position of your operator name on the standby screen.

Main menu > Settings > Display settings > Main display > Operator name

1. Select Default, Upper left or Lower left

102

VS7_CI_MA_AAA.book Page 103 Monday, August 29, 2005 10:00 AM Settings Front display You can change the wallpaper, contrast and clock display on the Front display. External wallpaper You can change the wallpaper on the Front display. Main menu > Settings > Display settings > Front display > External wallpaper 1. Follow the procedures of Wallpaper in Main display on page 102. Contrast You can adjust the contrast of the Front display. Main menu > Settings > Display settings > Front display > Contrast 1. [▲/▼] to adjust the contrast → [●]/[□] (Select) Clock display You can change the clock display style. Main menu > Settings > Display settings > Front display > Clock display 1. Select Clock and Date or Digital 103

VS7_CI_KA_AAA.book Page 104 Monday, August 29, 2005 10:00 AM Settings Main menu icons You can change menu icons or the background on Main menu screen. Changing icons To change menu icons: Main menu > Settings > Display settings > Main menu icons 1. [▲/▼/◄/►] to scroll to the required menu icon → [◎] 2. Select My Media or Download*1 3. [▲/▼/◄/►] to scroll to the required image 4. To set: [□] (Select) To view and set: [◎] → [◎]/[□] (Select) To change the background: Main menu > Settings > Display settings > Main menu icons 1. [□] (Options) → Select Attach full image 2. Repeat steps 2-4 in "To change menu icons:" on page 104 *1 Note: For downloading contents, visit http://box.panasonic.com/ Setting back to default Main menu > Settings > Display settings > Main menu icons 1. [□] (Options) → Select Set to default 2. "Would you like to set default?" → [◎]/[□] (Yes) 104

VS7_CI_MA_AAA.book Page 105 Monday, August 29, 2005 10:00 AM Settings

Themes

You can change the colour theme of the display.

Main menu > Settings > Display settings > Themes

1. Select the required colour theme

Backlight time

You can set the length of time the display is illuminated by the backlight.

Main menu > Settings > Display settings > Backlight time

1. Select 10 seconds, 30 seconds or 60 seconds

Sounds & alerts

Ringtone/Message alert

You can change the tone and/or the volume of the ringtone for incoming calls and the Message alert for incoming messages.

Changing the ringtone/Message alert

Main menu > Settings > Sounds & alerts > Assign ringtone or Message alert

1. Select My Media or Download*1
2. [▲/▼] to scroll to the required tone
3. [●] to listen to the tone → [□] (Cancel) to stop the tone and return to the previous screen
4. [☐] (Select)

Note: For downloading contents, visit http://box.panasonic.com/

Pure technical drawing lines showing three identical mechanical or architectural components with crosshair and circular features, no text or symbols present.

VS7_CI WA_AAA.book Page 106 Monday, August 29, 2005 10:00 AM

Settings

Changing the ringtone/Message alert volume

Main menu > Settings > Sounds & alerts > Incoming volume or Message volume

1. [▲/▼/◄/►] to adjust the volume (Volume 0-4, Step tone) → [◎]/[□] (Select)

Warning tone

The Warning tone informs you of low battery.

Main menu > Settings > Sounds & alerts > Warning tone

1. Select On or Off

Startup tone/Shutdown tone

The Startup tone sounds after switching on the phone, while the Shutdown tone sounds after switching off the phone.

Main menu > Settings > Sounds & alerts > Startup tone or Shutdown tone

1. Select On or Off

Vibration alert

The phone does not ring but vibrates to inform you of incoming calls and messages if you switch on vibration alert.

Main menu > Settings > Sounds & alerts > Vibration alert

1. Select On or Off

VS7_CIMA_AAA.book Page 107 Monday, August 29, 2005 10:00 AM

Settings

Calls

Call diverts

Voice, fax and data calls can be diverted to different numbers in different situations. For example, you can divert calls to your voice mailbox when you are out of reach.

Voice calls can be diverted in the following situations:

All calls Divert all incoming voice calls.
When busy	Divert incoming voice calls when a call is in progress.
When no reply Divert incoming voice calls if call is not answered.
When unreachable	Divert incoming voice calls when phone is not in a coverage area.

Main menu > Settings > Calls > Call diverts

1. Select Divert voice, Divert all fax or Divert all data (If Divert all fax or Divert all data is selected, go to step 3.)
2. Select the divert situation
3. Select Direct input or From contacts
4. If Direct input is selected: Enter the phone number to divert to → [●]

If From contacts is selected: Highlight the required contact → [☐] (Select) → If the card has several phone numbers stored,

[▲/▼] to scroll to the required number → [◎]/[□] (Select)

When the setting is enabled, the divert icon ( ) is displayed on the standby screen.

Pure geometric lines and crosshair symbols without any text or labels

107

VS7_CI WA_AAA.book Page 108 Monday, August 29, 2005 10:00 AM

Settings

To cancel each setting/check each status:

Main menu > Settings > Calls > Call diverts

1. Select Divert voice → [▲/▼] to scroll to the required divert situation

OR

[▲/▼] to scroll to Divert all fax or Divert all data

1. [☐] (Options) → Select Off or Status

To cancel all the settings/check all the statuses:

Main menu > Settings > Calls > Call diverts

1. Select Cancel all or Status all

Call waiting

If Call waiting is switched on, another call can be received while on a call and multiple calls can be made.

Main menu > Settings > Calls > Call waiting

The current status is displayed.

To accept the current status:

1. [●]

To change the setting:

1. [☐] (Options) → Select Activate or Deactivate The current status is displayed.

2. [●] to accept the current status

Any key answer

Calls can be answered by pressing any key except [☐], [●], [□] (Cancel), [□], [▲] and [▼].

When Any key answer is off, calls can only be answered by pressing [ ] or [ ] (Accept).

Main menu > Settings > Calls > Any key answer

1. Select On or Off

108

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_WA_AAA.book Page 109 Monday, August 29, 2005 10:00 AM Settings Active flip You can answer a call by opening the phone and end a call by closing the phone. When Active flip is off, you need to press the appropriate key to answer or end the call. When you are using a headset, you can continue your conversation even while the phone is closed. Main menu > Settings > Calls > Active flip 1. Select On or Off Auto answer When you use the optional Personal Handsfree earpiece, you can answer a call automatically. Main menu > Settings > Calls > Auto answer 1. Select On or Off Send my number You can choose whether or not to show your name and/or number to another phone. You can comply with your network's own setting if you select Network set. Main menu > Settings > Calls > Send my number 1. Select Network set, On or Off Call duration You can check the duration of incoming or outgoing calls. Main menu > Settings > Calls > Call duration 1. Select Incoming or Outgoing 2. To reset the counter, [●]/[□] (Reset) 3. "Reset?" → [●]/[□] (Yes)

VS7_CI WA_AAA.book Page 110 Monday, August 29, 2005 10:00 AM

Settings

Service charge

Cost left

You can check the remaining call units available if Max cost is set.

Main menu > Settings > Calls > Service charge > Cost left

Call meter

You can check the total costs of calls made.

Main menu > Settings > Calls > Service charge > Call meter

To reset the counter:

1. [●]/[□] (Reset) → "Reset total cost?" → [●]/[□] (Yes)
2. Enter the PIN2 code → [◎]/[□] (Ok)

Price/unit

You can set your personal rate of the cost that the service provider charges for one unit of call time.

Main menu > Settings > Calls > Service charge > Price/unit

1. [●]/[□] (Edit) → Enter the PIN2 code → [●]/[□] (Ok)
2. Enter the currency → [◎]
3. Enter the value → [●]/[□] (Ok)
4. [●]/[□] (Edit) → Enter the PIN2 code → [●]/[□] (Ok)
5. Enter the currency → [◎]
6. Enter the value → [●]/[□] (Ok)

To enter a decimal point: [#]

Max cost

You can set the maximum cost of calls allowed.

Main menu > Settings > Calls > Service charge > Max cost

1. [◎] → Enter the PIN2 code → [◎]/[□] (Ok)
2. Enter the credit limit → [◎]/[□] (Ok)
3. [◎] → Enter the PIN2 code → [◎]/[□] (Ok)
4. Enter the credit limit → [◎]/[□] (Ok)

To disable the Max cost:

In step 1, [☐] (Options) → Select Disable → [●]/[☐] (Yes) → Enter the PIN 2 code → [●]/[☐] (Ok)

110

Main menu > Settings > Calls > Service charge > Price/unit

To enter a decimal point: [#]

Max cost

You can set the maximum cost of calls allowed.

Main menu > Settings > Calls > Service charge > Max cost

To disable the Max cost:

In step 1, [☐] (Options) → Select Disable → [●]/[☐] (Yes) → Enter the PIN 2 code → [●]/[☐] (Ok)

110

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA.book Page 111 Monday, August 29, 2005 10:00 AM Settings Connectivity Infrared You can transfer data between your phone and other infrared enabled devices using an infrared wavelength connection. You can send Contacts card, calendar events, and pictures/sound clips/video clips stored in My Media. Note: Some downloaded files may be protected under copyright laws. These files should not be sent. Preparing for infrared connection Place your phone and the other device within the effective range of 20 cm. • Verify there are no obstructions between the two devices. Nearby activated infrared devices may cause interference. • Ensure that the infrared ports of the devices point at each other. • On the receiving device, activate the Infrared port. • If the other device is a computer, you need to set up infrared connection on the computer. (Example: For Windows XP, Start > Control Panel > Printers and Other Hardware > Wireless Link > Infrared tab > All others to send files to your computer using infrared communications) Caution: Though invisible to the eye, do not point the infrared beam at anyone's eyes. 111

VS7_CI WA_AAA.book Page 112 Monday, August 29, 2005 10:00 AM

Settings

Sending data via infrared

Prepare for infrared connection as described in "Preparing for infrared connection" on page 111.

1. Select the item you wish to send

2. [☐] (Options) → Select Send via

3. Select Infrared

The phone automatically begins infrared connection. A confirmation message is displayed when complete

Receiving data via infrared

Prepare for infrared connection as described in "Preparing for infrared connection" on page 111.

To activate infrared:

You need to activate the infrared function before receiving data. When infrared is set to on, the infrared icon ( ) appears on the display. If infrared is unused for 10 minutes or the phone is once switched off, it is automatically set to off and ( ) disappears.

Main menu > Settings > Connectivity > Infrared

1. Select On

To receive data via infrared:

When ( ) is displayed, sender can begin transfer of data.

1. When transfer is started, "Would you like to receive data?" → [●]/[□] (Yes) to receive the data

2. When transfer is complete, "Data received" → Return to standby screen → Received file name is displayed → [●]/[□] (Save) to save the data

The received data is stored in respective menus or files.

112

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CIMA_AAA.book Page 113 Monday, August 29, 2005 10:00 AM

Settings

Bluetooth® wireless technology

You can send and receive pictures, video and sound clips, etc. between Bluetooth devices such as mobile phones and computers. Use a Bluetooth headset or handsfree to talk wirelessly on your phone whilst the phone is in your pocket or purse.

Note: Although Bluetooth devices can connect within a 10 metre range, walls or other nearby barriers may cause interference.

Check with local authorities before using Bluetooth wireless technology as some countries may restrict the use of Bluetooth devices.

Keeping Bluetooth setting "On" consumes battery power more rapidly. To conserve battery power, select Off in Bluetooth setting when not in use (see page 113).

Setting up Bluetooth

You must first set up Bluetooth connections before using it for the first time. Thereafter, go to Settings to switch Bluetooth setting on and change your phone's visibility to other Bluetooth devices.

Main menu > Settings > Connectivity > Bluetooth > Settings 1. Select the required setting

Bluetooth on/off	Select On or Off.
Phone name	Use the default name or enter a name for your phone that other devices will see when they search for your phone.
Visibility*1	Choose Show phone to allow other Bluetooth devices to find your phone when searching, or select Hide phone to keep other Bluetooth devices from finding it during a search.

*1 To conserve battery life and avoid unwanted connections, "Show phone" in Visibility is of 5 minutes duration.

113

Pure geometric lines and crosshair symbols without any text or labels

VS7_CI WA_AAA.book Page 114 Monday, August 29, 2005 10:00 AM

Settings

Pairing with other devices

Before you can transfer information between two Bluetooth devices, they need to find each other and set up a connection. This is referred to as "pairing".

Ensure that the device in which you want to pair is switched on, and its Bluetooth setting is activated.

If the other device is a computer, you need to set up Bluetooth connection on the computer. (Example: For Windows XP, Start > Control Panel > Printers and Other Hardware > Wireless Link > Bluetooth tab > All others to send files to your computer using Bluetooth communications)

Main menu > Settings > Connectivity > Bluetooth > Paired devices

1. "No paired device add new device?" [☐] (Ok) The phone begins searching for devices and notifies you when it finds the other device

2. [▲/▼] to scroll to the required device

3. [☐] (Options) → Select Pair device

4. Enter the Pass key, if requested → [☐] (Ok)

You may need to enter Pass keys on the both sides of connecting devices

1. "Make device trusted?" → [☐] (Yes)

Note: The Pass key may be between 1 and 16 digits except where stated in the connecting device (normally headset) instructions when a 4 digit Pass key is specified.

Making the device "trusted" on step 5 can cause future connections to occur without notice. This may enable trusted devices to access your Contacts list and data folders without prompting. You are advised to "trust" only your own devices to avoid being prompted each time a call is received.

114

VS7_CI_MA_AAA.book Page 115 Monday, August 29, 2005 10:00 AM Settings Setting up the Bluetooth headset (Optional Accessory) The Bluetooth headset gives you wireless, handsfree operation. Before you can use the headset you need to pair the headset and the phone. After switching Bluetooth on, the Bluetooth icon (☐) will appear in the Main display screen. You now need to set up the headset. 1. Switch on the headset See the headset instructions. 2. Make the headset discoverable See the headset instructions. 3. On the phone, follow the instructions "Pairing with other devices" on page 114 4. To receive calls on a Bluetooth headset: Highlight the device name → [☐] (Options) → Select Connect OR Press the button on the headset ( ☐ ) appears on the screen when the headset is connected. See the headset instructions. Once the headset and phone are connected, you can answer calls using the headset. If the headset is on when you receive a call, the headset rings. For information on how to answer a call with the headset, see the headset instructions. To make a call with the headset, also see the headset instructions.

VS7_CI WA_AAA.book Page 116 Monday, August 29, 2005 10:00 AM

Settings

Sending/receiving data via Bluetooth

You can send and receive Contacts cards as business cards, Calendar events, pictures, video and sound clips via Bluetooth.

Note: The phone may not allow you to copy, modify, transfer or forward some copyrighted images, ringtones or other contents.

To send data via Bluetooth:

1. Ensure that the receiving device is made visible
2. Highlight the item you wish to send
3. [☐] (Options) → Select Send via
4. Select Bluetooth
   If the phone has already searched for devices, it shows the list of discovered devices. If the phone has not yet searched, the phone automatically searches for Bluetooth devices nearby, and displays the list of discovered devices. [☐] (Cancel) to stop search.
5. [▲/▼] to scroll to the intended device in the list → [☐] (Options)
6. Select Select
   Connecting message appears, then when other device accepts, a confirmation message displays when transfer is complete. If the other device cannot receive data, an error message appears

To receive data via Bluetooth:

1. Ensure that your phone's Bluetooth is on and made visible
2. When transfer starts, "Would you like to receive data?" → [●]/[□] (Yes) to receive the data
3. When transfer is complete, "Data received" → [●]/[□] (Save) to save the data
   The received data is stored in respective menus or files.

Note: Confirmation is required first if the paired device is not set as authorised.

116

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 117 Monday, August 29, 2005 10:00 AM

Settings

Managing paired devices

Main menu > Settings > Connectivity > Bluetooth > Paired devices

1. [▲/▼] to scroll to the required device → [□] (Options)
2. Select the required option

Add new device	View the list of discovered devices. To search for other devices, press [☐] (Options) → select Search while viewing the Discovered devices list.
Make trust/ Make untrust	Make the required device a trusted/untrusted device.
Connect/ Disconnect	Connect/disconnect to the phone, headset or handsfree.
Rename	Change name of paired device to an easily recognised name.
Delete Delete the paired	device from your list.

Icons of paired devices

audio phone

computer miscellaneous

117

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI WA_AAA.book Page 118 Monday, August 29, 2005 10:00 AM

Settings

Synchronisation

You can synchronise your Contacts list with your network server. You may need to do this if you store your Contacts list on the network server, and you want them all to be the same. You can just send changes or send all your records to the network server. This function uses SyncML/OMA Standard technology.

Before you can synchronise your Contacts list, you need to set up a server profile and select a WAP profile.

Creating/editing a server profile

You can create up to 2 server profiles.

Main menu > Settings > Connectivity > Synchronisation

1. [☐] (Options) → Select Sync. settings
2. [▲/▼] to scroll to the required profile
3. [☐] (Options) → Select Edit
4. Select the required setting → [●]
5. Enter information → [◎]
6. [☐] (Save)

Profile name Enter the	profile name.
Server name Enter the	web address of the server.
Server database Enter	the database name of the server.
Server user ID Enter your user name for the server.
Server password Enter	the password.

Selecting a server profile

Main menu > Settings > Connectivity > Synchronisation

1. Repeat steps 1 and 2 in "Creating/editing a server profile" on page 118
2. [☐] (Options) → Select Set

118

VS7_CI_WA_AAA.book Page 119 Monday, August 29, 2005 10:00 AM Settings Selecting a WAP profile Main menu > Settings > Connectivity > Synchronisation 1. [☐] (Options) → Select WAP profiles 2. Select the required profile Synchronising To send only changes to the network server: Main menu > Settings > Connectivity > Synchronisation > Modified contacts The phone confirms completion. To send all your records to the network server: Main menu > Settings > Connectivity > Synchronisation > All contacts The phone confirms completion. Note: If you are synchronising your Contacts list for the first time, or you need to make a large number of changes, then the synchronisation may take several minutes or more. You cannot synchronise the following fields: Birthday, Postal address, Ringtone, Message alert, Illumination, Picture and Group. There may be other fields that cannot be synchronised depending on the server. Server or database authentication While synchronising, you may be asked for server or database authentication. Enter the correct information and retry the synchronisation connection. In authentication screen: 1. [▲/▼] to scroll to the required setting → [●] 2. Enter the correct information → [●] 3. To retry the synchronisation connection, [☐] (Options) → Select Ok 119

VS7_CI WA_AAA.book Page 120 Monday, August 29, 2005 10:00 AM

Settings

Cell Broadcast

You can receive messages on specified topics, such as weather information and traffic news, regularly from your service provider. You can specify the "topic(s)" of information and the language in which you wish to receive the information.

Activating Cell Broadcast

Main menu > Settings > Connectivity > Cell Broadcast > On/Off

1. Select On or Off

Reading a received message

Main menu > Settings > Connectivity > Cell Broadcast > Read messages

1. [▲/▼] to scroll to the required message → [◎]

Topics and languages

You can add, edit and delete topics and languages.

Main menu > Settings > Connectivity > Cell Broadcast > Options > Topic or Language

1. [▲/▼] to scroll to the required topic or language
2. [☐] (Options) → Select Add, Edit or Delete

120

VS7_CI_WA_AAA.book Page 121 Monday, August 29, 2005 10:00 AM Settings GSM network Selecting a network manually You can manually select a network that is available in your current location. Main menu > Settings > Connectivity > GSM network > New search 1. Select the required network Network list The network list is used when the Search mode is set to Automatic. The order in the list indicates the search priority. You can edit the list as required. Main menu > Settings > Connectivity > GSM network > Select network 1. [▲/▼] to scroll to the required network 2. [□] (Options) → Select Add, Insert, Edit or Delete Add stores a new network at the end of the list, while Insert stores a new network above the selected network. Search mode You can set your phone to automatically or manually search for the other networks when roaming. When Automatic is selected, the phone automatically selects a new network in order to maintain optimum network availability. When Manual is selected, available networks are shown on the standby screen. Main menu > Settings > Connectivity > GSM network > Search mode 1. Select Automatic or Manual Note: National regulations may not permit roaming in your home region. 121

VS7_CI WA_AAA.book Page 122 Monday, August 29, 2005 10:00 AM

Settings

Data connections

GPRS settings and CSD settings are stored in the Data connections menu.

Data can be sent/received using GPRS or CSD technology.

Editing GPRS/CSD settings

Main menu > Settings > Connectivity > Data connections

1. [▲/▼] to scroll to the required setting you want to edit or to add new setting → [◎]
2. If is selected, select GPRS or CSD
3. Edit the required field → [☐] (Save)

Deleting GPRS/CSD settings

Main menu > Settings > Connectivity > Data connections

1. [▲/▼] to scroll to the required setting you want to delete
2. [☐] (Options) → Select Delete
3. [●]/[□] (Yes)

Note: If your service provider has protected some of your settings, you may not be able to modify them.

USB

You can backup data stored on your phone to a PC using the optional USB Cable. Install the Handset Manager software from the CD-ROM before using the USB Cable. For further information, visit http://panasonic.co.jp/pmc/products/en/support/index.html

VS7_CI_MA_AAA.book Page 123 Monday, August 29, 2005 10:00 AM Settings

Security

PIN code

The PIN protects your SIM card against unauthorised use. If you enable the PIN, you will be prompted to enter the PIN code every time the phone is switched on.

The PIN2 controls security for certain service provider services such as Fixed dial and Service charge.

Note: If PIN is entered incorrectly 3 times the phone will be locked, and you will need to enter the PUK code. If PIN2 is entered incorrectly 3 times SIM card will be locked, and you will need to enter PUK2 code. If the PUK code is entered incorrectly 10 times, the phone will cease to operate permanently. All information stored in the SIM card will be lost and the SIM card will need to be replaced. Contact your service provider for further information.

to be replaced. Contact your service provider for further information. Enabling/Disabling PIN entry Main menu > Settings > Security > PIN entry > Enable/disable 1. Select Enable or Disable

Enabling/Disabling PIN entry

Main menu > Settings > Security > PIN entry > Enable/disable

1. Select Enable or Disable

2. Enter the PIN code (4-8 digits) → [●]/[□] (Ok)

Changing PIN

You can change the PIN when PIN entry is set to Enable.

Main menu > Settings > Security > PIN entry > Change PIN

1. Enter the current code → [◎]/[□] (Ok)

2. Enter the new code → [●]/[□] (Ok)

3. Enter the new code again → [◎]/[□] (Ok)

Pure technical diagram with geometric symbols and crosshair lines, no readable text or labels

VS7_CI WA_AAA.book Page 124 Monday, August 29, 2005 10:00 AM

Settings

Changing PIN2

Main menu > Settings > Security > Change PIN2

1. Enter the current code → [●]/[□] (Ok)
2. Enter the new code → [●]/[□] (Ok)
3. Enter the new code again → [◎]/[□] (Ok)

Fixed dial

When Fixed dial is enabled, only the phone numbers stored in SIM Contacts can be dialled. Any manually dialled phone numbers must match the phone numbers in SIM Contacts.

To store, edit or delete phone numbers in SIM Contacts, you need to enter your PIN2 code.

Main menu > Settings > Security > Fixed dial

1. Select Enable or Disable
2. Enter the PIN2 code (4-8 digits) → [●]/[□] (Ok)

Call barring

Call barring restricts certain calls, using a password supplied by your service provider.

The following Call bar settings are available:

Bar outgoing calls All	outgoing calls are barred.
Bar foreign calls International	outgoing calls are barred.
Bar foreign calls except Home	International outgoing calls except to your home country are barred.
Bar incoming calls All	incoming calls are barred.
Bar incoming if abroad	Roaming is barred if abroad.

124

Pure geometric lines and symbols without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI WA_AAA. book Page 125 Monday, August 29, 2005 10:00 AM Settings Call barring setting Main menu > Settings > Security > Call barring 1. Select the required setting 2. Enter the password → [●]/[□] (Ok) To cancel setting/check status: Main menu > Settings > Security > Call barring 1. [▲/▼] to scroll to the required setting 2. [□] (Options) → Select Off or Status 3. If Off is selected, enter the password → [●]/[□] (Ok) To cancel all the settings/check all the statuses: Main menu > Settings > Security > Call barring 1. Select Cancel all or Status all 2. If Cancel all is selected, enter the password → [●]/[□] (Ok) Changing the password Main menu > Settings > Security > Call barring > Password 1. Enter the current password → [●]/[□] (Ok) 2. Enter a new password → [●]/[□] (Ok) 3. Enter the new password again → [●]/[□] (Ok)

VS7_CI_WA_AAA.book Page 126 Monday, August 29, 2005 10:00 AM Tools Tools menu structure SIM Tool Kit*1 ........ 127 Alarms........ 127 Sound recorder ........ 129 Calculator ........ 130 +1 Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32. 126

VS7_CIMA_AAA.book Page 127 Monday, August 29, 2005 10:00 AM

Tools

SIM Tool Kit

The SIM Tool Kit allows the applications existing on the SIM card to interact and operate with your phone. These applications, stored in the SIM memory, are Value Added Services. Your service provider can configure your SIM card with the applications that can be seen on your phone as additional menu items.

For further information, contact your service provider.

Alarms

You can set up to 5 different alarms.

Setting the alarm

Main menu > Tools > Alarms

1. [▲/▼] to scroll to the required setting → [◎]
2. [▲/▼] to scroll to the required field → [◎]
3. Enter information → [◎]
4. [☐] (Save) to store the entry The alarm icon (☐) appears on the standby screen.

16:55 Alarm1 Off 00:00 Once Volume 2 Appointment Save Back

	Turn on/off	Select On or Off.
	Time Enter the time.
	Repeat type	Select Once, Everyday or Weekly for alarm repeat type.
	Alarm tone	Select alarm tone fromor My Media. To download an alarm tone, select Download*1.

127

VS7_CIMA_AAA.book Page 127 Monday, August 29, 2005 10:00 AM

VS7_CI WA_AAA.book Page 128 Monday, August 29, 2005 10:00 AM

Tools

	Alarm volume	Adjust alarm volume (Volume 0-4 or Step tone).
	Stored pictures	Select the required picture. The picture appears on the screen when the alarm sounds.
	Illumination	Select the required illumination pattern or Off.

.1

Note: The alarm sounds at the time you set even if the phone is off.

Turning the alarm on/off

Main menu > Tools > Alarms

1. [▲/▼] to scroll to the required setting
2. [☐] (Options) → Select Turn on or Turn off

Stopping the alarm

When the alarm sounds, you can activate the snooze function to repeat the alarm 5 times at 5 minute intervals.

1. Press any key except 0→ "Stop snooze?"
2. To stop the snooze function: [●]/[□] (Turn off) To activate the snooze function: [□] (Snooze)

Shortcut: Stopping the alarm by pressing [0×] activates the snooze function and returns to standby mode.

128

VS7_CI_MA_AAA.book Page 129 Monday, August 29, 2005 10:00 AM Tools

Sound recorder

You can record sounds, your voice or phone conversation. The recorded sound clips (except for the phone conversation) can be attached to MMS messages.

Recording new sound clips

Main menu > Tools > Sound recorder

1. [●]/[□] (Start) to start recording The max. recording time is 3 minutes.
2. [●]/[□] (Stop) to stop recording
3. [●] to play back if required [▲/▼] to adjust the volume
4. [☐] (Options) → Select Save The sound clip is saved to My Media. If you select Send as MMS, you can access MMS menu.

Note: When you save the recorded sound clip and receive storage full message, press [☐]/[☐] (Yes) to save the recorded sound clip by deleting unwanted files in My Media.

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

VS7_CI WA_AAA.book Page 130 Monday, August 29, 2005 10:00 AM

Tools

Calculator

You can use the 4-function calculator (addition, subtraction, multiplication and division) to make simple arithmetic operations.

Main menu > Tools > Calculator

1. Enter a number

To enter a decimal point: [☐] To enter a negative sign: [#] To erase digits: [☐] (Clear)

1. [▲/▼/◄/►] to select the arithmetic operation ([▲] to multiply, [►] to add, [▼] to divide, [◄] to subtract)

2. Enter a number

3. [●] (=) to calculate

16:56 Calculator 25 Clear

130

VS7_CIMA_AAA.book Page 131 Monday, August 29, 2005 10:00 AM

Calendar

Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32.

Browsing Calendar

You can view the calendar by month, by week or by day.

Browsing operation

Main menu > Calendar

To move around the calendar: [▲/▼/◄/►]

To change the view format (Monthly view/Weekly view): see View format in "Options"

To view the details of the selected day (Daily view): [●]

Options

From Monthly view or Weekly view, the following options are available by pressing [☐] (Options).

New entry See "Creating Calendar events" on page 133.
View format	Change calendar view format, Monthly or Weekly.
Go to date Go to specified date.
Send via	Send calendar events via infrared or Bluetooth. See "Infrared" on page 111 or "Bluetooth® wireless technology" on page 113.
Delete See "Deleting multiple events" on page 135.
Memory status Show used memory for calendar.
Settings See "Calendar settings" on page 136.

Pure geometric lines and crosshair symbols without any text or labels

131

VS7_CIMA_AAA.book Page 132 Monday, August 29, 2005 10:00 AM

Calendar

Calendar view

To change the calendar view format, see "Browsing operation" on page 131.

Monthly view

Current date Red frame
Selected date	Coloured - Also displayed in the upper left of the calendar
Week number of selected date	Displayed in the upper right of the calendar
Scheduled note	Coloured - Also displayed in the schedule list with category icon, start time and note (up to 3 events)

00:05	Tel	08/12/05						wk49
		Mo	Tu	We	Th	Fr	Sa	Su
					1	2	3	4
5	6	7	8	9	10	11
12	13	14	15	16	17	18
19	20	21	22	23	24	25
26	27	28	29	30	31

Weekly view

Current date Red line under week
Current week number	Displayed in the upper right of the calendar
Selected date	The day of the week is coloured- Also displayed in the upper left of the calendar
Scheduled note	The scheduled time zone is coloured

Schedule list

06/12/05 wk48 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 Options Back

132

Pure electrical circuit lines without any symbols

VS7_CIMA_AAA.book Page 133 Monday, August 29, 2005 10:00 AM

Calendar

Daily view

Current date Displayed in the upper left
Current week number	Displayed in the upper right
Scheduled note	Displayed with category icon, start time and note

08/07 08/12/05 wk49 14:00 Sales meeting 19:00 Jo's Birthday Par Options Back

Creating Calendar events

Main menu > Calendar

1. Select the day of the event you wish to store
2. [☐] (Options) → Select New entry
3. [▲/▼] to scroll to the required field → [◎]
4. Enter information → [◎] To enter characters, see "Text entry" on page 42.
5. [☐] (Save) to store the event

00:09 New entry 11:19 07/12/05 11:19 07/12/05 Once On 0 min. Appointment Save Back

	Note Enter note (subject).
	Start date/time	Enter the start time → [▼] → Enter the start date (Present time/date is already entered.)
	End date/time	Enter the end time → [▼] → Enter the end date (Present time/date is already entered.)

133

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 134 Monday, August 29, 2005 10:00 AM

Calendar

	Repeat type Select an event repeat cycle.
	Reminder	Set the reminder to sound at the start time (0 min.) or certain minutes ahead of the start time.Select Off, 0 mln., or 5, 10, 15, 30, 60, 90 min. ahead.When the reminder tone sounds, press [☐](View) to check the schedule or press [☐](Stop) to return to standby mode.
	Location Enter location.
	Category Select category.
	Calendar tone	Select a reminder tone fromorMy Media. To download a tone, select Download*1.
	Calendar volume	Adjust the reminder volume (Volume 0-4 or Step tone).
	Illumination	Select a reminder illumination pattern or Off.

*1

Note: The reminder sounds at the scheduled time even if the phone is off. The calendar highlights only the start days of scheduled events if the events are scheduled for over days. For downloading contents, visit http://box.panasonic.com/

134

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CI_MA_AAA.book Page 135 Monday, August 29, 2005 10:00 AM Calendar

Managing Calendar events

Editing events

Main menu > Calendar

1. From Daily view, [▲/▼] to scroll to the required event
2. [☐] (Options) → Select Edit
3. Edit the required field → [☐] (Save) to overwrite

Deleting events

Deleting an event

Main menu > Calendar

1. From Daily view, [▲/▼] to scroll to the required event
2. [☐] (Options) → Select Delete
3. [●]/[□] (Yes)

Deleting multiple events

To delete the events of the selected day or the past events:

Main menu > Calendar

1. From Monthly view or Weekly view, [▲/▼/◄/►] to scroll to the required date
2. [☐] (Options) → Select Delete
3. Select Day or Past
4. [●]/[□] (Yes)

To delete all events:

Main menu > Calendar

1. From Monthly view or Weekly view, [☐] (Options) → Select Delete
2. Select All
3. [☐] (Yes)

3. (Yes) 135

VS7_CI WA_AAA.book Page 136 Monday, August 29, 2005 10:00 AM

Calendar

Calendar settings

Selecting the starting day of the week

Main menu > Calendar

1. [☐] (Options) → Select Settings
2. Select Week starts on
3. Select the required day of the week

Setting holidays

You can set holidays to be indicated in red.

Main menu > Calendar

1. [☐] (Options) → Select Settings
2. Select Holiday set
3. [▲/▼] to scroll to the required day of the week → [●] Repeat this step to select other days of the week.
4. [☐] (Ok)

VS7_CIMA_AAA.book Page 137 Monday, August 29, 2005 10:00 AM

My Media

My Media menu structure

Pictures...... 138

Stored pictures 138

Download*1 142

Take new picture 142

Sounds...... 142

Stored sounds 143

Download ^*1 144

Record new sound 145

Videos 145

Stored videos 145

Download*1 146

Record new video 146

Games 146

Stored applications .....146

Download ^*1 147

Text templates .....147

Memory status .....148

Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32.

Pure geometric lines and crosshair symbols without any text or labels

137

VS7_CI WA_AAA.book Page 138 Monday, August 29, 2005 10:00 AM

My Media

Pictures

Pictures taken by Camera, images downloaded from a WAP site and received via infrared or Bluetooth are stored in the Pictures folder.

Note: To use a file downloaded or indicated by the icon ( ), you may need to purchase the rights. For further information, contact your service provider.

Viewing pictures

Main menu > My Media > Pictures > Stored pictures

1. [▲/▼/◄/►] to scroll to the required thumbnail → [●] You can view the actual size of the selected picture by pressing [●] if the picture is larger than the display. To continue onto step 2, press [□] (Back).
2. [▶]/[▼] to view the next picture or [◀]/[▲] to view the previous picture

Note: The file size of highlighted picture is displayed under the picture title, together with the date and time the image was stored. A picture of less than 1 kB is displayed as 1 kB.

Managing files

To make a new folder:

1. In the Stored pictures folder, [☐] (Options) → Select Manage files
2. Select New folder
3. Enter folder name → [◎]

To move the selected picture to another folder:

1. When the required thumbnail is highlighted, [☐] (Options) → Select Manage files

2. Select Move to folder

3. Select the required folder

138

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VS7_CIMA_AAA.book Page 139 Monday, August 29, 2005 10:00 AM

My Media

Options

When viewing the picture list, the following options are available by pressing [☐] (Options).

Send as MMS	Attach the selected picture to an MMS message. See "Creating an MMS message" on page 64.
Use as	Use the selected picture as Wallpaper, External wallpaper or Contacts picture. See "Using pictures" on page 140.
Delete Delete the selected picture or folder.
Delete all	Delete all the pictures in the folder or all the folders.
Activate Purchase your rights to view the selected picture.
Rename Rename the selected picture or folder.
Send via	Send the selected picture via infrared or Bluetooth. See "Infrared" on page 111 or "Bluetooth® wireless technology" on page 113.
Resize Resize the selected picture.
Edit	Edit the selected picture. See "Editing pictures" on page 140.
Change view	Change the picture list to List view or Grid view.
Manage files	Make a new folder or move the selected picture to another folder. See "Managing files" on page 138.
Details Show details of the selected picture.

Note: Sending or editing of a forward locked picture indicated by the icon (→× restricted.

139

VS7_CI WA_AAA.book Page 140 Monday, August 29, 2005 10:00 AM

My Media

Using pictures

You can use the stored pictures as wallpapers, external wallpapers or Contacts pictures.

Main menu > My Media > Pictures > Stored pictures

1. [▲/▼/◄/►] to scroll to the required picture
2. [☐] (Options) → Select Use as
3. Select Wallpaper, External wallpaper or Contacts picture (If Contacts picture is selected, go to the next step.)
4. Highlight the required contact → [☐] (Select)
5. [☐] (Save)

Editing pictures

Adding frame

You can add a frame to your picture.

Main menu > My Media > Pictures > Stored pictures

1. When the required thumbnail is highlighted or the required picture is displayed on the screen, [☐] (Options) → Select Edit
2. Select Add frame
3. Select the required frame The picture with the selected frame is displayed. You can change the frame by pressing [◀/▶].
4. [●]/[□] (Save)
5. Enter the file name → [◎]

Note: Adding a frame is available only when the size of the picture to be edited is Medium 320x240, Small 160x120 or Main display 240x320.

140

140

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA.book Page 141 Monday, August 29, 2005 10:00 AM My Media Trimming You can trim your pictures. Main menu > My Media > Pictures > Stored pictures 1. When the required thumbnail is highlighted or the required picture is displayed on the screen, [☐] (Options) → Select Edit 2. Select Trimming 3. Select the required trimming size 4. If Free size is selected: [▲/▼/◄/►] to determine the starting point → [●]/[☐] (Start) → [▲/▼/◄/►] to determine the ending point → [●]/[☐] (Ok) If a size other than Free size is selected: [▲/▼/◄/►] to move the trimming box → [●]/[☐] (Start) 5. [●]/[☐] (Save) 6. Enter the file name → [●] Clearing shadow You can make dark pictures clearer. Main menu > My Media > Pictures > Stored pictures 1. When the required thumbnail is highlighted or the required picture is displayed on the screen, [☐] (Options) → Select Edit 2. Select Clear shadow 3. [●]/[☐] (Save) 4. Enter the file name → [●]

VS7_CI_MA_AAA.book Page 142 Monday, August 29, 2005 10:00 AM My Media Downloading picture files Main menu > My Media > Pictures > Download The download site is displayed. Note: Panasonic is not responsible for the performance of downloaded contents or possible corruption of phone software. For downloading contents, visit http://box.panasonic.com/ Taking a new picture Main menu > My Media > Pictures > Take new picture The phone switches to Picture mode. See "Taking a picture" on page 78. Sounds Sound clips recorded by Sound recorder, downloaded from a WAP site and received via infrared or Bluetooth are stored in the Sounds folder. Note: To use a file downloaded or indicated by the icon (→), you may need to purchase the rights. For further information, contact your service provider. 142

VS7_CIMA_AAA.book Page 143 Monday, August 29, 2005 10:00 AM

My Media

Playing sound clips

Main menu > My Media > Sounds > Stored sounds

1. [▲/▼] to scroll to the required sound file → [◎]

[▲/▼] to adjust the volume.

1. To stop: [●]

To restart: [☐] (Restart)

Note: The file size of highlighted sound is displayed at the top of the list, together with the date and time the sound file was stored. A sound file of less than 1 kB is displayed as 1 kB.

Managing files

You can make new folders or move the selected sound files to another folder. See "Managing files" on page 138.

Options

In the sound list, the following options are available by pressing [☐] (Options).

Send as MMS	Attach the selected sound clip to an MMS message. See “Creating an MMS message” on page 64.
Use as	Use the selected sound clip as Ringtone,Message alert or Contacts ringtone. See “Using sound clips” on page 144.
Play in sequence	Select Looped or Random to play all the sound clips in the selected folder in a loop or at random.
Delete Delete the selected sound file or folder.
Delete all	Delete all the sound files in the folder or all the folders.
Activate	Purchase your rights to play the selected sound file.
Rename Rename the selected sound file or folder.

143

VS7_CI WA_AAA.book Page 144 Monday, August 29, 2005 10:00 AM

My Media

Send via	Send the selected sound file via infrared or Bluetooth. See "Infrared" on page 111 or "Bluetooth® wireless technology" on page 113.
Manage files	Make a new folder or move the selected sound file to another folder. See "Managing files" on page 138.
Details Show details of	the selected sound file.

Note: Sending or editing of a forward locked sound indicated by the icon (→) restricted.

Using sound clips

You can use the stored sound clips as ringtones, Message alerts or Contacts ringtones.

Main menu > My Media > Sounds > Stored sounds

1. [▲/▼] to scroll to the required sound clip
2. [☐] (Options) → Select Use as
3. Select Ringtone, Message alert or Contacts ringtone (If Contacts ringtone is selected, go to the next step.)
4. Highlight the required contact → [☐] (Select)
5. Select Ringtone () or Message alert ()
6. [☐] (Save)

Downloading sound clips

Main menu > My Media > Sounds > Download

The download site is displayed.

Note: Panasonic is not responsible for the performance of downloaded contents or possible corruption of phone software.

For downloading contents, visit http://box.panasonic.com/

144

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA.book Page 145 Monday, August 29, 2005 10:00 AM My Media Recording new sound clips Main menu > My Media > Sounds > Record new sound The phone switches to the Sound recorder mode. See "Sound recorder" on page 129. Videos Video clips recorded by Video recorder, downloaded from a WAP site and received via infrared or Bluetooth are stored in the Videos folder. Note: To use a file downloaded or indicated by the icon ( ) you may need to purchase the rights. For further information, contact your service provider. Playing video clips Main menu > My Media > Videos > Stored videos 1. [▲/▼] to scroll to the required video file → [◎] [▲/▼] to adjust the volume. 2. To stop: [◎] To restart: [□] (Restart) Note: The file size of highlighted video is displayed at the top of the list, together with the date and time the video file was stored. A video file of less than 1 kB is displayed as 1 kB. Managing files You can make new folders or move the selected video files to another folder. See "Managing files" on page 138. Options In the video list, the same options in the Stored sounds folder are available. See "Options" on page 143. Note that Use as option is not available for video files. 145

VS7_CI_MA_AAA.book Page 146 Monday, August 29, 2005 10:00 AM My Media Downloading video clips Main menu > My Media > Videos > Download The download site is displayed. Note: Panasonic is not responsible for the performance of downloaded contents or possible corruption of phone software. For downloading contents, visit http://box.panasonic.com/ Recording a new video Main menu > My Media > Videos > Record new video The phone switches to Video mode. See "Recording a video clip" on page 84. Games Preloaded games and downloaded games are stored in the Games folder. Note: To use a file downloaded or indicated by the icon (→), you may need to purchase the rights. For further information, contact your service provider. Playing games Main menu > My Media > Games > Stored applications 1. [▲/▼] to scroll to the required game → [●] For further details, see "Games" on page 150. 146

VS7_CIMA_AAA.book Page 147 Monday, August 29, 2005 10:00 AM

My Media

Downloading games

Main menu > My Media > Games > Download For further details, see "Download games" on page 152.

Note: Panasonic is not responsible for the performance of downloaded contents or possible corruption of phone software. For downloading contents, visit http://box.panasonic.com/

Text templates

You can use templates stored in the phone when creating a text message. You can also save frequently used text as templates.

Editing Text templates

Main menu > My Media > Text templates

1. [▲/▼] to scroll to the required template → [◎]
2. Edit the template → [◎]

Options

In the text templates list, the following options are available by pressing [☐] (Options).

New Create a new template.
Create message	Create an SMS or MMS message using the selected template.
Edit Edit the selected template.
Delete Delete the selected template.
Delete all Delete all the templates.
Details Show details of the selected template file.

147

VS7_CI_MA_AAA.book Page 148 Monday, August 29, 2005 10:00 AM My Media Memory status You can see how much data is stored in the individual folders in My Media. Main menu > My Media > Memory status Note: To decrease the amount of phone memory used, delete unwanted data or store data on your PC (see "USB" on page 122). 148

VS7_CI_MA_AAA.book Page 149 Monday, August 29, 2005 10:00 AM Games Games menu structure Games...... 150 Download*1...... 152 Settings...... 153 Sound volume...... 153 Backlight...... 153 Vibration...... 153 Reset...... 153 WAP profiles...... 153 Information...... 153 *1 Note: There are several ways to select items from menu lists. See "Menu selection method" on page 32.

Pure geometric diagram with crosshair and circular elements, no text or symbols present

VS7_CI WA_AAA.book Page 150 Monday, August 29, 2005 10:00 AM

Games

Games

Selecting games

Your phone has preinstalled Java ^TM applications. The downloaded Java ^TM applications are also listed here.

Main menu > Games > Games

1. [▲/▼] to scroll to the required application
2. [☐] (Options) → Select the required option

Run	Run the selected Java^TM application.
Permission	Select Network access, Messaging or Auto invocation, then select Always allowed, Ask first time, Ask every time or Not allowed.
Details	Show the application name, version, vendor, storage size, etc.
Delete	Delete the selected Java^TM application (except for the preinstalled applications).
Activate	Purchase your rights to run the selected Java^TM application.

Note: Your phone supports J2ME ^TM Java ^TM applications. Other types of Java ^TM applications cannot be installed. Bluetooth headset cannot be used for listening for sounds during the games.

150

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 151 Monday, August 29, 2005 10:00 AM

Games

SONIC THE HEDGEHOG

This is a mobile version of the high speed action classic, "SONIC THE HEDGEHOG", which originally debuted in 1991 on the Mega Drive (SEGA Genesis).

Save the animals from the evil scientific genius, Dr. Eggman, and stop him from taking over the world!

Your objective is to get Sonic to the end of the game in one piece! The game has 6 Zones, and each Zone is divided into 3 Acts. In Act 3, Dr. Eggman will arrive in his contraption. Beat him to clear the Zone.

Main menu > Games > Games > SONIC THE HEDGEHOG

Key operation:

Move/Dash right	Press [▶] or press [6] key.
Move/Dash left	Press [◀] or press [4] key.
Jump	Press [▲] or press [2] key.
Look Up	Press [◎] or press [5] key.
Crouch	Press [▼] or press [8] key.
Spin	Press [▼] or press [8] key (during dash).

Soccer

This game is a 3D soccer game. Play and win exhibition game with selected country.

Main menu > Games > Games > Soccer

Key operation:

Move/Dribble Press Navigation key.
Shoot Press [#] key.
Pass	Press [◎] or press [5] key with a ball.
Slide tackle	Press [◎] or press [5] key without a ball.

151

Pure geometric lines and crosshair symbols without any text or labels

VS7_CI WA_AAA.book Page 152 Monday, August 29, 2005 10:00 AM

Games

Suspending/Terminating the game

1. [0×]

2. Select Suspend or Terminate

When you select Suspend, Java™ icon (J) appears on the standby screen.

To resume the game:

Main menu > Games > Games

1. Select Resume

The Java ^TM application starts running.

Note: You can also suspend the Java ^TM application by closing the flip.

Download games

You can download games to your phone from WAP sites. For customer support of downloaded contents, visit the respective supplier's web sites.

Main menu > Games > Download

1. Select the required Java TM application
   When the downloading is over, "Would you like to run application?" appears.
2. To run the Java TM application: [●]/[□] (Ok)
   To exit: [∅]/[□] (Cancel)

Note: Panasonic is not responsible for the performance of downloaded contents or possible corruption of phone software.

For downloading contents, visit http://box.panasonic.com/

152

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 153 Monday, August 29, 2005 10:00 AM

Games

Settings

Main menu > Games > Settings

1. Select the required setting

Sound volume	Adjust the sound volume of Java^TM applications.
Backlight	Switch the backlight on in Application preference or System preference, or switch Off.
Vibration	Switch the vibration function for Java^TM applications On or Off.
Reset	Delete all the downloaded Java^TM applications, reset records of preloaded Java^TM application and initialise Java^TM settings.
WAP profiles Select the required profile setting.

Information

You can view copyright information about the software used on the phone.

Main menu > Games > Information

Pure geometric lines and crosshair symbols without any text or labels

153

VS7_CIMA_AAA.book Page 154 Monday, August 29, 2005 10:00 AM

Appendix

Accessories

The following accessories are available for your Panasonic phone.

Note: Availability depends on your country/region.

Battery

Double your talk time by having a spare battery.

(EB-BS001) for VS7 (EB-BS002) for MX7/SA7

Travel Charger

Carry this wherever you go, so you can always recharge your battery.

(EB-CA001 AU) (EB-CA001 EU)

(EB-CA001 UK) (EB-CA001 US)

154

VS7_CI_WA_AAA.book Page 155 Monday, August 29, 2005 10:00 AM Appendix Personal Handsfree (Mono) (EB-EMX800) Plug into your phone and talk without holding the phone to your ear. Personal Handsfree (Stereo) (EB-EM001) Talk/listen to the music and move while keeping your hands free, by using a Personal Handsfree. Put the ear pieces in your ears and the adaptor in the side of the phone. In-Car Charger (EB-CD001) Recharge the battery using your vehicle's cigarette lighter socket. Car Holder (EB-KA001) This can be mounted in your vehicle to store your phone. 155

VS7_CI_MA_AAA.book Page 156 Monday, August 29, 2005 10:00 AM Appendix USB Cable (EB-US003) Use this to connect your phone to a PC to transfer data between them. Use in conjunction with the software provided on the CD-ROM. Branch Cable (EB-CBX800) This cable branches the connection to a USB Cable, Personal Handsfree and Travel Charger so that you can transfer data OR talk on handsfree while charging. Bluetooth® headset (EB-BHX70) Talk handsfree and without wires. Place the headset on your ear and the phone in your pocket, with no wires connecting the two. 156

VS7_CI_MA_AAA.book Page 157 Monday, August 29, 2005 10:00 AM Appendix Changing the X-Changeable Cover™ Note: X-Changeable Cover is only available for VS7. Before changing the cover, always switch off the power and disconnect the phone from the charger or any other device. For your safety, follow these procedures when removing or attaching the cover. Removing the cover Loosen and remove the 4 screws with the screw driver included in this package and then gently remove the cover. Attaching the cover Place the cover right in the hollow in the phone and align the bottom edge of the cover with that of the hollow. Tighten the 4 screws firmly. Ensure that there is no dust caught between the cover and the hollow. Note: Do not use the phone without the cover attached. Do not force the cover when removing or replacing. Before tightening the screws, ensure the cover is located correctly. Do not force or over tighten the screws. Use only covers designed for this model. 157

Appendix

Changing the X-Changeable Cover™

Note: X-Changeable Cover is only available for VS7.

Before changing the cover, always switch off the power and disconnect the phone from the charger or any other device. For your safety, follow these procedures when removing or attaching the cover.

Removing the cover

Loosen and remove the 4 screws with the screw driver included in this package and then gently remove the cover.

Attaching the cover

Place the cover right in the hollow in the phone and align the bottom edge of the cover with that of the hollow. Tighten the 4 screws firmly.

Ensure that there is no dust caught between the cover and the hollow.

Isometric diagram of a device showing two views of a flat panel with internal components and mounting holes (no text or symbols)

Note: Do not use the phone without the cover attached.

Do not force the cover when removing or replacing. Before tightening the screws, ensure the cover is located correctly. Do not force or over tighten the screws.

Use only covers designed for this model.

157

Pure technical drawing lines showing three identical mechanical or architectural components with crosshair and circular features, no text or symbols present.

VS7_CIMA_AAA.book Page 158 Monday, August 29, 2005 10:00 AM

Appendix

Troubleshooting

Problems

Should any problem persist, contact your dealer.

Problem Cause	Remedy
Phone will not switch on.		Check that the battery is fully charged and correctly connected to the phone.
Extremely short battery life for a new battery.	The network you are using and the condition of the battery can affect battery life.
Short battery life for an old battery.	The battery has worn out.	Replace with a new fully charged battery.
The battery charge level indicator does not appear and the phone cannot be switched on when charging.	The battery is not attached to the phone or the battery has been deeply discharged.	Leave the phone charging the battery for a few minutes before the battery charge level indicator appears and attempt to switch the phone on.
Battery fails to charge.	The battery is not attached to the phone.	Ensure the battery is fitted to the phone prior to commencing charging.
	The battery was connected to the phone after the charger was connected.

158

Pure geometric diagram with intersecting lines and circles, no text or symbols present

VS7_CIMA_AAA.book Page 159 Monday, August 29, 2005 10:00 AM

Appendix

Problem Cause Remedy
Battery fails to charge.	The battery temperature exceeds the charging temperature range (too hot or too cold).	Use the battery at room temperature.
Display looks faded.	The Brightness level is low.	Check the Brightness setting (see page 102).
Calls cannot be made.	Keyguard is on. Disable keyguard.
	Outgoing calls are barred.	Disable outgoing call barring or barred dialling.
	Fixed dialling is switched on so that only the numbers stored in Contacts can be dialled.	Switch off the Fixed dialling.
	The phone is not registered with a network.	Move to a coverage area and operate your phone after it has registered with a network.
Calls cannot be received.	The phone is not switched on.	Switch the phone on.
	Incoming calls are barred.	Disable incoming call barring.
	The phone is not registered with a network.	Move to a coverage area and operate your phone after it has registered with a network.
Emergency calls cannot be made.	You are not in a GSM coverage area.	Check that the antenna symbol (Y) is displayed - move to a coverage area and operate your phone when the antenna symbol is displayed.

159

VS7_CIMA_AAA.book Page 160 Monday, August 29, 2005 10:00 AM

Appendix

Error messages

These are some of the most important error messages which may be displayed:

Location area not allowed!	Roaming in the selected area is not allowed.
Network not allowed!	Roaming with the selected network is not allowed.
Security failure!	The network has detected an authentication failure because your SIM card is not registered with that network - contact your service provider.
SIM blocked	The SIM card is blocked because the PIN unblocking key (PUK) has been entered incorrectly 10 times - contact your service provider.
Restarting SIM.Please wait	The phone has detected a problem with the SIM card - switch the phone off and then back on; if the message is still displayed - contact your service provider.
Invalid SIM	The SIM card has failed one or more of the SIM personalisation checks - contact your service provider.
Function unavailable	The selected feature is either not supported by the SIM card or is not available with the current subscription - contact your service provider.
PIN2 invalidated	The PIN2 is blocked permanently because the wrong PUK2 has been entered 10 times, services controlled by PIN2 cannot be used - contact your service provider.
Message rejected.Storage full orMessage rejected.SIM full	A message has been received but the message store is full - to receive messages, delete some of the currently stored messages.

160

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 161 Monday, August 29, 2005 10:00 AM

Appendix

Memory low!Message may not be stored	The message area is full. Your messages cannot be stored until some of the currently stored messages are deleted.
Verification failure	On changing the PIN/PIN2, verification of the new code is incorrect - retry changing the PIN/PIN2 with correct verification.

Glossary of terms

CSD	Circuit Switched Data. A communication method used to transmit data over telephone connections.
DTMF	Dual Tone Multi-Frequency allows you to communicate with computerised phone systems, voice mailboxes, etc.
GPRS	General Packet Radio Service. A GSM transmission technique that transmits and receives data in packets rather than setting up a continuous channel.
GSM	Global System for Mobile communications. The name given to the advanced digital technology that your phone uses.
Infrared	A type of wireless connection that allows data to be transmitted directly to another device.
Java^TM	A programming language developed by Sun Microsystems. Programs written in Java do not rely on an operating system.
Network Operator	The organisation responsible for operating a GSM network.
PIN / PIN2	Personal Identification Number. PIN is used for SIM card security. PIN2 is used for the control of Fixed dialling and Call charges metering. Supplied by your service provider. If the PIN or PIN2 is entered incorrectly several times (basically 3 times), the PIN or PIN2 will be blocked.

161

VS7_CIMA_AAA.book Page 162 Monday, August 29, 2005 10:00 AM

Appendix

PUK / PUK2	PIN or PIN2 Unblocking Key. Used to unblock the PIN or PIN2 code. Supplied by your service provider. If the PUK or PUK2 is entered incorrectly 10 times, the PUK or PUK2 will be blocked.
Roaming	The ability to use your phone on networks other than your home network.
Service provider	The organisation responsible for providing access to the GSM/GPRS network.
SIM	Subscriber Identity Module. A small smart-card which stores unique subscriber and user entered information such as Contacts entries and short messages. Supplied by your service provider.
URL	Uniform Resource Locator. The URL is an alphanumeric address that points to homepages and other Internet locations.
WAP	Wireless Application Protocol. The communication standard which enables you to download resources from the Internet to your phone.

162

VS7_CIMA_AAA.book Page 163 Monday, August 29, 2005 10:00 AM

Appendix

Specifications

Bands supported	GSM 900 Class 4GSM 1800 Class 1GSM 1900 Class 1
Standby time*1	VS7 150-43	0 hours
	MX7/SA7 3	00-860 hours
Talk time*1	VS7 2-8 hours
	MX7/SA7 4	-16 hours
Charging time*2	VS7 Up to 1	50 minutes
	MX7/SA7 Up to 290 minutes
Temperature range	Charging: +5°C - +35°CStorage: -20°C - +60°C
Weight	VS7 113 g (including battery)
	MX7 144 g (including battery)
	SA7 140 g (including battery)
Dimensions(excluding protrusions)	VS7	Height: 102 mmWidth: 51 mmDepth: 18.8 mm
	MX7	Height: 102 mmWidth: 51 mmDepth: 26 mm
	SA7	Height: 102 mmWidth: 53 mmDepth: 26 mm
Volume	VS7 89 cc
	MX7 118 cc
	SA7 116 cc
Battery	VS7 830 mAh Li-ion
	MX7/SA7 1	660 mAh Li-ion

163

VS7_CIMA_AAA.book Page 164 Monday, August 29, 2005 10:00 AM

Appendix

Antenna Internal
SIM type 1.8 V/3 V
Memory storage	MMS: 2 MBUser data (excluding MMS) and preinstalled applications: 30 MB
Display	Main display: QVGA 240 x 320 pixels TFT LCD; Approx. 16 million colours (JPEG and camera/video image*3); Approx. 300 cd/m2 brightnessSub display: 96 x 64 pixels STN LCD; 4 k colours
Camera 2 M pixels CMOS
Connectivity	Infrared: SIR (slow infrared)USB: v2.0Bluetooth: Object Push, Generic ObjectExchange, Headset and Handsfree profiles

*1 Talk and Standby times will be dependant upon network conditions, SIM card, backlight usage, battery condition/charging management and the use of applications such as camera and games where available.

*2 Charging time depends on usage and battery condition.

^*3 65 k colours for other image formats

164

VS7_CIMA_AAA.book Page 165 Monday, August 29, 2005 10:00 AM

Licensing

© 2005 Panasonic Mobile Communications Co., Ltd. All rights reserved.

Information in this document is subject to change without notice. No part of these instructions may be reproduced or transmitted in any form or by any means without obtaining written permission from Panasonic Mobile Communications Co., Ltd.

CP8 Patent

C€0168

Panasonic VS7/MX7/SA7 with Bluetooth® Technology

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Mobile Communications Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

Java POWERED

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

T9 ^® Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,187,480, 5,818,437, 5,945,928, 5,953,541, 6,011,554, 6,286,064, 6,307,548, 6,307,549, and 6,636,162, 6,646,573; Australian Pat. Nos. 727539, 746674, and

747901; Canadian Pat. Nos. 1,331,057, 2,302,595, and 2,227,904; Japan Pat. No. 3532780, 3492981; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK1010924; Republic of Singapore Pat. No. 51383, 66959, and 71979; European Pat. Nos. 0 842 463 (96927260.8), 1 010 057 (98903671.0), 1 018 069 (98950708.2); Republic of Korea Pat. Nos. KR201211B1 and KR226206B1. People's Republic of China Pat. Application Nos. 98802801.8, 98809472.X and 96196739.0; Mexico Pat. No. 208141; Russian Federation Pat. No. 2206118; and additional patents are pending worldwide.

Pure geometric lines and crosshair symbols without any text or labels

165

VS7_CIMA_AAA.book Page 166 Monday, August 29, 2005 10:00 AM

Licensing

Copyright © 2003 by Bitstream, Inc. All Rights Reserved.

Bitstream Vera is a trademark of Bitstream, Inc.

For further information, please refer to:

http://www.w3.org/2003/08/sera/COPYRIGHT.TXT

Powered by Mascot Capsule®/Micro3D Edition™ Mascot Capsule® is a registered trademark of HI Corporation© 2005 HI Corporation. All Rights Reserved.

Aplix, microJBlend and JBlend, and all Aplix-or JBlend-related trademarks and logos are trademarks or registered trademarks of Aplix Corporation in the U.S., Japan and other countries.

JBlend

This product is licensed under the MPEG-4 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the MPEG-4 Visual Standard ("MPEG-4 Video") and/or (ii) decode MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a licensed video provider. No license is granted or implied for any other use. Additional information may be obtained from MPEG LA,LLC.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

SONIC THE HEDGEHOG™

© SEGA Corporation

SEGA, the SEGA logo and SONIC THE HEDGEHOG are either registered trademarks or trademarks of SEGA Corporation.

166

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 167 Monday, August 29, 2005 10:00 AM

Licensing

END-USER SOFTWARE LICENSE AGREEMENT

By use of this Panasonic cellular phone, including any embedded software features or programs ("Embedded Software"), you agree to the terms and conditions of this End-User Software License Agreement ("EULA").

1. END-USER RIGHTS: You are granted a limited end-user right to use the Embedded Software only as part of and together with this Panasonic cellular phone. You agree to use the Embedded Software in a manner that complies with all applicable laws, including laws related to copyright and other intellectual property rights. All other uses are prohibited.
2. LIMITATIONS ON END-USER RIGHTS:

(a) You may not reproduce, copy, or transfer the Embedded Software to any other device;
(b) You may not create derivative works of any type based on the Embedded Software (unless and except as expressly permitted as part of a feature application);
(c) You may not reverse engineer, reverse compile, disassemble, or otherwise attempt to discover the source code of the Embedded Software;
(d) You may not transfer this Panasonic cellular phone other than to a transferee end-user who undertakes to observe the same obligations as those set out in this EULA;
(e) You may not remove any proprietary notices, such as copyright, trademark, or otherwise, from the Embedded Software.

1. INTELLECTUAL PROPERTY RIGHTS: The Embedded Software is protected by copyright, trademark, patent and/or other intellectual property rights and is owned by Panasonic Mobile Communications Co., Ltd. ("PMC") and/or is under license from PMC's licensors.
2. TERMINATION: Your right to use the Embedded Software may be terminated for failure to comply with any of the terms of this EULA.

167

VS7_CIMA_AAA.book Page 167 Monday, August 29, 2005 10:00 AM

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

VS7_CI_MA_AAA.book Page 168 Monday, August 29, 2005 10:00 AM Licensing 5. LIMITATION OF LIABILITY/DISCLAIMER OF WARRANTIES: TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL PMC, ITS AFFILIATES, AND THEIR LICENSORS BE LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE EMBEDDED SOFTWARE. EXCEPT AS EXPRESSLY STATED IN THE RELEVANT WARRANTY CARD, PMC, ITS AFFILIATES, AND THEIR LICENSORS DISCLAIM ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE REMEDIES PROVIDED TO THE END-USER IN THE RELEVANT WARRANTY CARD ARE EXCLUSIVE. 6. ADDITIONAL THIRD PARTY TERMS: The Embedded Software may contain third party software subject to separate third party license terms and conditions set forth in the user manual or associated product documentation and/or displayed on the LCD of this Panasonic cellular phone. You acknowledge and agree that such third party software is governed by the third party license terms, as applicable, and that such terms are solely between you and the applicable licensor. 7. EXPORT REGULATIONS/RESTRICTED RIGHTS: The Embedded Software is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. You agree to comply strictly with all such regulations. You confirm that with respect to the Embedded Software, you will not export or re-export it, directly or indirectly, to any countries that are subject to U.S. export restrictions. Use, duplication or disclosure by the U.S. government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c)(1)(ii) and FAR 52.227-19(c)(2) as applicable. 168

VS7_CIMA_AAA.book Page 169 Monday, August 29, 2005 10:00 AM

EU Warranty

EU/EEA - Wide guarantee is applicable in the EU/EEA and Switzerland.

Panasonic GSM European Service Guarantee Conditions Dear Customer,

Thank you for buying this Panasonic digital cellular telephone. The Panasonic GSM European Service Guarantee only applies while travelling in countries other than where the product was purchased. Your local guarantee is applicable in all other cases. If your Panasonic GSM telephone requires service while abroad, please contact the local service company shown on this document.

The Guarantee

The applicable period of the European wide guarantee for GSM is generally 12 months for the main body and 3 months for the rechargeable battery. With respect to a product used in a country other than a country of purchase, notwithstanding what is stated in the conditions below, the customer will benefit, in that country of use, from these guarantee periods of, respectively, 12 and 3 months, if these conditions are more favourable to him than the local guarantee conditions applicable in such country of use.

Conditions of Guarantee

When requesting guarantee service the purchaser should present the warranty card together with proof of purchase, to an authorised service centre.

The guarantee covers breakdowns due to manufacturing or design faults; it does not apply to other events such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us.

Your sole and exclusive remedy under this guarantee against us is the repair, or at our option the replacement, of the product, or any defective part or parts. No other remedy, including, but not limited to, incidental or consequential damage or loss of whatsoever nature shall be available to the purchaser.

Pure geometric lines and crosshair symbols without any text or labels

169

VS7_CIMA_AAA.book Page 170 Monday, August 29, 2005 10:00 AM

EU Warranty

This is in addition to and does not in any way affect any statutory or other rights of consumer purchasers. This guarantee applies in countries shown on this document at the authorised service centres detailed for that country.

Austria

Fa. Frisch

Lokalbahnweg 12

A-4060 Leonding

Tel. [phone]

Germany

In Germany, you can also take advantage of our pick-up service if you need to have your Panasonic equipment repaired. You will find details under Service, Repair Services, on our Internet

homepage at

www.panasonic.de

Hotline: [phone]

(12 cents/min.)

Mon. to Fri. 8am - 8pm and

Sat. Midday - 5pm

T-Mobile equipment specialists:

Panasonic Service Center

N. Schaaf

Vodafone equipment specialists:

Panasonic Service Center

B&W Service GmbH

Kieler Straße 41

24768 Rendsburg

Tel.: [phone] / 14 11-0

170

o2 or e-plus equipment specialists:

Panasonic Service Center

Service Centres in Ireland

Tel. [phone]

United Kingdom

Service Centres in England

Tel. [phone]

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 171 Monday, August 29, 2005 10:00 AM

EU Warranty

EU/EEA - Wide Guarantee: Conditions applicable in any country other than the country of original purchase.

When the purchaser finds the appliance to be defective, he should promptly contact the proper sales company or national distributor in the EU/EEA country where this guarantee is claimed, as indicated in the "Product Service Guide" or the nearest authorised dealer together with this guarantee and proof of date of purchase. The purchaser will then be informed whether:

(i) the sales company or national distributor will handle the repair service; or
(ii) the sales company or national distributor will arrange for trans-shipment of the appliance to the EU/EEA country where the appliance was originally marketed; or
(iii) the purchaser may himself send the appliance to the sales company or national distributor in the EU/EEA country where the appliance was originally marketed.

If the appliance is a product model which is normally supplied by the sales company or national distributor in the country where it is used by the purchaser, then the appliance, together with this guarantee card and proof of date of purchase, should be returned at the purchaser's risk and expense to such sales company or distributor, which will handle the repair service. In some countries, the affiliated sales company or national distributor will designate dealers or certain service centres to execute the repairs involved.

If the appliance is a product model which is not normally supplied in the country where used, or if the appliance's internal or external product characteristics are different from those of the equivalent model in the country where used, the sales company or national distributor may be able to have the guarantee repair service executed by obtaining spare parts from the country where the appliance was originally marketed, or it may be necessary to have the guarantee repair service

Pure geometric lines and crosshair symbols without any text or labels

171

VS7_CIMA_AAA.book Page 172 Monday, August 29, 2005 10:00 AM

EU Warranty

executed the sales company or national distributor in the country where the appliance was originally marketed. In either case, the purchaser must furnish this guarantee card and proof of date of purchase. Any necessary transportation, both of the appliance and of any spare parts, will be at the purchaser's risk and expense, and there may be a consequent delay in the repair service.

Where the consumer sends the appliance for repair to the sales company or national distributor in the country of use of the appliance, the service will be provided on the same local terms and conditions (including the period of guarantee coverage) as prevail for the same model appliance in the country of use, and not the country of initial sale in the EU/EEA. Where the consumer sends the appliance for repair to the sales company or national distributor in the EU/EEA country where the appliance was originally marketed, the repair service will be provided on the local terms and conditions prevailing in the country of initial sale in the EU/EEA.

Some product models require adjustment or adaptation for proper performance and safe use in different EU/EEA countries, in accordance with local voltage requirements and safety or other technical standards imposed or recommended by applicable regulations. For certain product models, the cost of such adjustment or adaptation may be substantial and it may be difficult to satisfy local voltage requirements and safety or other technical standards. It is strongly recommended that the purchaser investigates these local technical and safety factors before using the appliance in another EU/EEA country.

This guarantee shall not cover the cost of any adjustments or adaptations to meet local voltage requirements and safety or other technical standards. The sales company or national distributor may be in a position to make the necessary adjustments or adaptations to certain product models at the cost of the purchaser. However, for technical reasons it is not possible to adjust or adapt all product models to comply with local voltage requirements and safety or other technical

172

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI_MA_AAA.book Page 173 Monday, August 29, 2005 10:00 AM EU Warranty standards. Moreover, where adaptations or adjustments are carried out the performance of the appliance may be affected. If in the opinion of the sales company or national distributor in the country where the appliance is used the purchaser has the necessary adjustments or adaptations to local voltage requirements and technical or safety standards properly made, any subsequent guarantee repair service will be provided as above indicated, provided the purchaser discloses the nature of the adjustment or adaptation if relevant to the repair. (It is recommended that the purchaser should not send adapted or adjusted equipment for repair to the sales company or national distributor in the country where the appliance was originally marketed if the repair relates in any way to the adaptation or adjustment.) This guarantee shall only be valid in territories subject to the laws of the European Union and the EEA. Please keep this guarantee with your receipt.

EU Warranty

standards. Moreover, where adaptations or adjustments are carried out the performance of the appliance may be affected. If in the opinion of the sales company or national distributor in the country where the appliance is used the purchaser has the necessary adjustments or adaptations to local voltage requirements and technical or safety standards properly made, any subsequent guarantee repair service will be provided as above indicated, provided the purchaser discloses the nature of the adjustment or adaptation if relevant to the repair. (It is recommended that the purchaser should not send adapted or adjusted equipment for repair to the sales company or national distributor in the country where the appliance was originally marketed if the repair relates in any way to the adaptation or adjustment.)

This guarantee shall only be valid in territories subject to the laws of the European Union and the EEA.

Please keep this guarantee with your receipt.

173

VS7_CI_MA_AAA.book Page 174 Monday, August 29, 2005 10:00 AM Declaration of Conformity The declaration of conformity for product EB-VS7/MX7/SA7 can be obtained from the Panasonic website at http://panasonic.co.jp/pmc/products/en/support/index.html 174

Index

A

Active flip 109

Alarms 127

Alert mute 36

Answering calls 35

Any key answer 108

Archive 70

Auto answer 109

Auto redial 33

B

Backlight time 105

Battery

Charging 27

Inserting 26

Removing 26

Bluetooth 113

Bookmarks 90

Brightness 102

Browser 87

Browser options

Advanced 93

Bookmarks 90

Enter address 91

Reload page 92

Save media 91

Service Inbox 92

Set as bookmark 91

Settings 93

C

Calculator 130

Calendar 131

Call

Answering 35

Duration 109

Hold 38

Making 33

Call barring 124

Call diverts 107

Call log 53

Call waiting 108

Calls 107

Camera 76

Cell Broadcast 120

Chat 72

Clock 97

Conference 41

Connectivity settings 111

Contacts 47

Continuous shooting 82

Creating a message

MMS 64

SMS 61

D

Display

Front display 21

Main display 21

Settings 102

Download

Games 147, 152

Picture files 142

Sound clips 144

Video clips 146

Drafts folder 70

DTMF 39

E

Emergency call 35

Emoticon list 62

Error messages 160

F

Fixed dial 124

G

Games 150

Games folder 146

GSM network 121

175

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CI WA_AAA.book Page 176 Monday, August 29, 2005 10:00 AM

Index

H

Handsfree talking 39

Hold 38

How to read this manual ..... 14

1

Icons 22

Main menu icons 104

Status icons 22

Illumination message 61

Illuminations 98

Inbox 66

In-call operations 38

Indicator/Illumination Light ..... 24

Infrared 111

Input method 42

International dialling 34

K

Key

Backlight 99

Functions 18

Keyguard 100

Quick keys 19

Settings 99

Shortcut 100

Tone 99

Volume 99

L

Language

Cell Broadcast 120

Display 97

Input 63,97

M

Main menu

icons 104

Structure 30

Making calls 33

Master reset 101

Memory status

Contacts 57

My Media 148

SMS/MMS 75

Menu

Displaying the menu ....31

Menu selection method ....32

Message alert 105

Messages settings 73

Missed call notification 36

MMS 60

Multi shot mode 82

Multiple calls operation 40

My dictionary 44

My number 56

0

Operator name 102

Outbox folder 70

P

Phone

Opening/closing 29

Overview 16

Settings 96

Switching on/off 29

Picture 77

Pictures folder 138

PIN/PIN2 code 123

Problems 158

Profiles 96

Q

Quick keys 19

R

Recent call dialling 34

Recording a video clip 84

Ringtone 105

176

Pure geometric lines and shapes without any text, numbers, or symbols

VS7_CIMA_AAA.book Page 177 Monday, August 29, 2005 10:00 AM

Index

s

Security settings 123

Self-portrait 78

Send my number 109

Sent folder 70

Service charge 110

Service numbers 58

Shortcut keys 100

Shutdown tone 106

Silent mode 37

SIM card

Inserting 25

Removing 25

SIM Tool Kit 127

SMS 60

Sound recorder 129

Sounds & alerts settings ..... 105

Sounds folder 142

Speed dial 54

Standby display 21

Startup tone 106

Status icons 22

Symbols used in this manual ..... 13

Synchronisation 55, 118

T

T9 ^® 44

Taking a picture 78

Text entry 42

Text templates 147

Themes 105

Time and date 97

U

Unsent folder 70

USB 122

V

Vibration alert 106

Video, record 84

Videos folder 145

Voicemail 72

Volume control 39

W

Wallpaper 102

Warning tone 106

Web mail 71

X

X-Changeable CoverTM 157

177

VS7_CI WA_AAA.book Page 178 Monday, August 29, 2005 10:00 AM
