Product Type	Mobile Phone
Brand	Panasonic
Model	GD75
Dimensions (H x W x D)	108 x 46 x 20 mm
Weight	85 g
Power Supply	Li-Ion battery, 3.7 V, 650 mAh
Standby Time	Up to 150 hours
Talk Time	Up to 3 hours
Display	Monochrome LCD, 128 x 64 pixels
Main Functions	Voice calls, SMS, Phonebook, Call log, Alarm, Calculator, Games
SIM Card	Mini SIM
Connectivity	GSM 900/1800 MHz
Maintenance & Cleaning	Wipe with a soft dry cloth; do not use solvents
Safety	Use only approved batteries and charger; avoid exposure to moisture
Spare Parts & Repairability	Replacement battery, charger, and housing available from service centers
General Information	Manufacturer: Panasonic; Model: GD75; Category: Mobile Phone

Frequently Asked Questions - GD75 PANASONIC

How do I turn on the GD75?

Press and hold the Power button (red key on the top) for about 2 seconds until the display lights up.

How do I make a call?

Enter the phone number using the keypad, then press the Green Call button.

How do I send a text message?

Go to Menu > Messages > Write message. Type your message using the keypad (multi-tap), then enter the recipient's number and press Send.

How do I set an alarm?

Go to Menu > Alarms. Select an available slot, set the time and days, then Save.

How do I change the language?

Go to Menu > Settings > Phone settings > Language and choose your preferred language from the list.

How do I charge the battery?

Connect the charger to the phone's charging port (bottom side) and plug into a power outlet. The battery icon will animate during charging.

Why is the phone not turning on?

Ensure the battery is charged. If still not turning on, try removing the battery and reinserting it after 10 seconds. If the problem persists, the battery may need replacement.

How do I save a contact?

Press the Phonebook key (or go to Menu > Phonebook). Select Add new, enter the name and number, then Save.

How do I set a ringtone?

Go to Menu > Settings > Tone settings > Ring tone and choose from the available list.

How do I reset the phone to factory settings?

Go to Menu > Settings > Phone settings > Reset. Confirm with the security code (default 0000). Warning: This will erase all user data.

USER MANUAL GD75 PANASONIC

Operating Instructions EB-GD75 Digital Cellular Phone

GD75

Panasonic 1 ABC 3 DCF 4 UNT 5 IKL 6 HMO 7 PQRS 8 TUV 9 XYZ *仓 0+ #

Important Information

We, Matsushita Communication Industrial UK Ltd., declare, that the EB-GD75 conforms with the essential and other relevant requirements of the directive 1999/5/EC. A declaration of conformity to this effect can be found at http://www.panasonicmobile.co.uk/support

Safety Considerations

The following information should be read and understood as it provides details which will enable you to operate your phone in a manner which is both safe to you and your environment, and conforms to any legal requirements regarding the use of cellular phones.

This equipment should only be charged with approved charging equipment. Other usage will invalidate any approval given to this apparatus and may be dangerous. The use of approved charging equipment is recommended to ensure optimum performance and avoid damage to your phone. Ensure the voltage rating of the Travel Charger is compatible with the area of use when travelling abroad.

A Travel Charger (EB-CAD92Vxx* or EB-CAD95xx*) is supplied with the Main Kit. Other recommended equipment for charging -Car Charger (EB-CDD95), Handsfree Car Kit (EB-HFD75Z).

Note* xx identifies the Charger region, e.g. CN, EU, HK, UK.

Switch off your cellular phone when in an aircraft. The use of cellular phones in an aircraft may be dangerous to the operation of the aircraft, disrupt the cellular network and may be illegal. Failure to observe this instruction may lead to the suspension or denial of cellular phone services to the offender, or legal action or both.

It is advised not to use the equipment at a refuelling point. Users are reminded to observe restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in progress. Never expose the battery to extreme temperatures (in excess of 60^ C).

Important Information

It is imperative that the user exercises proper control of your vehicle at all times. Do not hold a phone while you are driving; find a safe place to stop first. Do not speak into a Handsfree microphone if it will take your mind off the road. Always acquaint yourself thoroughly with restrictions concerning the use of cellular phones within the area you are driving and observe them at all times.

Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.

For most efficient use hold the phone as you would any normal phone. Your GD75 cellular phone is fitted with an internal antenna, located in the upper portion of the phone, above the display screen. To avoid deterioration of signal quality or antenna performance, do not touch the antenna area while the phone is switched on. Unauthorized modifications or attachments may damage the phone and violate applicable regulations. The use of an unapproved modification or attachment may result in the invalidation of your guarantee – this does not affect your statutory rights.

This Panasonic mobile phone is designed, manufactured and tested to ensure that it complies with the specifications covering RF exposure guidelines applicable at the time of manufacture, in accordance with EU, USA FCC, and Australian ACA regulations; or as specifically stated in the separate declaration leaflet enclosed with this product.

Please refer to our website for latest information/standards compliance in your country/region of use.

www.panasonicmobile.co.uk/2001/health

Care and Maintenance

Pressing any of the keys may produce a loud tone. Avoid holding the phone close to the ear while pressing the keys.

Extreme temperatures may have a temporary effect on the operation of your phone. This is normal and does not indicate a fault.

Do not modify or disassemble the equipment. There are no user serviceable parts.

Do not subject the equipment to excessive vibration or shock.

Avoid contact with liquids. If the equipment becomes wet immediately remove the power and contact your dealer.

Do not leave the equipment in direct sunlight or a humid, dusty or hot area.

Keep metallic items that may accidentally touch the terminals away from the equipment.

Always charge the battery in a well ventilated area, not in direct sunlight, between +5°C and +35°C. It is not possible to recharge the battery if it is outside this temperature range.

Do not incinerate or dispose of the battery as ordinary rubbish. The battery must be disposed of in accordance with local legislation and may be recycled.

When disposing of any packing materials or old equipment check with your local authorities for information on recycling.

Quick Reference

Menu

"Press ( ) to select".

Direction which the user can move around the display screen using the Navigation key.

Press a key once for a particular phone operation.

"Press and hold" a key for a particular phone function.

Representation of screen menu option.

Phonebook key.

Right hand Option Key.

Numeric key pads.

Answer a call or call a dialled number.

To end a call or return to Idle screen or 📂 + Hold to switch the phone off.

Indicates that a function is SIM Dependent.

Indicates that a function is Network Dependent.

Switches Discreet Mode on and off.

Contents

Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Safety Considerations....

Care and Maintenance .... iii

Quick Reference i v

Getting Started....

Fitting the SIM

Removing the SIM 2

Fitting the Battery 2

Removing the Battery 2

Charging the Battery 3

Operation of Battery Level Indicator. 3

Disconnecting the Fast Travel Charger. 3

Low Battery Warning....

Getting to Know Your Phone 4

The Menu System 5

Display Icons 5

Information......

Navigation Prompt 6

Using the Menu System 6

To Select a Function 7

Basic Operation 8

Switching the Phone On/Off 8

Making a Call 8

International Dialling 8

Emergency Calls 9

Automatic Redial 9

Ending a Call 9

AnsweringaCall....

Caller Identification. 9

E ar piece Volume Control....

Locking the Phone 10

Using the PIN.

Setting Vibration Alert. 11

Setting Discreet Mode 11

Setting Ring and Key Volume 12

Phonebook....13

Store a Number....13

Overwrite Protection....14

Browsing Phonebook 14

Retrieve a Number 14

Editing Phonebook Entries 14

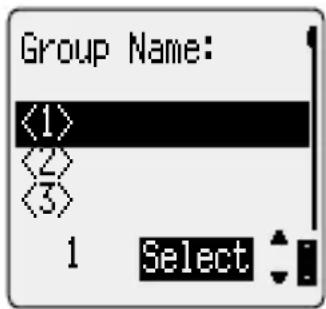

Grouping Phonebook Entries 16

My Numbers....18

Personalising Your Phone ..... 19

Add a Start-up Greeting. 19

Download Melody. 21

Logos 21

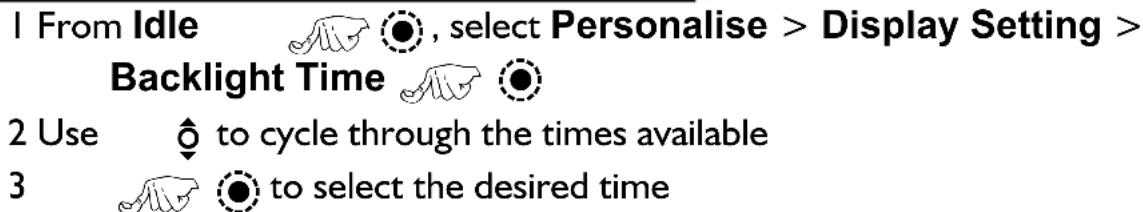

Setting the Backlight Time 22

Using Voice Commands. 22

Voice Dial Entry Setup ....

Recalling Voice Dial Entries 23

Dialling Voice Dial Entries. 23

Editing the Voice Dial Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Changing the Language 24

Restoring the Default Phone Settings 24

Phone Security. 25

Using Key Guard 25

Disabling Key Guard. 25

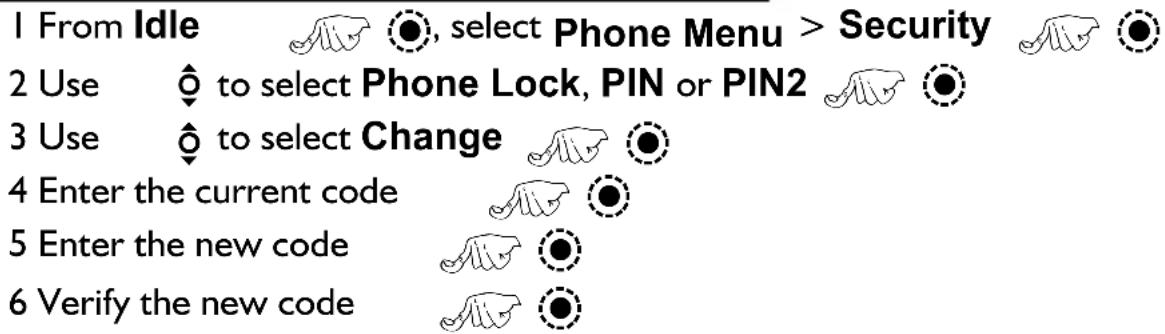

Changing the Security Codes 25

Restricting Calls 26

Applications....2

Clock 28

Initially Setting the Home Time 28

Setting the Clock Format 28

AlteringtheTime/Date......

Setting the Clock for Summer Time 29

Setting the Alarm 29

Muting the Alarm 2

Setting a Power On/Off Time. 30

Calculator 30

Currency Convertor 31

Text Messages....3 2

Setting the Phone for Short Text Messages. 32

Setting the Message Centre Number 32

Creating a Text Message 32

Receiving Text Messages 33

Message Options....3

Cut / Copy & Paste Message Text 34

Manage Messages Lists 34

Parameters 35

Call Information....37

Recent Numbers 37

Call Duration 38

Call Charges. 38

Setting the Unit Price 38

Setting the Maximum Unit Level 39

Setting a Warning Level 39

Call Identification 39

Advanced Operation. 40

Diverting Calls. 40

Holding Calls and Call Waiting 40

Making a Second Call 40

Receiving a Second Call 41

Accept a Second Call 41

Reject a Second Call. 41

End Current Call and Receive Second Call 41

Operation During Two Calls 41

Call Transfer 42

Multi-party Calls. 4 2

Adding to Multi-party 42

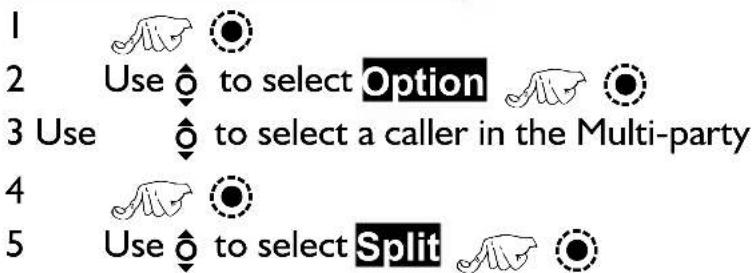

Splitting a Multi-party 42

Ending Multi-party Calls. 43

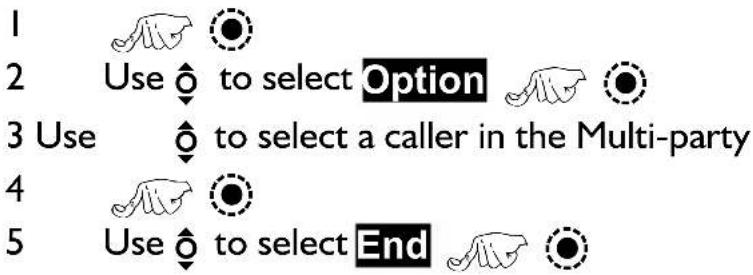

Ending a Multi-party Call 43

Changing to a New Network 44

Schedule 4 5

Creating a Reminder 45

Viewing Reminders 4 5

Deleting Reminders 45

Deleting Holiday Reminders 46

J u m p t o F u t u r e D a t e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Games 47

Racing Game 47

Ball Game 47

WAP Browser 48

Additional Features. 52

Desktop Handsfree 52

Voice Memo. 52

Record a Voice Memo 52

DTMF Tones 53

N o t e P a d . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4

Second Clock 54

Setting Clock Display 54

Accessory Related Features....55

Text Entry 56

T9® Text Input 57

Other Text Modes 57

Editing Text 57

Menu Structure 58

Trouble Shooting 59

Important Error Messages 61

Glossary of Terms 63

Specifications 6 5

Phone (Including Battery) ^* 6 5

EU Warranty 6 6

Personal Record....71

WAP Settings....

Notes 72

Getting Started

Thank you for purchasing this Panasonic digital cellular phone. This phone is designed to operate on the Global System for Mobile Communications (GSM), GSM900 or GSM1800. Ensure the battery is fully charged before use.

Before operating this phone please read the "Important Information" section - see page i.

These operating instructions detail use of the equipment contained in the Main Kit.

Some services detailed, are network dependent and are indicated by ( ) or may only be available on a subscription basis. Some functions are SIM dependent and are indicated by ( ). For more information contact the Service Provider.

Fitting the SIM

The SIM is inserted into the back of the phone underneath the battery. Remove the battery - see “Removing the Battery” page 2. Unlock the SIM retainer by sliding it up towards the top of the phone (1). Gently lower the SIM retainer. Place the SIM into its recess, ensuring the bevelled corner is positioned in the top left corner (2). Move the SIM retainer back into position and secure by sliding downwards. The SIM retainer is properly locked when it has clicked into position (3).

Diagram showing a mechanical or electrical component with an arrow indicating direction and numbered label '1'

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Pure mechanical diagram showing a piston and cylinder with no text or symbols

Note: Ensure the SIM retainer is properly locked into position. Failure to do so will inhibit the fitting of the battery and the battery cover.

Removing the SIM

Unlock the SIM retainer by gently pushing towards the top of the phone (1). Gently lower the SIM retainer (2) and remove the SIM (3). Ensure the SIM retainer is correctly locked before re-fitting the battery and battery cover.

Simple icon of a storage unit with an upward arrow and number 1, no text or symbols present.

Fitting the Battery

Ensuring the label is uppermost, locate the two lugs at the top of the battery into the rear of the phone (1). (The base of the battery will stay slightly raised at this point). Locate the two lugs at the top of the battery cover into the rear of the phone (2). Using light pressure, push the bottom of the battery cover into place and lock by pushing up on the battery cover release clip (3).

Diagram of a printer with arrows indicating process flow (no text or symbols)

Diagram of a mechanical component with two arrows indicating direction (no text or symbols)

Diagram of a mechanical component with arrows indicating force or movement (no text or symbols)

Removing the Battery

Push the battery cover release clip down (1). The base of the battery cover will raise out of the recess (2). Remove the battery cover. The battery can now be removed from the phone (3).

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of a book with an arrow pointing upward, no text or symbols present

Illustration of a printer tray with an arrow pointing to the cover (no text or symbols)

Getting Started

Charging the Battery

Connecting the Fast Travel Charger

The battery must be fitted in the phone before the charger is connected. Ensuring the arrows on the plug are to the front of the phone. Insert the charger into the base of the phone.

Diagram of a USB cable connector with a labeled connection point (no text or symbols present)

Note: DO NOT force the connector as this may damage the phone and/or the charger.

Connect the charger to the mains power supply. The charging indicator will light and the battery level indicator will scroll right to left when charging.

Operation of Battery Level Indicator

	While charging Charging complete
Phone on
Phone off		LCD Battery Indicator off

When charging is complete turn off the mains power supply and disconnect the charger from the phone. See “Disconnecting the Travel Charger” page 3.

Disconnecting the Fast Travel Charger

Disconnect the charger from the mains power supply.

Squeeze together the two buttons on the plug of the charger (1) and while maintaining pressure extract the plug from the base of the phone (2).

Diagram showing a cable with labeled parts and directional arrows indicating connection steps

Low Battery Warning

When the battery power is low a warning tone will sound and a flashing LOW BATTERY message will be displayed. If this occurs during conversation, finish your call immediately. The power will automatically shut off after the warning tone. Fully recharge the battery. See “Charging the Battery” page 3. (Calls can be made and received while the phone is charging)

It is recommended that the battery is fully discharged between charges to maintain optimum battery life and performance.

Getting to Know Your Phone

Location of Controls

Navigation Key Earpiece Display Microphone Earpiece/Microphone Socket External Connector

Navigation key - moving up/down/left/right navigates through the options in the Main Display area. Pressing this key activates the function currently displayed in the Main Option area

Cancel key - this key is mainly used to cancel the current operation and return to the previous menu level. In certain menus it has other functions

Primarily used for accessing the Phonebook or switching character types

Makes a call or recalls recently dialled phone numbers

Ends a call or 📂 + Hold enables the user to switch the phone on/off

Getting Started

① Digit keys 0+ to 9WXYZ, *行 and #- # will switch on and off Discreet Mode

The Menu System

The menu system allows the user to access all the functions of the phone that are not accessible purely by key strokes.

Display Icons

Following some operations the display will automatically clear after three seconds or after pressing any key.

Information Area Main Display Status Icons Secondary Option Area Menu Navigation Prompt Main Option Area

Status Icons

The status icons are displayed according to the currently activated functions. The Antenna, Signal and Battery icons are displayed when the handset is switched on and connected to a network.

is displayed when you are registered to a non-home network - roaming

is displayed when call divert is enabled

is displayed when vibration alert is enabled

is displayed when Discreet Mode is enabled

is displayed when all tones or ring volume is off

flashes when an unread message is stored or lights when message area is full

is displayed when phone lock is enabled

indicates that it is possible to make emergency calls

indicates the received signal strength: - weak signal, strong signal

indicates the battery level: ☐ - full, ☐ (flashing) - low battery

Information

Icons are used to indicate the current top level menu, the sub-menu number, text entry mode, Phonebook source, Phonebook location number, or the alarm set icon depending on the current mode of operation.

indicates alarm is set

indicates current Phonebook entry is sourced from the Mobile Phonebook

indicates current Phonebook entry is sourced from the SIM Phonebook

Navigation Prompt

This area indicates the available directions in which the Navigation key can be pressed according to the current mode of operation

Using the Menu System

The menu system provides the means for accessing all the functions which do not have their own dedicated buttons on the keypad.

The menu functions are selected using the five-way Navigation key.

To Select a Function

then use the navigation key as a joystick to move around the icons on the screen in any of the four directions (○,♂,○▶,◀○). When a particular menu is highlighted, and a submenu is displayed. From any submenu, use ◆ until the required item is highlighted,

Example:

From Idle 🐎, select Personalise > Display Setting > Animation 🐎

In detail:

I to enter the menu system
2 Use ◄ to highlight the Personalise menu
3 to enter the menu
4 Use ♀ three times to highlight the Display Setting menu
5 to enter the menu
6 Use ♀ twice to highlight Animation menu
7 to enter the menu
8 Use 🔗 to select Off, Theme 1 or Theme 2

Following some operations the display will automatically clear after three seconds, if this is not the case 📄 to return to Idle.

Shortcuts

When familiar with the layout of the menu, use the keypad to enter the Menu Number. This will allow the user to obtain the required function without having to navigate through the display menus. For example, or to enter the menu and then ① ④GHI ③DEF to take you directly to the Animation menu.

Basic Operation

Switching the Phone On/Off

To switch the phone on or off + Hold

When the phone is switched on a greeting will be displayed and then the phone will go into Idle.

Making a Call

Ensure that the phone is switched on, the network operator logo is displayed and the signal strength meter shows network coverage is available in the current area.

I Enter area code and phone number

2

International Dialling

Using the automatic international access code (+) you will be able to dial international numbers without having to know the code for the international exchange.

If the international number is known then it can be entered in the normal fashion followed by the area code and phone number.

List: UK UKR URY Ok

I From Idle displayed + Hold 0+ until “+” is

2 Use ⬇ to cycle through the abbreviated international names 📋 to choose the required code

3 Enter area code and phone number

4

Note: Many countries / regions include an initial “0” in the area code. This should, in most cases, be omitted when dialling international numbers. If you have difficulties making international calls, contact your Service Provider.

Basic Operation

Emergency Calls

To make an emergency call the antenna symbol ( ) must be present.

Enter 112

or if no SIM is fitted to the phone

Automatic Redial

When a call is unsuccessful you may want the phone to redial the number again automatically.

When your connection is unsuccessful, 📁 when OK is displayed and a timer will countdown in seconds to the next redial.

To stop redialling, press Ⓞ when Cancel is displayed in the main option area or ☐ when Ⓞ is displayed in the secondary option area.

When a call is connected a beep will be emitted.

If a call is repeatedly unsuccessful you will not be able to automatically redial the phone number. In this case you must redial the phone number manually.

Ending a Call

Press

Answering a Call

To receive a call the phone must be switched on and the signal strength meter must be displayed.

any key except Ⓜ to answer a call

to reject the call

during an incoming call, and you will be given the option to

Accept or Reject the call. Use ⬆ to select an option and

If a call is not answered, or is rejected, the number of incoming calls missed will be displayed.

any key to clear the display

Caller Identification

This feature allows you to identify incoming calls and accept or reject them. The caller's phone number, and name if stored in Phonebook, will be displayed.

Note: Caller Identification may not always be available.

Earpiece Volume Control

The volume level may be adjusted during a call:

Use to decrease the volume, use to increase the volume

Note: Volume control for Personal Handsfree accessory is adjusted in the same manner.

Locking the Phone

With the Phone Lock enabled you will be restricted to answer incoming calls and make emergency calls only. The Phone Lock Code is factory set to "0000".

I From Idle 📁, select Phone Menu > Security > Phone Lock 📁

2 Select Enable 3 Enter the 4-digit code,

The phone will be locked and the lock icon (O _n ) will be displayed.

Phone Lock Call Bar PIN Enable PIN Change Fixe Select C

Unlocking the Phone

To restore normal operation, enter your Lock Code 📁. The lock icon will be removed from the display. However, once you turn the phone off and on again the Lock Code will need to be re-entered. When the correct code has been entered 📁.

Disabling Phone Lock

The phone must be unlocked before the phone lock can be disabled.

I From Idle Ⓞ, select Phone Menu > Security > Phone

Lock

2 Select Disable

3 Enter the 4-digit code

Using the PIN

The PIN (Personal Identification Number) protects your SIM against unauthorized use. If you enable the PIN, every time the phone is turned on you will be prompted to enter the PIN.

The PIN2 controls security for the Fixed Dial Store, Call Charge metering and Barred Dial.

Enabling/Disabling the PIN

I From Idle 🍴, select Phone Menu > Security > PIN

2 Use ♀ select Enable / Disable or Change PIN

3 Enter PIN (Between 4 and 8 digits)

Setting Vibration Alert

When required, the phone can be set up to vibrate when a call is received. Vibration alert enables the user to choose between Continuous, Intermittent vibration alerts when a call is received. Switching on vibration alert will silence the ring volume. If, however, the ring volume is adjusted after the vibration alert is switched on, or the Discreet Mode is switched on, (see “Setting Discreet Mode” page 11) and its profile enables ring tones, the phone will ring and vibrate when a call is received.

From Idle 📋, select Personalise > Vibration Alert.

Choose the vibration setting required, Continuous, Intermittent or Disable,

When activated, the phone will vibrate briefly.

Note: When Discreet Mode is enabled, it's profiles will supercede those of the Vibration alert.

Setting Discreet Mode

Discreet Mode will allow the user to choose between “Vibrate only”, “ring tone only” or both.

I From Idle select Personalise > Discreet Mode

2 Use ⬇ to select Ring Volume or Vibration 📂

3 Use to select the required vibration type or ring tone volume

4 to select the required vibration type or ring tone volume

5 + Hold #

Note: If the ring tone volume is increased beyond “Max” volume it will set an escalating ring tone.

Setting Ring and Key Volume

Changing either the ring volume/key volume is done in the same manner. If you increase the ring volume above maximum it will set an escalating ring tone. If you turn the ring volume off, the silent indicator icon (⚡) will be displayed.

I From Idle 📋, select Personalise > Tones 📋
2 Select Ring Volume or Key Volume
3 Use to set the volume level

Phonebook

It is possible to store phone numbers in two locations:

In the SIM Phonebook (☐)

In the Mobile Phonebook. This means that if you change the SIM, the numbers in the phone are not lost

The Mobile Phonebook has the advantage that you can group your phonebook entries together.

Store a Number

To Store a Number in the SIM Phonebook

I From Idle enter the phone number and press 📄

2 To select SIM Phonebook

3 Enter the name – see “Text Entry” page 56,

4 Enter location number

Location: (1-100) - 0-9 Any

You can choose not to enter a location number and the entry will be placed in the next available location. Simply when Any is displayed.

To Store a Number in the Mobile Phonebook

I From Idle enter the phone number and

2 Use o to select Mobile Phonebook and

3 Enter the name - see "Text Entry" page 56,

4 Confirm phone number twice

5 Use ⬇ to select a group - see “Grouping Phonebook Entries” page 16 - into which to

place the entry

6 Enter location number

Group Name: <1> 2 3 1 Select

A location number does not have to be specified, in this case the entry will be placed in the next available location. Simply 📂 when Any is displayed.

Overwrite Protection

If a location is occupied, a prompt will be displayed to confirm that the current information is to be overwritten.

to overwrite the selected location

to choose another location number

Note: If you amend an entry stored in your phonebook that has a Voice Dial Command assigned to it, you will need to delete and reassign that Voice Dial Command - see “Editing the Voice Dial Entries” page 23.

Browsing Phonebook

You can search the Phonebook by either Name or Location. The default setting for browsing is by name. When browsing by name pressing a lettered key will take you to the first entry starting with that letter.

I From Idle

●, select Phonebook > Browse

2 Use

to toggle between Names or Loc. Nos. display mode

3 Use

to select the Phonebook you wish to browse

Retrieve a Number

I From Idle

2 Use

to browse through the Phonebook

Once you have selected a phone number or name, there are a number of actions that you can perform. To dial the selected number

Note: The Phonebook you last viewed will be the default when you next press 📄. To change the default, use the Phonebook menu to select a particular phonebook.

Speed Dial a Number Stored in SIM Phonebook

From Idle Enter location number – leading zeros may be left out

2

3

Editing Phonebook Entries

It is possible to Detail, View, Recall, Edit, Delete or Create information in the Phonebook. To access any of these functions follow the same procedure for each one. With a phone number or name displayed:

Phonebook

Detail

Displays each element of the selected Phonebook entry. Use ⬇ to display the next/previous element of the entry. Each element may be edited -

edit as required

twice to save any changes.

View

Displays an individual name and phone number in the names list.

If an e-mail address is present in the Mobile Phonebook this will be displayed along with the name and number.

Recall

Displays the phone number, enabling you to either change it or call the number.

Edit

Displays the entry allowing you to make changes as required. twice to save any changes.

Delete

Deletes the entry from the Phonebook.

Create

Creates a new entry in the Phonebook

I Use

to cycle through Detail, View, Recall, Edit, Delete or e

2

to select an option

Grouping Phonebook Entries

The ability to group phonebook entries together is an extra function of the Mobile Phonebook.

Retrieving a Number from a Group

Groups are used to collect together types of Phonebook entries, for example business and personal. Each group can be suitably titled for quick access to the entries contained within.

An alert profile can be attributed to groups, or a phone number, thus allowing incoming calls to be tailored to indicate the type of caller. See “Using Alert Profiles” page 16.

I From Idle 🐘, select Phonebook > Group Setting and 🐘 or from Idle 🐘 twice

2 Use ⬇ to select the group 🍴 twice

3 Use ⬇ to select the entry required 📂 twice to recall the number

Retitling Group Names

I From Idle ⚙, select Phonebook > Group Setting

2 Use ⬇ to select the group required

3 Use to select Edit

Clear the current title and re-enter - see "Text Entry" page 56

4 twice to save any changes

Using Alert Profiles

Alert Profile enables you to identify callers with a particular ring tone, display picture, making it easier to distinguish between callers or groups of callers.

Creating an Alert Profile

I From Idle 📋, select Phonebook > Alert Profile 📋

2 twice to insert a new profile

3 Use to select Personal or Group

4 Recall the phone number / select group from the Phonebook – see "Retrieve a Number" page 14

5

Phonebook

6 Use to select the ring tone that you wish to use for this profile

7 Use ⬇ to select the picture

Hot Key Phone Numbers

It is possible to dial phone numbers from the Phonebook or Service Dial part of Phonebook very quickly. Some Hot Key Phone numbers may be reserved by the Service Provider, for example the first three Hot Key Phone numbers may be linked to Service Dial ( ).

I + Hold a Digit key ① - ⑨

2

Setting the Hot Key Dial Source

I From Idle 📁, select Phonebook > Hot Key Dial

2 Use ⬤ to select SIM Phonebook or Mobile Phonebook and

Service Dial Numbers

Your Service Provider may program some special phone numbers into your SIM ( ) . It is not possible to modify the Service Dial numbers.

I + Hold

2 to browse through the Service Dial list of phone numbers

The phone number pointed to can only be recalled or dialled.

Review the Phonebook

The Review function in the Phonebook menu shows how many locations are available in the Phonebook.

I From Idle , select Phonebook > Review

2 Use ⬇ to select SIM Phonebook or Mobile Phonebook

A summary of the selected Phonebook will be displayed.

3 Use ⬇ to gain a detailed view of the Phonebook locations.

Occupied locations are shown with “■”

My Numbers

My Numbers is a convenient part of Phonebook where voice, fax and data phone number(s) can be stored and viewed. (☐)

Adding Numbers

I From Idle twice, select Phonebook > My Numbers
2 Use ◆ until Create is displayed
3 Enter the name - see "Text Entry" page 56, and use ♀

Note: If using T9 ^® text input then move o▶ before moving o otherwise an alternative word will be selected.

4 Enter the phone number twice

5 Enter location number or select Any

Viewing Stored Numbers

I From Idle 🐎, select Phonebook > My Numbers 🐎

2 If more than one number is available then use ⬇ to cycle through the listed numbers

Personalising Your Phone

Add a Start-up Greeting

A personalised greeting can be programmed for when the phone is switched on.

I From Idle 📁, select Personalise > Display Setting > Greeting 📁

2 Use the text entry facility to add a greeting twice - see "Text Entry" page 56

Displaying Animations

Animations can be displayed when the phone is switched on.

I From Idle 🐎, select Personalise > Display Setting > Animation 🐎

2 Use to cycle through the animated themes available

3 to select either the desired theme, or switch off the animation

Changing the Ring Tone

The ring tones of the phone can be changed to one of many pre-defined sounds or to a voice ringer. (a voice recording used as a ring tone)

Each voice, fax, data and message can have a different ring tone.

Alternatively you can use the Melody Composer to generate a custom ring tone. See "Composing a Melody" page 20.

Setting up a Pre-defined Ring Tone

It is possible to choose from a selection of tones and melodies.

I From Idle Type , select Personalise > Tones > Ring

2 Use 🔒 to select the appropriate call type to be changed

3 Use to select the desired ring tone

Recording a Voice Ringer

I From Idle Ringer , select Personalise > Tones > Voice

2 Use 🔒 to select the appropriate voice ringer to be changed

3 , start speaking into the microphone. The recording will stop automatically, or before if is selected

4 To playback the recording use ⬆ to select the appropriate voice ringer 📋, select Playback 📋

Composing a Melody

From Idle 🐎, select Personalise > Tones > Melody Composer 🐎

Using the following table as reference, enter the notes (from the choice of low, middle and high), rests, and the durations of each, to generate your composition.

Note: At any time during composing press ⏻ to play back the current melody.

When the composition is complete 📋 twice to save it.

Key 1st	press	2nd press	3rd press	4th press	5th press	6th press
	C	C#	low C	low C#	high C	high C#
	D	D#	low D	low D#	high D	high D#
	E low	E high E
	F	F#	low F	low F#	high F	high F#
	G	G#	low G	low G#	high G	high G#
	A	A#	low A	low A#	high A	high A#
	B	low B
	rest
	1/8	1/16	1/1	12	1/4
	12 1/1	1/16	1/8	1/4

Personalising Your Phone

Editing your Melody

Once the melody has been saved the following operations can be used for re-editing purposes:

to delete the character to the left of the cursor

to navigate the cursor around the screen

Use the relevant keys to insert new notes/rests

Disabling all Tones

I From Idle

●, select Personalise > Tones

2

● to disable all tones. When Idle is resumed the silent or icon (⚡) will be displayed

Repeat the process to enable all tones

Download Melody

Melodies may be downloaded to the phone from the Internet, via short text messages.

For further information see:

http://www.panasonicmobile.co.uk/support/ringtones

Downloaded melodies overwrite pre-defined ring tone numbers 16-20.

When a message has been received containing a melody:

I to acknowledge receipt of the melody

2 Use 🔒 to select the ring tone number to overwrite 📂 twice

The melody is now stored and can be selected as a pre-defined ring tone.

Logos

Logos may be downloaded to the phone from the Internet, via short text messages.

For further information see:

http://www.panasonicmobile.co.uk/support/logos

Downloaded logos overwrite 5 pre-defined logos in the logo menu.

When a message has been received containing a logo:

I to acknowledge receipt of the logo

2 Use 🔒 to select the logo location 📄 twice

The logo is now stored and can be selected as an idle screen option from the Personalise menu.

Setting the Backlight Time

I From Idle 🔍, select Personalise > Display Setting > Backlight Time 🔍 2 Use ⬇ to cycle through the times available 3 🔍 to select the desired time

Using Voice Commands

Before any of the phone's voice activated functions can be used, it is necessary to configure the phone so that it will recognize a particular voice and intonation.

Voice Dial Entry Setup

This function allows the user to recall and dial numbers from the Phonebook using voice commands.

I From Idle 📁, select Personalise > Voice Command > Voice Dial 📁

2 to add a new Voice Dial entry to the list

3 Browse through the Phonebook to select an entry which is to be attributed with a voice command, 📄 twice

Note: Each recording is short in length, so be prepared to speak soon after initiating the recording.

4 When ready, the user should hold the phone approximately 20cm from his/her mouth, 📋 and speak clearly into the microphone to record the name of the selected Phonebook entry

When the recording has stopped, it will be necessary to repeat the name.

5 When prompted, and repeat the name

When recording is completed for a second time, the display will indicate if the recording was successful or not. If unsuccessful, repeat from step 4.

Personalising Your Phone

Recalling Voice Dial Entries

From Idle move and hold the navigation key (◀) in any one of the four directions ○,○,○ or ◀. Speak clearly the name you wish to recall (exactly as recorded) and wait.

The above procedure will recall the phone number and the recorded Voice Dial entry is repeated; to initiate the call 📄.

Dialling Voice Dial Entries

Using Permission

From Idle 📋, select Personalise > Voice Command > Permission 📋

With this function enabled a recalled phone number is automatically dialled without further intervention.

Repeat this process to disable the Permission function returning to Voice Dial recall only.

Editing the Voice Dial Entries

It is possible to add to, play or delete any of the Voice Dial entries. With a Voice Dial entry displayed:

and use to select Add, Play or Delete to select the desired option

Add

To add a new Voice Dial entry.

Play

To listen to the recording of a Voice Dial entry.

Delete

To delete an entry.

Changing the Language

It is possible to change the language that the phone uses for either display messages and/or text entry.

I From Idle

, select Personalise > Language

2 Use

to select Display Language or Tegic Language (text y) that you wish to change

3 Use

to select the desired language

Restoring the Default Phone Settings

Any personal settings can be returned to their factory default, with the exception of some features, such as the Phone Lock code and the Language.

I From Idle

●, select Personalise > Defaults

2

● to restore the default settings

Phone Security

The phone features a number of security functions that protect against unauthorized use, and enable the user to restrict access to certain features - see “Using the PIN” page 10. It is recommended that all security codes are memorized. If it is necessary to make a note of any security codes, never write them in a way that they can be recognized by another person. If forgotten, contact the dealer for the Phone Lock Code or the Service Provider for PIN and PIN2.

Using Key Guard

The Key Guard function is used to prevent any keys from being accidentally pressed e.g. when the phone is being carried.

From Idle 📋, select Key Guard twice to enable Key Guard or 📋 + Hold ⬆, select Key Guard, 📋 twice.

When a call is received Key Guard will be disabled temporarily, allowing the user to press any key except 📄 to answer the call. Emergency calls can still be made - see “Emergency Calls” page 9.

Guard Keypad? Ok

Note: When making emergency calls with the “Key Guard” enabled, there will be no audible or visual indication that the number is being dialled

Disabling Key Guard

When Free Keypad: is displayed, use 🔔 to select Yes

Changing the Security Codes

1 From Idle 🔍, select Phone Menu > Security 🔍 2 Use 🔍 to select Phone Lock, PIN or PIN2 🔍 3 Use 🔍 to select Change 🔍 4 Enter the current code 🔍 5 Enter the new code 🔍 6 Verify the new code 🔍

Restricting Calls

Call Barring

The Call Bar function is used to restrict certain outgoing and/or incoming calls. Call Bar is controlled by a security password that is supplied by the Service Provider. When updating or checking the status of Call Bar the phone must be registered with a network. Different Call Bar restrictions can be used for voice, fax and data calls. Any combination of call restrictions can be set.

I From Idle Bar , select Phone Menu > Security > Call
2 Use ⬇, select Bar Voice, Bar Fax or Bar Data twice
3 Use 🔒 to select the level of call barring that needs to be applied and 📄
4 Enter Call Bar password and

Barred Dialling

The Barred Dial function enables the user to bar all phone numbers pre-programmed in the SIM from being dialled on the phone. To use this function PIN2 is required.

I From Idle Dial ⚙, select Phone Menu > Security > Barred
2 Enter PIN2

Fixed Dial

The Fixed Dial Store is part of Phonebook, but with additional security. When the security feature Fixed Dial is enabled it is only possible to make calls with phone numbers that are in the Fixed Dial Store.

When Fixed Dial is enabled any manually dialled phone numbers must match a phone number in the Fixed Dial Store.

To store, edit or delete a phone number in the Fixed Dial Store the Fixed Dial function must be enabled. With Fixed Dial enabled, all phone numbers can be added, edited or deleted as normal, but you will be prompted for PIN2.

Phone Security

"Wild" Numbers

Wild numbers are spaces that can be stored in a phone number. The “wild” numbers must be filled before the phone number is dialled. Used in conjunction with Fixed Dial calls can be restricted, for example, to a specific area by storing the area code of a phone and when recalled the remainder can be added. The “wild” numbers can be anywhere within a stored phone number.

I + Hold 0+ until _ is displayed to enter a wild number
2 When the phone number is recalled pressing a numeric key will fill in a “wild” number

Applications

Clock

This phone incorporates a clock with date/time, an alarm and a power on/off feature.

A second clock for dual time is also included - see “Second Clock” page 54.

Initially Setting the Home Time

I From Idle

select Applications

Clock Function >Clock Set >

Home > Time Set

2 Enter the digits for the date in the format day/month/year

3 Enter the digits for the time using 24 hour

clock

From Idle 📂, select Applications > Clock Function > Clock Set > Home > Summer Time

● to enable or disable Summer

Time: _H:MM 0-9

Setting the Clock Format

I From Idle

, select Applications > Clock Function

Clock Format > Display Format

2 Use ⬇ to cycle through the different clock and/or date formats

3 to select the desired clock display type

Altering the Time/Date

I From Idle

●, select Applications

Clock Function >

Clock Set > Home > Time Set

2 + Hold □ to remove the current date

3 Enter the digits in the format day/month/year

4 to accept the date

5 + Hold to remove the current time

6 Enter the digits using 24 hour clock

Setting the Clock for Summer Time

I From Idle 🍒, select Applications > Clock Function > Clock Set > Home > Summer Time

2 to set Summer Time On or Off

Setting the Alarm

If the clock hasn't been set, the user will be prompted to do so prior to setting the alarm.

There are four separate alarms, each of which may be set independently.

I From Idle 🐎, select Applications > Clock Function > Alarm Set 🐎

2 Use 🔒 to select the alarm to be set 📋 3 Enter the digits for the time 📋

4 Use to select the frequency of the alarm 5 Use to select the ring type

When the alarm has been set, ☐ will be displayed when the phone is in Idle.

The alarm is activated in accordance with the current clock (Home or Second).

Muting the Alarm

When the set time is reached the alarm will sound and the display will flash with an alarm message. The alarm will sound for 30 seconds. If the alarm is due during a call, it will activate vibration alert.

To end the alarm:

any key

Disabling the Alarm

I From Idle 🐎, select Applications > Clock Function > Alarm Set 🐎

2 Use to select the alarm to be disabled ☐ twice 3 Use to select Disabled ☐

When disabled, following the same procedure will re-enable the alarm.

Adjusting the Alarm Time

I From Idle Ⓞ, select Applications > Clock Function >

Alarm Set

2 Use ⬇ to select the alarm to be adjusted

3 + Hold to remove the current alarm time

4 Enter the digits for the time

5 Use ⬤ to select the frequency of the alarm

6 Use to select the ring type

Setting a Power On/Off Time

The phone can be set to turn itself on or off automatically at a specified time using the Power On/Off feature. The procedure for setting/adjusting the Power On/Off automatically is similar to that for setting the time on the clock. For either setting or adjusting the time needed to select Power On Time or Power Off Time in the Clock Function menu.

Caution: Ensure that the setting of the Alarm or Power On function will not contravene any regulations whereby it may automatically power on when in an aircraft or medical facility etc. - see “Important Information” page i.

Calculator

The four function calculator will enable the user to perform simple arithmetic calculations (addition/subtraction/multiplication and division).

I From Idle 🐘, select Applications > Calculator 🐘

2 Enter a number (maximum 10 digits) and it will be displayed on the upper right of the display. If a decimal point is required, 📄 + Hold Ⓘ

3 Use ◀ to select the arithmetic operation you wish to perform (○ to multiply, ○ to add, ○ to divide, ◀ to subtract)

4 Enter a number (maximum 10 digits) and it will be displayed next to the operation symbol

If is used to select another arithmetical operation to perform, an intermediate calculation will be performed and the result displayed on the middle line.

5 to complete the calculation when = is displayed in the centre of the operation field

Applications

Currency Convertor

The currency convertor enables the user to convert from/to a home currency using a conversion rate that you enter.

From Idle

select Applications > Currency

Entering an Initial Conversion Rate

I
2 Enter an abbreviation for the home currency (up to 3 characters)
twice
3 Enter an abbreviation for the foreign currency (up to 3 characters)
twice
4 Enter the currency conversion rate twice

Converting a Value

I Check the conversion rate is the one you require 🍴 twice
2 Enter the value to be converted 🍴 twice

The conversion rate will be retained in the phone once entered. The next time the convertor is used, the conversion rate / currency abbreviation can be edited while in the Currency /rate display. 📁, then use 🔒 to select Edit 🔒.

Swapping the Currency Conversion

When you have accepted the conversion rate and are ready to enter the value to be converted, you can swap the currencies to convert from the foreign currency into the home currency.

I Use ⬇ to select Swap 🍴
2 Enter the value for conversion 🍒 twice

Text Messages

It is possible to receive, display, edit and/or send text messages of up to 459 characters, (Dependant on the language being used) to mobile phones on the same network or any network that has a roaming agreement. Messages will be sent as one message, but will be received as (up to) three messages. (Dependant on the recipients phone parameters).

Setting the Phone for Short Text Messages

Before a message can be sent, it is necessary to enter the Message Centre number into Parameters (the Service Provider will supply the Message Centre number).

The Message Centre number may have been preprogrammed on the SIM.

Setting the Message Centre Number

From Idle 📁, select Messages > Parameters > Message Centre 📁

Enter message centre number in international dial format – see “International Dialling” page 8.

Creating a Text Message

I From Idle

Create

●, select Messages >

Create a text message (up to 459 characters) - see "Text Entry" page 56

+ Hold I - 0+ to enter character menu.

to exit the character menu

Hello _

2 Use ◄ to navigate through the message and add or delete text

3

twice

The user may be prompted to send the message, if the message is not to be sent 📄, the message will be stored.

4

and enter the destination phone number (or recall a er from the Phonebook) - see “Retrieve a Number” page 14

twice

Text Messages

5 The user may be asked if delivery confirmation is required. If not required use ⬇ to select No 📂. If yes, use ⬇ to select Yes

The default setting for delivery confirmation can be enabled/disabled using the Report parameter in the Parameters menu.

Receiving Text Messages

When a Short Text Message is sent to the phone the message indicator (☐) will flash in the display, with an audible tone or vibration. This indicates that a new message has been received.

When Read is displayed 📂 to read the message. Use 🔊 to navigate through the message and to identify the sender and the time the message was sent.

Note: If the message indicator is displayed constantly (does not flash) this indicates that the message area is full and you will need to delete old messages in order to be able to receive new messages in the future.

Message Options

Reply to a Message

When a message is received and read the option to reply to the sender may be selected.

twice. This will allow the user to create a reply message

Delete a Message

|

2 Use ⬇ to select Delete 📋 to delete the message

To enable the auto-deletion of messages - see “Parameters” page 35.

Edit a Message

|

2 Use ⬇ to select Edit 📋 to edit the message

this will give the option to send the edited message - see "Creating a Text Message" page 32. if it is not necessary to send the message and it will be stored in the Send List.

Cut / Copy & Paste Message Text

This function allows the user to cut or copy message text from a user defined message or a user created message, into a new or existing message. It can also be used to paste text to a previously sent message - See “Edit a Message” page 33.

When message text is displayed, 📋, select Cut or Copy

2 Use 🔒 to position the cursor at the beginning of the text to be cut or copied 📂

3 Use ◆ to highlight the required text

The cut or copied text will remain in the phone memory until other text is cut or copied.

4 Select the required text screen for cut or copied text to be pasted into

5 Select Paste

To cut or copy text from a received message, select Forw'd and repeat steps 1 - 3.

Manage Messages Lists

All messages, whether sent or received, will be stored on the SIM until they are deleted. Selecting a stored message allows it to be replied to, edited or deleted.

Receive List

Messages received will be stored in the Receive List. A ☐ in the receive list, indicates an unread message.

When reading a message the sender's information is displayed below the text. Press ⬇ to show the sender's ID (if available), the time the message was sent and the message centre number. 📂 twice allows the user to reply to the message.

Send List

When a message has been sent or edited it will be stored in the Send List.

Create

This allows the user to create a new message or reply to a received message.

Text Messages

Chat SMS

Chat, will enable the user to read sent and received messages on one screen when in Chat SMS mode.

Review

Review allows you to check usage of the message area.

Parameters

From Idle

, select Messages > Parameters

The following parameters can be set:

Recipient Group

Recipient Group enables the user to pre-define the destination of text messages.

Auto Delete

When set will erase messages automatically:

Received Read - will overwrite the oldest read message.

Received Any - will overwrite the oldest message, even though it may not have been read.

Lifetime

This is the duration that your message is stored at the Message Centre. Delivery attempts will be repeated until the message has been delivered or the Lifetime expires.

Message Centre

Allows the Message Centre phone number to be edited - see “Setting the Phone for Short Text Messages” page 32.

Report

When your message has been delivered a confirmation will be received if Report is set to Yes.

Protocol

The Message Centre may be able to convert the message to the format specified by the selected protocol.

Broadcast

You need to specify the topic(s) of information that you wish to receive as broadcasts before you can receive them.

I From Idle Topics , select Messages > Broadcasts >

2 twice to insert a new topic

3 Use ⬇ to cycle through the available topics

4 to insert the currently displayed topic into your broadcast list

Enabling/Disabling Broadcasts

I From Idle 🐘, select Messages > Broadcasts 🐘

2 Select Receive

When enabled, following the same procedure will disable broadcasts.

Message List

This is a store for the last received broadcast messages. Messages can be deleted from here.

Language

The language in which broadcast messages are displayed can be changed ( ).

Call Information

Recent Numbers

Recently dialled phone numbers will be stored in Last Dialled.

If Caller Identification is available the caller's phone number, for an answered call will be stored in the Answered menu and an unanswered call will be stored in the Unanswered menu.

If Caller Identification is not available then calls will still be stored but will have the date and time attributed to them.

When the store is full the next phone number will overwrite the oldest.

I From Idle

2 Use to select Last Dialled, Answered or Unanswered

3 Use ⬇ to select the phone number (or name) you wish to redial

You can edit or delete the phone number before dialling – see “Editing Phonebook Entries” page 14.

If you wish to store the selected number in Phonebook, 📋 while the number is displayed – see “Store a Number” page 13.

Calling the Last Dialled Number

To redial your last called phone number 📄 twice.

Returning an Unanswered Call

When the display shows that you have received calls but not answered them.

|

The last caller's phone number will be displayed if it is available.

2 Use to select the phone number you wish to dial

3

Call Duration

I From Idle Calls

select Phone Menu > Call Service >

Note: The Calls function is SIM dependent (☐). If the SIM does not support this function then items under Calls menu will be found directly under Call Service menu.

2 Use

to select one of the functions described below, and

The Last Call function will display the duration and call charge if available, of the last call during Idle mode, or the current call during a call. Times are indicated as: hours (0-99), minutes (0-59), seconds (0-59) - HH:MM:SS.

The All Calls function displays the accumulated duration and call charge, if available, of Incoming and Outgoing calls. The lock code or PIN2 is required to reset the timer and call charge.

Call Charges

To maintain control over the cost of calls that are made, the phone can be set to restrict use to a finite number of units overall. (☐)

Setting the Unit Price

Firstly, a price per unit must be entered. This is the cost that the Service Provider charges for one unit of call time. (☐)

I From Idle

select Phone Menu > Call Service >

Service Charges > Price/Unit

2

to edit the values

At this point you will be asked to enter your PIN2 or Lock code

3 Enter a currency unit (up to three characters) e.g. GBP twice

4 Enter a price

twice

Setting the Maximum Unit Level

This function allows the user to pre - determine the maximum cost of calls made. (☐)

I From Idle

●, select Phone Menu > Call Service >

Service Charges > Max Cost

2

● twice to edit the values

At this point you will be asked to enter your PIN2 or lock code

3 Enter a value (number of units) which is to be the maximum permitted, and the corresponding cost will be displayed

4

twice to accept

Note: The duration of one unit may vary during the day, peak and off-peak times. Therefore, the call charge can be calculated accordingly. However, call charge information may not give an accurate reflection of the tariffs charged by your Service Provider.

Setting a Warning Level

A warning can be set as an indication that the maximum cost is about to be reached. This function is SIM dependent.

I From Idle

●, select Phone Menu > Call Service >

Service Charges > Warning at

2

● twice to edit the value

3 Enter a value (in units) at which time you would like the warning to sound 🎨 twice

Call Identification

In the Call Service menu, the Caller's ID and Withhold ID functions allow you to check the status of whether a Caller's Identification is sent or can be received. (Withhold ID ⚠️)

Note: When checking the status the phone must be registered with a network.

Advanced Operation

Diverting Calls

Voice, fax and data calls can be diverted using different circumstances and to different numbers. For example you may wish voice calls to be diverted to Voicemail in the event that the phone is switched off.

I From Idle

select Phone Menu > Call Divert

2 Use

to select the type of calls to divert, 📋 twice

3 Use

to select the circumstances to initiate the divert

4

Enter phone number to divert to

twice

When a divert situation is enabled the divert icon (4) is displayed.

When updating or checking the status of Call Divert the phone must be registered with a network. (☐)

Holding Calls and Call Waiting

Holding a Call

During a call:

|

2 Use

to select Hold

Resuming a Call

|

2 Use

to select Resume

Making a Second Call

I Enter phone number (or recall from Phonebook – see “Retrieve a Number” page 14)

2

The first call will be placed on hold.

Advanced Operation

Receiving a Second Call

A second call can be received, if Call Waiting is switched on. This is enabled from the Phone Menu > Call Service menu. It is not possible to have more than one fax or data call. All voice calls must be ended before you can make or receive a fax or data call. (☐)

Accept a Second Call

|

2

Use

to select

Accept

The current call will be placed on hold.

Reject a Second Call

|

2

Use

to select

Reject

End Current Call and Receive Second Call

|

with a waiting call

2

any key except

or ◀

Operation During Two Calls

Swapping Between Calls

The □→→ prompt in the display screen, indicates the current call

|

2

Use ♂

select

Swap

End Current Call

|

2

Use

ô to select

End

The held call will remain held.

End Both Calls

Call Transfer

With two calls connected, Call Transfer enables the user to connect them together ending your connection, leaving the other parties to talk together.

When two calls are in use:

|

2

Use to select

Trans.

The two calls will be connected to each other and your call will be ended.

Note: Two call transfer cannot be utilized while in Multi-party mode.

Multi-party Calls

A Multi-party call enables three to five people to be in conversation at the same time. It is possible to swap between a Multi-party call and another call in the same way as with two separate calls. (☐)

Enabling Multi-party

With two calls connected (one active, one on hold):

|

2

Use to select

Merge

A Multi-party call has been enabled, all three people will be able to talk to each other.

Adding to Multi-party

It is possible to add to the Multi-party call (up to a maximum of five). Either by making a call or accepting an incoming call. The call can then be merged into the Multi-party.

Note: When making a call or accepting an incoming call the Multi-party call will be placed on hold. The callers in the Multi-party call can continue to communicate with each other while on hold.

Splitting a Multi-party

The user can select an individual from the Multi-party and remove their connection. This enables you to talk privately without the participation of the rest of the Multi-party.

Advanced Operation

During a Multi-party call:

1 2 Use ↑ to select Option 3 Use ↑ to select a caller in the Multi-party 4 5 Use ↑ to select Split

The selected caller will be split from the Multi-party call and the Multi-party call will be placed on hold (the remaining Multi-party call callers can still communicate).

Ending Multi-party Calls

The user can either select an individual in the Multi-party and end the call or end the entire Multi-party call. If a call is held, or an other call is incoming then an individual call cannot be ended.

Ending a Single Connection

During a Multi-party call

1 2 Use to select Option 3 Use to select a caller in the Multi-party 4 5 Use to select End

Ending a Multi-party Call

During a Multi-party call:

to end all the calls at once

Changing to a New Network

When not in your home Country / Region, the user may use a network that is not directly subscribed to, this is called ROAMING. National Law may not permit roaming in your home region.

The New Network function is used to manually select a network that is available in your current location.

I From Idle Network 🐎, select Phone Menu > Network > New

2 Use 🔒 to select one from the list of available networks

An X will be displayed in the information area if you cannot register with the selected network.

When the Search Mode is set to Automatic the phone will automatically reselect a new network in order to maintain optimum network availability. With the Search Mode set to Manual the phone will only use a selected network. If coverage is lost another network should be selected.

The Network List is used when the Search Mode has been set to Automatic. The location numbers in the Preferred Network List show the search priority.

Selecting Insert stores a new network in the currently displayed location and then moves other networks down, Edit overwrites the old network with a new one, and Add stores a new network at the end of the list.

Schedule

The Scheduler can be used to register reminders for personal events as well as planning holiday periods.

Caution: Ensure that any settings made in the Scheduler will not contravene any regulations whereby the phone may automatically power on when in an aircraft or medical facility etc. - see “Important Information” page i.

Creating a Reminder

From Idle

select Schedule

I Use the Navigation key ( ◄) to select the date for your reminder
2 twice to create a new entry when the required date is highlighted
3 Enter the digits for the time using 24 hour clock 🍴 twice
4 Use ⬇ to select the frequency of the reminder

When selecting Daily, Weekly or Yearly you will be given the option of using the “Repeat Count”, which allows you to set the frequency of the alarm.

5 Enter the memo for the reminder – see “Text Entry” page 56,

twice

6 Use to select a ring type for the reminder

To indicate that a reminder has been set, the date will appear as a white number on a dark background.

Viewing Reminders

When in the Schedule menu, select the required date using the Navigation key (◀) to view reminders for that date

Deleting Reminders

I From Idle

●, select Schedule

2 Use ◆ to select the required date of the reminder

3 Use ⬇ to select the reminder to be deleted

4 Use ⬤ to select Delete 📂 twice

Setting a Holiday Reminder

I From Idle

select Schedule

2 Use the Navigation key (

◀) to select the day of your holiday

3 Use

to select Function

4 Use

to select Holiday Set

5 Use

to select Day, Day of the week

three times to

update the Holiday List

Repeat process for each day of holiday as required.

Deleting Holiday Reminders

To delete holiday reminders:

I From Idle

-, select Schedule

2 Use the Navigation key (

◀) to select the day of your holiday to be

deleted

3 Use

to select Function

4 Use

to select Holiday Set

5 Use

to select Holiday List,

● to select date for deletion

twice

To delete ALL Holiday Reminders select All Clear 📄 twice.

Note: To indicate that a holiday reminder has been set, the date/s will be encapsulated in a clear box.

Jump to Future Date

I From Idle

●, select Schedule

2

3 Use

♂ to select Jump

4

+ Hold ☐ to remove the current date

5 Using

enter the date (using chosen date format) to

which you want to 'jump' to

twice

Games

Racing Game

The object of the game is to control a racing car around a circuit avoiding other cars in the fastest time possible & avoiding obstacles on the track i.e. Oil spillages.

Each time a new game is started, the player is credited with three “lives”.

Play the Game

I From Idle twice

select Games >Racing Game

2 Use to select a skill level to enter the game screen

Approximately three seconds after entering the game screen, the timer will begin.

3 Use ⬇ to change the gears enabling the car to accelerate and slow down/stop. (♂ to accelerate or ♀ to slow down or stop)

There is a gear change indicator on the right hand side of the display, showing current gear position.

4 Use ◄ to change lateral direction of the car during the race

Ball Game

The object of the game is to control a character between elevating platforms and achieve a high score without allowing the character to fall to the bottom of the screen or to get hit by a fireball.

A life will also be lost if the character is allowed to the top of the screen.

Play the Game

I From Idle

select Games > Ball Game

2 Use

select GAME START

3 Use

select difficulty level

After a short demonstration, the game will begin.

4 Use ◀ to control the character between the platforms

The current score is displayed on the right hand side of the screen.

WAP Browser

The phone's WAP (Wireless Application Protocol) Browser enables the user to access Internet services supported by the network, such as news, weather reports, sport etc.

Server Settings

Before Internet services can be accessed, the SIM must be data enabled and the relevant configuration information, entered into the phone.

These settings may have been pre-programmed by the network operator.

Note: Modifying previously entered settings can cause failure of the Browser.

I From Idle 📁, select Browser > Browser Setting > Server Setting 📁

2 Two servers may be setup on the phone. Use ⬇ to select one or other of the server settings 📋

3 Use to select Edit

A list of configuration parameters will be displayed. The parameter Name will be highlighted and Edit will be displayed.

4 5 Enter the name of the WAP server twice

6 Use ⬤ to select each of the other parameters in turn, edit the information 📄 twice

7 After all parameters have been entered, 📁 to return to the previous menu level

8 Select the server setting that you have just edited 📂. Use ⬇ to select Set 📋

Record your WAP settings in the table at the rear of this booklet for easy reference.

Activating the Browser

To activate the Browser:

From Idle

The first time that the browser is activated there will be no content stored so the Home URL content will be displayed (as defined by the network operator). The Home URL will be recalled from the cash, each time the browser is activated. (Cache is the phone's memory that stores content downloaded in the past). When recalling content from cache the phone remains off-line (not connected to a WAP server).

Navigating Content

Use the Navigation key (◀) to scroll through the content on the screen as follows:

Use ⬆ to scroll up/down on the current page

Use ◀ to return to the previous page

Use o▶ to return to the next page (only applicable if returned to previous page)

When linked text (underlined text) is highlighted 📁 to load the page represented by the link.

indicates a table - with View displayed of table

to view contents

Indicates an image which cannot be displayed

Indicates on-line browsing (Non Secure)

Indicates on-line browsing (Secure)

The Browser Menu

The Browser also contains its own menu which is applicable when content is currently being displayed (either on-line or off-line).

To access the Browser menu 📁 when Menu is displayed at the bottom.

This menu is used as follows:

Home Deck

Displays the Home URL content as defined by the network operator.

Bookmark

Use, add, delete and rename bookmarks.

Enter URL

Type in a URL directly to go to a known site.

Reload

Will reload and update the current page.

Reset

Deletes the content in cache and displays the Home URL content.

Exit

Deactivates the Browser.

Using Bookmarks

Frequently accessed pages may be bookmarked to save time. This prevents the need to re-enter the URL each time.

Adding a Bookmark

I While viewing content

2 Use to select Bookmark

3 twice to register the bookmark

Recalling Pages Using Bookmarks

I With content displayed

2 Use ⬇ to select Bookmark

3 Use to select the relevant bookmark from the list,

Renaming a Bookmark

I With content displayed

2 Use to select Bookmark

3 Use to select the relevant bookmark from the list,

4

5 + Hold to remove the bookmark name, then re-type the name required twice

Deleting Bookmarks

I With content displayed

2 Use to select Bookmark

3 Use to select the relevant bookmark from the list,

4 Use ⬇ to select Delete

Deactivating the Browser

The Browser can be deactivated as follows:

When browsing on-line

to review cache off line.

When browsing off-line

to return to Idle mode.

Setting the Linger Time

The phone will be automatically disconnected from the WAP server after a set period of non-interaction. This period is defined in seconds by the Linger Time setting.

I From Idle

to remove the current linger time, then

re-enter the value required

Last Error

If an error should occur when using the Browser, use this function to inform the network operator of the last error which occurred with the phone, to assist with a diagnosis of the problem.

From Idle 📁, select Browser > Browser Setting > Last Error 📁

Additional Features

Desktop Handsfree

Desktop Handsfree enables you to hold a conversation without having to hold the phone to your ear.

Note: Do NOT hold the phone to your ear in Handsfree mode.

Swapping Between Handsfree and Handheld Calls

During a Handheld call:

|

2 Use

to select H'free

During a Handsfree call:

twice to revert for Handheld operation

Answering a Call Handsfree:

To answer a call using Handsfree

Voice Memo

You can record a two-way conversation during a call. If a different SIM is installed any voice memos will be lost.

Caution: Security of a recorded message is your responsibility. You MUST ask for the other party's consent before recording.

Record a Voice Memo

Use ⬇ to select Memo

A tone will sound when recording starts. When the recording stops a tone will sound.

If you 🐘 while recording a voice memo, recording will stop but no tone will sound to either party.

Additional Features

Play Back a Voice Memo

From Idle 🔍, select Applications > Voice Memo Play > Playback 🔍 To stop playing, 🔍 twice

The Note Pad function is available during playback - see "Note Pad" page 54.

Volume Control During Playback

While playing back:

Use ⬇ to adjust the volume of the voice memo

Delete Memo

From Idle 📄, select Applications > Voice Memo Play > Delete 📄 twice

DTMF Tones

DTMF tones can be sent during conversation. These are often used to access voice mail, paging and computerized home banking. For example, you may need to input a number to remotely access voice mail messages. A phone number may be stored in the Phonebook with DTMF tones, allowing the number to be dialled upon recall and the DTMF number to be sent automatically.

Send DTMF Tones During a Call

Enter digits (0+ to 9WXYZ, # and * _↑ )

Pause Dial

Using pauses allows you to send DTMF tones automatically.

I Enter phone number
2 Press and hold 0+ until a P is displayed at the end of the phone number entered
3 Enter DTMF digits after the pause, e.g. enter the number to access voice mail messages.

4

When the call is successful DTMF tones will be sent after 3 seconds or

to send the DTMF tones manually.

If the DTMF tones are unsuccessful then the destination of your call may require that the length of the tones be increased.

5 From Idle ⚡, select Personalise > DTMF Length

6 Use ⬇ to select Long 🍴

Note Pad

During a call numbers can be entered which you may wish to dial when the call has ended.

During a call:

I Enter phone number
2 When the call has ended

To store in Phonebook, "Store a Number" page

to call that number

while the number is displayed – see

Second Clock

The Second Clock can either be set to auto-adjusting, whereby the second time will be automatically set from the code of the current network, or a specified time difference can be set manually.

Setting Clock Display

I From Idle 📋, select Applications > Clock Function > Clock Format > Display Pattern 📋

2 Use to select Second Time or Home Time

Setting Auto Adjustment

If travelling to a country / region which has a roaming agreement with the users' home network, the Second Clock will be automatically adjusted. However, for countries / regions which have several time zones in the same area manual adjustment is required.

I From Idle 📁, select Applications > Clock Function > Clock Set > Second > Auto Adjustment > Home area

2 Use ⬤ to select your home area 🍴

Additional Features

Enabling Auto Adjustment

From Idle 📁, select Applications > Clock Function > Clock Set > Second > Auto Adjustment > Auto Adjustment 📁

Repeat to disable Auto Adjustment.

Setting Manual Adjustment

I From Idle 🐘, select Applications > Clock Function > Clock Set > Second > Time Difference 🐘

2 Use value to select the time difference required 🐎 to set the

Setting Summer Time

From Idle 📁, select Applications > Clock Function > Clock Set > Second > Summer Time 📁

Once enabled, following the same procedure will disable Summer Time.

Accessory Related Features

When Auto Answer is switched on, and Personal Handsfree is connected, a call will be answered without pressing any keys. Any call waiting should be answered in the normal way.

This is also applicable to the Handsfree Car Kit accessory.

See the documentation provided with the relevant Accessory for operation details.

Text Entry

The phone provides a means for entering alphanumeric characters to enter details into the Phonebook, to create text and e-mail messages etc. This section details the characters that can be entered and the relevant keys to press.

	Text Mode
Key T9	®	Normal(ABC)	Greek(ABΓ)	Extended(AÄÅ)	Numeric(0-9)
0+	Alternatives +_ +_ +_ 0+P				—
1	Punctuation .@/:;*#+-”, !i?¿_ () [ ] ( )’ &&\ ^~ |◇=£f$¥§S 1
2ABC	abc ABCabc ABΓ AÄÄEBCÇaääääabc 2
3DEF	def DEFdef ΔEZ DEÉFdeéèf 3
4GHI	ghi GHIghi HBI GHIghii 4
5JKL	jk1 JKLjk1 KAM JKLjk1 5
6TNO	mno MNOmno N2O MNÑOöpmnñóöö 6
7PQRS	pqrs PQRSpqrs NPΣ PQRSpqrsß 7
8TUV	tuv TUVtuv TY¶ TUÜVtuüüv 8
9WXYZ	wxyz WXYZwxyz XYΩ WXYZwxyz			9
*	Shift/Lock *	Shift/Lock *			※
#W	Space	Space	Space	Space	#

* once to enter a single capital letter (subsequent characters will be lower case). twice acts as a keyboard CAPS LOCK function and subsequent characters will be uppercase. a third time, to return to lowercase character entry.

Alternatively, 📄 + Hold any of the numeric keys to enter the character menu, which allows the user to navigate around the menu (◀) until the required character is highlighted. 📄 to select.

© to return to the message screen.

Text Entry

T9 ^® Text Input

Using this mode of text entry dramatically reduces the number of key presses required:

Press a key once for any letter you require on that key. The desired letter may not be displayed. Continue pressing other keys until the end of a word is reached; then check that the word has been typed correctly before continuing on to the next word.

If the combination of letters typed has produced a word which is not the one you require, press ☐+ repeatedly until the correct word is displayed. Continue to the next word.

If the word you require is not in the internal dictionary (i.e. It is a proper noun or a rarely used word) then it should be entered using the Normal (ABC) mode.

Other Text Modes

To access any of the other text entry modes use 📄 to cycle through until the desired mode is displayed in the Information Area.

When using Normal (ABC), Greek (ABΓ) or Extended (AÄÅ) text entry modes, each time a key is pressed in quick succession it will display the next character available on that key (or if the key is pressed and held down it will cycle through the available characters). Releasing the key, or pressing another key will enter the currently displayed character and the cursor will move to the next position.

Editing Text

Pressing ⬇ will move you up or down one text line (or field in Phonebook). Pressing ◀ will move you left or right one character. When the cursor is moved over a character and another key pressed this will insert the new character immediately before the selected character. Pressing ⬇ will delete the character to the left of the cursor or delete the current line when pressed and held.

T9 ^® is a trademark of Tegic Communications Inc.T9 ^® Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No.HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT.ES, SE, GB; and additional patents are pending worldwide.

Menu Structure

From Idle 🔊 to display a menu of phone features. To select a feature, use 🔊 to navigate to the icon of the feature you require.

when the icon is highlighted.

To exit the current menu and return to the previous level 📄. To exit completely out of the menu structure, 📋 + Hold 📄, or 🌐 (except during a call).

During a call a restricted menu will be available.

| Personalise

Language

Tones

All Tones

Ring Volume

Ring Type

Melody Composer

Voice Ringer

Key Volume

Key Tone Type

Warning Tone

Voice Command

Voice Dial

Permission

Display Setting

Idle Screen

Greeting

Animation

Contrast

Backlight Time

Vibration Alert

Continuous

Intermittent

Disable

Discreet Mode

Ring Volume

Vibration

Continuous

Intermittent

Disable

User Msg.

Auto Answer

DTMF Length

Defaults

2 Games

Racing Game

Ball Game

3 Phonebook

Browse

Create

Alert Profile

Group Setting

Review

My Numbers ^2

Hot Key Dial

4 Key Guard

5 Browser

Start Browser

Browser Setting

Linger Time

Last Error

Server Setting

6 Messages

Receive List

Send List

Create

Chat SMS

Review

Parameters

Broadcasts ^2

7 Phone Menu

Call Service

Calls

*Last Call

* All calls

* Call Waiting

* Caller's ID

* Withhold ID

*My number

*Service Charges

Call Divert

Voice Calls

Fax Calls

Data Calls

Cancel All

Status

Security

Phone Lock

Call Bar ^1

PIN ^2

PIN2 ^2

Fixed Dial ^2

Barred Dial ^2

Network

New Network

Search Mode

Network List

8 Applications

Games

Voice Memo Play

Download Data ^1

Melody

Logos

Clock Function

Clock Set

Clock Format

Alarm Set

Power On Time

Power Off Time

Calculator

Currency

9 Schedule

^1 Function is Network Dependent ( )
^2 Function is SIM Dependent (☐)

Trouble Shooting

Should any problem persist contact your dealer.

Problem Cause Remedy
Phone will not switch on		Check that the battery is fully charged and correctly connected to the phone
Extremely short battery life for a new battery	The network you are using and the condition of the battery can affect battery life
Short battery life for an old battery	The battery has worn out	Replace with a new fully charged battery
The charging indicator does not light, the battery level indicator does not appear and the phone cannot be switched on when charging	The battery is not attached to the phone or when the battery has been deeply discharged the phone will take a short time until the indicator lights	Leave the phone charging the battery for a few minutes before the indicator is lit and attempting to switch it on
Battery fails to charge	The battery is not attached to the phone	Ensure the battery is fitted to the phone prior to commencing charging.
	Battery has been connected to the phone after AC adaptor has been switched on
Calls cannot be made	The phone is locked	Unlock the phone
	Outgoing calls are barred	Disable the outgoing call barring, or barred dial
	The phone is not registered to a network	Move to a coverage area and operate your phone after it has registered with a network.
Calls cannot be made from Fixed Dial Store		Check your SIM supports Fixed DialCheck if the Fixed Dial is switched onCheck the phone number is stored in the Fixed Dial
Calls cannot be received	The phone is not switched on	Switch the phone on
	Incoming calls are barred	Disable the incoming call barring
	The phone is not registered to a network	Move to a coverage area and operate your phone after it has registered with a network.
Emergency calls cannot be made	You are not in a GSM coverage area	Check that the antenna symbol is displayed - move to a coverage area and operate your phone when the antenna symbol is displayed
Phone numbers cannot be recalled from Phonebook	The phone is locked	Unlock the phone
	Phone number has been restricted	Switch off restriction

Trouble Shooting

Important Error Messages

These are some of the most important error messages which may be displayed:

Area Not Allowed	Roaming in the selected area is not allowed
Network Not Allowed	Roaming with the selected network is not allowed
Security Failure	The network has detected an authentication failure because your SIM is not registered with that network - contact your Service Provider
SIM Blocked / Contact Service provider	The SIM is blocked because one of the PIN/PIN2 unblocking keys (PUK/PUK2) has been entered incorrectly ten times - contact your Service Provider
SIM Error	The phone has detected a problem with the SIM - switch the phone off and then back on; if the message is still displayed contact your Service Provider
SIM Invalid	The SIM has failed one or more of the SIM personalisation checks - contact your Service Provider
Function Unavailable	The selected feature is either not supported by the SIM or is not available with the current subscription - contact your Service Provider
PIN2 Invalidated	The PIN2 is blocked permanently because the wrong PUK2 has been entered ten times, services controlled by PIN2 cannot be used - contact your Service Provider
Message Rejected Store Full	A message has been received but the message store is full - to receive messages, delete some of the currently stored messages or set messages to Auto Delete
Phone Number Too Long (Max:20)	The edited or newly created Phonebook number is too long for the SIM
Warning Store Full Continue?	The message area is full. Your messages cannot be stored until some of the currently stored messages are deleted
VerificationFailure	On changing the phone lock code, verification of the new code is incorrect - retry changing the lock code with correct verification
Incorrect Lock Code	Disabling or enabling the lock code has failed due to incorrect entry of the lock code - re-enter lock code
Incorrect PIN / PIN2 / PUK / PUK2	The entered code is incorrect - re-enter code correctly
Auto Redial List Full	Redial list of unsuccessfully dialled numbers is full - switch the phone off and then on again

Glossary of Terms

Cut	Permanently removes selected text from short text message
Copy	Copies selected text from short text message without removing it from the original message
DTMF Tones	Dual Tone Multi-Frequency tones allow you to communicate with computerized phone systems, voice mailboxes etc.
GSM Global System for Mobile Communications. The name given to the advanced digital technology that your phone uses.
Network Operator	The organization responsible for operating a GSM network.
Password	Used for the control of the Call Bar. Supplied by your Service Provider.
PIN	Personal Identification Number used for SIM security. Supplied by your Service Provider. If the PIN is entered incorrectly 3 times, the PIN will be blocked.
PIN2	Personal Identification Number used for the control of Fixed Dial Store and Call Charge metering. Supplied by your Service Provider. If the PIN2 is entered incorrectly 3 times, the PIN2 will be blocked.
PUK/PUK2	PIN/PIN2 Unblocking Key. Used to unblock the PIN/PIN2. Supplied by your Service Provider. If the PUK/PUK2 is entered incorrectly 10 times, the PUK/PUK2 will be blocked.
Registration	The act of locking on to a GSM network. This is usually performed automatically by your phone.
Roaming	The ability to use your phone on networks other than your Home network.
Service Provider	The organization responsible for providing access to the GSM network.
SIM	Subscriber Identity Module. A small smart-card which stores unique subscriber and user-entered information such as Phonebook and Short Messages. Supplied by your Service Provider.
WAP	Wireless Application Protocol. The communication standard which enables you to download resources from the Internet to your phone

Specifications

Phone (Including Battery) ^*

Type	GSM900 Class 4GSM1800 Class I
Temperature Range
Charging	+5°C - +35°C
Storage	-20°C - +60°C
Weight 82g	*
Dimensions (mm)
Height x Width x Depth	106 x 46 x 16
Supply Voltage	3.7V DC, 650mAh Li-ion
Standby Time (hrs)	Up to 150
Talk Time (Min)	Up to 360
Charge Time (Phone off)	Up to 90m (Travel Charger)Up to 120m (Car Charger)
Antenna Internal
SIM Type 3V only
phonebook Memory 200 + SIM
Animation Themes 2
Voice Memo 2 x 16 seconds
User Composed Melody One
Downloadable Melody Up to 5
Recordable Ringer	2 x 10 seconds
Games 2
Back light colours	I (Light Blue)
Ring tones	23 Fixed & Variable
Scheduler	Up to 100 Entries
Alarms 4

Note: Charge time will be longer when the phone is turned on. Battery life is affected by the network being used and the condition of the battery.

EU Warranty

EU/EEA-Wide guarantee is applicable in the EU/EEA and Switzerland.

Panasonic GSM European Service Guarantee Conditions

Dear Customer,

Thank you for buying this Panasonic digital cellular telephone. The Panasonic GSM European Service Guarantee only applies while traveling in countries other than where the product was purchased. Your local guarantee is applicable in all other cases. If your Panasonic GSM telephone requires service while abroad, please contact the local service company shown on this document.

The Guarantee

The applicable period of the European wide guarantee for GSM is generally 12 months for the main body and 3 months for the rechargeable battery. With respect to a product used in a country other than a country of purchase, notwithstanding what is stated in the conditions below, the customer will benefit, in that country of use, from these guarantee periods of, respectively, 12 and 3 months, if these conditions are more favorable to him than the local guarantee conditions applicable in such country of use.

Conditions of Guarantee

When requesting guarantee service the purchaser should present the warranty card together with proof of purchase, to an authorized service centre.

The guarantee covers breakdowns due to manufacturing or design faults; it does not apply to other events such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorized by us.

Your sole and exclusive remedy under this guarantee against us is the repair, or at our option the replacement, of the product, or any defective part or parts. No other remedy, including, but not limited to, incidental or consequential damage or loss of whatsoever nature shall be available to the purchaser.

This is in addition to and does not in any way affect any statutory or other rights of consumer purchasers. This guarantee applies in countries shown on this document at the authorized service centres detailed for that country.

UK

Service Centres in the UK

England:

Tel. [phone]

Ireland:

Tel: +353 | 2959966

D

Panasonic Service Center Dresden

SERKO GmbH

Panasonic Service Center Rostock

warnow electronic service gmbh

An der Jägerbäk 2

18069 Rostock

Tel. [phone]

Panasonic Service Center Hamburg

ELVICE Service GmbH

Spaldingstraße 74

20097 Hamburg

Tel. [phone]

Panasonic Service Center Rendsburg

FERNSEH-DIENST B&W Service GmbH

Kieler Straße 41

24768 Rendsburg

Tel. [phone]

Panasonic Service Center Bremen

Tel. [phone]

TOP SERVICE

Westerloseweg 10

2440 GEEL

Tel. [phone]

TELECTRO SC

EU/EEA-Wide Guarantee: Conditions applicable in any country other than the country of original purchase.

A When the purchaser finds the appliance to be defective, he should promptly contact the proper sales company or national distributor in the EU/EEA country where this guarantee is claimed, as indicated in the “Product Service Guide” or the nearest authorized dealer together with this guarantee and proof of date of purchase.

The purchaser will then be informed whether:

(i) the sales company or national distributor will handle the repair service: or
(ii) the sales company or national distributor will arrange for trans-shipment of the appliance to the EU/EEA country where the appliance was originally marketed; or
(iii) the purchaser may himself send the appliance to the sales company or national distributor in the EU/EEA country where the appliance was originally marketed.

B If the appliance is a product model which is normally supplied by the sales company or national distributor in the country where it is used by the purchaser, then the appliance, together with this guarantee card and proof of date of purchase, should be returned at the purchaser's risk and expense to such sales company or distributor, which will handle the repair service. In some countries, the affiliated sales company or national distributor will designate dealers or certain service centres to execute the repairs involved.
C If the appliance is a product model which is not normally supplied in the country where used, or if the appliance's internal or external product characteristics are different from those of the equivalent model in the country where used, the sales company or national distributor may be able to have the guarantee repair service executed by obtaining spare parts from the country where the appliance was originally marketed, or it may be necessary to have the guarantee repair service executed the sales company or national distributor in the country where the appliance was originally marketed.

In either case, the purchaser must furnish this guarantee card and proof of date of purchase. Any necessary transportation, both of the appliance and of any spare parts, will be at the purchaser's risk and expense, and there may be a consequent delay in the repair service.

D Where the consumer sends the appliance for repair to the sales company or national distributor in the country of use of the appliance, the service will be provided on the same local terms and conditions (including the period of guarantee coverage) as prevail for the same model appliance in the country of use, and not the country of initial sale in the EU/EEA. Where the consumer sends the appliance for repair to the sales company or national distributor in the EU/EEA country where the appliance was originally marketed, the repair service will be provided on the local terms and conditions prevailing in the country of initial sale in the EU/EEA.

Some product models require adjustment or adaptation for proper performance and safe use in different EU/EEA countries, in accordance with local voltage requirements and safety or other technical standards imposed or recommended by applicable regulations. For certain product models, the cost of such adjustment or adaptation may be substantial and it may be difficult to satisfy local voltage requirements and safety or other technical standards. It is strongly recommended that the purchaser investigates these local technical and safety factors before using the appliance in another EU/EEA country.

F This guarantee shall not cover the cost of any adjustments or adaptations to meet local voltage requirements and safety or other technical standards. The sales company or national distributor may be in a position to make the necessary adjustments or adaptations to certain product models at the cost of the purchaser. However, for technical reasons it is not possible to adjust or adapt all product models to comply with local voltage requirements and safety or other technical standards. Moreover, where adaptations or adjustments are carried out the performance of the appliance may be affected.

G If in the opinion of the sales company or national distributor in the country where the appliance is used the purchaser has the necessary adjustments or adaptations to local voltage requirements and technical or safety standards properly made, any subsequent guarantee repair service will be provided as above indicated, provided the purchaser discloses the nature of the adjustment or adaptation if relevant to the repair. (It is recommended that the purchaser should not send adapted or adjusted equipment for repair to the sales company or national distributor in the country where the appliance was originally marketed if the repair relates in any way to the adaptation or adjustment).

H This guarantee shall only be valid in territories subject to the laws of the European Union and the EEA.

Please keep this guarantee with your receipt.

Personal Record

The Serial Number can be found on the outside of the phone under the battery. For your convenience we recommend that you note the following details as a record of your purchase.
Part Number
Serial Number
Dealer Name
Purchase Date

WAP Settings

Use the table below to record your WAP settings.

Item Hint Current Setting
Name WAP Server Name
Home URL URL of Server
Security Secure or Unsecured
Digital Dial # Phone Number
Analog Dial # Phone Number
Circuit Type	Analog, Digital or Auto
PPP ID Name
PPP Password Password
Gateway IP IP Address

Notes

CE

BULL CP8 PATENT

© Matsushita Communication Industrial UK Limited 2001 Information in this document is subject to change without notice. No part of these instructions may be reproduced or transmitted in any form or by any means without obtaining express permission from Matsushita Communication Industrial UK Limited
