USER MANUAL Star 230E BROTHER
ANSCHLIESSEN AND DAS STROMNETZ
ACHTUNG
If this machine is fitted with a 3 pin non-rewireable BS plug then please read the following.
IMPORTANT (in the United Kingdom)
Main supply (AC 230/240V~, 50Hz)
DO NOT cut off the main plug from equipment. If the plug fitted is not suitable for the power point in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical approved type, as originally fitted and to replace the fuse cover.
If none the less the main plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply.
IMPORTANT (in the other countries)
If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an appropriate three pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug.
NOTE: The plug severed from the main leads must be destroyed as a plug with bared flexible cords is hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark, rating as marked on plug.
Always replace the fuse cover. Never use plugs with the fuse cover omitted.
WARNING:DO NOT CONNECTEITHERWIRETO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER 'E',BY THE EARTH SYMBOL 1一 OR COLOURED GREEN OR YELLOW.
The wires in this main lead are coloured in accordance with the following code:
Blue Neutral
Brown Live
As the colours of the wiring in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black or blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured red or brown.

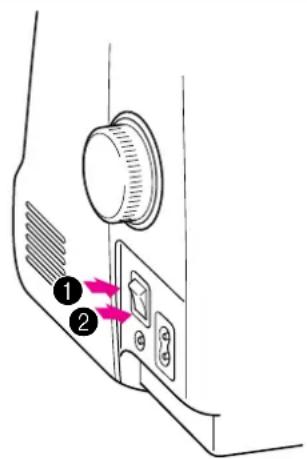

Connecting Plugs and Main Power / Sewing Light Switch
(Model STAR 240E,STAR 230E)
(Model PS-57, PS-55, PS-53)
-

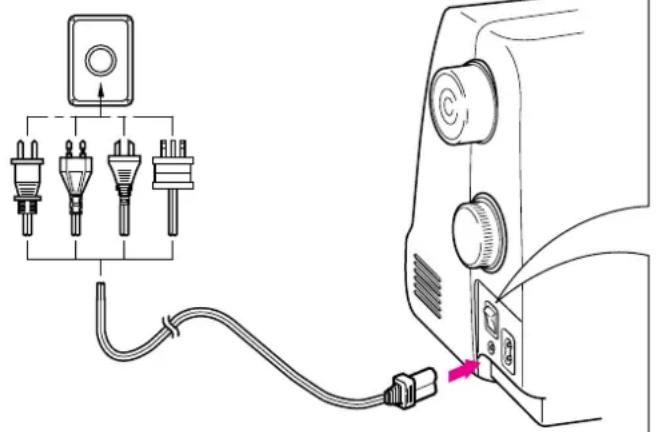

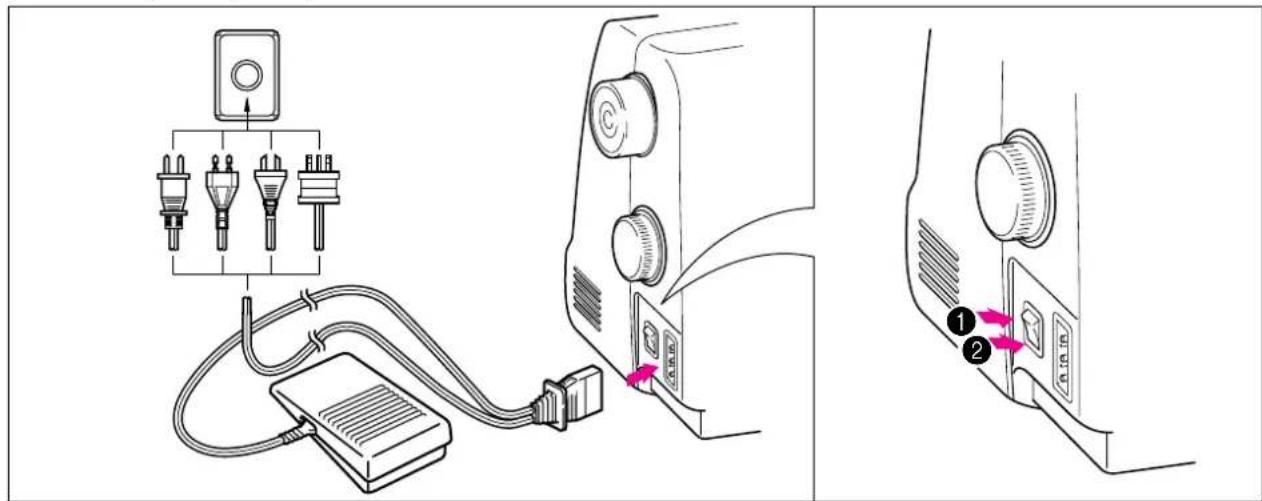

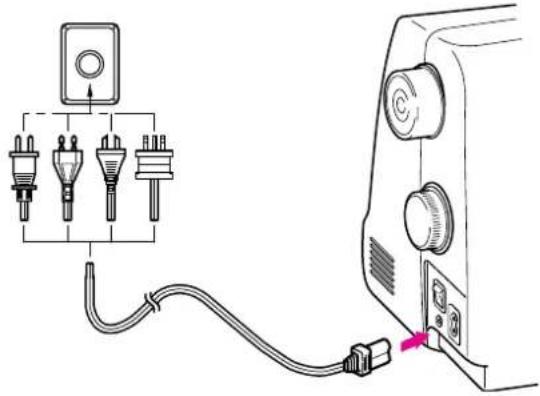

Connect the power cord or three-prong plug into the machine.
-
Connect the electrical supply plug into a wall outlet.
-
When leaving the machine unattended, the main switch of the machine should be switched off or the plug must be removed from the socket outlet.

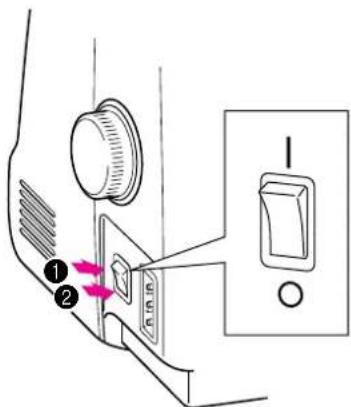

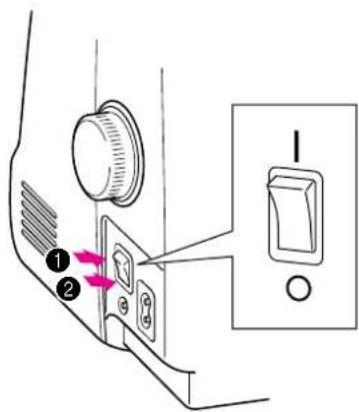

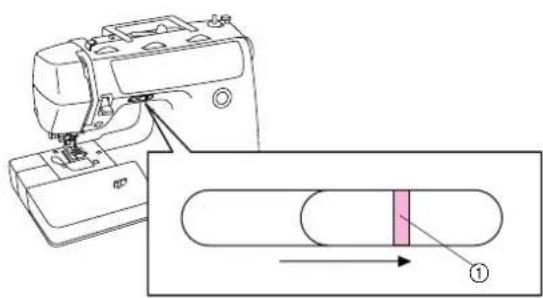

Turn on or off the switch for the main power and sew-light.
1Turn on 2Turn off
- When servicing the machine, or when removing covers or changing bulbs, the machine or the electrical set must unplugged.
HEFTEN UND APPLIZIEREN
Patchwork (Assemblage) 60
ACCESSIONS EN OPTION
Start/Stop-tocts. 31
KNOOPSGATEN EN KNOPEN
Een knoopsgal maken
(Model STAR 240E, STAR 230E)

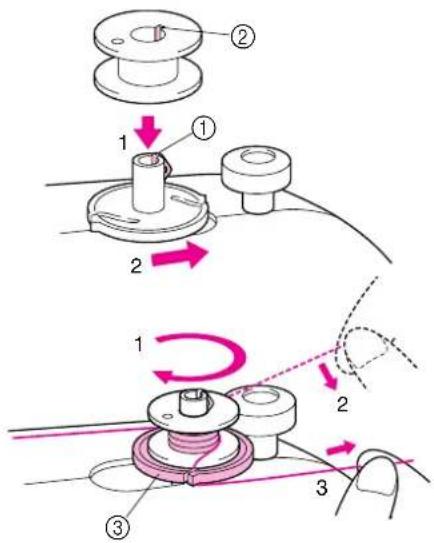

①SPULER (Seite 33)
(Model STAR 240E,STAR 230E)
①DEVIDOIR (Page 34)
⑧ PLATEAU ET COMPARTIMENT D'ACCESSIONS (Page 14, 32)
⑨PIED-DE-BICHEPOUR POINTS ZIGZAGS (Page 6,13)
BOUTON DE MISE EN MARCHE/ARRET (Page 31)
(Model STAR 240E,STAR 230E)

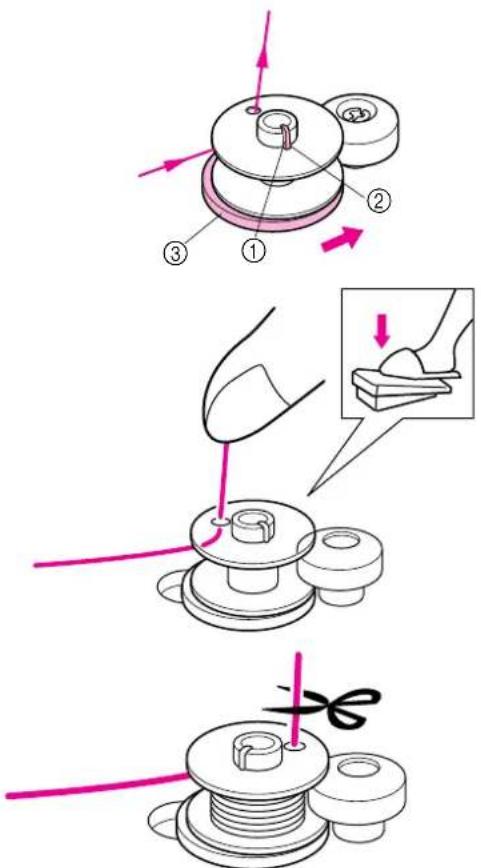

①SPOELWINDER(Pagina34)
⑧ PLATEAU ET COMPARTIMENT D'ACCESSIONS (Page 14, 32)
PIED-DE-BICHEPOUR POINTS ZIGZAGS (Page 6,13)
LEVIER COUTURE EN MARCHE ARRIERE (Page 29)
(ModeII STAR 240E, STAR 230E)
FuBanlasser: Modell N5V
FuBanlasser: Modell N
Teilenummer: J00360-051 (Länder m. 110/120 V)
XA6400-051 (Länder m. 220/240 V)
XA6402-051 (U.K.)
XA6404-051 (Australian, Neuseeland)
FuBanlasser:Modell N
Teilenummer: J00360-051 (Länder m. 110/120 V)
(Model STAR 240E, STAR 230E)
(Model STAR 240E,STAR 230E)

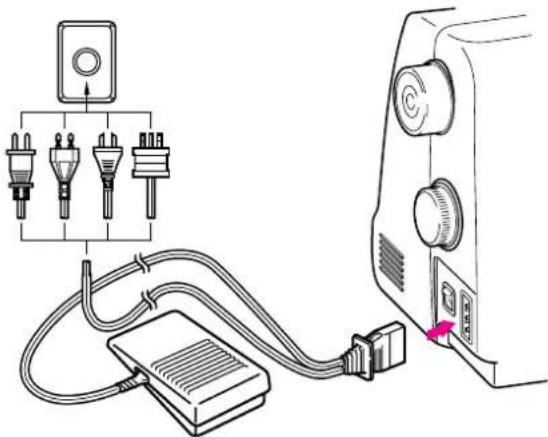

Voetpedaal: Model N5V
Onderdelencode:XA3931-051
(Model STAR 240E,STAR 230E)
(Model PS-57, PS-55, PS-53)
(Model STAR 240E,STAR 230E)
(Model PS-57, PS-55, PS-53)
(Model STAR 240E,STAR 230E)
Pédale
(Modele STAR 240E, STAR 230E)
(Model STAR 240E, STAR 230E)
(Model STAR 240E, STAR 230E)
FuBanlasser: Modell N5V
(Model STAR 240E,STAR 230E)
ENHNNNEENNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
(Model STAR 240E, PS-57)
| STICHMUSTER | STICHNAME | VORINGESTELLTE BREITE [mm (Zoll)] | EMPFOHLENE SEITE IN DER LÄNGE [mm (Zoll)] ANLEITUNG |
| II | 1-STUFEN-3-5 (Drehschalter 4-7) F-1,5 KNOPFLOCHAUTOMATIK (1/8-3/16) (1/64-1/16) | 63 | |
| I | GERADSTICH | 6,5 1-4,5 (1/4) (1/16-3/16) | 50, 73, 75 |
| S | ZICKZACKSTICH | 0-6,5 F-4,5 (0-1/4) (1/64-3/16) | 53, 72, 76, 77 |
| V | BLINDSAUMSTICH | 3-6,5 F-2 (1/8-1/4) (1/64-1/16) | 54 |
| V | BIESENSTICH | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 55 |
| W | ELASTIKSTICH | 3-6,5 F-2,5 (1/8-1/4) (1/64-3/32) | 56 |
| W | ELASTISCHER BLINDSTICH | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 54 |
| W | BOGENNAHT | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 58 |
| S | ELASTische SCHRITTNAHT BRÜCKENSTICH 57 PALISADENSTICH | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | |
| S | ELASTIK-MUSCHELSTICH | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 61 |
| S | PERLZIERSTICH PFEILSPITZENSTICH PARALLELOGRAMMSTICH (1/8-1/4) (1/64-1/16) | 59 | |
| S | BLITZSTICH RECHTECKSTICH DEKORATIVER STICH | 6,5 (1/4) (1/64-1/16) | F-1 |
| I | STRETCH-GERADSTICH | 6,5 (1/4) | SS Fixiert 2,5 (3/32) |
| S | DREIFACH-ZICKZACKSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
| S | ÜBERWENDLINGNAHT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
| W | ÜBERWENDLINGNAHT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
| X | GRÄTENSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
| W | KAMMSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
| X | DEKORATIVER STICH | 6,5 (1/4) | SS Fixiert 2,5 (3/32) |
| X | HEXENSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
| X | DEKORATIVER STICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
| X | FLACHNAHT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
| X | DEKORATIVER STICH | 6,5 (1/4) | SS Fixiert 2,5 (3/32) |
| X | MANSCHETTENSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert |
(Model STAR 230E, PS-55)
| STICHMUSTER | STICHNAME | VORINGESTELLTE BREITE [mm (Zoll)] | EMPFOHLENE SEITE IN DER LÄNGE [mm (Zoll)] ANLEITUNG |
| 1-STUFEN-3-5 (Drehschalter 4-7) F-1,5 KNOPFLOCHAUTOMATIK (1/8-3/16) (1/64-1/16) | 63 | ||
| GERADSTICH | 6,5 1-4,5 (1/4) (1/16-3/16) | 50, 73, 75 | |
| ZICKZACKSTICH | 0-6,5 F-4,5 (0-1/4) (1/64-3/16) | 53, 72, 76, 77 | |
| BLINDSAUMSTICH | 3-6,5 F-2 (1/8-1/4) (1/64-1/16) | 54 | |
| BIESENSTICH | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 55 | |
| ELASTIKSTICH | 3-6,5 F-2,5 (1/8-1/4) (1/64-3/32) | 56 | |
| ELASTISCHER BLINDSTICH | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 54 | |
| BOGENNAHT | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 58 | |
| ELASTISCHE SCHRITTNAHT BRÜCKENSTICH 57 PALISADENSTICH | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | ||
| ELASTIK-MUSCHELSTICH | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 61 | |
| PERLZIERSTICH PFEILSPITZENSTICH | 3-6,5 F-1 (1/8-1/4) (1/64-1/16) | 59 | |
| STRETCH-GERADSTICH | 6,5 (1/4) | SS Fixiert 2,5 (3/32) | |
| DREIFACH-ZICKZACKSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | |
| ÜBERWENDLINGNAHT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | |
| ÜBERWENDLINGNAHT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | |
| GRÄTENSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | |
| KAMMSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | |
| DEKORATIVER STICH | 6,5 (1/4) | SS Fixiert 2,5 (3/32) | |
| HEXENSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | |
| DEKORATIVER STICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | |
| FLACHNAHT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | |
| DEKORATIVER STICH | 6,5 (1/4) | SS Fixiert 2.5 (3/32) |
ENNNNNEENNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
(Model PS-53)
| STICHMUSTER | STICHNAME | VOREINGESTELLTE BREITE [mm (Zoll)] | EMPFOHLENE SEITE IN DER LÄNGE [mm (Zoll)] ANLEITUNG | |
| b = ac - d | 4-STUFEN- 3-5 (Drehschalter 4-7) F-1,5 KNOPFLOCHAUTOMATIK (1/8-3/16) (1/64-1/16) | 66 | ||
| GERADSTICH | 6,5 1-4,5 (1/4) (1/16-3/16) | 50, 73, 75 | ||
| ξ | ZICKZACKSTICH | 0-6,5 F-4,5 (0-1/4) (1/64-3/16) | 53, 72, 76, 77 | |
| γ | ELASTISCHE SCHRITTNAHT | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 57 | |
| μ | ELASTISCHER BLINDSTICH | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 54 | |
| ∇ | BLINDSAUMSTICH | 3-6,5 F-2 (1/8-1/4) (1/64-1/16) | 54 | |
| ν | BIESENSTICH | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 55 | |
| ω | ELASTIKSTICH | 3-6,5 F-2,5 (1/8-1/4) (1/64-3/32) | 56 | |
| || | STRETCH-GERADSTICH | 6,5 (1/4) 2,5 (3/32) | SS Fixiert | 50 |
| ‡ | DREIFACH-ZICKZACKSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | 62 |
| ∞ | HEXENSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | 60 |
| ¶ | KAMMSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | 61 |
| ¶ | ÜBERWENDLINGNAHT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | 61 |
| ¶ | ÜBERWENDLINGNAHT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | 61 |
| × | GRÄTENSTICH | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixiert | 62 |
LONGUEURS ET LARGEURS RECOMMANDEES POUR CHAQUE POINT
(Model STAR 230E, PS-55)
| MODELE | NOM DU POINT | LARGEUR RECOMMANDÉE [en mm (inch)] [en mm (inch)] | PAGE DU MANUEL | |
| BOUTONNIÈRE AUTOMATIQUE EN 1 PHASE (1/8-3/16) | 3-5 (Disque 4-7) F-1,5 (1/64-1/16) | 64 | ||
| POINT DROIT | 6,5 1-4,5 (1/4) (1/16-3/16) | 51,74,75 | ||
| POINT ZIGZAG | 0-6,5 F-4,5 (0-1/4) (1/64-3/16) | 53,72,76,78 | ||
| POINT OURLET INVISIBLE | 3-6,5 F-2 (1/8-1/4) (1/64-1/16) | 54 | ||
| POINT PICOT | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 55 | ||
| POINT ÉLASTIQUE | 3-6,5 F-2,5 (1/8-1/4) (1/64-3/32) | 56 | ||
| POINT ÉLASTIQUE INVISIBLE | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 54 | ||
| FESTON | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 58 | ||
| POINT RENFORCE POINT PONT 57 POINT EN REMPARTS | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | |||
| PLISSE ÉLASTIQUE | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 61 | ||
| FESTON DOUBLE 3-6,5 F- POINT FLECHE (1/8-1/4) | 1 (1/64-1/16) | 59 | ||
| POINT TRIPRE | 6,5 (1/4) 2,5 (3/32) | SS Fixe | 51 | |
| TRIPLE POINT ZIGZAG | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 62 | |
| OVERLOCK ÉLASTIQUE | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 61 | |
| OVERLOCK ÉLASTIQUE | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 61 | |
| POINT PLUME | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 62 | |
| POINT PEIGNE | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 61 | |
| POINT DÉCORATIF | 6,5 (1/4) 2,5 (3/32) | SS Fixe | 59 | |
| POINT FAGOT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 60 | |
| POINT DÉCORATIF | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 59 | |
| OURLET INVISIBLE DÉCORATIF | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 57 | |
| POINT DÉCORATIF | 6,5 (1/4) 2,5 (3/32) | SS Fixe | 59 | |
LONGUEURS ET LARGEURS RECOMMANDEES POUR CHAQUE POINT
(Modèle PS-53)
| MODELE NOM DU POINT | LARGEUR RECOMMANDÉE [en mm (inch)] [en mm (inch)] | LONGUEUR RECOMMANDÉE [en mm (inch)] | PAGE DU MANUEL | |
| b = ac - d | BOUTONNIÈRE AUTOMATIQUE EN 4 PHASE | 3-5 (Disque 4-7) F-1 (1/8-3/16) (1/64-1/16) | 5 | 66 |
| POINT DROIT | 6,5 1-4,5 (1/4) (3/64-3/16) | 51, 74, 75 | ||
| X | POINT ZIGZAG | 0-6,5 F-4,5 (0-1/4) (1/64-3/16) | 53, 72, 76, 78 | |
| S | POINT RENFORCE | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 57 | |
| M | POINT ÉLASTIQUE INVISIBLE | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 54 | |
| < | POINT OURLET INVISIBLE | 3-6,5 F-2 (1/8-1/4) (1/64-1/16) | 54 | |
| > | POINT PICOT | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 55 | |
| × | POINT ÉLASTIQUE | 3-6,5 F-2,5 (1/8-1/4) (1/64-3/32) | 56 | |
| POINT TRIPRE | 6,5 (1/4) 2,5 (3/32) | SS Fixe | 51 | |
| × | TRIPLE POINT ZIGZAG | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 62 |
| × | POINT FAGOT | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 60 |
| × | POINT PEIGNE | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 61 |
| × | OVERLOCK ÉLASTIQUE | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 61 |
| × | OVERLOCK ÉLASTIQUE | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 61 |
| × | POINT PLUME | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Fixe | 62 |
KENNENLERNEN IHRER MASCHINE CONNAITRE SA MACHINE A COUDRE DE NAAIMACHINE
AANBEVOLEN STEEKLENGTHES EN -BREEDTEN
ENNNNNEENNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
(Model STAR 240E, PS-57)
| PATROON | STEEK | INGESTELDEBREEDTE IN HANDLEIDING [mm (inch)] | AANBEVOLEN PAG LENGTH [mm (inch)] H | NA IN HANDLEIDING |
| AUTOMATISCH KNOOPSGAT 3-5 (Knop 4-7) F-1,5 IN 1 STAPPEN (1/8-3/16) (1/64-1/16) | 64 | |||
| RECHTE STEEK | 6,5 1-4,5 (1/4) (1/16-3/16) | 51, 74, 75 | ||
| ZIGZAGSTEEK | 0-6,5 F-4,5 (0-1/4) (1/64-3/16) | 53, 72, 76, 78 | ||
| BLINDE ZOOMSTEEK | 3-6,5 F-2 (1/8-1/4) (1/64-1/16) | 54 | ||
| SCHELP-RIJGSTEK | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | 55 | ||
| ELASTISCHE STEEK | 3-6,5 F-2,5 (1/8-1/4) (1/64-3/32) | 56 | ||
| BLINDZOOM STRETHSTEEK | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 54 | ||
| SCHELPSTEEK | 3-6,5 F-1,5 (1/8-1/4) (1/64-1/16) | 58 | ||
| DOBBELE ACTIESTEEK RIMPELSTEEK 57 VERBINDINGSSTEEK | 3-6,5 F-3 (1/8-1/4) (1/64-1/8) | |||
| ELASTISCHE SCHELP 3-6,5 -RIJGSTEK (1/8-1/4) (1/64-1/8) | F-3 (1/4) (1/64-1/16) | 61 | ||
| SCHELPSTEEK PIJLKOPSTEEK 3-6,5 F-1 PARALLELLOGRAMSTEEK DRIEHOEKSTEEK | (1/8-1/4) (1/64-1/16) | 59 | ||
| BLIKSEMSTEEK VIERKANTE STEEK DECORATIEVE STEEK | 6,5 (1/4) (1/64-1/16) | F-1 | 59 | |
| DRIEVLOUDIDE STRETCHSTEEK | 6,5 (1/4) | SS Vast 2,5 (3/32) | 51 | |
| DRIEVLOUDIDE ZIGZAGSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 62 | |
| ELASTISCHE OVERLOCK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 61 | |
| ELASTISCHE OVERLOCK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 61 | |
| TAKSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 62 | |
| KAMSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 61 | |
| DECORATIEVE STEEK | 6,5 (1/4) | SS Vast 2,5 (3/32) | 59 | |
| FAGOTSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 60 | |
| DECORATIEVE STEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 59 | |
| DECORATIEVE ZOOMSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 57 | |
| DECORATIEVE STEEK | 6,5 (1/4) | SS Vast 2,5 (3/32) | 59 | |
| KRUISSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 60 |

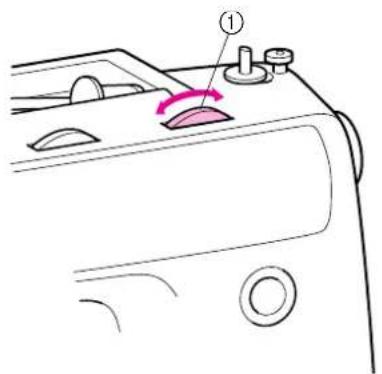

AANBEVOLEN STEEKLENGTHES EN -BREEDTEN
(Model STAR 230E, PS-55)
| PATROON | STEEK | INGESTELDEBREEDTE IN HANDLEIDING [mm (inch)] | AANBEVOLEN PAG LENGTH [mm (inch)] | NA IN HANDLEIDING |
| AUTOMATISCH KNOOPSGAT IN 1 STAPPEN (1/8-3/16) | 3-5 (Knop 4-7) F-1,5 (1/64-1/16) | 64 | ||
| RECHTE STEEK | 6,5 1-4,5 (1/4) (1/16-3/16) | 51,74,75 | ||
| ZIGZAGSTEEK | 0-6,5 F-4,5 (0-1/4) (1/64-3) | 16 | 53,72,76,78 | |
| BLINDE ZOOMSTEEK | 3-6,5 F-2 (1/8-1/4) (1/64-1) | 16 | 54 | |
| SCHELP-RIJGSTEK | 3-6,5 F-3 (1/8-1/4) (1/64-1) | 8 | 55 | |
| ELASTISCHE STEEK | 3-6,5 F-2,5 (1/8-1/4) (1/64-3) | 32 | 56 | |
| BLINDZOOM STRETHSTEEK | 3-6,5 F-1,5 (1/8-1/4) (1/64-1) | 16 | 54 | |
| SCHELPSTEEK | 3-6,5 F-1,5 (1/8-1/4) (1/64-1) | 16 | 58 | |
| DOBBELE ACTIESTEEK RIMPELSTEEK 57 VERBINDINGSSTEEK | 3-6,5 F-3 (1/8-1/4) (1/64-1) | 8 | ||
| ELASTISCHE 3-6,5 F-3 SCHELP-RIJGSTEK (1/8-1/4) | 4) (1/64-1/8) | 61 | ||
| SCHELPSTEEK 3-6,5 F-1 PIJLKOPSTEEK | (1/8-1/4) (1/64-1) | 16 | 59 | |
| DRIEVoudige STRETCHSTEEK | 6,5 (1/4) | SS Vast 2,5 (3/32) | 51 | |
| DRIEVoudige ZIGZAGSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 62 | |
| ELASTISCHE OVERLOCK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 61 | |
| ELASTISCHE OVERLOCK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 61 | |
| TAKSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 62 | |
| KAMSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 61 | |
| DECORATIEVE STEEK | 6,5 (1/4) | SS Vast 2,5 (3/32) | 59 | |
| FAGOTSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 60 | |
| DECORATIEVE STEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 59 | |
| DECORATIEVE ZOOMSTEEK | 3-6,5 (1/8-1/4) 2,5 (3/32) | SS Vast | 57 | |
| DECORATIEVE STEEK | 6,5 (1/4) | SS Vast 2,5 (3/32) | 59 |
KENNENLERNEN IHRER MASCHINE CONNAITRE SA MACHINE A COUDRE DE NAAIMACHINE
AANBEVOLEN STEEKLENGTHES EN -BREEDTEN
(Model PS-53)
| PATROON | STEEK | INGESTELDEBREEDTE IN HANDLEIDING [mm (inch)] | AANBEVOLEN PAG LENGTH [mm (inch)] | NA IN HANDLEIDING |
| b=ac-d | AUTOMATISCH KNOOPSGAT | 3-5 (Knopl 4-7) F-1,5 | 66 | |
| IN 4 STAPPEN (1/8-3/16) | (1/64-1/16) | |||
| RECHTE STEEK | 6,5 1-4,5 | 51,74,75 | ||
| (1/4) (3/64-3/16) | ||||
| ZIGZAGSTEK | 0-6,5 F-4,5 | 53,72,76,78 | ||
| (0-1/4) (1/64-3/16) | ||||
| DOBBELE ACTIESTEEK | 3-6,5 F-3 | 57 | ||
| (1/8-1/4) (1/64-1/8) | ||||
| BLINDZOOM STRETHSTEEK | 3-6,5 F-1,5 | 54 | ||
| (1/8-1/4) (1/64-1/16) | ||||
| BLINDE ZOOMSTEEK | 3-6,5 F-2 | 54 | ||
| (1/8-1/4) (1/64-1/16) | ||||
| SCHELP-RIJGSTEEK | 3-6,5 F-3 | 55 | ||
| (1/8-1/4) (1/64-1/8) | ||||
| ELASTISCHE STEEK | 3-6,5 F-2,5 | 56 | ||
| (1/8-1/4) (1/64-3/32) | ||||
| DRIEVLOUDICE STRETCHSTEEK | 6,5 | 51 | ||
| (1/4) 2,5 (3/32) | ||||
| DRIEVLOUDICE ZIGZAGSTEEK | 3-6,5 | 62 | ||
| (1/8-1/4) 2,5 (3/32) | ||||
| FAGOTSTEEK | 3-6,5 | 60 | ||
| (1/8-1/4) 2,5 (3/32) | ||||
| KAMSTEEK | 3-6,5 | 61 | ||
| (1/8-1/4) 2,5 (3/32) | ||||
| ELASTISCHE OVERLOCK | 3-6,5 | 61 | ||
| (1/8-1/4) 2,5 (3/32) | ||||
| ELASTISCHE OVERLOCK | 3-6,5 | 61 | ||
| (1/8-1/4) 2,5 (3/32) | ||||
| TAKSTEEK | 3-6,5 | 62 | ||
| (1/8-1/4) 2,5 (3/32) |
(Modele STAR 240E, STAR 230E)
(ModeII STAR 240E, STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E, STAR 230E)
Start-/Stopp-Taste
(Model STAR 240E,STAR 230E)
Start/Stop-toets
Druk op de knop Start/Stop om de machine te latent starten of stoppen.
(Model STAR 240E,STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E,STAR 230E)
Snelheidsregeling
(Model STAR 240E,STAR 230E)

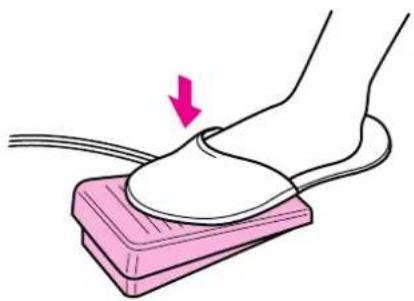

(Model PS-57, PS-55, PS-53)
FADENFUHRUNG
Aufspulen
VORSICHT
(Model STAR 240E, STAR 230E)
(Model STAR 240E, STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E,STAR 230E)
(Model PS-57, PS-55, PS-53)
①
②
(Model STAR 240E,STAR 230E)
(Modele STAR 240E, STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E, STAR 230E)
(Model STAR 240E,STAR 230E)
STOF AAN ELKAAR NAAIEN
Patchwork (Assemblage)
NEONNNEINQDOON
SNNNTNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
(Model STAR 240E,STAR 230E,PS-57,PS-55)

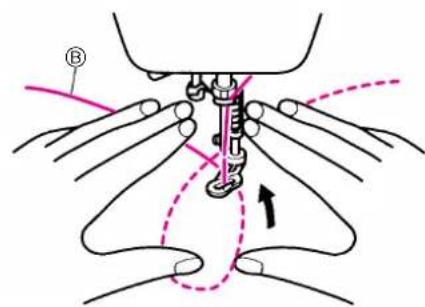

ACCESSIONS EN OPTION
(Model STAR 240E,STAR 230E)
D

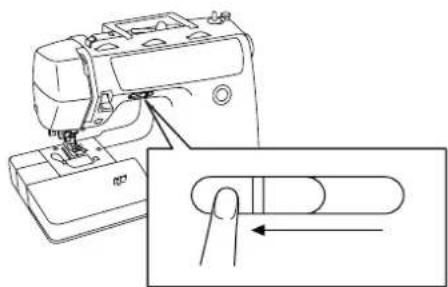

OPTIONALES ZUBEHÖR
ACCESSIONS EN OPTION
(Modle STAR 240E, STAR 230E)
LOS VERKRIJGBARE ONDERDELEN
(Model STAR 240E,STAR 230E)
A
B
C
OPTIONALES ZUBEHÖR
ACCESSIONS EN OPTION
(Model STAR 240E, STAR 230E)
(Model STAR 240E, STAR 230E)
(Model STAR 240E,STAR 230E)
(Model STAR 240E,STAR 230E)

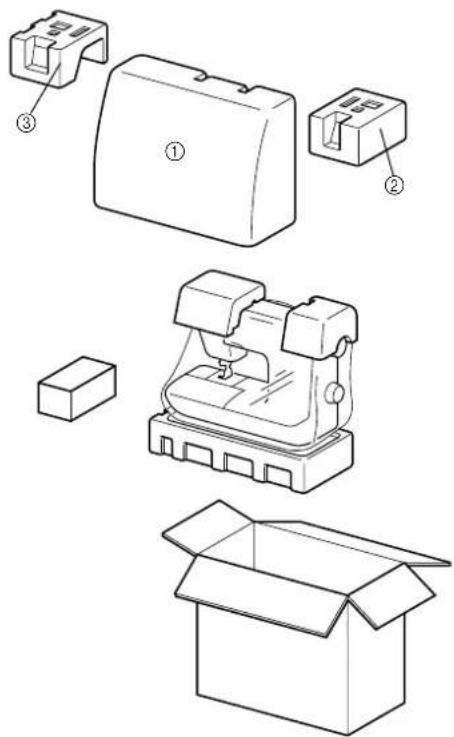

Emballage de la machine
Patchwork (Assemblage) 60
Pied quilting 1/4" 4.84
