USER MANUAL SRK71ZKS MITSUBISHI

3rd Floor Thavies Inn House 3-4 Holborn Circus London EC1N 2HA, ENGLAND Tel: +44-20-7842-8171

This air conditioner complies with EMC Directive 2004/108/EC,

declare under our sole responsibility that the apparatus

Description of apparatus : Air Conditioner

referred to in this declaration conforms with the following directives.

Relevant EC Directives :

Machinery Directive 2006/42/EC Notes: also satisfied directives Low Voltage Directive 2006/95/EC Applied Standards : EN378-2:2008 (partly completed)

Conformity model list

SRK Series SRK63ZK-S SRK71ZK-S SRK80ZK-S

Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air-Conditioner. To

get the best long-lasting performance, please read and follow this User’s Manual carefully

before using your air-conditioner. After reading, please store the Manual in a safe place

and refer to it for operational questions or in the event of any irregularities.

This air-conditioner is intended for domestic use.

Do not vent R410A into the atmosphere: R410A is a fluorinated greenhouse gas,

covered by the Kyoto Protocol with a Global Warming Potential (GWP) = 1975.

ENGLISH Your Air Conditioning product may be marked with this symbol. It means

that waste electrical and electronic equipment (WEEE as in directive 2002/

96/EC) should not be mixed with general household waste. Air conditioners

should be treated at an authorized treatment facility for re-use, recycling

and recovery and not be disposed of in the municipal waste stream. Please

contact the installer or local authority for more information.

This symbol printed in the batteries attached to your Air Conditioning

product is information for end-users according to the EU directive 2006/66/

EC article 20 annex II.

Batteries, at their end-of-life, should be disposed of separately from general

household waste. If a chemical symbol is printed beneath the symbol

shown above, this chemical symbol means that the batteries contain a

heavy metal at a certain concentration. This will be indicated as follows:

Hg:mercury(0.0005%) , Cd:cadmium(0.002%) , Pb:lead(0.004%)

Please, dispose of batteries correctly at your local community waste

collection or the recycling center.

Safety precautions 2

Name of each part and its function 4

Remote control handling 6

Operation failure with the remote control 6

Temporary run operation 6

Operation and display section for

Current time setting 7

AUTO mode operation 8

Temperature adjustment during AUTO 8

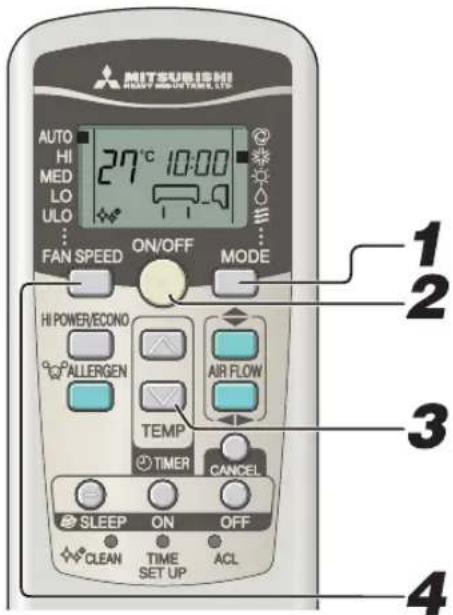

COOL/HEAT/DRY/FAN mode operation 9

Air-conditioner operable

temperature setting 9

Characteristics of HEAT mode operation 9

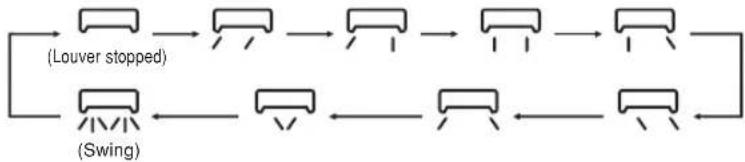

Airflow direction adjustment 10

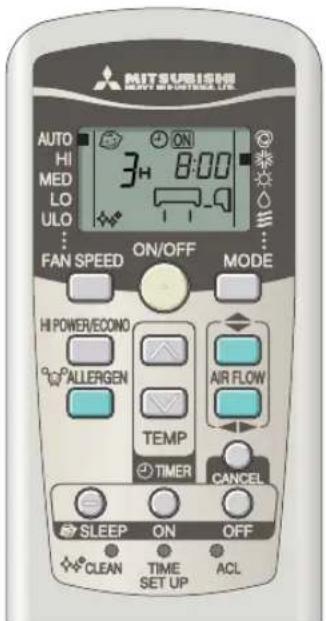

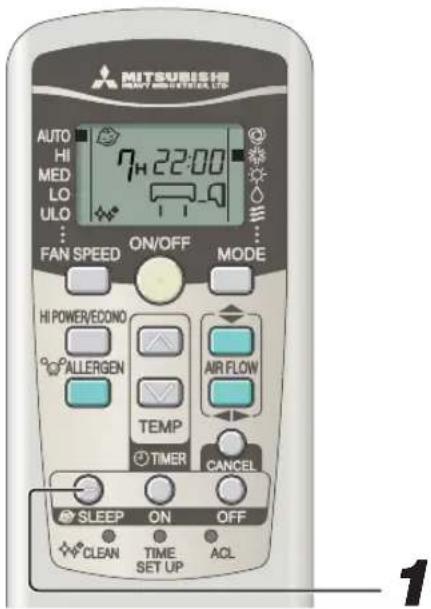

SLEEP TIMER operation 11

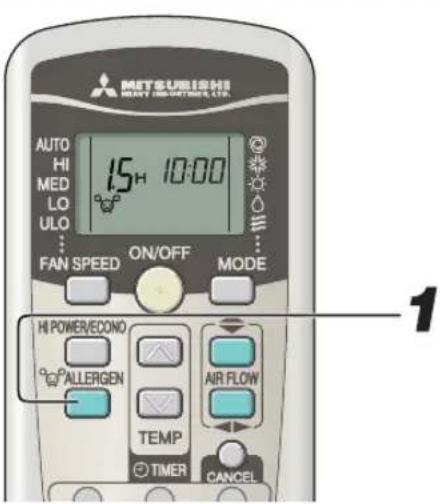

ALLERGEN CLEAR operation 13

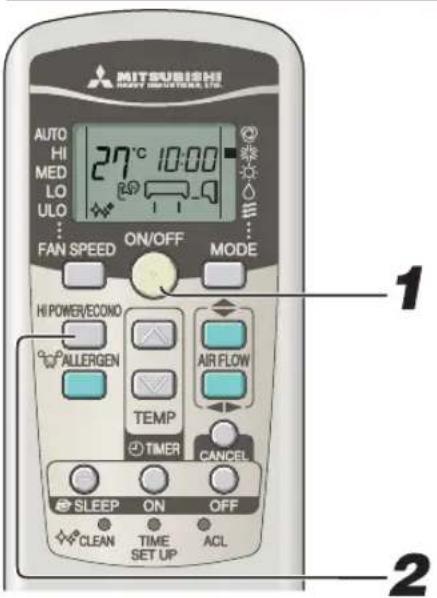

HIGH POWER/ECONOMY operation 14

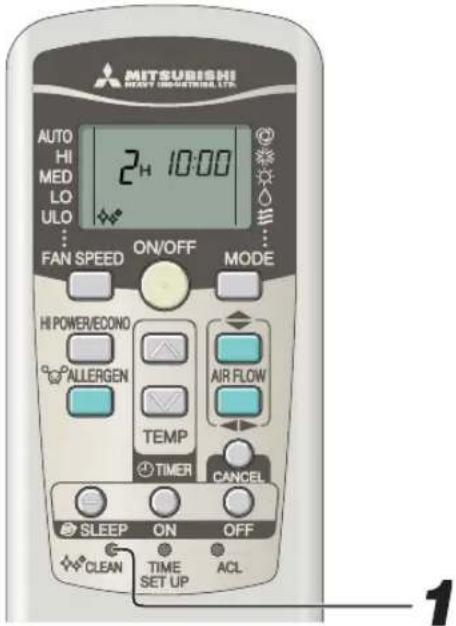

SELF CLEAN operation 15

Auto restart function 15

Tips for effective operation 15

Proper installation 18

Contact your dealer 20

About the Multiple Air-conditioner 20

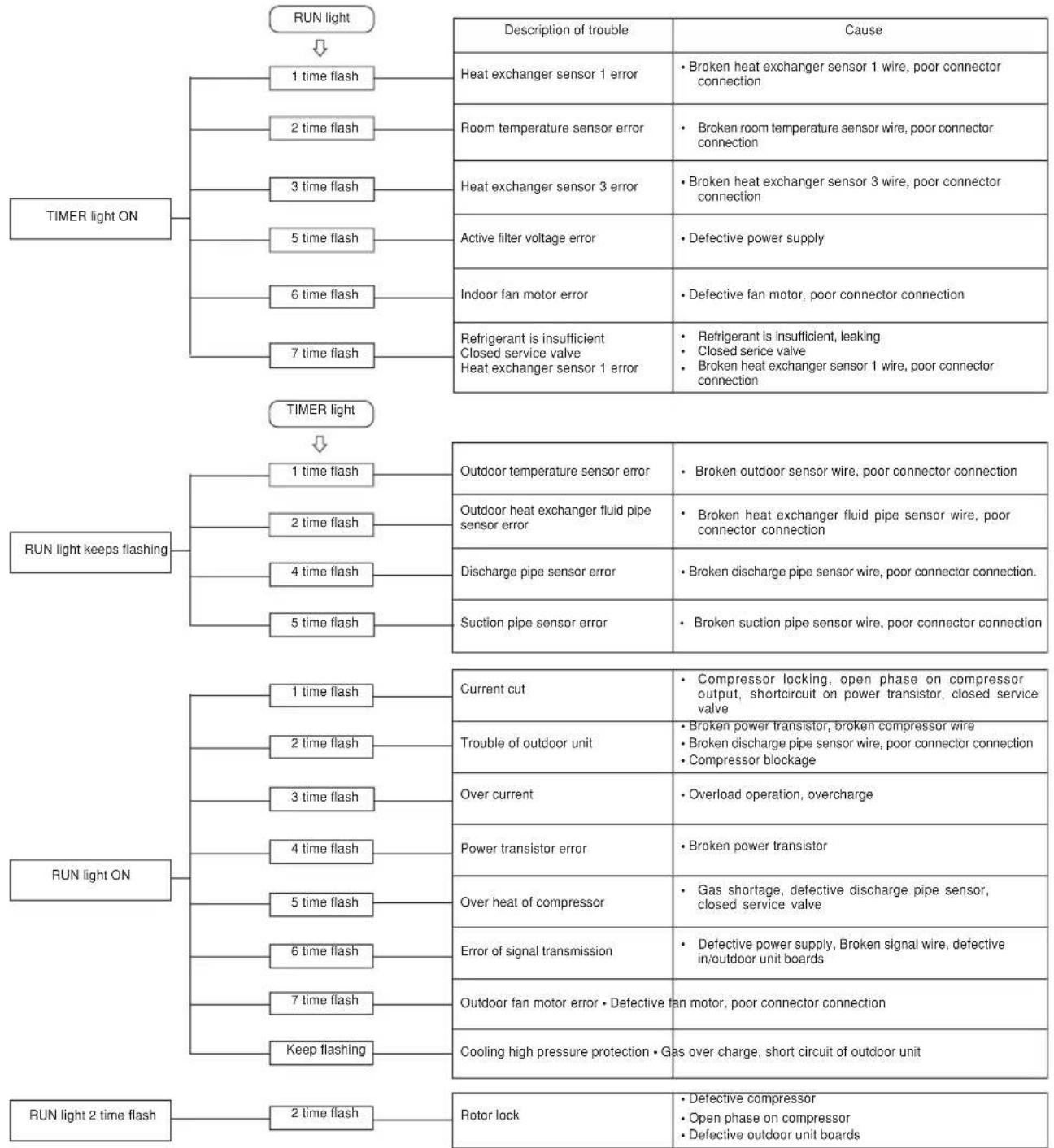

Self diagnosis function 21

The emission sound pressure level from each Indoor and Outdoor unit is under 70 dB(A).

RKW012A401B_EN_001-022 12/08/2010, 13:561–2–

• Before starting to use the system, please read these “Safety precautions” carefully to ensure proper operation of the

• When you have read this instruction manual, please keep it without missing. If someone else takes over as operator,

make certain that the manual is also passed on to the new operator.

❚ INSTALLATION PRECAUTIONS

❚ OPERATION PRECAUTIONS DANGER

• The system is for domestic, residential etc. use.

If used in severer environments, such as an engineering workplace, the equipment may function poorly.

CAUTION DANGER Please observe these precautions with great care, since they are essential to your safety.

• Symbols which appear frequently in the text have the following meaning:

DANGER CAUTION Improper handling could lead to drastic result like death, serious injury, etc.

Might pose a serious problem, depending on the circumstances.

Strictly prohibited Provide proper earthing

Observe instructions with

• The system must be installed by your dealer or a qualified professional.

It is not advisable to install the system by yourself, as faulty handling may cause leakage of water, electric

• Do not install it where flammable gas may leak.

Gas leaks may cause fire.

• Depending on the place of installation, an

earth leakage breaker may be necessary.

If you do not install an earth leakage breaker,

you may get an electric shock.

• Make sure to install the drain hose properly

so that all the water is drained out.

Improper installation may lead to water drop in

the room resulting in wet furniture.

• Make sure that the system has been properly earthed.

Earth cables should never be connected to a gas pipe, water pipe, lightning conductor or telephone earth

cable. Incorrect installation of the earth cable may produce an electric shock.

• Do not expose yourself to the cooling air for a

This could affect your physical condition and

cause health problems.

• Do not insert anything into the air inlet.

This may cause injury, as the internal fan rotates

• Store the remote control out of reach of infants.

Failure to observe this may result in the batteries being swallowed or other accidents.

• Only use approved fuses.

Use of steel or copper wire instead of an approved

fuse is strictly prohibited, as it may cause a break-

• Do not handle the switches with wet hands.

This may cause an electric shock.

• Do not swing from the indoor unit.

If the indoor unit falls down,you may get injured.

• Do not place a flammable insecticide or paint

spray near the blower, nor spray it directly on

This may result in a fire.

• You should not expose any combustion

appliance directly to the air stream of the air-

The appliance may then work inadequately.

❚ Safety precautions

❚ PRECAUTIONS FOR RELOCATION OR REPAIRS DANGER CAUTION

• Do not wash the air-conditioner with water.

This could cause an electric shock.

• The system should only be used for its original

purpose and not for anything else like, for in-

stance, preservation of food, plants or animals,

precision devices or works of art.

The system is only intended for use in ordinary

domestic rooms. Any other use of the system

may damage the quality of food, etc.

• Do not place anything containing water, like

vases, on top of the unit.

Water entering the unit could damage the

insulation and therefore cause an electric shock.

• Do not install the system where the airflow di-

rection is aimed directly at plants or animals.

This will damage their health.

• Do not sit on the outdoor unit nor put anything

If the unit falls down or things drop off it, people

• After a long period of use, check the unit's

support structure from time to time.

If you do not repair any damage right away, the

unit may fall down and cause personal injury.

• Do not touch the aluminum fins on the air heat

It may result in injury.

• Do not place household electrical appliances

or household items under neath the indoor or

Condensation falling from the unit may stain

objects and cause accidents or electrical shock.

• Do not operate the system without the air

It can cause malfunction of the system due to

clogging of the heat exchanger.

• Do not shut off the power supply immediately

after stopping the operation.

Wait at least 5 minutes, otherwise there is a risk of

water leakage or breakdown.

• Do not control the system with main power

It can cause fire or water leakage. In addition,

the fan can start unexpectedly, which can cause

• If you operate the system together with a

combustion appliance, you must regularly

ventilate the indoor air.

Insufficient ventilation may cause accidents due

to oxygen deficiency.

• Stand firmly on a stepladder or other stable

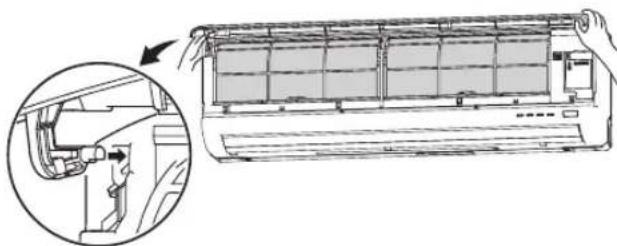

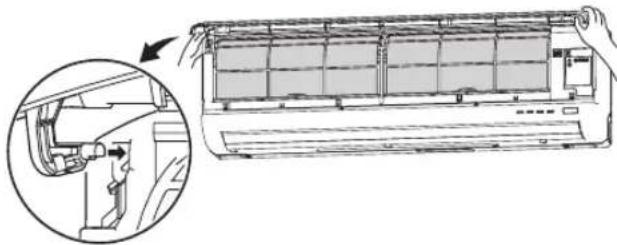

object when removing the inlet panel and

Failure to observe this may result in injury

through insecure objects toppling over.

• When you clean the system, stop the unit

and turn off the power supply.

Never open the panel while the internal fan is

• Do not place objects near the outdoor unit or

allow leaves to gather around the unit.

If there are objects or leaves around the outdoor

unit, small animals may enter unit and contact

electrical parts and may cause a break-down,

• Contact your dealer to clean inside the

indoor unit, do not attempt to do by yourself.

The use of a non-approved detergent or im-

proper washing method may damage the unit’s

plastic components and cause leaks. Damage,

smoke, or fire may also happen if the detergent

comes in contact with electrical parts or the

• Stop the unit and turn off the power if you

hear thunder or there is a danger of lightning.

It may damage the unit.

• Do not perform any repairs or modifications by yourself. Consult the dealer if the unit requires

If you repair or modify the unit, it can cause water leaks, electric shocks or fire.

• Consult your dealer for repairs.

Wrong repairs could cause an electric shock,

• In case the air-conditioner is relocated

elsewhere, contact your dealer or a profes-

Faulty installation may cause water leakage,

electric shock, fire, etc.

If you notice anything abnormal (smell of

burning, etc.), stop the system, turn off the

power supply and consult your dealer.

Continued use of the system in abnormal

circumstances may result in malfunctioning,

electric shock, fire, etc.

• If the air-conditioner fails to cool or warm the

room, it may have a refrigerant leakage.

Contact your dealer.

If refrigerant needs to be added, check with

your dealer for proper instructions.

If the refrigerant comes in contact with the bare

skin, it may cause cold injury.

If the refrigerant gas is inhaled excessively, it may

cause deterioration of nerve function like dizzi-

ness and headache, or deterioration of heart func-

tion like irregular heartbeat and heart palpitation

temporarily. If refrigerant unexpectedly leaks

from the unit onto a fan heater, stove, hotplate or

other heat source, harmful gases could be gener-

RKW012A401B_EN_001-022 12/08/2010, 13:573–4–

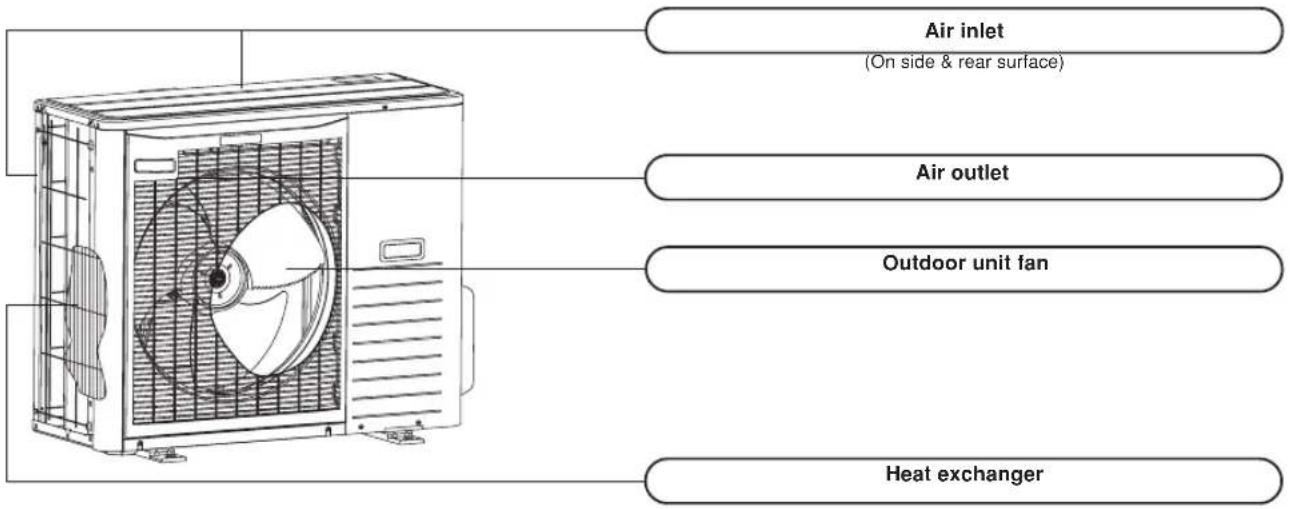

Name of each part and its function

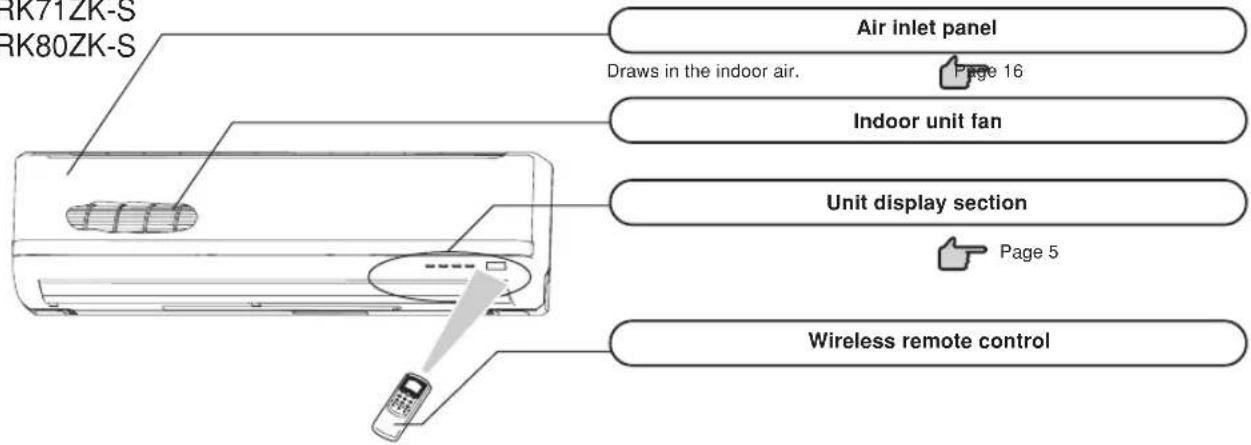

SRK63ZK-S SRK71ZK-S SRK80ZK-S Air inlet panel Draws in the indoor air. Page 16 Indoor unit fan

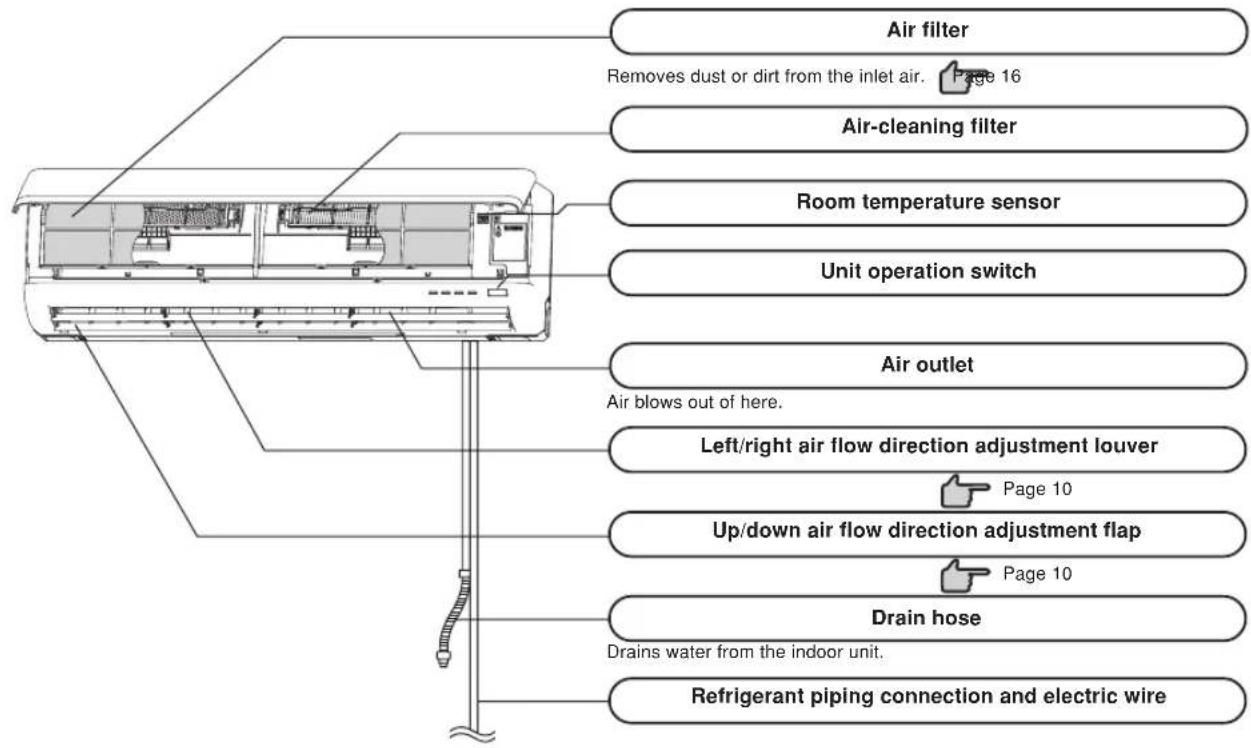

Air filter Removes dust or dirt from the inlet air. Page 16 Wireless remote control

Drain hose Drains water from the indoor unit. Left/right air flow direction adjustment louver Page 10 Up/down air flow direction adjustment flap Page 10 Air outlet Air blows out of here. Unit operation switch

Room temperature sensor

Refrigerant piping connection and electric wire

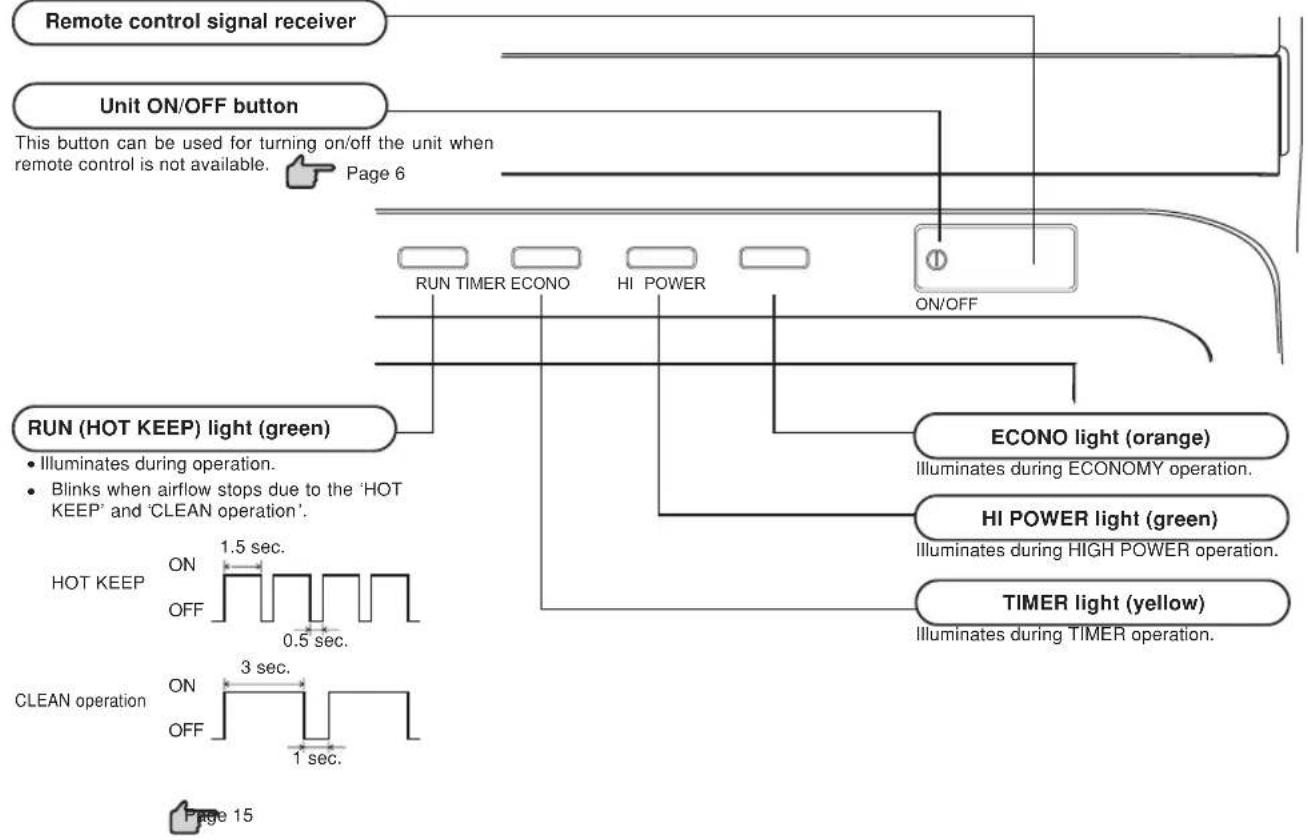

Unit display section Page 5 RKW012A401B_EN_001-022 12/08/2010, 13:574–5– RUN TIMER ECONO ON

OFF HI POWERAllergen clear filter(Light orange)Photocatalytic washable deodorizing filter (Orange) Accessories Wireless remote control Wood screw (Quantity:2) (for remote control holder mounting)Wireless remote control holderBattery(R03 (AAA, Micro) ×2) Unit display section ECONO light (orange)Illuminates during ECONOMY operation.HI POWER light (green)Illuminates during HIGH POWER operation.TIMER light (yellow)Illuminates during TIMER operation.This button can be used for turning on/off the unit whenremote control is not available.

Page 6Remote control signal receiverUnit ON/OFF button Name of each part and its function RUN (HOT KEEP) light (green)• Illuminates during operation. • Blinks when airflow stops due to the ‘HOTKEEP’ and ‘ CLEAN operation ’. Page 15• Buzzer sound for remote control When preset temperature 24°C, automatic operation and automatic airflow are selected, the buzzer sound (PiPi) is produced. When turning off the air conditioner by pressing ON/OFF button (except CLEAN mode), the buzzer sound (Pi) is produced.This function is useful for operating the air conditioner in the darkness.

NOTE Preset temperature

ON OFF 1.5 sec.0.5 sec.HOT KEEP3 sec.1 sec.

ON OFF CLEAN operation RKW012A401B_EN_001-022 12/08/2010, 13:575–6–

Remote control handling

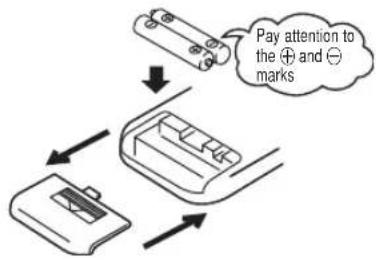

Replacing the batteries The following cases signify exhausted batteries. Replace old batteries with new ones.• Receiving beep is not emitted when a signal is transmitted.• Display fades away. NOTE • Do not use old and new batteries together.• Remove the batteries when the remote control is not used for a longperiod.• The recommended effective period of a battery conforming to JIS or IECshould be 6 to 12 months with normal use. If used longer, or when anunspecified battery is used, liquid may leak from the battery, causing theremote control to malfunction.• The recommendable effective period is printed on the battery. This may beshorter due to manufacturering time to the unit. However, the battery maystill be in working order after expiry of its nominal life.Pull out the cover and takeout old batteries.Insert new batteries. R03(AAA, Micro) x2Close the cover.■ When the display shows any abnormal condition, Press the ACL switch withthe tip of a ballpoint pen. 1

3 Pay attention tothe ª and ·marksPress the ACL switch withthe tip of a ballpoint pen. 4

Using the remote control holder The remote control can be attached to a wall or pillarby using a remote control holder. Before installing theremote control, check that the air-conditioner receivesthe signals properly.For installing or removing the remote control, move itup or down in the holder.• Are the batteries running down? “Replacing the batteries” above.Replace the batteries with new ones and retrythe operation. Warning note for remote control handling

Operation failure with the remote control • If the operation fails, operate the unitwith temporary operation function.Contact your dealer to have the remote con-trol checked. Below Strictly prohibited• Do not drop the remote control.Handle with care.• Do not go near high temperatureplaces, such as an electric carpetor stove.• Do not place heavy objects on theremote control, or step on it.• Do not put any obstructing obsta-cles between the remote controland the unit.• Do not spill any liquid on theremote control.• Do not leave the remote control ex-posed to direct sunlight or otherstrong lighting. Temporary run operation

• The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used. Operation program• OPERATION MODE : AUTO• FAN SPEED : AUTO• AIR FLOW : AUTO• Operation starts by pressing the unit ON/OFF button; it stops if you pressthe button again.• Do not hold the Unit ON/OFF button down for more than 5 seconds. (Holding it down longer than 5 seconds sets the automatic cooling used during servicing or when relocating the air-conditioner.)

NOTE Unit ON/OFF button RKW012A401B_EN_001-022 12/08/2010, 13:576–7–

Transmission procedure

When each button on the remote control is pressed – with the remote control pointing towards the air-conditioner unit a signal is transmitted. When the air-conditioner receives the signal correctly, it will beep. NOTE

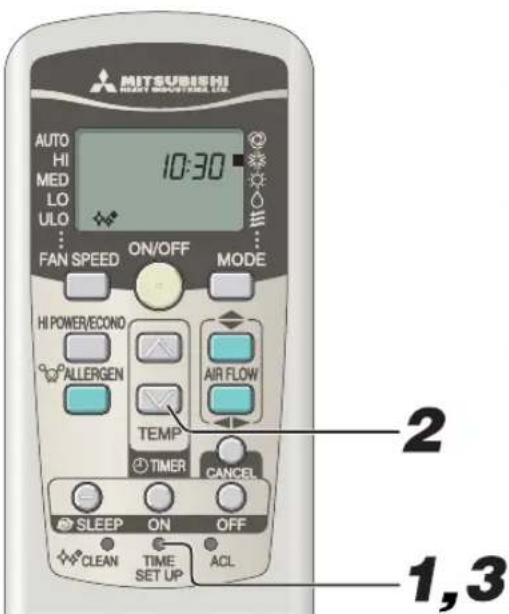

Current time setting

■ When inserting the batteries, the current time is automatically set to time setting mode. 13:00 is displayed as the current time. Set the clock to the right time.Example: Set to 10:30. Press the TIME SET UP switch. Press with the tip of a ballpoint pen, etc.The time display blinks and can be set to the current time. Press the “ or ” button. (Set to 10:30) Press the TIME SET UP switch. The display changes from blinking to steady lighting and the setting iscomplete.Make sure to press the button within 60 seconds from the last operation instep 2, otherwise the time is not set.• The timer operation works based on the time clock, so please set itcorrectly.• The remote control data is reset when the present time is set. 1

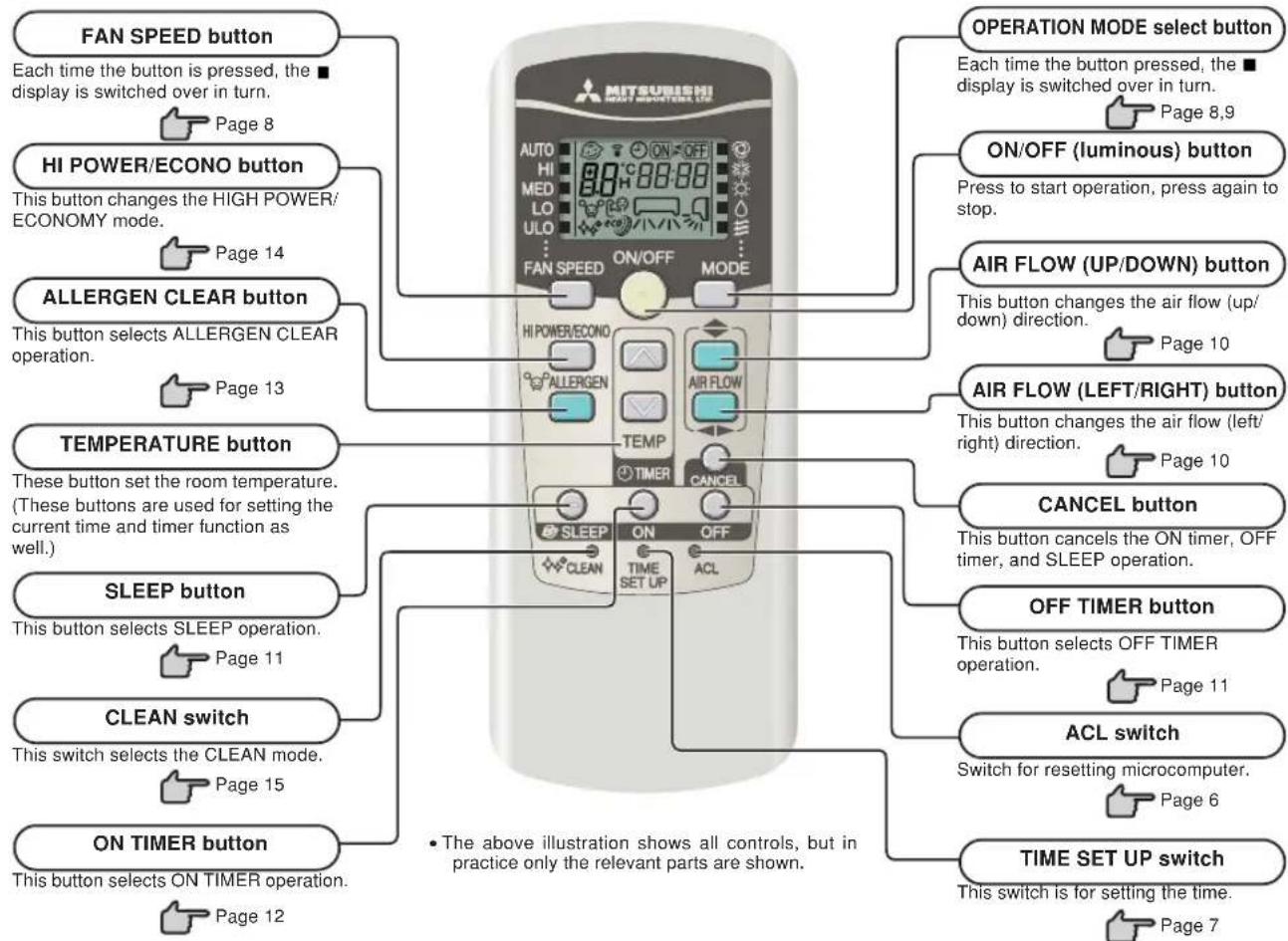

3 FAN SPEED buttonEach time the button is pressed, the display is switched over in turn. Page 8• The above illustration shows all controls, but inpractice only the relevant parts are shown.OPERATION MODE select buttonEach time the button pressed, the display is switched over in turn.ALLERGEN CLEAR buttonThis button selects ALLERGEN CLEARoperation. Page 13ON/OFF (luminous) buttonPress to start operation, press again tostop.HI POWER/ECONO buttonThis button changes the HIGH POWER/ECONOMY mode. Page 14AIR FLOW (UP/DOWN) buttonThis button changes the air flow (up/down) direction.TIME SET UP switchThis switch is for setting the time. Page 7SLEEP buttonThis button selects SLEEP operation. Page 11CLEAN switchThis switch selects the CLEAN mode. Page 15ON TIMER buttonThis button selects ON TIMER operation. Page 12AIR FLOW (LEFT/RIGHT) buttonThis button changes the air flow (left/right) direction.CANCEL buttonThis button cancels the ON timer, OFFtimer, and SLEEP operation.ACL switchSwitch for resetting microcomputer. Page 6OFF TIMER buttonThis button selects OFF TIMERoperation.TEMPERATURE buttonThese button set the room temperature.(These buttons are used for setting thecurrent time and timer function aswell.) Operation and display section for remote control

Operation section Page 8,9

Page 10 Page 10 Page 11 RKW012A401B_EN_001-022 12/08/2010, 13:577–8– AUTO HI MED LO ULO • When changing FAN SPEED from HI to LO, the sound

of refrigerant flowing may be heard.

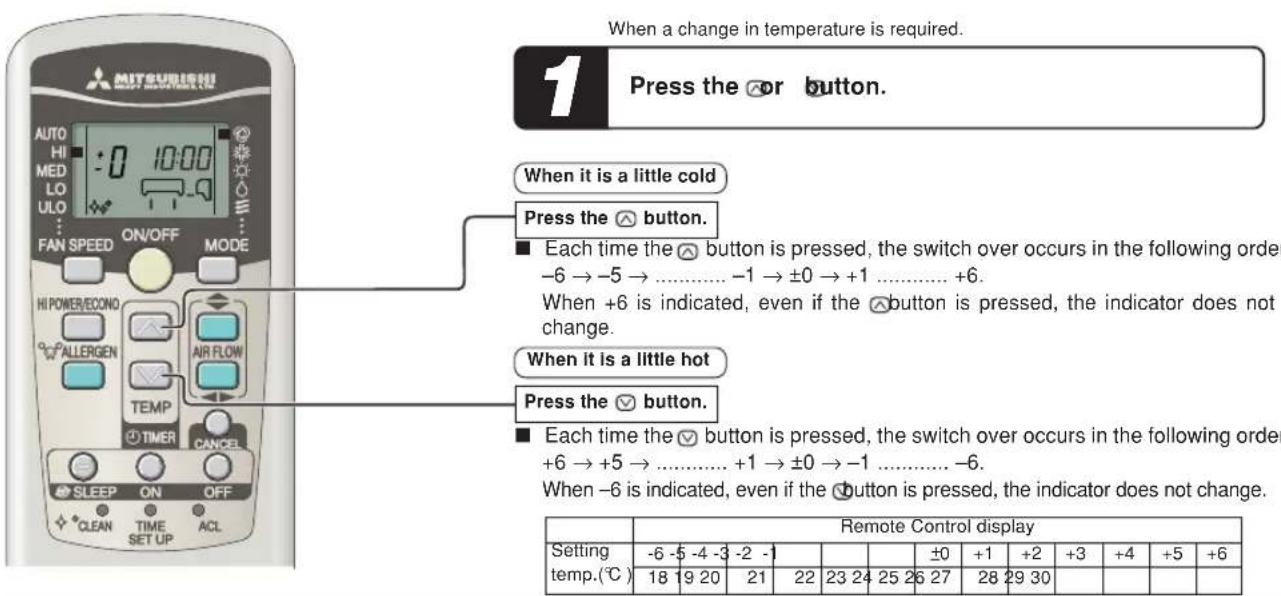

NOTE Temperature adjustment during AUTO

■ Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or

button.During automatic operation, 24°C is preset both for heating and cooling.

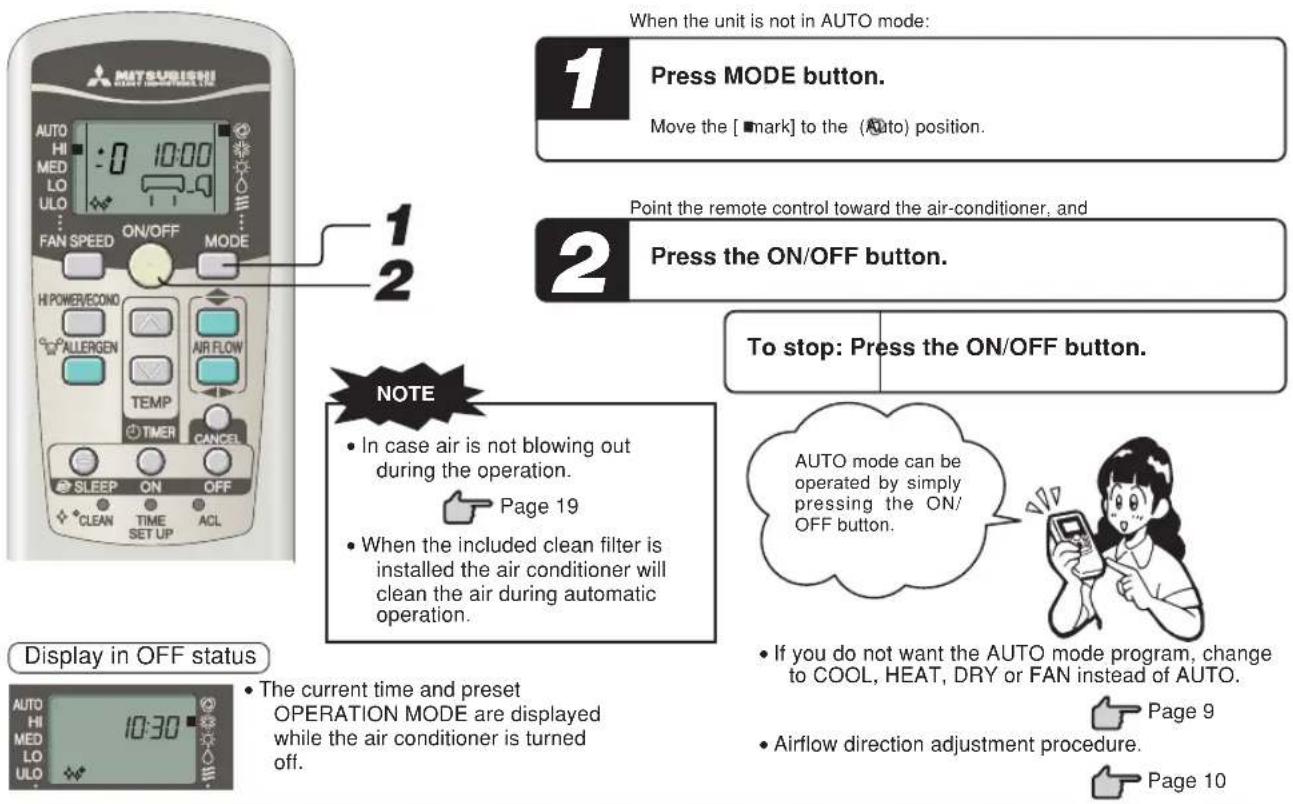

Automatically selects the operation mode (COOL, HEAT, DRY) depending on the room temperature when switched on.

1 When a change in temperature is required. Press the or button.

• If you do not want the AUTO mode program, change

to COOL, HEAT, DRY or FAN instead of AUTO.

• Airflow direction adjustment procedure.

Page 10 AUTO mode can beoperated by simplypressing the ON/OFF button. To stop: Press the ON/OFF button.

■ Each time the button is pressed, the switch over occurs in the following order

–6 → –5 → –1 → ±0 → +1 +6.

When +6 is indicated, even if the button is pressed, the indicator does not

■ Each time the button is pressed, the switch over occurs in the following order

+6 → +5 → +1 → ±0 → –1 –6.

When –6 is indicated, even if the button is pressed, the indicator does not change. When the unit is not in AUTO mode: Press MODE button. Move the [ mark] to the (Auto) position.Point the remote control toward the air-conditioner, and Press the ON/OFF button.

2 When it is a little coldPress the button.When it is a little hotPress the button.

FAN SPEED Press the FAN SPEED button. Move the [

mark] to the preferred fan speed position. ■ You can choose the capacity of your air-conditioner

when heating mode, cooling mode or fan mode.

NOTE Display in OFF status

• The current time and preset

OPERATION MODE are displayed

while the air conditioner is turned

off. Remote Control display-6 -5 -4 -3 -2 -1 +

0+1 +2+3 +4+5+6 18 19 20 21 22 23 24 25 26 27 28 29 30Settingtemp.(° C

) Operation capacity by your choice FAN SPEEDSet automatically by microcomputer AUTOPowerful operation with high capacity HIStandard operation MEDEnergy-saving operation LOSilent operation ULO • In case air is not blowing out

during the operation.

• When the included clean filter is

installed the air conditioner will

clean the air during automatic

RKW012A401B_EN_001-022 12/08/2010, 13:578–9–

COOL/HEAT/DRY/FAN mode operation Airflow direction adjustment procedure. Page 10Point the remote control toward the air-conditioner, andPress the MODE select button.Move the [ mark] to the required operation position.(Cool), (Heat), (Dry), (Fan)Press the ON/OFF button.Press the TEMP button.Press or button for the preferred temperature.Standard 4

3 To stop: Press the ON/OFF button.• In case air is not blown out, when starting the heating op-eration. Page19• The operation program can also be set or changed whenthe air-conditioner is not in operation. NOTE

Air-conditioner operable temperature setting

■ Use within the following operational range. Operating outside of this range may result in the protection devices being activated, preventing the unit from working.Cooling operation Heating operationOutside temperatureApproximately -15 to 46 °C Approximately -15 to 21 °CInside temperatureApproximately 18 to 32 °C Approximately 15 to 30 °CBelow approximately 80%The long-term use of the unit with a humidity levelInside humidityexceeding 80% may result in condensation formingon the surface of the indoor unit, leading towater drips. Characteristics of HEAT mode operation

Mechanism and capacity of HEAT mode operation ■ Mechanism • The unit draws heat from the cold outside air, transfers it to indoors and heats the room. As a characteristic of heat pump system, the heating capacity reduces when the outside air temperature gets colder.• It may take some time to supply hot air after turning on the air-conditioner. • If the outside temperature becomes extremely low, it would be better to use an additional source of heating.

If the outside temperature becomes low and humidity is high, the heat exchanger in the outdoor unit may frost over, which prevents efficient heating. If this happens, the automatic defrost function is activated and during defrosting the heating operation stops for 5 to 15 minutes during defrosting. • Both indoor and outdoor fans stop and the RUN light blinks slowly (1.5 sec. ON, 0.5 sec. OFF) during defrosting.

• The outdoor unit may give off some steam during defrosting. This is to help the defrosting process and is not a defect. • The HEAT operation resumes as soon as defrosting has been completed.Press the FAN SPEED buttonSet the fan speed as preferred. RKW012A401B_EN_001-022 12/08/2010, 13:579–10–

Airflow direction adjustment

Adjusting airflow direction

■ Up/down direction can be adjusted with the AIRFLOW (UP/DOWN) button on the remote control. Every time you press this

button the mode changes as follows:

Change on AIRFLOW (UP/DOWN) mode.

■ Left/right direction can be adjusted with the AIRFLOW

(LEFT/RIGHT) button on the remote control. Every time you press this

button the mode changes as follows:

Change on AIRFLOW (LEFT/RIGHT) mode.

MEMORY FLAP (FLAP OR LOUVER STOPPED) When you press the AIRFLOW (UP/DOWN or LEFT/RIGHT) button once while the flap orlouver is operating, it stops swinging at the position. Since this angle is memorized in themicrocomputer, the flap or louver will automatically be set at this angle when the next opera-tion is started. DANGER

• Do not expose directory to airflow from the air-conditioner for a long time.

• When in COOL or DRY operation, do not operate for a long period with the

airflow blowing straight down. Otherwise, condensation may appear on

the outlet grill and drip down.

• Do not try to adjust the flaps and louvers by hand, as the control angle may

change or the flap or louver may not be closed completely.

HEAT (Horizontalblowing)(Slant forwardblowing) COOL, DRY • Recommended angle of the flap whenstopping • When operation starts, the flap and louver direction is fixed at the horizontal / center position in order to avoid cold draft, and return

to the set the position that was set after the warm air supply is starting.

• The flap and louver direction will be controlled to the horizontal/center position when the room temperature reaches the set tem-

perature and compressor stops or when defrosting is in operation.

• The airflow direction cannot be set during the period mentioned above. Change the airflow direction settings after the warm air is

supplied and the flap/louver goes to the set position. (Swing)(Flap stopped)(Louver stopped)(Swing)

NOTE FOR HEATING OPERATION Multi-directional Air Flow (up/down air scroll and left/right air scroll)

■ Activating both up/down air swing and left/right air swing at the same time results in a multi-directional air flow.

Up/down air scroll Left/right air scroll Thick line : moves quicklyThin line : moves slowlyStops at this positionfor 5 seconds. In COOL, DRY and FAN operation In HEAT operation In COOL, DRY and FAN operation In HEAT operation Left louver Right louverStops at this positionfor 5 seconds. • The actual position of the flap and louver may differ from the display shown.

NOTE RKW012A401B_EN_001-022 12/08/2010, 13:5710–11–

1 ■ If it is pressed while the unit is offSLEEP TIMER operation starts with the previous operation settings, and the airconditioning is turned off after the set time elapses.■ If it is pressed while the unit is runningThe air conditioner is turned off after the set time elapses.Every time the button is pressed, the display changes as follows:Example: You prefer it to stop after 7 hours.Set to The timer light (yellow) is on. h • The unit stops after the set time lapses. SLEEP TIMER operation ■ The unit stops automatically after the set time lapses. The set temperature is automatically adjusted according to the elapsed time in order to avoid too much cooling or heating. Page 13Press the SLEEP button. 1 How to cancelPress the CANCEL button to turn off the SLEEPindicator.Changing of set timeSet a new time by pressing SLEEP button. • SLEEP operation will not function during ALLERGEN CLEAR operation. • Cannot be set at the same time with OFF-TIMER.

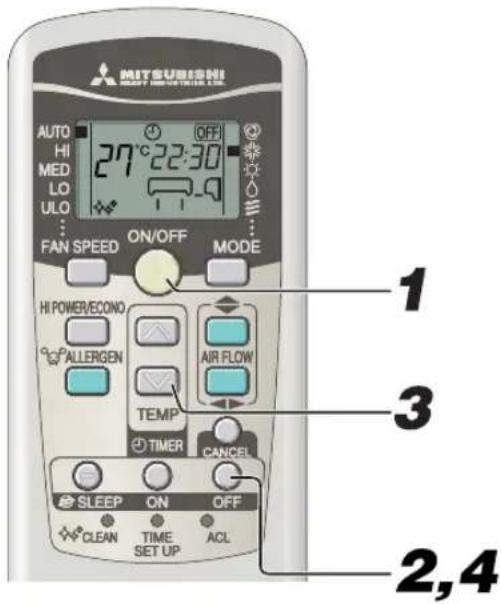

NOTE OFF-TIMER operation ■ The unit stops automatically when the set time comes. With the air conditioner turned off, start the operation from Step 1. With the air conditioner running, start from Step 2. Example: You prefer it to stop 22:30.Press the ON/OFF button.Press the OFF-TIMER button.OFF TIMER display is blinking.Press the “ or ” button.Every time the button is pressed, the display is switched in the order of:0:00 0:10 0:20 ... (Units of ten minutes)1:00 1:10Every time the button is pressed, the display is switched in the order of:0:00 23:50 23:40 ... (Units of ten minutes)23:00 22:50Set at 22:30. 3

4 Press the OFF-TIMER button.The display changes from blinking to steady lighting and the setting iscomplete.The timer light (yellow) is on. 2 How to cancelPress the CANCEL button to turn off the timerdisplay. • The unit stops at the end of the set period of time. • Make sure to press the button within 60 seconds from the last operation in step3, otherwise the setting is not completed. • The current time is not displayed during OFF-TIMER operation. • OFF-TIMER operation will not function during ALLERGEN CLEAR operation. • Different from SLEEP TIMER operation, automatic set temperature adjustmentis not done during OFF-TIMER operation.Changing of set timeSet a new time by using the OFF-TIMER button. NOTE No indication

How to cancel Press the CANCEL button to turn off the timerindicator.Example: In the case the preferred room temperature is required at 8:00. Press the ON-TIMER button. ON-TIMER display is blinking. 3

Operation starts 5 to 60 minutes before the set time so that the room temperature reaches the optimum temperature at the set time. Page 13ON-TIMER operation can be set regardless of whether the air-conditioner is running or not. SLEEP TIMER + ON-TIMER operation ■ Combined timer operation of SLEEP TIMER and ON-TIMER.Example: When it is required to stop after 3 hours and then start operation at8:00, near the set temperature. ■ SLEEP TIMER setting Set by the procedures on page 11.Set to ■ ON TIMER operation setting Set by the above procedure mentioned in ON-TIMER.Set to The setting of the lighting of the timer light (yellow) of this unit is com-plete. h • After the SLEEP TIMER set time has elapsed, the operation stops, andit starts from 5 to 60 minutes before the ON-TIMER’s set time.• The timer light is turned off when ON-TIMER set time comes. Changing of set time Set a new time by using the SLEEP or ON-TIMERbutton. How to cancel Press the CANCEL button to turn off the timer display. Press the “ or ” button. Every time the button is pressed, the display is switched in the order of:0:00 0:10 0:20 ... (Units of ten minutes)1:00 1:10Every time the button is pressed, the display is switched in the order of:0:00 23:50 23:40 ... (Units of ten minutes)23:00 22:50Set at 8:00. Press the ON-TIMER button. The display changes from blinking to steady lighting and the setting iscomplete.The timer light (yellow) is on.The operation stops if it is set during operation. Changing of set time Set a new time by using the ON-TIMER button. ON-TIMER operation • Operation starts 5 to 60 minutes before the set time.• The timer light (yellow) goes out at the set time.• Make sure to press the button within 60 seconds from the last opera-tion in step 2, otherwise the setting is not completed.• The current time is not displayed during ON-TIMER operation.• ON-TIMER operation will not function during ALLERGEN CLEARoperation.

NOTE RKW012A401B_EN_001-022 12/08/2010, 13:5812–13–

ALLERGEN CLEAR operation Aim the remote control at the air-conditioner. Press the ALLERGEN CLEAR button.

■ The power of enzymes is used to eliminate allergy-causing allergens that accu-

mulate on the allergen clear filter.

ALLERGEN CLEAR button.

• Since the room temperature may change quite a bit, it is recommended

that this be used when no one is in the room. (It completes automati-

cally in approximately 90 min.)

• During ALLERGEN CLEAR operation temperature, fan speed, airflow

direction and timer operations settings cannot be made.

NOTE PROGRAM TIMER operation

■ The timer operations of the combination of ON and OFF TIMER. Once this has been set the timer operations will be repeated at the

same time every day unless the ON/OFF button is pressed. Example: When it is prefered to stop at 22:30, and then start operation at 8:00,near the set temperature. ■ OFF-TIMER operation setting Set by the procedures on page 11. Set to ■ ON-TIMER operation setting Set by the procedures on page 12. Set to Timer light (yellow) on the unit will light when the setting is completed.The set time will be displayed on the remote control unit. The display willchange depending on the operational status. How to cancel

Press the CANCEL button to turn off the timer display.

Changing of set time

Set a new time by using the OFF-TIMER or ON-TIMER button.

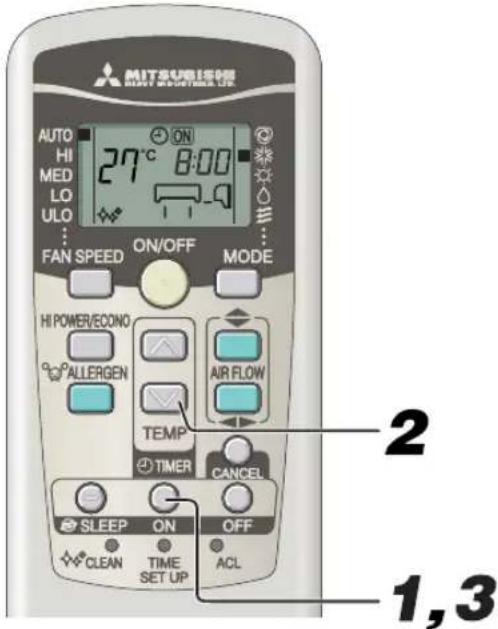

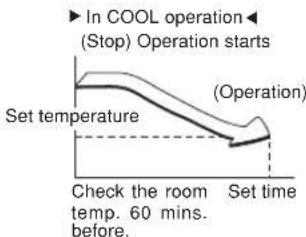

Comfort Start-up In ON-TIMER operation, the unit starts the operation a little earlier, sothat the room can approach optimum temperature at ON time. This isso called “Comfort start-up”.• MechanismThe room temperature ischecked 60 minutes beforethe ON time. Depending onthe temperature at that time,the operation starts 5 to 60minutes before the timer is at ON. • The function is available forboth COOL and HEAT opera-tion mode (including AUTO).It does not work for DRYmode. SLEEP TIMER In COOL operation(Stop) Operation starts ▼ Check the roomtemp. 60 mins.before.Set time ▼ When SLEEP TIMER is selected, the set temperature is automaticallyadjusted after a while, ensuring that the room is not too cold duringcooling or too warm during heating.• During cooling : the preset temperature is lowered by 1°C at the startof SLEEP operation (when the timer is set). After that, the tempera-ture goes up by 1°C every an hour to become 1°C higher than thepresent temperature.• During heating: Preset temperature is lowered by 1°C at the start ofSLEEP operation (when the timer is set). After that the temperatureto becomes 3°C lower in an hour and 6°C lower in two hours than thepresent temperature.(Operation)Set temperatureWith ON-TIMER, the air conditioner starts running.Then, with OFF-TIMER, the air conditioner stops run-ning.With OFF-TIMER, the air conditioner stops running.Then, with ON-TIMER, the air conditioner starts run-ning. RKW012A401B_EN_001-022 12/08/2010, 13:5813–14–

HIGH POWER/ECONOMY operation

Press the ON/OFF button.

Press the HI POWER/ECONO button. • When the operating mode is AUTO, COOL or HEATEvery time the HI POWER/ECONO button is pressed, the display isswitched in the order of:No display• When the operating mode is DRY or PROGRAM TIMEREvery time the HI POWER/ECONO button is pressed, the display isswitched in the order of:No display 1

( HIGH POWER )( ECONOMY) (Normal operation) ( ECONOMY) (Normal operation) Concerning HIGH POWER operation

Pressing the HI POWER/ECONO button intensifies the operating power and initiates powerful cooling or heating operation for 15

minutes continuously. The remote control

displays and the FAN SPEED display disappears.

• During the HIGH POWER operation, the room temperature

is not controlled. When it causes an excessive cooling or

heating,press the HI POWER/ECONO button again to

cancel the HIGH POWER operation.

• HIGH POWER operation is not available during the DRY

and the program timer operations.

• When HIGH POWER operation is set after ON TIMER

operation, HIGH POWER operation will start from the set

• When the following operations are set, HIGH POWER

operation will be canceled.

1 When the HI POWER/ECONO button is pressed again.

2 When the operation mode is changed.

3 When it has been 15 min. since HIGH POWER

operation has started.

• Not operable while the air conditioner is OFF.

• After HI POWER operation, the sound of refrigerant flowing

Concerning ECONOMY operation

Pressing the HI POWER/ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling or

heating. The unit operates 1.5°C higher than the setting temperature during cooling or 2.5°C lower than that during heating. The

displays and the FAN SPEED display disappears.

• It will go into ECONOMY operation at the next time the air-

conditioner runs in the following case.

When the air-conditioner is stopped by ON/OFF button

during ECONOMY operation.

When the air-conditioner is stopped in SLEEP or OFF TIMER operation during ECONOMY operation.

3 When the operation is retrieved from CLEAN or AL-

LERGEN CLEAR operation.

• When the following operations are set, ECONOMY operation

1 When the HI POWER/ECONO button is pressed

2 When the operation mode is changed DRY to FAN.

• Not operable while the air conditioner is OFF.

NOTE If the air-conditioner is not operating, point the remote control toward the air conditioner, and RKW012A401B_EN_001-022 12/08/2010, 13:5814–15–

SELF CLEAN operation

In order to active CLEAN operation, press the CLEAN

switch with the tip of a ballpoint pen. Every time the CLEAN switch is pressed, the display isswitched in the order of:No display ■ CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control

the growth of mold and bacteria. (CLEAN on) (CLEAN off) NOTE

• Two hours later, the air conditioner stops running automatically. To stop

the air conditioner immediately, press the ON/OFF button.

• CLEAN operation is not operated after HEAT and FAN, OFF-TIMER,

SLEEP and ALLERGEN CLEAR operations have finished.

• The indoor unit fan runs for about two hours in CLEAN operation.

• The RUN light illuminates during CLEAN operation.

• Pressing the SLEEP button or ALLERGEN CLEAR button during

CLEAN operation cancels the CLEAN operation and then the unit is set

to SLEEP or ALLERGEN CLEAR operation.

• This is not a function for removing mold, germs or grime that have

already adhered to the unit.

Auto restart function

■ What is auto restart function?

• Auto restart function records the operational status of the air-conditioner immediately prior to be switched off by a power cut, and then

automatically resumes operations after the power has been restored.

• The following settings will be cancelled:

2 HIGH POWER operations

• Auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this function needs

• When power failure occurs, the timer setting is cancelled. Once power is resumed, set the timer again.

NOTE Tips for effective operation

■ Please observe the following for the most economic and comfortable use of your unit.

Set a suitable room temperature.

Excessively high or low temperatures

are not good for your health and waste of

Avoid direct sunlight and draught.

Cut out direct sunlight by drawing the

curtains or blinds when cooling. Keep

windows and doors shut, except when

Operate the unit only when needed.

Use the timer properly to operate the unit

Clean the filters frequently.

Clogged filters may block the airflow and

cause less efficient operation.

Adjust the airflow direction properly.

Adjust the up/down and left/right airflow

to ensure a steady room temperature.

Keep heat source away when cooling.

Keep heat sources out of the room as

much as possible. 3 sec.1 sec.

ON OFF RKW012A401B_EN_001-022 12/08/2010, 13:5815–16– Turn off the power supply.Remove the air filter Maintenance Cleaning the air filterDo not use the following articles:• Hot water (40°C or more)It may deform or discolour the unit.• Petrol, paint thinner, benzine or cleanser, etc.They may deform or scratch the unit.• Do not spill any liquid.• Do not touch the aluminum fins onthe heat exchanger.• Stand firmly on a stepladder or otherstable object when removing the inletpanel and filter.CleaningCAUTION• Do not clean the filters with boiling water.• Do not dry them over an open flame.• Pull them out gently.Cleaning the unit• Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.• If the unit is very dirty, wipe it with a cloth soaked in warm water. 1

Before maintenance Reinstall the air filter• Hold firmly the filter at both sides as shown atright and insert securely.• Operating without putting back the air filters willmake the unit dusty, and may cause damage.Cleaning the air inlet panel• Removal, installation of air inlet panel.• The panel can be washed with water. Afterwashing with water, wipe any moisture off thepanel and dry out of direct sunlight.Wipe the unit with asoft, dry cloth. During the operational season • Pull up the air inlet panel forward. • Lightly hold the knobs both sides and lifta little to remove the panel forward.If the filter is very dirty, clean it with warm water(approx. 30°C), and dry it thoroughly.There's a dan-ger of electricshock.Standard interval is onceevery two week Open Place fingers at the recesses on both sides of the panel and pullup the panel forward so that it will be open by about 60 degrees. How to open, close the air inlet panel ClosePush both ends evenly and press further lightly at the center.RemovalWhen removing the air inlet panel for internal cleaning or others,open the panel by 80 degrees and then pull it forward. Removal, installation of air inlet panel InstallationSecure the upper edge of the air inlet panel by lightly pushing itin, and then close the panel. RKW012A401B_EN_001-022 12/08/2010, 13:5816–17–

Stop the unit and turn off the power supply. The unit consumes approx. 4W even when the unit is not operat-ing. Turning off the power supply will help saving energy consumptionand cost. At the beginning of the season

Ensure that the earth wiring is not snapped

Make sure that there are no obstacles block-

ing the airflow around the air intake and outlet

openings of the indoor and outdoor units.

NOTE Cooling/heating is affected by an air filter clogged up with dust etc., and the operation noise becomes louder. It

may also use extra electricity. Please clean the air filter at appropriate intervals.

Remove batteries from the remote control.

Clean both the indoor and outdoor units.

Clean and reinstall the air filters.

Perform the fan operation for 2 to 3 hours. Dry the inside of the unit. 3

Check if there is no corrosion or rust on the

base frame of the outdoor unit.

Insert batteries in the remote control.

Turn on the power supply.

Ensure that the air filters are clean.

Installing, inspecting, and replacing the air-cleaning filter

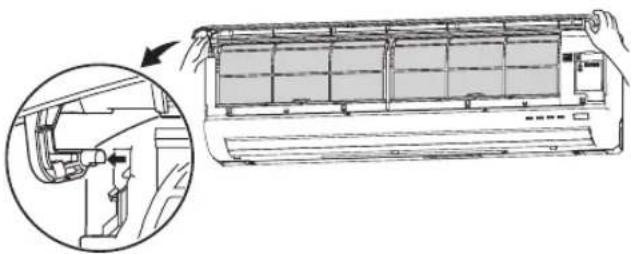

1. Open the air inlet panel and remove the air filters. Page 16

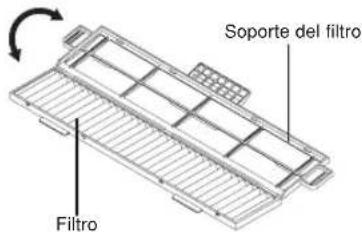

2. Remove the filter holders, with the air-cleaning filter installed in the folders, from the

3. Remove the allergen clear filter (Light orange) from filter holder and inspect the

filter. Use a vacuum cleaner to remove any dust or dirt from the allergen clear filter.

Replace the allergen clear filter if it cannot be cleaned or if it has been for about 1

(The allergen clear filter should be replaced after about 1 year of use. However, the

actual replacement period may vary depending on the conditions in which the filter

Remove the photocatalytic washable deodorizing filter (orange) from the filter

holder and inspect the filter. Periodically, remove any dust or dirt from the photo-

catalytic washable deodorizing filter. If the photocatalytic washable deodorizing fil-

ter is particularly dirt, it may be washed with water. However, the filter is fragile so

be sure to wash it installed in the filter holder to avoid damaging it. After washing

the filter, place it in sunlight to dry. Placing the filter in sunlight revitalizes the deo-

(Do not dispose of the filter holders. They are reusable. )

4. Install the air-cleaning filter in the filter holders, and then install the filter

holders in the air-conditioner.

5. Install the air filters and closed the air inlet panel.

• The allergen clear filter and the photocatalytic washable deodorizing filter

may be installed on either the right or left side of the air-conditioner.

• Install the allergen clear filter with the light orange side front.

At the end of the season

• The heat exchanger may injure your fingers.

For replacement the air-cleaning filter, contact your dealer.

The power of enzyme is used to eliminate allergy-caus-

ing allergens that accumulate on the filter.

Sources of odors on the filter are broken up, resulting in

a deodorizing effect.

Photocatalytic washable

Allergen clear filter

Filter Filter holder RKW012A401B_EN_001-022 12/08/2010, 13:5817–18–

Pay attention to operating noises!

• When you install the unit, take care to choose a place that can comfortably stand the weight of the unit and does not increase the

operating noise or vibration. If vibration is transmitted through the house, fix the unit with the aid of vibration-proof pads between

the unit and the fittings.

• Select a place where cold or hot air, operation noises from the indoor and outdoor units do not cause any inconvenience to your

• Do not leave any obstacles near the outlet and inlet of the outdoor unit. This may cause malfunctioning and increased operating

• If you hear an irregular noise during operation, contact your dealer.

Inspection and maintenance

Depending on operating environment, the inside of the air-conditioner may become dirty after a few year operations. This will reduce

performance. In addition to normal cleaning, we would recommend inspection and maintenance. (This may lead the air-conditioner to

having a longer life without any trouble.)

• Contact your dealer, or any distributor, for inspection and maintenance. (There will be a charge for this service).

• We would recommend inspection and maintenance to be carried out during the off-season.

• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because

special purpose tools are required.

Suitable installation position

• Do not put any obstruction in front of the indoor unit, preventing proper ventilation and functioning.

• Do not install the unit in any of the following places:

• Where there is a danger of leaking flammable gases.

• Where there is substantial splashing of oil.

• Malfunctioning due to corrosion may occur if the unit is installed in a spa where sulfide gases are generated, or in a seaside resort

exposed to sea breezes. Contact your dealer.

• The air-conditioner and remote control must be at least 1 metre away from a TV set or radio.

• Drain the dehumidified liquid from the indoor unit into a spot that drains well.

The air-conditioner does not work at all.

Has the timer been set in the

Has the power switch been

Is there a power failure or a

Please carry out the following checks before making a service call.

Poor cooling or heating

Did you leave any doors or

Have you set the thermostat

at a suitable temperature?

Is there a heat source in the

Are there too many people

Is the air filter clean? (Not

clogged?) suitabletempera- ture

Is there any direct sunlight

If the air-conditioner does not op-

erate properly after you have

checked the left points, or if any

doubt still exists after you have

consulted page 19, or if things

happen as shown on page 20,

switch off the power and contact

An alternative refrigerant (R410A) is used in this air-conditioner. When asking your

dealer for service or inspection and maintenance, explain the dealer about it.

RKW012A401B_EN_001-022 12/08/2010, 13:5818–19–

Airflow is not blown out for 5 to 10 min. or blown out not

warm wind for a moment at HEATING operation.

RUN light blinks slowly

(1.5 sec ON, 0.5 sec OFF)

The unit does not restart immediately after you have

Airflow is not blown out when starting the HEATING opera-

RUN light blinks slowly

(1.5 sec ON, 0.5 sec OFF)

Airflow has stopped to prevent blowing out of cold air until the

indoor heat exchanger has warmed up. (2 to 5 min.) (HOT KEEP program)

When outdoor temperature is low and humidity is high, the unit

sometimes performs defrosting automatically. Please wait. Dur-

ing defrosting, water or steam may escape from the outdoor

Airflow is not blown out when starting the DRY operation.

The indoor fan may stop to prevent re-evaporation of

dehumified moisture and to save energy.

Some steam escapes during COOL operation.

This may occur if the room's temperature and humidity are very

high. It disappears as soon as the temperature and humidity

Restart is blocked for 3 minutes after you have stopped the op-

eration to protect the unit.

The three-minute protection timer in the microcomputer auto-

matically starts it up again.

If the unit is operated for a long time in high humidity, moisture

may form on the air outlet grills and start dripping.

You hear a slight gurgling sound.

This is caused by refrigerating liquid moving within the unit.

You hear a slight cracking sound.

This is caused by heat expansion or contraction.

Remote control signals may not be received if the signal

receiver on the air-conditioner is exposed to direct sunlight or

If so, cut out the sunlight or reduce the other light.

After a power cut, the unit does not restart even if power

If the auto restart function is not set, the unit will not restart

automatically. Use the remote control to start the operation

Remote control signals are not received.

Moisture may form on the air outlet grills.

There is a slight smell.

Air blown out during operation may smell. This is caused by

tobacco or cosmetics adhering to the unit.

You hear a hissing or clicking sound.

This is caused by the operation of the refrigerant control valves

or electric components.

The noise means that the revolution speed of the compressor is

increasing or decreasing.

Whistling noise is heard from the outdoor unit.

Indoor fan : Fan will not stop after 2 hours if set to CLEAN

Outdoor fan : Fan will not stop about a 1 minute period in

order to protect the unit.

Fan will not stop immediately after unit operation was

The RUN light illuminates during CLEAN operation.

Run light turns off when CLEAN operation ends.

RUN light stays on even though operation was stopped.

This is the sound when operation of another indoor unit is

Sometimes a “Shooooo” sound might come for a short time

from the unit that is turned off.

RKW012A401B_EN_001-022 12/08/2010, 13:5819–20–

■ Turn off the power switch immediately and inform your dealer in any of the following situations:

The fuse or switch blows continu-

The cable becomes extremely hot.

The covering of the cable is cracked.

The TV, radio or other equipment

starts to malfunction.

When abnormalities occur, turn off the power supply

immediately and turn it on after 3 minutes. Restart the

operation with ON/OFF button of the remote control and the

abnormalities still continue.

A switch does not activate properly. You hear a strange noise during

operation. Fuse often blows. The RUN and TIMER lights on the unit display section blink

quickly (0.5 sec. ON; 0.5 sec. OFF) and do not work.

CAUTION If the power cord becomes damaged, ask your dealer or a qualified engineer to

install the replacement to avoid accidents.

About the Multiple Air-conditioner

Refrigerant (oil) recovery operation

• The air-conditioners cannot be in different operating modes at the same time, such as one unit being in the “Cool” mode and one

unit being in the “Heat” mode.

• When conducting different operations, the air-conditioner that was operated first will be given priority, so the air-conditioner that is

operated after that will conduct air blowing operation.

• When you want to give priority to the air-conditioner that was started later, either stop the air-conditioner that has priority or cause

the operation type of the unit operated first to match that of the unit operated second.

• When the remote control operation switch is in the “Auto” mode the air-conditioner automatically selects either “Cool,” “Dry,” or

“Heat” when operation is started depending on the room temperature.

• During simultaneous operation of air-conditioner units, operation modes may be automatically changed in response to the tem-

peratures of the individual rooms; this will result in the operation of the outdoor unit being stopped. In such a case, COOL or HEAT

mode should be used instead of AUTO. (This is only relevant when more than one air-conditioner unit is being used.)

Simultaneous Operation

• If the all of the indoor units are not operated at the same time for an extended period, the cooling or heating performance may

temporarily decrease. This is in order to control the recovery of the refrigerant (oil) in the stopped indoor unit(s). At this time, the

sound of refrigerant flowing may be heard from the stopped indoor unit(s).

RKW012A401B_EN_001-022 12/08/2010, 13:5820–21–

Self diagnosis function

■ We are constantly trying to do better service to our customers by installing such judges that show abnormality of each function as follows:

Outdoor temperature sensor error • Broken outdoor sensor wire, poor connector connection Description of troubleRoom temperature sensor errorCause• Broken heat exchanger sensor 1 wire, poor connectorconnectionconnectionActive filter voltage errorHeat exchanger sensor 1 error• Broken heat exchanger sensor 3 wire, poor connectorHeat exchanger sensor 3 error • • Defective power supply • Discharge pipe sensor error• Broken discharge pipe sensor wire, poor connector connection.Rotor lock• Defective compressor• Open phase on compressor• Defective outdoor unit boards • • Broken power transistor, broken compressor wire• Broken discharge pipe sensor wire, poor connector connection• Compressor blockage •

• Power transistor error• Broken power transistorCurrent cutTrouble of outdoor unitOver current• Overload operation, overchargeOver heat of compressorError of signal transmissionOutdoor fan motor error • Defective fan motor, poor connector connectionCooling high pressure protection • Gas over charge, short circuit of outdoor unitTIMER light ONRUN light keeps flashingRUN light ONRUN light 2 time flash2 time flash5 time flash1 time flashRUN light2 time flash1 time flashTIMER light4 time flash2 time flash4 time flash1 time flash2 time flash3 time flash5 time flash6 time flashKeep flashing Suction pipe sensor error • Broken suction pipe sensor wire, poor connector connection 5 time flash3 time flashRefrigerant is insufficientClosed service valveHeat exchanger sensor 1 error• Defective fan motor, poor connector connection •

• Indoor fan motor error7 time flash6 time flash7 time flashOutdoor heat exchanger fluid pipe sensor errorDefective power supply, Broken signal wire, defective in/outdoor unit boardsGas shortage, defective discharge pipe sensor, closed service valveCompressor locking, open phase on compressor output, shortcircuit on power transistor, closed service valve Broken heat exchanger fluid pipe sensor wire, poor connector connectionBroken room temperature sensor wire, poor connector connectionRefrigerant is insufficient, leakingClosed serice valveBroken heat exchanger sensor 1 wire, poor connector connection RKW012A401B_EN_001-022 12/08/2010, 13:5921–22–

ON OFF Mode CLEANHOT KEEP Pile

–6 → –5 → –1 → ±0 → +1 +6.

■ À chaque fois que vous appuyez sur le bouton , vous passez à la fonction

+6 → +5 → +1 → ±0 → –1 –6.

(1.5 sec. ON, 0.5 sec OFF)

(1.5 sec. ON, 0.5 sec OFF)

(R03 (AAA, Micro) ×2)

–6 → –5 → –1 → ±0 → +1 +6.

+6 → +5 → +1 → ±0 → –1 –6.

(1.5 sec. ON, 0.5 sec OFF)

(1.5 sec. ON, 0.5 sec OFF)

ON OFF 0.5 sec.3 sec.1 sec.

–6 → –5 → –1 → ±0 → +1 +6.

+6 → +5 → +1 → ±0 → –1 –6.

CLEAN o ALLERGEN CLEAN.

Warming Potential (GWP) = 1975.

ON OFF 1.5 sec.3 sec.

+6 → +5 → +1 → ±0 → –1 –6.

ON OFF 1.5 sec.0.5 sec.3 sec.1 sec.

–6 → –5 → –1 → ±0 → +1 +6.

+6 → +5 → +1 → ±0 → –1 –6.

zolang de airconditioner is

(1,5 sec. ON, 0,5 sec. OFF)

(1,5 sec. ON, 0,5 sec. OFF)

ON OFF 1.5 sec.0.5 sec.3 sec.1 sec.

–6 → –5 → –1 → ±0 → +1 +6.

+6 → +5 → +1 → ±0 → –1 –6.

Mantenha as janelas e as portas fechadas,

ΚΑΘΑΡΙΣΜΟΥ (SELF CLEAN) 169

ON OFF 1.5 sec.0.5 sec.3 sec.1 sec.

–6 → –5 → –1 → ±0 → +1 +6.

+6 → +5 → +1 → ±0 → –1 –6.

ON OFF 1.5 sec.0.5 sec.3 sec.1 sec.

(R03 (AAA, Micro) ×2)

–6 → –5 → –1 → ±0 → +1 +6.

+6 → +5 → +1 → ±0 → –1 –6.

declare under our sole responsibility that the apparatus

Description of apparatus : Air Conditioner

referred to in this declaration conforms with the following directives.

Relevant EC Directives :

Machinery Directive 2006/42/EC Notes: also satisfied directives Low Voltage Directive 2006/95/EC Applied Standards : EN378-2:2008 (partly completed)

Conformity model list

SRK Series SRK63ZK-S SRK71ZK-S SRK80ZK-S

This air conditioner complies with EMC Directive 2004/108/EC,
