ACH1500R - Heating BESTRON - Free user manual and instructions

USER MANUAL ACH1500R BESTRON

Instruction manual ceramic heater

Italiano

CONDITIONS DE GARANTIE

Congratulations with the purchase of this ceramic heater, which you can use to pleasantly heat and ventilate a room.

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully, and retain them for future reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

• Before use, verify that the mains voltage is the same as that indicated on the type plate on the appliance.
  Always remove the plug from the socket when the appliance is not in use.
• Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service department.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
• Use solely approved extension leads.
• Avoid stumbling over the extension lead or power cord.
• The appliance can become very hot. To avoid being burnt, do not touch the appliance when it is turned on.
• Make sure the air vents are not covered or blocked.
• Make sure that the appliance, the power cord and the plug do not come in contact with sources of heat, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not come into contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Never use the appliance in humid rooms.
• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance or storing it after use.
• Never immerse the appliance, the cord or the plug in water or any other fluid.
  Take care that inflammable objects do not get in touch with warm air of the fan heater.
• Do not insert objects through the grille.
• Use the appliance only in a vertical position.
• Do not place the fan heater directly beneath the wall socket or on deep ply carpet.
• Keep a free space of 50cm besides and above the appliance and 120cm in front of the appliance.
  This appliance may not be used through an external timer or by means of a remote control.

THE ENVIRONMENT

• Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

TECHNICAL INFORMATION

Type: ACH1500R / ACH1500S

Output: 1500W

Power supply: 230 - 240V ~ 50Hz

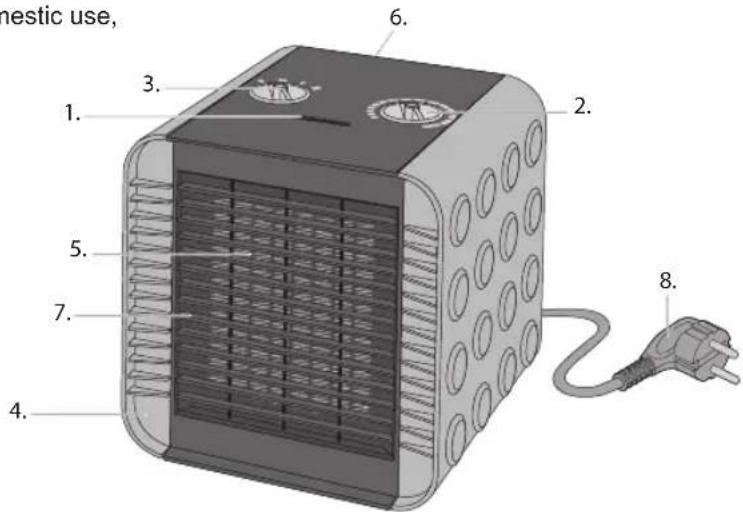

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

1. On/Off indication light
2. Thermostat dial
3. Function button
4. Housing
5. Air removal grille
6. Air supply opening
7. Heating element
8. Plug and lead

BEFORE FIRST USE

Remove the ceramic heater from the packaging and remove all the packaging materials.

USE

1. Place the ceramic heater on a stable surface and ensure that the grilles for the supply and removal of the air are unobstructed.
   Place the ceramic heater on a stable surface and ensure that the grilles for the supply and removal of the air are unobstructed.
2. Insert the plug into the plug socket (8). The On/Off indicator light (1) will be lit.
3. Use the function button (3) to select one of the following functions:

0 Off

Cold air

I Warm air (750Watt)

II Hot air (1500Watt)

1. Rotate the thermostat button (3) towards the right. A click will be heard to indicate that the appliance has been turned on. The temperature is adjusted by turning the thermostat button further.

Please do not cover the appliance.

To find the ideal thermostat setting, rotate the thermostat dial clockwise as far as possible. Once the room has reached the desired temperature, slowly rotate the dial anticlockwise until a click is heard. The appliance will then turn itself off. The temperature regulator will ensure that the room remains at the set temperature.

CLEANING AND MAINTENANCE

1. Remove the plug from the wall socket and allow the appliance to cool.

2. Clean the exterior of the housing with a damp cloth and rub it dry with a clean cloth.

3. Never immerse the appliance, plug or power cord in water.

4. Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
5. Do not use a metal scouring pad to clean the appliance. Fragments of metal could come loose and touch the appliance's electrical parts causing it to short circuit.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.
b. The removal or changing of the appliance's serial number.
8. The guarantee does not cover power cords, lamps or glass parts.
9. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
10. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
11. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: [phone]

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive

2004/108/EC

Low Voltage Directive

2006/95/EC

N. van de Vossenberg
Quality control
