ACV2000 - Heating BESTRON - Free user manual and instructions

USER MANUAL ACV2000 BESTRON

Instruction manual convector heater

Italiano

CONDITIONS DE GARANTIE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully, and retain them for future reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

Certain parts of the appliance may get hot. Not touch these parts to prevent burning yourself.

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
• Make sure that you always use an earthed wall socket to connect the appliance.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
• Special tools are required to replace the power cord. Consequently solely a qualified electrician may replace a damaged power cord.
• Inexpert repairs may result in hazardous situations.
• Always remove the plug from the plug socket by pulling on the plug and not the power cord.
• Make sure that the cord and the plug do not come into contact with heat sources. For this reason, never hang the power cord over the heater.
• Please do not cover the appliance.

SAFETY INSTRUCTIONS - During use

• Certain parts of the appliance can become hot. To avoid being scalded, do not touch the hot parts of the appliance.
• Make sure that the power cord does not become caught up; this could result in the appliance falling over.

• Do not use the appliance near another heat source. Make sure that the hot parts of the appliance do not come into contact with flammable fabrics, such as tea towels.

• Never use the appliance outdoors or in a bathroom.

• Never use the appliance to dry items by placing them on top of it.
• Always remove the plug from the wall socket after use, and before cleaning the appliance.
• Switch off the appliance in the event of a malfunction, before removing the plug from the wall socket, and when you have finished using the convector heater.
• Place the appliance on a heat-resistant surface. Make sure that the appliance connot fall over
• This appliance may not be used through an external timer or by means of a remote control.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

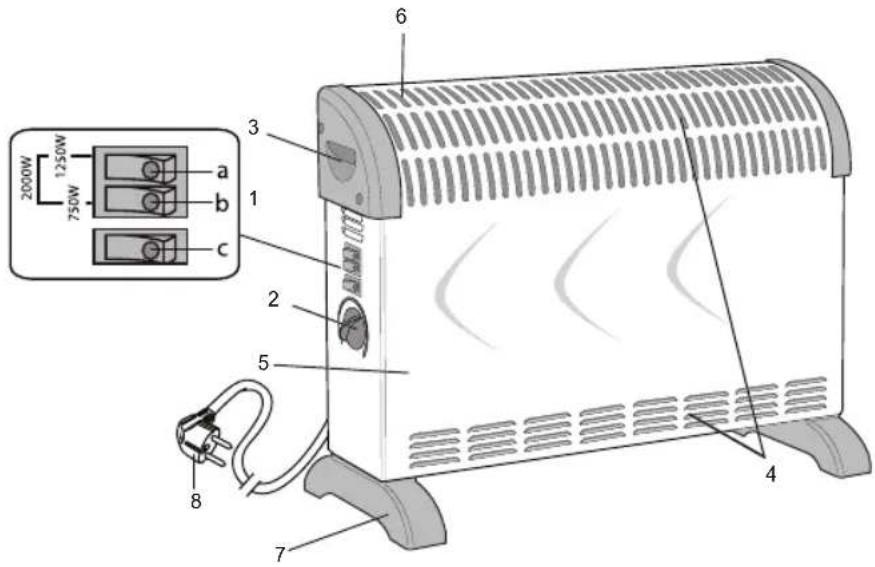

1. a. Button 1250Watt

with indicator light

b Button 750Watt

with indicator light

c. Turbo button

1. Thermostat dial
2. Handle
3. (Hot) air outlet
4. Body
5. Warm air fan outlet
6. Foot support
7. Plug

BEFORE FIRST USE

Remove the ceramic heater from the packaging and remove all the packaging materials.

The convector heater may emit a slight smell on use for the first time. This is due to the appliance being heated for the first time. The smell will disappear after 1 to 2 minutes.

USE - Assembly of the foot support

The two support feet must be fitted by using the screws, before you use the convector heater. Please see figure 2.

Figure 2

USE - Location

Place the convector heater on a stable surface in the room to be heated. The heater heats the air flowing past the appliance. For this reason, the best place for the convector heater is 20 to 25cm in front of a window. An air flow is generated by the cooling of air passing the window and the heating of air passing the convector heater; see figure 3.

Make sure that air can pass through the heater easily. For this reason the top and bottom of the convector heater must always remain unobstructed. Never hang clothing, etc., over the convector heater to dry. The heat produced by the heater could readily result in a fire.

Figure 3

USE

1. Rotate the thermostat dial to "O".
2. Make sure the function dial is set to "0".
3. Insert the plug into the plug socket.
4. Use the function dial to select the desired setting.

Button a = 1250Watt

Button b = 750Watt

Button a + b = 2000Watt

1. Rotate the thermostat dial towards the "MAX" setting. The appliance will turn itself on, a click will be heard and the On/Off indicator light will be lit. The temperature is increased by turning the thermostat dial further.
2. Switch on the turbo fan if you wish to distribute the heat through the room quickly.
   You can also use the turbo fan to distribute cold air. By only switching on the turbo button.
3. Switch the appliance off after use by turning the function dial to the "0" position and remove the plug from the wall socket. Set the thermostat dial to the "O" setting again.

To find the ideal thermostat setting, rotate the thermostat dial clockwise as far as possible. Once the room has reached the desired temperature, slowly rotate the dial anticlockwise until a click is heard. The appliance will then turn itself off. The temperature control will ensure that the room remains at the set temperature.

• Never cover the air inlet or the air outlet.

The thermostat switches off the heating element and the turbo fan once the desired temperature has been reached.

• The convector heater is fitted with an overheating safeguard. The convector heater will be switched off automatically if the appliance's internal temperature becomes too high. The overheating safeguard will be disabled once the appliance has cooled down sufficiently and the convector heater can then be used again.

CLEANING AND MAINTENANCE

• Remove the plug from the plug socket and allow the convector heater to cool down.
• Clean the convector heater with a damp cloth. If necessary, use a little washing-up liquid to clean the convector heater. Make sure no moisture enters the convector heater.
• Dry the appliance thoroughly after cleaning.
• Never immerse the appliance in water.

Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

THE ENVIRONMENT

• Dispos of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.
  The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

TECHNICAL INFORMATION

Type: ACV2000

Output: 2000W

Power supply: 230 - 240V ~ 50Hz

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: [phone]

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC

R. Neyman

Quality control
