Product type	Additional digital cordless handset
Brand	Panasonic
Model	KX-TGA651EXB
Compatibility	KX-TG6501, KX-TG6511, KX-TG6521, KX-TG6531, KX-TG6551, KX-TG6561 series
Supplied accessories	Charger (1), AC adapter PQLV219CE (1), rechargeable Ni-MH AAA batteries HHR-55AAAB or N4DHYYY00005 (2), handset cover (1)
Handset power supply	2 rechargeable Ni-MH AAA (R03) batteries
Charger power supply	AC adapter PQLV219CE (230 V~)
Initial charging time	Approx. 7 hours
Display languages	Selectable: French, English, German, etc.
Registration to base	Required before use
Main functions	Additional handset, phonebook, caller list (depending on base), backlit display
Maintenance and cleaning	Soft damp cloth; do not use benzene, thinner, or abrasive powder
Safety	Use only Ni-MH AAA batteries; do not expose to rain or humidity; disconnect in case of abnormality
Replacement batteries	HHR-55AAAB or N4DHYYY00005 (rechargeable Ni-MH AAA)
Repairability and after-sales service	Contact after-sales service: 08 92 35 05 05 (€0.34/min)
General information	Compliant with R&TTE Directive 1999/5/EC; use in many European countries

Frequently Asked Questions - KXTGA651EXB PANASONIC

How to register the handset to the base?

Ensure the handset is powered on. On the handset, lift it and press the ✗ key. On the base, press and hold the ••• (or •• depending on model) key for about 5 seconds until the registration tone sounds. Then place the handset on the base and wait for the confirmation tone and the display of ⭕.

What type of batteries to use?

Use only rechargeable Ni-MH batteries of size AAA (R03). Do not use alkaline, manganese, or Ni-Cd batteries. For replacement, use the recommended Panasonic batteries (model HHR-55AAAB or N4DHYYY00005).

How long to charge the batteries before first use?

Leave the handset on the charger for about 7 hours before first use. Ensure you use only the supplied AC adapter.

What to do if the screen displays 'Wait 1 minute'?

This message appears if the handset is not yet registered to the base. Follow the registration procedure (see question 1). Even if the message is displayed, continue the operation.

Can I use alkaline batteries?

No, use only rechargeable Ni-MH AAA batteries. Alkaline batteries are not suitable and may damage the device.

How to change the display language?

From the handset, press # then 1, 1, 0. Use the ▼/▲ keys to select the desired language, then press OK and ✗ to confirm.

What to do if the handset does not ring?

Check that the handset is properly registered to the base and that the ringer is enabled in the settings. Also ensure the handset is not too far from the base. If the problem persists, contact after-sales service.

How to clean the device?

Clean the exterior with a soft damp cloth. Do not use benzene, thinner, or abrasive powder. For the battery and charger contacts, use a dry cloth.

Where to find the declaration of conformity?

The declaration of conformity can be downloaded from http://www.doc.panasonic.de. Panasonic System Networks Co., Ltd. declares that this equipment complies with Directive 1999/5/EC.

What to do in case of malfunction?

If the device emits smoke, an abnormal odor, or unusual noise, immediately unplug the AC adapter from the outlet. Then contact Panasonic after-sales service at 08 92 35 05 05 (€0.34/min) or your dealer.

USER MANUAL KXTGA651EXB PANASONIC

Panasonic®

Installation Manual

Bedienungsanleitung

Additional Digital Cordless Handset

Contents/Inhalt/Table des matières/Inhoud/Innehåll/ Innholdsfortegnelse/Sisällysluettelo/Índice/Περιεχόμενα/ Indholdsfortegnelse/Contenido/Índice/İçindekiler

English 4

Deutsch 9

Français.... 14

Nederlands....19

Svenska....24

Norsk 29

Suomi 34

Portuguese.... 39

Greek...... 44

Danish....49

Spanish 54

Italian....59

Turkish....64

3

TGA651EX(ex).book Page 4 Tuesday, September 21, 2010 4:17 PM

English

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: KX-TG6501/KX-TG6511/KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger....1 AC adaptor (PQLV219CE)....1

Rechargeable batteries ¹ ..... 2 (HHR-55AAAB or N4DHYYY00005)

Handset cover ² 1

*1 Please read the base unit's operating instructions for replacement battery information. *2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
• This equipment is designed for use in Germany, Spain, Portugal, Italy, Norway, Sweden, Denmark, Finland, France, Austria, Belgium, Netherlands, Greece, Switzerland, and Turkey.
• In the event of problems, you should contact your equipment supplier in the first instance.
• For use in other countries, please contact your equipment supplier.

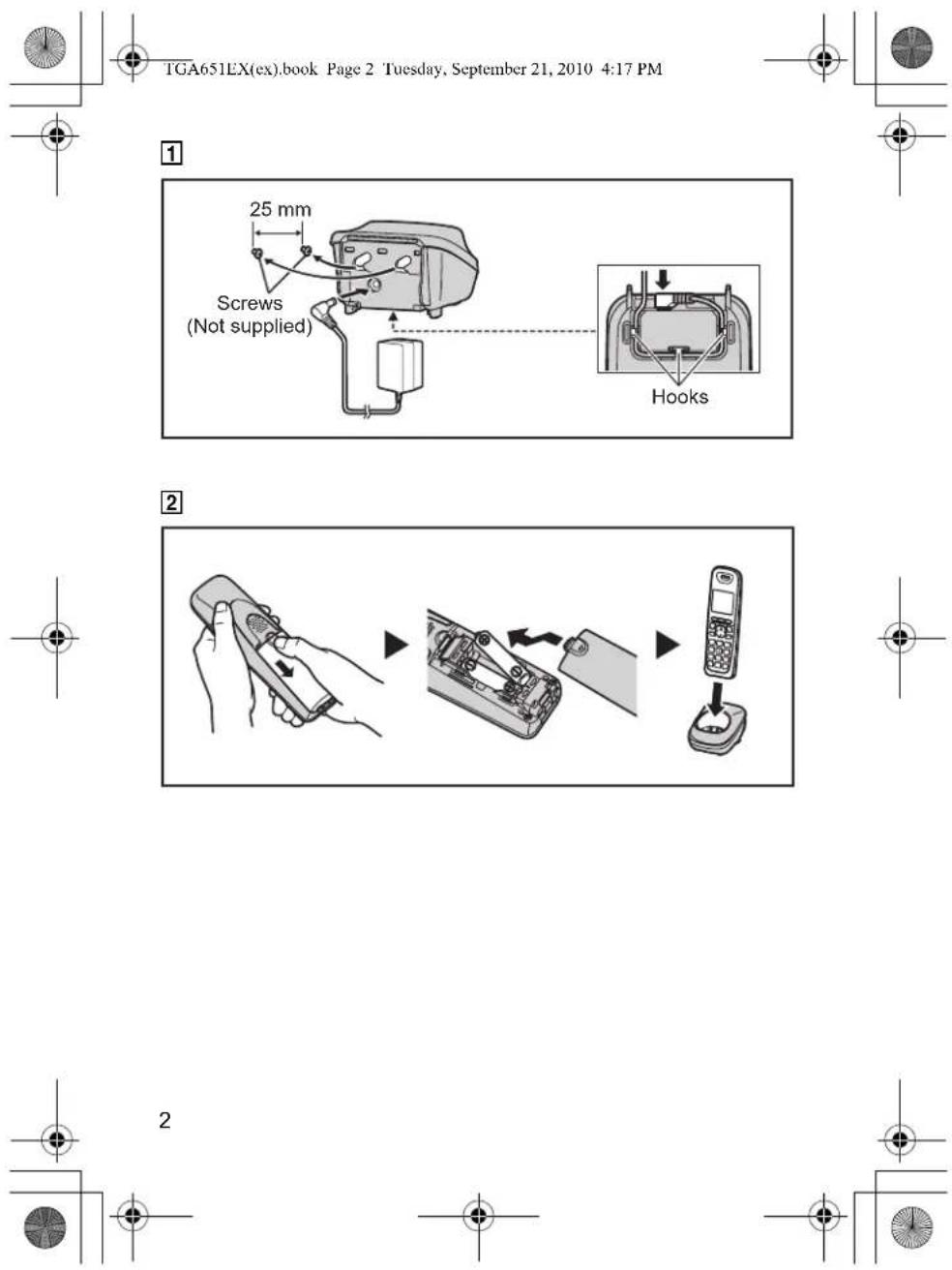

Connection (page 2: 1)

• Use only the supplied Panasonic AC adaptor PQLV219CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• Make sure that the wall is strong enough to support the weight of the unit.

4

Battery installation/Battery charge (page 2: 2)

When the language selection is displayed after installing the batteries for the first time, you can select your desired language.

[▼]/[▲]: Select your desired language. → OK → [✗○]

Important:

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions.
• Wipe the battery ends (⊕, ⊖) with a dry cloth.
• Avoid touching the battery ends (⊕, ⊖) or the unit contacts.
• Confirm correct polarities (⊕, ⊖). • USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

• The handset display may show "Please wait for 1 minute." when the handset is placed on the charger if it is not registered to the base unit.
• If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (⊕, ⊖) and the charge contacts with a dry cloth and charge again.

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [✗] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [→]

2 Base unit:

Proceed with the operation for your model.

■ KX-TG6501/KX-TG6511

Press and hold [•••] for about 5 seconds. (No registration tone)

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Press and hold [•••] for about 5 seconds, until the registration tone sounds.

- If all registered handsets start ringing, press the same button to stop. Then repeat this step.

5

TGA651EX(ex).book Page 6 Tuesday, September 21, 2010 4:17 PM

3 Handset:

Place the handset on the base unit.

- Continue the operation even when the handset display shows "Please wait for 1 minute."

4 With the handset still on the base unit, wait until a confirmation tone sounds and Y is displayed.

Note:

• If an error tone sounds, or if Y is displayed, register the handset according to the base unit's operating instructions.
• The KX-TG6501/KX-TG6511/KX-TG6551 does not feature an answering system.
• Answering system features are available only when this handset is registered to the KX-TG6521/KX-TG6531/KX-TG6561.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

CAUTION

Installation and location

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

6

TGA651EX(ex).book Page 7 Tuesday, September 21, 2010 4:17 PM

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable NI-MH batteries AAA (R03) size.
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

7

TGA651EX(ex).book Page 8 Tuesday, September 21, 2010 4:17 PM

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

8

Deutsch

10

1 Handset:

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Installation

12

French

PLEASE READ THIS DOCUMENT BEFORE USE AND KEEP IT

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

WARNING

17

18

Dutch

READ THE MANUAL BEFORE USE AND KEEP IT

Installing the batteries/Charging the batteries (page 2: 2)

2 Base unit:

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Installation

23

Swedish

READ THE INFORMATION BEFORE USING THE UNIT AND SAVE IT FOR FUTURE REFERENCE

24

Install/charge the battery (page 2: 2)

■ KX-TG6501/KX-TG6511

25

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Batteri

27

Norsk

READ BEFORE USE AND KEEP FOR FUTURE REFERENCE

Connection (page 2: 1)

29

Installing/charging the battery (page 2: 2)

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

3 Handset:

33

Finnish

READ THE INSTRUCTIONS BEFORE USE AND SAVE THEM

■ KX-TG6501/KX-TG6511

3 Handset:

37

Portuguese

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

CAUTION

42

43

Greek

44

1 Handset:

■KX-TG6501/KX-TG6511

■KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Routine care

Danish

READ BEFORE USE AND KEEP FOR FUTURE REFERENCE

■ KX-TG6501/KX-TG6511

Press and hold [•••] for about 5 seconds. (No registration tone)

50

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

[•••] press and hold for about 5 seconds until the registration tone sounds.

51

Battery

53

Spanish

■ KX-TG6501/KX-TG6511

Italian

READ BEFORE USE AND KEEP

59

■ KX-TG6501/KX-TG6511

N KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

61

WARNING

62

63

Turkish

PLEASE READ BEFORE USE AND KEEP

64

65

■ KX-TG6501/KX-TG6511

■ KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

68

Declaration of Conformity:

- Panasonic System Networks Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC. Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de
