USER MANUAL DO1950S DOMO

www.domo-elektro.be RECYCLING INFORMATION This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat package ecologically.

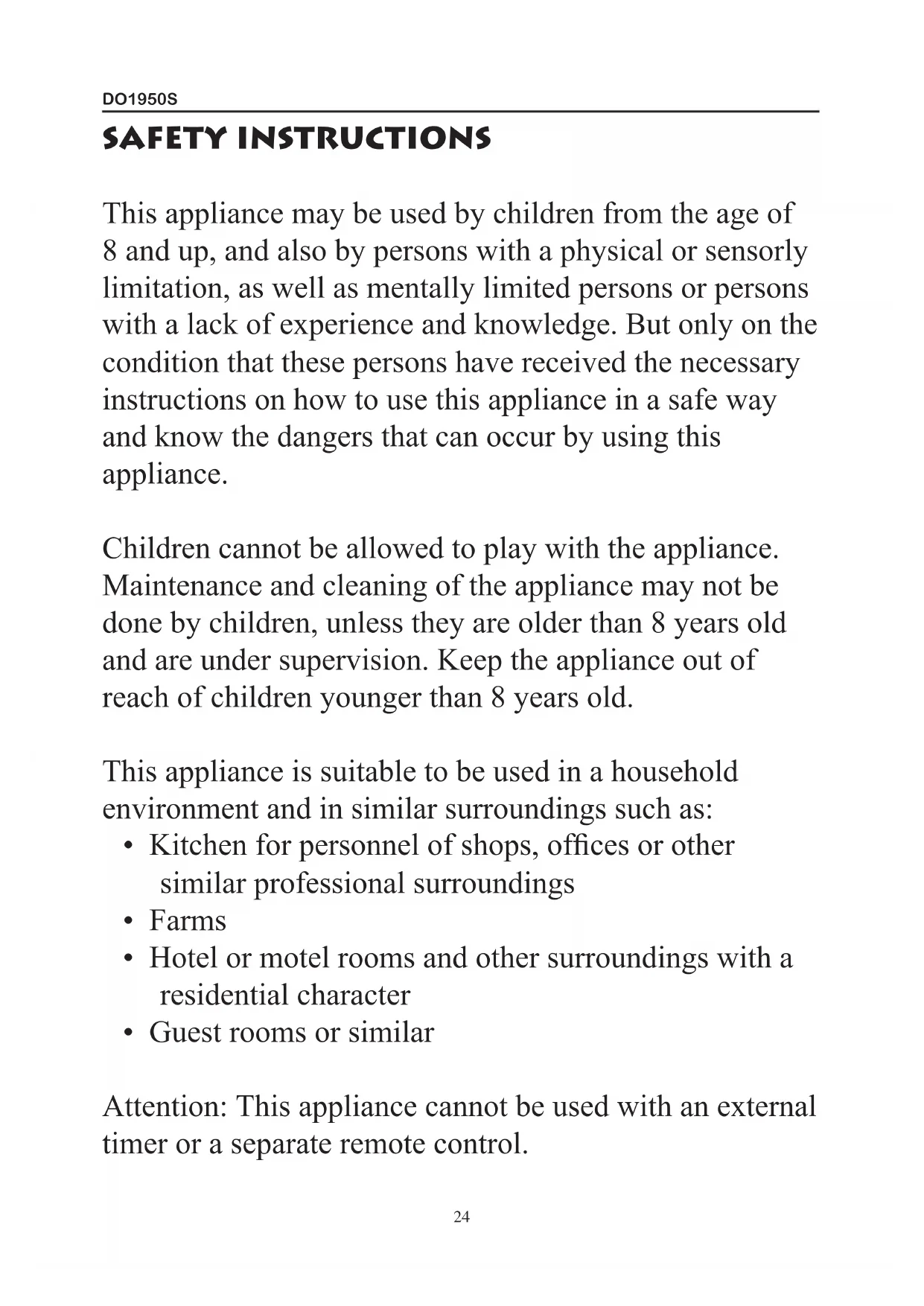

SAFETY INSTRUCTIONS This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance. Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old. This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, ofces or other similar professional surroundings

• Hotel or motel rooms and other surroundings with a residential character

• Guest rooms or similar Attention: This appliance cannot be used with an external timer or a separate remote control.DO1950S

• The appliance is designed solely for domestic and not for professional use.

• Do not use the appliance for any other purpose.

• Do not use the appliance outdoors.

• Avoid electric shocks and do not expose the appliance to water or other liquids.

• The safety button avoids an unintentional start of the slicing machine. When you have nished cutting, always set the safety button to “0”.

• Withdraw the electric plug before removing parts and cleaning the appliance.

• Do not use the appliance for longer than ten minutes at any one time. Allow it to cool before continuing to work.

• Do not use the appliance for cutting frozen food or bones.

• Do not use the appliance, unless the blade is well in place.

• Handle the blade with the greatest possible care when you are removing it, cleaning it, or replacing it in the machine.

• Do not touch the cutting edge of the blade.

• Note that the blade continues to revolve for a moment after the appliance has been turned off.

• To avoid any danger of injury, the food must always be cut using the food board and pressure plate. Always use the food board and pressure plate, unless the size and shape of the piece to be cut do not allow it.

• After using and before cleaning the appliance, alwaysDO1950S

set the cut thickness adjustment and the safety button to “0”.

• Do not use this appliance, if the plug or the electric cable have become damaged, if it functions badly, if it has fallen on the oor, or after it has been immersed in water. Take the appliance to your retailer for checking and repair.

• Do not place the electric cable on the edge of the table or on a hot surface.

• If the electric cable has become damaged, it must be replaced by an approved repairer possessing the required tooling.

• Do not use any accessories, which were not supplied with the appliance.

SAVE THESE INSTRUCTIONS

1. Place the slicer on a at, stable support, in order to prevent it from sliding away.

2. Make sure that the safety button is set to “0” before putting the plug into the

socket. Use an alternating current plug, which is suitable for the voltage shown on the appliance (230 V 50 Hz 100 W).

3. Place the food tray at the side of the appliance to catch the slices.

4. Set the desired slice thickness by turning the knob. The slice thickness can be set

from 1 to 35 mm. After each use, set the slice thickness knob back to 0. The slicer can be used to slice meat, bread, vegetables or cheese.

5. Place the food onto the food sled.

6. To spin the blade: slide the safety button to position 1 and hold. Simultaneously

press the contact button to slice. If at this point you release the safety button, followed by the contact button, the appliance will automatically continue to slice. The safety button is set to 0. Caution: Be extra careful while slicing.

7. Slice the food by pushing the food sled forward. Use the press plate to push the

food against the blade. Always slice the food using the food sled and if possible the press plate to avoid the risk of injuries. Caution: Do not use the appliance for longer than 10 minutes at a time.

8. Slide the safety button shortly back to position 1 to stop slicing. The safety button

as well as the contact button will now jump to 0.

9. Make sure that the safety button is always set to 0 when you are done slicing.

CLEANING INSTRUCTIONS

• Always unplug the slicer before cleaning.

• Never immerse the appliance in water

• Before cleaning the appliance, set the slice thickness to “0”.

• Remove the blade from the slicer by turning the screw in the middle of the blade clockwise, using a large coin or a screwdriver. Be careful when removing the screw and the blade.

• Clean the blade with a damp cloth and mild detergent. Dry thoroughly. Be careful while handling the very sharp blade. Do not touch the blade with bare hands.

• Clean the press plate and the food sled and dry thoroughly.

• You can clean the rest of the appliance with a soft, damp cloth and maybe some mild detergent.
