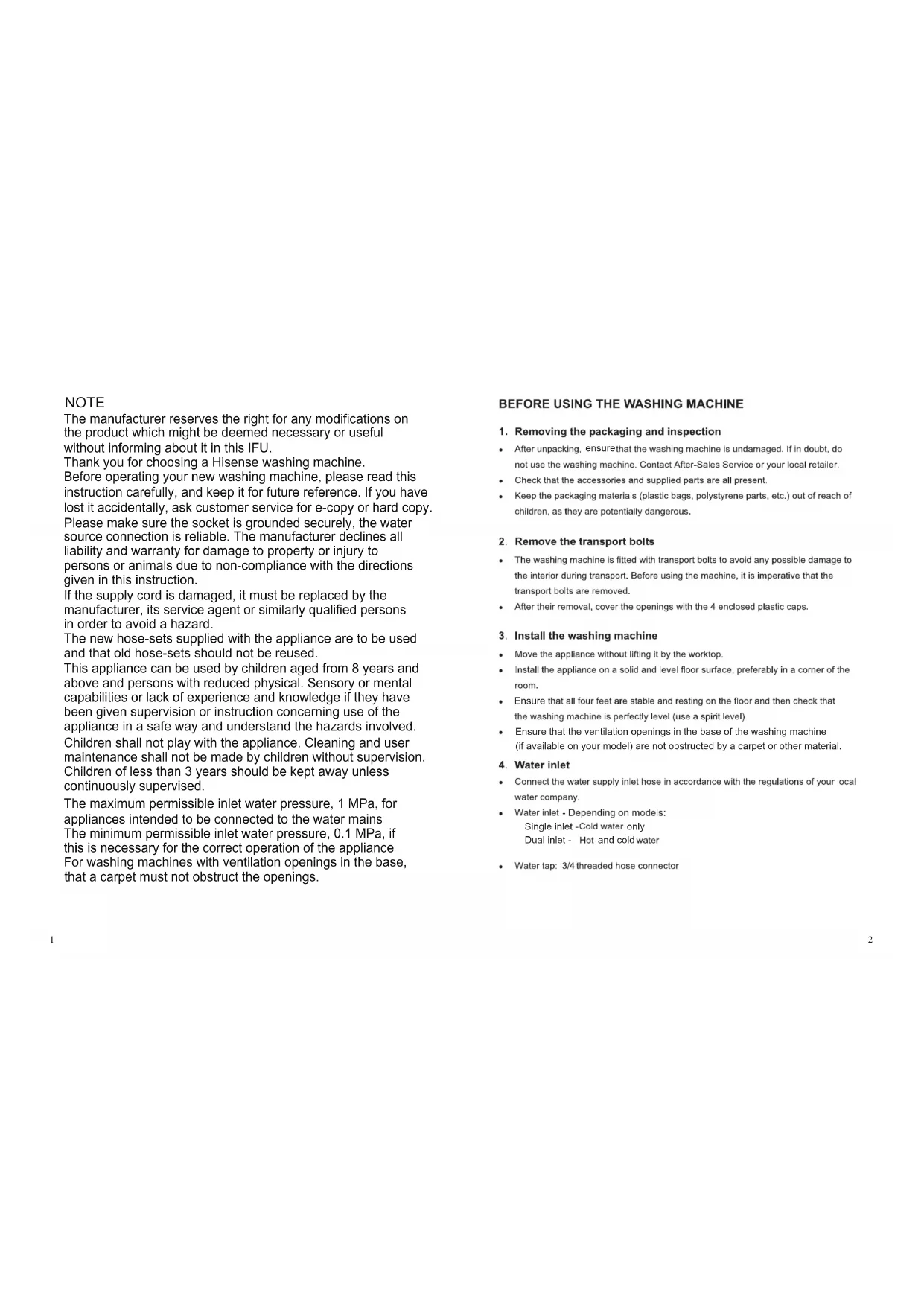

1.材料：80g双胶纸，正反面印刷； 2.印刷为黑白色单色印刷； 3.所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷； 4.幅面：（210 ）X（145 ），（单位：mm）；±3 ±3 5.未注公差按照GB1800(现行).IT15； 6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准； 7.符合RoHS现行标准要求和REACH指令。 WFH8014-FR1892393 崔维明 2016.06.12王云峰 2016.06.12陈朝龙 2016.06.12 王裕庆 2016.06.12英文、法文刘松 2016.06.1221 ensure Ensure Single inlet - Dual inlet - and cold only Ensure that the ventilation openings in the base of the washing machine (if available on your model) are not obstructed by a carpet or other material. NOTE The manufacturer reserves the right for any modifications on the product which might be deemed necessary or useful without informing about it in this IFU. Thank you for choosing a Hisense washing machine. Before operating your new washing machine, please read this instruction carefully, and keep it for future reference. If you have lost it accidentally, ask customer service for e-copy or hard copy. Please make sure the socket is grounded securely, the water source connection is reliable. The manufacturer declines all liability and warranty for damage to property or injury to persons or animals due to non-compliance with the directions given in this instruction. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. This appliance can be used by children aged from 8 years and above and persons with reduced physical. Sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. The maximum permissible inlet water pressure, 1 MPa, for appliances intended to be connected to the water mains The minimum permissible inlet water pressure, 0.1 MPa, if this is necessary for the correct operation of the appliance For washing machines with ventilation openings in the base, that a carpet must not obstruct the openings.3 The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

the from the mains supply,

615 mm 855 mm the mains.Control panel layout and appearance will depend on the model.

Clean the outside of the washing machine with a damp cloth. Do not use abrasive detergents. Never open the door forcibly or use it as a step.

1. Sort the laundry according to...

Type of fabric / care label symbol Cottons, mixed fibres, easy care/synthetics, wool, handwash items. The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of Woolmark garments labelled as “machine wash” provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. Colour Separate coloured and white items. Wash new coloured articles separately. Loading Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum. Delicates Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras) in a cloth bag or pillow case with zip. Always remove curtain rings or wash curtains with the rings inside a cotton bag.

2. Empty all pockets

Coins, safety pins etc. can damage your laundry as well as the appliance drum and tub.

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied together. Stain removal Blood, milk, eggs etc. are generally removed by the automatic enzyme phase of the programme. To remove any residual water used during testing by the manufacturer, we recommend that you carry out a short wash cycle without laundry. 1 Open the tap. 2 Close the door. 3 Pour a little detergent (about 30 ml) into the main wash chamber of the deter- gent dispenser . 4 Select and start a short programme (see separate quick reference guide).

Open the door.9 10 unds Remove siphon in softener slot. (fig.“C”). Refit the siphon in the detergent drawer and fit the drawer back inside its housing. Press the release lever in the main wash compartment downward and remove the drawer(fig.“B”).

Select the “Rinse+Spin” programme,reduce the speed to 1000rpm and strat 2 Insert removal tool like slotted screwdriver into the small opening of bottom baffle, press the bottom baffle downward with much strength and open it.

Before emptying the residual water, switch the appliance off and unplug it fromthe mains socket. Remove the plinth,place a container beneath it.

DRAINING RESIDUAL WATER

(depends on model) 1 Pull out emergency drain pipe of machine. 2 Put end of emergency drain pipe into a container. 3 Rotate emergency drain pipe plug and remove it after it becomes loose. 4 Until water runs off naturally. 5 Reinstall emergency drain pipe plug. 6 Fill detergent box with 1L water to check emergency drain pipe.Check if there is any leakage at connection of pipe plug. 7 Put emergency drain pipe back. if it fails to perform spin cycles. Ensure that the water has We recommend that you check and clean the filter regularly, at least two or three times a year.11 12

3 Put a flat container under filter door and then drain with emergency drain pipe (see [draining residual water] for specific operation methods). Then, loosen filter anticlockwise and completely unscrew and remove the filter. Check the supply hose regularly for brittleness and cracks and replace it if necessary using a new hose of the same type(available from After-Sales Service or specialist dealer).

D13 14 solv and the power switched

too remove some15 16 Fig.1Hot fill Red inlet valve Blue inlet valve Cold fill Red inlet valve Blue inlet valve Cold fill Y-pieceFig.2 If you wish to connect hot and cold water supply (Fig.1): 1 Fix the red marked inlet hose to the hot water tap and to the inlet valve with the red filter on the rear side of machine. 2 Fix the other inlet hose to the cold water tap and to the inlet valve with the blue filter on the rear side of the machine. Make sure: a) The connections are tightly fixed b) Do not invert their position (for example: cold fill into hot inlet valve and vice versa). If you wish to connect only the cold fill follow the below instructions (Fig. 2): 1 You will need a Y-piece connector. This can be purchased from local hardware or plumbing supplier.

2 Fix the Y-piece connector to the cold fill tap. 3 Connect the two inlet valves present on the rear part of the machine to the Y-piece connector using the hoses provided. Ensure that: All connections are tightly fixed. Do not allow children to operate, crawl on, be near or inside your washer. Note that during the wash cycles, the surface temperature of the porthole door may increase. Close supervision of children is necessary when the appliance is used near children. Hot / Cold fill fault - For Models with Dual Inlets Ensure that Fault Code List Displayed on Display Window Fault Description “F01” Water inflow fault “F03” Drainage fault “F04”, “F05”, “F06”, “F07” “F23” and “F24” Electronic module fault, overflow or too much foam. “F13” Door lock fault “UNB” Unbalance alarm a. “F01” displayed on screen The machine is not fed with water or insufficient water. Check: Faucet is fully open and has enough water pressure. Water inlet pipe is knotted or not. Filtering net of water inlet pipe is blocked or not (refer to maintenance and repair). Water pipe is frozen or not. Press “Start/Pause” key after fault is removed. If fault occurs again, please contact with after-sale service (refer to after-sale service.). b. “F03” displayed on screen The washer is not emptied. The washer stops the program being executed. Shut down the machine and disconnect power supply. Check: Drain pipe is knotted or not. Filter in drain pump is blocked or not (refer to the cleaning of filter in drain pump)AFTER-SALES SERVICE TRANSPORT/HANDING

adequate for the machine’s 10 A Current Rating. The electrical power cable must be replaced exclusively by a licensed electrician. C. Fault code The washer stops when the program is running. The display window shows fault code “F24”, fault codes from “F04

to “F07”, “F13”, “F23” or “UNB”. If fault code “F24” is shown Water level reaches overflow level. Remove it by pressing “Start/Pause” key and feed water. Select and start required program. If fault occurs again, disconnect power supply and contact with after-sale service. If fault code “F04” to “F07”, “F23” shown Electronic module fails. Press “Power Supply” key for 3 sec to turn off the machine. After fault is removed, press “Start/Pause” ke

. If fault occurs again, disconnect power supply and contact with after-sale service. If fault code “F13” is shown Door lock is abnormal. Start program for 20 sec and unlock the washer door (PTC) to check whether the door is closed. Open or close it again. After fault is removed, press “Start/Pause” key. If fault occurs again, disconnect power supply and contact with after-sale service. If fault code “UNB” is shown Unbalance alarm. Press “Power Supply” key for 3 sec to turn off the machine. Open the door and re-tidy clothes and then rotate program knob to single dehydration mode. Spin clothes to dry again. If fault occurs again, disconnect power supply and contact with after-sale ser vice.
