USER MANUAL ZRT 15 JB ZANUSSI

From the Electrolux Group. The world’s No.1 choice.

From the Electrolux Group. The world’s No.1 choice.

From the Electrolux Group. The world’s No.1 choice.

ZRT 15 JC (T T 150-4S)

ELECTROLUX HOME PRODUCTS BELGIUM Bergensesteenweg, 719 - B-1502 LEMBEEK Tel. 02.363044440

GB Before installing and using the appliance read this user's instruction book carefully. It contains safety

precautions, hints, information and ideas. If the refrigerator is used in compliance with the instructions written, it

will operate properly and provide you with greatest satisfaction.

The symbols below help you to find things more easily:

Warnings and information at this symbol serve safety for you and your appliance.

Hints, useful information

Environmental information

At this symbol ideas can be found according to food and its storing.

From the Electrolux Group. The world’s No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux

Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value

of approx. USD 14 billion in more than 150 countries around the world.

Description of the appliance, main parts . . . . . . . .42

Hints for storage . . . . . . . . . . . . . . . . . . . . . . .43

Storage time and temperature of foods . . . . . .43

How to use the four-star frozen food

compartment . . . . . . . . . . . . . . . . . . . . . . . . .43

How to use the fresh food compartment . . . . .43

Change of door opening direction of frozen

Declaration of guarantee terms . . . . . . . . . . . . .5141

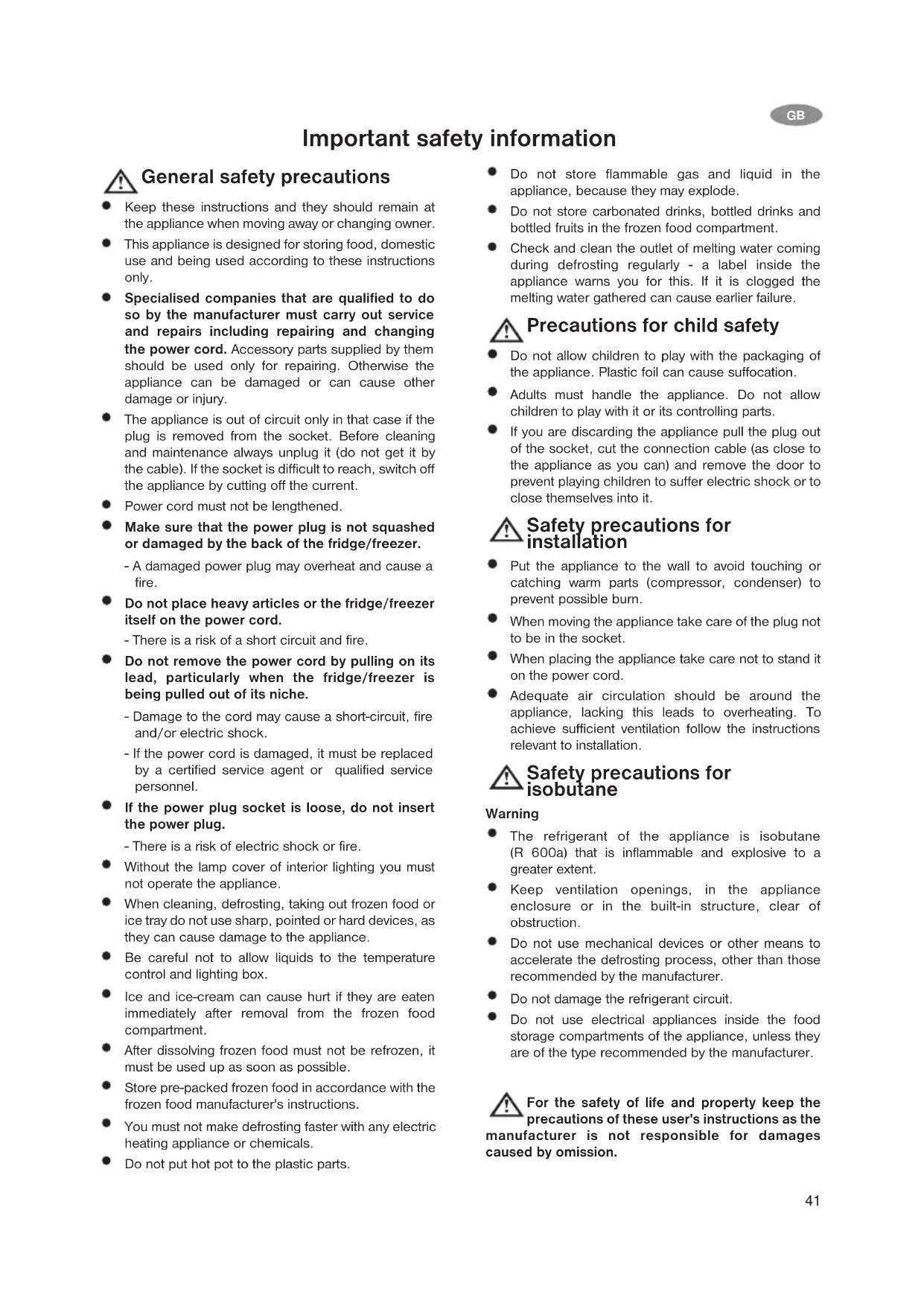

GB General safety precautions

Keep these instructions and they should remain at

the appliance when moving away or changing owner.

This appliance is designed for storing food, domestic

use and being used according to these instructions

Specialised companies that are qualified to do

so by the manufacturer must carry out service

and repairs including repairing and changing

the power cord. Accessory parts supplied by them

should be used only for repairing. Otherwise the

appliance can be damaged or can cause other

The appliance is out of circuit only in that case if the

plug is removed from the socket. Before cleaning

and maintenance always unplug it (do not get it by

the cable). If the socket is difficult to reach, switch off

the appliance by cutting off the current.

Power cord must not be lengthened.

Make sure that the power plug is not squashed

or damaged by the back of the fridge/freezer.

- A damaged power plug may overheat and cause a

Do not place heavy articles or the fridge/freezer

itself on the power cord.

- There is a risk of a short circuit and fire.

Do not remove the power cord by pulling on its

lead, particularly when the fridge/freezer is

being pulled out of its niche.

- Damage to the cord may cause a short-circuit, fire

and/or electric shock.

- If the power cord is damaged, it must be replaced

by a certified service agent or qualified service

If the power plug socket is loose, do not insert

- There is a risk of electric shock or fire.

Without the lamp cover of interior lighting you must

not operate the appliance.

When cleaning, defrosting, taking out frozen food or

ice tray do not use sharp, pointed or hard devices, as

they can cause damage to the appliance.

Be careful not to allow liquids to the temperature

control and lighting box.

Ice and ice-cream can cause hurt if they are eaten

immediately after removal from the frozen food

After dissolving frozen food must not be refrozen, it

must be used up as soon as possible.

Store pre-packed frozen food in accordance with the

frozen food manufacturer's instructions.

You must not make defrosting faster with any electric

heating appliance or chemicals.

Do not put hot pot to the plastic parts.

Do not store flammable gas and liquid in the

appliance, because they may explode.

Do not store carbonated drinks, bottled drinks and

bottled fruits in the frozen food compartment.

Check and clean the outlet of melting water coming

during defrosting regularly - a label inside the

appliance warns you for this. If it is clogged the

melting water gathered can cause earlier failure.

Precautions for child safety

Do not allow children to play with the packaging of

the appliance. Plastic foil can cause suffocation.

Adults must handle the appliance. Do not allow

children to play with it or its controlling parts.

If you are discarding the appliance pull the plug out

of the socket, cut the connection cable (as close to

the appliance as you can) and remove the door to

prevent playing children to suffer electric shock or to

close themselves into it.

Safety precautions for

Put the appliance to the wall to avoid touching or

catching warm parts (compressor, condenser) to

prevent possible burn.

When moving the appliance take care of the plug not

to be in the socket.

When placing the appliance take care not to stand it

Adequate air circulation should be around the

appliance, lacking this leads to overheating. To

achieve sufficient ventilation follow the instructions

relevant to installation.

Safety precautions for

The refrigerant of the appliance is isobutane

(R 600a) that is inflammable and explosive to a

Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of

Do not use mechanical devices or other means to

accelerate the defrosting process, other than those

recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food

storage compartments of the appliance, unless they

are of the type recommended by the manufacturer.

For the safety of life and property keep the

precautions of these user's instructions as the

manufacturer is not responsible for damages

Important safety informationGB

Instructions for the User

The official designation of the appliance is home

refrigerator with a four-star frozen food compartment.

According to this the appliance is suitable for storing

frozen and deep-frozen food, freezing products in limited

quantity at home and making ice.

The appliance can meet the requirements of standards

between different temperature limits according to the

The letter symbol for class of climate can be found on the

Description of the appliance, main parts

1. Frozen food compartment

8. Butter compartment

Place the accessories into the refrigerator then plug to

the mains socket. To start cooling turn the control dial on

the right-hand side of the fresh food compartment from

„0” clockwise according to the figure. In „0” position the

appliance is out of operation.

The next paragraph will give instructions for setting.

Controlling the temperature, setting

The thermostatic controller interrupts the operation of the

appliance automatically for more or less time depending

on the setting then restarts it assuring the required

Turning the control button towards the bigger numbers

cooling becomes more and more intensive.

In the frozen food compartment -18 °C or lower

temperature can be reached if the knob of the

thermostatic control is set to „3”. In this case the

temperature starting automatically in the fresh food

compartment is about +5 °C or below. The „3” position

generally meets the requirements of everyday cooling.

The temperature coming about in the refrigerator is

effected by not only the position of the thermostatic

control but the ambient temperature, frequency of door

openings and the quantity of food put into it newly, etc.

In the maximum i.e. „5” position - in case of

increased demand e.g. during heatwaves -

without disconnecting continuous operation can occur.

This does not cause damages to the appliance.

When placing the different kinds of food take into

consideration the sketch below in figure:

1. Storing frozen foods, making ice and ice-cream.

Freezing fresh foods.

2. Confectionery, ready-cooked foods

5. Milk, dairy products

6. Fresh meat, cold cuts, sausages, etc.

7. Fruits, vegetables, salads

10. Yoghurt, sour cream

11. Small bottles, soft drinks

12. Big bottles, drinks

Storage time and temperature of

The enclosed charts at the end of the user's instructions

give information about storage time in the frozen and the

fresh food compartment.

The storage time can not be determined exactly in

advance, as it depends on the freshness and handling of

the cooled food. That is why the storage time made

known is only informative.

It is safe to store quick-frozen food only that way if they

were not dissolved even for a short time until placing

them into the frozen food compartment.

How to use the four-star frozen food

Depending on the position of the thermostatic control -18

°C or lower can be kept here.

At this temperature for a certain time deep-frozen

products available on the market can be stored. It is also

suitable for freezing and storing smaller quantity of fresh

In 24 hours' time approximately 2 kgs of food can be

Pack the foods tightly in plastic or aluminium foil, cool

them in the fresh food compartment and then place to the

frozen food compartment.

It is recommended to write the date on it when it was

You can put the next product to be frozen into the frozen

food compartment if the previous one has already been

How to use the fresh food

For adequate cooling developing interior air

circulation is necessary. For this reason you are

asked not to cover the whole surface of the wire shelves

with paper, trays, etc.

Do not put hot food into the refrigerator. Allow

it to reach room temperature naturally. In this

way the unnecessary frost building up can be

Foods can take over odours from each other.

So it is essential to put foods in closed dishes

or wrap them in cellophane, aluminium foil, grease-

proof paper or cling film before placing them into44

the refrigerator. This way foods will keep their

moisture e.g. vegetables will not dry out after some

How to make ice cubes

To make ice cubes fill the enclosed ice cube tray with

water and put it to the frozen food compartment. Wetting

the bottom of the tray and setting thermostatic control

knob to maximum stage can shorten preparing time. After

finishing do not forget to reset the thermostatic control to

Ready ice cubes can be taken out of the tray under

running water then twist or hit it.

Some useful information and advice

The variable shelves are worth paying attention to,

which increases the usefulness of the fresh food

compartment considerably. Rearranging the shelves is

also possible when the door is open at an angle of 90°.

The inside configuration of the door makes rearranging

the door shelves as required possible.

In this chapter practical hints and ideas are given about

how to use the appliance to reach maximum energy

saving and there is environmental information about the

The colder the ambient temperature of the appliance

is the less energy it uses.

Avoid putting the appliance in a sunny place and near

anything that gives off heat.

Be sure that the condenser and the compressor are

well ventilated. Do not cover the sections where

Wrap products in tightly closing dishes or cling film to

avoid building up unnecessary frost.

Do not leave the door open longer than necessary

and avoid unnecessary openings.

When closing the door of the frozen food

compartment take care to move its bolt in the

direction of the arrow to fit it to the lock properly.

Put foods into the appliance only in a closed dish.

Put warm foods into the appliance only when they are

at room temperature.

Keep the condenser clean at the back of the

The appliance and environment

This appliance does not contain gasses which could

damage the ozone layer, in either its refrigerant circuit or

insulation materials. The appliance shall not be discarded

together with the urban refuse and rubbish. Avoid

damaging the cooling unit, especially at the rear near the

heat exchanger. Information on your local disposal sites

may be obtained from your municipal authorities.

The materials used on this appliance marked with the

sympol are recyclable.

Bleeding part of the moisture of cooling chamber in form

of frost and ice goes with the operation of the refrigerator.

Thick frost and ice has an insulating effect, so it reduces

cooling efficiency as the temperature increases, it needs

more energy, at a certain thickness it does not allow the

door of the frozen food compartment to open, possibly

the door can be broken.

At this type of appliance defrosting fresh food

compartment is automatic without any external

The thermostatic control interrupts the operation of

compressor at regular intervals for more or less time -

during this cooling is interrupted - temperature of the

fresh food compartment increases and defrosting

occurs. After defrosting the thermostatic control restarts

operation of the system.

Melting water flows through defrost water outlet into the

evaporative tray maintained on the top of compressor and

evaporates due to warmth of it.

Check and clean the outlet of melting water

coming during defrosting regularly. If it is

clogged the melting water gathered can cause

earlier failure as it can go to the insulating of the

Clean the melting water outlet with the supplied pipe

scraper that can be seen in the figure. The pipe scraper

has to be stored in the outlet.

Occasionally check defrost water outlet not to be

The most typical case of clogging up in the defrost water

outlet when you put food wrapped in some paper into the45

appliance and this paper contacts back plate of fresh

food compartment and freezes to it. If you remove the

food right at this moment the paper will tear and it can

cause clogging up in the outlet by getting into it. So you

are asked to be careful - because of the above - when

placing foods wrapped in paper into the appliance.

In case of increased demand e.g. during

heatwaves, the refrigerator temporarily happens to

operate constantly. During this the automatic defrosting is

Remaining small ice and frost stains on back plate of the

fresh food compartment after defrosting period is not

The frozen food compartment can not be equipped with

automatic defrosting set since the deep-frozen and

frozen foods do not endure melting temperature.

So the enclosed plastic scraper is for scraping off and

removing frost and ice coating which possibly occurs in

the frozen food compartment and on the sealing of the

The tray in figure is not a piece of accessories to the

When ice coating is so thick that it can not be removed

with the plastic scraper, the frozen food compartment

has to be defrosted (generally 2-3 times a year).

Take the foods out of the frozen and fresh food

compartment, wrap them into some layers of paper or

cloth. Put them to a possible cool place while defrosting.

Break the circuit of the appliance and leave the doors of

frozen and fresh food compartment open.

Continuously blot off the defrosting water by a soft cloth

After defrosting wipe the surfaces, apply voltage to the

appliance and put the foods back to their places.

It is recommended to operate the appliance at the

highest position of the thermostatic control so that it can

reach the proper storing temperature as soon as

It is recommended to wash the inside of the refrigerator

Household cleaner or soap must not be used.

After you made it no-current wash the appliance using

lukewarm water and wipe it.

Clean the magnet door rubber profile with clean water.

After cleaning plug the appliance to the mains socket.

It is practical to clean and defrost the frozen food

compartment at a time and when it is empty.

Dust and dirt collected on the back of the refrigerator,

condenser is recommended to be removed and clean

the evaporative tray on top of the compressor once or

When the refrigerator is not in use

In case the appliance will not be used for a long time

Break the circuit of the appliance.

Remove foods from the refrigerator.

Defrost and clean it as written before.

Leave the door open to avoid a build up of air inside.

How to change the bulb

Should the light fail to work you can change it as below:

Break the circuit of the appliance.

Unscrew the plate screw fixing the lamp cover, then take

the lamp cover off in the direction of arrow and the bulb

can be changed. (Type of the bulb: Mignon 322, 230 V,

After changing bulb replace the lamp cover, screw the

plate screw and apply voltage to the appliance.

The lack of light does not influence operation of the

If something does not work

During operation of the appliance some smaller but

annoying trouble can often occur, which does not require

calling a technician out. In the following chart information

is given about them to avoid unnecessary charges on

We draw your attention that operation of appliance goes

with certain sounds (compressor- and circulating sound).

This is not trouble, but means normal operation.

We draw it to your attention again that the

appliance operates discontinuously, so the

stopping of compressor does not mean being no-current.

That is why you must not touch the electrical parts of the

appliance before breaking the circuit.

GB Installing the appliance

Transportation, unpacking

It is recommended to deliver the appliance in original

packaging, in vertical position considering the protective

warning on packaging.

After each transportation the appliance must not be

switched on for approx. 2 hours.

Unpack the appliance and check if there are damages on

it. Report possible damages immediately to the place you

bought it. In that case retain packaging.

Remove every adhesive tape, which ensure the parts not

to move in the appliance.

Wash the inside of the appliance using lukewarm water

and mild detergent. Use soft cloth.

After cleaning wipe out the inside of the appliance.

The ambient temperature has an effect on the energy

consumption and proper operation of the appliance.

When placing, take into consideration that it is practical

to operate the appliance between ambient temperature

limits according to the climate class that is given in the

chart below and can be found in the data label.

Class of climate Ambient temperature

SN +10 ... +32 °C N +16 ... +32 °C ST +18 ... + 38 °C If the ambient temperature goes below the lower data the

temperature of the cooling compartment can go beyond

the prescribed temperature.

The appliance does not

The appliance cools too

The appliance does not

The appliance is noisy

Thermostatic control is set too low.

Too many foods to be cooled were put in.

Very warm foods were put in.

Door is not shut properly.

There is no inside cool air circulation.

The thermostatic control is set too high.

Plug is not connected to the mains socket

There is no voltage in the mains socket.

Thermostatic control is in „0” position.

The appliance is not supported properly.

Set higher position.

Put fewer foods to be cooled.

Put foods max. at room temperature.

Check if the door is shut.

Provide inside cool air circulation.

Check if the connection is proper.

Check if there is voltage.

Check setting of thermostatic control.

Check if the appliance stands stable (all the four

feet should be on the floor).

Inasmuch as the advice does not lead to result, call the nearest brand-mark service.

Instructions for the Installer

ZRT 15 JC (TT 150-4S)

Energy consumption (kWh/24h)

Energy class, according to EU

Star rating of frozen food

If the ambient temperature goes beyond the upper data

this means longer operating time of the compressor,

breakdown in the automatic defrosting increasing

temperature in the cooling compartment or increasing

When placing the appliance ensure that it stands level.

This can be achieved by two adjustable feet (1) at the

bottom in front. 1-1 piece of distance washer (2) are

accessories of the adjustable feet. If levelling the

appliance requires, these washers can be removed.

Do not stand the appliance on a sunny place or close to

a radiator or cooker.

If it is unavoidable because of furnishing and the

appliance has to be stood near a cooker take these

minimum distances into consideration:

In case of gas or electric cooker 3 cm must be left,

when it is less put a 0,5-1 cm non-flam insulation

between the two appliances.

In case of oil or coal-fired stove the distance must be

30 cms since they give off more heat.

The refrigerator is designed to operate when it is totally

When placing the refrigerator keep minimal

distances recommended in figure.

A : placing it under a wall-cupboard

B : placing it freely

Change of door opening direction

Should the setting-up place or handling demand it, door-

opening direction can be refitted from right-handed to

Following operations are to be done on the basis of

figures and explanations:

Pull out the plug from the mains socket.

Tilt back the appliance carefully being careful so that

the compressor can not touch the floor. It is

recommended to ask another person for help, who

can keep the appliance at this position safely.

Unscrew the adjustable feet situated on both sides (2

pieces), in addition the screws fixing the lower door

holders (3 pieces) respectively the screw on the

Put over the pin in the lower door holding plate in the

direction of the arrow.

Fix the plate on the other side leaving the position of

Then screw in the one screw in the place set free on

the other side as well as the adjustable feet (2

pieces) and set up the box.

For refitting the upper door holder take out the

screws (2 pieces) fixing the plastic top on the back of

Push back the top and lift it from the fixing elements.

Unscrew the screws fixing the upper door holder (2

After unscrewing turn over the pin in the door holder

plate in the direction of the arrow.

Fit and fix the door holder plate on the other side

without displacing the door.

Put back the plastic top on the fixing elements and

Fix the top with the screws (2 pieces) on the back

Put over the handle and the plastic nails on the other

Put the appliance to its place, set it level and plug it

into the mains socket.

Change of door opening direction

of frozen food compartment

After changing the outer door opening direction at this

type it is necessary to remount the door of the frozen

food compartment as well.

Operations and their order can be seen in figure.

Press the retaining lever inside the lower doorhinge

Tilt the lower doorhinge out together with the freezer

compartment door then remove it from the pin of the

freezer compartment door.

Remove the rectangular plug and put it into the

opening got free on the other side.

Having the freezer compartment door turned by

180° put the lower hinge onto the lower pin of the

freezer compartment door.

Put the upper hinge pin of the freezer compartment

door into the free opening, then push the lower hinge

into its place together with the freezer compartment

In case you do not want to perform the procedures

above, call the nearest brand-mark service. Technicians

will accomplish the refitting expertly for charge.

GB Electrical connection

This refrigerator is designed to operate on a

The plug must be put into a socket with protective

contact. If there is no such, it is recommended to get

an electrician to fit an earthed socket in compliance

with standards near the refrigerator.

This appliance complies with the following E.E.C.

73/23 EEC of 19.02.73 (Low Voltage Directive) and

subsequent modifications,

89/336 EEC of 03.05.89 (Electromagnetic

Compatibility Directive) and subsequent

GB GB Storage time chart (1)

Time and method of storage of fresh foods in the refrigerator

X: usual storage time

x: possible storage time (concerns to really fresh product only)

Foods Storage time in days Method of packaging

Raw meat XX x x x cling film, airtight

Cooked meat XX Xx x x dish covered

Roasted meat XX Xx x dish covered

Raw minced meat X dish covered

Roasted minced meat XX x x dish covered

Cold cuts, Vienna sausage XX x x cling film, cellophane, grease-proof paper

Fresh fish X x x cling film, airtight

Cooked fish XX x x dish covered

Fried fish XX x x x dish covered

Tinned fish, open X x x dish covered

Fresh chicken XX Xx x x cling film, airtight

Fried chicken XX Xx x x dish covered

Fresh hen XX x x x cling film, airtight

Boiled hen XX x x x dish covered

Fresh duck, goose XX Xx x x cling film, airtight

Roasted duck, goose XX X Xx x x dish covered

Butter unopened XX X XXXXoriginal packaging

Butter opened XX x x x x x original packaging

Milk in a plastic bag XX Xx x original packaging

Cream XX x x plastic box

Sour cream XX X Xx x x plastic box

Cheese (hard) XX X XXXXaluminium foil

Cheese (soft) XX X Xx x x cling film

Egg XX X XXXX Spinach, sorrel XX x x cling film

Green peas, green beans XX X Xx x x cling film

Mushroom XX x x x cling film

Carrot, roots XX X XXXXcling film

Bell-pepper XX x x x cling film

Tomato XX X XXXXcling film

Cabbage XX X XXx x cling film

Quickly rotting fruits (strawberry, raspberry, etc.) XX Xx x cling film

Other fruits XX X Xx x x cling film

Tinned fruits opened XX Xx x dish covered

Cakes filled with cream XX x x dish covered50

GB Foods In the fresh food In the **** frozen food

compartment +2 - +7°C compartment -18°C Vegetables:

green beans, green peas, mixed vegetables, marrow, corn, etc. 1 day 12 months

vegetable dish, trimmings, with meat, etc. 1 day 12 months

sirloin steaks, stew from knuckle of ham, meat from pig pudding, etc. 1 day 6 months

Foods from potatoes, pasta:

mashed potato, gnocchi, dumpling, pasta filled with jam, chips 1 day 12 months

meat-broth, soup from green beans, soup from green peas, etc. 1 day 6 months

sour cherry, cherry, gooseberry, fruit cream, mashed maroon 1 day 12 months

chicken, duck, goose 1 day 5 months

fillets, tuna fish 1 day 6 months

Popsicle, ice-cream 1 day 3 weeks

Storage time chart (2)

Storage time of deep-frozen and frozen products

Guarantee conditions

Service and spare parts

If calling the service is unavoidable, announce the trouble

at a brand-mark service nearest to your place.

When announcing the appliance has to be identified

according to its data label.

The data label of the appliance is stuck to the wall of the

interior beside the vegetable box in the fresh food

compartment in the bottom on the left side. All necessary

The manufacturer reserves the right to make any changes in the products.

Warranty and service

data are there which are needed to the service

announcement (type, model, serial number, etc.). Note

here the data from the data label of your appliance:

Our appliances are produced with the greatest of care.

However, a defect may still occur. Our consumer services

department will repair this upon request, either during or

after the guarantee period. The service life of the appliance

will not, however, be reduced as a result.

This declaration of guarantee terms is based on European

Union Directive 99/44/EC and the provisions of the Civil

Code. The statutory rights that the consumer has under

this legislation are not affected by this declaration of

This declaration does not affect the vendor's statutory

warranty to the end user. The appliance is guaranteed

within the context of and in adherence with the following

1. In accordance with provisions laid down in

paragraphs 2 to 15, we will remedy free of charge

any defect that occurs within 24 months from the

date the appliance is delivered to the first end user.

These guarantee terms do not apply in the event of

use for professional or equivalent purposes.

2. Performing the guarantee means that the appliance is

returned to the condition it was in before the defect

occurred. Defective parts are replaced or repaired.

Parts replaced free of charge become our property.

3. So as to avoid more severe damage, the defect must

be brought to our attention immediately.

4. Applying the guarantee is subject to the consumer

providing proof of purchase showing the purchase

and/or delivery date.

5. The guarantee will not apply if damage caused to

delicate parts, such as glass (vitreous ceramic),

synthetic materials and rubber, is the result of

6. The guarantee cannot be called on for minor faults

that do not affect the value or the overall reliability of

7. The statutory warranty does not apply when defects

a chemical or electrochemical reaction caused

abnormal environmental conditions in general,

unsuitable operating conditions,

contact with harsh substances.

8. The guarantee does not apply to defects due to

transport which have occurred outside of our

responsibility. Nor will the guarantee cover those

caused by inadequate installation or assembly, lack

of maintenance or failure to respect the assembly

instructions or directions for use.

9. Defects that result from repairs or measures carried

out by people who are not qualified or expert or

defects that result from the addition of non-original

accessories or spare parts are not covered by the

10. Appliances that are easy to transport may be

delivered or sent to the consumer services

department. Home repairs are only anticipated for

bulky appliances or built-in appliances.

11. If the appliances are built-in, built-under, fixed or

suspended in such a way that removing and

replacing them in the place where they are fitted

takes more than half an hour, the costs that result

therefrom will be charged for. Connected damage

caused by these removal and replacement

operations will be the responsibility of the user.

12. If, during the guarantee period, repairing the same

defect repeatedly is not conclusive, or if the repair

costs are considered disproportionate, in agreement

with the consumer, the defective appliance may be

replaced with another appliance of the same value.

In this event, we reserve the right to ask for a financial

contribution calculated according to the length of

time it has been used.

13. A repair under guarantee does not mean that the

normal guarantee period will be extended nor that a

new guarantee period begins.

14. We give a twelve month guarantee for repairs, limited

15. Except in the event where liability is legally imposed,

this declaration of guarantee terms excludes any

compensation for damage outside the appliance for

which the consumer wishes to assert his rights. In

the event of legally admitted liability, compensation

will not exceed the purchase price paid for the

These guarantee terms are only valid for appliances

purchased and used in Belgium. For exported appliances,

the user must first make sure that they satisfy the technical

conditions (e.g.: voltage, frequency, installation

instructions, type of gas, etc.) for the country concerned

and that they can withstand the local climatic and

environmental conditions. For appliances purchased

abroad, the user must first ensure that they meet the

qualifications required in Belgium. Non-essential or

requested adjustments are not covered by the guarantee

and are not possible in all cases.

Our consumer services department is always at your

disposal, even after the guarantee period has expired.

Address for our consumer services department:

ELECTROLUX HOME PRODUCTS BELGIUM Bergensesteenweg, 719 - 1502 LEMBEEK Tel. 02.3630444

GB Declaration of guarantee termsFrom the Electrolux Group. The world’s No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux

Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value

of approx. USD 14 billion in more than 150 countries around the world.

Printed by Océ-Hungária Kft.
