USER MANUAL KND 9860 XA BLOMBERG

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

CONTENTS

1 Your refrigerator 3

1 Your refrigerator 4

2 Warnings 5

Intended use ....5

General safety ....5

Things to be done for energy saving ..7

HCA Warning ....7

3 Installation 8

Preparation 8

Points to be considered when re-transporting your refrigerator .....8

Before operating your refrigerator .....8

Electric connection 9

Disposing of the packaging .....9

Disposing of your old refrigerator ..... 9

Changing the illumination lamp .....10

Installing the lower ventilation cover . 10

Adjusting the legs ....10

4 Using your refrigerator 11

Indicator Panel 11

Door Open Warning 13

Dual cooling system: 13

Freezing fresh food 13

Recommendations for preservation of frozen food ....14

Placing the food 15

Deep-freeze information .....15

Multi-Hygiene 16

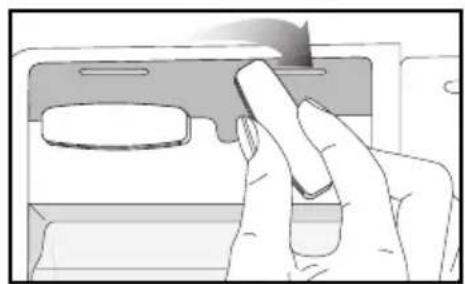

Icematic and ice storage container ..16

Zero temperature compartment .....17

Sliding Body Shelves .....17

5 Maintenance and cleaning 18

Protection of plastic surfaces ..... 18

6 Recommended solutions for the problems 19

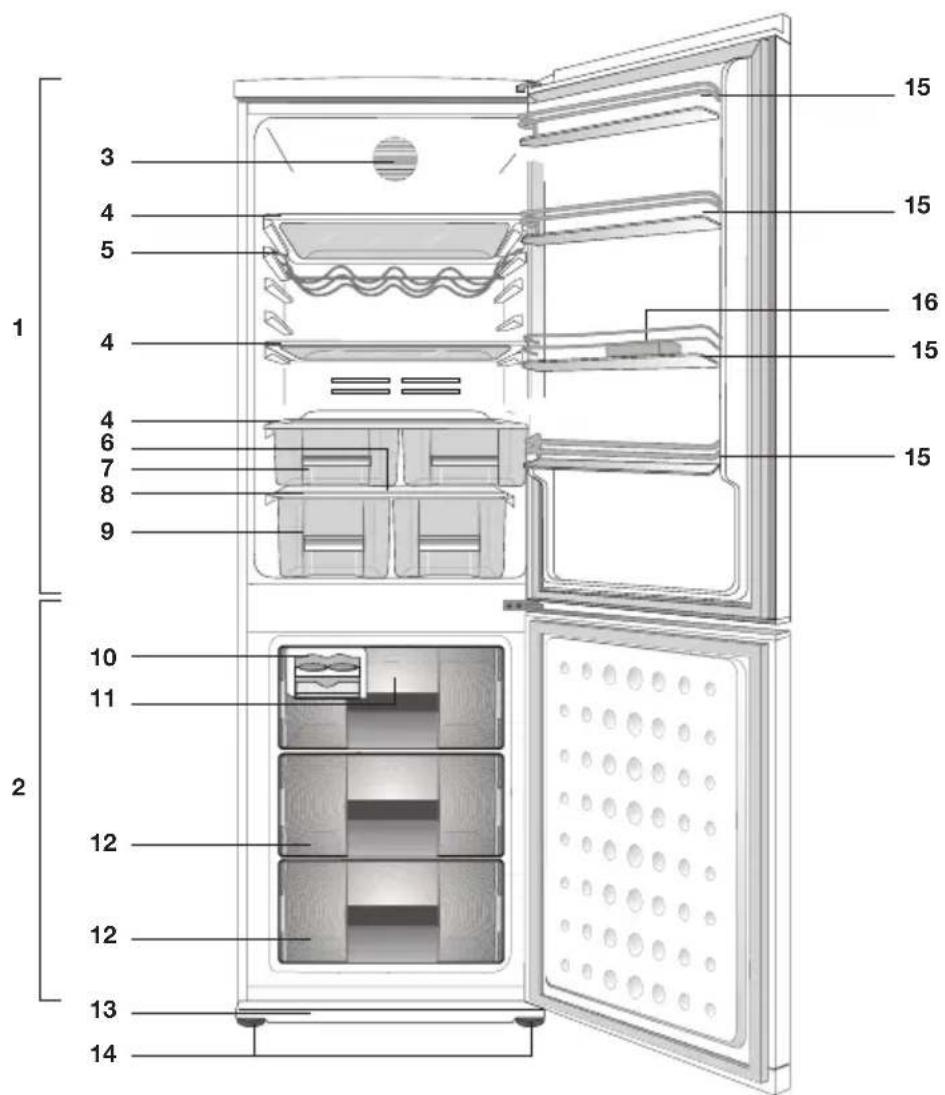

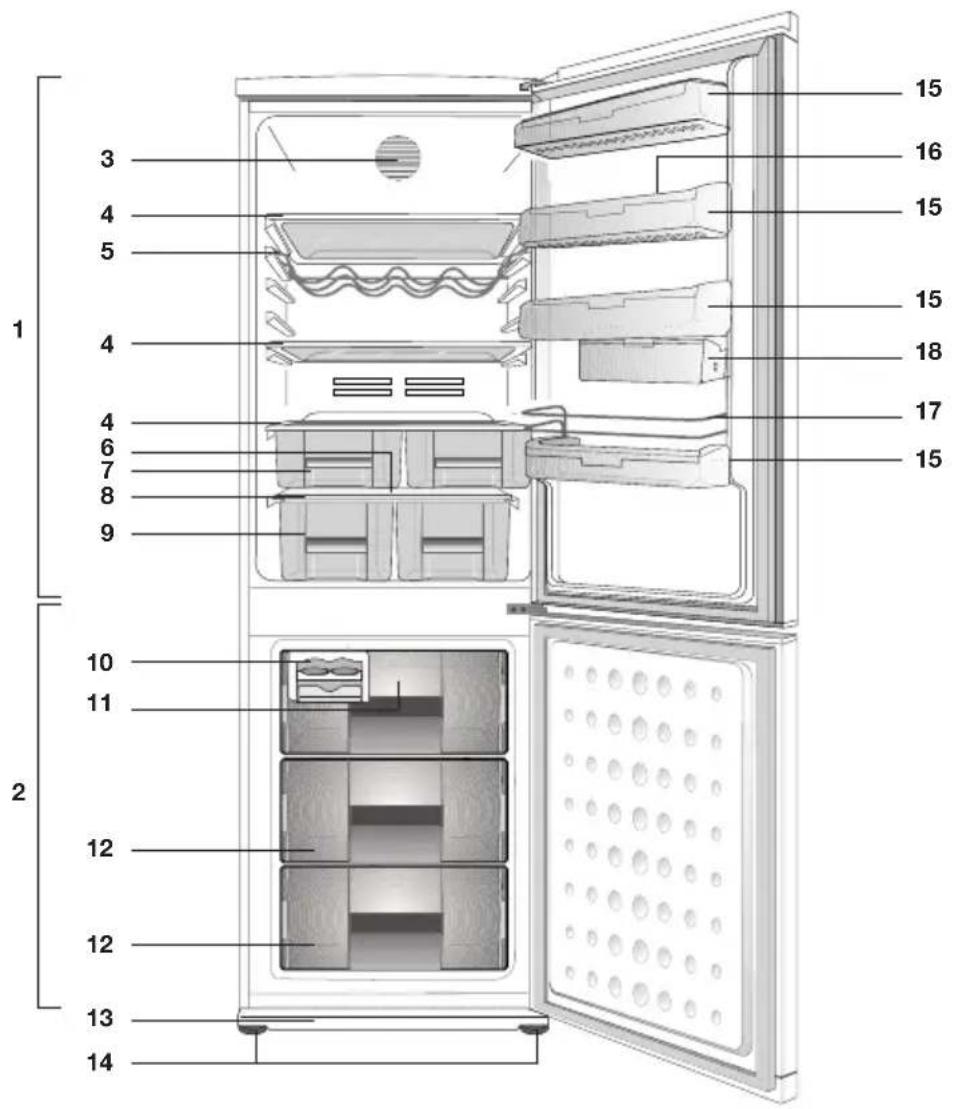

1 2 3 4 5 4 6 7 8 9 10 11 12 13 14 15 15 15 16 15 17 18

1. Fridge compartment
2. Freezer compartment
3. Fan
4. Adjustable body shelves
5. Wine rack
6. Salad crisper
7. Second floor crispers
8. Crisper cover

9. Crispers

10. Icebank

11. Quick freeze compartment
12. Deep-freeze compartment
13. Air grille
14. Adjustable front feet
15. Fridge compartment door shelves
16. Egg holders
17. Bottle shelter wire
18. Sliding storage boxes

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

1 2 3 4 5 4 6 7 8 9 10 11 12 12 13 14 15 15 15 15 15

1. Fridge compartment
2. Freezer compartment
3. Fan
4. Adjustable body shelves
5. Wine rack
6. Salad crisper
7. Second floor crispers
8. Crisper cover

9. Crispers

10. Icebank

11. Quick freeze compartment
12. Deep-freeze compartment
13. Air grille
14. Adjustable front feet
15. Fridge compartment door shelves
16. Egg holders
17. Bottle shelter wire
18. Sliding storage boxes

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2Warnings

- Please review the following information. If these are not followed, personal injury or material damage may occur. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

• This product is designed for domestic use.
• It should not be used outdoors. It is not appropriate to use it outdoor even if the place is covered with a roof.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorized services.
• Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

• Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand; they may stick to your hand.

• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor might get in contact with the electrical parts and cause short circuit or electric shock.
• Never use the parts on your refrigerator such as the door as a means of support or step.
• Do not use electrical devices inside the refrigerator.
• Do not damage the cooling circuit, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured may cause skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
• Repairs of the electrical appliances must only be made by qualified persons. Repairs performed by incompetent persons may create a risk for the user.
• In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.

• Place the beverage with higher proofs tightly closed and vertically.

• Flammable items or products that contain flammable gases (e.g. spray) as well as the explosive materials should never be kept in the appliance.
• Do not use mechanical devices or other means to accelerate the defrosting process, others than those recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance
• Do not operate a damaged refrigerator. Consult your service if you have any doubts.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact the authorized service when there is a power cable damage and etc. so that it will not create a danger for you.

• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

• If you have a lock on the door, the key should be kept out of reach of children.

• This refrigerator is designed solely for storing food. It should not be used for any other purposes.
• The label that describes the technical specification of the product is located on the inner left part of the refrigerator.
• Do not hook up the refrigerator to electronic energy saving systems as it may damage the product.
• If the refrigerator has blue light do not look at the blue light through optical devices.
• If the power supply is disconnected in manually controlled refrigerators please wait for at least 5 minutes before reconnectig the power.
• This product manual should be passed to the next owner of the refrigerator if the owner changes.
• When moving the refrigerator make sure that you do not damage the power cord. In order to prevent fire the power cord should not be twisted. Heavy objects should not be placed on the power cord. When the refrigerator is being plugged do not handle the power outlet with wet hands.

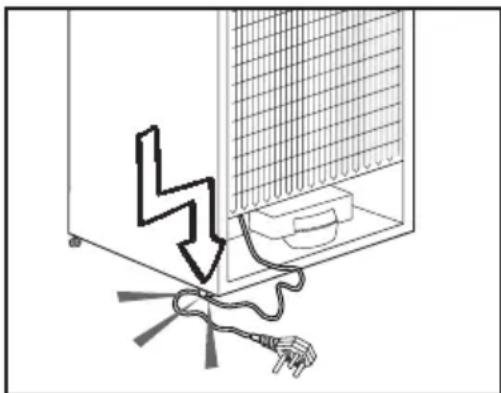

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

- Do not plug the refrigerator if the electric outlet is loose.

- Do not splash water directly on the outer or inner parts of the refrigerator due to safety.

- Do not spray inflammable materials such as propane gas etc near refrigerator due to the risk of fire and explosion.

- Do not place objects filled with water on top of the refrigerator as it may result in electric shock or fire.

- Do not overload the refrigerator with excess food. The excess food may fall when the door is opened resulting in injuring you or damaging the refrigerator. Do not place objects on top of the refrigerator as the objects may fall when opening or closing the refrigerator door.

■ Materials that require certain temperature conditions such as vaccine, temperature sensitive medicines, scientific materials etc should not be kept in refrigerator.

- If refrigerator will not be operated for an extended period of time it should be unplugged. A problem in electrical cable insulation may result in fire.

- The tip of the electric plug should be cleaned regularly otherwise it may cause fire.

- The refrigerator may move when the adjustable feet is not positioned firmly on the floor. Using the adjustable feet you can unsure that the refrigerator is positioned firmly on the floor.

- If the refrigerator has door handle do not pull the refrigerator via door handles when moving the product as

it may disconnect the handle from the refrigerator.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.

HCA Warning

If your product is equipped with a cooling system that contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore the warning.

If your product is equipped with a cooling system that contains R134a.

You can see the gas used in production of your product on the rating plate that is located on the left inner part of it.

Never dispose the product in fire.

Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Preparation

Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please remember...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

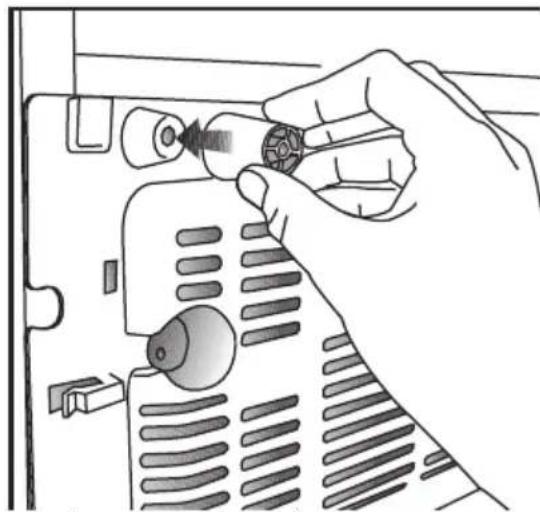

2. Insert the 2 plastic wedges onto the rear ventilation as illustrated in the following figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation.

3. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

4. Plug the refrigerator into the wall outlet. When the fridge door is open the fridge compartment interior light will come on.

5. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.

The power cable plug must be easily accessible after installation.

Voltage and permitted fuse protection are indicated in the "Specifications" section.

The specified voltage must be equal to your mains voltage.

Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be

replaced by a qualified electrician. Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Changing the illumination lamp

To change the lamp used for illumination of your refrigerator, please call your Authorized Service.

Installing the lower ventilation cover

You can install the lower ventilation cover as illustrated in the figure.

Technical line drawing of a mechanical assembly with wheels and a roller (no text or symbols)

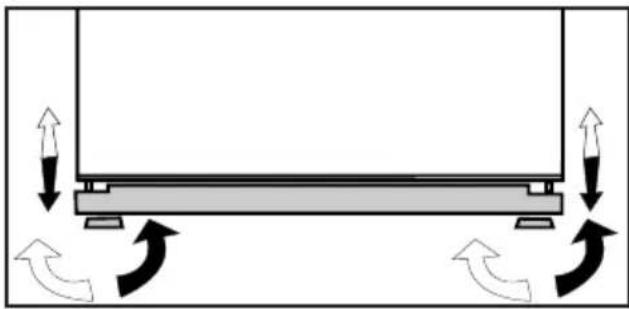

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

4 Using your refrigerator

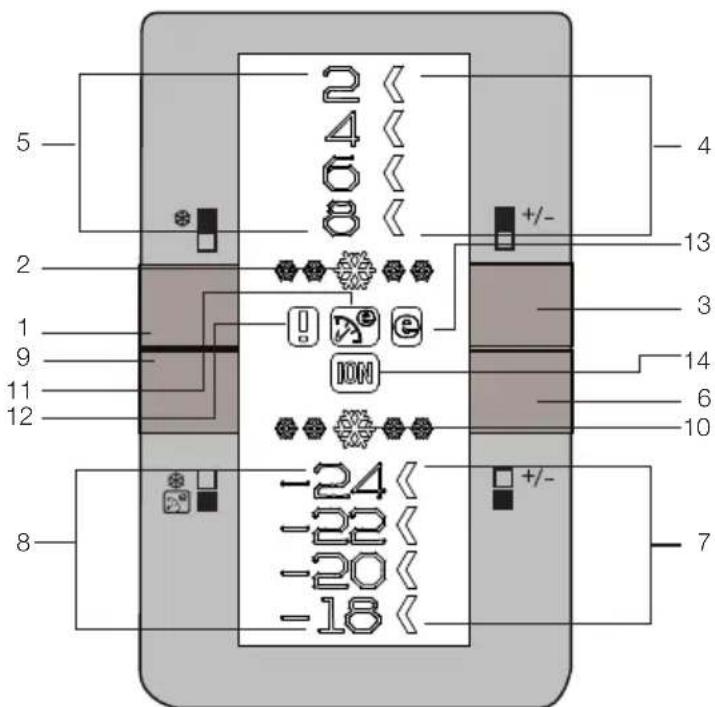

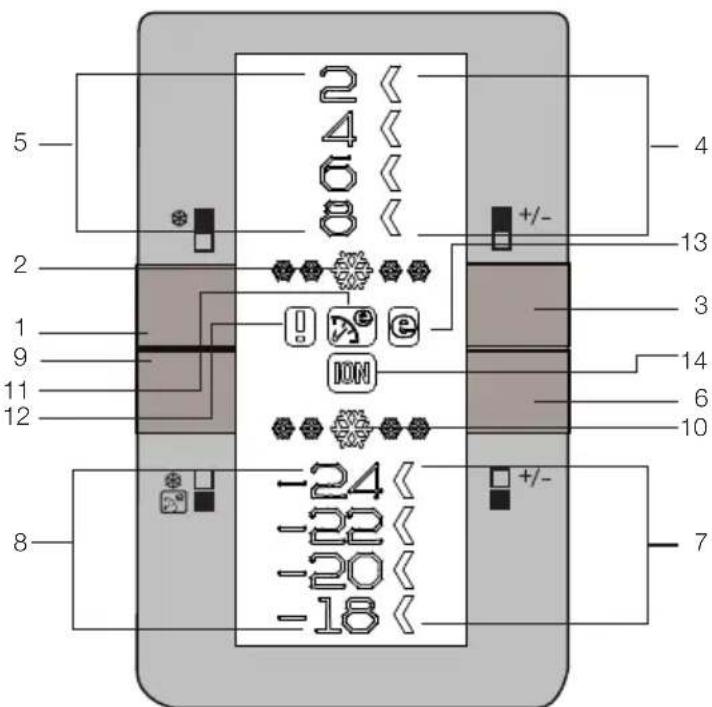

Indicator Panel

24 6 8 + - 13 3 1 9 14 6 10 -24 -22 -20 -18 7 5 2 1 11 12 8

1- Quick Fridge Function

When you press Quick Fridge button, the temperature of the compartment will be colder than the adjusted values. This function can be used for food placed in the fridge compartment and required to be cooled down rapidly. If you want to cool large amounts of fresh food, it is recommended to active this feature before putting the food into the fridge. Quick Fridge indicator will remain lit when the Quick Fridge function is enabled. To cancel this function press Quick Fridge button again. Quick Fridge indicator will turn off and return to its normal settings. If you do not cancel it, Quick Fridge will cancel itself automatically after 2 hours or when the fridge compartment reaches to the required temperature. This function is not recalled when power restores after a power failure.

2- Quick Fridge Indicator

This icon flashes in an animated style when the Quick Fridge function is active.

3- Fridge Set Function

This function allows you to make the fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2 respectively.

4- Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for the Fridge Compartment.

5-Fridge Compartment Temperature Indicator

8, 6, 4 and 2 indicators light up continuously.

6- Freezer Set Function

This function allows you to make the freezer compartment temperature setting. Press this button to set the temperature of the freezer compartment to -18, -20, -22 and -24 respectively.

7- Freezer Compartment Temperature Setting Indicator

Indicates the temperature set for the Freezer Compartment.

8- Freezer Compartment Temperature Indicator

-24, -22, -20 and -18 indicators light up continuously.

9- Quick Freeze Function

Quick Freeze indicator turns on when the Quick Freeze function is on. To cancel this function press Quick Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Quick Freeze will cancel itself automatically after 4 hours or when the freezer compartment reaches to the required temperature.

If you want to freeze large amounts of fresh food, press the Quick Freeze button before putting the food into the freezer compartment. If you press the Quick Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

10- Quick Freeze Indicator

This icon flashes in an animated style when the Quick Freeze function is active.

11- Eco-Fuzzy (Special Economic Usage) Function

Press the Quick Freeze button for 3 seconds to activate the Eco Fuzzy Function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active. Press the Quick Freeze button for 3 seconds again to deactivate the Eco Fuzzy Function.

12- High Temperature/ Error Warning Indicator

This light comes on during high temperature failures and error warnings.

13- Economic Usage Indicator

Economic Usage Indicator turns on when the Freezer Compartment is set to -18°C. Economic Usage Indicator turns off when the Quick Fridge or Quick Freeze function is selected.

14- Ionizer Indicator Light

Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.

Door Open Warning

A audio warning signal will be given when the fridge compartment door of your product is left open for at least 1 minute. This audio signal will mute when any button on the indicator is pressed or when the door is closed.

Dual cooling system:

Your refrigerator is equipped with two separate cooling systems to cool the fresh food compartment and freezer compartment. Thus, air in the fresh food compartment and freezer compartment do not get mixed. Thanks to these two separate cooling systems, cooling speed is much higher then other refrigerators. Odors in the compartments do not get mixed. Also additional power saving is provided since the defrosting is performed individually.

Freezing fresh food

• It must be preferred to wrap or cover the food before placing them in the refrigerator.
• Hot food must cool down to the room temperature before putting them in the refrigerator.
• The foodstuff that you want to freeze must be fresh and in good quality.
• Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.
• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.

- Food to be frozen must be put in the

Freezer Compartment Adjustment	Fridge Compartment Adjustment	• Food to be frozen must be put in the Explanations
-18 C 4 C This is the normal recommended setting.
-20,-22 or -24 C 4 C		These settings are recommended when the ambient temperature exceeds 30 C.
Quick Freeze	4 C	Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over.
-18 C or colder 2 C		If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-18 C or colder	Quick Fridge	You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food.

freezer compartment. (They should not be allowed to come in contact with the previously frozen items to prevent their partial thawing. Freezing capacity of our product is given in the technical specifications of your refrigerator.)

- Periods given in the information about deep freeze must be obeyed for storage times.

- Frozen food must be used immediately after they are thawed and they should never be re-frozen.

- Please observe the following instructions to obtain the best results.

1. Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

2. Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.

3. Take special care not to mix already frozen food and fresh food.

Recommendations for preservation of frozen food

- Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ^* (4-star) frozen food storage compartment.

- To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

1. Put packages in the freezer as quickly as possible after purchase.

2. Ensure that contents are labeled and dated.

3. Do not exceed "Use By", "Best Before" dates on the packaging.

If there is a power failure do not open the freezer door. Even if the power failure lasts up to the “Temperature Increasing Time” indicated in the “Technical specifications of your refrigerator” section, frozen food will not be affected. In case the failure lasts longer, the food must be checked and when necessary, must be consumed immediately or must be frozen after cooked.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Egg holder Egg
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Crisper Vegetables and fruits
Freshzone compartment	Delicatessen products (cheese, butter, salami and etc.)

Deep-freeze information

Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality.

The TSE norm requires (according to certain measurement conditions) the refrigerator to freeze at least 4.5 kg of foodstuff at 32^ C ambient temperature to -18^ C or lower within 24 hours for every 100-liters of freezer volume. It is possible to keep the food for a long time only at -18^ C or lower temperatures.

You can keep the freshness of food for many months (at -18^ C or lower temperatures in the deep freeze).

WARNING!

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.
• Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

Materials necessary for packaging:

• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.

You can check the freezing capacity of your refrigerator from “Technical Specifications” section in Part 1.

Always follow the values in the tables for storage periods.

Frozen food must be used immediately after they are thawed and they should never be re-frozen.

Multi-Hygiene

Consists of 3 main protection systems.

Hygiene+: The photocatalyst filter in the air channel of refrigerator helps to clean the air inside. Also this filter reduces bad smell.

Silver+: Inner surface of the refrigerator and the crispers are both have anti-bacterial property with silver ingredient. So bacteria can not reproduce on these surfaces. Thus the unpleasant smell will not be produced by the bacteria on the surfaces.

Ion+: Ionizer, that is in the air channel of refrigerator, ionize the air. With the help of this system airborne bacteria and the bad smell originated from these bacteria will be reduced.

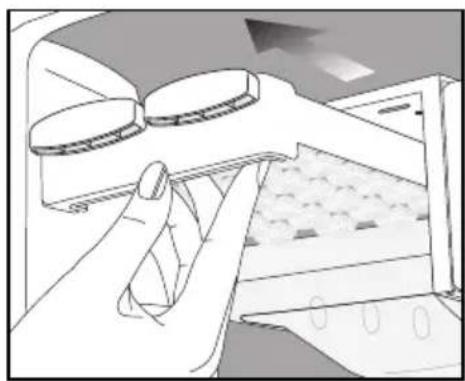

Icematic and ice storage container

Using the Icematic

* Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

* Turn the knobs on it clockwise by 90 degrees.

Ice cubes in the cells will fall down into the ice storage container below.

* You may take out the ice storage container and serve the ice cubes.

* If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

Illustration of a hand holding a device with a grid-patterned screen, no visible text or symbols

Illustration of a hand pressing down on a device panel with a scroll arrow (no text or symbols)

Line drawing of a hand placing a component into a storage tray (no text or symbols)

Zero temperature compartment

This compartment has been designed to store frozen food which would be thawed slowly (meat, fish, chicken... etc.) as required or food wouldn't be frozen and after a short time would be consumed in a better and healthier condition. Don't put dairy products or similar foods won't be frozen as required into this

compartment which is the coldest place of the refrigerating compartment.

Diagram of airflow or fluid flow through a mechanical component with directional arrows indicating movement (no text or symbols)

Sliding Body Shelves

Sliding body shelves can be pulled by slightly lifting up from the front and moved back and forth. They come to a stop point when pulled towards front to allow you reach the foods placed at the back of the shelf; when it is pulled after slightly lifted upwards at the second stop point, the body shelf will be released.

The shelf should be hold tightly from the bottom as well in order to prevent it from tipping over. The body shelf is placed on the rails at the sides of the refrigerator body by bringing it to one lower or one upper level.

The body shelf should be pushed backwards to seat it completely.

5 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
i Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠️ Make sure that no water enters the lamp housing and other electrical items.
⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

6 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate

Is the refrigerator properly plugged in? Insert the plug to the wall socket.Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment. (MULTI ZONE, COOL CONTROL ve FLEXI ZONE)

Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers.Leaving the door ajar.Switching the thermostat to a colder degree.Decreasing the time the door left open or using it less frequently.Covering the food stored in open containers with a suitable material.Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet.Your refrigerator will start running approximately after 6 minutes. Please call the service if your refrigerator does not startup at the end of this period.The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.Your refrigerator is not plugged into the socket. Make sure that he plug is inserted tightly to the wall socket.Are the temperature adjustments correctly made? There is a power failure. Call your electricity supplier.

The fridge is running frequently or for a long time.

·Your new refrigerator may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. ·The ambient room temperature may be high. This is quite normal. ·The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer. ·Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature. ·Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently. ·Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed. ·The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved. ·Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

·The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

·The fridge temperature is adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

·The fridge temperature is adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

·The fridge temperature is adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level. ·The door might be left ajar. Close the door completely. ·Large amounts of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature. ·Refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time because of the size.

Noise similar to the sound of seconds heard from an analog clock is coming from the refrigerator.

This noise is coming from the solenoid valve of the refrigerator. Solenoid valve functions for the purpose of ensuring coolant passage through the compartment which can be adjusted to cooling or freezing temperatures, and performing cooling functions. This is normal and is not fault cause.

The operation noise increases when the refrigerator is running.

The operating performance characteristics of the refrigerator may change according to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is level, strong and capable to carry the refrigerator.The noise may be caused by the items put onto the refrigerator. Such items should be removed from the top of the refrigerator.

There are noises like liquid spilling or spraying.

Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

Air activators (fans) are used in order to allow the refrigerator to cool efficiently. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

Hot and humid weather increases icing and condensation. It is normal and not a fault.The doors are ajar. Make sure that the doors are closed completely.Doors might have been opened very frequently or they might have been left open for along time. Open the door less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

The weather may be humid. This is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, warm water or carbonated water.Some containers or packaging materials might be causing the smell. Use a different container or different brand packaging material.

The door(s) is (are) not closing.

Food packages may prevent the door's closing. Replace the packages that are obstructing the door.The refrigerator is probably not completely vertical on the floor and it might be rocking when slightly moved. Adjust the elevation screws.The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Ch re cliente, cher client,

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Technical illustration of a mechanical assembly with a wheel and guide rails (no text or symbols)

R glage des pieds

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Illustration of a hand using a tool to clean or store items, with no visible text or symbols

Illustration of a hand holding a small object over a device panel (no text or symbols visible)

Diagram of a hand inserting a component into a storage unit (no text or symbols visible)

Diagram of airflow or fluid flow through a mechanical component with directional arrows indicating movement (no text or symbols)

Etag res coulissantes

Diagram of a refrigerator interior with a lightning bolt and power plug, no text or symbols present

Hand inserting a screw into a device component (no text or symbols visible)

Diagram of a mechanical or electrical component with directional arrows indicating motion or force (no text or symbols)

Technical illustration of a mechanical assembly with wheels and a slide (no text or symbols)

Anzeigefeld

24 6 8 +/- 4 2 1 9 11 12 -24 -22 -20 -18 7 3 13 14 6 10

1: Schnellkühlen

Line drawing of a hand pressing down on a mechanical component with a downward arrow indicating force or motion (no text or symbols)

0 °C-Fach

Diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Diagram of a refrigerator interior with a lightning bolt indicating the down-left side and a plug inserted into the base (no text or symbols)

Hand inserting a screw into a device panel (no text or symbols visible)

Technical line drawing of a mechanical assembly with wheels and a flat plate (no text or symbols)

Ρύθμιση των ποδιώ ν

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Illustration of a hand holding a tray with a bag, next to a computer monitor (no text or symbols visible)

Illustration of a hand pressing down on a device component (no text or symbols visible)

Line drawing of a hand placing a component into a storage or drawer (no text or symbols)

Diagram of airflow or fluid flow through a mechanical component with directional arrows indicating movement (no text or symbols)
