| Product Type | Refrigerator with freezer compartment |
| Brand | Blomberg |
| Model | KGM 9690 |
| Energy Class | E (EU energy label) |
| Annual Energy Consumption | 221 kWh/year |
| Total Net Capacity | 248 L |
| Refrigerator Net Capacity | 177 L |
| Freezer Net Capacity | 71 L |
| Freezing Capacity | 4 kg/24h |
| Storage Time During Power Failure | 12 hours |
| Climate Class | N-ST (16°C - 38°C) |
| Noise Level | 40 dB(A) |
| Height | 180 cm |
| Width | 60 cm |
| Depth | 65 cm |
| Weight | 70 kg |
| Defrost System | Manual (freezer), automatic (fridge) |
| Shelves Material | Glass |
| Door Hinge | Reversible |
| Refrigerant | R600a |
Frequently Asked Questions - KGM 9690 BLOMBERG
What is the ideal temperature setting for the refrigerator?

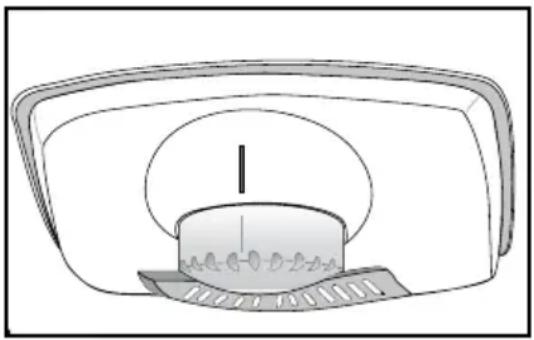

For optimal food preservation, set the refrigerator temperature between 2°C and 5°C. Use the thermostat dial inside the fridge compartment.
How do I clean the condenser coils?

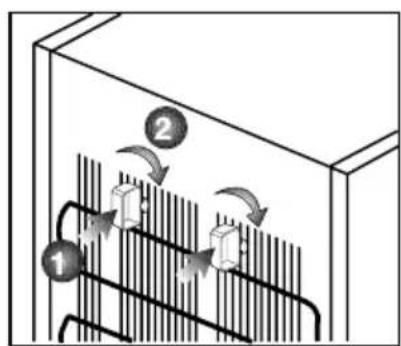

Unplug the appliance and locate the condenser coils at the back or bottom. Use a vacuum cleaner or a soft brush to remove dust and debris every six months to maintain efficiency.
Why is my fridge making unusual noises?
Normal operating sounds include clicking from the thermostat, humming from the compressor, and gurgling from the refrigerant. If noise persists, check if the fridge is level and not vibrating against other objects.

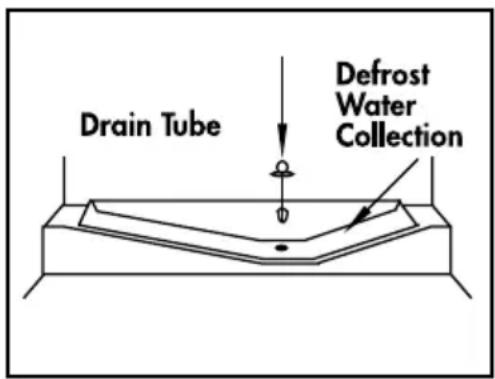

How often should I defrost the freezer?
Defrost the freezer when ice buildup reaches 3-5 mm thickness. Use the manual defrost function or unplug the appliance and let ice melt naturally. Do not use sharp objects to remove ice.
What is the warranty period for Blomberg KGM 9690?
Blomberg typically offers a 2-year manufacturer's warranty for parts and labor. Register your product online to activate the warranty.

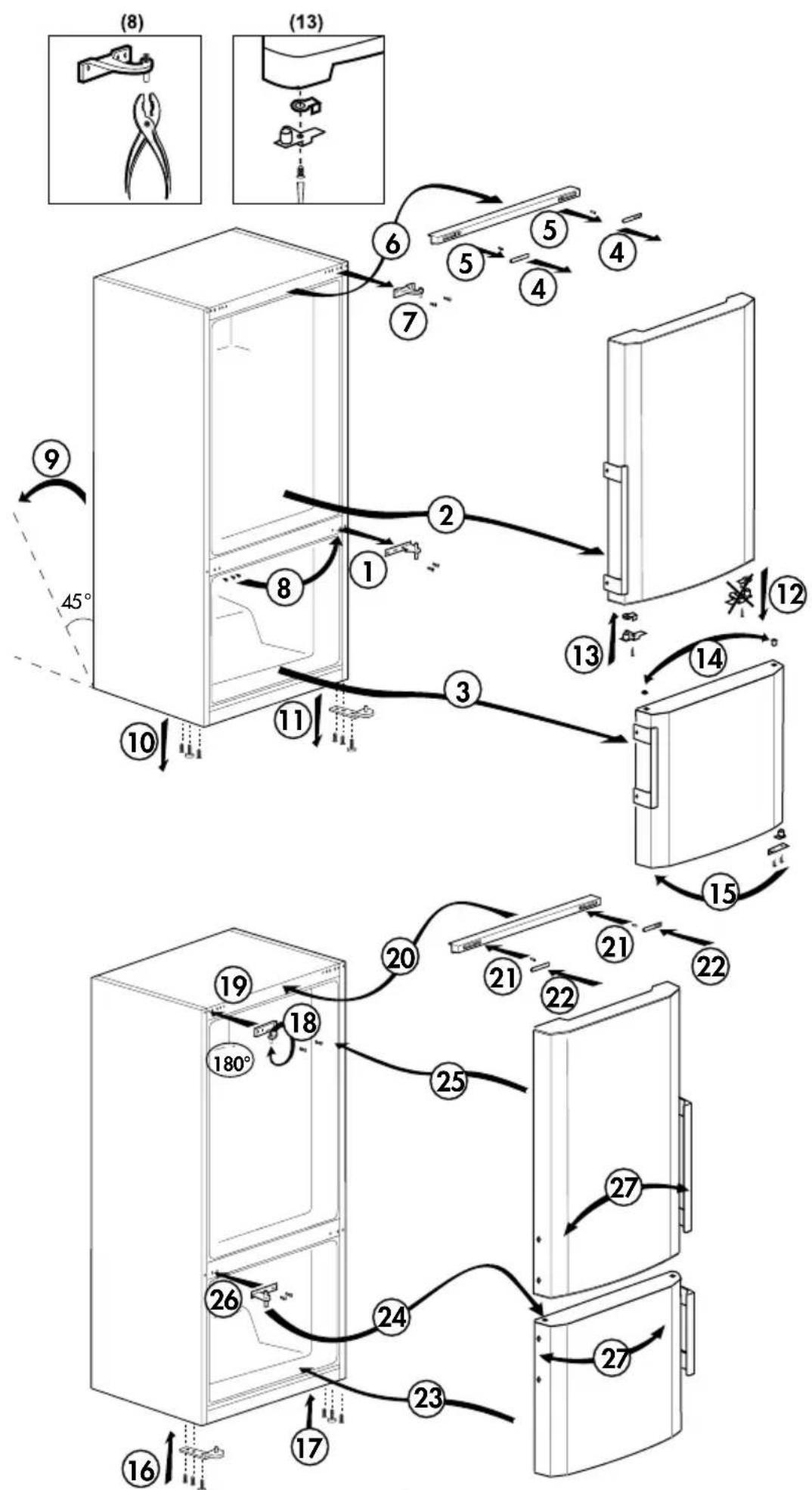

Can I reverse the door opening direction?
Yes, the door hinge is reversible. Follow the instructions in the manual to change the door swing. You will need a screwdriver and possibly a helper.

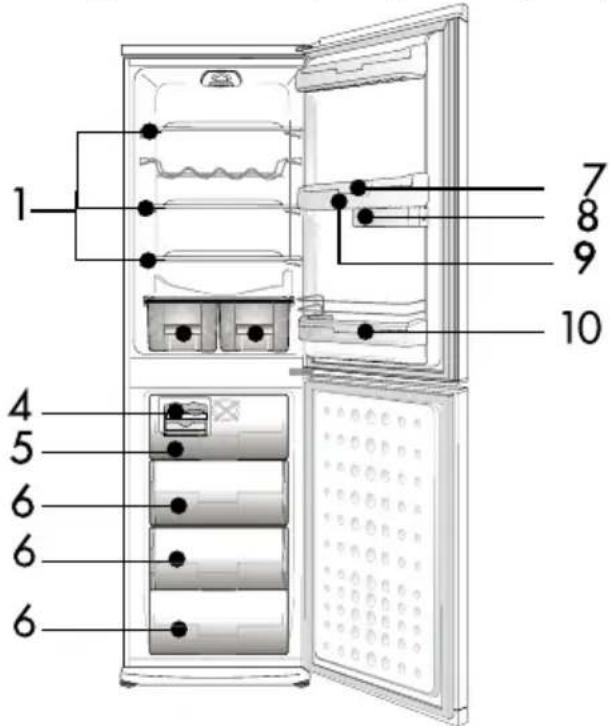

How do I adjust the shelves?
Glass shelves can be lifted slightly at the front and pulled out to reposition. Ensure they are securely placed on the supports. Do not overload shelves.
What should I do if the refrigerator is not cooling?
Check if the appliance is plugged in, the thermostat is set correctly, and the condenser coils are clean. If the problem persists, contact a qualified technician.
Is the Blomberg KGM 9690 energy efficient?
It is rated class E under the new EU energy label, which is average. For better efficiency, keep the fridge away from heat sources and ensure proper ventilation.
Where can I find spare parts?
Spare parts can be ordered from authorized Blomberg service centers or online retailers. Use the model number KGM 9690 when searching.
