AHP112 - Cooker BESTRON - Free user manual and instructions

USER MANUAL AHP112 BESTRON

Abstract black and white geometric arrow pattern (no text or symbols)

BESTRON®

AHP112

Line drawing of a portable electric stove with a circular top and side legs (no text or symbols)

Nederlands

Instruction manual single hotplate

Italiano

Line drawing of a cooking pot with three flames on a base (no text or symbols)

Simple line drawing of a cooking pot with two crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out black X symbol (no text or labels)

Abbild

Abbild

Line drawing of a cooking pot with three flames on a base (no text or symbols)

Simple line drawing of a cooking pot with a crossed X mark and flame symbol (no text or labels)

Simple line drawing of a cooking pot with a crossed X symbol (no text or labels)

Figu

NETTOYAGE ET ENTRETIEN

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for future reference.
  • Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

Certain parts of the appliance may get hot. touch these parts to prevent burning yourself.

• Make sure that the mains voltage is the same as that indicated on the type plate on the appliance before use.
  • Make sure the socket into which you plug the appliance is earthed.
  • Make sure that the appliance, the power cord and plug do not come into contact with water.
  • Always remove the plug from the wall socket when the appliance is not in use.
  • Always remove the plug from the wall socket by pulling on the plug, not on the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service department.
  • Certain parts of the appliance can become hot; do not touch them, as you could burn yourself.
• The appliance needs space to allow heat to escape, thereby avoiding the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable materials. The appliance may not be covered.
• Make sure that the appliance, the power cord and the plug do not come in contact with sources of heat, such as a hot hob or naked flame.

SAFETY INSTRUCTIONS - Use

• Never use the appliance outdoors.
• Never use the appliance in humid rooms.
- Place the appliance on a stable, flat, heat-resistant and splash-proof surface where it cannot fall.
- Do not let the power cord hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
- Do not touch the appliance if it has fallen into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• Make sure that the appliance has sufficient ventilation whilst in use.
- Never move the appliance when it is switched on or is still hot. Switch off the appliance and wait until it has cooled down before moving it.
- Do not place the appliance too close to kitchen cupboards and walls covered in wallpaper. The hot steam may cause damage.
- Be careful when opening the lid during use. The hot steam can cause burns.
- Clean the appliance thoroughly after use (see "Cleaning & maintenance").
- Never immerse the appliance, the cord or the plug in water or any other fluid.
• This appliance may not be used through an external timer or by means of a remote control.
- Be extremely careful, as oil or fat preparations might catch fire when overheated.
- When using the appliance under an extractor hood, make sure to observe the minimal distance advised by the producer of the extractor hood. It is even wiser to double this distance.
- Only use the appliance for food which is supposed to be cooked.
- The invisible protective coating must be removed before you can use the appliance for the first time. To do this, set the controls to the maximum setting and leave switched on for approximately 10 minutes. Smoke will develop; make sure that the room is ventilated. Switch off the cooking plate and allow to cool down completely. The cooking plate is now ready for use.
- Always use flat-bottomed saucepans which make good contact with the cooking plate. The saucepan bases should ideally be of the same size as the cooking plate.

OPERATION - General

The hotplate is only intended for domestic use, not for professional use.

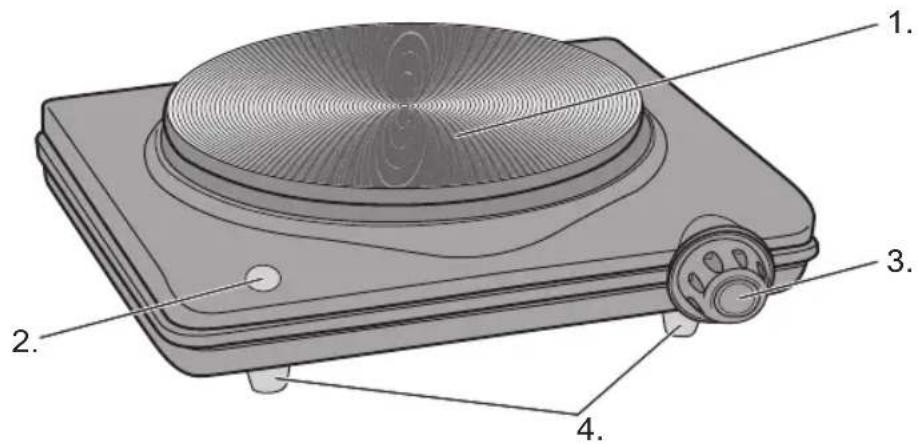

Diagram of a portable electric stove with labeled parts including top, front, and side views

1. Large hotplate

1500W - ∅165mm

1. Pilot light
2. Adjustable thermostat with on / off switch
3. Non-slip feet

Figure 1

OPERATION - Using for the first time

1. Remove the appliance from the packaging.
2. Clean the appliance thoroughly to remove any manufacturing residues (see "Cleaning and maintenance").

OPERATION - Use

1. Select a suitable position close to an electric socket, on a dry and even surface.
2. Make sure the control is in the "MIN" position before you plug in (turn entirely to the left).
3. Plug in.
4. Turn on the device by turning the control to the right. You can also use the control to adjust the capacity.
5. Due to the cooking plate's construction, residual heat will remain after switching off. This may be used to keep food warm for a short period.

The setting of the thermostat depends on the type of pan, the thickness of the pan, the food and your personal preference.

Broadly, you can keep these settings, MIN = off, 1 = on / simmer, 3 = roast, 5 = Cooking

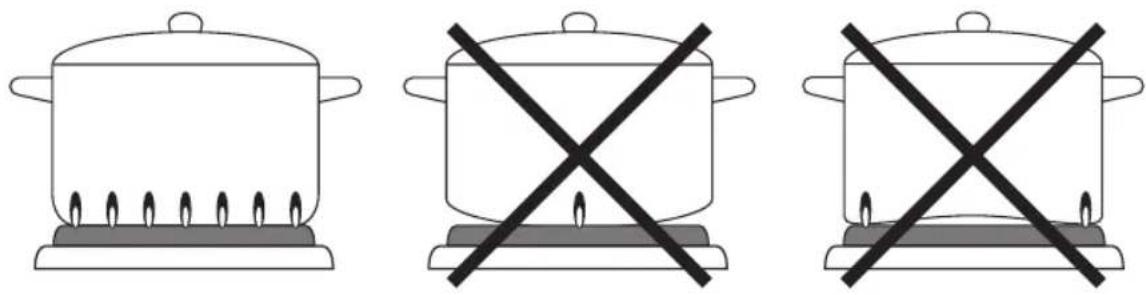

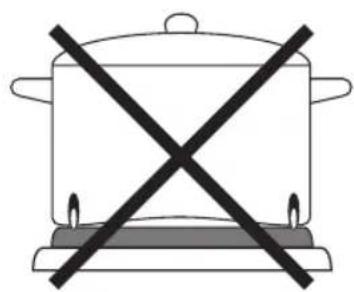

Make sure the diameter of the pan is similar to the diameter of the hotplate. Also make sure the bottom of the pan is flat. This is to avoid wasting energy. And to prevent a defect caused by disproportionate distribution of heat. Use the small hotplate for small pots and the large hotplate for large cooking pots.

Figure

CLEANING AND MAINTENANCE

1. Before cleaning, unplug and wait for the appliance to cool down.
2. Wipe with a damp cloth.
3. Do not clean with any abrasive scouring pad or steel wool as this will damage the finish.
4. Do not immerse into water or any other liquid.

TECHNICAL DETAILS

Type: AHP112

Output: 1250-1500W

Power supply: 220-240 V \~50/60 Hz

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

- The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

- Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect. b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC

###

R. Neyman

Quality control

Diagram of a portable electric stove with labeled components including a top, side, and front views.

Line drawing of a cooking pot with three flames on a stove (no text or symbols)

Simple line drawing of a cooking pot with a crossed X mark and flame symbol (no text or labels)

Simple line drawing of a cooking pot with a crossed X symbol, no text or labels present.

Figura 2

Handwritten signature or scribble on a line, possibly a signature or artistic mark

R. Neyman

Controllo qualità

Diagram of a portable electric stove with labeled parts including top, front, and side views

1. Cocina grande 1500W - ∅165mm
2. Indicadores
3. Termostato regulable con interruptor on / off
4. Patas antideslizantes

Figura

Illustration of a portable electronic device with a circular top and control knob (no text or symbols)

BESTRON®

AHP112 v 231023-07
