USER MANUAL ZOB 365 ZANUSSI

(halfopen). Trek hem

Subject to change without notice

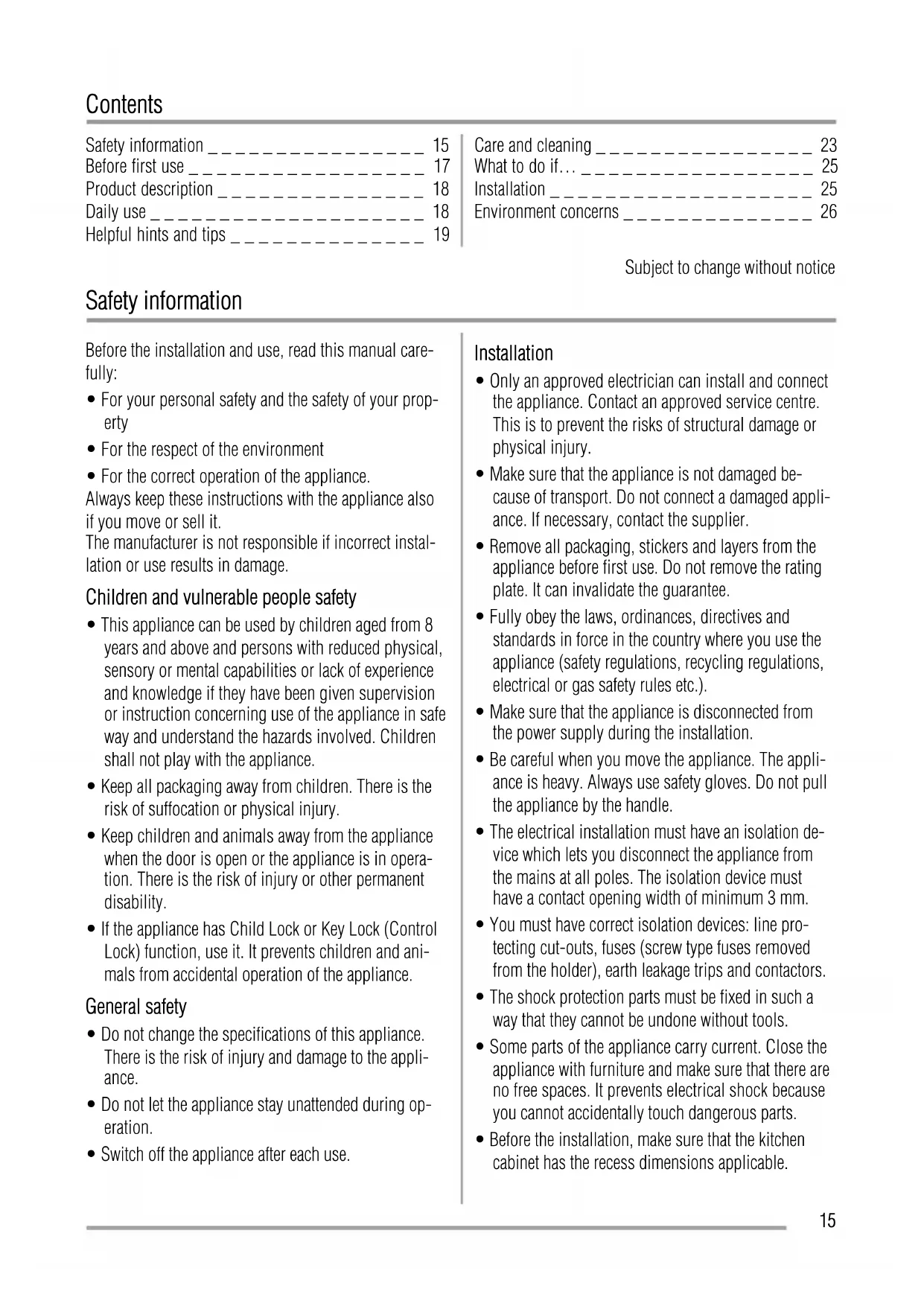

Before the installation and use, read this manual care-

• For your personal safety and the safety of your prop-

• For the respect of the environment

• For the correct operation of the appliance.

Always keep these instructions with the appliance also

if you move or sell it.

The manufacturer is not responsible if incorrect instal-

lation or use results in damage.

Children and vulnerable people safety

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision

or instruction concerning use of the appliance in safe

way and understand the hazards involved. Children

shall not play with the appliance.

• Keep all packaging away from children. There is the

risk of suffocation or physical injury.

• Keep children and animals away from the appliance

when the door is open or the appliance is in opera-

tion. There is the risk of injury or other permanent

• If the appliance has Child Lock or Key Lock (Control

Lock) function, use it. It prevents children and ani-

mals from accidental operation of the appliance.

• Do not change the specifications of this appliance.

There is the risk of injury and damage to the appli-

• Do not let the appliance stay unattended during op-

• Switch off the appliance after each use.

• Only an approved electrician can install and connect

the appliance. Contact an approved service centre.

This is to prevent the risks of structural damage or

• Make sure that the appliance is not damaged be-

cause of transport. Do not connect a damaged appli-

ance. If necessary, contact the supplier.

• Remove all packaging, stickers and layers from the

appliance before first use. Do not remove the rating

plate. It can invalidate the guarantee.

• Fully obey the laws, ordinances, directives and

standards in force in the country where you use the

appliance (safety regulations, recycling regulations,

electrical or gas safety rules etc.).

• Make sure that the appliance is disconnected from

the power supply during the installation.

• Be careful when you move the appliance. The appli-

ance is heavy. Always use safety gloves. Do not pull

the appliance by the handle.

• The electrical installation must have an isolation de-

vice which lets you disconnect the appliance from

the mains at all poles. The isolation device must

have a contact opening width of minimum 3 mm.

• You must have correct isolation devices: line pro-

tecting cut-outs, fuses (screw type fuses removed

from the holder), earth leakage trips and contactors.

• The shock protection parts must be fixed in such a

way that they cannot be undone without tools.

• Some parts of the appliance carry current. Close the

appliance with furniture and make sure that there are

no free spaces. It prevents electrical shock because

you cannot accidentally touch dangerous parts.

• Before the installation, make sure that the kitchen

cabinet has the recess dimensions applicable.

15• Make sure that the appliance is installed below and

adjacent safe structures.

• Keep the minimum distances to the other appliances

• Install the appliance with its back and one side close

to the higher appliance. The other side must be close

to appliance with the same height.

• The appliance cannot be positioned on a base.

• Built in ovens and built in cooking surfaces are at-

tached with special connection system. To prevent

damage to the appliance, only use an appliance with

the appliances from the same manufacturer.

Electrical connection

• The appliance must be earthed.

• Make sure that the electrical data on the rating plate

agree with your domestic power supply.

• Information on the voltage is on the rating plate.

• Always use a correctly installed shockproof socket.

• When you connect electrical appliances to mains

sockets, do not let cables touch or come near the hot

• Do not use multi-way plugs, connectors and exten-

sion cables. There is the risk of fire.

• Do not replace or change the mains cable. Contact

• Make sure not to squash or cause damage to the

mains plug (if applicable) and cable behind the ap-

• Make sure that the mains connection is accessible

after the installation.

• Do not pull the mains cable to disconnect the appli-

ance. Always pull the mains plug – if applicable.

• The appliance is only for domestic use. Do not use

the appliance for commercial and industrial use.

• Only use the appliance for domestic cooking tasks.

This is to prevent physical injury to persons or pre-

vent damage to property.

• Do not use the appliance as a work surface or stor-

• Do not put flammable products or items that are wet

with flammable products, and/or fusible objects

(made of plastic or aluminium) in, near or on the ap-

pliance. There is the risk of explosion or fire.

• The interior of the appliance becomes hot during

use. There is the risk of burns. Use gloves when you

insert or remove the accessories or pots.

• Be careful when you remove or install the accesso-

ries to prevent damage to the oven enamel.

• Always stay away from the appliance when you open

the door while the appliance is in operation. Hot

steam can release. There is the risk of skin burns.

• Discoloration of the enamel has no effect on the per-

formance of the appliance so it is not a defect in the

sense of the warranty law.

• To prevent damage or discoloration to the enamel:

– do not put any objects directly on the appliance

floor and do not cover it with aluminium foil;

– do not put hot water directly into the appliance;

– do not keep moist dishes and food in the appli-

ance after you finish the cooking.

• Do not use this appliance if it is in contact with wa-

ter. Do not operate the appliance with wet hands.

• Do not apply pressure on the open door.

• Always close the appliance door when you cook,

even while grilling.

• Before maintenance, switch off the appliance and

disconnect the appliance from the power supply.

• Before maintenance, make sure that the appliance is

cold. There is the risk of burns. There is the risk that

the glass panels can break.

• Keep the appliance clean at all times. A build-up of

fats or other foodstuff can result in a fire.

• Regular cleaning prevents the surface material from

• Use a deep baking tray for very moist cakes to pre-

vent that fruit juices cause stains that can be perma-

• For your personal safety and the safety of your prop-

erty, only clean the appliance with water and a soap.

Do not use flammable products or products that can

• Do not clean the appliance with steam cleaners,

high-pressure cleaners, sharp objects, abrasive

cleaning agents, abrasive sponges and stain remov-

• If you use an oven spray, follow the instructions from

16• Do not clean the glass door with abrasive cleaning

agents or metal scraper. Heat resistant surface of the

inner glass can break and shatter.

• When the door glass panels are damaged they be-

come weak and can break. You must replace them.

Contact the service centre.

• Be careful when you remove the door from the appli-

ance. The door is heavy!

• Do not clean catalytic enamel (if applicable).

• Open the door carefully. The use of ingredients with

alcohol can cause a mixture of alcohol and air. There

is the risk of fire.

• Do not let sparks or open flames come near the ap-

pliance when you open the door.

• Do not put flammable products or items that are wet

with flammable products, and/or fusible objects

(made of plastic or aluminium) in, near or on the ap-

• Bulb lamps used in this appliance are special lamps

selected for household appliances use only. They

cannot be used for the full or partial illumination of a

• If it becomes necessary to replace the lamp use one

of the same power and specifically designed for

household appliances only.

• Disconnect the appliance from the power supply be-

fore the replacement of the oven lamp. There is the

risk of electrical shock.

• Only an approved engineer can repair or work on the

appliance. Contact an approved service centre.

• Use only original spare parts.

Disposal of the appliance

• To prevent the risk of physical injury or damage

– Disconnect the appliance from the power supply.

– Cut off the mains cable and discard it.

– Discard the door catch. This prevents children or

small animals from being closed inside of the ap-

pliance. There is the risk of suffocation.

Warning! Refer to "Safety information" chapter.

• Remove all parts from the appliance.

• Clean the appliance before first use.

Caution! Do not use abrasive cleaning agents!

This can damage the surface. Refer to chapter

"Care and Cleaning".

and maximum temperature.

2. Let the appliance operate without the food for ap-

and maximum temperature.

4. Let the appliance operate without the food for ap-

proximately 10 minutes.

and maximum temperature.

6. Let the appliance operate without the food for ap-

proximately 10 minutes.

This is to burn off the residue in the appliance. The ac-

cessories can become more hot than usually. When you

pre-heat the appliance for the first time, the appliance

can make an odour and smoke. This is the usual effect.

Make sure the airflow is sufficient.

17Product description

2 Temperature indicator

3 Knob for the temperature

4 Knob for the oven functions

For cookware, cake tins, roasts.

For cakes and biscuits.

To bake and roast or as pan to collect fat.

Warning! Refer to "Safety information" chapter.

Activating and deactivating the appliance

1. Turn the knob for the oven functions to an oven

2. Turn the knob for the temperature to a temperature.

The power indicator comes on while the appliance

The temperature indicator comes on while the tem-

perature in the appliance increases.

3. To deactivate the appliance, turn the knob for the

oven functions and the knob for the temperature to

Oven function Application

OFF position The appliance is OFF.

Conventional cooking

Heats both from the top and bottom element. To bake and roast on one oven

18Oven function Application

Top heating element Heats only from the top of the oven. To finish cooked dishes.

Heats only from the bottom of the oven. To bake cakes with crispy or crusty

The full grill element is on. To grill flat food items in large quantities. To make

To roast or roast and bake the food that requires the same cooking temperature,

using more than one shelf, without flavour transference.

Defrost Thaws frozen food. The temperature control knob must be on off position

When the appliance operates, the cooling fan switches

on automatically to keep the surfaces of the appliance

cool. If you switch off the appliance, the cooling fan

To prevent dangerous overheating (due to incorrect use

of the appliance or defective components), the oven has

a safety thermostat, which interrupts the power supply.

The oven switches back on again automatically, when

the temperature drops.

Helpful hints and tips

Warning! Refer to "Safety information" chapter.

• The appliance has four shelf levels. Count the shelf

levels from the bottom of the appliance floor.

• The appliance has a special system which circulates

the air and constantly recycles the steam. With this

system you can to cook in a steamy environment and

keep the food soft inside and crusty outside. It de-

creases the cooking time and energy consumption to

• Moisture can condense in the appliance or on the

glass doors. This is normal. Always stand back form

the appliance when you open the appliance door

while cooking. To decrease the condensation, run

the appliance for 10 minutes before cooking.

• Wipe away moisture after every use of the appliance.

• Do not put the objects directly on the appliance floor

and do not cover the components with aluminium

foil when you cook. This can change the baking re-

sults and damage the enamel coating.

• The best temperature for baking cakes is between

• Preheat the oven for approximately 10 minutes be-

• Do not open the oven door before 3/4 of the set

• If you use two baking trays at the same time, keep

one level empty between them.

Cooking meat and fish

• Do not cook meat with weight below 1 kg. Cooking

too small quantities makes the meat too dry.

• To keep the red meat well cooked outside and juicy

inside set the temperature between 200°C-250°C.

• For white meat, poultry and fish set the temperature

between 150°C-175°C.

• Use a dripping pan for very fatty food to prevent the

oven from stains that can be permanent.

• Leave the meat for approximately 15 minutes before

carving so that the juice does not seep out.

• To prevent too much smoke in the oven during

roasting, add some water into the dripping pan. To

prevent the smoke condensation, add water each

time after it dries up.

Cooking times depend on the type of food, its consis-

Initially, monitor the performance when you cook. Find

the best settings (heat setting, cooking time, etc.) for

your cookware, recipes and quantities when you use

Baking and roasting table

CAKES TYPE OF DISH Conventional cook-

Whisked recipies 2 170 2 (1 and

160 45-60 In cake mould

Shortbread dough 2 170 2 (1 and

160 24-34 In cake mould

160 100-120 2 cake moulds of 20 cm on the

Strudel 2 175 2 150 60-80 On baking tray

Fruit cake 2 170 2 155 60-70 In cake mould 26 cm

Small cakes 3 170 3 (1 and

1) Preheat for 10 minutes.

Rye bread 1 190 1 180 30-45 In bread tin

Bread rolls 2 190 2 (1 and

6-8 rolls on flat baking tray

1) Preheat for 10 minutes.

FLANS TYPE OF DISH Conventional cook-

1) Preheat for 10 minutes.

MEAT TYPE OF DISH Conventional cook-

2 210 2 200 44-50 On oven shelf and deep roast-

2 210 2 200 55-60 On oven shelf and deep roast-

Rabbit 2 190 2 175 60-80 Cut in pieces

Trout/Sea bream 2 190 2 (1 and

175 40-55 3-4 fishes

Tuna fish/Salmon 2 190 2 (1 and

175 35-60 4-6 fillets

Preheat the empty oven for 10 minutes, before

Cooking time in minutes

TYPE OF DISH Pieces g

Temp. (°C) 1st side 2nd side

Fillet steaks 4 800 3 250 12-15 12-14

Cooking time in minutes

TYPE OF DISH Pieces g

Temp. (°C) 1st side 2nd side

Sausages 8 / 3 250 12-15 10-12

Chicken (cut in 2) 2 1000 3 250 30-35 25-30

Toasted sandwiches 4-6 / 3 250 5-7 /

Toast 4-6 / 3 250 2-4 2-3

Information on acrylamides

Important! According to the newest scientific

knowledge, if you brown food (specially the one which

contains starch), acrylamides can pose a health risk.

Thus, we recommend that you cook at the lowest

temperatures and do not brown food too much.

Warning! Refer to "Safety information" chapter.

• Clean the front of the appliance with a soft cloth with

warm water and cleaning agent.

• To clean metal surfaces use a usual cleaning agent

• Clean the oven interior after each use. Thus you can

remove dirt more easily and it does not burn on.

• Clean stubborn dirt with a special oven cleaner.

• Clean all oven accessories (with a soft cloth with

warm water and cleaning agent) after each use and

• If you have nonstick accessories, do not clean them

using an aggressive agents, sharp edged objects or

dishwasher. It can destroy nonstick coating!

Cleaning the door gasket

• Regularly do a check of the door gasket. The door

gasket is around the frame of the oven cavity. Do not

use the appliance if the door gasket is damaged.

Contact the Service Centre.

• To clean the door gasket refer to the general informa-

tion about the cleaning.

Removing the shelf support rails

Pull the front of the

shelf support rail away

support rail away from the

side wall and remove it.

Installing the shelf support rails

Install the shelf support rails in opposite sequence.

The rounded ends of the shelf support rails must

23Cleaning the oven door

The oven door has two panels of glass. You can remove

the oven door and the internal panel of glass to clean it.

The oven door can close if you try to remove the

internal panel of glass before you remove the

and hold the two door

Lift and turn the levers

to the first opening posi-

tion (halfway). Then pull

forward and remove the

Put the door on a soft

cloth on a stable surface.

system to remove the in-

ternal panel of glass.

Turn the two fasteners

by 90° and remove them

Carefully lift (step 1)

and remove (step 2) the

Clean the glass panel with water and soap. Dry the

glass panel carefully.

Installing the door and the glass panel

When you install the panel with a decorative frame,

make sure that the screen-printing zone looks to the in-

ner side of the door. Make sure that after the installation

the surface of the glass panel frame on the screen-print-

ing zones is not rough when you touch it.

Make sure that you install the internal panel of glass in

the seats correctly (refer to the illustration).

Warning! Be careful! There is the risk of electrical

Before you change the oven lamp:

• Switch off the oven.

• Remove the fuses in the fuse box or switch off the

Put a cloth on the bottom of the oven for protec-

tion of the oven light and glass cover.

1. Turn the glass cover anti-clockwise to remove it.

2. Clean the glass cover.

3. Replace the oven light bulb with applicable 300°C

heat-resistant oven light bulb.

24Use the same oven lamp type. 4. Install the glass cover.

Warning! Refer to "Safety information" chapter.

Problem Possible cause Remedy

The appliance does not

The appliance is deactivated. Activate the appliance. Refer to "Daily use".

The fuse in the fuse box is re-

Do a check of the fuse. If the fuse is released

more than one time, contact a qualified electri-

The oven lamp does not

The oven lamp is defective. Replace the oven lamp.

Steam and condensation

settle on the food and in

You left the dish in the appli-

Do not let the dishes to stay in the appliance for

more than 15-20 minutes after the cooking ends.

If you cannot find a solution to the problem yourself,

contact your dealer or the service centre.

The necessary data for the service centre is on the rat-

ing plate. The rating plate is on the front frame of the

We recommend that you write the data here:

Product number (PNC)

Serial number (S.N.)

Warning! Refer to "Safety information" chapter.

25A B Electrical installation

Warning! Only a qualified and competent person

must do the electrical installation.

The manufacturer is not responsible if you do not

follow safety precautions from chapter "Safety".

This appliance is supplied without a main plug and a

Cable types applicable for installation or replacement:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-

For the section of the cable refer to the total power (on

the rating plate) and to the table:

Total power Section of the cable

maximum 1380 W 3 x 0,75 mm²

maximum 2300 W 3 x 1 mm²

maximum 3680 W 3 x 1,5 mm²

The hearth cord (green/yellow cable) must be 2 cm lon-

ger than phase and neutral cables (blue and brown ca-

Environment concerns

The symbol on the product or on its packaging

indicates that this product may not be treated as

household waste. Instead it should be taken to the

appropriate collection point for the recycling of

electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent

potential negative consequences for the environment

and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more

detailed information about recycling of this product,

please contact your local council, your household waste

disposal service or the shop where you purchased the

The packaging material is environmentally-friend-

ly and recyclable. Plastic parts are marked with interna-

tional abbreviations such as PE, PS, etc. Dispose of the

packaging material in the containers provided for this

purpose at your local waste management facility.

• Plateau multi-usages

Elément chauffant in-
