USER MANUAL A2400ECB BESTRON

A2400EC A2400ECB A2400ECG

Nederland	Handleiding turbine stofzuiger
Deutsch	Gebrauchsanweisung Turbine Staubsauger
Français	Mode d'emploi aspirateur turbine
English	Instruction manual turbine vacuum cleaner
Italiano	Istruzioni per l'uso aspirapolvere turbina
Espanol	Manual del usuario aspiradora de turbina

VEILIGHEIDSVOORSCHRIFTEN - Algemeen

CONDITIONS DE GARANTIE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
• Make sure that you always use an earthed wall socket to connect the appliance.
  Always remove the plug from the mains socket before moving the appliance and when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
  Certain parts of the appliance may get hot. Do not touch these parts to prevent burning yourself.
• Make sure that the appliance, the power cord or the plug do not make contact with hot services, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Never use the appliance in a humid room.
• Make sure that your hands are dry before touching the appliance, power cord or plug.
• The power cord has a yellow and a red mark. Pull out the power cord to the yellow mark. Never pull out the power cord beyond the red mark.
• Guide the power cord whilst it rewinds onto the reel, since otherwise the cord could become tangled or the plug could strike the back of the appliance. Take hold of the power cord near the mark, and allow it to gently slide through your fingers back into the appliance.
• Make sure that the dust bag does not become pinched between the cover and the motor unit. This could damage the appliance and/or the dust bag.

• Do not use the appliance to suck up the following objects:

• glowing or burning objects
  glass splinters or other sharp objects
  residues of plaster, cement, stone, soot, and similar
  liquids, or moist dirt.

These objects could cause serious damage to the appliance and the filter system, and make it unsafe to use.

• Do not use the vacuum cleaner on wet rugs and carpets.
• Never insert objects in the air-exhaust vents.
• Make sure that the suction and exhaust openings are open, and that the filters are not blocked. Blockages will cause the appliance to overheat. Switch off the vacuum cleaner immediately! Once you have remedied the problem, wait 20 to 30 minutes to allow the vacuum cleaner to cool down completely. The vacuum cleaner will then be ready for use again.
• Keep the nozzle and the tubes away from the body while the vacuum cleaner is running. This could cause serious injury, for example to the eyes or ears.
• Never roll the appliance over the cord.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before filling or emptying the appliance, cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• Never immerse the appliance, the power cord or the plug in water or other liquid. After washing the filters make sure they are thoroughly dry before returning them to the appliance.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

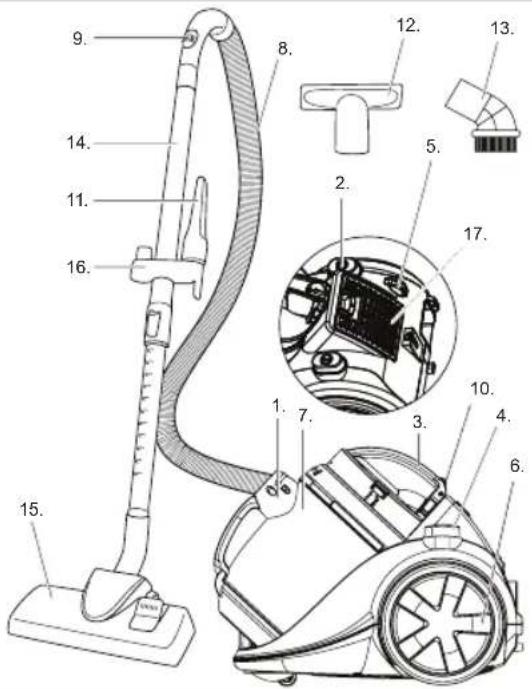

1. Hose opening
2. Cable reel-in button
3. Vacuum-cleaner handle
4. On/off switch

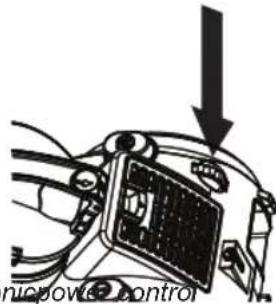

5. Electronic power control
6. Rear wheels
7. Dust receptacle
   8.Hose
8. Grip with mechanical power control
9. Release button
10. Crevice tool
11. Upholstery tool
12. Small brush
13. Telescopic tube
14. Combi nozzle
15. Accessory clip
16. Exhaust filter

Figure 1

OPERATION - Use

1. Insert the hose connector into the hose opening on the motor unit and turn it clockwise. To remove the hose pull the connector from the opening; see Figure 2.

Figure 2

1. Slide the telescopic tubes onto the hose handle, see Figure 3A.
2. Press the button on the telescopic tubes and keep it pressed in; you can then extend or retract the tubes to the required length. See Figure 3B.
3. Press the foot button on the nozzle to set the combi nozzle for use on hard or soft surfaces, see Figure 3C. For use on hard surfaces, press the foot button on the combi nozzle to extend the brushes. Lift the button for use on soft surfaces.

Figure 3A & B

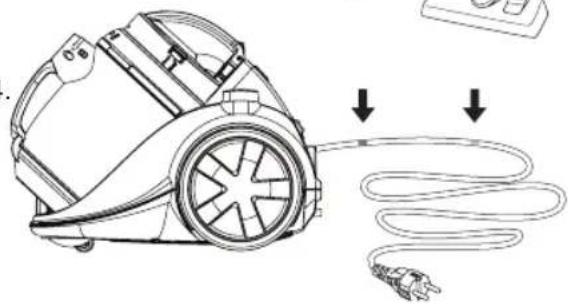

1. The power cord has a yellow and red mark, see Figure 4. Pull out the cord to the yellow mark.

Never pull out the power cord beyond the red mark. This could damage the power cord.

Figure 4

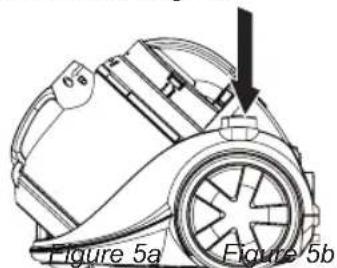

1. Insert the plug in the wall socket, and press the On/Off switch. To switch off the appliance, press the On/Off switch again.

On/Off switch

1. The appliance is now ready for use. You can move the vacuum cleaner while you are cleaning by pulling on the hose grip. You can lift the appliance with the vacuum cleaner's handle.

If so required, you can also reduce the suction quickly by moving the slide on the hose grip.

ACCESSIONS

This vacuum cleaner is supplied with two accessories:

• a crevice tool with a narrow nozzle, which you can use to clean radiators, window frames, crevices, small openings, and similar;
• A furniture brush, which you can use to clean soft surfaces such as pholstered furniture and curtains.

Figure 6

OPERATION - Storage after use

1. Remove the plug from the wall socket.

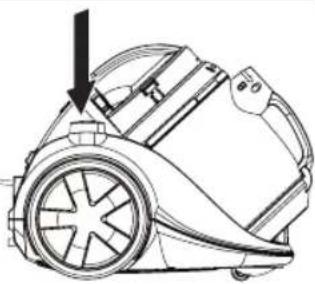

2. Press the rewind button and keep it pressed in; the power cord will automatically rewind onto the reel.

Guide the power cord whilst it rewinds onto the reel, once otherwise the cord could become tangled or the string could strike the back of the appliance. Take hold of the power cord near the mark, and allow it to gently slide through your fingers back into the appliance, see Figure 7.

Figure 7

1. Retract the telescopic tube completely. An attachment slot is fitted to the back of the vacuum cleaner (see Figure 8). Slide the backside of the combi nozzle into the slot. This avoids the need to dismantle the vacuum cleaner after use; you can store the assembled appliance and retrieve it again quickly when you need it.

Figure 8

CLEANING AND MAINTENANCE - Cleaning the housing

1. Remove the plug from the wall socket.
2. Clean the outer surface of all parts with a damp cloth and a cleaner suitable for plastics.
3. Over the course of time dust and dirt can accumulate around the wheel axles, thereby preventing the wheels from turning easily. Consequently they should be kept clean.

• Never immerse the appliance, plug or power cord in water.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) clean the appliance.

CLEANING AND MAINTENANCE - Removing waste from the dust receptacle

1. Remove the plug from the wall socket.
2. Remove the hose.
3. Remove the dust receptacle by pressing the release button on the dust receptacle (see figure 9) and pulling on the receptacle, and hold it above a waste-bin.

Figure 9 Removing waste from Release button the dust receptacle

1. Press the button in the handle to open the bottom flap (see figure 10).
2. If so required, use your hand to remove any waste sticking to the receptacle.
3. Close the bottom flap, and press until it clicks into place.
4. Fit the dust receptacle onto the appliance, and click it into position.

CLEANING AND MAINTENANCE - Cleaning or replacing the HEPA filter

For best results clean or replace the HEPA filter after every second or third use of the vacuum cleaner, or more frequently if the filter is visibly blocked.

Clean the HEPA filter regularly to avoid that the filter becomes clogged and the engine overheated.

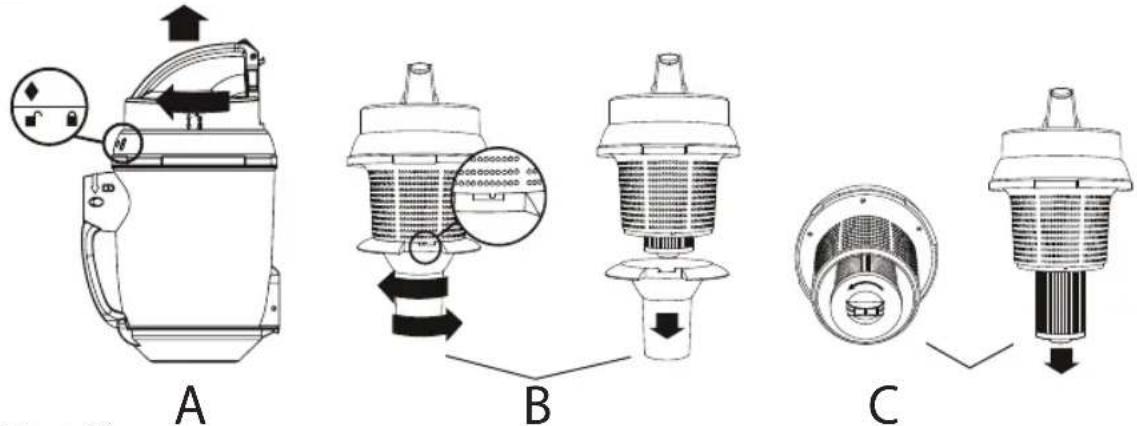

Figure 11 Removing the HEPA filter

1. Remove the waste from the dust receptacle (see "Removing waste from the dust receptacle").
2. Turn the filterlid from the dust container. (A)
3. Turn the first filter from the dust container. (B)
4. Turn the second filter from the vacuum cleaner. (C)
5. Rinse all filters thoroughly in lukewarm water.
6. Allow the filters to dry thoroughly.
7. Mount the holders and filters in the reverse sequence.

Please note: Do not lock the second filter (C) (see figure 11) to the dust receptacle. This happens automatically when you place back and lock the lid (A).

Water could penetrate into the appliance if the filter is not thoroughly dry. This could result in electrical) damage.

• Do not clean the filter in a washing machine.
• Do not dry the filter with a hairdryer.

CLEANING AND MAINTENANCE - Cleaning or replacing the exhaust filter

Replace the exhaust filter at least twice a year, and more frequently if the filter is visibly blocked.

1. Remove the plug from the wall socket.

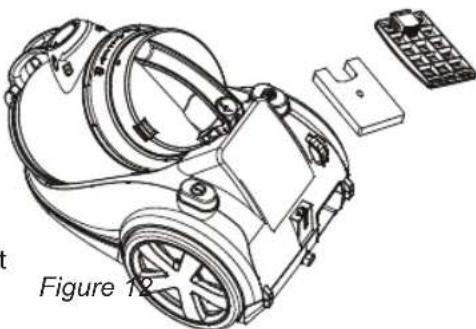

2. Open the exhaust-filter cover by pulling on the lip on the cover. Remove the exhaust filter from the appliance, see figure 12.
3. Rinse the filter in lukewarm water. Allow it to dry thoroughly.
4. Return the cleaned filter to the appliance. Close the cover, and press until it clicks into place.
   Water could penetrate into the appliance if the filters are not thoroughly dry. This could result in (electrical) damage.

TECHNICAL INFORMATION

Type: A2400EC/A2400ECB/A2400ECG

Output: 2400W max

Power supply: 220 - 240V ~ 50/60Hz

THE ENVIRONMENT

• Dispos of packaging material, such as plastic and boxes, in the appropriate waste containers.

When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.
c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.
f. Careless transport, i.e. without suitable packaging materials or protection.

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.
7. No claims may be made under this warranty for:
a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.
8. The guarantee does not cover power cords, lamps or glass parts.
9. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
10. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
11. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC

R. Neyman

Quality control
