USER MANUAL DJ013DP LEXIBOOK

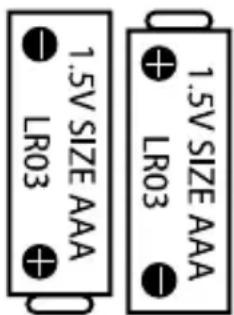

INSERTING NEW BATTERIES

1. Make sure the camera is off.

2. Using a screwdriver, open the battery door located under the unit.

3. Insert 2 x LR03/AAA 1,5V type batteries (not included)

observing the polarity indicated inside the battery compartment and

as per the diagram shown opposite.

4. Close the battery compartment and tighten the screw.ENGLISH

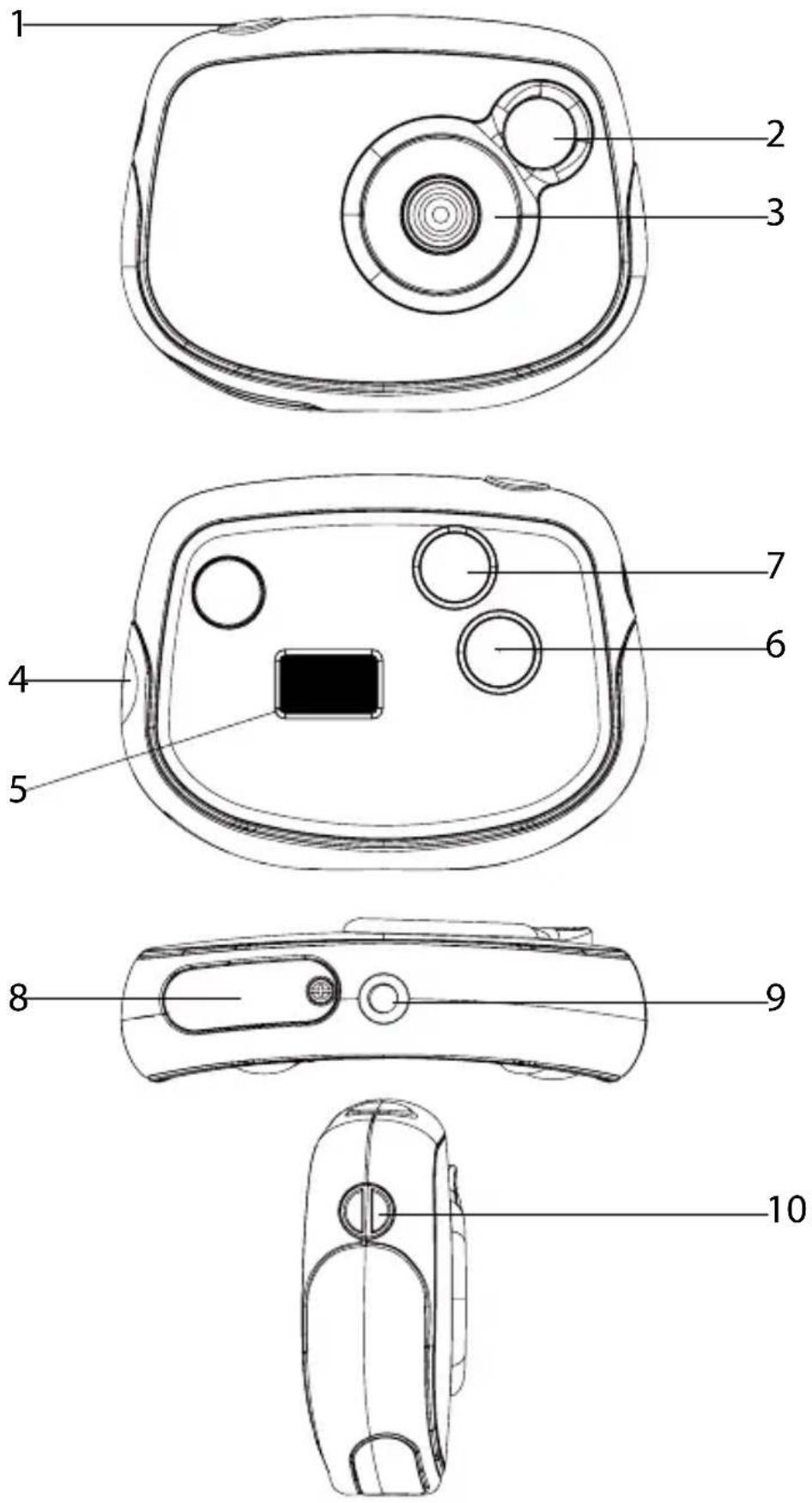

2. Optical viewnder

7. Power on/off button

8. Battery compartment

9. Tripod hole (tripod not included)

1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags

are not part of this product and should be discarded for your child’s safety.

INSERTING NEW BATTERIES

1. Make sure the camera is off.

2. Using a screwdriver, open the battery door located under the unit.

3. Insert 2 x LR03/AAA 1,5V type batteries (not included)

observing the polarity indicated inside the battery compartment and

as per the diagram shown opposite.

4. Close the battery compartment and tighten the screw.ENGLISH

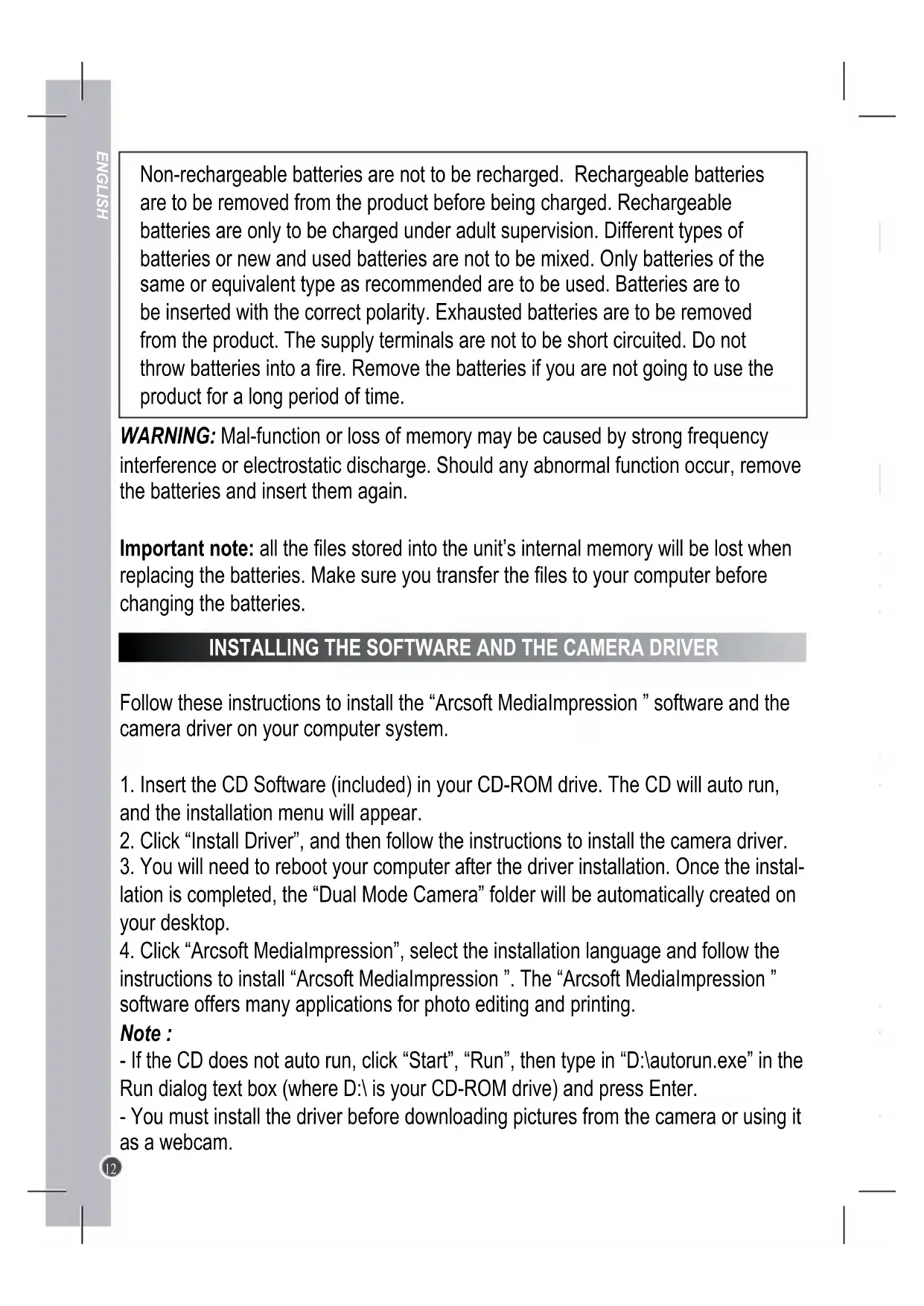

Non-rechargeable batteries are not to be recharged. Rechargeable batteries

are to be removed from the product before being charged. Rechargeable

batteries are only to be charged under adult supervision. Different types of

batteries or new and used batteries are not to be mixed. Only batteries of the

same or equivalent type as recommended are to be used. Batteries are to

be inserted with the correct polarity. Exhausted batteries are to be removed

from the product. The supply terminals are not to be short circuited. Do not

throw batteries into a re. Remove the batteries if you are not going to use the

product for a long period of time.

WARNING: Mal-function or loss of memory may be caused by strong frequency

interference or electrostatic discharge. Should any abnormal function occur, remove

the batteries and insert them again.

Important note: all the les stored into the unit’s internal memory will be lost when

replacing the batteries. Make sure you transfer the les to your computer before

changing the batteries.

INSTALLING THE SOFTWARE AND THE CAMERA DRIVER Follow these instructions to install the “Arcsoft MediaImpression ” software and the

camera driver on your computer system.

1. Insert the CD Software (included) in your CD-ROM drive. The CD will auto run,

and the installation menu will appear.

2. Click “Install Driver”, and then follow the instructions to install the camera driver.

3. You will need to reboot your computer after the driver installation. Once the instal-

lation is completed, the “Dual Mode Camera” folder will be automatically created on

4. Click “Arcsoft MediaImpression”, select the installation language and follow the

instructions to install “Arcsoft MediaImpression ”. The “Arcsoft MediaImpression ”

software offers many applications for photo editing and printing.

- If the CD does not auto run, click “Start”, “Run”, then type in “D:\autorun.exe” in the

Run dialog text box (where D:\ is your CD-ROM drive) and press Enter.

- You must install the driver before downloading pictures from the camera or using it

- Make sure the camera is not connected to your computer before installing the

driver and the software.

TURNING THE CAMERA ON AND OFF

1. Press the Power on/off button to turn the camera on. The camera will make a

beep sound to conrm that it is ready for use.

2. Press and hold the Power on/off button for a few seconds again to turn it off.

3. To turn the unit off, you can also press repeatedly the MODE button until “Off” is

displayed on the LCD screen. Then press the shutter button to conrm.

Note : The camera will auto power off after 30 seconds of inactivity.

TAKING PHOTOS Single shooting

You are already in “Single shooting” mode when you switch on the camera. Press

the shutter button to take a photo. The camera will beep to conrm that a picture is

taken. The number of pictures that you can take in memory is shown on the LCD

1. When you are in “Single shooting” mode, press the MODE button repeatedly until

the “Continuous shooting” mode icon is displayed in the upper-right corner of

the screen. Press the shutter button within the next 5 seconds to take 3 pictures

Note: When the camera’s built-in memory is full, the unit will play a double “beep”

1. In “Single shooting” mode, press repeatedly the MODE button repeatedly until

the “Self-timer” icon appears on the LCD screen. Then press the shutter button

within 5 seconds to turn on the self-timer function.

2. The digital camera will take a picture 10 seconds later.

Note: The self-timer feature is automatically turned off after the picture has been

- Make sure the camera is not connected to your computer before installing the

driver and the software.

TURNING THE CAMERA ON AND OFF

1. Press the Power on/off button to turn the camera on. The camera will make a

beep sound to conrm that it is ready for use.

2. Press and hold the Power on/off button for a few seconds again to turn it off.

3. To turn the unit off, you can also press repeatedly the MODE button until “Off” is

displayed on the LCD screen. Then press the shutter button to conrm.

Note : The camera will auto power off after 30 seconds of inactivity.

TAKING PHOTOS Single shooting

You are already in “Single shooting” mode when you switch on the camera. Press

the shutter button to take a photo. The camera will beep to conrm that a picture is

taken. The number of pictures that you can take in memory is shown on the LCD

1. When you are in “Single shooting” mode, press the MODE button repeatedly until

the “Continuous shooting” mode icon is displayed in the upper-right corner of

the screen. Press the shutter button within the next 5 seconds to take 3 pictures

Note: When the camera’s built-in memory is full, the unit will play a double “beep”

1. In “Single shooting” mode, press repeatedly the MODE button repeatedly until

the “Self-timer” icon appears on the LCD screen. Then press the shutter button

within 5 seconds to turn on the self-timer function.

2. The digital camera will take a picture 10 seconds later.

Note: The self-timer feature is automatically turned off after the picture has been

CAPTURING VIDEO CLIPS

1. Switch on the camera and press the MODE button repeatedly until the video icon

is displayed on screen.

2. Press and hold the shutter button to start shooting a video.

3. Release the shutter button to stop recording and automatically save the video in

Note: You can use Media player and Quick time (not included on the CD software)

to play AVI les on your computer.

DELETING PHOTOS Deleting the last photo taken

Turn on the unit then press repeatedly the MODE button until the icon is dis-

played on the screen. Within 5 seconds, press the shutter button to delete the last

Note: to cancel the deletion, wait for the icon to disappear from the screen.

Turn on the unit then press repeatedly the MODE button until the icon is

displayed on the screen. Within 5 seconds, press the shutter button to delete all the

photos stored in the camera’s built-in memory.

Note: to cancel the deletion, wait for the icon to disappear from the screen.

SELECTING THE PHOTO RESOLUTION In “Single shooting” mode, press repeatedly the MODE button until one of the

resolution icons ou is displayed on the screen. Then press

the shutter button within 5 seconds to change the resolution.

There are 2 resolution modes:

High resolution (640x480 pixels, default mode).

Low resolution (320x240 pixels).

SELECTING THE IMAGE QUALITY In “Single shooting” mode, press repeatedly the MODE button until one of the

image quality icons hd or ld is displayed on the screen. Then press the shutter

button within 5 seconds to change the image quality.

There are 2 levels of quality:

hd :high quality (default mode).

ld: low quality.ENGLISH

SELECTING THE IMAGE QUALITY In “Single shooting” mode, press repeatedly the MODE button until one of the

image quality icons hd or ld is displayed on the screen. Then press the shutter

button within 5 seconds to change the image quality.

There are 2 levels of quality:

hd :high quality (default mode).

SELECTING THE LIGHT SOURCE FREQUENCY In “Single shooting” mode, press repeatedly the MODE button until one of the

frequency icons 50 (50HZ) or 60(60HZ) is displayed on the screen. Then press the

shutter button within 5 seconds to change the frequency.

DOWNLOADING YOUR PHOTOS AND YOUR VIDEOS

1. Connect the camera to your computer via the USB cable provided.

2. Open the “Dual Mode Camera” folder on your desktop, then double-click the “My

DSC” icon to open the photo download window.

3. You can edit your pictures (contrast, brightness..etc.) using the “Photo Editing”

4. Click the “Photo download” button to display the images stored in your

camera as thumbnails.

5. Select the pictures you want to download individually or click the “Select all”

button to select all the photos automatically.

6. Click the “Save” button to transfer the les to the desired folder.ENGLISH

WEBCAM MODE Connected to your PC, your camera can be used as a webcam.

1. Connect the video camera to your computer using the USB cable provided.

2. Open the “Dual Mode Camera” folder on the desktop, then double-click the

“PCCam” icon » to view the real-time images taken by the webcam.

Instant messaging (chat)

You can use your camera as a webcam with your instant messaging client (Yahoo

Messenger, MSN Messenger, Skype…).

Ex: using MSN Messenger

1. Put your camera in webcam mode and connect it to your computer then launch

2. On the MSN interface, select “Actions”, then “Start a Video Conversation”.

3. Select the person you want to chat with, and press “OK”.

MAINTENANCE Only use a soft, slightly damp cloth to clean the unit. Do not use detergent. Do not

expose the unit to direct sunlight or any other heat source. Do not immerse the unit

in water. Do not dismantle or drop the unit. Do not try to twist or bend the unit.ENGLISH

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please

actively support the conservation of resources and help protect the environment by returning this appliance to a collection

centre (if available).

This product is not a toy.

WARRANTY NOTE: Please keep this instruction manual, it contains important information. This

product is covered by our 1-year warranty. To make use of the warranty or the

after-sales service, please contact your retailer and supply proof of purchase. Our

warranty covers material or installation-related defects attributable to the

manufacturer, with the exception of wear caused by failure to respect the

instructions for use or any unauthorised work on the equipment (such as

dismantling, exposure to heat or damp, etc).

Reference: DJ013series

Designed in Europe – Made in China
