USER MANUAL FH 51 BK HOTPOINT-ARISTON

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning ! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard. ( see Precautions and tips

! The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property. Fitting the appliance Use the appropriate cabinet to ensure that the appliance functions properly.

• The panels adjacent to the oven must be made of heat-resistant material.

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

• to install the oven under the counter ( see diagram

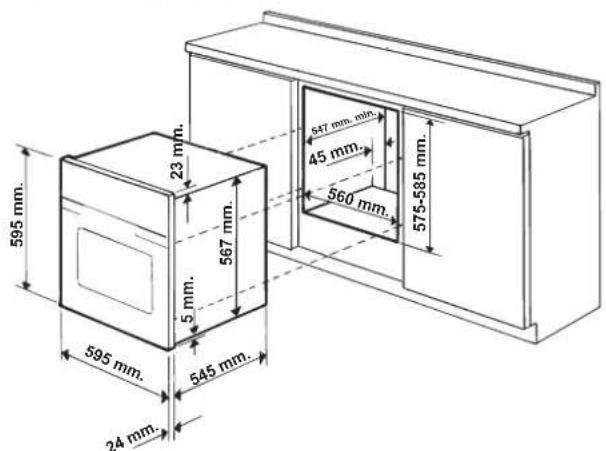

and in a kitchen unit, the cabinet must have the following dimensions: ! The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation. Ventilation To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm ( see diagrams

Centring and fastening Position the 4 tabs on the side of the oven according to the 4 holes of the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: thickness of 20 mm: take off the removable part of the tab

thickness of 18 mm: use the first groove, which has already been set in the factory ( see diagram

thickness of 16 mm: use the second groove ( see diagram

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame. ! All parts which ensure the safe operation of the appliance must not be Installation 595 mm.595 mm.24 mm.545 mm.5 mm.567 mm.23 mm.575-585 mm.45 mm. 560 mm. 547 mm. min. 560 mm. 45 mm.13

removable without the aid of a tool. Electrical connections ! Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance ( see below

Fitting the power supply cable

1. Open the terminal

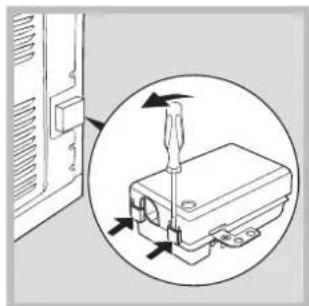

board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover

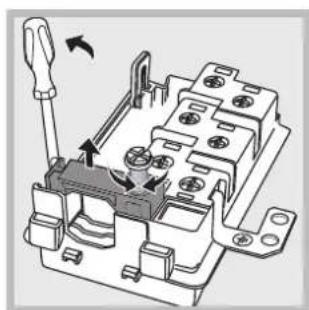

clamp screw and remove it, using a screwdriver as a lever (see figure).

contact screws L-N- , then fasten the wires under the screw heads, respecting the colour code: Blue (N), Brown (L) and Yellow-Green Verde (

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate ( see side

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. ! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate ( see below

• The voltage must be in the range between the values indicated on the data plate ( see below

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only ( see Assistance

! The manufacturer declines any liability should these safety measures not be observed. DATA PLATE Dimensions width cm 43.5 height cm 32 depth cm 41,5 Volume lt. 58 Electrical connections voltage: 220-240V ~ 50/60Hz o 50Hz (see data plate) maximum power absorbed 2250W ENERGY LABEL Directive 2002/40/EC on the label of electric ovens Norm EN 50304 Ener

y consumption for Natural convection heating mode: Convection Declared energy consumption for Forced convection Class heating mode: Fan assisted This appliance conforms to the following European Economic Community directives: - 2006/95/EEC of 12/12/06 (Low Voltage) and subsequent amendments; - 2004/108/EEC of 15/12/04 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/EEC of 22/07/93 and subsequent amendments. - 2002/96/EC and subsequent amendments.14

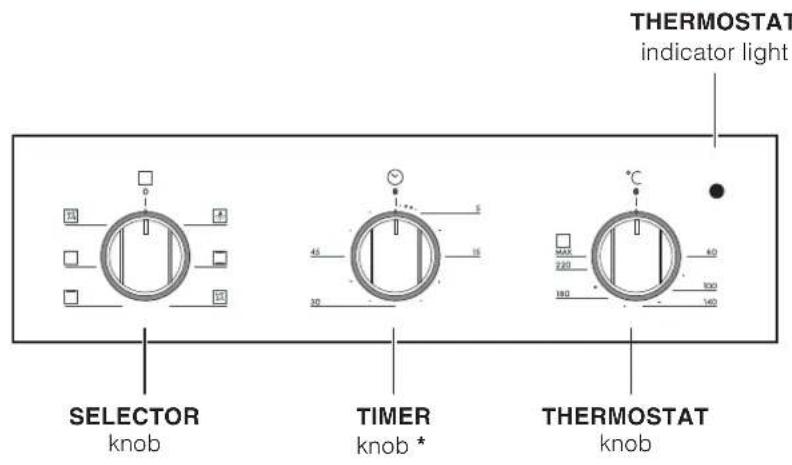

! The first time you use your appliance, heat theempty oven with its door closed at its maximumtemperature for at least half an hour. Ensure that theroom is well ventilated before switching the oven offand opening the oven door. The appliance mayproduce a slightly unpleasant odour caused by theburning away of protective substances used duringthe manufacturing process. Starting the oven 1. Select the desired cooking mode by turning theSELECTOR knob.2. Select the desired temperature with theTHERMOSTAT knob. See the Cooking advice table forcooking modes and the suggested cookingtemperatures ( see Cooking Modes

3. When preheating is finished, the THERMOSTATindicator light will stay on: place the food in the oven.4. You may do the following during cooking:- change the cooking mode by turning the SELECTORknob.- change the temperature by turning theTHERMOSTAT knob.- stop cooking by turning the SELECTOR knob to the“0” position.! Never put objects directly on the oven bottom toavoid damaging the enamel coating.! Always place cookware on the rack(s) provided.Cooling ventilationIn order to cool down the external temperature of theoven, some models are fitted with a cooling fan thatblows out air between the control panel and the ovendoor.! Once the cooking has been completed, the coolingfan remains on until the oven has cooled downsufficiently.Oven lightIt goes on when selecting with the SELECTOR knob. It stays on when a cooking mode is selected. How to use the timer * 1. To set the buzzer, turn the TIMER knob clockwisealmost one complete revolution.2. Turn the knob anticlockwise to set the desiredtime: align the minutes shown on the knob with theindicator on the control panel.3. The timer operates in minutes: when the selectedtime has elapsed, a buzzer will sound.! The timer does not turn the oven on or off. Clock with Country Style timer * How to reset the correct timeThe oven must be plugged in.Pull the knob and turn it anticlockwise until you setthe correct time.

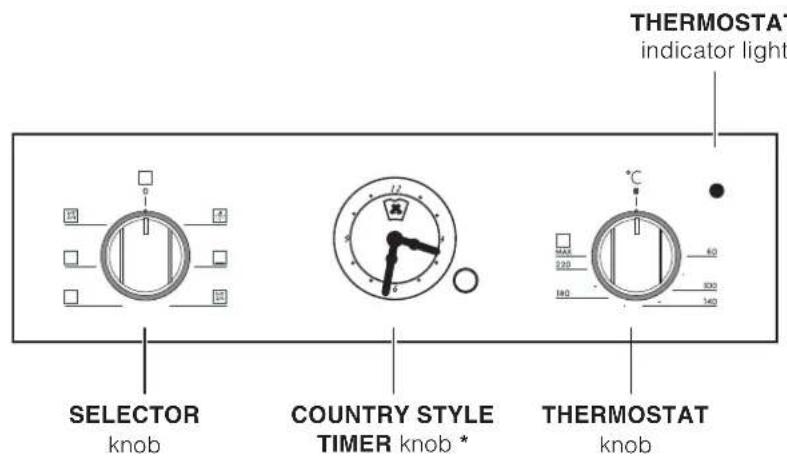

! The programmer is electrically powered, thereforein the event of a power shortage, it will stop workingfor the entire duration of the same. Following thispower failure, the correct time will have to be reset.Timer FeatureThe timer feature allows you to enter a given amountof time from which the timer begins to count down.This feature does not turn the oven on or off; itmerely sounds when the time has elapsed.How to set the timerTurn the knob anticlockwise until the marker lines upwith the desired time (internal scale), which can beseen in the “window”.The time countdown will begin immediately.To interrupt the timer buzzer, or to use only the clockfeature, set the marker to the symbol.* Only on certain models Start-up and use16

Cooking modes ! A temperature value can be set for all cooking modes between 60°C and Max, except for

• GRILL (recommended: set only to MAX power level);

• GRATIN (recommended: do not exceed 200°C). TRADITIONAL OVEN mode Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only; if more than one rack is used, the heat will be distributed unevenly. MULTI-COOKING mode All the heating elements (top and bottom), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time. TOP OVEN mode The top heating element comes on. This mode can be used to brown food at the end of cooking. GRILL mode The top heating element comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: such as beef steaks, veal, rib steak, filets, hamburgers etc... Some grilling examples are included in the “Practical Cooking Advice” paragraph. Always cook in this mode with the oven door closed. GRATIN mode The top heating element, as well as the fan, will come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed. Cooking modes Practical cooking advice ! Do not place racks in position 1 and 5 during fan- assisted cooking. Excessive direct heat can burn temperature sensitive foods. ! In the GRILL and GRATIN cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTI-COOKING

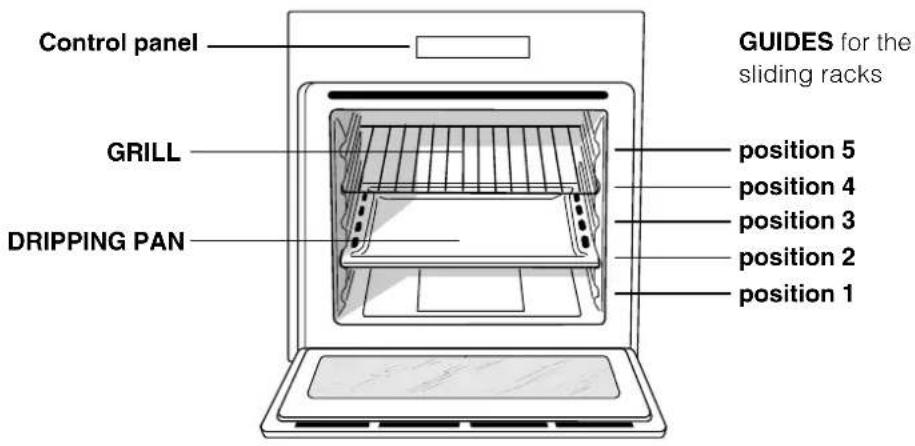

• Use position 2 and 4, placing the food that requires more heat on 2.

• Place the dripping pan on the bottom and the rack on top. GRILL

• Insert the rack in position 3 or 4. Place the food in the centre of the rack.

• We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on. PIZZA

• For best results when cooking pizza, use the MULTI-COOKING mode.

• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).

• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.17

Cooking advice table Cooking modes Foods Weight (in kg) Rack position Pre- heating time (min) Recommended temperature Cooki

Convection Oven Duck Roast veal or beef Pork roast Biscuits (short pastry) Tarts

65-75 70-75 70-80 15-20 30-35 Multi-cooking Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Plum cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies

2 and 4 2 and 4 2 and 4

Precautions and tips ! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• When handling the appliance, always use the handles provided on the sides of the oven.

• Do not touch the appliance with bare feet or with wet or moist hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

• When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away.

• Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven.

• The openings used for ventilation and dispersion of heat must never be covered.

• Always grip the oven door handle in the centre: the ends may be hot.

• Always use oven gloves to place cookware in the oven or when removing it.

• Do not use aluminium foil to line the bottom of the oven.

• Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire.

• Always make sure the knobs are in the “”/“ position when the appliance is not in use.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.

• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre ( see Assistance

• Do not rest heavy objects on the open oven door.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• Do not let children play with the appliance. Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance.

• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment

• By using the appliance in the hours between late afternoon and early morning, you can help reduce the work load placed on electrical companies.

• Always keep the oven door closed when using the GRILL and GRATIN mode to attain best results and to save energy (approximately 10%).

• Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse. Assistance Communicating:

• appliance model (Mod.)

• serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging.19

Maintenance and care Switching the appliance off Disconnect your appliance from the electricitysupply before carrying out any work on it. Cleaning the appliance

• The stainless-steel or enamel-coated external partsas well as the rubber seals may be cleaned using asponge that has been soaked in lukewarm waterand neutral soap. If these stains are difficult toremove, use only specialised products. Aftercleaning, rinse and dry thoroughly. Do not useabrasive powders or corrosive substances.• Ideally, the inside of the oven should be cleanedafter each use, when it is still lukewarm. Use hotwater and detergent, rinse and dry with a soft cloth.Do not use abrasive products.• All accessories - with the exception of the slidingracks - can be washed like everyday crockery.! Never use steam cleaners or pressure cleaners onthe appliance. Cleaning the oven door Clean the glass part of the oven door using a spongeand a non-abrasive cleaning product, then drythoroughly with a soft cloth. Do not use rough abrasivematerial or sharp metal scrapers as these couldscratch the surface and cause the glass to crack. Toclean more thoroughly, you can remove the oven door.1. Open the oven door fully (see diagram

2. Lift up and turn the small levers located on thetwo hinges (see diagram

3. Grip the door on the twoexternal sides and close itapproximately half way. Unlockthe door by pressing on theclamps

F, then pull the doortowards you lifting it out of itsseat (see diagram To replace the door, reversethis sequence.Inspecting the sealsCheck the door seals around the oven periodically. Ifthe seals are damaged, please contact your nearestAfter-sales Service Centre (see Assistance We recommend not using the oven until the seals havebeen replaced. Replacing the light bulb To replace the oven light bulb:1. Remove the glass cover of the lamp-holder.2. Remove the light bulb and replace it with a similarone: Wattage 25 W, cap E 14.3. Replace the glass cover (see diagram
