Electrical connection

Data plate

Description of the appliance, 15

Overall view

Control panel

Start-up and use, 16

Starting the oven

Using the cooking timer

Cooking modes, 17-18

Cooking modes

Practical cooking advice

Cooking advice table

Analogue Programmer, 19

Setting the time

Starting the oven

Programming cooking

Precautions and tips, 20

General safety

Disposal

Respecting and conserving the environment

Care and maintenance, 21

Switching the appliance off

Cleaning the appliance

Cleaning the oven door

Replacing the light bulb

Assistance, 22

Hotpoint ARISTON

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance.
! Please keep these operating instructions for future reference. Make sure that the instructions are kept with the appliance if it is sold, given away or moved.

Positioning

! Keep all packaging material out of the reach of children. It may present a choking or suffocation hazard (see Precautions and tips).
! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

Built-in appliance

Use the appropriate cabinet to ensure that the appliance functions properly.

• The panels adjacent to the oven must be made of heat-resistant material.
• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

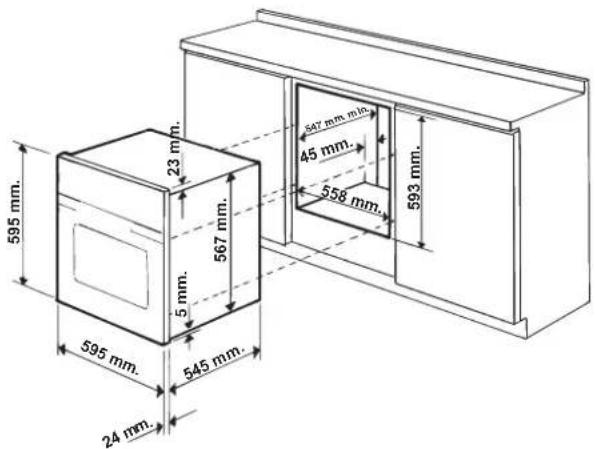

• To install the oven under the counter (see diagram) or in a kitchen unit, the cabinet must have the following dimensions:

595 mm. 23 mm. 567 mm. 5 mm. 595 mm. 545 mm. 24 mm. 547 mm min. 45 mm. 558 mm. 593 mm.

! The appliance must not come into contact with electrical parts once it has been installed. The indications for consumption given on the data plate have been calculated for this type of installation.

Ventilation

To ensure adequate ventilation is provided, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Pure technical line drawing of a structural support frame without any text, numbers, or symbols

560 mm. 45 mm.

Centring and fixing

1. Position brackets "A" against oven support "B".

2. Position tabs "C" against brackets "A". If the thickness of the cabinet side panel:

3. is 16 mm thick: place the tab so that the number 16 written on it is facing you;

4. is 18 mm thick: place the tab so that the part without any text is facing you;
   • is 20 mm thick: do not fit the tab.

5. Fix the brackets and tabs onto the edge of the cabinet side panel using screws "D".

6. Fix the oven to the cabinet using the screws and plastic washers "E".

D C A B D C

E E

Electrical connection

! Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below).

Fitting the power supply cable

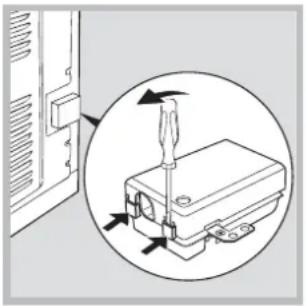

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction (no text or symbols present)

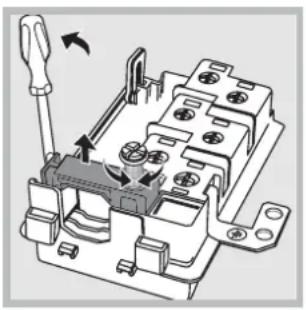

1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

Mechanical diagram of an electrical contactor with a screwdriver and valve mechanism (no text or labels)

1. Loosen the cable clamp screw and remove it, using a screwdriver as a lever (see figure).

2. Remove the wire contact screws L-N- 12 , then fasten the wires under the screw heads, respecting the colour code: Blue (N), Brown (L) and Yellow-Green Verde ( 12 ).

Connecting the electricity supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate (see table). The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point.

! The installer must ensure that the correct electrical connection has been made and that it is fully compliant with safety regulations.

Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below).

• The voltage is in the range between the values indicated on the data plate (see below).

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.
  ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
  ! The cable must not be bent or compressed.
  ! The cable must be checked regularly and replaced by authorised technicians only.
  ! The manufacturer declines any liability should these safety measures not be observed.

TABLE OF CHARACTERISTICS
Dimensions	width 43.5 cmheight 32 cmdepth 40 cm
Volume	56 l
Electrical connections	voltage: 230V ~ 50Hz / maximum power absorbed 2800W
ENERGY LABEL	Directive 2002/40/EC on the label of electric ovens.Regulation EN 50304 Energy consumption for Natural convection – heating mode: □ Traditional mode;Declared energy consumption for Forced convection Class – heating mode: □ Baking mode.
	This appliance conforms to the following European Economic Community directives: 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments – 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments - 2002/96/EEC and subsequent amendments.

Overall view

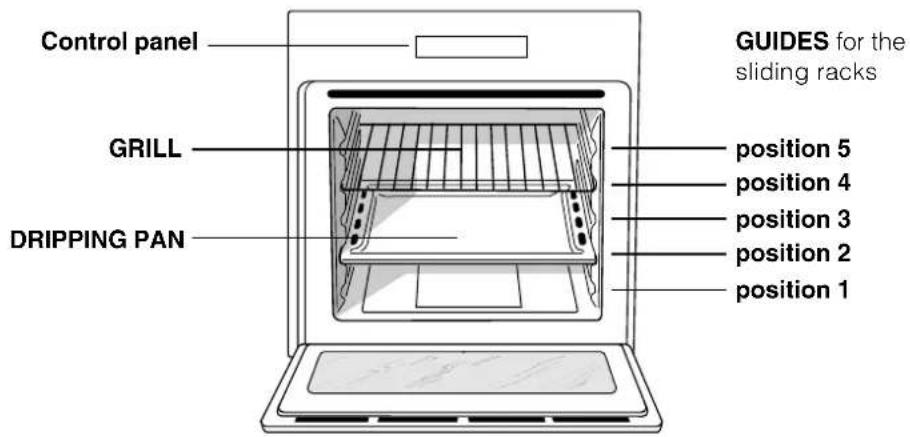

Control panel GRILL DRIPPING PAN GUIDES for the sliding racks position 5 position 4 position 3 position 2 position 1

Control panel

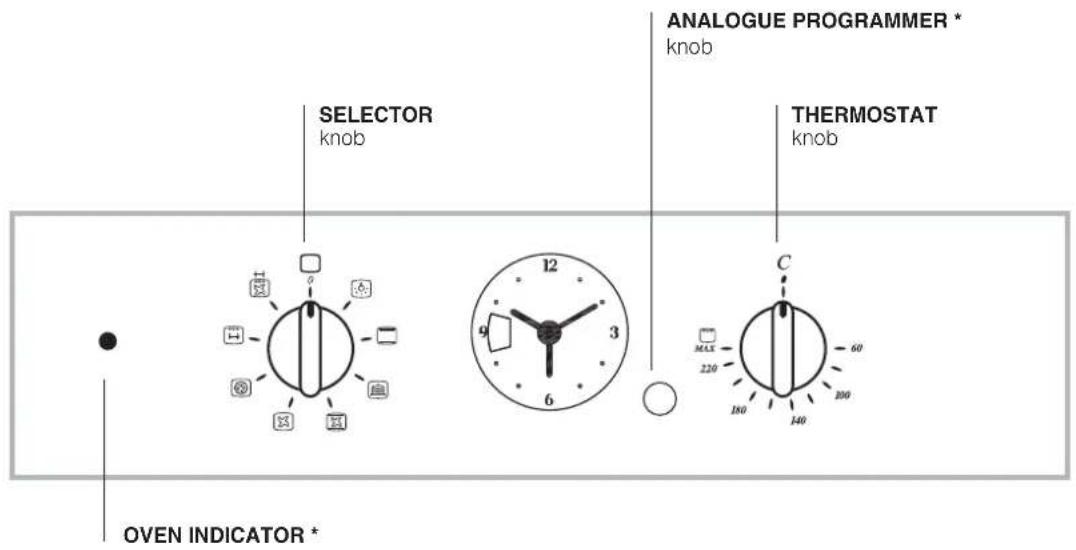

SELECTOR knob ANALOGUE PROGRAMMER * knob THERMOSTAT knob OVEN INDICATOR *

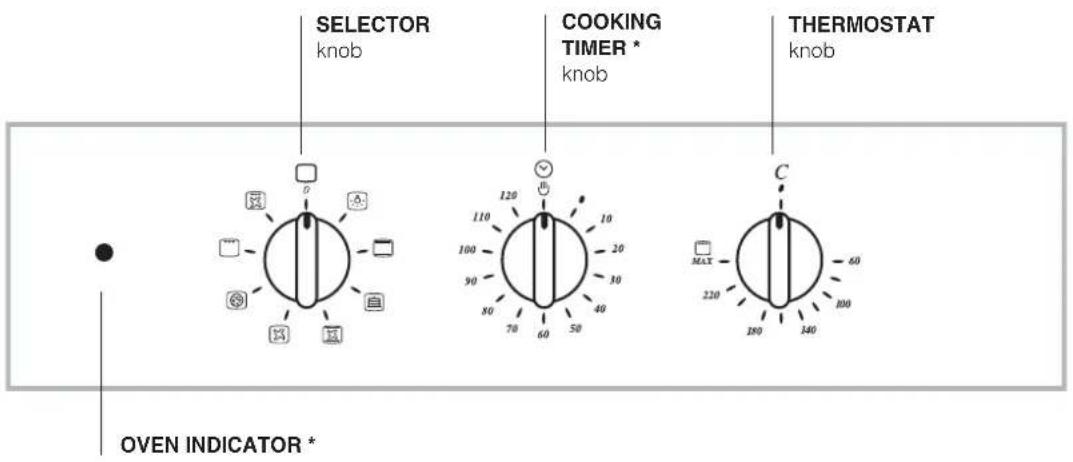

SELECTOR knob COOKING TIMER * knob THERMOSTAT knob OVEN INDICATOR *

* Only available on certain models.

! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away.

Starting the oven

1. Select the desired cooking mode by turning the SELECTOR knob.
2. Select the desired temperature with the THERMOSTAT knob. See the Cooking advice table for cooking modes and the suggested cooking temperatures (see Cooking Modes).
3. When preheating is finished, the THERMOSTAT indicator light will stay on: place the food in the oven.
4. You may do the following during cooking:
5. change the cooking mode by turning the SELECTOR knob.
6. change the temperature by turning the THERMOSTAT knob.
7. stop cooking by turning the SELECTOR knob to the "0" position.

! Never put objects directly on the oven bottom to avoid damaging the enamel coating.

! Always place cookware on the rack(s) provided.

Cooling ventilation

In order to cool down the external temperature of the oven, some models are fitted with a cooling fan that blows out air between the control panel and the oven door.

! Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently.

Oven light

It goes on when selecting 📞 with the SELECTOR knob. It stays on when a cooking mode is selected.

Using the cooking timer\*

1. To set the buzzer, turn the COOKING TIMER knob clockwise almost one complete revolution.
2. Turn the knob anticlockwise to set the desired time: align the minutes shown on the COOKING TIMER knob with the indicator on the control panel.
3. When the selected time has elapsed, a buzzer sounds and the oven turns off.
4. When the oven is off the cooking timer can be used as a normal timer.

! To use the oven manually, in other words when you do not wish to use the end of cooking timer, turn the COOKING TIMER knob until it reaches the ⏻ symbol.

Cooking modes

! A temperature value between 60^ C and MAX can be set for all cooking modes except the following:

• BARBECUE (recommended: set only to MAX power level)

• GRATIN (recommended: do not exceed 200°C).

TRADITIONAL OVEN mode

When using this traditional cooking mode, it is best to use one cooking rack only. if more than one rack is used, the heat will be distributed unevenly.

BAKING mode

This mode is ideal for baking temperature sensitive foods (such as cakes, which need to rise) and for the preparation of "bitesize pastries" on 3 shelves simultaneously.

FAST COOKING mode

This mode is particularly suitable for cooking pre-packed food quickly (frozen or pre-cooked). The best results are achieved using one cooking rack only.

MULTILEVEL mode

Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of two racks may be used at the same time.

PIZZA mode

This combination heats the oven rapidly by producing a considerable amount of heat, particularly from the element at the bottom. If you use more than one rack at a time, switch the position of the dishes halfway through the cooking process.

BARBECUE mode

The high and direct temperature of the grill is recommended for food which requires a high surface temperature. Always cook in this mode with the oven door closed.

GRATIN mode

This combination of features increases the effectiveness of the unidirectional thermal radiation provided by the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface and allows the heat to penetrate right into the food. Always cook in this mode with the oven door closed.

The Rotisserie \*

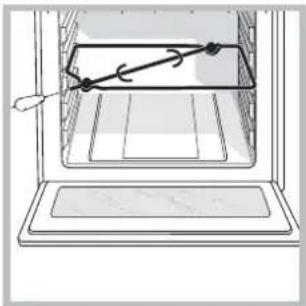

Diagram of a microwave oven with a tray and door, showing internal structure without any text or symbols

To operate the rotisserie (see diagram) proceed as follows:

1. Place the dripping pan in position 1.
2. Place the rotisserie support in position 3 and insert the spit in the hole provided on the back panel of the

oven.

1. Start the rotisserie using the knob to select MODE or

Practical cooking advice

! Do not place racks in position 1 or 5 during fan-assisted cooking. Excessive direct heat can burn temperature sensitive foods.

! In the BARBECUE and GRATIN cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease).

MULTILEVEL

• Use positions 2 and 4, placing the food that requires more heat on the rack in position 2.
• Place the dripping pan on the bottom and the rack on top.

BARBECUE

- Place the rack in position 3 or 4. Make sure the food is in the centre of the rack.

- We recommend that the power level is set to maximum. The top heating element is regulated by a thermostat and may not always operate constantly.

PIZZA MODE

- Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan as it prevents the crust from forming by extending the total cooking time.

- If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

* Only available on certain models.

Cooking advice table

Cooking modes	Foods	Weight (in kg)	Rack position		Preheating	Recommended Temperature (°C)	Cooking duration (minutes)
			standard guide rails	sliding guide rails
Convection Oven	Duck	1.5	2	1	Yes	200-210	70-80
	Chicken	1.5	2	1	Yes	200-210	60-70
	Roast veal or beef	1	2	1	Yes	200	70-75
	Roast pork	1	2	1	Yes	200-210	70-80
	Biscuits (shortcrust pastry)	-	2	1	Yes	180	15-20
	Pies / Tarts	1	2	1	Yes	180	30-35
Baking mode	Pies / Tarts	0.5	2 or 3	1 or 2	Si	180	25-35
	Fruit cakes	1	2 or 3	1 or 2	Yes	180	40-50
	Sponge cake made with yoghurt	0.7	2 or 3	1 or 2	Yes	170-180	45-55
	Small cakes on 2 racks	0.7	2 and 4	1 and 3	Yes	180-190	20-25
	Sponge cake	0.6	2 or 3	1 or 2	Yes	160-170	30-40
	Cream puffs on 3 racks	0.7	1, 3 and 5	1, 2 and 4	Yes	180-190	20-25
	Biscuits on 3 racks	0.7	1, 3 and 5	1, 2 and 4	Yes	180	20-25
	Filled pancakes	0.8	2	1	Yes	200	30-35
	Meringues on 3 racks	0.5	1, 3 and 5	1, 2 and 4	Yes	90	180
	Cheese puffs	0.5	2	1	Yes	210	20-25
Fast cooking	Frozen food
	Pizza	0.3	2	1	-	250	12
	Courgette and prawn pie	0.4	2	1	-	200	20
	Country style spinach pie	0.5	2	1	-	220	30-35
	Turnovers	0.3	2	1	-	200	25
	Lasagne	0.5	2	1	-	200	35
	Golden Rolls	0.4	2	1	-	180	25-30
	Chicken bites	0.4	2	1	-	220	15-20
	Pre-cooked food
	Golden chicken wings	0.4	2	1	-	200	20-25
	Fresh Food
	Biscuits (shortcrust pastry)	0.3	2	1	-	200	15-18
	Sponge cake made with yoghurt	0.6	2	1	-	180	45
	Cheese puffs	0.2	2	1	-	210	10-12
Multilevel	Pizza on 2 racks		2 and 4	1 and 3	Yes	220-230	20-25
	Pies on two racks/cakes on 2 racks		2 and 4	1 and 3	Yes	180	30-35
	Sponge cake on 2 racks (on the dipping pan)		2 and 4	1 and 3	Yes	170	20-25
	Roast chicken + potatoes	1+1	1 and 2/3	1 and 3	Yes	200-210	65-75
	Lamb	1	2		Yes	190-200	45-50
	Mackerel	1	1 or 2	1	Yes	180	30-35
	Lasagne	1	2	1	Yes	190-200	35-40
	Cream puffs on 2 racks		2 and 4	1 and 3	Yes	190	20-25
	Biscuits on 2 racks		2 and 4	1 and 3	Yes	190	10-20
	Cheese puffs on 2 racks		2 and 4	1 and 3	Yes	210	20-25
	Savoury pies		1 and 3	1 and 3	Yes	200	20-30
Pizza Mode	Pizza	0.5	2	1	Yes	220	15-20
	Focaccia bread	0.5	2	1	Yes	200	20-25
Barbecue	Mackerel	1	4	3	No	Max	15-20
	Sole and cuttlefish	0.7	4	3	No	Max	10-15
	Squid and prawn kebabs	0.7	4	3	No	Max	8-10
	Cod fillet	0.7	4	3	No	Max	10-15
	Grilled vegetables	0.5	3 or 4	2 or 3	No	Max	15-20
	Veal steak	0.8	4	3	No	Max	15-20
	Sausages	0.7	4	3	No	Max	15-20
	Hamburgers	4 or 5	4	3	No	Max	10-12
	Toasted sandwiches (or toast)	4 or 6	4	3	No	Max	3-5
	Spit-roast chicken using rotisserie spit (where present)	1	-	-	No	Max	70-80
	Spit-roast lamb using rotisserie spit (where present)	1	-	-	No	Max	70-80
Gratin	Grilled chicken	1.5	2	2	No	210	55-60
	Cuttlefish	1	2	2	No	200	30-35
	Spit-roast chicken using rotisserie spit (where present)	1.5	-	-	No	210	70-80
	Spit-roast duck using rotisserie spit (where present)	1.5	-	-	No	210	60-70
	Roast veal or beef	1	2	2	No	210	60-75
	Roast pork	1	2	2	No	210	70-80
	Lamb	1	2	2	No	210	40-45

! The cooking times listed above are intended as guidelines only and may be modified according to personal tastes. Oven preheating times are set as standard and may not be modified manually.

12 9 A 3 6

Setting the time\*

1. Press the PROGRAMMER knob and turn it in a clockwise direction to set the correct time.
   ! The clock can only be set if the oven is connected to the electricity mains. In the event of a power failure, the PROGRAMMER will stop: the correct time will need to be reset once the power has been restored.

Starting the oven\*

1. Turn the PROGRAMMER knob in a clockwise direction until the “ ^A ” symbol appears in the display window.
2. Pull the PROGRAMMER knob and turn it in a clockwise direction until the red pointer is aligned with the current time. A click will indicate the end of the programming phase.
3. Turn the PROGRAMMER knob in a clockwise direction until the "☐" symbol appears in the display window.
4. Select the desired cooking mode using the SELECTOR knob.
5. To switch the oven off, turn the SELECTOR knob back to the "0" position.

Programming cooking\*

Programming a cooking duration with immediate start

1. Turn the PROGRAMMER knob in a clockwise direction until the desired cooking duration appears in the display window.
2. Select the desired cooking mode using the SELECTOR knob. The oven switches on immediately and remains in operation for the entire set cooking duration.
3. When the selected time period has elapsed, a buzzer will sound. To silence it, turn the PROGRAMMER knob in a clockwise direction until the “” symbol appears in the display window.
4. Turn the SELECTOR knob to the "0" position.

- For example: it is 9:00 a.m. and a duration of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m.

Programming a cooking duration with delayed start

1. Turn the PROGRAMMER knob in a clockwise direction until the “” symbol appears in the display window.
2. Pull the PROGRAMMER knob and turn it in a clockwise direction until the red pointer is aligned with the desired cooking start time.
3. Turn the PROGRAMMER knob in a clockwise direction until the desired cooking duration appears in the display window.
4. Select the desired cooking mode using the SELECTOR knob. The oven will switch on at the set cooking start time and will remain on for the entire set cooking duration.
5. When the selected time period has elapsed, a buzzer will sound. To silence it, turn the PROGRAMMER knob in a clockwise direction until the “” symbol appears in the display window.
6. Turn the SELECTOR knob to the "0" position.

- For example: it is 9:00 a.m., a time of 1 hour and 15 minutes is programmed and the start time is set to 11:00 a.m. The programme will start automatically at 11:00 and will end at 12:15.

! To cancel a programmed cooking cycle, turn the PROGRAMMER knob in a clockwise direction until the “” symbol appears in the display window.

* Only available in certain models.

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• When moving or positioning the appliance, always use the handles provided on the sides of the oven.
• Do not touch the appliance with bare feet or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
• Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance.
• Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
• The openings used for the ventilation and dispersion of heat must never be covered.
• Always grip the oven door handle in the centre: the ends may be hot.
• Always use oven gloves when placing cookware in the oven or when removing it.
• Do not use aluminium foil to line the bottom of the oven.
• Do not place flammable materials in the oven: if the appliance is switched on accidentally, they could catch fire.
• Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• If the appliance breaks down, under no circumstances should you attempt to perform the repairs yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).

• Do not rest heavy objects on the open oven door.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

- Do not let children play with the appliance.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.
  For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer.

Respecting and conserving the environment

• You can help reduce energy consumption by using the appliance in the hours between late afternoon and early morning.
• Always keep the oven door closed when using the BARBECUE and GRATIN modes: This will achieve improved results while saving energy (approximately 10%).
• Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding heat dispersion.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Never use steam cleaners or pressure cleaners on the appliance.

• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.
• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.
• The accessories can be washed like everyday crockery, and are even dishwasher safe.

Cleaning the oven door

Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. For more thorough cleaning purposes, the oven door may be removed:

Diagram of a kitchen oven with a downward arrow indicating a drop or removal (no text or symbols present)

1. Open the oven door fully (see diagram).

Diagram of a hand operating a mechanical component with an arrow indicating direction (no text or symbols present)

1. Lift up and turn the small levers located on the two hinges (see diagram).

Illustration of a hand holding a device with a black screen, no visible text or symbols

1. Grip the door on the two external sides and close it approximately half way. Pull the door towards you, lifting it out of its slot (see diagram). To replace the door, reverse this sequence.

! Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.

Inspecting the seals

Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest After-sales Service Centre. We recommend that the oven is not used until the seals have been replaced.

Replacing the light bulb

To replace the oven light bulb:

Diagram showing two circular components with directional arrows, no text or symbols present

1. Remove the glass cover of the lamp-holder.
2. Remove the light bulb and replace it with a similar one: Wattage 25 W, cap E 14.
3. Replace the glass cover (see diagram).

Warning:

The appliance is fitted with an automatic diagnosis system which detects any malfunctions.

• The ERROR SIGNAL indicator light on the control panel blinks rapidly.
• The oven switches off automatically.
• The fan begins to operate.
  Call for Technical Assistance if a malfunction of this type occurs.

! Never use the services of an unauthorised technician.

Please have the following information to hand:

• The type of problem encountered.
  • The appliance model (Mod.).
  • The serial number (S/N).
  The latter two pieces of information can be found on the data plate located on the appliance.

Italiano, 1

English,12

Français, 23

Espanol, 34 Portuges, 45

FT 850.1/HA

FT 850.1 IX/HA

FT 95V C.1/HA

FT 95V C.1 IX/HA

FT 850.1 IX/HA SC

FT 820.1/HA

FT 820.1 IX/HA

Sommaire

Installation, 24-25

Positionnement

Hotpoint ARISTON

FR

FR

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

560 mm 45 mm.

Technical diagram showing a door with labeled components E and directional arrows indicating movement or force

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction (no text or symbols present)

Mechanical assembly diagram showing a motor or electrical contactor with rotating components and a tool (no text or symbols visible)

Line drawing of an oven interior with a tray and door, showing a handle and control points (no text or symbols)

Diagram of a kitchen oven with a downward arrow indicating cooling or ventilation (no text or symbols present)

Diagram of a hand operating a mechanical switch with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a device with a dark screen, no visible text or symbols

Diagram showing two circular components with directional arrows, no text or symbols present

Hotpoint ARISTON

Technical line drawing of a structural frame with horizontal supports and a vertical beam (no text or symbols)

560 mm. 45 mm.

Centrado y fijación

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction (no text or symbols present)

Mechanical component diagram showing a switch and motor assembly with no visible text or symbols

Line drawing of an oven with a tray and a handle, showing internal structure without any text or symbols

Diagram of an oven with a downward arrow indicating cooling or ventilation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with an arrow indicating force direction (no text or symbols present)

Illustration of a hand holding a device with a dark screen, no visible text or symbols

Diagram showing two circular components with curved arrows indicating rotation or movement, enclosed by parallel lines (no text or symbols)

Hotpoint ARISTON

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm 45 mm

Colocar no centro e prender

Technical diagram showing a door with labeled components E and directional arrows indicating movement or force directions.

Ligação eléctrica

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction (no text or symbols present)

Mechanical assembly diagram showing a clamping device with rotating components and a screwdriver (no text or symbols)

Diagram of a microwave oven with an open tray and internal structure (no text or symbols)

Diagram of a microwave oven with a black arrow indicating airflow direction (no text or symbols)

Simple line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a lever and part, showing no text or symbols

Pure diagram of a mechanical component with no text, numbers, or symbols
