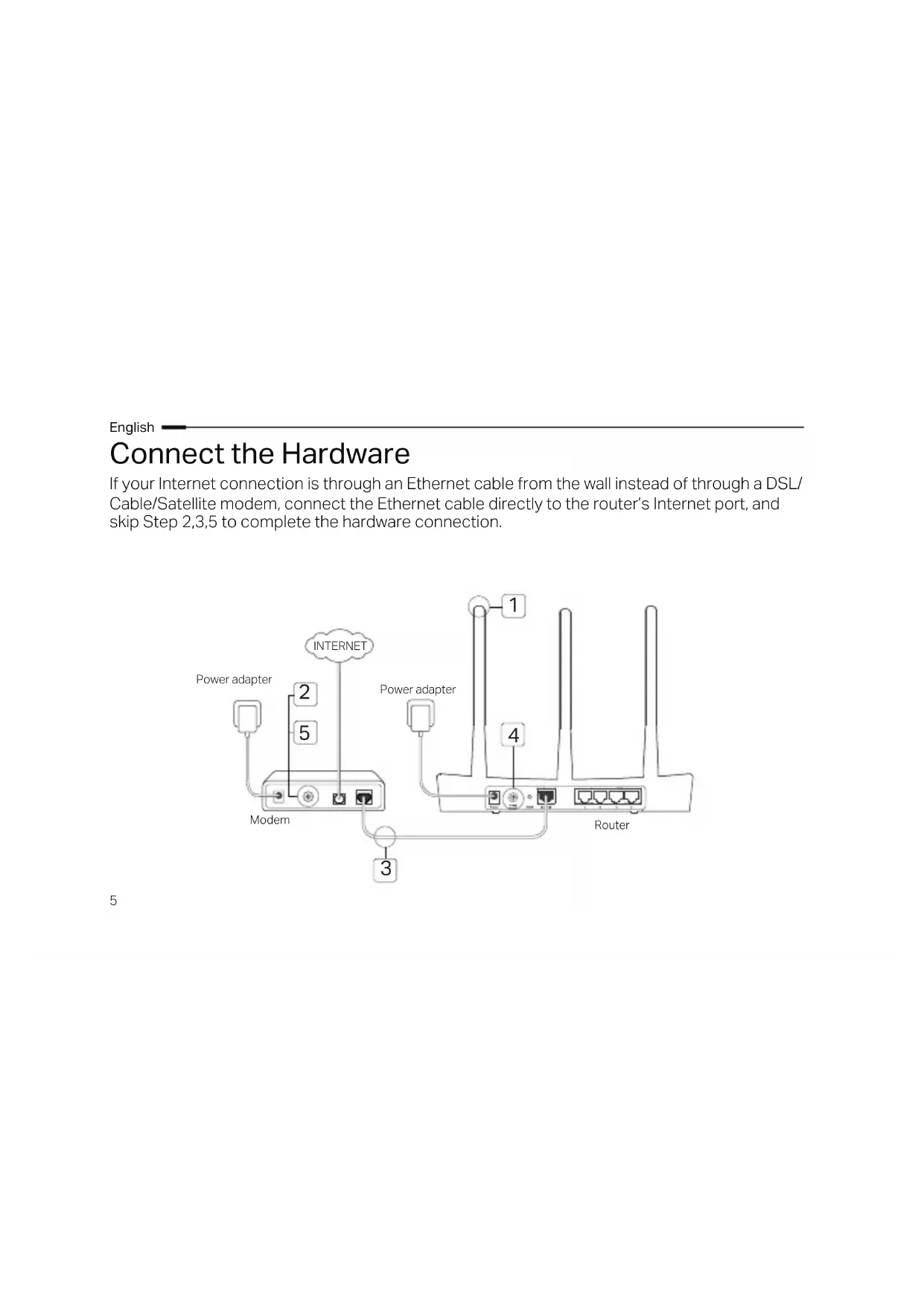

Connect the Hardware

If your Internet connection is through an Ethernet cable from the wall instead of through a DSL/

Cable/Satellite modem, connect the Ethernet cable directly to the router’s Internet port, and

skip Step 2,3,5 to complete the hardware connection.

fixed, move to the next step.

Turn off the modem, and remove the backup

battery if it has one.

Connect the modem to the Internet (or WAN)

port on your router with an Ethernet cable.

Turn on the router, and wait for it to start.

Connect your computer to the router (Wired or

Turn off the Wi-Fi on your computer and connect

your computer to the router’s LAN (1/2/3/4) port

using an Ethernet cable.

Connect your computer to the router wirelessly.

The SSID and Wireless Password are on the

Enter http://tplinkwifi.net or http://192.168.0.1

in the address bar of a web browser. Create a

password for future login attempts, or use admin

for both username and password for some

routers. Note: If the login window does not appear, please refer to FAQ > Q1. 3

Go to Quick Setup page, and follow the step-

by-step instructions to complete the initial

Now your wired and wireless devices can

connect to the internet ! Note: If you have changed the SSID and wireless password GXULQJWKHFRQƮJXUDWLRQXVHWKHQHZ66,'DQGZLUHOHVVpassword to join the wireless network.7

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can

EORFNXQZHOFRPHGHYLFHVVHWXS3DUHQWDO&RQWUROVFRQƮJXUH\RXUZLUHOHVVVHWWLQJVDQGPRUH

Scan the QR code to download the TP-Link Tether app from the Apple App Store or

)$4)UHTXHQWO\$VNHG4XHVWLRQV

Q1. What can I do if the login window does not appear?

• ,IWKHFRPSXWHULVVHWWRDVWDWLFRUƮ[HG,3DGGUHVVFKDQJHWKHVHWWLQJWRREWDLQDQ,3DGGUHVVDXWRPDWLFDOO\

• Verify that KWWSWSOLQNZLƮQHW or http://192.168.0.1 is correctly entered in the web browser. Alternatively, enter

http://192.168.1.1 in the web browser.

• Use another web browser and try again.

• Reboot your router and try again.

• Disable and enable the the network adapter in use again.

Q2. What can I do if I cannot access the internet?

• Check if the Internet is working properly by connecting a computer directly to the modem via an Ethernet. If it is

not, contact your Internet Service Provider.8

• Open a web browser, enter KWWSWSOLQNZLƮQHW or http://192.168.0.1 and run the Quick Setup again.

• Reboot your router and try again.

• )RUFDEOHPRGHPXVHUVUHERRWWKHPRGHPƮUVW,IWKHSUREOHPVWLOOH[LVWVORJLQWRWKH:HE0DQDJHPHQWSDJH

of the router to clone MAC address.

Q3. How do I restore the router to its factory default settings?

• With the router powered on, press and hold the Reset button on the router until all the LEDs turn on momentarily.

• Log in to the web management page of the router to restore the router to factory settings.

Q4. What can I do if I forgot my web management password?

• Refer to FAQ >Q3 to reset the router, and then create a password for future login attempts, or use admin for

both username and password for some routers.

Q5. What can I do if I forgot my wireless network password?

• If you have not changed the default Wireless Password, it can be found on the product label of the router.

• Log in to the web management page of the router to retrieve or reset your wireless password.

Note: To learn more about the router, please go to the website

https://www.tp-link.com

to download the user guide of your

https://www.tp-link.it

https://www.tp-link.pt

• .HHSWKHGHYLFHDZD\IURPZDWHUƮUHKXPLGLW\RUKRWHQYLURQPHQWV

• Do not attempt to disassemble, repair, or modify the device.

• Do not use damaged charger or USB cable to charge the device.• Do not use any other chargers than those recommended.

• Do not use the device where wireless devices are not allowed.

• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee

that no accidents or damage will occur due to improper use of the device. Please use this product with

care and operate at your own risk.
