USER MANUAL TD8811 TP-LINK

Wireless DSL Modem Router 7106508613 REV1.3.0 TP-Link Technologies Co., Ltd.

Specications are subject to change without notice. is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of

their respective holders.

No part of the specications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from

TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved.

For technical support, replacement services, user guides and other information,

please visit https://www.tp-link.com/support, or simply scan the QR code.CONTENTS

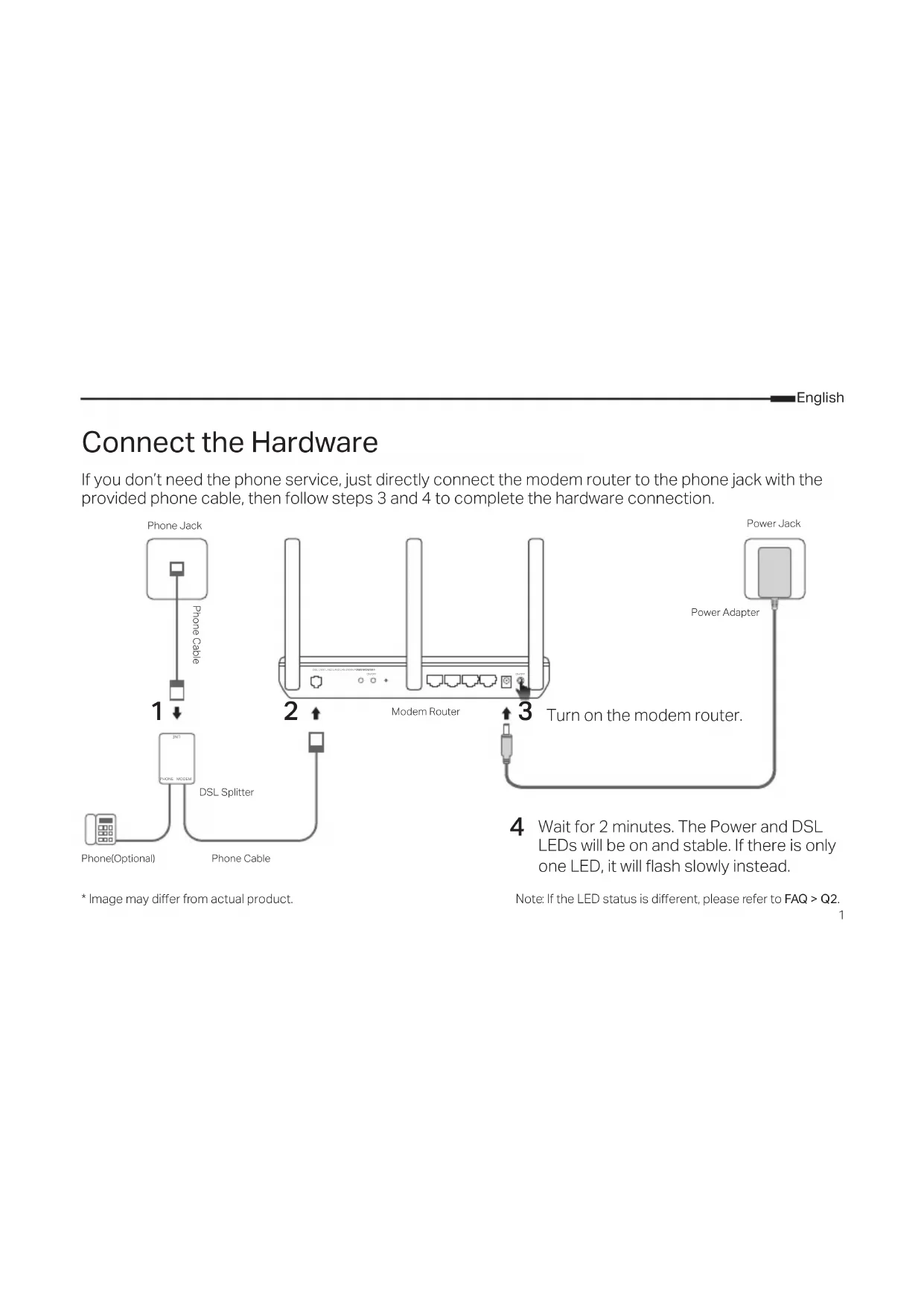

Connect the Hardware

If you don’t need the phone service, just directly connect the modem router to the phone jack with the

provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

4 PHONE LINE MODEM 3

1 2 DSL LAN1 LAN2 LAN3 LAN4/WAN POWER POWERON/OFFWPS RESETWiFiON/OFF * Image may dier from actual product. Note: If the LED status is dierent, please refer to FAQ > Q2.

Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only

one LED, it will ash slowly instead. Phone JackPhone CableModem Router Turn on the modem router. Power JackDSL SplitterPhone(Optional)Phone CablePower AdapterEnglish

A Launch a web browser and type in

http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ

http://tplinkmodem.net

B Create a password for future login attempts,

or use admin for both username and

password for some routers.

C Go to Quick Setup or Quick Start page

and follow the step-by-step instructions to

complete the initial configuration.

1 Connecting your computer to the modem

router via a wired or wireless connection

Connect your computer to the LAN (or 1/2/3/4)

port using an Ethernet cable. DSL LAN1 LAN2 LAN3 LAN4/WAN POWER POWERON/OFFWPS RESETWiFiON/OFF Wireless

Connect wirelessly by using the SSID (network

name) and Wireless Password printed on the

product label at the bottom of the modem

Now you can enjoy your internet. Ethernet Cable3

If you already have a modem or your internet

comes directly from an Ethernet wall outlet, you

can switch to Wireless Router mode. Follow the

steps below and set up.

1 Connect your computer to the router (LAN

1/2/3 port) via a wired or wireless connection.

Note: The SSIDs (network names) and wireless password are

printed on the product label.

2 Configure the modem router via a web browser.

A Launch a web browser and type in

http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ

B Create a password for future login attempts,

or use admin for both username and

password for some routers.

Already Have a Modem?

C Go to Advanced > Operation Mode page

and switch to Wireless Router Mode, wait

until the restart finished.

3 Connect the modem to the router’s LAN4/

WAN port via an Ethernet cable.

4 Go to Basic > Internet to nish the setup.

Now you can enjoy your internet.

For more advanced settings, refer to the

User Guide on TP-Link’s ocial website at

FAQ (Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

A1. If the computer is set to a static or xed IP address, change the settings to obtain an IP address automatically from the

A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.

A3. Use another web browser and try again.

A4. Reboot your modem router and try again.

A5. Disable and enable the active network adapter.

Q2. What can I do if the LED status is not correct?

A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.

A2. Restore your modem router to its factory default settings.

A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then recongure the modem router by

following the instructions in this Quick Installation Guide.

A4. Contact your ISP to verify if the DSL line is in good status.

A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

The TP-Link Tether app provides a simple, intuitive way to access and manage your router.

You can block unwelcome devices, set up Parental Controls, congure your wireless

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google

Note: Tether is not supported by some routers. Please check the app description before downloading.5

Q3. What can I do if I cannot access the internet?

A1. Make sure the telephone and Ethernet cables are plugged in correctly.

A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you

can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem

A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If

they are not, replace them with the correct settings and try again.

A4. Restore the modem router to its factory default settings and recongure the modem router by following the instructions in

this Quick Installation Guide.

A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

Q4. What can I do if I forget my password?

• Web management page password:

A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username

and password for some routers.

• Wireless network password:

A1. The default Wireless Password/PIN is printed on the product label of the modem router.

A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your

Q5. How do I restore the modem router to its factory default settings?

A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious

change of LEDs, and then release the button.

A2. Log in to the web management page of the modem router and go to the system management page to restore the modem
