USER MANUAL LN40C500F3F SAMSUNG

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specifications may be changed without notice.

Important Warranty Information Regarding Television Format Viewing

See the warranty card for more information on warranty terms.

Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video.

The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and

the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on no expanded standard format

television video and programming, should be limited to no more than 5% of the total television viewing per week.

Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics

and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven

aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the programming and images, and

primarily display full screen moving images, not stationary patterns or dark bars. On LCD models that offer picture sizing features, use these controls to

view different formats as a full screen picture.

Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as well as burned

in images, are not covered by your Samsung limited warranty.

• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG)

products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service

in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the

warranty period originally specified, and to the Original Purchaser only.

The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited

Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service

Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those

encountered in normal use of the product.

Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or

replacements, accessories, options, upgrades, or consumables.

For the location of a SAMSUNG Authorized Service Center, please call toll-free:

– In the United States : 1-800-SAMSUNG (1-800-726-7864)

– In Canada : 1-800-SAMSUNG Still image warning

Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news

bars at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LCD screen, which will affect image quality. To reduce

risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try to display a full screen image.

• Reducing brightness and contrast will help to avoid the appearance of after-images.

• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

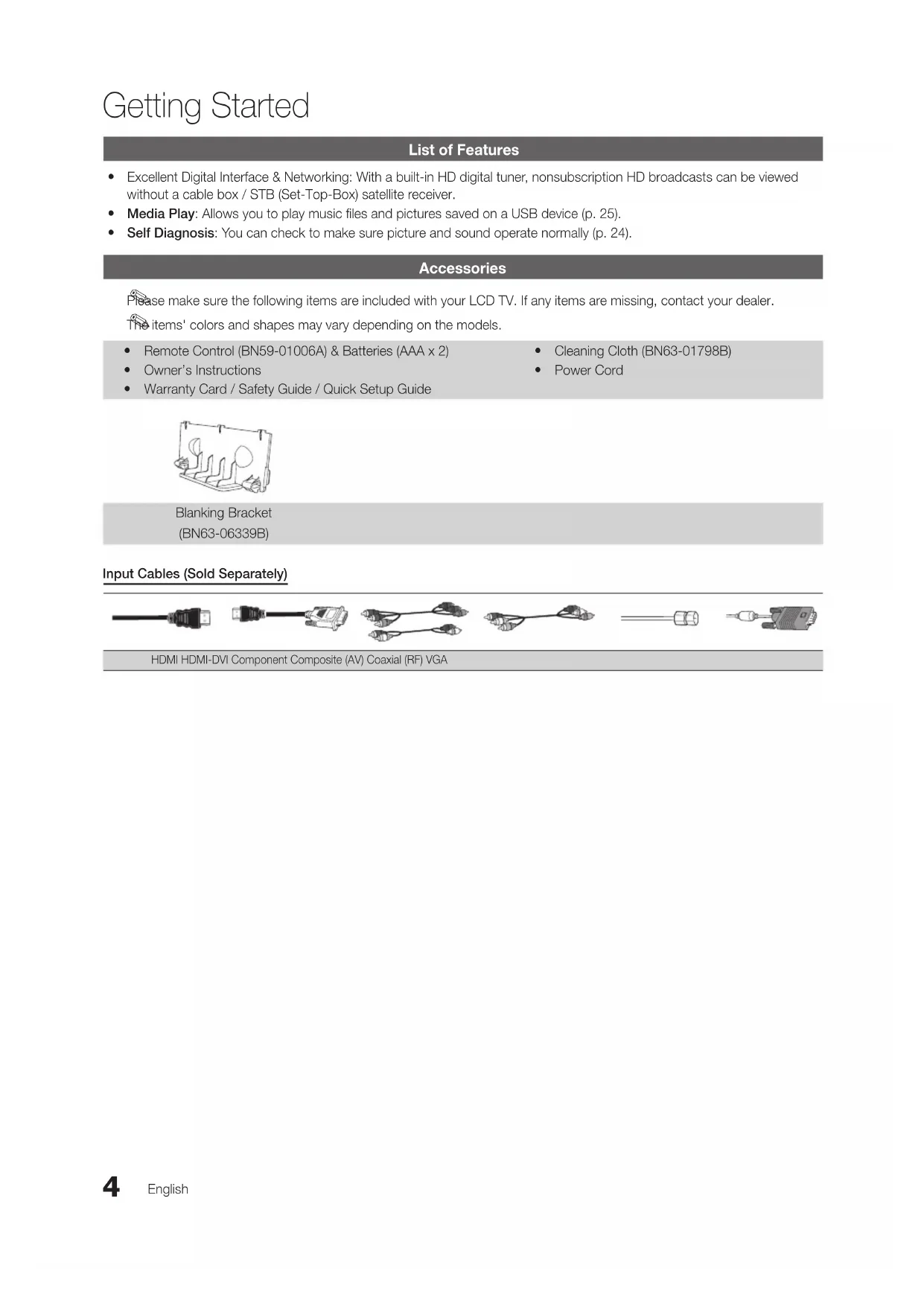

ENGLISH English Getting Started

t Note Step by Step GuideThis function can be used by pressing the TOOLS button on the remote control.Indicates additional information. Check here for instructions on how to open the relevant submenu within the OSD (on screen display). [LC500-NA]BN68-03219A-01L03.indb 3 2010-09-27 오전 10:49:324

y Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed

without a cable box / STB (Set-Top-Box) satellite receiver.

y Media Play: Allows you to play music files and pictures saved on a USB device (p. 25).

y Self Diagnosis: You can check to make sure picture and sound operate normally (p. 24).

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

The items' colors and shapes may vary depending on the models.

Stand (1EA) Guide Stand (1EA) Screws (8EA)

Follow the steps below to connect the TV to the stand.

1. Connect the Guide Stand to the Stand using four screws (M4 X L12) as shown.

2. With your TV upright, connect the TV to the Stand.

3. Fasten two screws (M4 X L12) at position 1, and then

fasten two screws (M4 X L12) at position 2.

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

Make sure that at least two persons lift and move the LCD TV.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to

(M4 X L12) Top viewFront Rear

Rear Screws (M4 X L12)Guide StandStand or

Viewing the Control Panel

The product color and shape may vary depending on the model.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE E Toggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTER E

button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s features.

Adjusts the volume. In the OSD, use the

buttons as you would use the

◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the

buttons as you would use the

▼ and ▲ buttons on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Turns the TV on or off.

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord. SpeakersPower IndicatorRemote control sensor [LC500-NA]BN68-03219A-01L03.indb 6 2010-09-27 오전 10:49:347

Viewing the Remote Control

Installing batteries (Battery size: AAA)

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote

control. Avoid use when nearby fluorescent lights or neon

The color and shape may vary depending on the model. MTS CCP.SIZEA B C DTurns the TV on and off.Returns to the previous channel.Changes channels.Displays and selects the available video sources (p. 13).Displays information on the TV screen.Displays Favorite Channel Lists on the screen (p. 14).Displays the channel list on the screen (p. 14).Selects the on-screen menu items and changes the values seen on the menu.Exits the menu.MTS: Press to choose stereo, mono or Separate Audio Program (SAP broadcast) (p.19).P.SIZE: Selects the picture size (p. 17).CC: Controls the caption decoder (p. 22).Press to directly access channels.Press to select additional channels (digital) being broadcasted by the same station. For example, to select channel “54-3”, press “54”, then press “–” and “3”. Adjusts the volume.Brings up the OSD.Quickly select frequently used functions.Displays Media Play (USB) (p. 25).Returns to the previous menu.Buttons used in the Channel List, Media Play (USB) menu, etc.Cuts off the sound temporarily. [LC500-NA]BN68-03219A-01L03.indb 7 2010-09-27 오전 10:49:348

Getting Started EnglishConnecting to an AntennaWhen the TV is initially powered on, basic settings proceed automatically. ✎ Connecting the power cord and antenna.Plug & Play (Initial Setup) When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWER P

button. Plug & Play is available only when the Input source is set to TV.

✎ To return to the previous step, press the Red button. 1 Selecting a language

Press the ▲ or ▼ button, then press the ENTER E button. Select Air, Cable or Auto. 4 Selecting a channel

Press the ▲ or ▼ button, then press the ENTER E button. Select the channel source to memorize. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Program (p. 14). ✎ Press the ENTER E button at any time to interrupt the memorization process. 5 Setting the Clock Mode Set the Clock Mode automatically or manually. y Auto: Allows you to select DST (Daylight Saving Time) mode and time zone.

y Manual: Allows you to manually set the current date and time (p. 20).

6 View the HDTV Connection GuideThe connection method for the best HD screen quality is displayed. 7 Enjoy the TV.Press the ENTER E button.If You Want to Reset This Feature...

Connecting to an AV Device Using an HDMI or HDMI/DVI Cable: HD connection (up to 1080p)We recommend using the HDMI connection for the best quality HD picture.Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver ✎ HDMI (DVI) IN / DVI AUDIO IN x

When using an HDMI/DVI cable connection, you must use the HDMI (DVI) IN jack for video. A DVD, Blu-ray player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The DVI AUDIO IN jack is required for audio. x The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade. x Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.HDMI OUTDVI OUT R-AUDIO-L AUDIO OUT WR Device DeviceRed WhiteHDMI Cable (Not Supplied)HDMI to DVI Cable (Not Supplied)Audio Cable (Not Supplied) [LC500-NA]BN68-03219A-01L03.indb 9 2010-09-27 오전 10:49:3510

Using a Component (up to 1080p) or Audio/Video (480i only) Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

For better picture quality, the Component connection is recommended over the A/V connection.

Using an EX-Link Cable Connection

Available devices: External devices that support EX-Link.

EX-LINK: Connector for service only.

R W R GB R W Y R W R GB R W R W R W R B G Y Y VIDEO OUTPR PB Y COMPONENT OUT AUDIO OUT R-AUDIO-LAUDIO OUT R-AUDIO-L Device

Connecting to an Audio Device

Available devices: Digital Audio System, Amplifier, DVD home theater

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (amplifier or DVD home theater) is set to on, you can hear sound output from the TV’s

optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD

home theater. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB

(Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the

amplifier or DVD home theater. If you want to hear 5.1 CH audio, connect the digital audio out jack from your

DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.

R W OPTICAL Digital Audio System Red WhiteOptical Cable (Not Supplied) [LC500-NA]BN68-03219A-01L03.indb 11 2010-09-27 오전 10:49:3612 English Connections

x For HDMI/DVI cable connection, you must use the HDMI (DVI) IN jack. x The interlace mode is not supported. x The set may operate abnormally if a non-standard video format is selected. x Separate and Composite modes are supported. SOG(Sync On Green) is not supported. Audio Cable (Not Supplied)

HDMI to DVI Cable (Not Supplied)

D-Sub Cable (Not Supplied)

Audio Cable (Not Supplied)

[LC500-NA]BN68-03219A-01L03.indb 12 2010-09-27 오전 10:49:3713 English 02 Connections

How to Navigate Menus Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions. S

m The main menu options appear on the screen:Picture, Sound, Channel, Setup, Input, Application, Support. 2

e Press EXIT. Basic Features

Changing the Input Source

Source List Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

→ Input → Source List → ENTER E ■ TV / AV / Component / PC / HDMI/DVI ✎ You can only choose external devices that are connected to the TV. In the Source List, connected inputs will be highlighted. ✎ In the Source List, PC is always activated. Edit Name

→ Input → Edit Name → ENTER E ■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier. ✎ When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the HDMI (DVI) IN port, you should set the TV DVI PC mode under Edit Name. ✎ When connecting an HDMI/DVI cable to the HDMI (DVI) IN port, you should set the TV to DVI PC or DVI mode under Edit Name. SOURCE

[LC500-NA]BN68-03219A-01L03.indb 13 2010-09-27 오전 10:49:3814 English Basic Features Channel Menu ¦ Seeing Channels

Channel List Add, delete or set Favorite channels and use the program guide for digital broadcasts.

→ Channel → Channel List → ENTER E Select a channel in the All Channels, Added Channels, Favorite or Programmed

screen by pressing the ▲ / ▼ and ENTER E

buttons. Then you can watch the selected channel. ■All Channels: Shows all currently available channels. ■Added Channels: Shows all added channels. ■ * Favorite: Shows all favorite channels. ■Programmed: Shows all currently reserved programs. ✎ Using the color buttons with the Channel List x

B Green (Zoom): Enlarges or shrinks a channel number. x Yellow (Select): Selects multiple channel lists. Select desired channels and press the Yellow button to set all the selected channels at the same time. The c mark appears to the left of the selected channels. x

(Tools): Displays the Channel List option menu. (The options menus may differ depending on the situation.)Channel Status Display IconsIcons Operations c A channel selected. * A channel set as a Favorite. ) A reserved Program. ¦ Using Favorite Channels

→ Channel → Channel List → ENTER E Add to Favorite / Delete from Favorite

t Set channels you watch frequently as Favorites. 1. Select a channel and press the TOOLS button. 2. Add or delete a the channel using the Add to Favorite or Delete from Favorite menu respectively.To show all Favorite channels, click on the button shown on the right. ¦ Memorizing Channels

→ Channel → ENTER E Antenna (Air / Cable)

t Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). Auto Program ■ Air: Air antenna signal. ■ Cable: Cable antenna signal. ■ Auto: Air and Cable antenna.CH LISTFAV.CH 2 Air

11 Air Added Channels Air

Auto Program Added Channels Air

✎ NOTE x When selecting the Cable TV system: STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected. x After all the available channels are stored, it starts to remove scrambled channels. The Auto Program menu then reappears. ¦ Editing Channels

→ Channel → Channel List → ENTER E Channel Name Edit 1. Select a channel and press the TOOLS button. 2. Edit the channel name using the Channel Name Edit menu. ■ Channel Name Edit (analog channels only): Assign your own channel name. ¦ Other Features

→ Channel → ENTER E Clear Scrambled Channel This function is used to filter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes.How to Stop Searching Scrambled Channels1. Press the ENTER E button to select Stop.2. Press the ◄ button to select Yes.3. Press the ENTER E button. ✎ This function is only available in Cable mode. Channel List

→ Channel → Channel List → ENTER E Channel List Option MenuSet each channel using the Channel List menu options (Add / Delete, Timer Viewing, Select All / Deselect All). Option menu items may differ depending on the channel status. 1. Select a channel and press the TOOLS button. 2. Select a function and change its settings. ■ Add / Delete: Delete or add a channel to display the channels you want. ✎

x All deleted channels will be shown on the All Channels menu. x A gray-colored channel indicates the channel has been deleted. x The Add menu only appears for deleted channels. x Delete a channel from the Added Channels or Favorite menu in the same manner. ■ Timer Viewing: You can set a desired channel to be displayed automatically at the reserved time. Set the current time first to use this function. 1. Press the ◄ / ► / ▲ / ▼ buttons to select the desired channel in Channel List.2. Press the TOOLS button, then select Timer Viewing.3. Scroll up or down to adjust the settings in the box, or use the numeric buttons on your remote to enter the date and time. ✎ If you selected Once, Every Week or Everyday in Repeat, you can enter the date you want.4. Select OK, then press the ENTER E button when done. ✎

x Only memorized channels can be reserved. x Reserved programs will be displayed in the Programmed menu. x When a digital channel is selected, press the ► button to view the digital program. ■ Select All: Select all the channels in the channel list.

■ Deselect All: Deselect all the selected channels.

✎ You can only select Deselect All when one or more channels are selected. Programmed (in Channel List)You can view, modify or delete a show you have reserved to watch. Programmed timer viewing is displayed here. Highlight a program and press the TOOLS button to display Options. ■ Change Info: Change a show you have reserved to watch. Begin with step 3 of “Timer Viewing” above. ■ Cancel Schedules: Cancel a show you have reserved to watch. ✎ This deletes the highlighted or selected program(s). [LC500-NA]BN68-03219A-01L03.indb 15 2010-09-27 오전 10:49:3916 English Basic Features

■ Information: Display a show you have reserved to watch. (You can also change the reservation Information.) ✎ Alternatively, you can view Information by highlighting a program and pressing the ENTER E button. ■ Select All / Deselect All: Select or deselect all reserved programs. Fine Tune (analog channels only)If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, fine tune the channel manually. Scroll to the left or right until the image is clear. ✎ Settings are applied to the channel you're currently watching. ✎ Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner. ✎ To reset the fine-tuning, select Reset.Picture Menu ¦ Changing the Preset Picture Mode

→ Picture → Mode → ENTER E Mode Select your preferred picture type. ■ Dynamic: Suitable for a bright room. ■ Standard: Suitable for a normal environment.

■ Movie: Suitable for watching movies in a dark room.

¦ Adjusting Picture Settings

Backlight / Contrast / Brightness /

→ Picture → ENTER E Your television has several setting options for picture quality control. ✎

x When you make changes to Backlight, Contrast, Brightness, Sharpness, Color or Tint (G/R), the OSD will be adjusted accordingly. x In PC mode, you can only make changes to Backlight, Contrast and Brightness. x Settings can be adjusted and stored for each external device connected to the TV. ¦ Changing the Picture Options

■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth. ■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast. ■ Gamma: Adjust the primary color intensity. ■ Color Space (Auto / Native): Adjust the range of colors available to create the image. ■ White Balance: Adjust the color temperature for a more natural picture.R-Offset / G-Offset / B-Offset: Adjust each color's (red, green, blue) darkness.R-Gain / G-Gain / B-Gain: Adjust each color's (red, green, blue) brightness.Reset: Resets the White Balance to it's default settings. ■ Flesh Tone: Emphasize pink “Flesh Tone.” ■ Edge Enhancement (Off / On): Emphasize object boundaries. Picture Options

✎ In PC mode, you can only make changes to the Color Tone and Size. ■ Color Tone (Cool / Normal / Warm1 / Warm2) ✎ Warm1 or Warm2 will be deactivated when the picture mode is Dynamic and Standard. ✎ Settings can be adjusted and stored for each external device connected to an input on the TV. ■ Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.16:9 : Sets the picture to 16:9 wide mode.Zoom1: Use for moderate magnification.Zoom2: Use for a stronger magnification.Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen. ✎ Available with HD 1080i / 720p signals in 16:9 mode.4:3 : Sets the picture to basic (4:3) mode. ✎ Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and center of the screen may cause image retention(screen burn) which are not covered by the warranty.Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted. ✎

x After selecting Screen Fit in HDMI (1080i/1080p) or Component (1080i/1080p) mode, you may need to center the picture: 1. Press the ◄ or ► button to select Position. 2. Press the ENTER E button. 3. Press the ▲, ▼, ◄ or ► button to move the picture.4. Press the ENTER E button. 5. Press the ◄ or ► button to select Reset. 6. Press the ENTER E button. x HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720) x Settings can be adjusted and stored for each external device you have connected to an input on the TV.Input Source Picture SizeATV, AV,Component (480i, 480p)16:9, Zoom1, Zoom2, 4:3DTV(1080i), Component (1080i, 1080p),HDMI (720p, 1080i, 1080p)16:9, 4:3, Wide Fit, Screen FitPC 16:9, 4:3 ■ Digital NR (Off / Low / Medium / High / Auto): If the broadcast signal received by your TV is weak, you can activate the Digital NR feature to reduce any static and ghosting that may appear on the screen. ✎ When the signal is weak, try other options until the best picture is displayed. ■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth. ✎ Available only in HDMI mode. ■ Film Mode (Off / Auto): Sets the TV to automatically sense and process film signals from all sources and adjusts the picture for optimum quality. ✎ Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i). Picture Reset (OK / Cancel) Resets your current picture mode to its default settings. ¦ Setting up the TV with your PC Set the input source to PC.

→ Picture → ENTER E Auto Adjustment

t Adjust frequency values/positions and fine tune the settings automatically. ✎ Not available when connecting with an HDMI/DVI cable. Screen

■ Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned to the center of screen. ■ PC Position: Adjust the PC’s screen positioning if it does not fit the TV screen. Press the ▲ or ▼ button to adjust the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. ■ Image Reset: Resets the image to default settings.

[LC500-NA]BN68-03219A-01L03.indb 18 2010-09-27 오전 10:49:4019 English03 Basic FeaturesUsing Your TV as a Computer (PC) DisplaySetting Up Your PC Software (Based on Windows XP)Depending on the version of Windows and the video card, the actual screens on your PC will probably look different, but the same basic set-up information will apply in most cases. (If not, contact your computer manufacturer or Samsung Dealer.)1. Click on “Control Panel” on the Windows start menu.2. Click on “Appearance and Themes” in the “Control Panel” window and a display dialog-box will appear.3. Click on “Display” and a display dialog box will appear.4. Navigate to the “Settings” tab on the display dialog-box. y The correct size setting (resolution) [Optimum: 1920 X 1080 pixels] y If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz’. Otherwise, just click “OK” and exit the dialog box.Sound Menu ¦ Changing the Preset Sound Mode

→ Sound → Mode → ENTER E Mode ■ Standard: Selects the normal sound mode. ■ Music: Emphasizes music over voices. ■ Movie: Provides the best sound for movies. ■ Clear Voice: Emphasizes voices over other sounds.

■ Custom: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired. ¦ Adjusting sound settings

→ Sound → Equalizer → ENTER E Equalizer The sound settings can be adjusted to suit your personal preference. ■ Mode: Selects the sound mode among the predefined settings. ■ Balance L/R: Adjusts the balance between the right and left speaker. ■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies. ■ Reset: Resets the equalizer to its default settings.

→ Sound → ENTER E SRS TruSurround HD (Off / On) This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF (Head Related Transfer Function) technology. Preferred Language (digital channels only)Digital-TV broadcasts are capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). ✎ You can only select a language among the ones being broadcasted. Multi-Track Sound (MTS) (analog channels only) ■ Mono: Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal. ■ Stereo: Choose for channels that are broadcasting in stereo. ■ SAP: Choose to listen to the Separate Audio Program, which is usually a foreign-language translation. ✎ Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP. Auto Volume (Off / Normal) Because each broadcasting station has its own signal conditions, the volume can vary as you switch between channels. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

[LC500-NA]BN68-03219A-01L03.indb 19 2010-09-27 오전 10:49:4120 English Basic Features

Speaker Select (External Speaker /

TV Speaker) A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker. ✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited. ✎

When Speaker Select is set to External Speaker.

x TV Speaker: Off, External Speaker: On ✎ When Speaker Select is set to TV Speaker. x TV Speaker: On, External Speaker: On ✎ If there is no video signal, both speakers will be mute. Sound Reset (OK / Cancel) Reset all sound settings to the factory defaults.Setup Menu ¦ Setting the Time

→ Setup → Time → ENTER E Time

■ Clock: Setting the clock is for using various timer features of the TV. O The current time will appear every time you press the INFO button. ✎ If you disconnect the power cord, you have to set the clock again.Clock Mode (Auto / Manual) – Auto: Set the current time automatically using the time from a digital channel. ✎ The antenna must be connected in order to set the time automatically. – Manual: Set the current time manually. ✎ Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.Clock Set: Set the Month, Day, Year, Hour, Minute and am/pm manually. ✎ Available only when Clock Mode is set to Manual. ✎

You can set the Month, Day, Year, Hour and Minute directly by pressing the number buttons on the remote control.Time Zone: Select your time zone. ✎ This function is only available when the Clock Mode is set to Auto.DST (Daylight Saving Time) (Off / On): Switches the Daylight Saving Time function on or off. ✎ This function is only available when the Clock Mode is set to Auto. ¦ Using the Sleep Timer

→ Setup → Time → Timer 1 → ENTER E You can set the TV to turn on automatically at a preset time. ■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock first.10 TV Cable 300 00 am00 00 am ▲

▼ Timer 1On TimeOff TimeVolumeInactivateInactivate Sun Mon Tue Wed Thu Fri Sat

Once ContentsRepeat L Move U Adjust E Enter R Return [LC500-NA]BN68-03219A-01L03.indb 20 2010-09-27 오전 10:49:4121 English 03 Basic Features On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.)Volume: Set the desired volume level. Contents: Select TV or USB content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV) ✎

x If there is no music file on the USB device or the folder containing a music file is not selected, the Timer function does not operate correctly. x When there is only one photo file in the USB, the Slide Show will not play. x If a folder name is too long, the folder cannot be selected. x Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names. Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer. ✎

c mark indicates the day is selected. ✎ Auto Power Off (available only when the TV is turned on by the Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating. ¦ Locking Programs

→ Setup → ENTER E V-Chip The PIN input screen appears, Enter your 4 digit PIN number.The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal identification number) before any of the V-Chip restrictions are set up or changed. ✎

V-Chip is not available in HDMI, Component or PC mode. x The default PIN number of a new TV set is “0-0-0-0”. x Allow All: Press to unlock all TV ratings. x Block All: Press to lock all TV ratings. ■ V-Chip Lock (Off / On): You can block rated TV Programs. ■ TV Parental Guidelines: You can block TV programs depending on their rating. This function allows you to control what your children are watching. – TV-Y: Young children / TV-Y7: Children 7 and over / TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / TV-MA: Mature audience – ALL: Lock all TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual situation / L: Adult Language / D: Sexually Suggestive Dialog ✎ The V-Chip will automatically block certain categories dealing with more sensitive material. For example, if you block the TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work similarly. So, if you block the L sub-rating in TV-PG, then the L sub-ratings in TV-14 and TV-MA will automatically be blocked. ■ MPAA Rating: You can block movies depending on their MPAA rating. The Motion Picture Association of America(MPAA) has implemented a rating system that provides parents or guardians with advanced information on which films are appropriate for children. – G: General audience (no restrictions). / PG: Parental guidance suggested. / PG-13: Parents strongly cautioned. / R: Restricted. Children under 17 should be accompanied by an adult. / NC-17: No children under age 17. / X: Adults only. / NR: Not rated. ✎ The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked. ■ Canadian English: You can block TV programs depending on their Anglophone Canadian ratings. – C: Programming intended for children under age 8. / C8+: Programming generally considered acceptable for children 8 years and over to watch on their own. / G: General programming, suitable for all audiences. / PG: Parental Guidance. / 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14. / 18+: Adult programming. ✎ The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the G category, then PG, 14+ and 18+ will automatically be blocked. [LC500-NA]BN68-03219A-01L03.indb 21 2010-09-27 오전 10:49:4122 English Basic Features

■ Canadian French: You can block TV programs depending on their French Canadian rating. – G: General / 8 ans+: Programming generally considered acceptable for children 8 years and over to watch on their own. / 13 ans+: Programming may not be suitable for children under the age of 13. / 16 ans+: Programming is not suitable for children under the age of 16. / 18 ans+: Programming restricted to adults. ✎ The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also. ■ Downloadable U.S. Rating: Parental restriction information can be used while watching DTV channels. ✎

x If information is not downloaded from the broadcasting station, the Downloadable U.S. Rating menu is deactivated. x Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds. x The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use. x Parental restriction levels differ depending on the broadcasting station. The default menu name and Downloadable US Rating change depending on the downloaded information. x Even if you set the on-screen display to another language, the Downloadable U.S. Rating menu will appear in English only. x The rating will automatically block certain categories that deal with more sensitive material. x The rating titles (For example: Humor Level..etc) and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station. ■ Change PIN: The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the Confirm New PIN screen appears. Re-enter the same 4 digits. When the Confirm screen disappears, your PIN has been memorized.How to watch a restricted channelIf the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:This channel is blocked by V-Chip. Please enter the PIN to unblock. ✎ If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to “0-0-0-0:” POWER (off) → MUTE → 8 → 2 → 4 → POWER(on). ¦ Other Features

button. ✎ Choose between English, Español and Français. Caption (On-Screen Text Messages) ■ Caption (Off / On): You can switch the caption function on or off. If captions are not available, they will not be displayed on the screen. ✎ The Caption feature doesn’t work in Component, HDMI or PC modes. ■ Caption Mode: You can select the desired caption mode. ✎ The availability of captions depends on the program being broadcast.Default / CC1~CC4 / Text1~Text4: (analog channels only) The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcasting signal, the Analog Caption function may or may not work with digital channels.)Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital channels only) The Digital Captions function works with digital channels. ✎ Service1~6 may not be available in digital caption mode depending on the broadcast. CC

[LC500-NA]BN68-03219A-01L03.indb 22 2010-09-27 오전 10:49:4123 English 03 Basic Features

■ Digital Caption Options: (digital channels only) Size: Options include Default, Small, Standard and Large. The default is Standard.Font Style: Options include Default and Styles 0 to 7. The default is Style 0.Foreground Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the color of the letter. The default is White.Background Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the background color of the caption. The default is Black.Foreground Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing.Background Opacity: This adjusts the opacity of the caption background. Options include Default, Transparent, Translucent, Solid and Flashing.Return to Default: This option sets each Size, Font Style, Foreground Color, Background Color, Foreground Opacity and Background Opacity to its default. ✎

x Digital Caption Options are available only when Default and Service1 ~ Service6 can be selected in Caption Mode. x The availability of captions depends on the program being broadcasted. x The Default setting follows the standards set by the broadcaster. x The Foreground and Background cannot be set to have the same color. x You cannot set both the Foreground Opacity and the Background Opacity to Transparent. Game Mode (Off / On) When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting the game mode. ✎

x Precautions and limitations for game mode. – To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu. – If you display the TV menu in Game Mode, the screen shakes slightly. x Game Mode is not available when the input source is set to TV or PC. x After connecting the game console, set Game Mode to On. Unfortunately, you may notice reduced picture quality. x If Game Mode is On: – Picture mode is set to Standard and Sound mode is set to Movie. – Equalizer is not available. Melody (Off / Low / Medium / High) Set so that a melody plays when the TV is turned on or off. ✎

x The Melody does not play. – When no sound is output from the TV because the MUTE button has been pressed. – When no sound is output from the TV because the volume has been reduced to minimum with the VOL– button. – When the TV is turned off by Sleep Timer function. ¦ Economical Solutions

m → Setup → ENTER E The Eco Function can be used to enhance your power savings. Energy Saving (Off / Low / Medium / High

/ Auto) This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the Energy Saving mode option to High to reduce eye fatigue as well as power consumption. [LC500-NA]BN68-03219A-01L03.indb 23 2010-09-27 오전 10:49:4224 English Basic Features

→ Support → ENTER E Self Diagnosis

✎ Self Diagnostic might take few seconds, this is part of the normal operation of the TV. ■ Picture Test: Use to check for picture problems. Yes: If the test pattern does not appear or there is noise in the test pattern, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG).No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual. ■ Sound Test: Use the built-in melody sound to check for sound problems. ✎ If you hear no sound from the TV’s speakers, before performing the sound test, make sure Speaker Select is set to TV Speaker in the Sound menu. ✎ The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.Yes: If you can hear sound only from one speaker or not at all during the sound test, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG).No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual. ■ Signal Strength: (Digital channels only) An HD channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength. Software Upgrade Samsung may offer upgrades for your TV’s firmware in the future. Please visit Samsung.com or contact the Samsung call center at 1-800-SAMSUNG (726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port. ✎ When software is upgraded, video and audio settings you have made will return to their default (factory) settings. ✎ We recommend you write down your settings so that you can easily reset them after the upgrade. HD Connection Guide Refer to this information when connecting external devices to the TV. Contact Samsung View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centers and how to download products and software. [LC500-NA]BN68-03219A-01L03.indb 24 2010-09-27 오전 10:49:4225 English04 Advanced Features Advanced Features Media Play ¦ Connecting a USB Device 1. Turn on your TV. 2. Connect a USB device containing photo and/or music fi les to the USB jack on the rear of the TV.3. When USB is connected to the TV, popup window appears. Then you can select Media Play. ¦ Using the Media Play Menu Viewing a Photo (or Slide Show) 1. Press the MENU button. Press the ▲ or ▼ button to select Application, then press the ENTER E button. 2. Press the ▲ or ▼ button to select Media Play (USB), then press the ENTER E button. 3. Press the ▲ or ▼ button to select the corresponding USB Memory Device, then press the ENTER E button. ✎ The Media Play menu differs depending on the USB Memory Device connected to TV. ✎ Some devices may not be supported due to compatibility problems. 4. Press the ◄ or ► button to select an icon (Photo, Music, Setup), then press the ENTER E button. ✎ It might not work properly with unlicensed multimedia files. ✎ Need-to-Know List before using Media Play (USB) x Only alphanumeric characters must be used as a folder name or file name (photo, music). x The file system only supports FAT16/32 (The NTFS file system is not supported) Certain types of USB Digital camera and audio devices may not be compatible with this TV. x Media Play (USB) only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) x Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. x Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem.MEDIA.PEnjoy photos and/or music fi les saved on a USB Mass Storage Class (MSC) device.

06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

SUM 315.0MB/495.0MB FreeDevice Name [LC500-NA]BN68-03219A-01L03.indb 25 2010-09-27 오전 10:49:4426 English Advanced Features

x Only MP3 and JPEG file formats are supported. x The Media Play (USB) mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz). x We recommend the sequential jpeg format. x Do not disconnect the USB device while it is loading. x MTP (Media Transfer Protocol) is not supported. x The playing duration of an mp3 file may be displayed as “00:00:00” if its playing time information is not found at the start of the file. x The higher the resolution of the image, the longer it takes to display on the screen. x The Photo or Music List displays up to 300 folders or files. x Loading may take some time depending on the size of the file. x MP3 files with DRM that have been downloaded from a non-free site cannot be played. x Digital Rights Management (DRM) is a technology that supports the creation of content, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements. x The power-saving mode of some external hard disk drives may be released automatically when connected to the TV. x If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read. x

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection. x If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC to permanently delete the file. Photos Viewing a Photo (or Slide Show) 1. Press the INFO button to display the option View, Start Slide Show, Delete, Delete All, Deselect All. 2. Press the ▲ or ▼ button to select Start Slide Show then press the ENTER E button. ✎ During the slide show, files are displayed in order from the currently shown file. ✎ MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device. ✎

Press the INFO button during the slide show to set the following options Slide Show Speed, Background Music,

Background Music Setting, List. Press the ▲ or ▼ button to select the option, then press the ENTER E button. – After setting the option press the ENTER E button to make a change. ✎

Press the INFO button during the play the photo files to set the following options Start Slide Show, Zoom, Rotate,

Music 4.3MB2 / 31 06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

08-Super World.mp3 00:03:25 SUM

USB Jan 7, 2010Upper Fold... Folder1/1 Page Free

Move to the previous folder stage icon

Press  (REW) or  (FF) buttons to change pages.

The selected file is displayed on the top with its playing time.

button to select Play (or Play Selected File),

Repeat Music, Delete (or Delete Selected File), Delete All or

button over a musical note icon immediately

plays the music file.

button over a folder icon shows the music

files included in the folder.

■ Play: Select to play MP3 files.

This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if

they are saved on the same USB device.

To adjust the music volume, press the

button on the remote control. To mute the sound, press the

MUTE button on the remote control.

■ Repeat Music (On / Off): Select to repeatedly play MP3 files in the current folder.

y Only displays files with the MP3 file extension. Other file extensions are not displayed, even if they are saved on the same

y If the sound is strange when playing MP3 files, adjust the Equalizer and SRS TruSurround HD in the Sound menu. (An

over-modulated MP3 file may cause a sound problem.)

y Music function information icons

Repeat Music is Off.

(Pause) button on the remote control while music is playing.

(Stop) button on the remote control, the music stops.

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

[LC500-NA]BN68-03219A-01L03.indb 27 2010-09-27 오전 10:49:4528 English Advanced Features

Setup Using the Setup Menu ■ Slide Show Speed: Select to control the slide show speed. You can select Fast, Normal or Slow. ■ Background Music: Select to determine whether to play an MP3 file during a slide show. You can select Music On or Music Off. ■ Background Music Setting: While a slide show is in progress, use the Background Music Setting to select a music file to listen to. Select an MP3 file as the background music. ■ Repeat Music: Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played. ■ Screen Saver: Select to set the waiting time before the screen saver appears. The screensaver will appear when no

button is pressed for 4 hours, 8 hours and 10 hours.

■ Safe Remove: You can remove the device safely from the TV. Playing the selected photos / music files y Press the Yellow button. y Repeat the above operation to select desired photos / music files. ✎ Selected photos or files are marked with the symbol c . To cancel a selection, press the Yellow button again. y Press the � (Play) / ENTER E button to play the selected photos or files.

Photo Photo Music SetupSUM307.2MB/973.7MB Music Photo Music SetupSUM307.2MB/973.7MBDSC_0558.JPG580 44078.0KB03 / 14SUM* Photo

Music 4.3MB2 / 31 06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

[LC500-NA]BN68-03219A-01L03.indb 28 2010-09-27 오전 10:49:4529 English 05 Other Information

Installing the Wall Mount Attaching the Blanking BracketWhen installing the TV onto a wall, attach the Blanking Bracket as shown.Installing the Wall Mount KitThe wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for

assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.Wall Mount Kit Specifications (VESA) ✎ The wall mount kit is not supplied, but sold separately. Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. ✎

x Standard dimensions for wall mount kits are shown in the table below. x When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. x Do not use screws that do not comply with the VESA standard screw specifications. x Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set. x For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications. x Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. x Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. x Do not mount the TV at more than a 15 degree tilt. x Always use two people to mount the TV to a wall. Other Information Blanking Bracket [LC500-NA]BN68-03219A-01L03.indb 29 2010-09-27 오전 10:49:4630

Product Family inches VESA Spec. (A * B) Standard Screw Quantity

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to

Anti-theft Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used to

physically fix the system when using it in a public place. The appearance and

locking method may differ from the illustration depending on the manufacturer.

Refer to the manual provided with the Kensington Lock for additional

information on proper use.

” icon on the rear of the TV. A Kensington slot is beside

To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object such as

2. Slide the end of the cable with the lock attached through the looped end

of the Kensington lock cable.

3. Insert the locking device into the Kensington slot on the product 1.

These are general instructions. For exact instructions, see the User manual supplied with the locking device.

The locking device has to be purchased separately.

The location of the Kensington slot may be different depending on the TV model.

05 Other Information

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children

do not hang over or destabilize the TV. Doing so may cause the TV to tip over, causing serious injuries or

death. Follow all safety precautions provided in the included Safety Flyer with your TV. For added stability

and safety, you can purchase and install the anti fall device as described below.

The TV-Holder Kit (Sold Separately):

The parts below are included in the TV Holder kit. In addition, you need to provide a wood screw, screw and molly, or other screw

appropriate for the wall or cabinet you intend to secure the TV-Holder string to. We recommend a size M4xL20 wood screw.

TV-Holder (BN96-15753A) Screw (M6xL16)

Installing the TV-Holder

1. Remove the screw attached to the back of your TV, and then connect the TV-Holder to the TV with the screw included in

the TV-Holder Kit that is designated for your TV.

Make sure to use only the appropriate supplied screw. If you use a different screw, you can damage your TV.

2. Firmly fasten the screw you provided (size M4xL20 or similar) to the wall or cabinet where the TV is to be installed.

If you fasten the screw to the wall, we recommend you drive the screw into a stud. If that is not possible, use a

molly to anchor the screw.

3. Tie the TV-Holder cord to the screw fastened on the wall or cabinet so that the TV is fixed. See the illustrations below.

Install the TV close to the wall so that it does not fall.

When attaching the TV-Holder cord to the wall, tie the cord level with the ground or slanted downwards for safety

Check the cord occasionally to make sure it is secure.

Before moving the TV, separate the connected cord first.

4. Verify all connections are properly secured. Periodically check the connections for any sign of fatigue or failure. If you have

any doubt about the security of your connections, contact a professional installer.

To purchase the TV-Holder Kit, contact Samsung Customer Care

If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips

apply, visit “www.samsung.com,” then click on Support, or call Samsung customer service at 1-800-SAMSUNG.

Issues Solutions and Explanations

Poor picture First of all, please perform the Picture Test and confirm that your TV is properly displaying the test image.

(go to MENU - Support - Self Diagnosis - Picture Test) (p. 24) If the test image is properly displayed, the poor picture may be caused by the source or signal.The TV image does not look as good as it did in the store.• If you have an analog cable/satellite box, upgrade to an HD digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.• Cable/Satellite subscribers: Try HD stations from the channel line up.• Antenna connection: Try HD stations after performing Auto program. ✎ Many HD channels are up scaled from SD(Standard Definition) contents.• Adjust the Cable/Sat box video output resolution to 1080i or 720p.The picture is distorted: macro block error, small block, dots, pixelization.• Compression of video contents may cause picture distortion, especially in fast moving pictures such as sports and action movies.• Low signal level can cause picture distortion. This is not a TV problem.• Mobile phones used close to the TV (cca up to 1m) may cause noise in picture on analog and digital TV. Color is wrong or missing. • If you’re using Component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause color problems or a blank screen. There is poor color or brightness. • Adjust the Picture options in the TV menu. (go to Picture mode / Color / Brightness / Sharpness) (p. 16) • Adjust Energy Saving option in the Setup menu. (p. 16)

• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset) (p. 18)There is a dotted line on the edge of the screen. • If the picture size is set to Screen Fit, change it to 16:9 (p. 17). • Change cable/satellite box resolution. The picture is black and white. • If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.When changing channels, the picture freezes or is distorted or delayed.• If connected to a cable box, please try to reset it. (reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes)• Set the output resolution of the cable box to 1080i or 720p. Sound Problem First of all, please perform the Sound Test to confirm that your TV audio is properly operating.

(go to MENU - Support - Self Diagnosis - Sound Test) (p. 24) If the audio is OK, the sound problem may caused by the source or signal.There is no sound or the sound is too low at maximum volume.• Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV. The picture is good but there is no sound. • Set the Speaker Select option to TV Speaker in the Sound menu (p. 20). • If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.• If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s audio option to HDMI when you have a HDMI connected to your TV).• If you are using a DVI to HDMI cable, a separate audio cable is required.• If your TV has a headphone jack, make sure there is nothing plugged into it.• Reboot the connected device by reconnecting the device’s power cable.The speakers are making an inappropriate noise.• Check cable connections. Make sure a video cable is not connected to an audio input.• For antenna or Cable connections, check the signal strength. Low signal level may cause sound distortion.• Perform the Sound Test as explained above. [LC500-NA]BN68-03219A-01L03.indb 32 2010-09-27 오전 10:49:4733

05 Other Information

Issues Solutions and Explanations

No Picture, No Video

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns

on, refer to “Remote control does not work” below.

The TV turns off automatically. • Ensure the Sleep Timer is set to Off in the Setup menu (p. 20).

• If your PC is connected to the TV, check your PC power settings.

• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

• When watching TV from an antenna or cable connection, the TV will turn off after 10 - 15 minutes if

There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the TV and external

• Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections

to the TV input. For example, if an external device’s output is HDMI, it should be connected to an

HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control.

• Reboot the connected device by reconnecting the device’s power cable.

RF(Cable/Antenna) Connection

The TV is not receiving all channels. • Make sure the coaxial cable is connected securely.

• Please try Auto Program to add available channels to the channel list. Go to MENU - Channel -

Auto Program then select Auto and make sure the correct Cable TV signal type is set in the menu.

There are 3 options (STD, HRC and IRC) (p. 14).

• Verify the Antenna is positioned correctly.

No Caption on digital channels. • Check Caption Setup menu. Try changing Caption Mode Service1 to CC1 (p. 22).

• Some channels may not have caption data.

The picture is distorted: macro block error,

small block, dots, pixelization.

• Compression of video contents may cause picture distortion, especially with fast moving pictures

such as sports and action movies.

• A low signal can cause picture distortion. This is not a TV problem.

A “Mode Not Supported” message

• Set your PC’s output resolution so it matches the resolutions supported by the TV (p. 12).

“PC” is always shown on the source list,

even if a PC is not connected.

• This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected.

The video is OK but there is no audio. • If you are using an HDMI connection, check the audio output setting on your PC.

Purple/green rolling horizontal bars and

buzzing noise from the TV speakers with

Component cable connection.

• Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates

that the set-top-box has a grounding issue. Replace the Component video cables with an HDMI

The picture won’t display in full screen. • HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3)

• Black bars on the Top & Bottom will be shown on movies that have aspect ratios different from your

• Adjust the picture size options on your external device or TV to full screen.

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control

doesn’t turn the TV on or off, or adjust the

• Program the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for the

Issues Solutions and Explanations A “Mode Not Supported” message appears.• Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to the resolution settings on page 12 of this manual. Caption on TV menu is greyed out. • Caption can not be selected in the TV menu when connected via HDMI or Component (p. 22). • Caption must be activated on the external device (p. 22).There is a plastic smell from the TV. • This smell is normal and will dissipate over time.The TV Signal Strength is unavailable in the Self Diagnostic Test menu.• This function is only available with digital channels from an Antenna / RF / Coax connection (p. 24).The TV is tilted to the side. • Remove the base stand from the TV and reassemble it.The channel menu is greyed out (unavailable).• The Channel menu is only available when the TV source is selected.Your settings are lost after 30 minutes or every time the TV is turned off. • If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change

the settings from Store Demo mode to Home Use mode in the Plug & Play procedure. Press the

SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play → ENTER E (p. 8).You have intermittent loss of audio or video.• Check the cable connections and reconnect them.• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to a wall, we recommend using cables with 90 degree connectors.You see small particles when you look closely at the edge of the frame of the TV.• This is part of the product’s design and is not a defect.POP (TV’s internal banner ad) appears on the screen. • Select Home Use under Plug & Play mode. For details, refer to Plug & Play Feature (p. 8).

This TFT LCD panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the

¦ Storage and Maintenance

Do not spray water or a cleaning agent directly onto the

product. Any liquid that goes into the product may cause a

failure, fire, or electric shock.

Clean the product with a soft cloth dapped in a small amount

TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc.

TruSurround HD technology is incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

Open Source License Notice

In the case of using open source software, Open Source Licenses are available on the product menu.

Open Source License Notice is written only English.

Display Resolution 1920 x 1080

Environmental Considerations

Operating Temperature

10% to 80%, non-condensing

-4°F to 113°F (-20°C to 45°C)

5% to 95%, non-condensing

(40.0 inches measured diagonally)

(970.0 X 78.6 X 591.3 mm)

38.2 X 9.5 X 25.7 inches

(970.0 X 240.0 X 653.0 mm)

Design and specifications are subject to change without prior notice.

This device is a Class B digital apparatus.

For information about power supply, and more about power consumption, refer to the label attached to the product.

■ Front view / Side view

Model name 1 2 3 4 5 6 7 8

■ Jack panel detail / Rear view

Model name 1 2 3 4 5 6

LN40C500 13.2 2.7 4.0 27.6 7.9 7.9

NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the

dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.

© 2010 Samsung Electronics America, Inc

Connecting to a PC 12

Connecting to an Audio Device 11

D DIGITAL AUDIO OUT 11

I Installation Space 2

Memorizing Channels 14

burned in images, are not covered by your Samsung limited warranty.

DIGITAL AUDIO OUT (OPTICAL)

-/+ VESA GTF1280 x 720 1280 x 102452,500 74,620 70,00070,00089,040128,943 -/+

06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

Music 4.3MB2 / 31 06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

Music 4.3MB2 / 31 06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

safety, you can purchase and install the anti fall device as described below.

Instalación del soporte del televisor

1. Remove the screw attached to the back of your TV, and then connect the TV-Holder to the TV with the screw included in the TV-Holder

Kit that is designated for your TV.

Use sólo el tornillo suministrado. Si utiliza un tornillo diferente podría dañar el televisor.

2. Firmly fasten the screw you provided (size M4xL20 or similar) to the wall or cabinet where the TV is to be installed.

Si va a utilizar el tornillo sobre una pared es aconsejable montarlo sobre un montante. Si esto no es posible, utilice un perno

3. Tie the TV-Holder cord to the screw fastened on the wall or cabinet so that the TV is fixed. See the illustrations below.

TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc.

TruSurround HD technology is incorporated under license from SRS Labs, Inc.

Fabricado bajo licencia de Dolby Laboratories. Dolby y el símbolo de la doble D son marcas comerciales de

R W R GB R W Y R W R GB R W R W R W R B G Y Y VIDEO OUTPR PB Y COMPONENT OUT AUDIO OUT R-AUDIO-LAUDIO OUT R-AUDIO-L Appareil

DIGITAL AUDIO OUT (OPTICAL)

Music 4.3MB2 / 31 06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

Music 4.3MB2 / 31 06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

Music 4.3MB2 / 31 06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

Music 4.3MB2 / 31 06-I Will Carry You.mp3 00:00:00

01-The Way.mp3 00:03:25

02-Run To Me.mp3 00:03:25

03-No More Sad Songs.mp3 00:03:25

04-Interference-gold.mp3 00:03:25

05-marketa_irglova-The_hill.mp3 00:03:25

06-I Will Carry You.mp3 00:03:25

TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc.

TruSurround HD technology is incorporated under license from SRS Labs, Inc.

Fabriqué sous licence de Dolby Laboratories. Dolby et le symbole double D sont des marques de

(970.0 X 240.0 X 653.0 mm)
