IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The

wide blade or the third prong are provided for your

safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the

< IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL.

< USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct

the interference by one or more of the following

< Reorient or relocate the equipment and/or the

< Increase the separation between the equipment

< Connect the equipment into an outlet on a

circuit different from that to which the receiver is

< Consult the dealer or an experienced radio/TV

technician for help.

CAUTION Changes or modifications to this equipment not

expressly approved by TEAC CORPORATION for

compliance will void the user’s warranty.

This product has been designed and manufactured

according to FDA regulations “title 21, CFR, chapter 1,

subchapter J, based on the Radiation Control for Health

and Safety Act of 1968”, and is classified as class 1 laser

product. There is not hazardous invisible laser radiation

during operation because invisible laser radiation emitted

inside of this product is completely confined in the

protective housings.

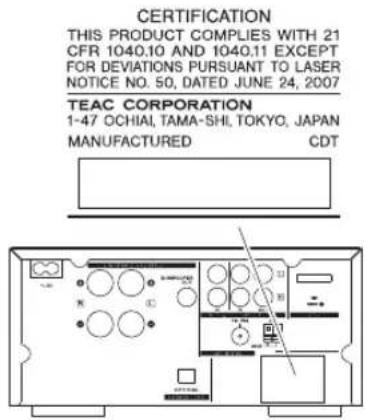

The label required in this regulation is shown as follows.

Type : SF-P101VF Manufacturer : Sanyo Electric Co., Ltd

Laser output : Less than 1mW on the objective lens

Wavelength : 790±30nm

MPEG Layer-3 audio coding technology licensed from

Fraunhofer IIS and Thomson.

This product is protected by certain intellectual property

rights of Microsoft. Use or distribution of such technology

outside of this product is prohibited without a license

“Made for iPod” means that an electronic accessory

has been designed to connect specifically to iPod and

has been certified by the developer to meet Apple

performance standards.

Apple is not responsible for the operation of this device

or its compliance with safety and regulatory standards.

Apple and iPod are trademarks of Apple Inc., registered in

the U.S. and other countries.

iPhone is a trademark of Apple Inc.

SDHC Logo is a trademark of SD-3C, LLC.

Thank you for choosing TEAC. Read this manual

carefully to get the best performance from this unit.

Before Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Read this before operations.

< When the unit is turned on, switching on the TV may

result in lines appearing on the TV screen, depending

on the condition of the electric waves of the TV

broadcast. This is not malfunction in the unit or the TV.

In this case, turn off the unit.

As the unit may become warm during operation, always

leave sufficient space around the unit for ventilation.

< The voltage supplied to the unit should match the

voltage as printed on the rear panel. If you are in any

doubt regarding this matter, consult an electrician.

< Choose the installation location of your unit carefully.

Avoid placing it in direct sunlight or close to a source

of heat. Also avoid locations subject to vibrations and

excessive dust, heat, cold or moisture.

< Do not place the unit on an amplifier/receiver.

< Do not open the cabinet as this might result in

damage to the circuitry or electrical shock. If a foreign

object should get into the set, contact your dealer or

< When removing the power plug from the wall outlet,

always pull directly on the plug, never yank the cord.

< To keep the laser pickup clean, do not touch it, and do

not forget to close the disc tray when not using the

< Do not attempt to clean the unit with chemical

solvents as this might damage the finish. Use a clean,

< Keep this manual in a safe place for future reference.

< The operations are illustrated using the European

model for example in this manual.

DO NOT MOVE THE UNIT DURING PLAYBACK During playback, the disc rotates at high speed. Do

NOT lift or move the unit during playback. Doing so

may damage the disc.

WHEN MOVING THIS UNIT When changing places of installation or packing the

unit for moving, be sure to remove the disc and return

the disc table to its original position in the player.

Then, press the power switch to turn the power off,

and disconnect the power cord. Moving this unit with

the disc loaded may result in damage to this unit.

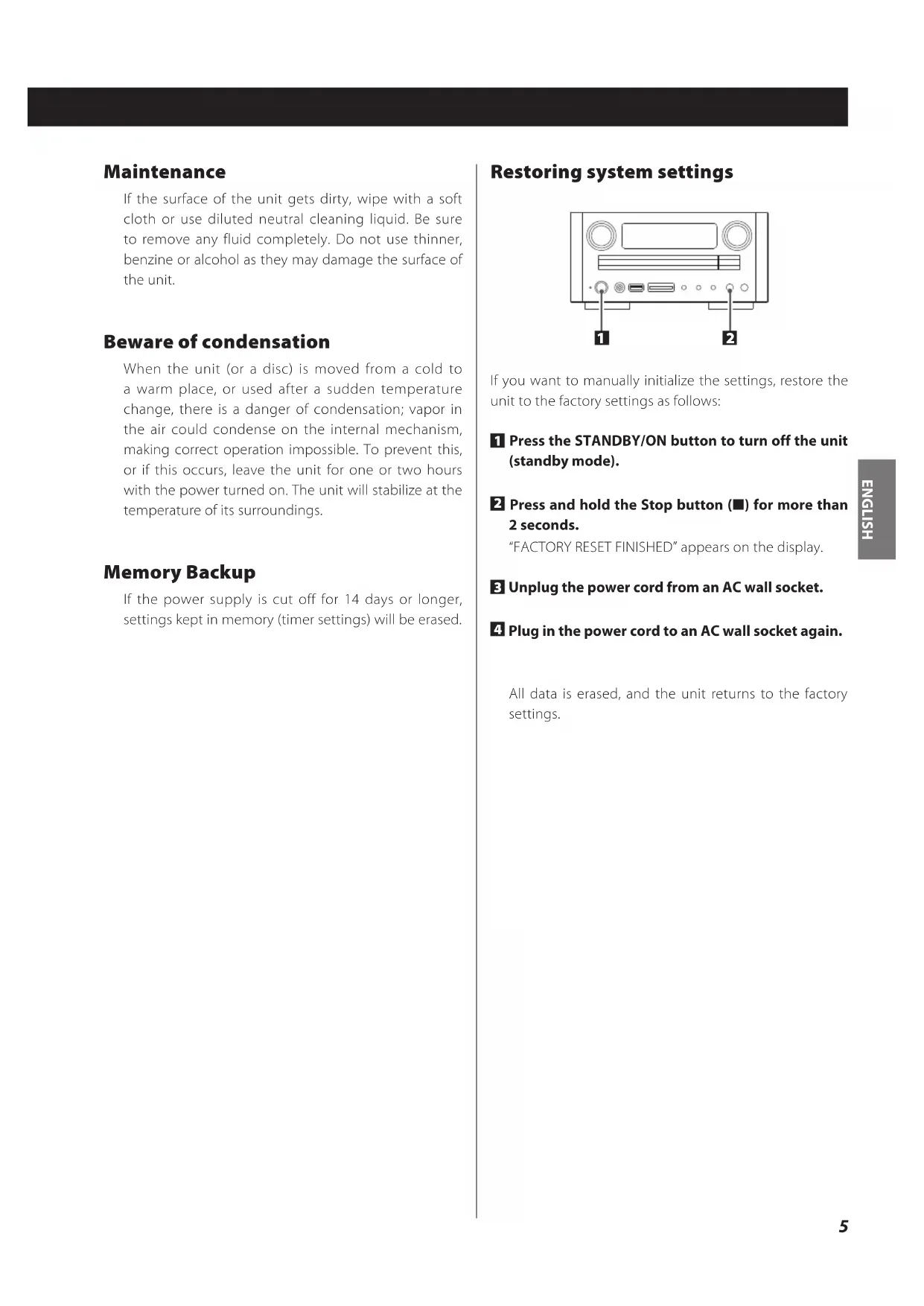

If the surface of the unit gets dirty, wipe with a soft

cloth or use diluted neutral cleaning liquid. Be sure

to remove any fluid completely. Do not use thinner,

benzine or alcohol as they may damage the surface of

Beware of condensation

When the unit (or a disc) is moved from a cold to

a warm place, or used after a sudden temperature

change, there is a danger of condensation; vapor in

the air could condense on the internal mechanism,

making correct operation impossible. To prevent this,

or if this occurs, leave the unit for one or two hours

with the power turned on. The unit will stabilize at the

temperature of its surroundings.

If the power supply is cut off for 14 days or longer,

settings kept in memory (timer settings) will be erased.

Restoring system settings

If you want to manually initialize the settings, restore the

unit to the factory settings as follows:

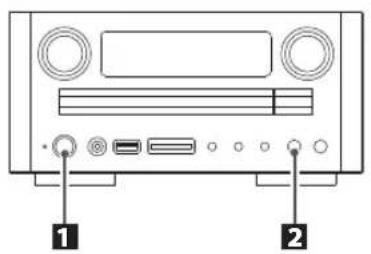

Press the STANDBY/ON button to turn off the unit

Press and hold the Stop button (H) for more than

“FACTORY RESET FINISHED” appears on the display.

Unplug the power cord from an AC wall socket.

Plug in the power cord to an AC wall socket again.

All data is erased, and the unit returns to the factory

Discs which can be played on this unit:

M Conventional audio CDs bearing the COMPACT DISC DIGITAL AUDIO logo on the label:

M Properly finalized CD-R and CD-RW discs

< Depending on the quality of the disc and/or the

condition of the recording, some CD-R/CD-RW discs

may not be playable.

< Copy-protected discs and other discs that do not

conform to the CD standard may not play back

correctly in this player. If you use such discs in this

unit, TEAC Corporation and its subsidiaries cannot be

responsible for any consequences or guarantee the

quality of reproduction. If you experience problems

with such non-standard discs, you should contact the

producers of the disc.

< Always place the disc on the disc tray with the label

side up. (Compact discs can be played or recorded

< To remove a disc from its storage case, press down on

the center of the case and lift the disc out, holding it

carefully by the edges.

< Should the disc become dirty, wipe the surface radially

(from the center hole outward towards the outer

edge) with a soft, dry cloth:

< Never use such chemicals as record sprays, antistatic

sprays or fluid, benzine or thinner to clean the discs.

Such chemicals will do irreparable damage to the

disc's plastic surface.

< Discs should be returned to their cases after use to

avoid dust and scratches that could cause the laser

< Do not expose discs to direct sunlight or high humidity

and temperature for extended periods. Long exposure

to high temperatures will warp the disc.

< Do not play any disc that is warped, deformed or

damaged. Playing such discs may cause irreparable

harm to the playing mechanisms.

< CD-R and CD-RW discs are more sensitive to the

effects of heat and ultraviolet rays than ordinary CDs.

It is important that they are not stored in a location

where direct sunlight will fall on them, and which is

away from sources of heat such as radiators or heat-

generating electrical devices.

< Printable CD-R and CD-RW discs are not recommended,

as the label side might be sticky and damage the unit.

< Do not stick papers or protective sheets on the discs

and do not use any protective coating spray.

< Use a soft oil-based felt-tipped pen to write the

information on the label side. Never use a ball-point

or hard-tipped pen, as this may cause damage to the

< Never use a stabilizer. Using commercially available CD

stabilizers with this unit will damage the mechanisms

and cause them to malfunction.

< Do not use irregular shape CDs (octagonal, heart

shaped, business card size, etc.). CDs of this sort can

< If you are in any doubt as to the care and handling of a

CD-R/CD-RW disc, read the precautions supplied with

the disc, or contact the disc manufacturer directly.

This unit can be connected to and used with the

following iPod models.

iPod (4th and 5th generation)

iPod nano (1st to 5th generation)

iPod touch (1st to 3rd generation)

< You can listen to music stored on an iPhone by setting

Airplane Mode on the iPhone to ON.

Compatible iPod Software

In case your iPod will not work with the CR-H238i or

with the remote control unit, software update may

Visit the Apple website and download the latest iPod

MP3 and WMA iPod Compatibility

< This unit can play MP3/WMA files recorded on CD-R/

CD-RW discs, SD memory cards and various external

USB storage devices such as USB flash memory, MP3

The HDD must be formatted FAT 16 or FAT 32, but not

< When more than 255 folders or 999 files are recorded,

the unit might not be able to play them correctly.

< File names of MP3 or WMA should be alphanumeric

characters. This unit cannot display symbols and full-

size or double-byte characters (such as Japanese,

Chinese, etc.) correctly. Also, be sure to use the file

extension. (“.mp3” for MP3 files, “.wma” for WMA files.)

< MP3 files are mono or stereo MPEG-1 Audio Layer 3

format. This unit can play MP3 files with a sampling

frequency of 44.1 kHz or 48 kHz, and a bit-rate of 320

< This unit can play WMA files with a sampling frequency

of 44.1 kHz and a bit-rate of 192 kbps or less.

WMA stands for Windows Media Audio.

< Audio encoded at 128 kbps should sound close to

regular audio CD quality. Although this player will play

lower bit-rate MP3 files, the sound quality becomes

noticeably worse at lower bit-rates.

< This unit cannot play copy-protected files.INOUT LINE RLRL VIDEO IN DIGITAL IN

< Switch off the power to all equipment before making any connections.

< Read the instructions of each component you intend to use with this unit.

< Be sure to insert each plug securely. To prevent humming and interference, avoid

bundling the signal interconnection cables together with the AC power cord or speaker

CD recorder, Cassette deck, etc.

CD recorder, MD deck, etc.

DVD player, etc.ENGLISH

D S-VIDEO OUT terminal

This terminal outputs video signal from iPod.

Use a commercially available S-Video cable to

connect the Dock to the S-Video input of a suitably

equipped television or monitor. Use this connection

in preference to a composite video connection.

E DIGITAL OUT terminal (optical)

Digital 2-channel audio signal is output from this

Connect it to the digital input terminal of a digital

device such as a CD recorder, MD deck, etc. Use a

commercially available optical digital cable.

< Remove the protective cap from the DIGITAL OUT

terminal before connecting.

After all other connections have been completed,

connect the plug to an AC wall socket.

Be sure to connect the power cord to an AC outlet

which supplies the correct voltage.

Hold the power plug when plugging or unplugging

These jacks transmit an analog 2-channel audio

signal. Connect the components using commercially

available RCA pin cables.

Make sure to connect the cables as follows:

white plug q white jack (L: left channel)

red plug q red jack (R: right channel)

< Be sure to insert each plug securely. To prevent

humming and interference, avoid bundling the

signal interconnection cables together with the AC

power cord or speaker cables.

Connect the Dock to the iPod port.

< Make sure the “SIDE A” label on the plug is facing

< Securely insert the plug until a slight “click” is heard.

To disconnect the Dock:

Squeeze both sides of the plug and pull.

< iPod dock is not supplied for this unit.

C VIDEO OUT terminal

This terminal outputs video signal from iPod.

Use a commercially available RCA pin video cable to

connect the Dock to the composite video connector

of a television or monitor.IN LINE H G

G Speaker terminals < Use commercially available speaker cables. < The black speaker terminals are _ (negative). Generally, the + side of the speaker cable is marked to make it distinguishable from the _ side of the cable. Connect this marked side to the red + terminal and the unmarked side to the black _ terminal.Caution: < To avoid damaging the speakers with a sudden high-volume sound, be sure to switch the power off before connecting the speakers.< Check the impedance of your speakers. Connect speakers with an impedance of 6 ohms or more.< The metal portions of the two separate wires should not touch or an electrical short could occur. Shorted wires could create a fire hazard or induce a failure in your equipment.How to connect speakers:1. Prepare the speaker cables for connection by stripping off approximately 10 mm (1/2 inch) or less of the outer insulation. (Removing too much insulation may lead to a short circuit if the bared wires should come in contact with each other.) Twist the strands of the stripped wires tightly together.2. Turn the terminal cap counter clockwise to loosen it. The speaker terminal caps cannot be fully removed from the base.3. Insert the wire into the terminal and turn the terminal cap clockwise to securely connect it:Make sure none of the wire insulation is under the terminal, only the bare, stripped wire.4. Make sure it is fastened firmly by pulling the cable lightly.For European customersIn accordance with European safety regulations, it is not possible to connect banana plugs into the speaker terminals on European models. The holes into which banana plugs are inserted have been covered with black caps. Connect the speakers using spades or bare wires. If the black caps become separated from the terminals, return them to their original position.

H Subwoofer Connect a commercially available powered subwoofer.Speaker(right)Speaker(left)SubwooferENGLISH

AM Indoor Loop Antenna

The high-performance AM loop antenna provided

with this unit is sufficient for good reception in most

To stand the loop antenna on a surface, fix the claw to

the slot in the antenna base.

Connect the loop antenna's wires to the AM antenna

Place the antenna on a shelf or hang it on a window

frame, etc., in the direction which gives the best

reception. Keep all other wires such as power cords,

speaker wires or interconnect wires as far away as

possible from the antenna.

> If the AM loop antenna provided does not deliver

sufficient reception (often due to being too far from

the transmitter or in a concrete building, etc.), it may

be necessary to use an outdoor AM antenna.

Use either a high quality commercial AM antenna

or, if not available, an insulated wire more than 5 m

(16-2/5 ft.) long, strip one end, and connect this to the

The antenna wire should be strung outdoors or

indoors near a window. For better reception, connect

the GND terminal to a reliable ground.

Even when using an outdoor AM antenna, do not

disconnect the indoor AM loop antenna.

Connecting Antennas (AM/FM)

Make sure to connect:

white wire q white terminal

Connect the lead-type FM antenna to the FM 75 Ω

socket, extend the lead and tune the tuner to your

favorite station (see page 30). Adjust the antenna in

a suitable location like a window frame or wall until

the reception is best and then affix the antenna in

that position using thumb tacks, push pins or any

other suitable means.

In an area where FM signals are weak, it will be

necessary to use an outdoor FM antenna. Generally,

a 3-element antenna will be sufficient; if you live

in an area where the FM signals are particularly

weak, it may be necessary to use one with 5 or more

< Disconnect the FM indoor antenna when using an

outdoor antenna.A B C D G H I J K M O NL E F

Part Names (main unit)

A MULTI JOG In CD/USB/SD CARD mode, use this knob to skip

In iPod mode, use this knob to scroll up and down the

In TUNER mode, use this knob to tune in to stations or

select preset stations.

While setting the clock or the timer, use this knob to

change the item to set.

After pressing the TONE/BAL button, turn this knob to

adjust bass, treble and balance.

When operating the remote control unit, point it

towards the remote sensor.

F STANDBY/ON Press this button to turn the unit on or put it in the

The standby indicator lights when the unit is in

the standby mode. When the unit is turned on, the

standby indicator goes off.

For private listening, insert the headphones plug

into this jack, and adjust the volume by turning the

Connect an external USB storage device.

I SD memory card slot

Insert an SD memory card.

J SOURCE Use this button to select a source.

K TONE/BAL Use this button together with the MULTI JOG knob to

adjust bass, treble and balance.

L MENU/FM MODE In iPod mode, use this button to go back to the

previous menu. This button is equivalent to the MENU

button on your iPod.

In TUNER FM mode, use this button to select stereo or

M Stop (H), RDS (For Europe)

Stop (H) (For North America)

In CD/USB/SD CARD mode, use this button to stop

In TUNER FM mode, use this button to select an RDS

mode. (Only for Europe)

In CD/USB/SD CARD/iPod mode, use this button to

start or pause playback.

O Open/Close (L), TUNING MODE/ENTER In CD mode, use this button to open and close the

In iPod mode, use this button to confirm selection in

menus. This button is equivalent to the Center button

In TUNER mode, use this button to select the tuning

While setting the timer or the clock, use this button to

Part Names (remote control unit)

To simplify explanations, instructions in this manual

mainly refer to the names of the buttons and knobs

on the front panel. Associated buttons on the remote

control unit will also operate similarly.

Press this button to turn the unit on or put it in the

In CD/USB/SD CARD mode, use these buttons to select

CLEAR When programming tracks/files, use this button to

In CD/USB/SD CARD/iPod mode, use these buttons to

search for a part of a track/file/song.

In TUNER mode, hold down these buttons to start auto

In CD/USB/SD CARD mode, use this button to stop

< This button does not work in iPod mode.

In CD/USB/SD CARD/iPod mode, use this button to

start or pause playback.

In iPod mode, hold down this button to put the iPod

MENU In iPod mode, use this button to go back to the

previous menu. This button is equivalent to the MENU

button on your iPod.

ENTER When programming a track/file, use this button to

confirm the track/file selection.

In iPod mode, use this button to confirm selection in

menus. This button is equivalent to the Center button

on your iPod.ENGLISH

While setting the clock or the timer, use these buttons

to change the item to set.

In CD/USB/SD CARD/iPod mode, use these buttons to

skip tracks/files/songs.

In TUNER FM/TUNER AM mode, use these buttons to

select a preset station.

TONE/BAL Use this button together with the Scroll buttons

Source (AUX 1, AUX 2, TUNER, CD, USB, SD, iPod)

Use these buttons to select a source.

Press the TUNER button repeatedly to select TUNER FM

SLEEP Use this button to set the sleep timer.

TIMER Use this button to turn on or off the timer function.

INFO/RDS (Only for Europe)

In TUNER FM mode, use this button to select an RDS

Please ignore “INFO” on the remote control unit.

(INFO function does not work on this unit.)

> This button does not work at all on the North American

PROGRAM In CD/USB/SD CARD mode, use this button to enter

the programme mode when playback is stopped.

In TUNER mode, use this button to enter the presetting

SHUFFLE In CD/USB/SD CARD/iPod mode, use this button to

start shuffle playback.

REPEAT 1/ALL In CD/USB/SD CARD/iPod mode, use this button to set

the repeat playback.

DISPLAY In CD/USB/SD CARD mode, use this button to change

the information shown on the display during playback.

In CD/USB/SD CARD mode, use these buttons to select

a folder (MP3/WMA only).

In iPod mode, use these buttons to scroll up and down

In TUNER FM/TUNER AM mode, use these buttons to

change the frequency.

While setting the clock or the timer, use these buttons

to change the value.

After pressing the TONE/BAL button, use these buttons

to adjust bass, treble and balance.

MUTING Use this button to mute the sound.

If the distance required between the remote control

unit and main unit decreases, the batteries are

exhausted. In this case replace the batteries with new

< For more information about collection of batteries,

please contact your local municipality, your waste

disposal service or the point of sale where you

purchased the items.

Precautions concerning batteries

< Be sure to insert the batteries with the positive “+”

and negative “_” polarities positioned correctly.

< Use batteries of the same type. Never use different

types of batteries together.

< Rechargeable and non-rechargeable batteries can be

used. Refer to the precautions on their labels.

< When the remote control unit is not to be used for a

long time (more than a month), remove the batteries

from the remote control unit to prevent them from

< If the batteries leak, wipe away the liquid inside the

battery compartment and replace the batteries with

< Do not use any other batteries not specified. Do not

mix new batteries with old ones or use different types

of batteries together.

< Do not heat or disassemble batteries and never throw

them in the fire or water.

< Do not carry or store batteries with other metallic

objects. The battery may short circuit, leak or explode.

< Never recharge a battery unless it is a verified

The provided Remote Control Unit allows the unit to be

operated from a distance.

When operating the remote control unit, point it towards

the REMOTE SENSOR on the front panel of the unit.

< Even if the remote control unit is operated within

the effective range, remote control operation may be

impossible if there are any obstacles between the unit

and the remote control.

< If the remote control unit is operated near other

appliances which generate infrared rays, or if other

remote control devices using infrared rays are used

near the unit, it may operate incorrectly. Conversely,

the other appliances may operate incorrectly.

Battery Installation

1. Remove the battery compartment cover.

2. Insert two “AAA” (R03, UM-4) dry batteries. Make sure

that the batteries are inserted with their positive “+”

and negative “_” poles positioned correctly.

3. Close the cover.TUNER FM CD

Press the STANDBY/ON button to turn the unit on.

When the unit is turned on, the standby indicator goes

Press the SOURCE button repeatedly to select a

The source changes as follows:

< To listen to an external source connected to the AUX IN jack, select “AUX 1 IN” or “AUX 2 IN”.

< You can use the AUX 1, AUX 2, TUNER, CD, USB, SD,

and iPod buttons on the remote control unit to select

Play the source, and gradually turn up the volume

to the required level by turning the VOLUME

< This function will be cancelled when the unit is turned

Adjusts the level of low frequency sound range.

The level can be adjusted from “− 10” to “+ 10”.

Adjusts the level of high frequency sound range.

The level can be adjusted from “− 10” to “+ 10”.

Adjusts the balance of the volume level between

the left and right speakers.

The level can be adjusted from “L +16” to “R +16”.

How to adjust bass, treble, balance of

Press the TONE/BAL button repeatedly to select

Within 3 seconds, turn the MULTI JOG knob to

Wait for 3 seconds after adjusting the item to

> To adjust other items, press the TONE/BAL button to

select an item to adjust within 3 seconds.

Basic Operation (2)VOLUME ENGLISH

< When muting is engaged, “MUTING” appears on the

< If you change the volume when muting is engaged,

the muting will be cancelled.

The power can be switched off after a specified

Press the SLEEP button repeatedly until desired time

appears on the display.

SLEEP 90 (60, 30, 20, 10)

The power will be switched off 90 (60, 30, 20,10)

SLEEP OFF The sleep timer is off.

< The display is dimmed when you set the sleep timer.

< If you want to check the remaining time, press the

SLEEP button once. The remaining time will be

displayed for 3 seconds, then return to the normal

For private listening, first reduce the volume level to

minimum. Then insert the plug of your headphones

into the PHONES jack, and adjust the volume using the

The sound from the speakers and subwoofer is cut off

while the headphones are connected.

CAUTION Always lower the volume level prior to connecting

your headphones. TO AVOID DAMAGING YOUR HEARING, do not put on your headphones until after

you have connected them.20

If no iPod is docked, “Not Connected” appears on the

If an iPod is already docked, playback will start.

Insert the iPod into the dock (separately

purchased) of the CR-H238i.

“Connected” briefly appears on the display.

The iPod automatically turns on and starts playback

from the iPod's music list.

< The iPod battery will be recharged while the iPod is

docked and this unit is turned on. Charging will stop

once the iPod is fully charged. It is not charged while

the unit is in the standby mode.

< When headphones are plugged into the iPod, sound

comes out from both the speakers of the CR-H238i

< You can watch a video source stored on the iPod on

the TV or monitor connected to the dock. Set the TV Out setting on the iPod to On.

< The Stop button (H) does not work in the iPod mode.

During playback, press the PLAY/PAUSE button (G/

J) to pause playback. Playback stops at the current

To resume playback, press the PLAY/PAUSE button

To skip to the next or a previous song

During playback or in pause mode, press the Skip

button (. or /) repeatedly until the desired

< When the . button is pressed during playback, the

song being played will be played from the beginning.

To return to the beginning of the previous track, press

the . button twice.ENGLISH

Each time the REPEAT 1/ALL button is pressed, the

repeat mode is changed as follows:

< If the iPod is set to repeat one song, the

appears on the display of the iPod.

If the iPod is set to repeat all songs, the

appears on the display of the iPod.

During playback, press the SHUFFLE button to change

Each time the SHUFFLE button is pressed, the shuffle

mode is changed as follows:

< If the iPod is set to either of the shuffle modes, the

icon appears on the display of the iPod.

To search for a part of a song

During playback, hold down the Search button

(m or ,) and release it when the part you want

to listen to is found.

To go back to the previous menu

Press the MENU button to go back to the previous

This button is equivalent to the MENU button on your

To select a menu item

unit (or turn the MULTI JOG knob on the main unit) to

scroll to the menu and press the ENTER button.

Repeat one song Repeat all songs

Shuffle songs Shuffle albums

Press the SOURCE button repeatedly to select

“No disc” will be displayed if no disc has been inserted.

Press the Open/Close button (L).

Place a disc on a tray with the printed surface

< The disc must be loaded centrally into the disc tray. If

the disc is not correctly loaded, it may not be possible

to open the tray again once it has closed.

< Never place more than one disc on the tray.

< Do not stick labels or tapes on the disc.

< Do not use irregularly-shaped discs.

current track number

elapsed time of the current

elapsed time of the current

Press the Open/Close button (L) to close the tray.

When an audio CD is loaded:

The total number of the tracks and total play time of

the disc is displayed.

When an MP3 or WMA disc is loaded:

The total number of folders and files of the disc is

Press the Play/Pause button (G/J).

Playback starts from the first track/file.

When an audio CD is played back:

When an MP3 or WMA disc is played back:12

< MP3/WMA files not contained in folders are

automatically put in the “ROOT” folder, and playback

starts from the first file of the ROOT folder.

< If there are folders that have no MP3/WMA files, this

< The unit stops automatically when playback of all the

tracks/files has finished.

< If you load a disc, and then press the Play/Pause

button (y/J) without having first closed the disc

tray, the disc tray closes and playback starts.

You can play MP3/WMA files by connecting various

external USB storage devices such as USB flash memory.

< This unit can play external USB storage devices with a

capacity of up to 32 GB.

Press the SOURCE button repeatedly to select

“No USB” will be displayed if no USB device is

Connect an external USB storage device to the

USB port of this unit.

When an HDD device is connected to this unit, it may

take several minutes to display the number of files.

You can play MP3/WMA files recorded on an SD memory

Press the SOURCE button repeatedly to select

“No SD” will be displayed if no SD memory card is

Insert an SD memory card into the SD slot of this

Press the Play/Pause button (y/J).

To suspend playback temporarily

Press the Play/Pause button (G/J) during playback.

Playback stops at the current position. To resume

playback, press the Play/Pause button (G/J) again.

Press the Stop button (H) to stop playback.

General Playback (disc/USB/SD)ENGLISH

To search for a part of a track/file

You can search for a part of a track/file in the following

During playback, hold down the Search button

(m or ,) and release it when the part you want

to listen to is found.

During playback, press the Search button

(m or ,), then press the PLAY/PAUSE button

(G/J) when the part you want to listen to is found.

To skip to the next or a previous track

During playback, turn the MULTI JOG knob until the

desired track/file is found. The selected track/file will

be played from the beginning.

In the stop mode, turn the MULTI JOG knob until the

desired track/file is found. Press the Play/Pause button

(G/J) to start playback from the selected track/file.

< During programmed playback, the next or previous

track/file in the program is played.CD/Play

While in stop or playback mode, you can use the Numeric

buttons on the remote control unit to select a track/file.

When you use the Numeric buttons, press the CD,

USB or SD button on the remote control unit first.

Press the Numeric buttons to select a track/file.

Playback starts from the selected track.

To select track number 2:

Press “0”, “0” and “2”, or press “2” and the PLAY/PAUSE

> If you press “2” and wait for a few seconds, playback

starts from track 2.

To select track number 12:

Press “0”, “1” and “2”, or press “1”, “2” and the PLAY/

> If you press “1” and “2” and wait for a few seconds,

playback starts from track 12.

To select track number 123 (MP3/WMA files only):

Press “1”, “2” and “3”.

Direct Playback (disc/USB/SD)

During playback, press the DISPLAY button repeatedly to

change the information on the display.

Display changes as follows:

elapsed time of the current track

remaining time of the current track

elapsed time of the disc

remaining time of the disc

default display (current file number and the

elapsed time of the file)

current folder name and file name (scrolling)

title, artist name and album name (scrolling)

current folder number and track numberRPT 1

Press the REPEAT 1/ALL button during playback. The

repeat mode is changed as follows:

< When you stop the playback or change the source,

repeat mode will be cancelled:

Repeat one track/file (RPT 1)

The track being played will be played repeatedly. If

you press the Skip button (.or/) and select

another track/file, the track/file you selected will be

Repeat all the files in the folder (RPT Folder)

All the tracks in the folder will be played repeatedly.

< When the disc has no folder, this mode will be

Repeat all the tracks/files (RPT ALL)

All the tracks/files will be played repeatedly.

During programmed playback, programmed tracks/

files will be played repeatedly.

Press the SHUFFLE button during playback or in stop

“Random” appears on the display, and the tracks/files

will be played randomly.

< If you press the / button during shuffle playback,

next track/file will be randomly selected and played. If

you press the . button, the currently played track/

file will be played from the beginning.

< To cancel shuffle playback, press the SHUFFLE button.

Up to 30 tracks/files can be programmed in the desired

< You can also use the Skip buttons (.//) to

to program more tracks/

< If you make a mistake, press the CLEAR button. The last

input track/file number will be deleted.

< Up to 30 tracks/files can be programmed. If you

attempt to programme more than 30 tracks/files,

“P-FULL” appears on the display.

When programming has been finished, press the

PLAY/PAUSE button (y/J) to start programmed

< After playback of all the programmed tracks/files has

finished or you stop the programmed playback, you

can return to the programmed playback by pressing

the Play/Pause button (y/J).

< When the PROGRAM button is pressed in the stop

mode, the programmed contents will be cleared.

To check the programmed order

In the stop mode, press the ENTER button repeatedly.

The track number and program number will be shown

Programmed Playback (disc/USB/SD)ENGLISH

To change or add a track/file to the

In the stop mode, press the ENTER button

repeatedly until the program number for which

you want to change the track/file appears on the

If you want to add a track/file to the end of the

program, press the ENTER button repeatedly until

“T_ _ _” appears on the display.

Select a track/file using the Number buttons, then

> You can also select a track/file using the Skip buttons

The previously programmed track/file is replaced with

the newly selected one. Or the track/file is added to

the end of the program.

To clear the program

In the stop mode, press the PROGRAM button.

< In the following cases, the programmed contents will

pressing the AUX 1, AUX 2, TUNER, CD, USB, SD, iPod

or STANDBY/ON button

opening the disc tray

disconnecting the AC power cord3

Press the SOURCE button repeatedly to select

Each time the TUNING MODE button is pressed, the

tuning mode changes as follows:

Turn the MULTI JOG knob to tune in to a station

you want to listen to.

Manual tune Auto tune

Listening to FM/AM Stations

Listening to an External Source

You can listen to the sound from an external component

connected to the AUX 1 IN or AUX 2 IN jacks.

Press the SOURCE button repeatedly to select

“AUX1 IN” or “AUX2 IN”.

Start playback on the external component.

Turn the MULTI JOG knob until the station you want to

listen to is found. On the remote control unit, press the

Scroll buttons (° / ‡).

The frequency changes by a fixed step.

Turn the MULTI JOG knob to start auto tuning.

When a station is found, the unit tunes in to the station

Repeat this step until the station you want to listen to

< If you want to stop the tuning process, press the Stop

The selected preset channel is tuned in.

< For how to preset stations, see the next column.

If the reception is poor

Rotate or relocate the antenna to find the best position

You can select between Stereo and Mono by pressing

the FM MODE button when a stereo FM programme is

FM stereo broadcasts are received in stereo and

“Stereo” appears on the display.

< If the sound is distorted, the signal is not strong

enough for good stereo reception. In this case, change

To compensate for weak FM stereo reception, select

this mode. Reception will now be forced to monaural,

reducing unwanted noise.

You can store up to 30 FM and 15 AM stations.

Press and hold the PROGRAM button for more

The best received stations in your area will be stored

automatically.FM CH__ 101.90MHz

How to select preset stations

Press the Numeric buttons or the Skip buttons

< You can also select preset stations using the buttons

Tune in to a station you want to listen to (see page

Within 20 seconds, select a preset channel to store

For instance, to select preset number 15, press “1”, “5”

and the PROGRAM button.

To select numbers less than 10, press “0” and the

number. As an example, to select number 2, press “0”

and “2”. (Optionally, you may press just the number “2”

and then wait a few seconds.)

< If you do not press the PROGRAM button within 20

seconds after selecting the channel, the selection will

< If you store a new station to a channel, the station

previously stored in the channel will be overwritten.

To store more stations, repeat steps

The Radio Data System (RDS) is a broadcasting service

which allows stations to send additional information

along with the regular radio programme signal.

RDS works on the FM waveband in Europe only.

Tune in to an FM RDS station (see page 30).

Press the RDS button (or the RDS button of the

remote control unit).

Each time the RDS button is pressed, the RDS mode is

Program service (PS)

When you select Program service, “PROGRAM SERVICE” will blink for about 3 seconds and then the

programme service name or a station's name will be

displayed. If there is no programme service data, the

frequency will be displayed.

RDS Program type (PTY)

When you select RDS Program type, “RDS PROGRAM TYPE” will blink for about 3 seconds and then the

programme type will be displayed.

When you select RDS Radio text, “RDS RADIO TEXT”

will blink for about 3 seconds and then the news

of stations composed of up to 64 symbols will be

RDS (Only for Europe)

Displays the time information provided from the

When you select RDS Clock time, “RDS CLOCK TIME”

will blink for about 3 seconds and then the clock

time will be displayed.

The clock setting will be automatically adjusted

according to the CT data.

To turn on or off auto clock adjustment, press and

hold the RDS button for more than 3 seconds when

RDS Clock time is selected. “RDS CT SYNC ON” or

“RDS CT SYNC OFF” is displayed.3 5

PTY Search (Only for Europe)

You can search for stations by programme type.

This function is available only on RDS services of FM

Press the SOURCE button repeatedly to select

Press and hold the RDS button for more than 3

“RDS PROGRAM TYPE” appears on the display.

< When RDS Clock time (CT) mode is selected, this

function is not available.

Select a desired programme type using the

You can select from 31 kinds of PTY programmes.

The programme type blinks.

< You can also use the Cursor buttons (

remote control unit to select a programme type.

Press the ENTER button.

The programme type stops blinking.

Turn the MULTI JOG knob.

The unit starts searching.

< You can also start searching by pressing the Cursor

) on the remote control unit.

< When the programme that you have selected is found,

searching stops and the programme type will be

< If a matching programme type is not found during PTY Search, it will stop at the first frequency.

Brief announcements, events, public opinion, reports,

A kind of suggestion including practical

announcements other than news, documents,

discussion, analysis and so on.

Daily information or reference such as weather

forecast, consumer guide, medical assistance and so

Sports related programs.

Educational and cultural information.

All kinds of radio concert and serial drama.

All aspects of national or local culture including

religious events, philosophy, social science, language,

Programs on natural science and technology.

Popular programs such as quiz, entertainment, private

interview, comedy, satire and so on.

Programs on commercial, practical and popular songs,

and sale volume of discs, etc.

Practical modern music generally composed and

played by young musicians.

Popular music usually lasting for less than 5 minutes.

Classical music, instrumental music, chorus, and light

music favored by non-professionals.

Orchestra including great operas, symphony, chamber

Weather reports, forecast.

Financial reports, commerce, trading.

Children's programs.

Programs in which the public expresses its view by

Programs concerning recreational activities.

Music from the so-called golden age of popular music.

A program notifying of an emergency or a natural

The clock starts from 00 seconds.

Press and hold the TIME MODE button for more

“CLOCK SETTING” appears on the display.

< For Europe, the unit uses the 24-hour “military” clock.

For North America, the unit uses the 12-hour clock.

< When no action is taken for 20 seconds, the time

adjust mode will be cancelled.

< Press the STOP button (H) to cancel the time setting.

button to select the hour.

Setting the ClockENGLISH

< The unit can be programmed to turn on and off at

< Adjust the clock before setting the timer.

< When no action is taken for 20 seconds, the timer

setting mode will be cancelled.

The minute value of the stop time blinks.

and press the ENTER button.

You can select from “TU FM” (TUNER FM), “TU AM”

(TUNER AM), “CD”, “USB”, “SD” or “iPod”.

The volume level blinks.38

volume level and press the ENTER button.

Now the timer setting is stored in memory.

To turn on the timer

After setting the timer, press the TIMER button to

“TIMER ON” appears on the display.

When you have selected “CD”, “USB”, “SD” or “iPod” for

the timer, prepare to play back the source.

When you have selected “TU FM” or “TU AM” for the

timer, tune in to a station. The unit tunes in to the

station when timer starts working.

Press the STANDBY/ON button to turn the unit off

The standby indicator blinks at 5-second intervals.

The unit will turn on and off at the specified times

Do not forget to turn the unit off (standby), or the

timer will not work.

To turn off the timer

Press the TIMER button to turn off the timer.

“TIMER OFF” appears on the display.

522 kHz to 1,629 kHz (European model)

530 kHz to 1,710 kHz (North American model)

Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 dB CD Player Section

Frequency Response. . . . . . . 20 Hz to 20,000 Hz (±2 dB)

USB/SD Memory Card Section

120 V AC, 60 Hz (North American model)

(8-1/2 × 4-3/16 × 14 inch)

Remote Control Unit (RC-1226) × 1

FM Lead-type Antenna × 1

M Design and specifications are subject to change

M Weight and dimensions are approximate.

M Illustrations may differ slightly from production

If you have problems with your system, look through this

chart and see if you can solve the problem yourself before

calling your dealer or TEAC service center.

e Check the connection to the AC power supply. Check

and make sure the AC source is not a switched outlet

and that, if it is, the switch is turned on. Make sure

there is power to the AC outlet by plugging another

item such as a lamp or fan into the outlet.

No sound from speakers.

e Select the source using the SOURCE button.

e Check the connection to the speakers.

e Adjust the volume.

e Pull out the headphone plug from the PHONES jack.

e If “MUTING” is displayed, press the MUTING button.

e The unit is too close to a TV or similar appliances.

Install the unit away from them, or turn them off.

Remote control does not work.

e Press the STANDBY/ON button to turn the unit on.

e If the batteries are exhausted, change the batteries.

e Use remote control unit within the range (5 m/16-2/5

ft.) and point it at the front panel.

e Clear obstacles between the remote control unit and

e If a strong light is near the unit, turn it off.

e Load a disc with the label side up.

e If the disc is dirty, clean the surface of the disc.

e A blank disc has been loaded. Load a prerecorded

e Depending on the disc, etc. it may not be possible to

play back CD-R/RW discs. Try again with another disc.

e You cannot play back unfinalized CD-R/RW discs.

Finalize such a disc in a CD recorder and try again.

e Place the unit on a stable place to avoid vibration

e If the disc is dirty, clean the surface of the disc.

e Do not use scratched, damaged or warped discs.

MP3/WMA There is no sound even if the Play/Pause button (y/

e Check the file format. Non-playable file formats (e.g

MPEG 1 LAYER 2 file) cannot be played.

“No song title No artist No album” appears on the

e There is no ID3 tag information for the music file. Edit

the title, artist, and album information of the song on

a PC using the MP3 or WMA making application.

Some unknown characters are displayed on the

e This unit cannot display symbols and full-size or

double-byte characters (such as Japanese, Chinese,

etc.) correctly. File name of MP3 or WMA must be

alphanumeric characters only.

Cannot insert the iPod.

e Check the dock adapter.

e Remove dust or obstacles from the Dock connector

of the CR-H238i and the iPod, then insert the iPod

e Remove the iPod from the dock, wait a few seconds,

and insert it again.

e Software update may solve the problem. Visit

the Apple website and download the latest iPod

Cannot listen to any station, or signal is too weak.

e Tune in the station properly.

e Rotate the FM or AM antenna for the best reception

e An external antenna is recommended.

Though the broadcast is stereo, it sounds monaural.

e Press the FM MODE button.

If normal operation cannot be recovered, unplug the

power cord from the outlet and plug it in again.ENGLISH

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and

electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery

and recycling of old products and used batteries, please take them to applicable collection points, in accordance

with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any

potential negative effects on human health and the environment which could otherwise arise from inappropriate

For more information about collection and recycling of old products and batteries, please contact your local

municipality, your waste disposal service or the point of sale where you purchased the items.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local

authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom right two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement

set by the Directive for the chemical involved.

For European customers42

N Lecture/Pause (y/J)

PLAY/PAUSE (y/J) (Lecture/Pause)

VOLUME +/− (Volume +/−)

SLEEP 90 (60, 30, 20, 10)

Lecture/Pause (y/J).

RDS Program type (PTY)

(TUNER AM), “CD”, “USB”, “SD” ou “iPod”.

SLEEP 90 (60, 30, 20, 10)

Pulse “1”, “2” y “3”.

o “RDS CT SYNC OFF”.

(TUNER AM), “CD”, “USB”, “SD” o “iPod”.

MA-1524B This appliance has a serial number located on the rear panel. Please record the

model number and serial number and retain them for your records.

Model number Serial number

TEAC UK LIMITED Suites 19 & 20, Building 6, Croxley Green Business Park, Hatters Lane, Watford, Hertfordshire, WD18 8TE, U.K.
