USER MANUAL DO2011 DOMO

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

ZÁRUKA

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

INFORMACE O RECYKLACI ODPADU

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

VOLUME DU FOUR : 21 L

DIAMETRE PLATEAU TOURNANT : 27 CM

DIMENSIONS EXTERIEULES (L X P X H) : 485 X 395 X 287 MM

POIDS NET : 13,7 KG

MESURES DE SECURITE IMPORTANTES

FASSUNGSVERMÖGEN OFEN : 21 L

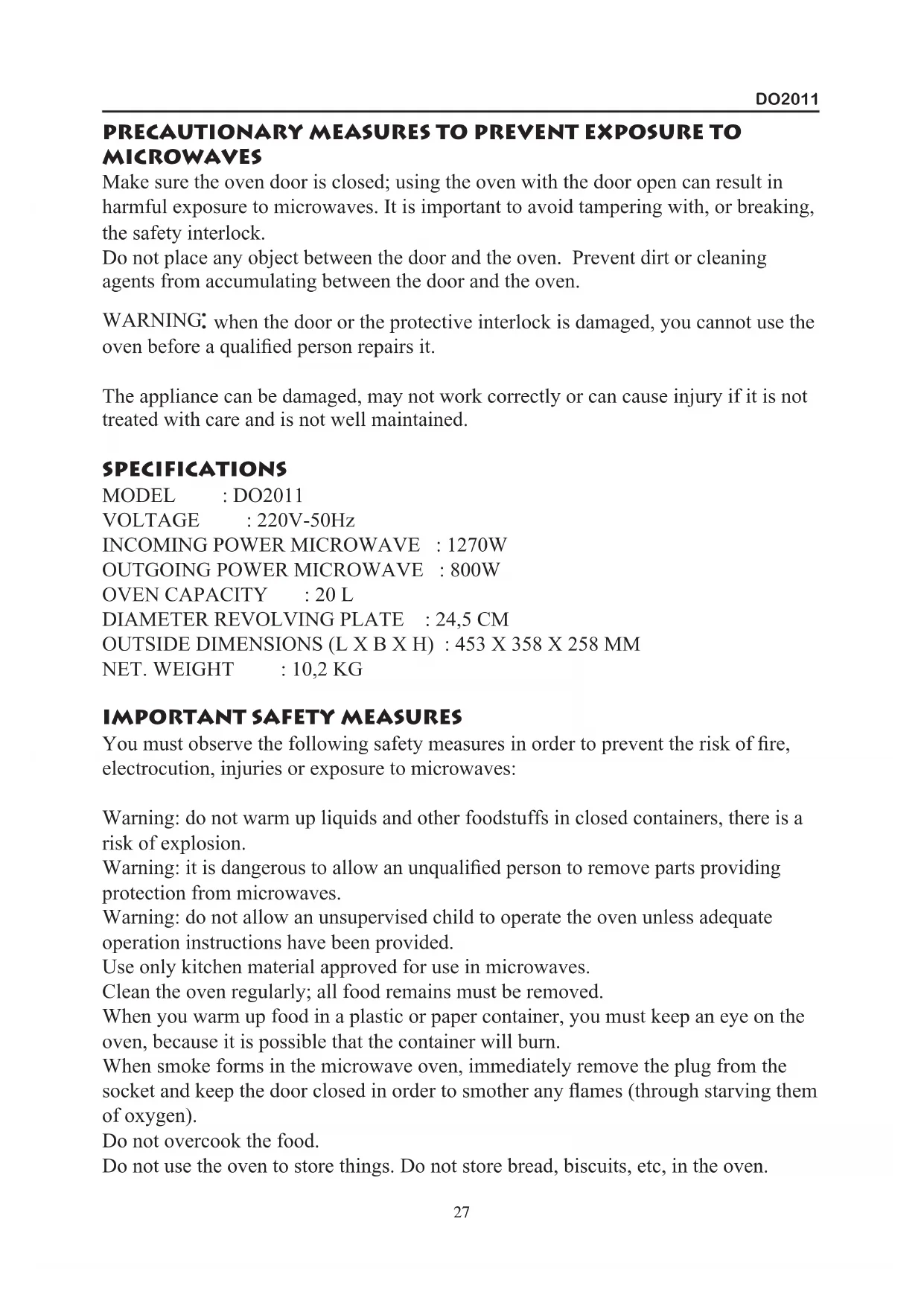

PRECAUTIONARY MEASURES TO PREVENT EXPOSURE TO MICROWAVES

Make sure the oven door is closed; using the oven with the door open can result in harmful exposure to microwaves. It is important to avoid tampering with, or breaking, the safety interlock.

Do not place any object between the door and the oven. Prevent dirt or cleaning agents from accumulating between the door and the oven.

WARNING: when the door or the protective interlock is damaged, you cannot use the oven before a qualified person repairs it.

The appliance can be damaged, may not work correctly or can cause injury if it is not treated with care and is not well maintained.

SPECIFICATIONS

MODEL :DO2011

VOLTAGE : 220V-50Hz

IMPORTANT SAFETY MEASURES

You must observe the following safety measures in order to prevent the risk of fire, electrocution, injuries or exposure to microwaves:

Warning: do not warm up liquids and other foodstuffs in closed containers, there is a risk of explosion.

Warning: it is dangerous to allow an unqualified person to remove parts providing protection from microwaves.

Warning: do not allow an unsupervised child to operate the oven unless adequate operation instructions have been provided.

Use only kitchen material approved for use in microwaves.

Clean the oven regularly; all food remains must be removed.

When you warm up food in a plastic or paper container, you must keep an eye on the oven, because it is possible that the container will burn.

When smoke forms in the microwave oven, immediately remove the plug from the socket and keep the door closed in order to smother any flames (through starving them of oxygen).

Do not overcook the food.

Do not use the oven to store things. Do not store bread, biscuits, etc, in the oven.

Remove wire fasteners and metal handles from packaging before placing a product in the oven.

Assemble the oven solely according to the official instructions.

Eggs in their shells or whole hard-boiled eggs should not be warmed up in the microwave oven. These could explode, even after the oven is switched off.

Use the appliance strictly according to the directions in the instruction manual. Do not use harmful chemicals or noxious fumes in this appliance. This oven is to be used only for heating. The appliance is not suitable for industrial or laboratory use.

When the electric lead is damaged it must be replaced by the manufacturer, by its after sales service centre or by a qualified person in order to prevent accidents or damage.

Never keep the appliance outdoors.

Do not use the oven near water, in a damp space or near a swimming pool.

The oven may become warm during use. Keep the electric lead well away from hot parts and do not cover the oven.

Do not let the lead hang over the edge of a table or counter.

If you fail to keep the oven clean it may result in damage to the appliance and possibly lead to dangerous situations.

The content of baby bottles and baby food must always be shaken or stirred. In order to prevent burns the temperature of foodstuffs must be checked before use.

The warming up of liquids can result in a delayed cooking reaction of the liquid. For this reason, always be careful when you remove the container from the oven.

This appliance is not for use by persons, including children, with any kind of impairment, such as, physical, sensorial or mental capacity. These persons are not permitted to use the appliance if they have limited experience or insufficient knowledge, unless they have received the necessary instructions for use or are otherwise being supervised by people ensuring their safety.

Make sure that children cannot play with the appliance.

Do not place this appliance in a cupboard.

This appliance is not permitted for use with an external timer or separate remote control.

WARNING: make sure that the appliance is switched off before changing the light bulb.

Do not use a steam cleaner to clean the appliance.

Do not use aggressive detergents or sharp objects to clean the glass in the door, this can lead to cracks or damage to the glass

The door of the appliance may become warm during use.

Appliances are not intended to be operated by means of an external timer or separate remote-control system.

The microwave oven shall not be placed in a cabinet.

This appliance is only for household use or environments of a similar character such as: - kitchens that are used by personnel of shops, office or other similar professional environments.

• Farms
• Hotel rooms and motel rooms and other similar environments with a residential character.
• Bed and breakfast or similar.

KEEP THIS LIST OF WARNINGS FOR LATER REFERENCE

IN ORDER TO AVOID THE RISK OF INJURIES

Attention: Do not touch any (electrical) parts in the appliance's interior. This can result in serious injury or death. Do not dismantle the appliance.

Incorrect use of the appliance and the earthed plug can lead to electrocution. Do not switch the appliance on before it has been correctly assembled and connected to an earthed socket.

This appliance must be connected to an earthed socket. When the appliance short-circuits, the earthed socket ensures that the electricity is safely conducted and diverted.

This appliance is provided with an earthed plug, it must be connected to an earthed socket. If you are not absolutely certain about your electrical system at home, contact a qualified electrician. In the event you need to make use of wiring for an extension, always use a lead with 3 wires.

Your appliance is provided with a short electric lead to prevent tangling or accidents from tripping over it.

In the event you use an extension lead you must make sure that the lead has at least the same capacity as that of the oven.

The extension lead must be placed so that nobody will trip over it or get caught in it.

CLEANING

Always make sure that the plug has been removed from the socket before you clean the appliance.

After use, clean the inside of the oven with a damp cloth.

Clean the parts, such as grill, glass turntable/revolving plate, in warm water, using a mild detergent.

If dirty, you can clean the door, the interlock and the control panel, with a lightly dampened cloth.

MATERIALS PERMITTED FOR USE IN THE MICROWAVE OVEN

Here below is a list of objects that can or cannot be used in the appliance. In the event you cannot find the object you wish to use in the list below, you can apply the following method to check whether the object is suitable for microwave use.

Fill a microwave-safe container with 250~ml of cold water and place this, together with the object to be tested, in the microwave oven. Adjust the microwave to maximum power for 1 min and switch on.

Feel the object carefully to test whether or not it is warm, if it is, it means it is not suitable for use in the microwave oven.

TAKE CARE: never cook the object for longer than 1 min in the microwave.

Materials not permitted for use in the microwave oven

Aluminium foil: Only for covering food. Small pieces of foil can be used to lay on top of food to prevent it from overcooking. Sparks can develop if the foil is placed too close to the microwave's sides. The foil must be at least 2,5cm from the sides.

Crockery: Only microwave-safe crockery. Do not use any crockery that displays cracks or chips.

Glass jug/can: only use without lids. Only to use for lightly warming. Most glasses are not heat-resistant and can break.

Glassware: heat-resistant oven glassware is permitted. Take care that the glass does not contain metal decorations or metal parts. Do not use any cracked or damaged glass.

Oven cooking bags: follow the manufacturer's instructions. Do not close the bag with a metal fastener. Make holes in the bag so that the steam can escape.

Plastic: only plastic suitable for the microwave. Follow the manufacturer's instructions. The words "microwave safe" must always be clearly visible on the plastic. Some plastic containers become soft if food is heated in them. Cooking bags and closed bags need to be pricked to allow steam to escape.

Plastic packaging: Only plastic that is microwave approved. It can be used for covering the food so that it does not dry out. Always make sure that the food does not touch the plastic.

Thermometer: only microwave-safe thermometers.

Materials permitted for use in the microwave oven

Aluminium dish: this can cause sparks. Lay the food on a microwave-safe dish.

Food container with metal handle(s): can cause sparks. Lay the food on a microwave-safe dish.

Kitchen material made from metal or with metal finish. Metal shields the food from microwave energy. Metal finishes can cause sparks.

Metal fasteners: can lead to sparks and can cause fire in the oven.

Paper bags: can cause fire in the oven.

Plastic foam: when exposed to high temperatures it can melt or contaminate the food inside the plastic foam container.

Wood: wood dries out in the microwave and through this can burst or split.

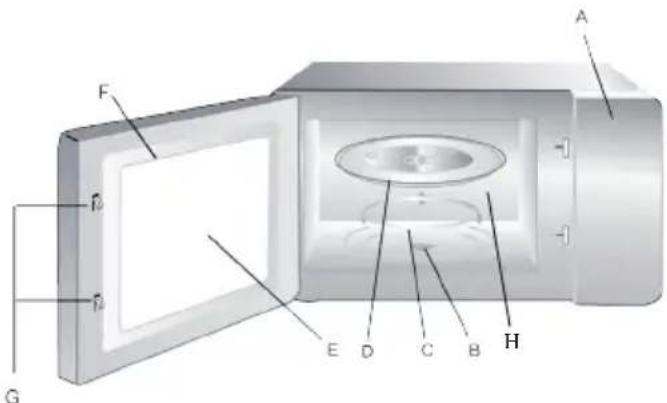

PARTS

A. Control panel
B. Revolving plate
C. Revolving plate ring
D. Glass revolving plate
E. Display window (for viewing inside)
F. Door
G. Safety lock
H. Microwave guide

ASSEMBLY OF THE REVOLVING PLATE

First place the revolving plate ring in the middle of your microwave oven.

Place the revolving plate on the ring; make sure that the middle of the revolving ring fits in the revolving plate support.

Never place the revolving plate upside down. Always make sure that the revolving plate can turn freely steeds, without obstruction.

The revolving plate and ring must be used at all times during cooking.

All food and containers must, at all times, be placed on the glass plate during cooking.

When the glass plate or the ring display any cracks, you should immediately get in touch with your nearest service centre.

ASSEMBLY

Remove all packaging material and the accessories.

Examine the oven for any possible damage such as dents or damaged door. Do not use the oven if it is damaged.

Remove the protective film layer from around your appliance; it was used to prevent scratches.

1. Choose a spot to place your microwave where there is sufficient space to allow for the free circulation of air.

Make sure that a minimum distance of 10cm is kept, at the rear and on the left and right-hand sides, from the wall and any cupboard. One side of the microwave must be left completely open.

An open space of at least 30~cm must be allowed above the microwave oven.

1. Never remove the legs underneath your oven.
2. Blocking the air intake and outlet can lead to damage to your appliance.
3. Keep the oven as far as away as possible from radio and TV.
4. Plug your oven into the socket, always check whether the voltage in your home corresponds to the voltage stated on your appliance.

Warning: Do not place the oven above a cooking stove or other heat producing appliance(s), this can damage the appliance and your guarantee will not be valid.

The accessible part of your appliance may become warm during use.

INSTRUCTIONS FOR USE

You can adjust the microwave power by using the top dial. The microwave power is set in the following way:

Low: 17% for example, softening ice cream.

Med. Low (defrost): 33% for preparing soup, softening butter and defrosting.

Med: 55% for preparing fish and simmering

Med. High: 77% for rice, fish, chicken, minced meat

High: 100% : for warming up, milk, boiling water, vegetables, drinks

You can adjust the cooking time by setting the bottom dial to the desired position.

After adjusting the microwave position and setting the timer the microwave oven will start automatically.

When the cooking time finishes you will hear a signal.

You must always set the timer to "0" if the appliance is not being used.

Always set the dial to "0" before removing food from the oven. Failure to turn the microwave oven off means it may continue to work without any food inside and this can damage it.

DEFROSTING

You can use the microwave for defrosting.

Adjust the microwave power to "M.Low" this is the defrosting position.

Then you can set the timer by adjusting the bottom dial to the desired number of minutes.

You also have the option of defrosting according to weight. On the outer ring on the bottom dial the different weights are indicated in kilos: 0 - 0,2 - 0,4 - 06 - 0,8 - 1,0 . Select a weight and the time duration needed for defrosting will be set automatically.
