USER MANUAL PVK 640 N CANDY

ELBAC NOITCES²mm5,2G3²mm5,2G3²mm5,2G4²mm5,2G4²mm5,1G5

Terre (T) Phase 1Phaseshunter 2-3Neutreshunter 4-5TerrePhaseshunter 1-2Phaseshunter 3-4Phase 5TerrePhase 1Phase 2Phase 3Neutreshunter 4-5TerrePhaseshunter 1-2shunter 2-3Phaseshunter 4-5TerrePhaseshunter 1-2shunter 2-3Neutreshunter 4-5Terre 12345 T 12345 T

PROBLEMES ET SOLUTIONS14 -

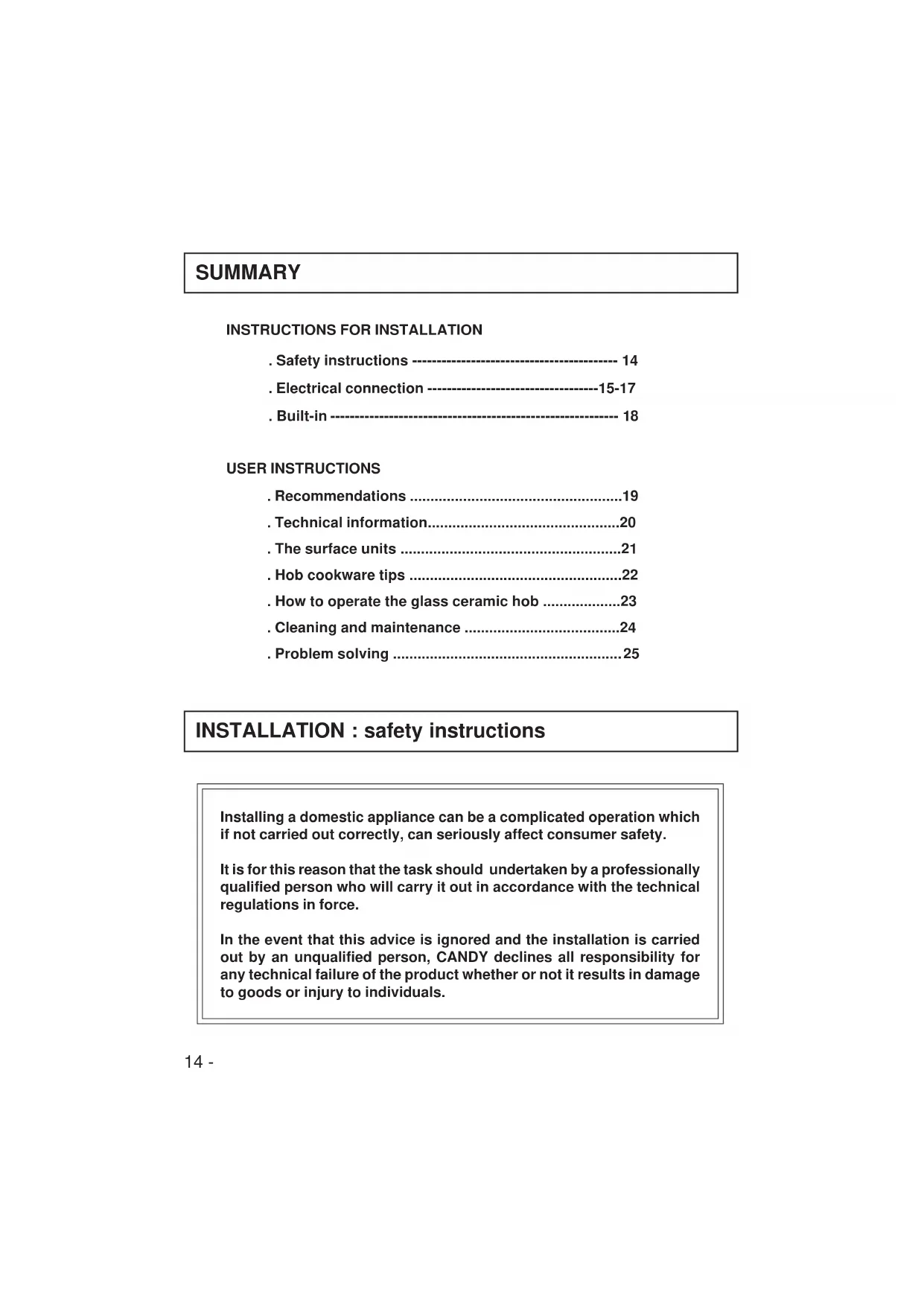

Installing a domestic appliance can be a complicated operation which

if not carried out correctly, can seriously affect consumer safety.

It is for this reason that the task should undertaken by a professionally

qualified person who will carry it out in accordance with the technical

regulations in force.

In the event that this advice is ignored and the installation is carried

out by an unqualified person, CANDY declines all responsibility for

any technical failure of the product whether or not it results in damage

to goods or injury to individuals.

INSTALLATION : safety instructions

. Hob cookware tips 22

. How to operate the glass ceramic hob 23

. Cleaning and maintenance 24

. Problem solving 25

"The installation must conform to the standard directives."

CANDY declines all responsibility for any damage that may be caused by unsuitable or

• Always check before any electrical operation, the supply tension shown on the

electricity meter, the adjustment of the circuit-breaker, the continuity of the

connection to earth to the installation and that the fuse is suitable.

• The electrical connection to the installation should be made via a socket with a

plug with earth, or via an omnipole cut-out switch with an opening gap of at least

• The yellow/green wire of the power supply cable must be connected to the

earth of both power supply and appliance terminals.

• Candy cannot be held responsible for any accidents resulting from the use of an

appliance which is not connected to earth, or with a faulty earth connection

• Any queries regarding the power supply cord should be referred to After Sales

Service or a qualified technician.

A power cord is not supplied with the appliance, but the hob is equipped with a terminal

block which enables you to choose the correct connection for the particular power supply.

The terminal block permits different connections :

. Monophase 220-240 V2~

CONNECTION TO THE TERMINALS ON THE TERMINAL BLOCK :

To proceed with the connection, you must adhere to the following instructions.

. Before making the connection, make sure that the installation is protected by a suitable

fuse, see table on next page, and that it is fitted with wires of a large enough section to

supply the appliance normally.

. Choose the supply cord in accordance with the recommendations in the table next

. Turn the hob, with the glass side against the worktop, providing you have protected

. Remove the cover located under the control knobs, fitted by 2 screws at the front.

. Pass the supply cord into the cover hole.

. Pass the supply cord into the clamp.

. Strip the end of each conductor of the supply cord on a 10 mm length, by taking

account of the requested length of the cord for the connection on the terminal block.

. The terminal block offers different types of connection.

So, in accordance with installation instructions and

with the help of shunt bars*, fix the conductors as

shown on the chart in next page.

* The shunt bars, placed on the Earth Terminal,

allow to make a bridge between two phases.

. Screw the cable clamp back.

. Screw the cover hole back.

INSTALLATION - ELECTRICAL CONNECTION Shunts bars

Please take care to ensure that the shunt

bars do not fall through the hole.- 17

For the connection to the terminal block,

. follow the marks 1, 2, 3, 4 and 5.

. tighten the screws.

. do not forget to fix the earth wire on

Example of connection Three Phase

The earth wire (yellow/green) must be

clipped at this place.

Screw the screw fully home.

When you fit the cover back, do not forget the fan-lock washers.

ELBAC AREA²mm5,2G3²mm5,2G3²mm5,2G4²mm5,2G4²mm5,1G5

Phase 1Phaseshunt 2-3Neutralshunt 4-5Earth EPhaseshunt 1-2Phaseshunt 3-4Phase 5Earth EPhase 1Phase 2Phase 3Neutralshunt 4-5Earth EPhaseshunt 1-2shunt 2-3Phaseshunt 4-5Earth EPhaseshunt 1-2shunt 2-3Neutralshunt 4-5Earth E12345 T12345 T12345 T PH To shunt :make a bridgewith a shunt barPH PHEEEEEPH PHPH PH PH PH PH PH N NNIMPORTANT : Blue wire = Neutral Yellow / Green = Earth12345 T 1 2 3 4 5 12345 T Screw

INSTALLATION - ELECTRICAL CONNECTION18 -

The furniture in which your hob will be installed and all adjacent furniture, should be

made from materials that can withstand high temperatures. In addition, all decorative

laminates should be fixed with heat-resistant glue.

• A watertight seal is supplied with the hob.

. turn the hob upside down, with the glass surface facing downwards.

NB : Make sure the glass is protected.

. fit the seal round the hob.

. make sure that it is correctly fitted to avoid any leakage into the supporting cabinet.

• Leave a gap of at least 5 cm between the appliance and the vertical sides of the

• If, when installing the hob, the lower hob face is adjacent to an area normally acces-

sible when handling or cleaning, fit a partition 1 cm below the base of the hob with a

10x10 cm opening at the rear right-hand corner to avoid any risk of scorching or damage.

HOB Hob with glass surface

Glass surface of hob

INSTALLATION - BUILT-IN

490 mm 595 mm510 mm41 mm10 x 10 cm- 19

• The hob is hot when in use. Surface temperatures are high so be careful when

touching the hob. Keep children away.

• Do not touch the heat zones during operation for a while after use.

• Never cook food directly on the glass ceramic hob. Always use the appropriate

• Always place the pan in the centre of the unit that you are cooking on.

• Do not use the surface as a cutting board.

• Do not slide cookware across the hob.

• Do not store heavy items above the hob. If they drop onto the hob, they may

• Do not use the hob as a working surface.

• Do not use the hob for storage of any items.

• Aluminium foil and plastic pans must not be placed on heating zones.

• When cooking with fats or oils, never leave surface unit unattended. Overheated

fats or oils can quickly catch fire.

• In the unlikely event of a surface crack appearing, do not use the hob. Immediately

disconnect the hob from the electrical power supply and call the After Sales Ser-

• It is advisable not to stare directly at the halogen elements.

Total power input 6600 W 6500 W Supply voltage 220 - 240 V ~ 220 - 240 V ~

TECHNICAL INFORMATION At Candy we are constantly striving to improve product quality and as such may modify

appliances to incorporate the latest technical improvements.

Glass Ceramic Hobs conform to directives 73/23/CEE and 89/336/CEE.

The glass ceramic hob is fitted with different surface units :

is regulated by a control knob with 6 heat positions.

It is a combination of halogen (1/3) and high light (2/3).

The temperature rise of this surface unit is extremely rapid.

It is suitable for frying meat, rapid boiling and intensive cooking where a high

temperature is required for a very short period of time.

----------------------------------------------------------------------------------------------------------------

is regulated by a control knob with 6 heat positions.

A metallic conductor strip is uniformly spread over the whole surface of the unit.

It is operational within 3 seconds and is suitable for steady, homogeneous and

----------------------------------------------------------------------------------------------------------------

Using good quality cookware is critical for setting the best performance from

• Always use good quality cookware with perfectly flat and thick bases : using this

type of cookware will prevent hot spots that cause food to stick. Thick metal pots and

pans will provide an even distribution of heat.

• Ensure that the base of the pot or pan is dry : when filling pans with liquid or using

one that has been stored in the refrigerator, ensure that the base of the pan is completely

dry before placing it on the hob. This will help to avoid staining the hob.

• Use pans whose diameter is wide enough to completely cover the surface unit :

the size of the pan should be no smaller than the heating area. If it is slightly wider the

energy will be used at its maximum efficiency.

THE CHOICE OF COOKWARE The following information will help you to choose cookware which will give good perfor-

Stainless Steel : highly recommended.

Especially good with a sandwich clad base. The sandwich base combines the benefits

of stainless steel (appearance, durability and stability) with the advantages of aluminium

or copper (heat conduction, even heat distribution).

Aluminium : heavy weight recommended.

Good conductivity. Aluminium residues sometimes appear as scratches on the hob, but

can be removed if cleaned immediately. Because of its low melting point, thin aluminium

Cast Iron : usable, but not recommended. Poor performance. May scratch the surface.

Copper Bottom / stoneware: heavy weight recommended.

Good performance, but copper may leave residues which can appear as scratches. The

residues can be removed, as long as the hob is cleaned immediately. However, do not

let these pots boil dry. Overheated metal can bond to glass hobs. An overheated copper

pot will leave a residue that will permanently stain the hob.

Porcelain/enamel : Good perfomance only with a thiny smooth, flat base.

Glass-ceramic : not recommended. Poor performance. May scratch the surface.

HOB COOKWARE ADVICE- 23

• Locate the sign corresponding to the cooking zone that you need :

rear rear front front

right left left right

Each surface unit is regulated by a control knob which provides access to any

• It is recommended that heat setting is at its highest until it has properly warmed

up and then lower to the desired cooking setting.

• The residual heat indicator lights up when the heat zone temperature reaches

60°C and above. It will stay on, even if the unit is switched off, until the surface

It will switch off when the temperature of the heat zone falls below 60°C.

• To switch off an heat zone, turn the corresponding knob back on the "0" setting.

• Positions : The examples below are intended as a guide. When you become

familiar with using your hob you will be able to work out the settings which suit

...etalocohcdnarettubtlem,tohhsidapeekoT

...gniyrf,spohc,skaetS24 -

• Before carrying out any maintenance work on the hob, allow it to cool down.

• Only products, (creams and scrapers) specifically designed for glass ceramic sur-

faces should be used. They are obtainable from hardware stores.

• Avoid spillages, as anything which falls on to the hob surface will quickly burn and

will make cleaning more difficult.

• It is advisable to keep away from the hob all substances which are liable to melt,

such as plastic items, sugar, or sugar-based products.

. Place a few drops of the specialised cleaning product on the hob surface.

. Rub any stubborn stains with a soft cloth or with slightly damp kitchen paper.

. Wipe with a soft cloth or dry kitchen paper until the surface is clean.

If there are still some stubborn stains:

. Place a few more drops of specialised cleaning

fluid on the surface.

. Scrape with a scraper, holding it at an angle of

30° to the hob, until the stains disappear.

. Wipe with a soft cloth or dry kitchen

paper until the surface is clean.

. Repeat the operation if necessary.

Frequent cleaning leaves a protective layer which is essential to prevent scratches and

wear. Make sure that the surface is clean before using the hob again.

To remove marks left by water, use a few drops of white vinegar or lemon juice. Then

wipe with absorbent paper and a few drops of specialised cleaning fluid.

The glass ceramic surface will withstand scraping from flat-bottomed cooking vessels,

however, it is always better to lift them when moving them from one zone to another.

The control knobs can be removed for a complete cleaning. However, you must care

not to let any liquid go into the open zones, and then to push the knobs fully on fitting

NB: • do not use a sponge which is too wet.

• never use a knife or a screwdriver.

• a scraper with a razor blade will not damage the surface, as long as it is kept at

• never leave a scraper with a razor blade within the reach of children.

• never use abrasive products or scouring powders.

• The metal surround :

To safely clean the metal surround wash with soap and water, rinse, then dry with a soft

CLEANING AND MAINTENANCE

Cooking zones that do not

Tiny scratches (may appear as

cracks or abrasions) on the

glass surface of the hob.

Metal markings (may appear as

Dark streaks or specks.

Areas of discoloration on cook-

Hot sugar mixtures / plastic

melted to the surface.

The hob is out of order, or some

heat zones do not work.

• You must use pans which are absolutely flat. If

light is visual between the pan base and a straight

edge, the surface unit will not transfer heat properly.

• Pan bottoms should closely match the diameter

of the heat zone selected.

• Improper cookware being used. Pan bases should

be flat, fairly heavy-weight and the same diameter

as the heat zone selected.

• Incorrect cleaning methods, cookware with rough

bases, or coarse particles (salt or sand) trapped

between the cookware and the surface of the hob.

Use recommended cleaning procedures, be sure

cookware bases are clean before use and use

cookware with smooth bases.

• Do not slide aluminium cookware across the sur-

face. Use recommended cleaning procedure to

• Incorrect cleaning materials have been used,

spillage or grease stains remain on the surface,

use a razor scraper and recommended cleaning

• Use a razor scraper and recommended cleaning

• Marks from aluminium and copper pans as well

as mineral deposits from water or food can be

removed with the cleaning cream.

• See the Glass Hob Cleaning section.

• The shunt bars are not properly fitted on the ter-

minal block. Check the connection is made in

conformity with the instructions page 15 to 17.

ODAELBACLASREVSNARTNÓICCES AERÁ²mm5,2G3²mm5,2G3²mm5,2G4²mm5,2G4²mm5,1G5
